INFINITI FX35 2004 Service Manual BRC-4
[VDC/TCS/ABS]
PRECAUTIONS
Revision: 2004 November 2004 FX35/FX45
If aftermarket parts (car stereo, CD player, etc.) have been installed, check for incidents such as harness
pinches, open circui

Page 1130 of 4449

INFINITI FX35 2004 Service Manual PREPARATION
BRC-5
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2004 November 2004 FX35/FX45
PREPARATIONPFP:00002

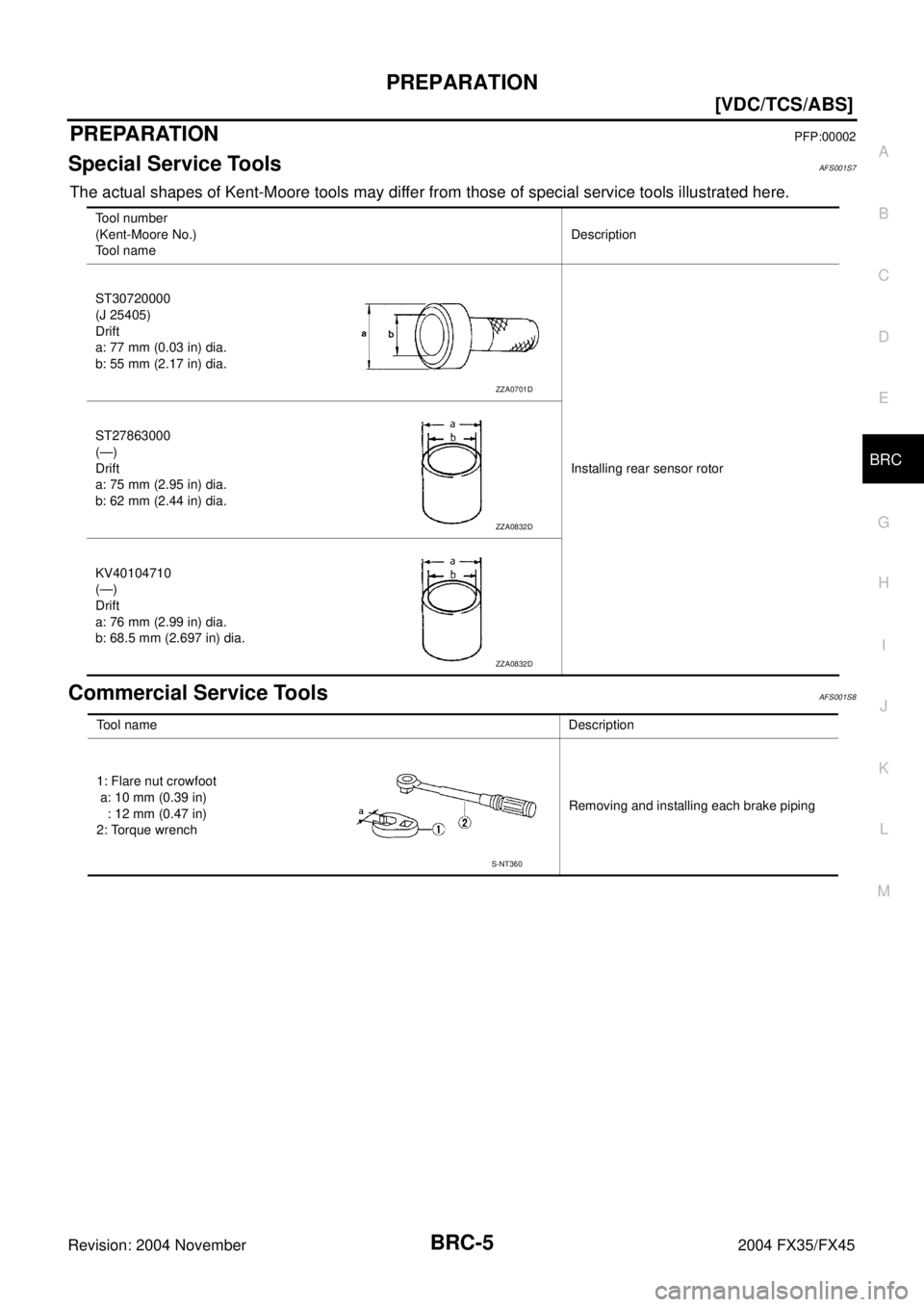

Special Service ToolsAFS001S7
The actual shapes of Kent-Moore tools may differ fr

Page 1131 of 4449

INFINITI FX35 2004 Service Manual BRC-6
[VDC/TCS/ABS]
ON-VEHICLE SERVICE
Revision: 2004 November 2004 FX35/FX45
ON-VEHICLE SERVICEPFP:00000
Adjustment of Steering Angle Sensor Neutral PositionAFS001S9
In case of doing work that applie

BRC-6
[VDC/TCS/ABS]
ON-VEHICLE SERVICE
Revision: 2004 November 2004 FX35/FX45
ON-VEHICLE SERVICEPFP:00000
Adjustment of Steering Angle Sensor Neutral PositionAFS001S9
In case of doing work that applies to the list below, make sure to adjust neutral position of steering angle sen-
sor before running vehicle.
×: Required
–: Not required
CAUTION:
To adjust neutral position of steering angle sensor, make sure to use CONSULT-II.
(Adjustment cannot be done without CONSULT-II.)
1. Stop vehicle with front wheels in straight-ahead position.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle, and turn ignition
switch ON (do not start engine).
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
3. Touch “ABS”, “WORK SUPPORT” and “ST ANGLE SENSOR ADJUSTMENT” on CONSULT-II screen in
this order. Refer to BRC-26, "
CONSULT-II BASIC OPERATION PROCEDURE" .
4. Touch “START”.
CAUTION:
Do not touch steering wheel while adjusting steering angle
sensor.
5. After approximately 10 seconds, touch “END”. (After approxi-
mately 60 seconds, it ends automatically.)
6. Turn ignition switch OFF, then turn it ON again.
CAUTION:
Be sure to carry out above operation.
7. Run vehicle with front wheels in straight-ahead position, then
stop.
8. Select “DATA MONITOR”, “SELECTION FROM MENU”, and “STR ANGLE SIG” on CONSULT-II screen.
Then make sure “STR ANGLE SIG” is within 0 ±3.5 deg. If value is more than specification, repeat steps 3
to 7.
9. Erase memory of ABS actuator and electric unit (control unit) and ECM.
10. Turn ignition switch OFF.
Calibration of Decel G-sensor (AWD Model)AFS001TQ
NOTE:
After removing/installing or replacing yaw rate/side/decel G-sensor, ABS actuator and electric unit (control
unit), suspension components, or after adjusting wheel alignment make sure to calibrate of decel G-sensor
before running vehicle.
CAUTION:
To calibrate decel G-sensor, make sure to use CONSULT-II. (Adjustment cannot be done without CON-
SULT-II.)
Situation Adjustment of Steering Angle Sensor Neutral Position
Removing/Installing ABS actuator and electric unit (control unit)−
Replacing ABS actuator and electric unit (control unit)×
Removing/Installing steering angle sensor×
Removing/Installing steering components×
Removing/Installing suspension components×
Change 4 tires to new ones –
Tire rotation–
Adjusting wheel alignment×
SFIA0371E

Page 1132 of 4449

INFINITI FX35 2004 Service Manual ON-VEHICLE SERVICE
BRC-7
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2004 November 2004 FX35/FX45
1. Stop vehicle with front wheels in straight-ahead position.
CAUTION:
The work should be done

Page 1133 of 4449

INFINITI FX35 2004 Service Manual BRC-8
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: 2004 November 2004 FX35/FX45
SYSTEM DESCRIPTIONPFP:00000

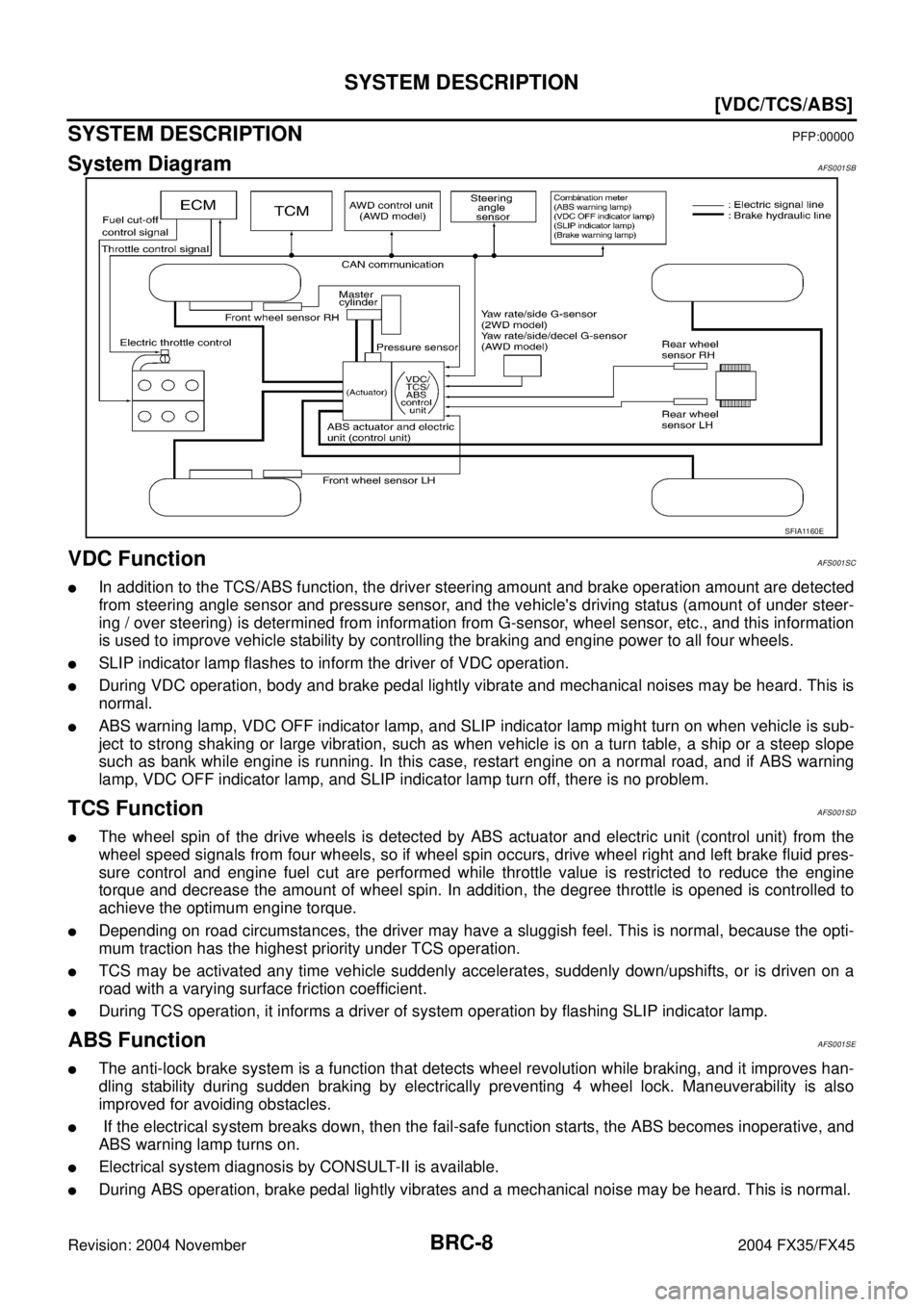

System DiagramAFS001SB
VDC FunctionAFS001SC
In addition to the TCS/ABS function, the driver s

BRC-8
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: 2004 November 2004 FX35/FX45
SYSTEM DESCRIPTIONPFP:00000
System DiagramAFS001SB
VDC FunctionAFS001SC
In addition to the TCS/ABS function, the driver steering amount and brake operation amount are detected
from steering angle sensor and pressure sensor, and the vehicle's driving status (amount of under steer-
ing / over steering) is determined from information from G-sensor, wheel sensor, etc., and this information
is used to improve vehicle stability by controlling the braking and engine power to all four wheels.
SLIP indicator lamp flashes to inform the driver of VDC operation.
During VDC operation, body and brake pedal lightly vibrate and mechanical noises may be heard. This is
normal.
ABS warning lamp, VDC OFF indicator lamp, and SLIP indicator lamp might turn on when vehicle is sub-
ject to strong shaking or large vibration, such as when vehicle is on a turn table, a ship or a steep slope
such as bank while engine is running. In this case, restart engine on a normal road, and if ABS warning
lamp, VDC OFF indicator lamp, and SLIP indicator lamp turn off, there is no problem.
TCS FunctionAFS001SD
The wheel spin of the drive wheels is detected by ABS actuator and electric unit (control unit) from the
wheel speed signals from four wheels, so if wheel spin occurs, drive wheel right and left brake fluid pres-
sure control and engine fuel cut are performed while throttle value is restricted to reduce the engine
torque and decrease the amount of wheel spin. In addition, the degree throttle is opened is controlled to
achieve the optimum engine torque.
Depending on road circumstances, the driver may have a sluggish feel. This is normal, because the opti-
mum traction has the highest priority under TCS operation.
TCS may be activated any time vehicle suddenly accelerates, suddenly down/upshifts, or is driven on a
road with a varying surface friction coefficient.
During TCS operation, it informs a driver of system operation by flashing SLIP indicator lamp.
ABS FunctionAFS001SE
The anti-lock brake system is a function that detects wheel revolution while braking, and it improves han-
dling stability during sudden braking by electrically preventing 4 wheel lock. Maneuverability is also
improved for avoiding obstacles.
If the electrical system breaks down, then the fail-safe function starts, the ABS becomes inoperative, and
ABS warning lamp turns on.
Electrical system diagnosis by CONSULT-II is available.
During ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.
SFIA1160E

Page 1134 of 4449

INFINITI FX35 2004 Service Manual SYSTEM DESCRIPTION
BRC-9
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2004 November 2004 FX35/FX45
When starting engine, or just after starting vehicle, brake pedal may vibrate or motor operati

SYSTEM DESCRIPTION
BRC-9
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2004 November 2004 FX35/FX45
When starting engine, or just after starting vehicle, brake pedal may vibrate or motor operating noises
may be heard from engine compartment. This is a normal status of operation check.
Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
EBD FunctionAFS001SF
Electronic brake distributor is a function that detects subtle slippages between front and rear wheels dur-
ing braking, and it improves handling stability by electronically controlling the brake fluid pressure which
results in reduced rear wheel slippage.
In case of electrical system break down, the fail-safe function is activated, EBD and ABS becomes inoper-
ative, and ABS warning lamp and brake warning lamp are turned on.
Electrical system diagnosis by CONSULT-II is available.
During EBD operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.
When starting engine, or just after starting vehicle, brake pedal may vibrate or motor operating noises
may be heard from engine compartment. This is a normal status of operation check.
Stopping distance may be longer than that of vehicles without EBD when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
Fail-Safe FunctionAFS001SG
VDC / TCS SYSTEM
In case of malfunction in the VDC/TCS system, VDC OFF indicator lamp and SLIP indicator lamp are turned
on, and the condition of vehicle is the same as the condition of vehicles without VDC/TCS system. In case of
malfunction in the VDC/TCS system, the ABS control continues to operate normally without VDC/TCS control.
CAUTION:
If the fail-safe function is activated, then perform the self-diagnosis for VDC/TCS/ABS control system.
ABS, EBD SYSTEM
In case of electrical malfunctions with the ABS, ABS warning lamp, VDC OFF indicator lamp and SLIP indica-
tor lamp will turn on. In case of electrical malfunctions with the EBD, brake warning lamp, ABS warning lamp,
VDC OFF indicator lamp and SLIP indicator lamp will turn on. Simultaneously, the VDC/TCS/ABS become one
of the following conditions of the fail-safe function.
1. For malfunction of ABS, only the EBD is activated and the condition of vehicle is the same condition of
vehicles without TCS/ABS system.
2. For malfunction of EBD, EBD and ABS become inoperative, and the condition of vehicle is the same as
the condition of vehicles without TCS/ABS, EBD system.
NOTE:
In condition 1 described above, an ABS self-diagnosis sound may be heard. That is a normal condition
because a self-diagnosis for “Key Switch ON” and “the First Starting” are being performed.

Page 1135 of 4449

INFINITI FX35 2004 Service Manual BRC-10
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: 2004 November 2004 FX35/FX45

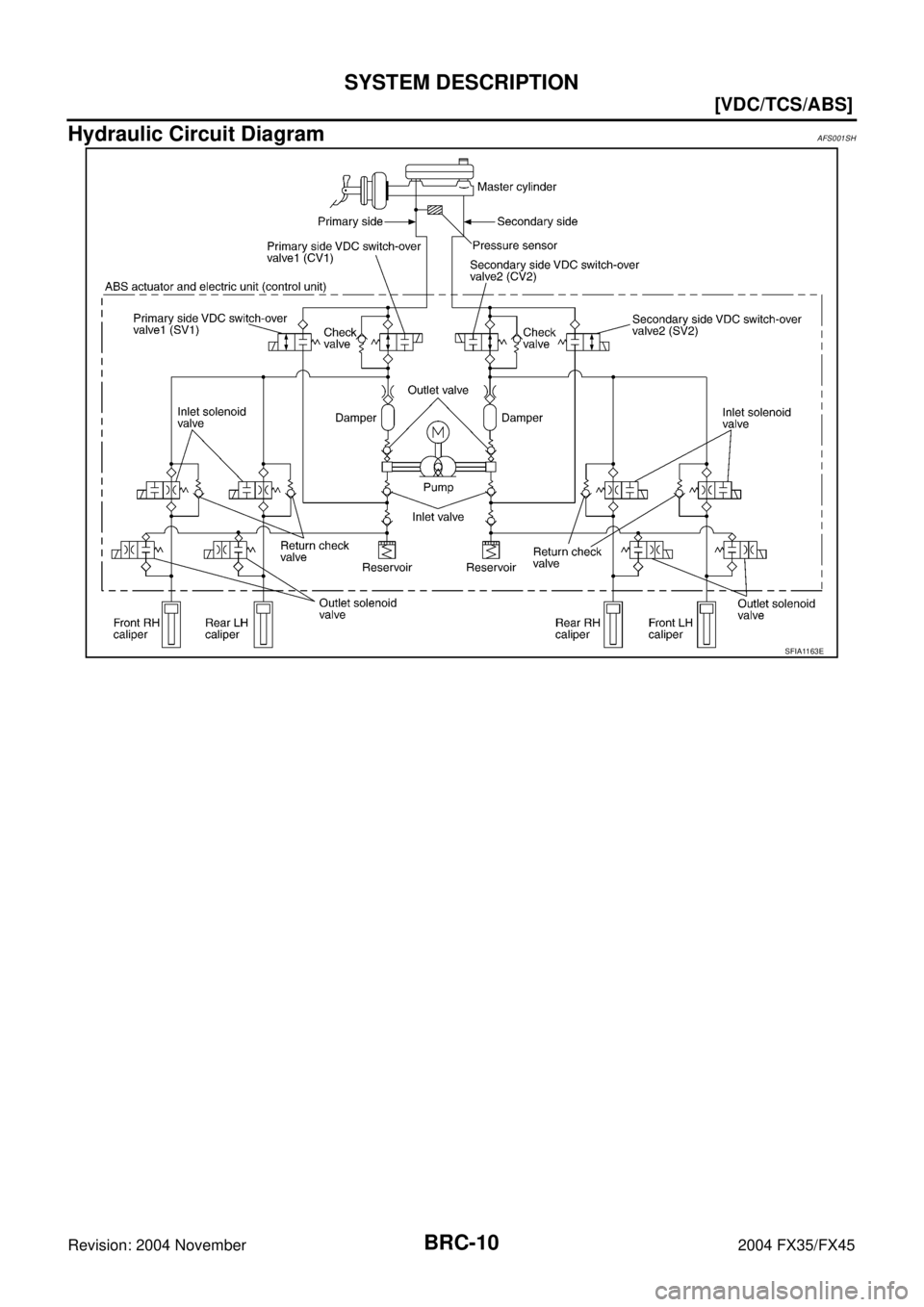

Hydraulic Circuit DiagramAFS001SH
SFIA1163E

Page 1136 of 4449

INFINITI FX35 2004 Service Manual CAN COMMUNICATION
BRC-11
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2004 November 2004 FX35/FX45
CAN COMMUNICATIONPFP:23710
System DescriptionAFS002Q7
CAN (Controller Area Network) is a serial
