Page 2553 of 4449
EC-1212
[VK45DE]
DTC P1706 PNP SWITCH
Revision: 2004 November 2004 FX35/FX45
Overall Function CheckABS00CCY
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.
WITH GST
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal)
and ground under the following conditions.
3. If NG, go to EC-1214, "
Diagnostic Procedure" .
Condition (Gear position) Voltage V (Known good data)
P or N position Approx. 0
Except above positionBATTERY VOLTAGE
(11 - 14V)
MBIB0043E
Page 2554 of 4449
DTC P1706 PNP SWITCH
EC-1213
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45

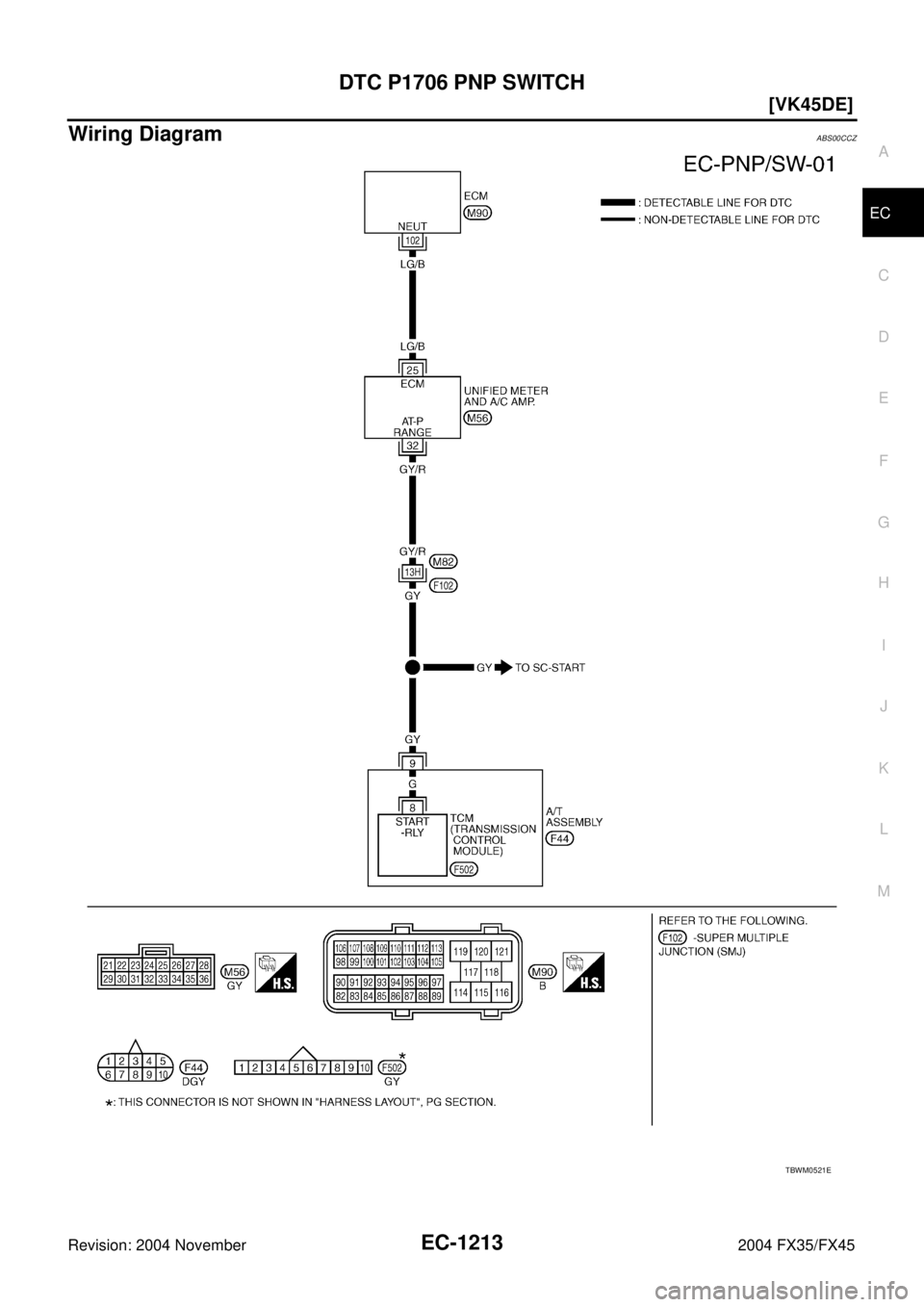

Wiring DiagramABS00CCZ
TBWM0521E
Page 2555 of 4449
![INFINITI FX35 2004 Service Manual EC-1214
[VK45DE]
DTC P1706 PNP SWITCH
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground t INFINITI FX35 2004 Service Manual EC-1214
[VK45DE]
DTC P1706 PNP SWITCH
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground t](/manual-img/42/57021/w960_57021-2554.png)
EC-1214
[VK45DE]
DTC P1706 PNP SWITCH
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00CD0
1. CHECK DTC WITH TCM
Refer to AT- 3 8 , "
OBD-II Diagnostic Trouble Code (DTC)" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK STARTING SYSTEM
Turn ignition switch OFF, then turn it to START.
Does starter motor operate?
Ye s o r N o
Yes >> GO TO 3.
No >> Refer to SC-10, "
STARTING SYSTEM" .
3. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect A/T assembly harness connector.
3. Disconnect “unified meter and A/C amp.” harness connector.
4. Check harness continuity between A/T assembly terminal 9 and “unified meter and A/C amp.” terminal 32.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M82
Harness for open or short between A/T assembly and “unified meter and A/C amp.”
>> Repair open circuit or short to ground or short to power in harness or connectors.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102 LG/B PNP switch[Ignition switch: ON]
Shift lever: P or NApproximately 0V
[Ignition switch: ON]
Except above positionBATTERY VOLTAGE
(11 - 14V)
Continuity should exist.
Page 2556 of 4449
![INFINITI FX35 2004 Service Manual DTC P1706 PNP SWITCH
EC-1215
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
5. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connecto INFINITI FX35 2004 Service Manual DTC P1706 PNP SWITCH
EC-1215
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
5. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connecto](/manual-img/42/57021/w960_57021-2555.png)
DTC P1706 PNP SWITCH
EC-1215
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
5. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 102 and “unified meter and A/C amp.” terminal 25.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-III
1. Check harness continuity between A/T assembly terminal 9 and TCM terminal 8.
Refer to AT- 1 0 8 , "
DTC P0615 START SIGNAL CIRCUIT" .
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace.
8. REPLACE “UNIFIED METER AND A/C AMP.”
Refer to DI-28, "
UNIFIED METER AND A/C AMP" .
>>INSPECTION END Continuity should exist.
Continuity should exist.
Page 2557 of 4449
![INFINITI FX35 2004 Service Manual EC-1216
[VK45DE]
DTC P1720 VEHICLE SPEED SENSOR (A/T OUTPUT)
Revision: 2004 November 2004 FX35/FX45
DTC P1720 VEHICLE SPEED SENSOR (A/T OUTPUT)PFP:31036
DescriptionABS00CD1
NOTE:
If DTC P1720 is displ INFINITI FX35 2004 Service Manual EC-1216
[VK45DE]
DTC P1720 VEHICLE SPEED SENSOR (A/T OUTPUT)
Revision: 2004 November 2004 FX35/FX45
DTC P1720 VEHICLE SPEED SENSOR (A/T OUTPUT)PFP:31036
DescriptionABS00CD1
NOTE:
If DTC P1720 is displ](/manual-img/42/57021/w960_57021-2556.png)
EC-1216
[VK45DE]
DTC P1720 VEHICLE SPEED SENSOR (A/T OUTPUT)
Revision: 2004 November 2004 FX35/FX45
DTC P1720 VEHICLE SPEED SENSOR (A/T OUTPUT)PFP:31036
DescriptionABS00CD1
NOTE:
If DTC P1720 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-792, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from “unified meter
and A/C amp.”, and the other is from TCM (Transmission control module). ECM uses these two signals for
engine control.
CONSULT-II Reference Value in Data Monitor ModeABS00CD2
Specification data are reference values.
On Board Diagnosis LogicABS00CD3
The MIL will not light up for this diagnosis.
DTC Confirmation ProcedureABS00CD4
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine.
4. Drive vehicle at a speed of 20 km/h (12 MPH) or more for at least 5 seconds without brake pedal depress-
ing.
5. If 1st trip DTC is detected, go to EC-1217, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
VEH SPEED SE
Turn drive wheels and compare the CONSULT-II value with speedometer
indicationAlmost the same speed as the
speedometer indication
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1720
1720Vehicle speed sensor
(A/T output)ECM detects a difference between two
vehicle speed sensor signals is out of the
specified range.
Harness or connectors
(The CAN communication line is open or
shorted)
Harness or connectors
(Revolution sensor circuit is open or shorted)
Harness or connectors
(Wheel sensor circuit is open or shorted.)
TCM
ABS actuator and electric unit (control unit)
Unified meter and A/C amp.
Page 2558 of 4449
DTC P1720 VEHICLE SPEED SENSOR (A/T OUTPUT)
EC-1217
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS00CD5
1. CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 4 2 , "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”
Check DTC with “ABS actuator and electric unit (control unit)”. Refer to BRC-12, "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 3.
NG >> Perform trouble shooting relevant to DTC indicated.
3. CHECK “UNIFIED METER AND A/C AMP.”
Check combination meter function. Refer to DI-28, "
UNIFIED METER AND A/C AMP" .
>>INSPECTION END
Page 2559 of 4449
![INFINITI FX35 2004 Service Manual EC-1218
[VK45DE]
DTC P1780 SHIFT CHANGE SIGNAL
Revision: 2004 November 2004 FX35/FX45
DTC P1780 SHIFT CHANGE SIGNALPFP:31036
DescriptionABS00CD6
NOTE:
If DTC P1780 is displayed with DTC U1000 or U1001 INFINITI FX35 2004 Service Manual EC-1218
[VK45DE]
DTC P1780 SHIFT CHANGE SIGNAL
Revision: 2004 November 2004 FX35/FX45
DTC P1780 SHIFT CHANGE SIGNALPFP:31036
DescriptionABS00CD6
NOTE:
If DTC P1780 is displayed with DTC U1000 or U1001](/manual-img/42/57021/w960_57021-2558.png)
EC-1218
[VK45DE]
DTC P1780 SHIFT CHANGE SIGNAL
Revision: 2004 November 2004 FX35/FX45
DTC P1780 SHIFT CHANGE SIGNALPFP:31036
DescriptionABS00CD6
NOTE:
If DTC P1780 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-792, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
ECM receives current gear position signal, next gear position signal, shift change signal, shift pattern signal
through CAN communication line from TCM (Transmission control module). ECM uses these four signals for
engine control.
On Board Diagnosis LogicABS00CD7
The MIL will not light up for this diagnosis.
DTC Confirmation ProcedureABS00CD8
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Perform DTC confirmation procedure for DTC P1754, refer to AT- 1 5 4 , "DTC Confirmation Procedure" .
2. If 1st trip DTC is detected, go to EC-1218, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureABS00CD9
1. CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 4 2 , "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. CHECK TCM FUNCTION
Refer to AT- 4 2 , "
TROUBLE DIAGNOSIS" .
OK or NG
OK >> GO TO 3.
NG >> Replace TCM. Refer to AT- 7 , "
PRECAUTIONS" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1780
1780Shift change signalA)The next gear position signal and the current gear
position signal are not in the normal pattern com-
pared with the shift pattern signal,
Harness or connectors
(CAN communication line circuit
is open or shorted)
TCM
A/T assembly B)The next gear position signal and the current gear
position signal are different even through the shift
change signal is OFF.
Page 2560 of 4449
DTC P1780 SHIFT CHANGE SIGNAL
EC-1219
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
3. REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs. Refer to
BL-208, "
ECM Re-communicating Function" .
3. Perform EC-698, "
Accelerator Pedal Released Position Learning" .
4. Perform EC-698, "
Throttle Valve Closed Position Learning" .
5. Perform EC-698, "
Idle Air Volume Learning" .
>>INSPECTION END
