Page 3513 of 4449
LAN-212
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
7. Attach the CAN DIAG SUPPORT MONITOR check sheet onto the check sheet. Refer to LAN-213,
"CHECK SHEET" .
8. Mark the “NG” or “UNKWN” item of the check sheet table with “v” from the result of CAN DIAG SUPPORT
MONITOR check sheet. Refer to LAN-213, "
CHECK SHEET" .
NOTE:
If “NG” is displayed on “CAN COMM” as “CAN DIAG SUPPORT MONITOR” for the diagnosed control
unit, replace the control unit. Refer to AV- 1 5 8 , "
CAN Communication Line Check" .
9. According to the check sheet results (example), start inspection. Refer to LAN-216, "
CHECK SHEET
RESULTS (EXAMPLE)" .
Page 3514 of 4449
CAN SYSTEM (TYPE 6)
LAN-213
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

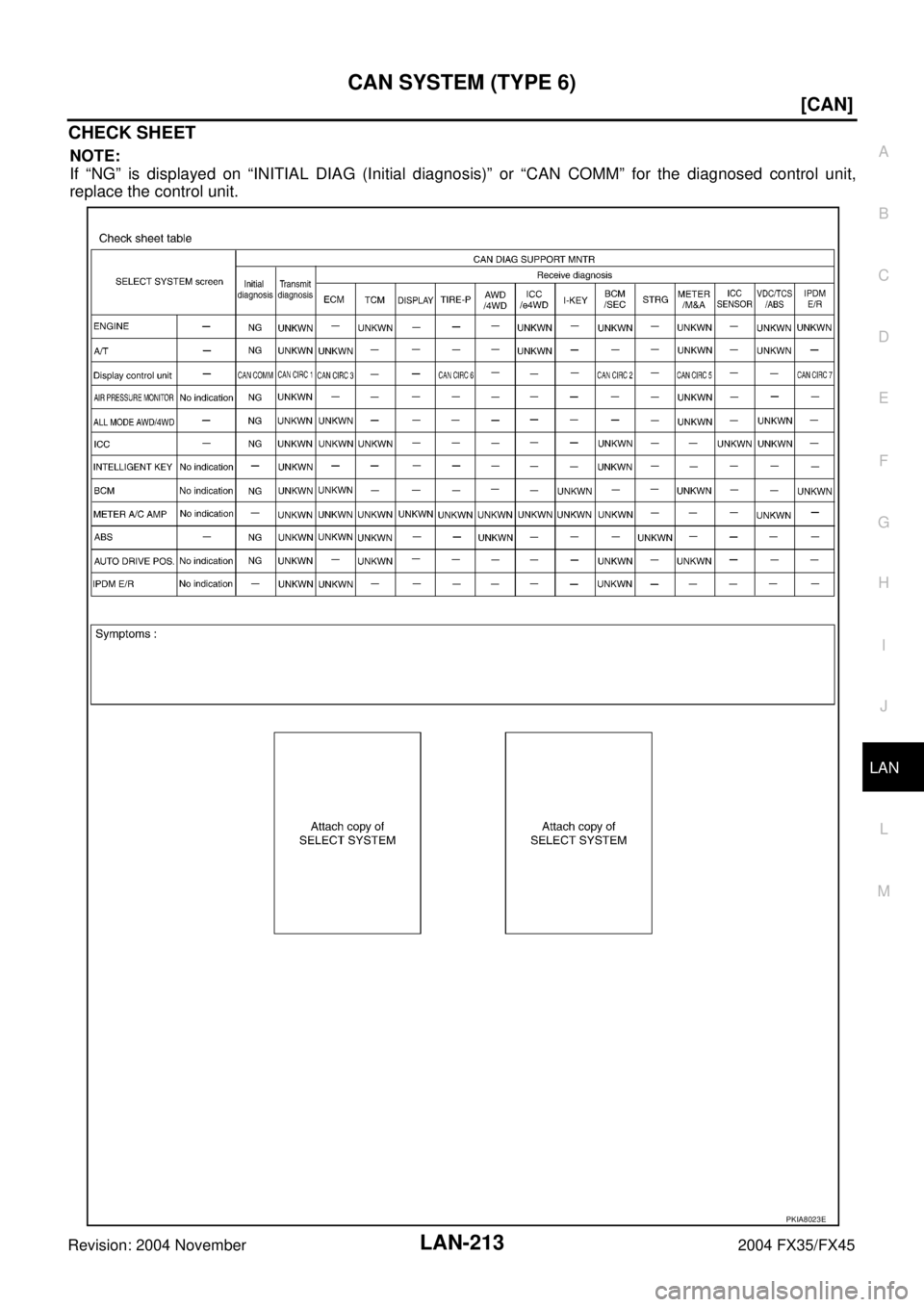

CHECK SHEET
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
PKIA8023E
Page 3515 of 4449
LAN-214
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45

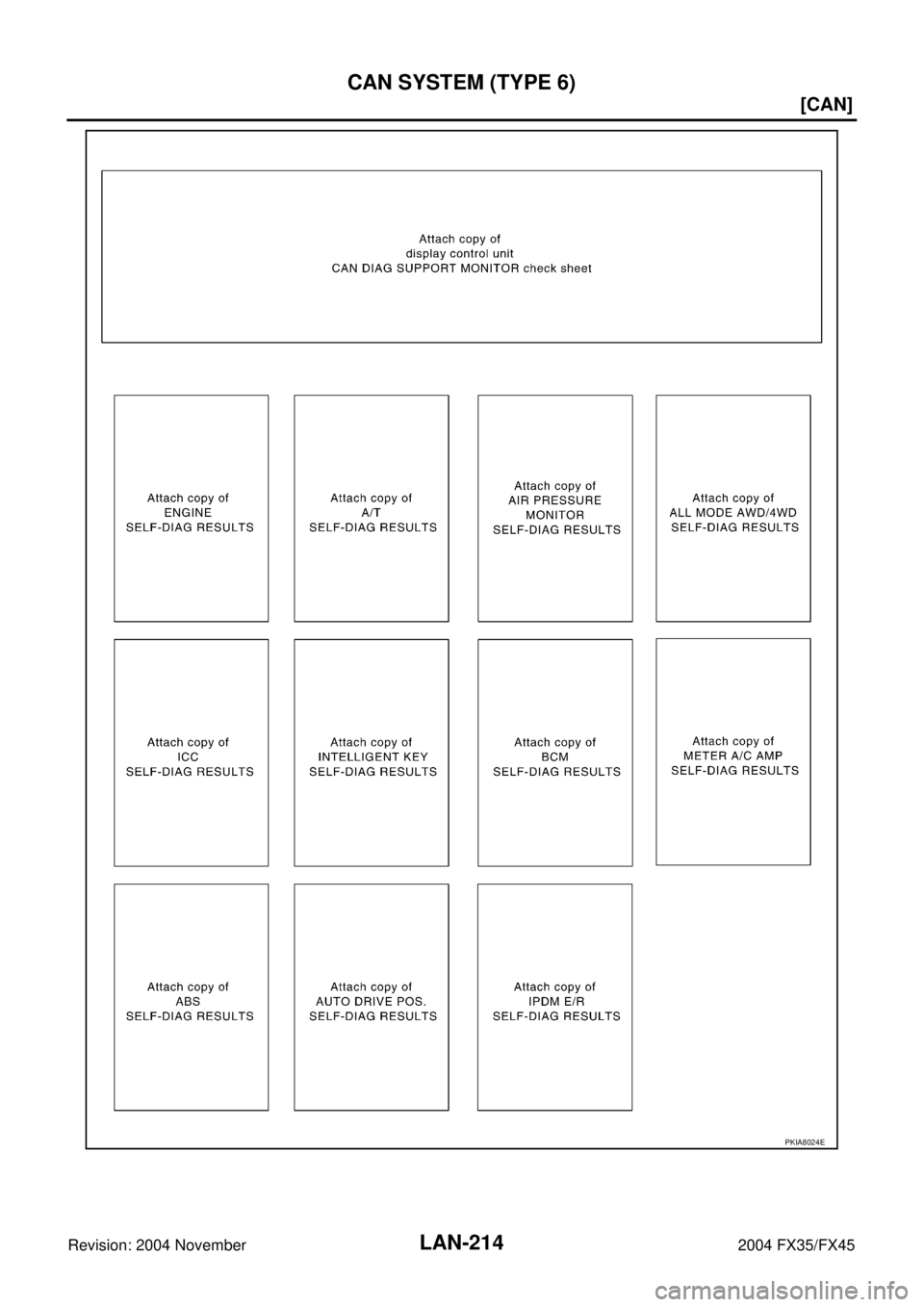

PKIA8024E
Page 3516 of 4449
CAN SYSTEM (TYPE 6)
LAN-215
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

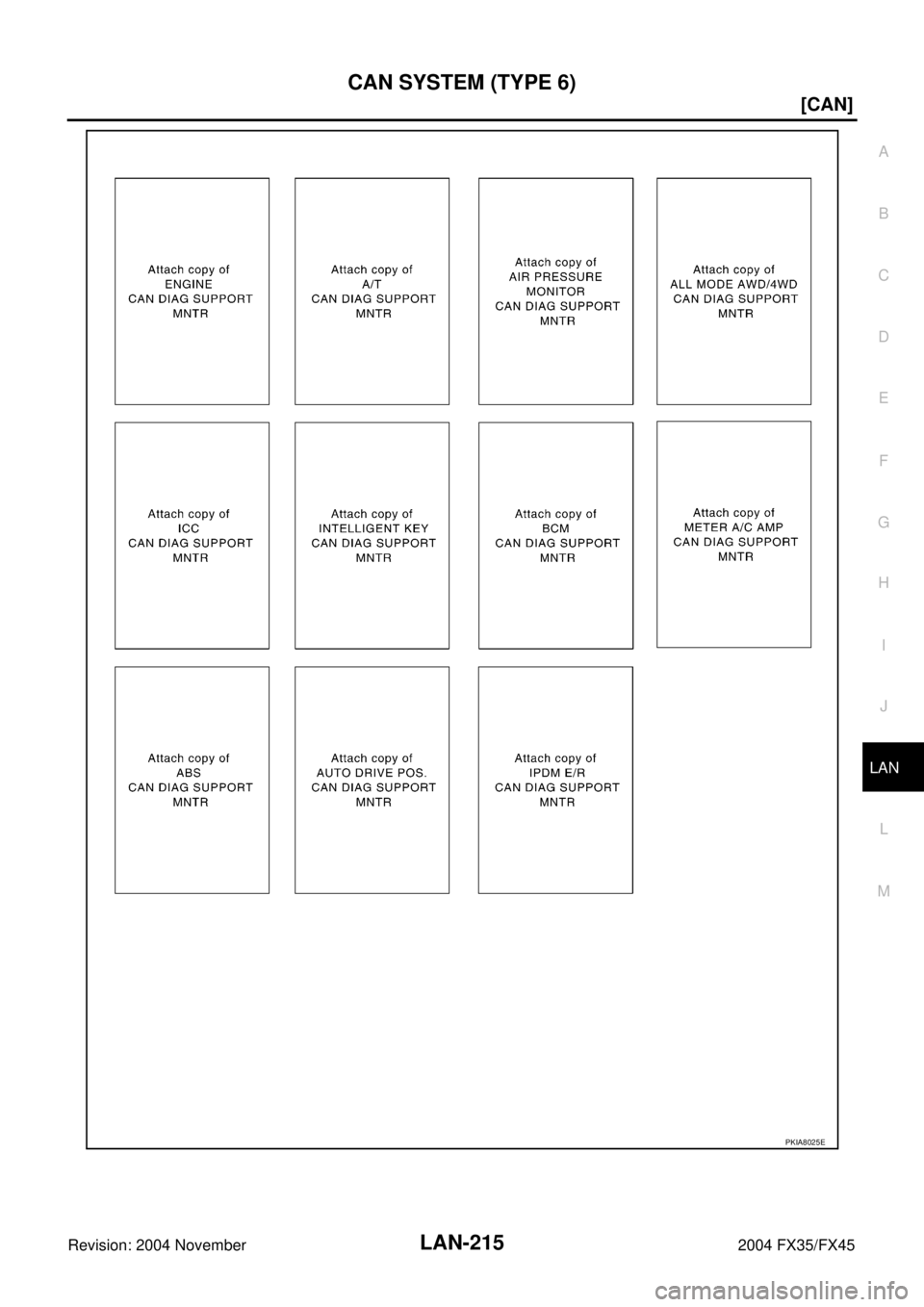

PKIA8025E
Page 3517 of 4449
LAN-216
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.

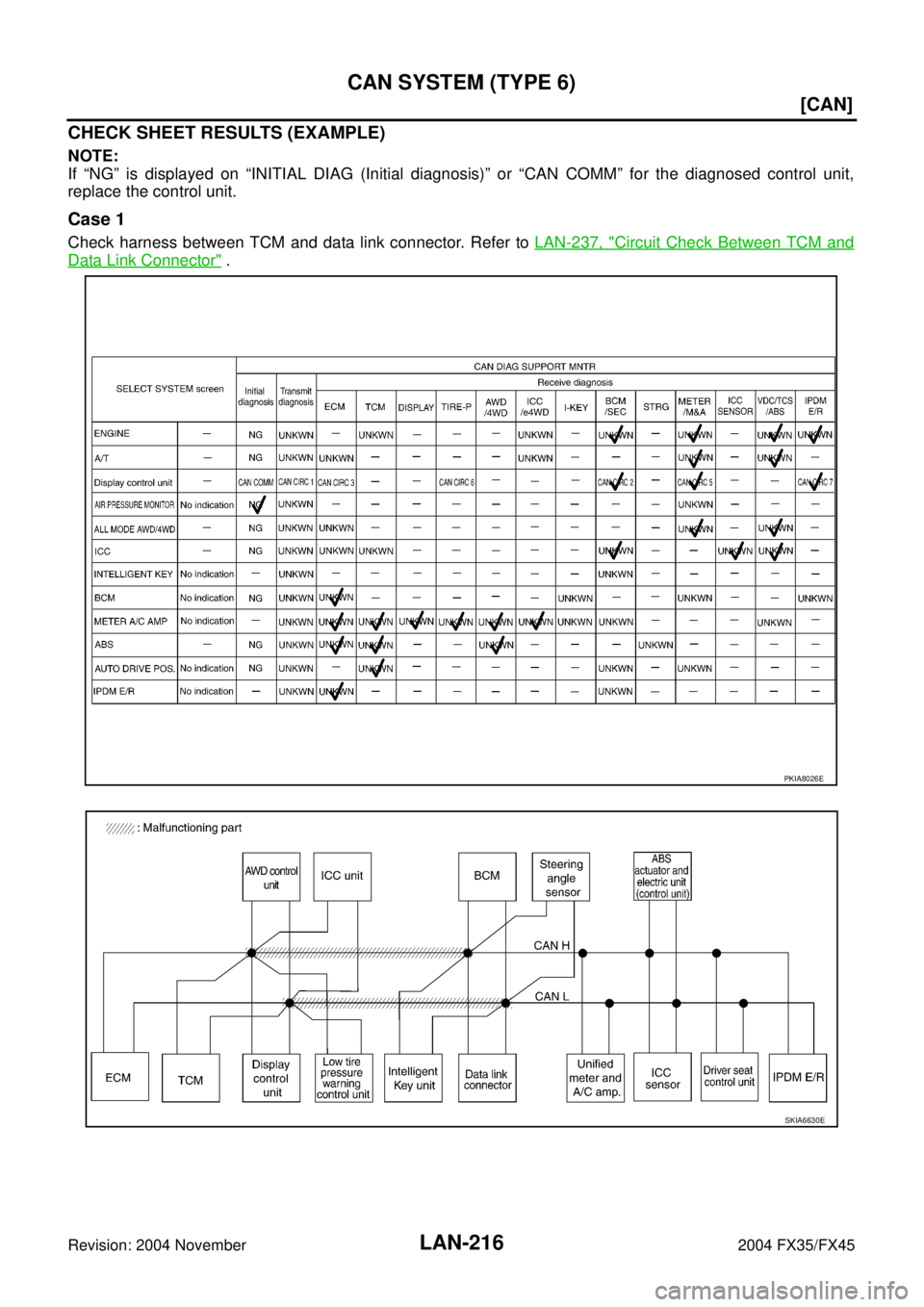

Case 1
Check harness between TCM and data link connector. Refer to LAN-237, "Circuit Check Between TCM and
Data Link Connector" .
PKIA8026E
SKIA6630E
Page 3518 of 4449
CAN SYSTEM (TYPE 6)
LAN-217
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

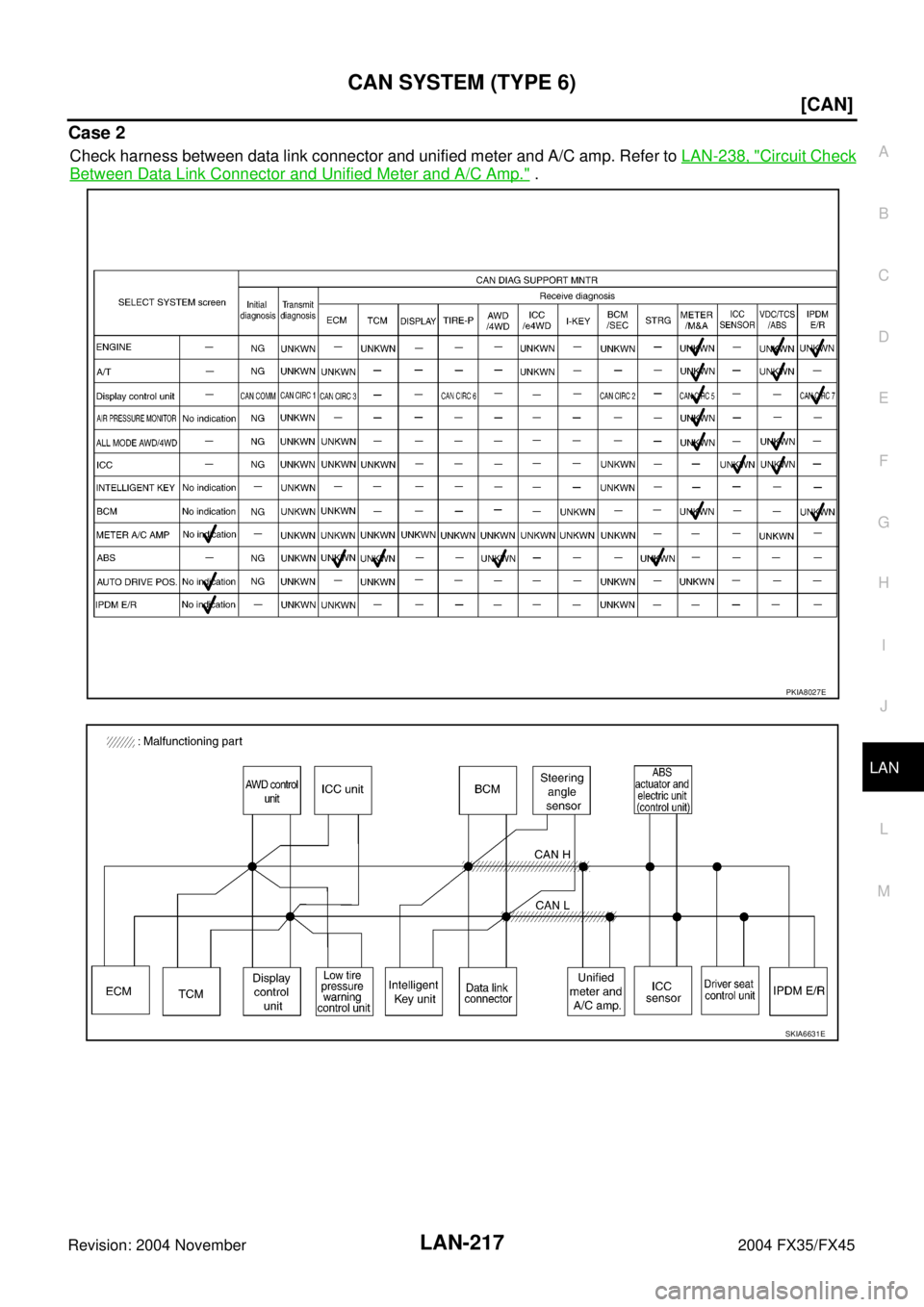

Case 2
Check harness between data link connector and unified meter and A/C amp. Refer to LAN-238, "Circuit Check
Between Data Link Connector and Unified Meter and A/C Amp." .
PKIA8027E
SKIA6631E
Page 3519 of 4449
LAN-218
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
Case 3
Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
LAN-238, "
Circuit Check Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control
Unit)" .
PKIA8028E
SKIA6632E
Page 3520 of 4449
CAN SYSTEM (TYPE 6)
LAN-219
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

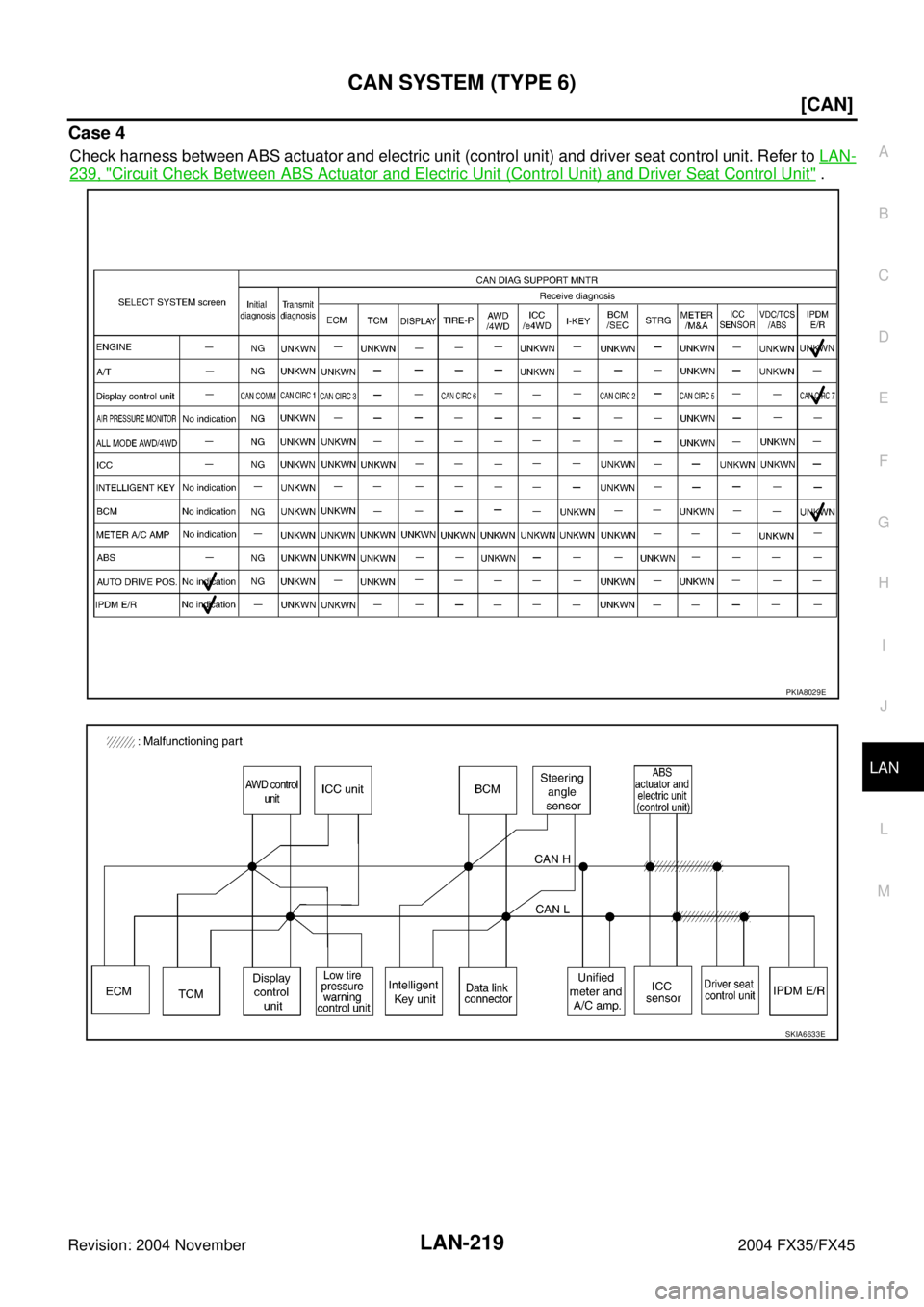

Case 4
Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN-
239, "Circuit Check Between ABS Actuator and Electric Unit (Control Unit) and Driver Seat Control Unit" .
PKIA8029E
SKIA6633E
