2004 INFINITI FX35 Service Manual

Page 4289 of 4449

INFINITI FX35 2004 Service Manual SRS-48
DIAGNOSIS SENSOR UNIT
Revision: 2004 November 2004 FX35/FX45
DIAGNOSIS SENSOR UNITPFP:28556
Removal and InstallationAHS000I4
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, dis

Page 4290 of 4449

INFINITI FX35 2004 Service Manual DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-49
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2004 November 2004 FX35/FX45
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONERPFP:00014
Caution

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-49
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2004 November 2004 FX35/FX45
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONERPFP:00014
Caution for Air Bag Module and Seat Belt Pre-tensionerAHS000I5
Before disposing of air bag module and seat belt pre-tensioner, or vehicles equipped with such systems,
deploy the systems. If such systems have already been deployed due to an accident, dispose of them as
indicated in SRS-49, "
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER" .
When deploying the air bag module and seat belt pre-tensioner, always use the Special Service Tool;
Deployment tool [KV99106400 (J38381)].
When deploying the air bag module and seat belt pre-tensioner, stand at least 5 m (16 ft) away from the
deployment component.
When deploying air bag module and seat belt pre-tensioner, a fairly loud noise is made, followed by
smoke being released. The smoke is not poisonous, however, be careful not to inhale smoke since it irri-
tates the throat and can cause choking.
Always activate one air bag module at a time.
Due to heat, leave air bag module unattended for more than 30 minutes after deployment. Also leave seat
belt pre-tensioner unattended for more than 10 minutes after deployment.
Be sure to wear gloves when handling a deployed air bag module and seat belt pre-tensioner.
Never apply water to the deployed air bag module and seat belt pre-tensioner.
Wash your hands clean after finishing work.
Place the vehicle outdoors with an open space of at least 6 m (20 ft) on all sides when deploying air bag
module and seat belt pre-tensioner while mounted in vehicle.
Use a voltmeter to make sure the vehicle battery is fully charged.
Do not dispose of the air bag module and seat belt pre-tensioner undeployed.
CHECKING DEPLOYMENT TOOL
Connecting to Battery
CAUTION:
The battery must show voltage of 9.6 V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5 m (16 ft) away from the vehicle.
Wait 3 minutes after the vehicle battery is disconnected before
proceeding.
Connect red clip of deployment tool to battery positive terminal
and black clip to negative terminal.
Make sure the polarity is correct. The right side lamp in the tool,
marked “deployment tool power”, should glow with a green
light. If the right side lamp glows red, reverse the connections
to the battery.
Deployment Tool Check
Press the deployment tool switch to the ON position. The left side
lamp in the tool, marked “air bag connector voltage” should illumi-
nate. If it does not illuminate, replace the tool.
SRS019
SBF266H

Page 4291 of 4449

INFINITI FX35 2004 Service Manual SRS-50
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
Revision: 2004 November 2004 FX35/FX45

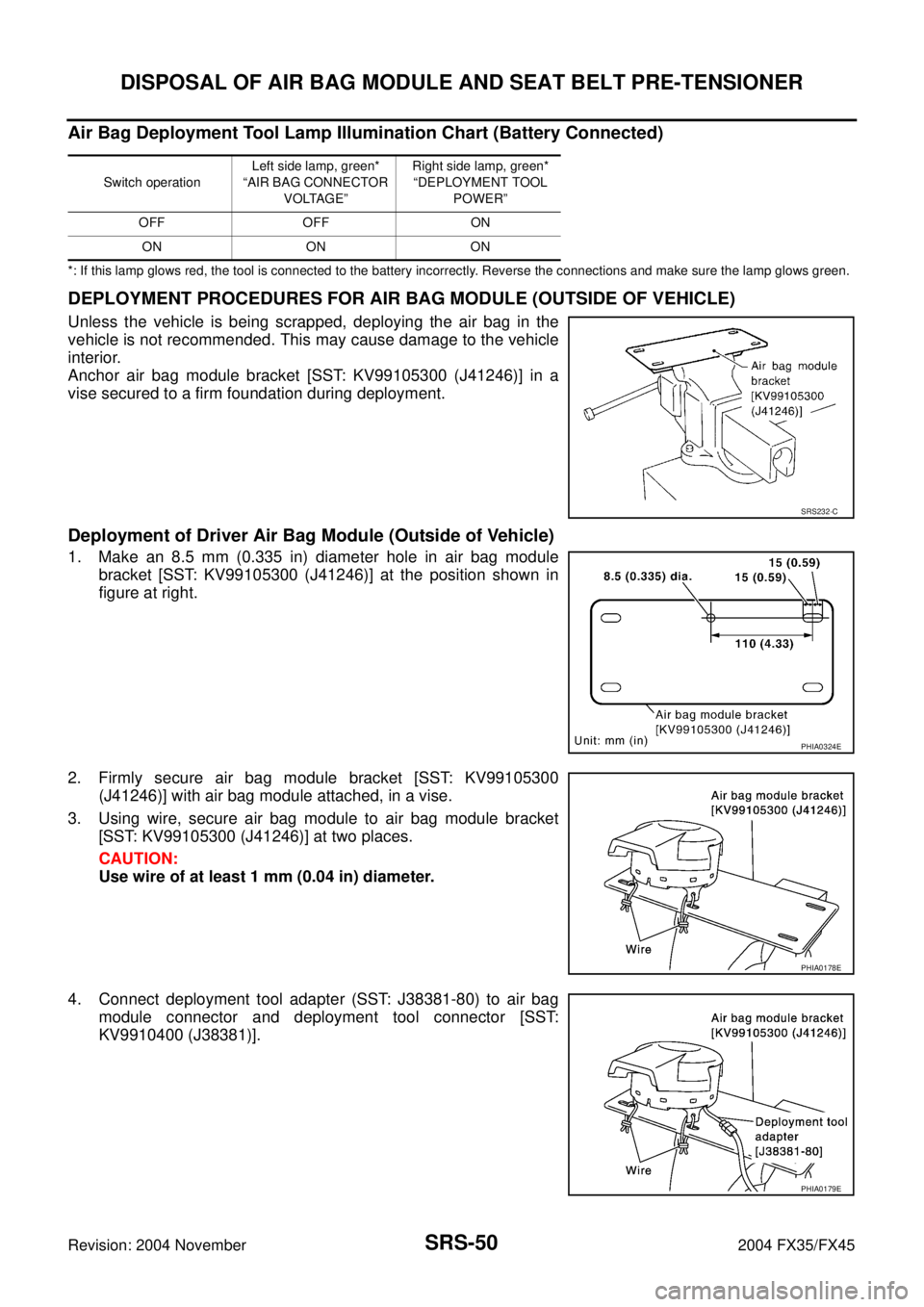

Air Bag Deployment Tool Lamp Illumination Chart (Battery Connected)
*: If this lamp glows red, the

Page 4292 of 4449

INFINITI FX35 2004 Service Manual DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-51
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2004 November 2004 FX35/FX45

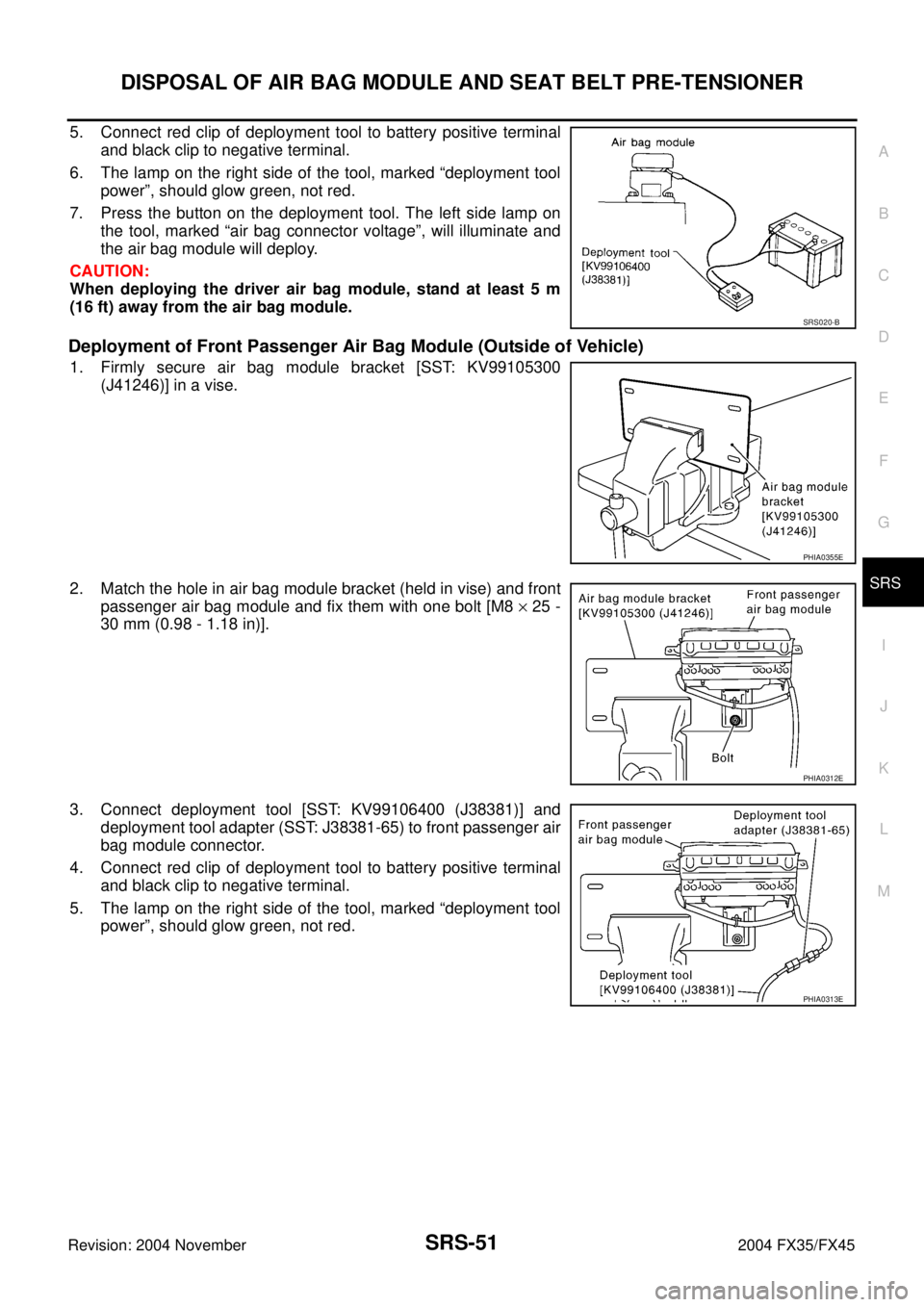

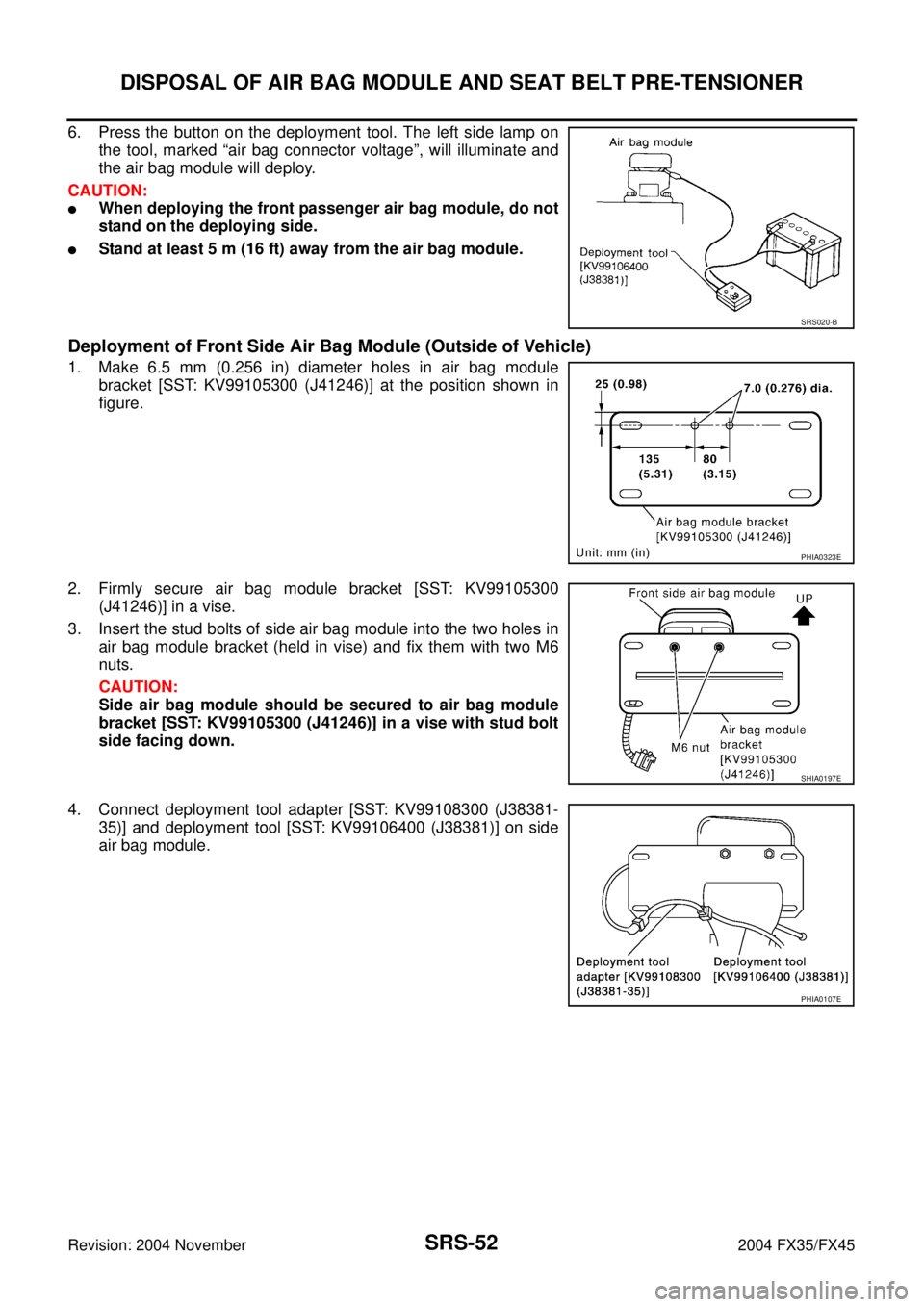

5. Connect red clip of deployment tool to battery positive terminal
and

Page 4293 of 4449

INFINITI FX35 2004 Service Manual SRS-52
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
Revision: 2004 November 2004 FX35/FX45
6. Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag conne

Page 4294 of 4449

INFINITI FX35 2004 Service Manual DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-53
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2004 November 2004 FX35/FX45
5. Connect red clip of deployment tool to battery positive terminal
and

Page 4295 of 4449

INFINITI FX35 2004 Service Manual SRS-54
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
Revision: 2004 November 2004 FX35/FX45

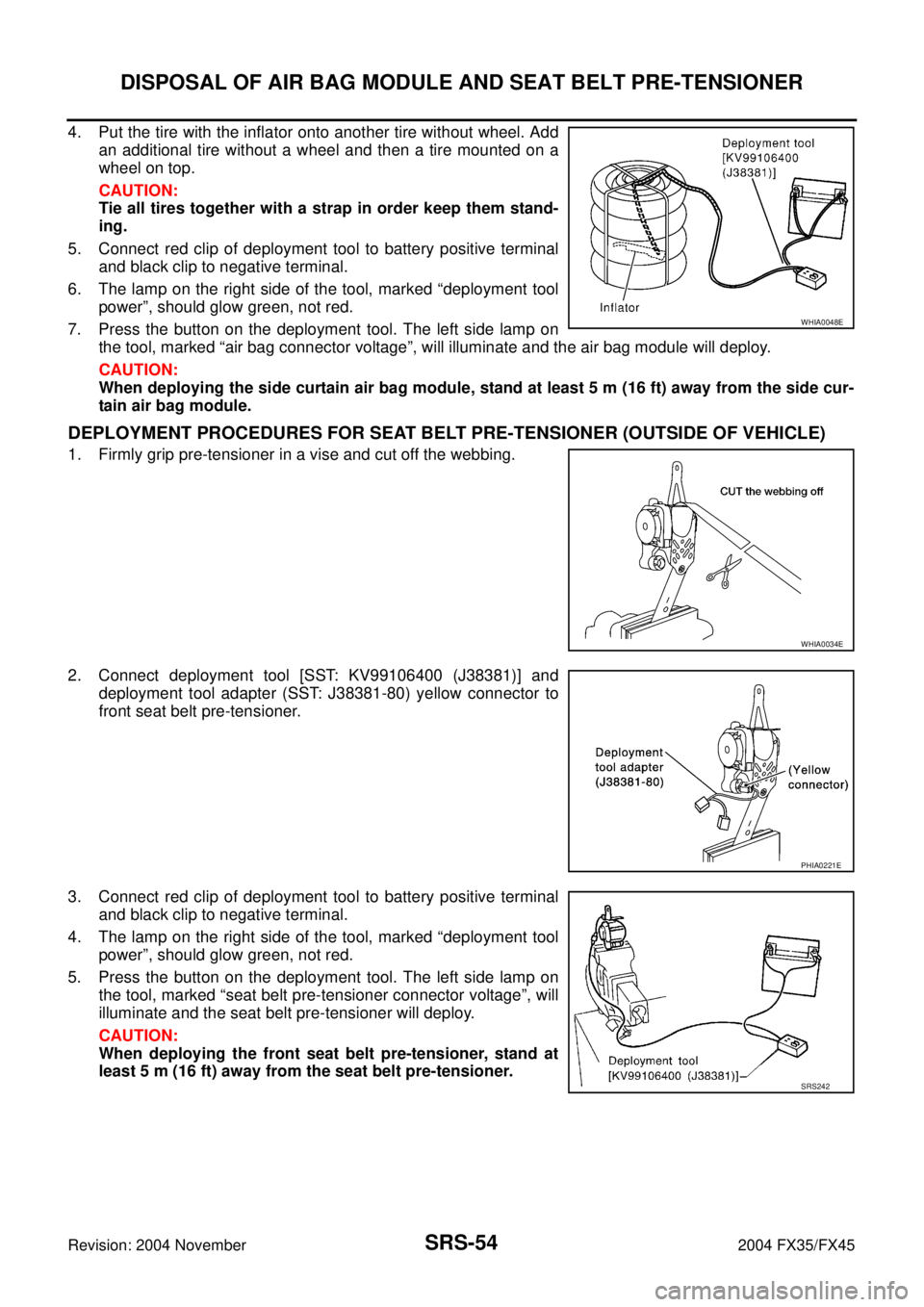

4. Put the tire with the inflator onto another tire without wheel. Add
an additional tire without a

Page 4296 of 4449

INFINITI FX35 2004 Service Manual DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-55
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2004 November 2004 FX35/FX45
DEPLOYMENT OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER WHILE MOUNTED I

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-55
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2004 November 2004 FX35/FX45

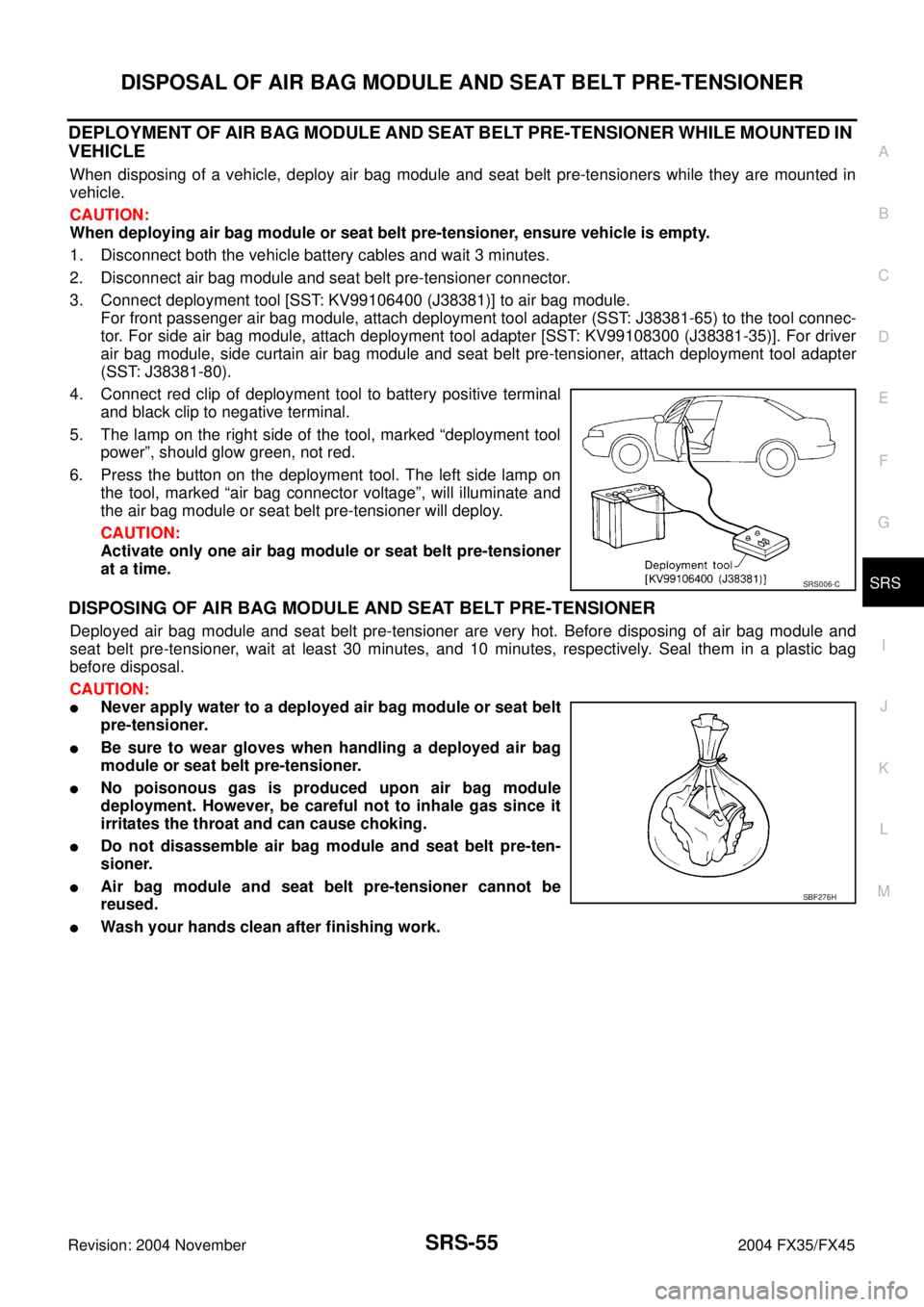

DEPLOYMENT OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER WHILE MOUNTED IN
VEHICLE
When disposing of a vehicle, deploy air bag module and seat belt pre-tensioners while they are mounted in
vehicle.
CAUTION:
When deploying air bag module or seat belt pre-tensioner, ensure vehicle is empty.
1. Disconnect both the vehicle battery cables and wait 3 minutes.
2. Disconnect air bag module and seat belt pre-tensioner connector.
3. Connect deployment tool [SST: KV99106400 (J38381)] to air bag module.
For front passenger air bag module, attach deployment tool adapter (SST: J38381-65) to the tool connec-
tor. For side air bag module, attach deployment tool adapter [SST: KV99108300 (J38381-35)]. For driver
air bag module, side curtain air bag module and seat belt pre-tensioner, attach deployment tool adapter
(SST: J38381-80).
4. Connect red clip of deployment tool to battery positive terminal
and black clip to negative terminal.
5. The lamp on the right side of the tool, marked “deployment tool
power”, should glow green, not red.
6. Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, will illuminate and
the air bag module or seat belt pre-tensioner will deploy.
CAUTION:
Activate only one air bag module or seat belt pre-tensioner
at a time.
DISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
Deployed air bag module and seat belt pre-tensioner are very hot. Before disposing of air bag module and
seat belt pre-tensioner, wait at least 30 minutes, and 10 minutes, respectively. Seal them in a plastic bag
before disposal.
CAUTION:
Never apply water to a deployed air bag module or seat belt
pre-tensioner.
Be sure to wear gloves when handling a deployed air bag
module or seat belt pre-tensioner.
No poisonous gas is produced upon air bag module
deployment. However, be careful not to inhale gas since it
irritates the throat and can cause choking.
Do not disassemble air bag module and seat belt pre-ten-
sioner.
Air bag module and seat belt pre-tensioner cannot be
reused.
Wash your hands clean after finishing work.
SRS006-C
SBF276H
