INFINITI FX35 2004 Service Manual AT-252 ON-VEHICLE SERVICE Revision: 2004 November 2004 FX35/FX45 b. Install oil pan (with oil pan gasket) to transmission case. CAUTION: Install it so that drain plug comes to the position as shown i

Page 330 of 4449

INFINITI FX35 2004 Service Manual ON-VEHICLE SERVICE AT-253 D E F G H I J K L MA B AT Revision: 2004 November 2004 FX35/FX45 Parking Components (2WD Models Only)ACS007H0 COMPONENTS REMOVAL 1. Drain ATF through drain plug. 2. Remove ex

Page 331 of 4449

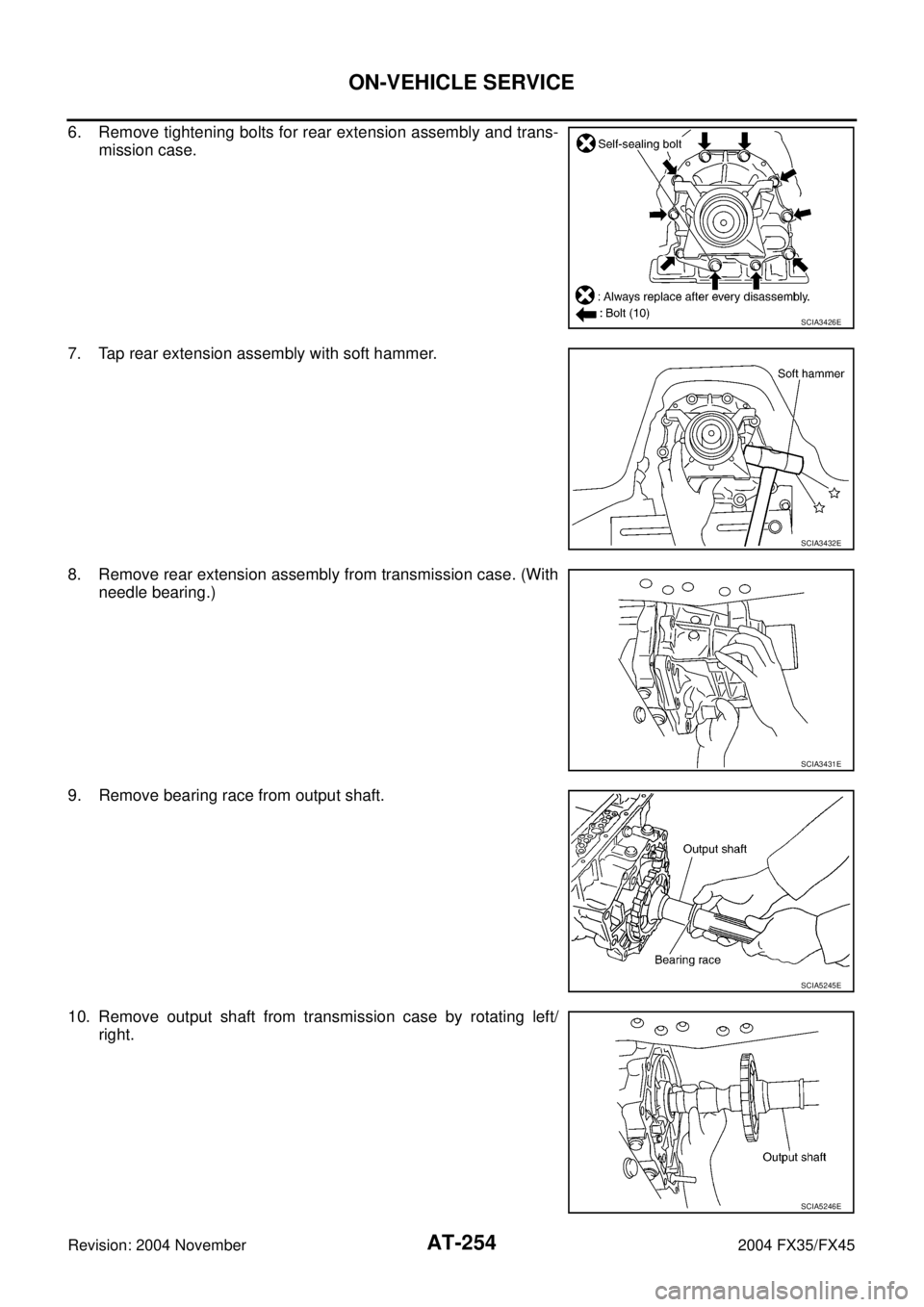

INFINITI FX35 2004 Service Manual AT-254 ON-VEHICLE SERVICE Revision: 2004 November 2004 FX35/FX45 6. Remove tightening bolts for rear extension assembly and trans- mission case. 7. Tap rear extension assembly with soft hammer. 8. Rem

Page 332 of 4449

INFINITI FX35 2004 Service Manual ON-VEHICLE SERVICE AT-255 D E F G H I J K L MA B AT Revision: 2004 November 2004 FX35/FX45 11. Remove parking gear from output shaft. 12. Remove seal rings from output shaft. 13. Remove needle bearing

Page 333 of 4449

INFINITI FX35 2004 Service Manual AT-256 ON-VEHICLE SERVICE Revision: 2004 November 2004 FX35/FX45 16. Remove return spring from parking pawl. 17. Remove rear oil seal from rear extension. CAUTION: Be careful not to scratch rear exten

Page 334 of 4449

INFINITI FX35 2004 Service Manual ON-VEHICLE SERVICE AT-257 D E F G H I J K L MA B AT Revision: 2004 November 2004 FX35/FX45 3. Install parking pawl (with return spring) and pawl shaft to rear extension. 4. Install parking actuator su

Page 335 of 4449

INFINITI FX35 2004 Service Manual AT-258 ON-VEHICLE SERVICE Revision: 2004 November 2004 FX35/FX45 9. Install bearing race to output shaft. 10. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-48,

Page 336 of 4449

INFINITI FX35 2004 Service Manual ON-VEHICLE SERVICE AT-259 D E F G H I J K L MA B AT Revision: 2004 November 2004 FX35/FX45 Rear Oil SealACS007H1 REMOVAL 1. Remove center muffler with power tool. Refer to EX-3, "Removal and Installat
