EM-212
[VK45DE]
CAMSHAFT
Revision: 2004 November 2004 FX35/FX45
VALVE LIFTER HOLE DIAMETER
Measure inner diameter of valve lifter hole of cylinder head with
inside micrometer.
VALVE LIFTER CLEARANCE
(Valve lifter clearance) = (Valve lifter hole diameter) – (Valve lifter outer diameter)
If it exceeds the standard, referring to each standard of valve lifter outer diameter and valve lifter hole
diameter, replace either or both valve lifter and cylinder head.
INSTALLATION
1. Install valve lifters and adjusting shims if removed.
Install it in the original position.
2. Install camshafts.
Follow your identification marks made during removal, or fol-
low the identification marks that are present on new cam-
shafts for proper placement and direction.
Install camshaft so that dowel pin on front end face are posi-
tioned as shown in the figure. (No. 1 cylinder TDC on its com-
pression stroke)
NOTE:
Though camshaft does not stop at the position as shown in
the figure, for the placement of cam nose, it is generally
accepted camshaft is placed for the same direction of the fig-
ure.Standard : 34.000 - 34.016 mm (1.3386 - 1.3392 in)
SEM867E
Standard : 0.025 - 0.51 mm (0.0010 - 0.0020 in)
Bank INT/EXHIdentification
ribPaint marks
Identification
mark
M1 M2
RHINT Yes Blue No RH
EXH Yes No Orange RH
LHINT No Blue No LH
EXH No No Orange LH
Camshaft dowel pin
: At cylinder head upper face side in each bank
PBIC2355E
SBIA0366E
Page 2938 of 4449
![INFINITI FX35 2004 Service Manual CAMSHAFT
EM-213
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
3. Install camshaft brackets.
Remove foreign material completely from camshaft bracket
backside and from cyli INFINITI FX35 2004 Service Manual CAMSHAFT
EM-213
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
3. Install camshaft brackets.
Remove foreign material completely from camshaft bracket
backside and from cyli](/manual-img/42/57021/w960_57021-2937.png)
CAMSHAFT
EM-213
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45

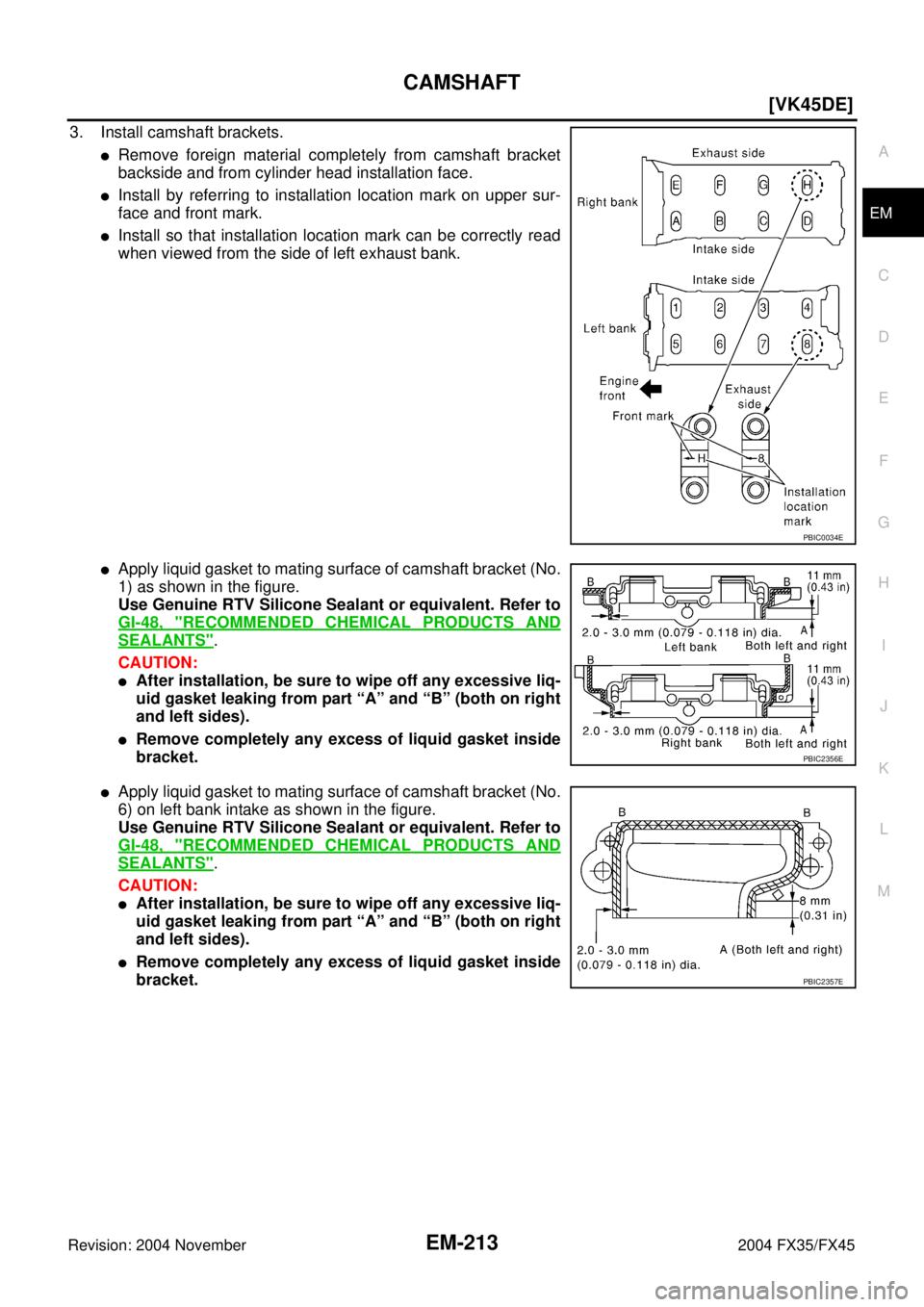

3. Install camshaft brackets.
Remove foreign material completely from camshaft bracket
backside and from cylinder head installation face.
Install by referring to installation location mark on upper sur-
face and front mark.
Install so that installation location mark can be correctly read
when viewed from the side of left exhaust bank.
Apply liquid gasket to mating surface of camshaft bracket (No.
1) as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS".
CAUTION:
After installation, be sure to wipe off any excessive liq-
uid gasket leaking from part “A” and “B” (both on right
and left sides).
Remove completely any excess of liquid gasket inside
bracket.
Apply liquid gasket to mating surface of camshaft bracket (No.
6) on left bank intake as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS".
CAUTION:
After installation, be sure to wipe off any excessive liq-
uid gasket leaking from part “A” and “B” (both on right
and left sides).
Remove completely any excess of liquid gasket inside
bracket.
PBIC0034E
PBIC2356E
PBIC2357E
Page 2939 of 4449
![INFINITI FX35 2004 Service Manual EM-214
[VK45DE]
CAMSHAFT
Revision: 2004 November 2004 FX35/FX45

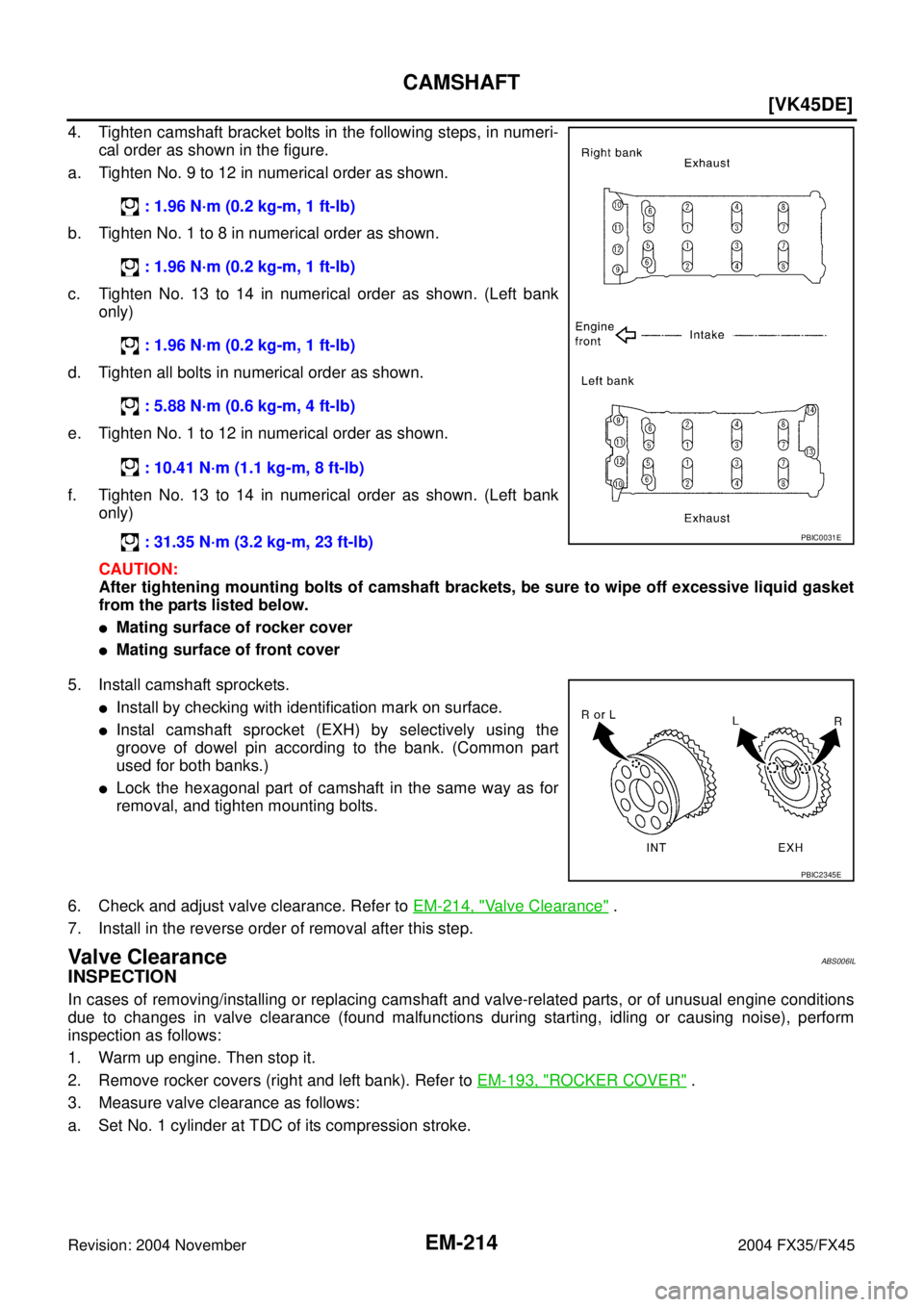

4. Tighten camshaft bracket bolts in the following steps, in numeri-
cal order as shown in the figure.
a. Tighten No. 9 to 12 in numeric INFINITI FX35 2004 Service Manual EM-214
[VK45DE]
CAMSHAFT
Revision: 2004 November 2004 FX35/FX45
4. Tighten camshaft bracket bolts in the following steps, in numeri-
cal order as shown in the figure.
a. Tighten No. 9 to 12 in numeric](/manual-img/42/57021/w960_57021-2938.png)
EM-214
[VK45DE]
CAMSHAFT
Revision: 2004 November 2004 FX35/FX45
4. Tighten camshaft bracket bolts in the following steps, in numeri-
cal order as shown in the figure.
a. Tighten No. 9 to 12 in numerical order as shown.
b. Tighten No. 1 to 8 in numerical order as shown.
c. Tighten No. 13 to 14 in numerical order as shown. (Left bank
only)
d. Tighten all bolts in numerical order as shown.
e. Tighten No. 1 to 12 in numerical order as shown.
f. Tighten No. 13 to 14 in numerical order as shown. (Left bank
only)
CAUTION:
After tightening mounting bolts of camshaft brackets, be sure to wipe off excessive liquid gasket
from the parts listed below.
Mating surface of rocker cover
Mating surface of front cover
5. Install camshaft sprockets.
Install by checking with identification mark on surface.
Instal camshaft sprocket (EXH) by selectively using the
groove of dowel pin according to the bank. (Common part
used for both banks.)
Lock the hexagonal part of camshaft in the same way as for
removal, and tighten mounting bolts.
6. Check and adjust valve clearance. Refer to EM-214, "
Valve Clearance" .
7. Install in the reverse order of removal after this step.
Valve ClearanceABS006IL
INSPECTION
In cases of removing/installing or replacing camshaft and valve-related parts, or of unusual engine conditions
due to changes in valve clearance (found malfunctions during starting, idling or causing noise), perform
inspection as follows:
1. Warm up engine. Then stop it.
2. Remove rocker covers (right and left bank). Refer to EM-193, "
ROCKER COVER" .
3. Measure valve clearance as follows:
a. Set No. 1 cylinder at TDC of its compression stroke. : 1.96 N·m (0.2 kg-m, 1 ft-lb)
: 1.96 N·m (0.2 kg-m, 1 ft-lb)
: 1.96 N·m (0.2 kg-m, 1 ft-lb)
: 5.88 N·m (0.6 kg-m, 4 ft-lb)
: 10.41 N·m (1.1 kg-m, 8 ft-lb)
: 31.35 N·m (3.2 kg-m, 23 ft-lb)
PBIC0031E
PBIC2345E
Page 2940 of 4449
CAMSHAFT
EM-215
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45

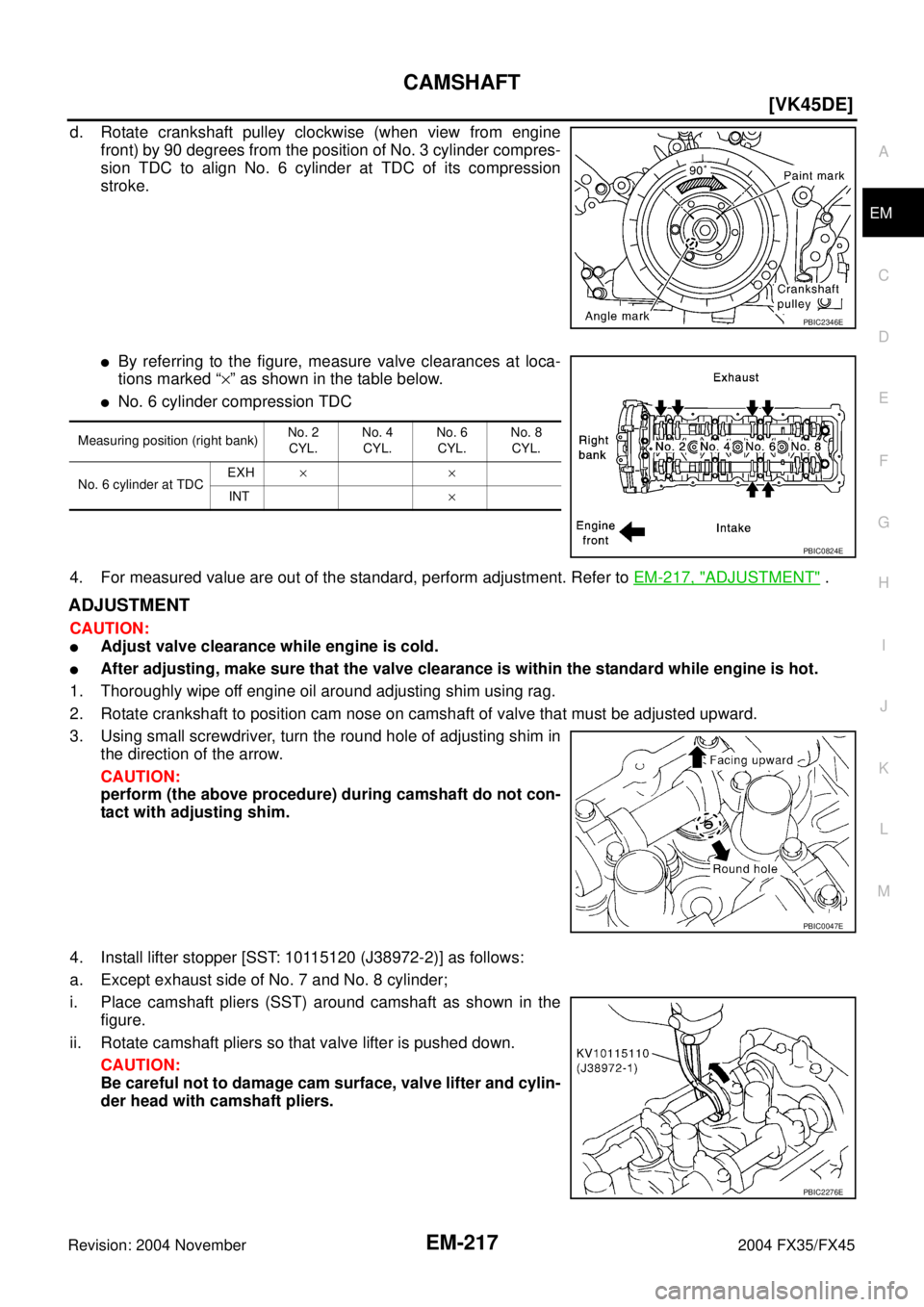

Rotate crankshaft pulley in clockwise to align TDC identifica-
tion notch (without paint mark) with timing indicator on front
cover.
Make sure that both intake and exhaust cam noses of No. 1
cylinder (engine front side of left bank) are located as shown
in the figure.
If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.

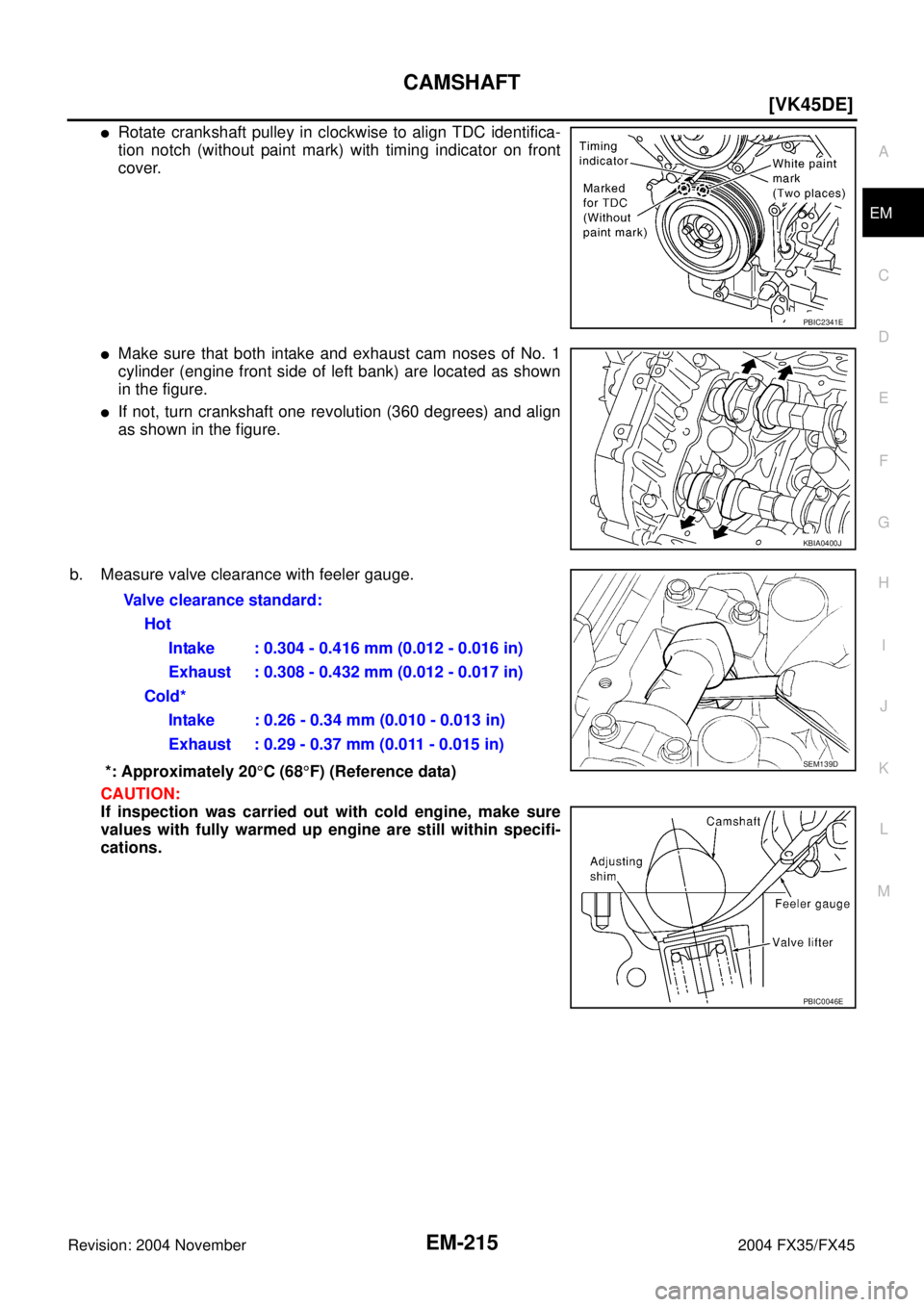

b. Measure valve clearance with feeler gauge.
*: Approximately 20°C (68°F) (Reference data)
CAUTION:
If inspection was carried out with cold engine, make sure
values with fully warmed up engine are still within specifi-
cations.
PBIC2341E
KBIA0400J
Valve clearance standard:
Hot
Intake : 0.304 - 0.416 mm (0.012 - 0.016 in)
Exhaust : 0.308 - 0.432 mm (0.012 - 0.017 in)
Cold*
Intake : 0.26 - 0.34 mm (0.010 - 0.013 in)
Exhaust : 0.29 - 0.37 mm (0.011 - 0.015 in)
SEM139D
PBIC0046E
Page 2941 of 4449
![INFINITI FX35 2004 Service Manual EM-216
[VK45DE]
CAMSHAFT
Revision: 2004 November 2004 FX35/FX45
By referring to the figure, measure valve clearances at loca-
tions marked “×” as shown in the table below (locations indi-
cated INFINITI FX35 2004 Service Manual EM-216
[VK45DE]
CAMSHAFT
Revision: 2004 November 2004 FX35/FX45
By referring to the figure, measure valve clearances at loca-
tions marked “×” as shown in the table below (locations indi-
cated](/manual-img/42/57021/w960_57021-2940.png)
EM-216
[VK45DE]
CAMSHAFT
Revision: 2004 November 2004 FX35/FX45
By referring to the figure, measure valve clearances at loca-
tions marked “×” as shown in the table below (locations indi-
cated with black arrow in figure).
NOTE:
Firing order 1-8-7-3-6-5-4-2
No.1 cylinder compression TDC
c. Rotate crankshaft pulley clockwise (when view from engine
front) by 270 degrees from the position of No. 1 cylinder com-
pression TDC to align No. 3 cylinder at TDC of its compression
stroke.
NOTE:
Crankshaft pulley mounting bolt flange has a angle mark every
90 degrees. They can be used as a guide to rotation angle.
By referring to the figure, measure valve clearances at loca-
tions marked “×” as shown in the table below (locations indi-
cated with white arrow in figure)
No.3 cylinder compression TDC
Measuring position (right bank)No. 2
CYL.No. 4
CYL.No. 6
CYL.No. 8
CYL.
No. 1 cylinder at TDC EXH ×
INT××
Measuring position (left bank)No. 1
CYL.No. 3
CYL.No. 5
CYL.No. 7
CYL.
No. 1 cylinder at TDCINT××
EXH××
PBIC2358E
PBIC2346E
Measuring position (right bank)No. 2
CYL.No. 4
CYL.No. 6
CYL.No. 8
CYL.
No. 3 cylinder at TDC EXH ×
INT ×
Measuring position (left bank)No. 1
CYL.No. 3
CYL.No. 5
CYL.No. 7
CYL.
No. 3 cylinder at TDCINT××
EXH××
PBIC2358E
Page 2942 of 4449
![INFINITI FX35 2004 Service Manual CAMSHAFT
EM-217
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
d. Rotate crankshaft pulley clockwise (when view from engine
front) by 90 degrees from the position of No. 3 c INFINITI FX35 2004 Service Manual CAMSHAFT
EM-217
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
d. Rotate crankshaft pulley clockwise (when view from engine
front) by 90 degrees from the position of No. 3 c](/manual-img/42/57021/w960_57021-2941.png)
CAMSHAFT
EM-217
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
d. Rotate crankshaft pulley clockwise (when view from engine
front) by 90 degrees from the position of No. 3 cylinder compres-
sion TDC to align No. 6 cylinder at TDC of its compression
stroke.
By referring to the figure, measure valve clearances at loca-
tions marked “×” as shown in the table below.
No. 6 cylinder compression TDC
4. For measured value are out of the standard, perform adjustment. Refer to EM-217, "
ADJUSTMENT" .
ADJUSTMENT
CAUTION:
Adjust valve clearance while engine is cold.
After adjusting, make sure that the valve clearance is within the standard while engine is hot.
1. Thoroughly wipe off engine oil around adjusting shim using rag.
2. Rotate crankshaft to position cam nose on camshaft of valve that must be adjusted upward.
3. Using small screwdriver, turn the round hole of adjusting shim in
the direction of the arrow.
CAUTION:
perform (the above procedure) during camshaft do not con-
tact with adjusting shim.

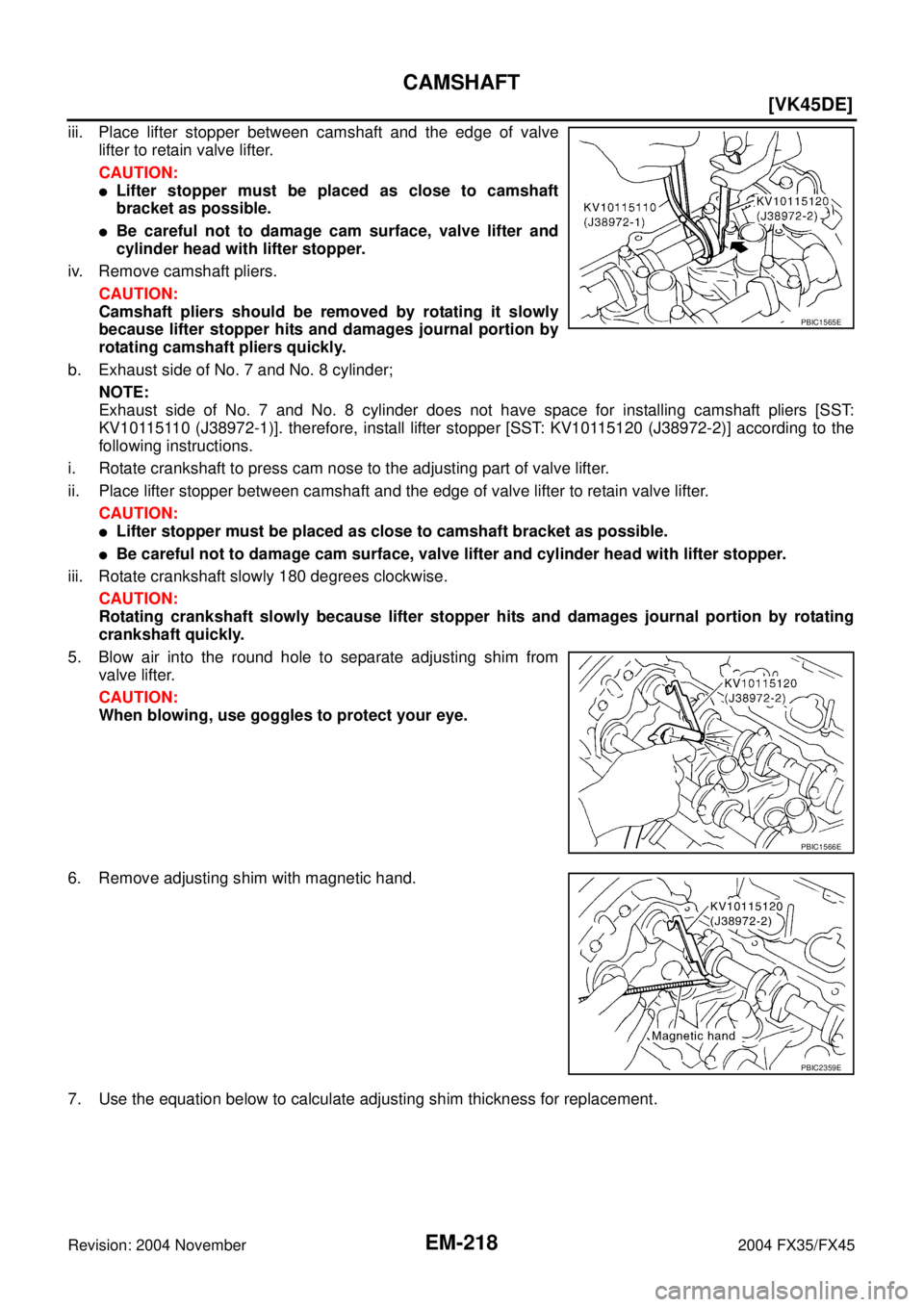

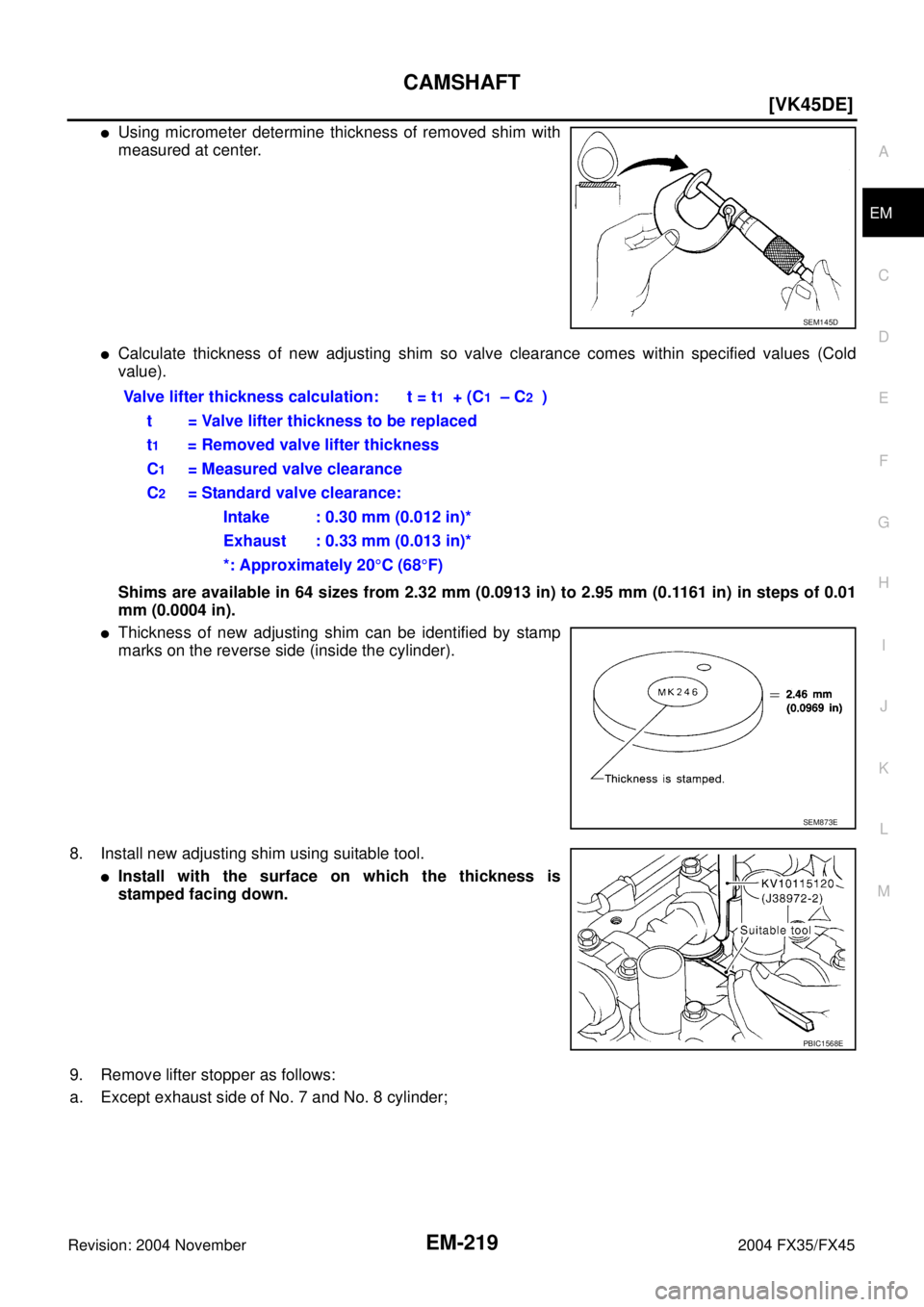

4. Install lifter stopper [SST: 10115120 (J38972-2)] as follows:
a. Except exhaust side of No. 7 and No. 8 cylinder;
i. Place camshaft pliers (SST) around camshaft as shown in the
figure.
ii. Rotate camshaft pliers so that valve lifter is pushed down.
CAUTION:
Be careful not to damage cam surface, valve lifter and cylin-
der head with camshaft pliers.
PBIC2346E
Measuring position (right bank)No. 2
CYL.No. 4
CYL.No. 6
CYL.No. 8
CYL.
No. 6 cylinder at TDC EXH× ×
INT ×
PBIC0824E
PBIC0047E
PBIC2276E
Page 2943 of 4449
![INFINITI FX35 2004 Service Manual EM-218
[VK45DE]
CAMSHAFT
Revision: 2004 November 2004 FX35/FX45
iii. Place lifter stopper between camshaft and the edge of valve
lifter to retain valve lifter.
CAUTION:
Lifter stopper must be placed INFINITI FX35 2004 Service Manual EM-218
[VK45DE]
CAMSHAFT
Revision: 2004 November 2004 FX35/FX45
iii. Place lifter stopper between camshaft and the edge of valve
lifter to retain valve lifter.
CAUTION:
Lifter stopper must be placed](/manual-img/42/57021/w960_57021-2942.png)
EM-218
[VK45DE]
CAMSHAFT
Revision: 2004 November 2004 FX35/FX45
iii. Place lifter stopper between camshaft and the edge of valve
lifter to retain valve lifter.
CAUTION:
Lifter stopper must be placed as close to camshaft
bracket as possible.
Be careful not to damage cam surface, valve lifter and
cylinder head with lifter stopper.
iv. Remove camshaft pliers.
CAUTION:
Camshaft pliers should be removed by rotating it slowly
because lifter stopper hits and damages journal portion by
rotating camshaft pliers quickly.
b. Exhaust side of No. 7 and No. 8 cylinder;
NOTE:
Exhaust side of No. 7 and No. 8 cylinder does not have space for installing camshaft pliers [SST:
KV10115110 (J38972-1)]. therefore, install lifter stopper [SST: KV10115120 (J38972-2)] according to the
following instructions.
i. Rotate crankshaft to press cam nose to the adjusting part of valve lifter.
ii. Place lifter stopper between camshaft and the edge of valve lifter to retain valve lifter.
CAUTION:
Lifter stopper must be placed as close to camshaft bracket as possible.
Be careful not to damage cam surface, valve lifter and cylinder head with lifter stopper.
iii. Rotate crankshaft slowly 180 degrees clockwise.
CAUTION:
Rotating crankshaft slowly because lifter stopper hits and damages journal portion by rotating
crankshaft quickly.
5. Blow air into the round hole to separate adjusting shim from
valve lifter.
CAUTION:
When blowing, use goggles to protect your eye.
6. Remove adjusting shim with magnetic hand.
7. Use the equation below to calculate adjusting shim thickness for replacement.
PBIC1565E
PBIC1566E
PBIC2359E
Page 2944 of 4449
![INFINITI FX35 2004 Service Manual CAMSHAFT
EM-219
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Using micrometer determine thickness of removed shim with
measured at center.
Calculate thickness of new adj INFINITI FX35 2004 Service Manual CAMSHAFT
EM-219
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Using micrometer determine thickness of removed shim with
measured at center.
Calculate thickness of new adj](/manual-img/42/57021/w960_57021-2943.png)
CAMSHAFT
EM-219
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
Using micrometer determine thickness of removed shim with
measured at center.
Calculate thickness of new adjusting shim so valve clearance comes within specified values (Cold
value).
Shims are available in 64 sizes from 2.32 mm (0.0913 in) to 2.95 mm (0.1161 in) in steps of 0.01
mm (0.0004 in).
Thickness of new adjusting shim can be identified by stamp
marks on the reverse side (inside the cylinder).
8. Install new adjusting shim using suitable tool.
Install with the surface on which the thickness is
stamped facing down.
9. Remove lifter stopper as follows:
a. Except exhaust side of No. 7 and No. 8 cylinder;
SEM145D
Valve lifter thickness calculation: t = t1 + (C1 – C2 )
t = Valve lifter thickness to be replaced
t
1 = Removed valve lifter thickness
C
1= Measured valve clearance
C
2= Standard valve clearance:
Intake : 0.30 mm (0.012 in)*
Exhaust : 0.33 mm (0.013 in)*
*: Approximately 20°C (68°F)
SEM873E
PBIC1568E
