Control Unit Input/Output Signal StandardAES000NU
Standards using a circuit tester and oscilloscope.
( ): Wire color
ID Registration ProcedureAES000NV
ID REGISTRATION WITH TRANSMITTER ACTIVATION TOOL
This procedure must do after replace transmitter or low tire pressure warning control unit.
1. Turn ignition switch “OFF”.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
3. Touch “AIR PRESSURE MONITOR”, “WORK SUPPORT” and “ID REGIST”.
NOTE:
If “AIR PRESSURE MONITOR” is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC)
Circuit" .
4. With the transmitter activation tool (J-45295) pushed against the
front-left transmitter position of the tire air valve, press the button
then keep 5 seconds.
5. Register the IDs in order from FR LH, FR RH, RR RH or RR LH. When ID registration of each wheel has
been completed, a buzzer sounds and hazard warning lamp blinks.
6. After completing all ID registrations, press “END” to complete the procedure.
NOTE:
Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results dis-
play will not function properly.
Measurement terminal
Item Operation or condition
+–
8 (G)
GroundTire pressure warning check
switchAlways Approx. 5 V
9 (L) Data line (CAN H) — —
11 (LG/R) Ignition switch ACC — Battery voltage (Approx. 12 V)
12 (R/W) Battery power supply Always Battery voltage (Approx. 12 V)
20 (B) GND — Approx. 0 V
21 (R) Data line (CAN L) — —
22 (G/Y) HazardHazard lamp switch OFF Battery voltage (Approx. 12 V)
Hazard lamp switch ON Approx. 0 V
24 (G/R) Ignition switch ON — Battery voltage (Approx. 12 V)
25 Antenna — —
SEIA0460E
Activation tire position Buzzer Hazard warning lamp CONSULT-II
Front LH Once
2 times flashing“YET”
↓
“DONE” Front RH 2 times
Rear RH 3 times
Rear LH 4 times
Page 4372 of 4449
TROUBLE DIAGNOSES
WT-15
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2004 November 2004 FX35/FX45
ID REGISTRATION WITHOUT TRANSMITTER ACTIVATION TOOL
1. Turn ignition switch “OFF”.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
3. Touch “AIR PRESSURE MONITOR”, “WORK SUPPORT” and “ID REGIST”.
NOTE:
If “AIR PRESSURE MONITOR” is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC)
Circuit" .
4. Adjust the tire pressure to the values shown in the table below for ID registration, and drive the vehicle at
15 km/h (9.4 MPH) or more for a few minutes.
5. After completing all ID registrations, press “END” to complete the procedure.
Tire position
Tire pressure kPa (kg/cm2 , psi)
Front LH 250 (2.5, 36)
Front RH 230 (2.3, 33)
Rear RH 210 (2.1, 30)
Rear LH 190 (1.9, 27)
Activation tire position CONSULT-II
Front LH
“YET”
↓
“DONE” Front RH
Rear RH
Rear LH
Page 4373 of 4449
WT-16
TROUBLE DIAGNOSES
Revision: 2004 November 2004 FX35/FX45

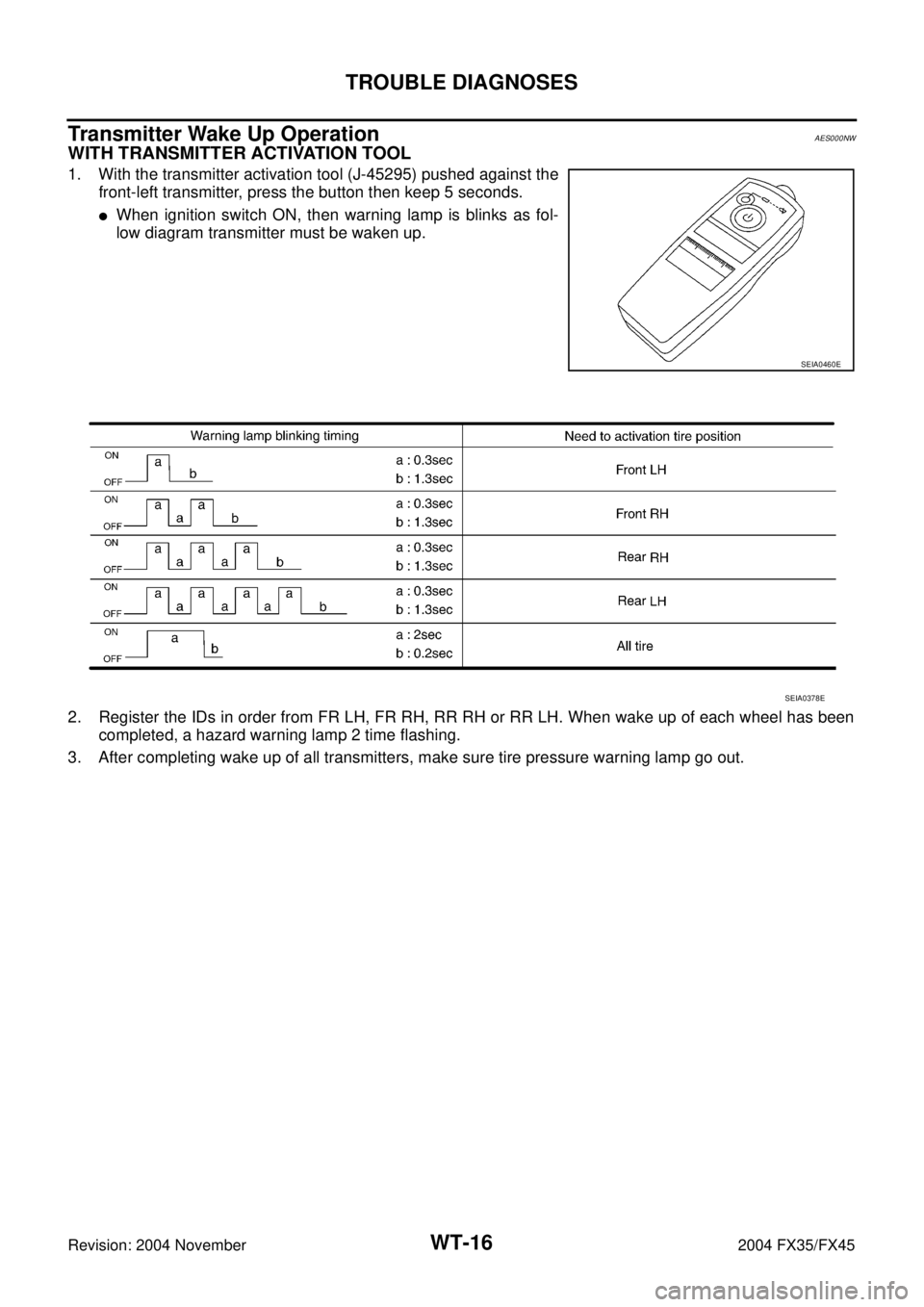

Transmitter Wake Up OperationAES000NW
WITH TRANSMITTER ACTIVATION TOOL
1. With the transmitter activation tool (J-45295) pushed against the
front-left transmitter, press the button then keep 5 seconds.
When ignition switch ON, then warning lamp is blinks as fol-
low diagram transmitter must be waken up.
2. Register the IDs in order from FR LH, FR RH, RR RH or RR LH. When wake up of each wheel has been
completed, a hazard warning lamp 2 time flashing.
3. After completing wake up of all transmitters, make sure tire pressure warning lamp go out.
SEIA0460E
SEIA0378E
Page 4374 of 4449

TROUBLE DIAGNOSES
WT-17
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2004 November 2004 FX35/FX45
Self-DiagnosisAES000NX
DESCRIPTION
During driving, the low tire pressure warning system receives the signal transmitted from the transmitter
installed in each wheel, and gives alarms when the tire pressure becomes low. The control unit of this system
has pressure judgement and trouble diagnosis functions.
FUNCTION
When the low tire pressure warning system detects low inflation pressure or another unusual symptom, the
warning lamps in the combination meter comes on. To start the self-diagnostic results mode, ground the self-
diagnostic (check) terminal. The malfunction location is indicated by the warning lamp flashing and the buzzer
sounds.
CONSULT-II
CONSULT-II Main Function
In a diagnosis function (main function), there are “WORK SUPPORT”, “SELF-DIAGNOSTIC RESULTS”,
“DATA MONITOR”, “CAN DIAG SUPPORT MNTR”.
CONSULT-II Application to Low Tire Pressure Warning System
×: Applicable
–: Not applicable
Self-Diagnostic Results Mode
Diagnostic test mode Function
WORK SUPPORTThis mode enables a technician to adjust some devices faster and more accurately by following
the indications on CONSULT-II.
SELF-DIAGNOSTIC
RESULTSSelf-diagnostic results can be read and erased quickly.
DATA MONITOR Input/Output data in the control unit can be read.
CAN DIAG SUPPORT MNTR The results of transmit/receive diagnosis of communication can be read.
ITEM SELF-DIAGNOSTIC RESULTS DATA MONITOR
Front - Left transmitter××
Front - Right transmitter××
Rear - Left transmitter××
Rear - Right transmitter××
Warning lamp−×
Vehicle speed××
Buzzer (in control unit)−×
CAN Communication××
Diagnostic item Diagnostic item is detected when ···
FLAT - TIRE - FL
FLAT - TIRE - FR
FLAT - TIRE - RR
FLAT - TIRE - RLFront-left tire pressure drops to 190 kPa (1.9 kg/cm
2 , 27 psi) or less
Front-right tire pressure drops to 190 kPa (1.9 kg/cm2 , 27 psi) or less
Rear-right tire pressure drops to 190 kPa (1.9 kg/cm2 , 27 psi) or less
Rear-left tire pressure drops to 190 kPa (1.9 kg/cm2 , 27 psi) or less
[NO-DATA] - FL
[NO-DATA] - FR
[NO-DATA] - RR
[NO-DATA] - RLData from front-left transmitter cannot be received.
Data from front-right transmitter cannot be received.
Data from rear-right transmitter cannot be received.
Data from rear-left transmitter cannot be received.
[CHECKSUM- ERR] - FL
[CHECKSUM- ERR] - FR
[CHECKSUM- ERR] - RR
[CHECKSUM- ERR] - RLChecksum data from front-left transmitter is malfunctioning.
Checksum data from front-right transmitter is malfunctioning.
Checksum data from rear-right transmitter is malfunctioning.
Checksum data from rear-left transmitter is malfunctioning.
[PRESSDATA- ERR] - FL
[PRESSDATA- ERR] - FR
[PRESSDATA- ERR] - RR
[PRESSDATA- ERR] - RLAir pressure data from front-left transmitter is malfunctioning.
Air pressure data from front-right transmitter is malfunctioning.
Air pressure data from rear-right transmitter is malfunctioning.
Air pressure data from rear-left transmitter is malfunctioning.
Page 4375 of 4449

WT-18
TROUBLE DIAGNOSES
Revision: 2004 November 2004 FX35/FX45
NOTE:
Before performing the self-diagnosis, be sure to register the ID. Or, the actual malfunction location may be different from that displayed
on CONSULT-II.
Data Monitor Mode
NOTE:
Before performing the self-diagnosis, be sure to register the ID. Or, the actual malfunction location may be different from that displayed
on CONSULT-II.[CODE- ERR] - FL
[CODE- ERR] - FR
[CODE- ERR] - RR
[CODE- ERR] - RLFunction code data from front-left transmitter is malfunctioning.
Function code data from front-right transmitter is malfunctioning.
Function code data from rear-right transmitter is malfunctioning.
Function code data from rear-left transmitter is malfunctioning.
[BATT - VOLT - LOW] - FL
[BATT - VOLT - LOW] - FR
[BATT - VOLT - LOW] - RR
[BATT - VOLT - LOW] - RLBattery voltage of front-left transmitter drops.
Battery voltage of front-right transmitter drops.
Battery voltage of rear-right transmitter drops.
Battery voltage of rear-left transmitter drops.
VHCL_SPEED_SIG_ERR Vehicle speed signal is error.Diagnostic item Diagnostic item is detected when ···
MONITOR CONDITION SPECIFICATION
VHCL SPEED SE Drive vehicle. Vehicle speed (km/h or MPH)
AIR PRESS FL
AIR PRESS FR
AIR PRESS RR
AIR PRESS RL
Drive vehicle for a few minutes.
Tire pressure (kPa or psi) or
Ignition switch ON and activation tool
is transmitting activation signals.
ID REGST FL
ID REGST FR
ID REGST RR
ID REGST RL
Ignition switch ONRegistration ID: DONE
No registration ID: YET
WARNING LAMPWarning lamp on: ON
Warning lamp off: OFF
BUZZERBuzzer in Low tire pressure warning control unit on: ON
Buzzer in Low tire pressure warning control unit off: OFF
Page 4376 of 4449
TROUBLE DIAGNOSES
WT-19
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2004 November 2004 FX35/FX45
How to Perform Trouble Diagnosis for Quick and Accurate RepairAES000NY
INTRODUCTION
Before troubleshooting, verify customer complaints.
If a vehicle malfunction is difficult to reproduce, harnesses, harness connectors or terminals may be mal-
functioning. Hold and shake these parts to make sure they are securely connected.
When using a circuit tester to measure voltage or resistance of each circuit, be careful not to expand con-
nector terminals.

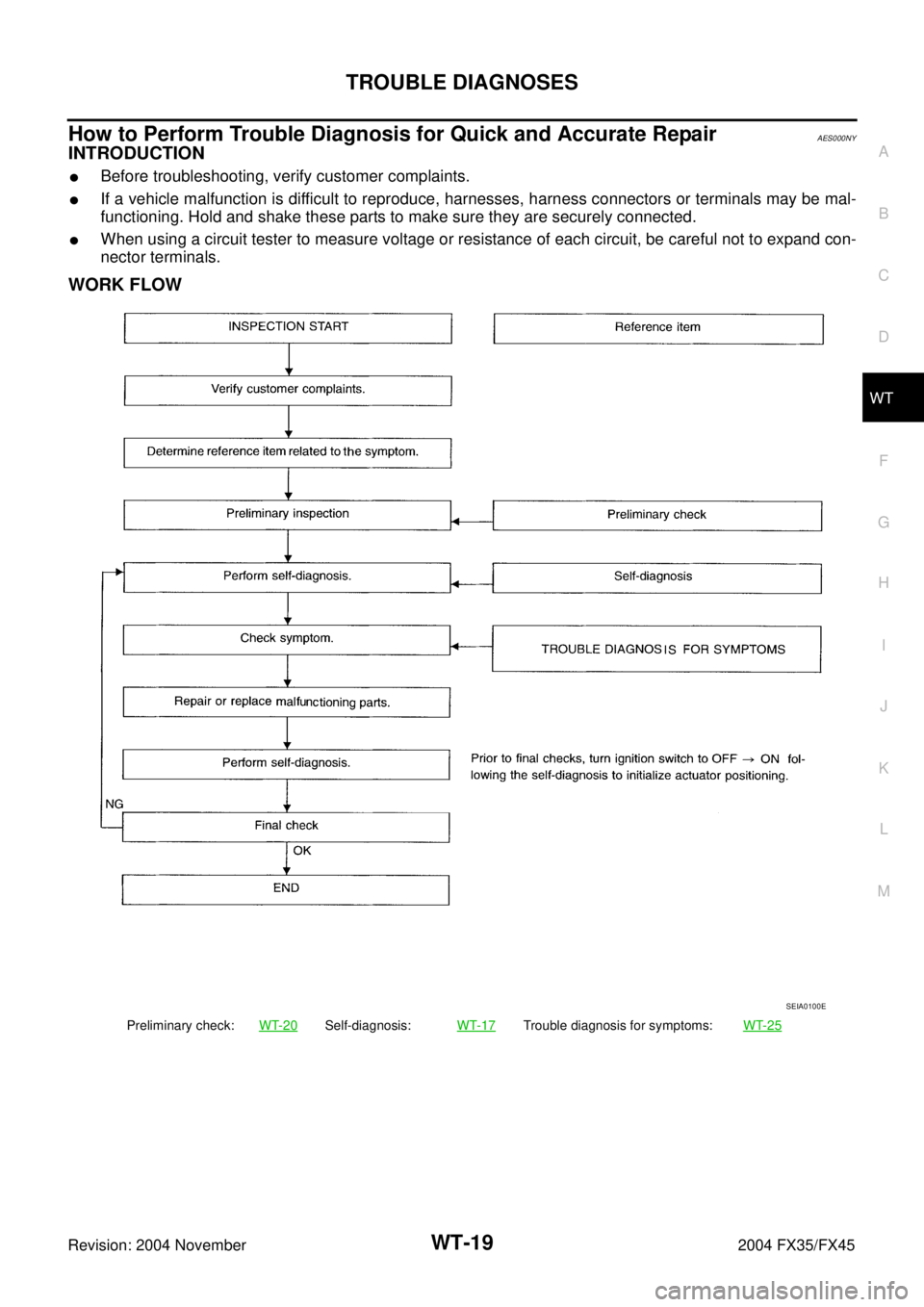

WORK FLOW
Preliminary check:WT-20Self-diagnosis:WT-17Trouble diagnosis for symptoms:WT-25
SEIA0100E
