EC-1148
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2004 November 2004 FX35/FX45

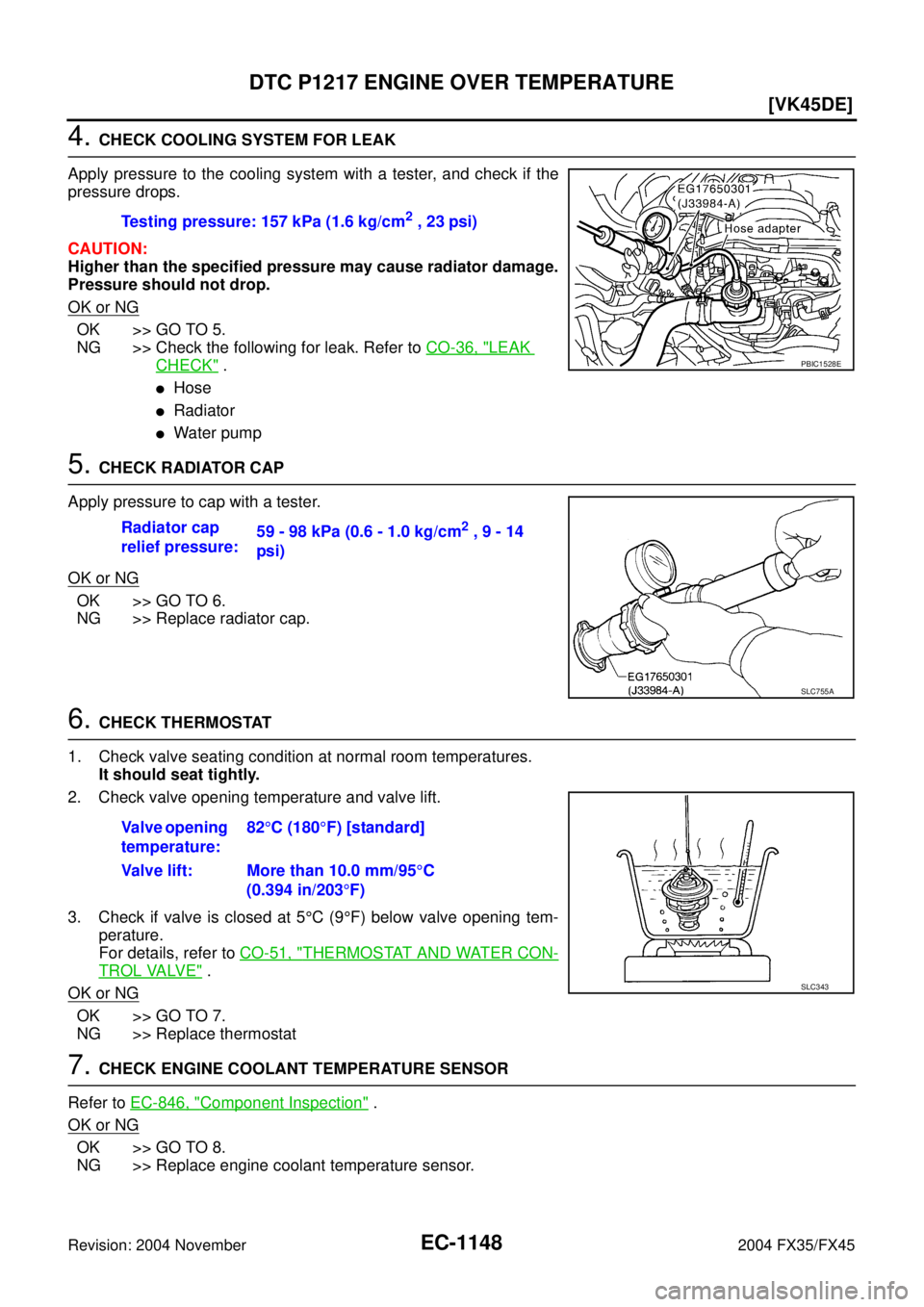

4. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
Pressure should not drop.
OK or NG
OK >> GO TO 5.
NG >> Check the following for leak. Refer to CO-36, "
LEAK
CHECK" .
Hose
Radiator
Water pump
5. CHECK RADIATOR CAP
Apply pressure to cap with a tester.
OK or NG
OK >> GO TO 6.
NG >> Replace radiator cap.
6. CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures.
It should seat tightly.
2. Check valve opening temperature and valve lift.
3. Check if valve is closed at 5°C (9°F) below valve opening tem-
perature.
For details, refer to CO-51, "
THERMOSTAT AND WATER CON-
TROL VALVE" .
OK or NG
OK >> GO TO 7.
NG >> Replace thermostat
7. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-846, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace engine coolant temperature sensor.Testing pressure: 157 kPa (1.6 kg/cm
2 , 23 psi)
PBIC1528E
Radiator cap
relief pressure:59 - 98 kPa (0.6 - 1.0 kg/cm2 , 9 - 14
psi)
SLC755A
Valve opening
temperature:82°C (180°F) [standard]
Valve lift: More than 10.0 mm/95°C
(0.394 in/203°F)
SLC343
Page 2490 of 4449
![INFINITI FX35 2004 Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-1149
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
8. CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-1150, "
Main 12 Ca INFINITI FX35 2004 Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-1149
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
8. CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-1150, "
Main 12 Ca](/manual-img/42/57021/w960_57021-2489.png)
DTC P1217 ENGINE OVER TEMPERATURE
EC-1149
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
8. CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-1150, "
Main 12 Causes of Overheating" .
>>INSPECTION END
PROCEDURE A
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E6.
3. Check voltage between IPDM E/R terminal 16 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
40A fusible link
Harness for open or short between IPDM E/R and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK COOLING FAN MOTOR CIRCUIT FOR OPEN OR SHORT
1. Disconnect IPDM E/R harness connector E5.
2. Disconnect cooling fan motor harness connector.
3. Check harness continuity between cooling fan motor terminal 1
and IPDM E/R terminal 11, cooling fan motor terminal 2 and
IPDM E/R terminal 8.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. Voltage: Battery voltage
PBIB0966E
Continuity should exist.
PBIB1493E
Page 2491 of 4449
![INFINITI FX35 2004 Service Manual EC-1150
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2004 November 2004 FX35/FX45
4. CHECK COOLING FAN MOTOR GROUND CIRCUIT FOR OPEN OR SHORT
1. Check harness continuity between the following; INFINITI FX35 2004 Service Manual EC-1150
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2004 November 2004 FX35/FX45
4. CHECK COOLING FAN MOTOR GROUND CIRCUIT FOR OPEN OR SHORT
1. Check harness continuity between the following;](/manual-img/42/57021/w960_57021-2490.png)
EC-1150
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2004 November 2004 FX35/FX45
4. CHECK COOLING FAN MOTOR GROUND CIRCUIT FOR OPEN OR SHORT
1. Check harness continuity between the following;
cooling fan motor terminal 3 and ground,
cooling fan motor terminal 4 and ground.
Refer to wiring diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to power in harness or connectors.
5. CHECK COOLING FAN MOTOR
Refer to EC-1151, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace cooling fan motor.
6. CHECK INTERMITTENT INCIDENT
Perform EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-18, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness connectors.
Main 12 Causes of OverheatingABS00CAW
Continuity should exist.
Engine Step Inspection item Equipment Standard Reference page
OFF 1
Blocked radiator
Blocked condenser
Blocked radiator grille
Blocked bumper
Visual No blocking —
2
Coolant mixtureCoolant tester 50 - 50% coolant mixtureMA-13
3Coolant levelVisual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckCO-36
4Radiator capPressure tester 59 - 98 kPa
(0.6 - 1.0 kg/cm2 , 9 - 14
psi) (Limit)CO-41
ON*25Coolant leaksVisual No leaksCO-36
ON*26ThermostatTouch the upper and
lower radiator hosesBoth hoses should be hotCO-51
ON*17Cooling fanCONSULT-II Operating See trouble diagnosis for
DTC P1217 (EC-1142
).
OFF 8
Combustion gas leakColor checker chemical
tester 4 Gas analyzerNegative —
ON*
39Coolant temperature
gaugeVisual Gauge less than 3/4
when driving—
Coolant overflow to
reservoir tankVisual No overflow during driving
and idlingCO-36
OFF*410Coolant return from
reservoir tank to radia-
torVisual Should be initial level in
reservoir tankCO-36
Page 2492 of 4449
DTC P1217 ENGINE OVER TEMPERATURE
EC-1151
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to CO-32, "
OVERHEATING CAUSE ANALYSIS" .
Component InspectionABS00CAX

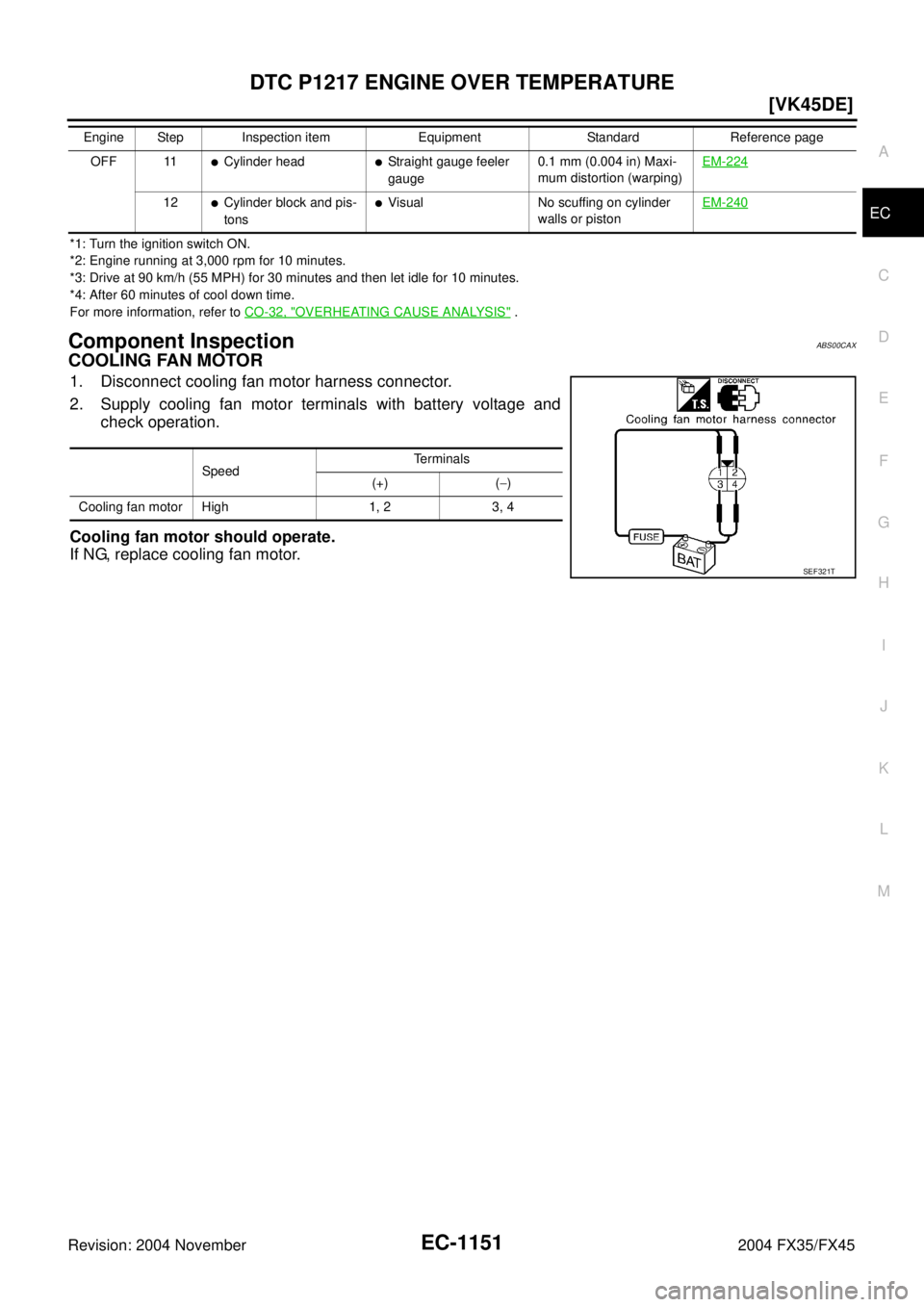

COOLING FAN MOTOR
1. Disconnect cooling fan motor harness connector.
2. Supply cooling fan motor terminals with battery voltage and
check operation.
Cooling fan motor should operate.
If NG, replace cooling fan motor.
OFF 11Cylinder headStraight gauge feeler
gauge0.1 mm (0.004 in) Maxi-
mum distortion (warping)EM-224
12Cylinder block and pis-
tonsVisual No scuffing on cylinder
walls or pistonEM-240
Engine Step Inspection item Equipment Standard Reference page
SpeedTe r m i n a l s
(+) (−)
Cooling fan motor High 1, 2 3, 4
SEF321T
Page 2493 of 4449
![INFINITI FX35 2004 Service Manual EC-1152
[VK45DE]
DTC P1225 TP SENSOR
Revision: 2004 November 2004 FX35/FX45
DTC P1225 TP SENSORPFP:16119
Component DescriptionABS00CAY
Electric throttle control actuator consists of throttle control m INFINITI FX35 2004 Service Manual EC-1152
[VK45DE]
DTC P1225 TP SENSOR
Revision: 2004 November 2004 FX35/FX45
DTC P1225 TP SENSORPFP:16119
Component DescriptionABS00CAY
Electric throttle control actuator consists of throttle control m](/manual-img/42/57021/w960_57021-2492.png)
EC-1152
[VK45DE]
DTC P1225 TP SENSOR
Revision: 2004 November 2004 FX35/FX45
DTC P1225 TP SENSORPFP:16119
Component DescriptionABS00CAY

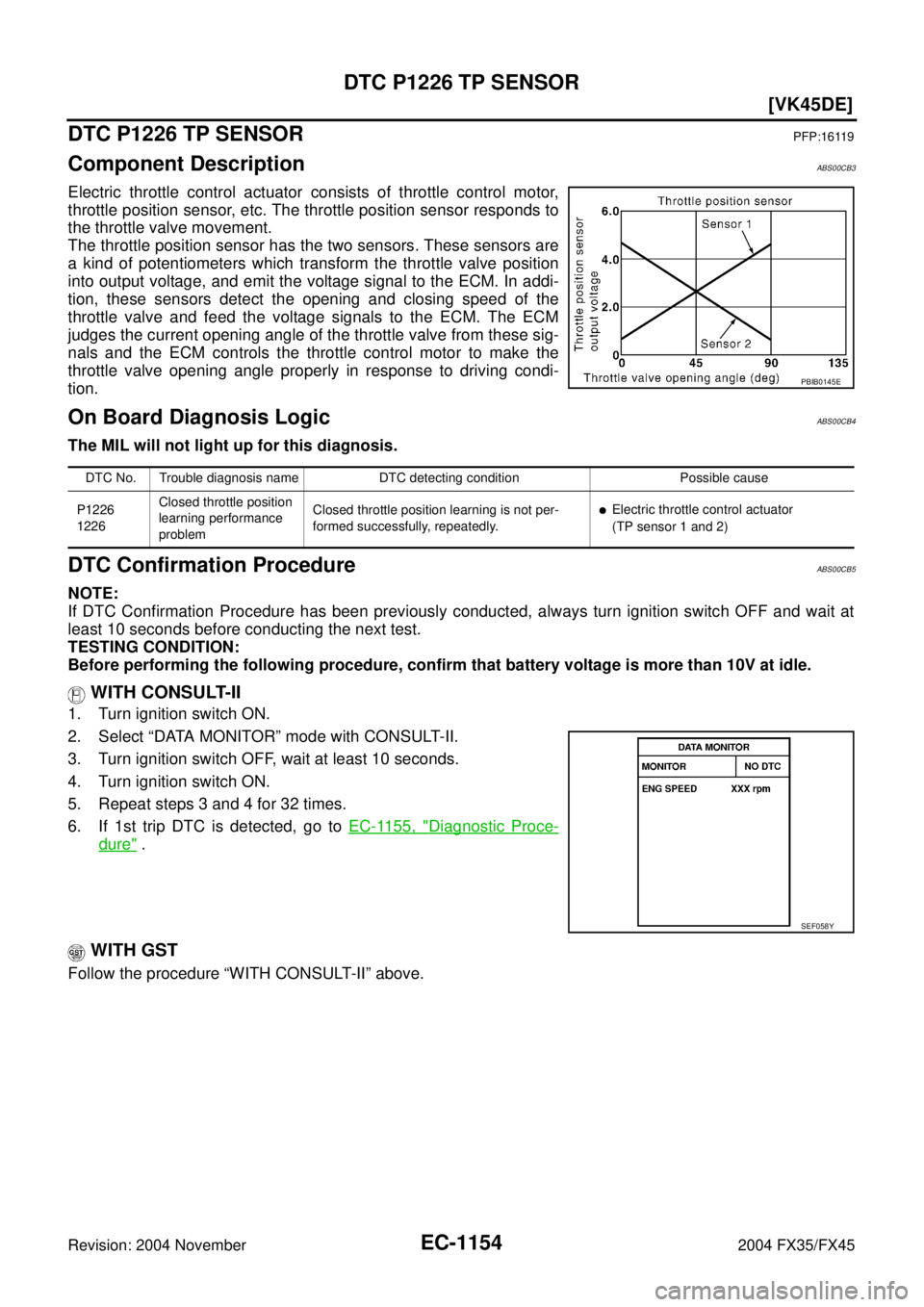

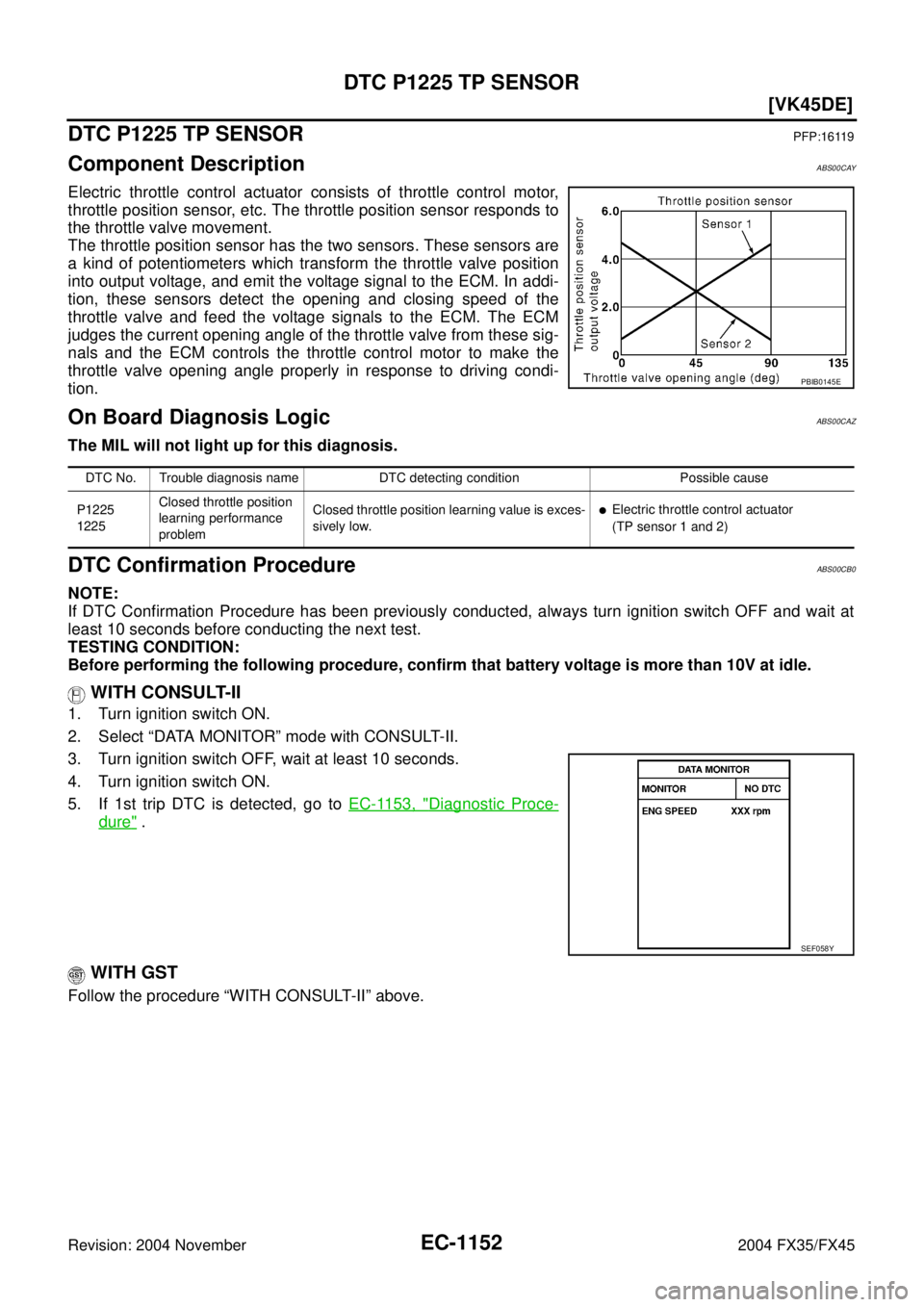

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicABS00CAZ
The MIL will not light up for this diagnosis.
DTC Confirmation ProcedureABS00CB0
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF, wait at least 10 seconds.
4. Turn ignition switch ON.
5. If 1st trip DTC is detected, go to EC-1153, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1225
1225Closed throttle position
learning performance
problemClosed throttle position learning value is exces-
sively low.
Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y
Page 2494 of 4449
DTC P1225 TP SENSOR
EC-1153
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS00CB1

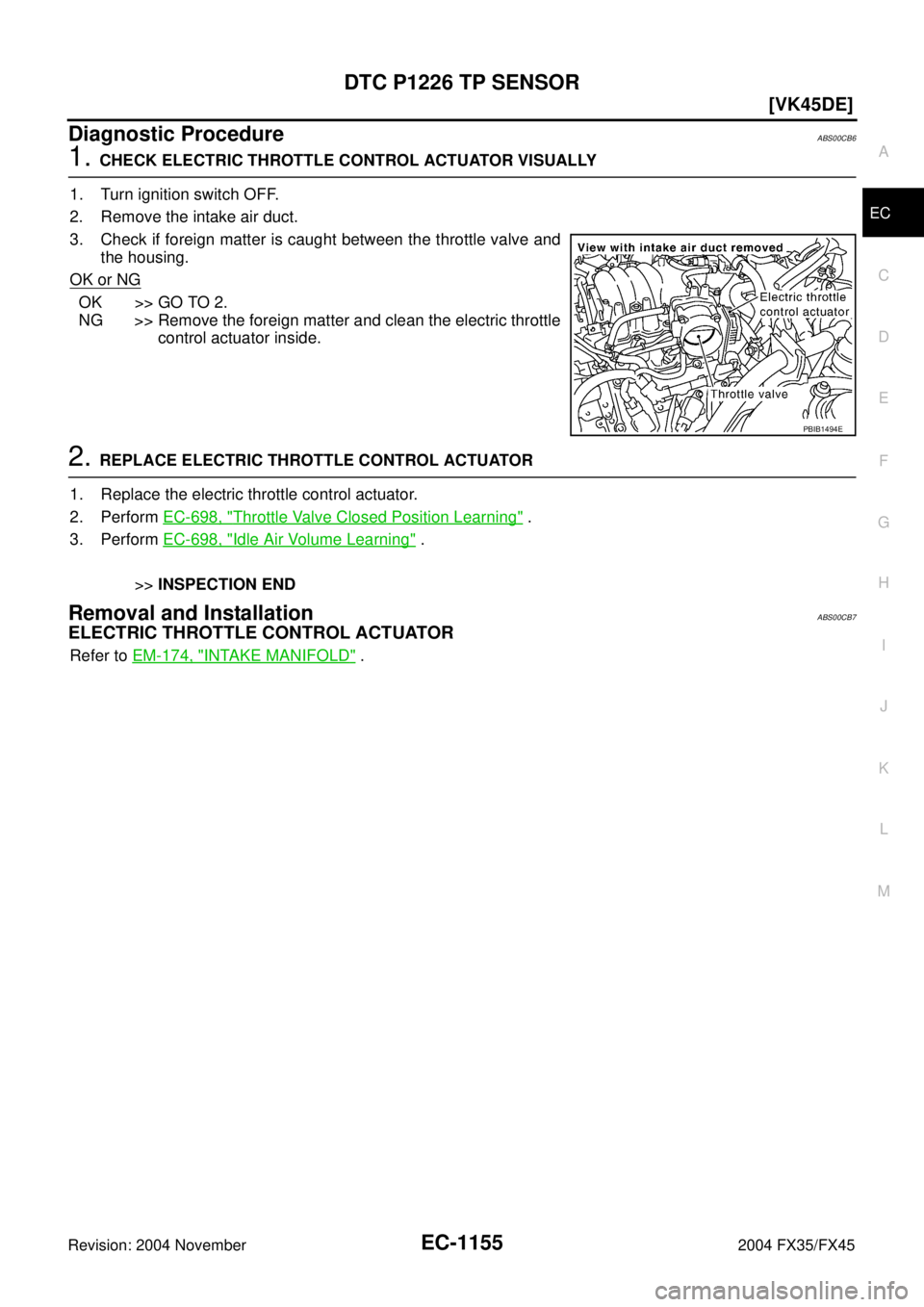

1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and
the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-698, "
Throttle Valve Closed Position Learning" .
3. Perform EC-698, "
Idle Air Volume Learning" .
>>INSPECTION END
Removal and InstallationABS00CB2
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-174, "INTAKE MANIFOLD" .
PBIB1494E
Page 2495 of 4449
![INFINITI FX35 2004 Service Manual EC-1154
[VK45DE]
DTC P1226 TP SENSOR
Revision: 2004 November 2004 FX35/FX45
DTC P1226 TP SENSORPFP:16119
Component DescriptionABS00CB3
Electric throttle control actuator consists of throttle control m INFINITI FX35 2004 Service Manual EC-1154
[VK45DE]
DTC P1226 TP SENSOR
Revision: 2004 November 2004 FX35/FX45
DTC P1226 TP SENSORPFP:16119
Component DescriptionABS00CB3
Electric throttle control actuator consists of throttle control m](/manual-img/42/57021/w960_57021-2494.png)
EC-1154
[VK45DE]
DTC P1226 TP SENSOR
Revision: 2004 November 2004 FX35/FX45
DTC P1226 TP SENSORPFP:16119
Component DescriptionABS00CB3
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicABS00CB4
The MIL will not light up for this diagnosis.
DTC Confirmation ProcedureABS00CB5
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF, wait at least 10 seconds.
4. Turn ignition switch ON.
5. Repeat steps 3 and 4 for 32 times.
6. If 1st trip DTC is detected, go to EC-1155, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1226
1226Closed throttle position
learning performance
problemClosed throttle position learning is not per-
formed successfully, repeatedly.
Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y
Page 2496 of 4449
DTC P1226 TP SENSOR
EC-1155
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureABS00CB6
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and
the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-698, "
Throttle Valve Closed Position Learning" .
3. Perform EC-698, "
Idle Air Volume Learning" .
>>INSPECTION END
Removal and InstallationABS00CB7
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-174, "INTAKE MANIFOLD" .
PBIB1494E
