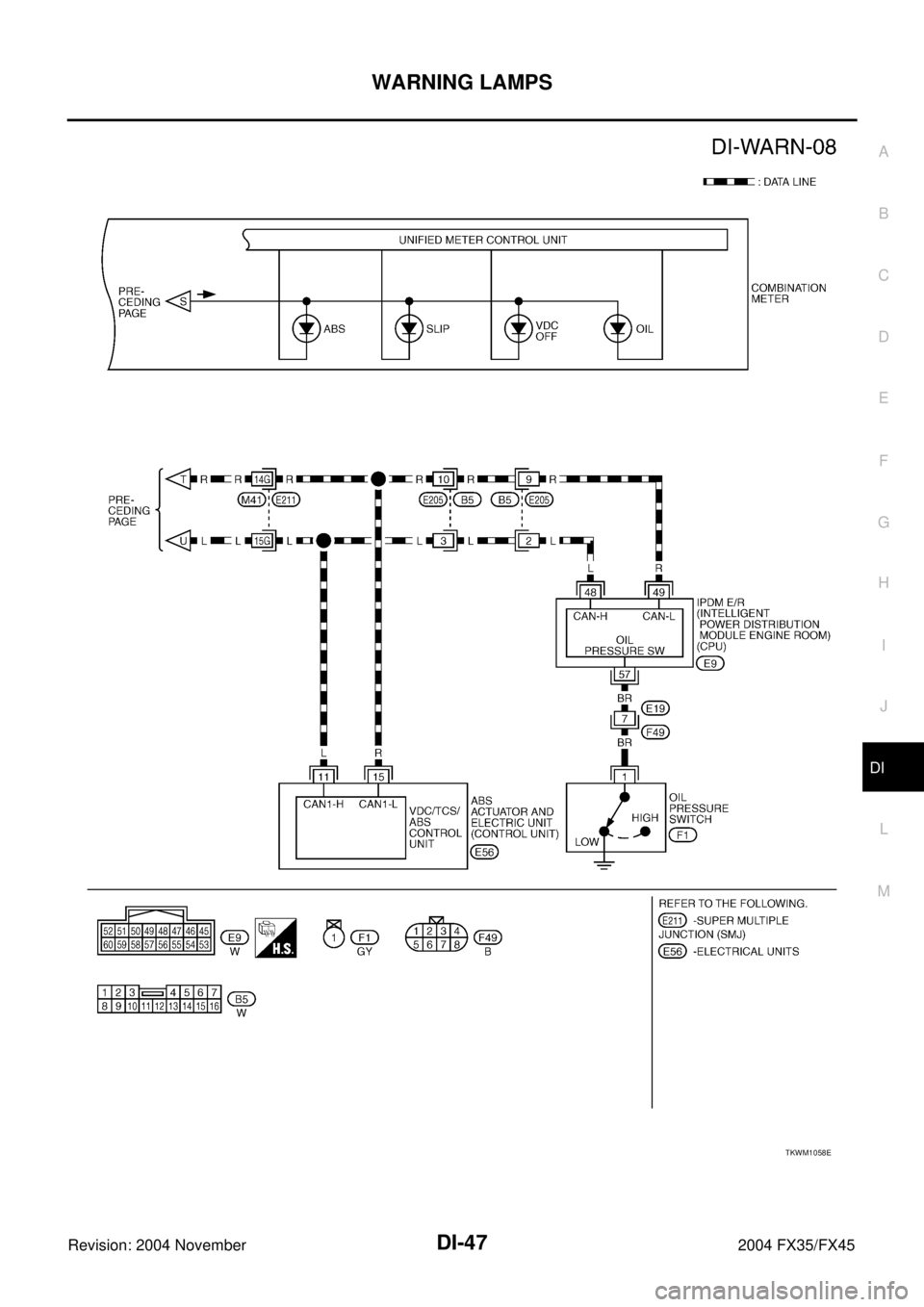

Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)AKS005NF

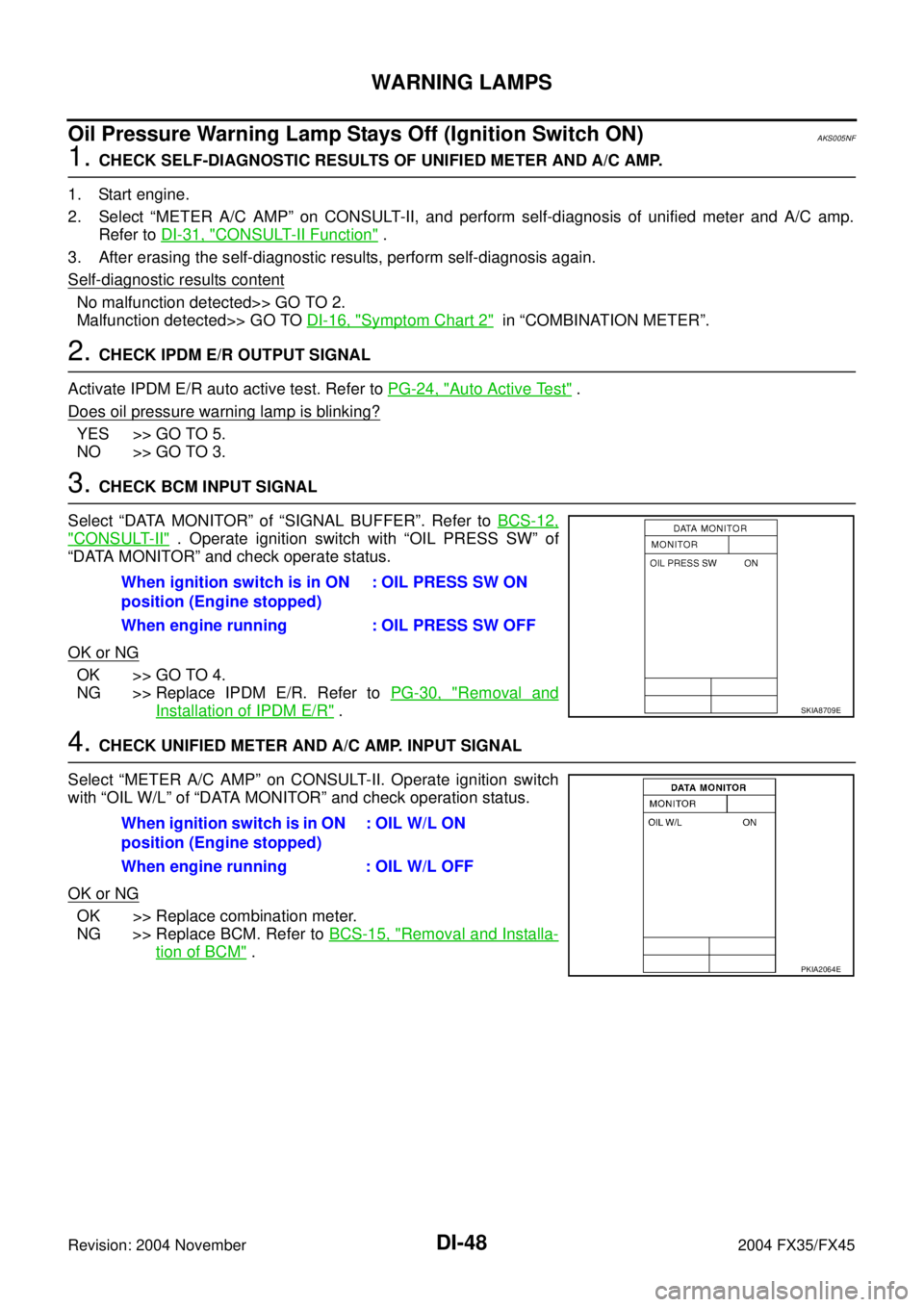

1. CHECK SELF-DIAGNOSTIC RESULTS OF UNIFIED METER AND A/C AMP.
1. Start engine.
2. Select “METER A/C AMP” on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp.
Refer to DI-31, "
CONSULT-II Function" .
3. After erasing the self-diagnostic results, perform self-diagnosis again.
Self-diagnostic results content
No malfunction detected>> GO TO 2.
Malfunction detected>> GO TO DI-16, "
Symptom Chart 2" in “COMBINATION METER”.
2. CHECK IPDM E/R OUTPUT SIGNAL
Activate IPDM E/R auto active test. Refer to PG-24, "
Auto Active Test" .
Does oil pressure warning lamp is blinking?
YES >> GO TO 5.
NO >> GO TO 3.
3. CHECK BCM INPUT SIGNAL
Select “DATA MONITOR” of “SIGNAL BUFFER”. Refer to BCS-12,
"CONSULT-II" . Operate ignition switch with “OIL PRESS SW” of
“DATA MONITOR” and check operate status.
OK or NG
OK >> GO TO 4.
NG >> Replace IPDM E/R. Refer to PG-30, "
Removal and
Installation of IPDM E/R" .
4. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
Select “METER A/C AMP” on CONSULT-II. Operate ignition switch
with “OIL W/L” of “DATA MONITOR” and check operation status.
OK or NG
OK >> Replace combination meter.
NG >> Replace BCM. Refer to BCS-15, "
Removal and Installa-
tion of BCM" . When ignition switch is in ON
position (Engine stopped): OIL PRESS SW ON
When engine running : OIL PRESS SW OFF
SKIA8709E
When ignition switch is in ON
position (Engine stopped): OIL W/L ON
When engine running : OIL W/L OFF
PKIA2064E
Page 1292 of 4449

WARNING LAMPS
DI-49
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45

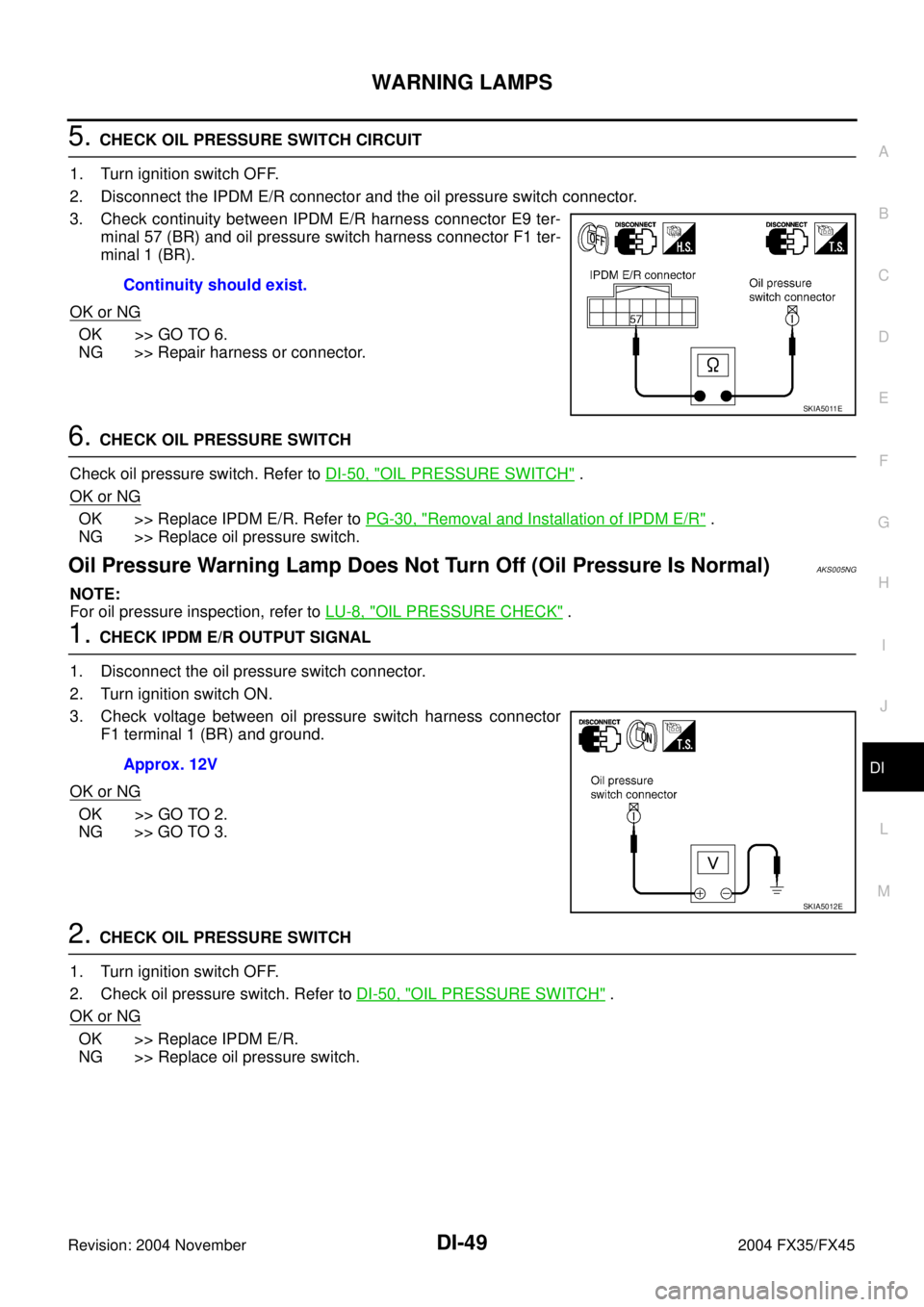

5. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the IPDM E/R connector and the oil pressure switch connector.
3. Check continuity between IPDM E/R harness connector E9 ter-
minal 57 (BR) and oil pressure switch harness connector F1 ter-
minal 1 (BR).
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK OIL PRESSURE SWITCH
Check oil pressure switch. Refer to DI-50, "
OIL PRESSURE SWITCH" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-30, "Removal and Installation of IPDM E/R" .
NG >> Replace oil pressure switch.
Oil Pressure Warning Lamp Does Not Turn Off (Oil Pressure Is Normal)AKS005NG
NOTE:
For oil pressure inspection, refer to LU-8, "
OIL PRESSURE CHECK" .
1. CHECK IPDM E/R OUTPUT SIGNAL
1. Disconnect the oil pressure switch connector.
2. Turn ignition switch ON.
3. Check voltage between oil pressure switch harness connector
F1 terminal 1 (BR) and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK OIL PRESSURE SWITCH
1. Turn ignition switch OFF.
2. Check oil pressure switch. Refer to DI-50, "
OIL PRESSURE SWITCH" .
OK or NG
OK >> Replace IPDM E/R.
NG >> Replace oil pressure switch.Continuity should exist.
SKIA5011E
Approx. 12V
SKIA5012E
Page 1293 of 4449
DI-50
WARNING LAMPS
Revision: 2004 November 2004 FX35/FX45

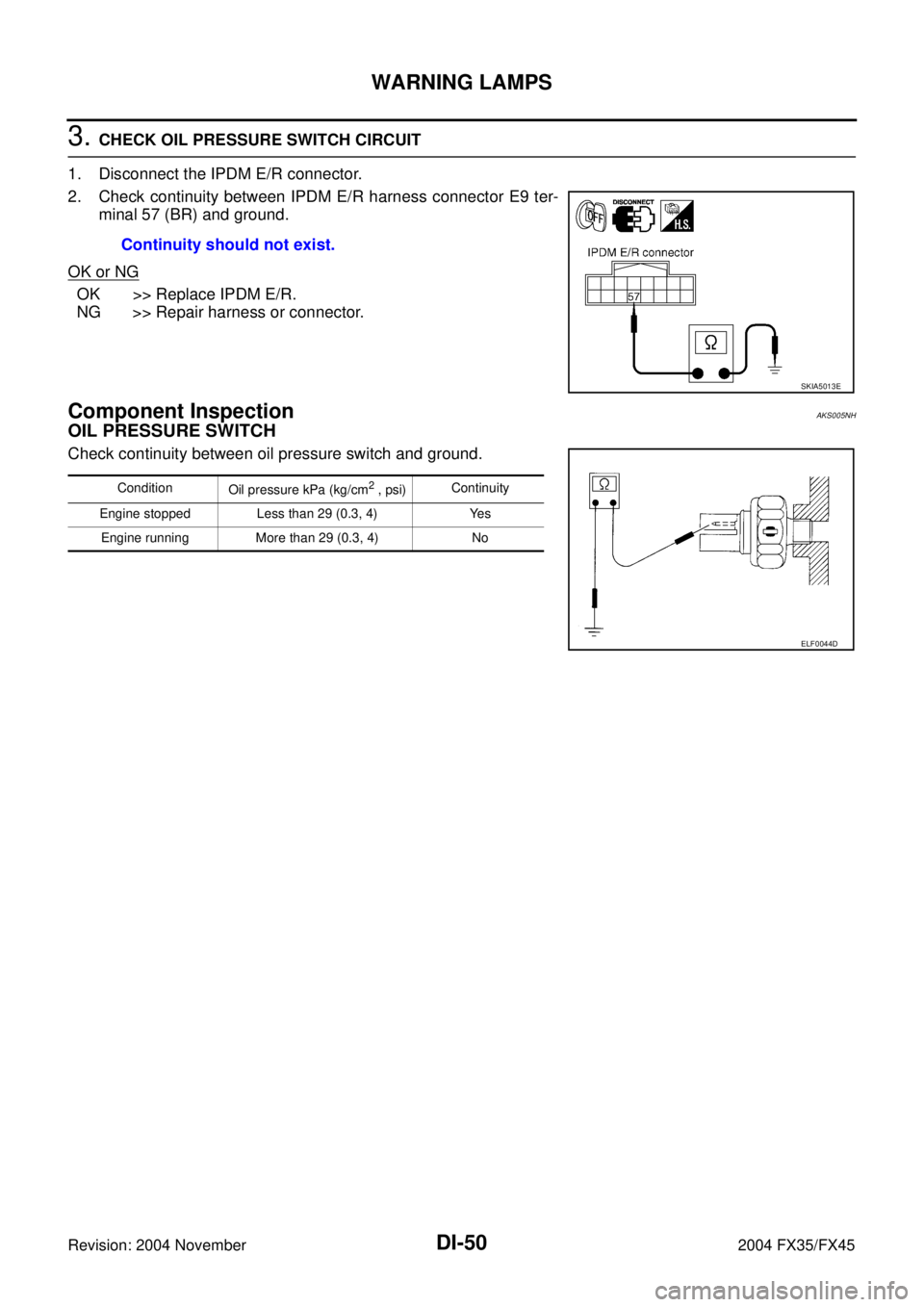

3. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Disconnect the IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E9 ter-
minal 57 (BR) and ground.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
Component InspectionAKS005NH
OIL PRESSURE SWITCH
Check continuity between oil pressure switch and ground.Continuity should not exist.
SKIA5013E
Condition
Oil pressure kPa (kg/cm2 , psi)Continuity
Engine stopped Less than 29 (0.3, 4) Yes
Engine running More than 29 (0.3, 4) No
ELF0044D
Page 1294 of 4449
A/T INDICATOR
DI-51
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
A/T INDICATORPFP:24814

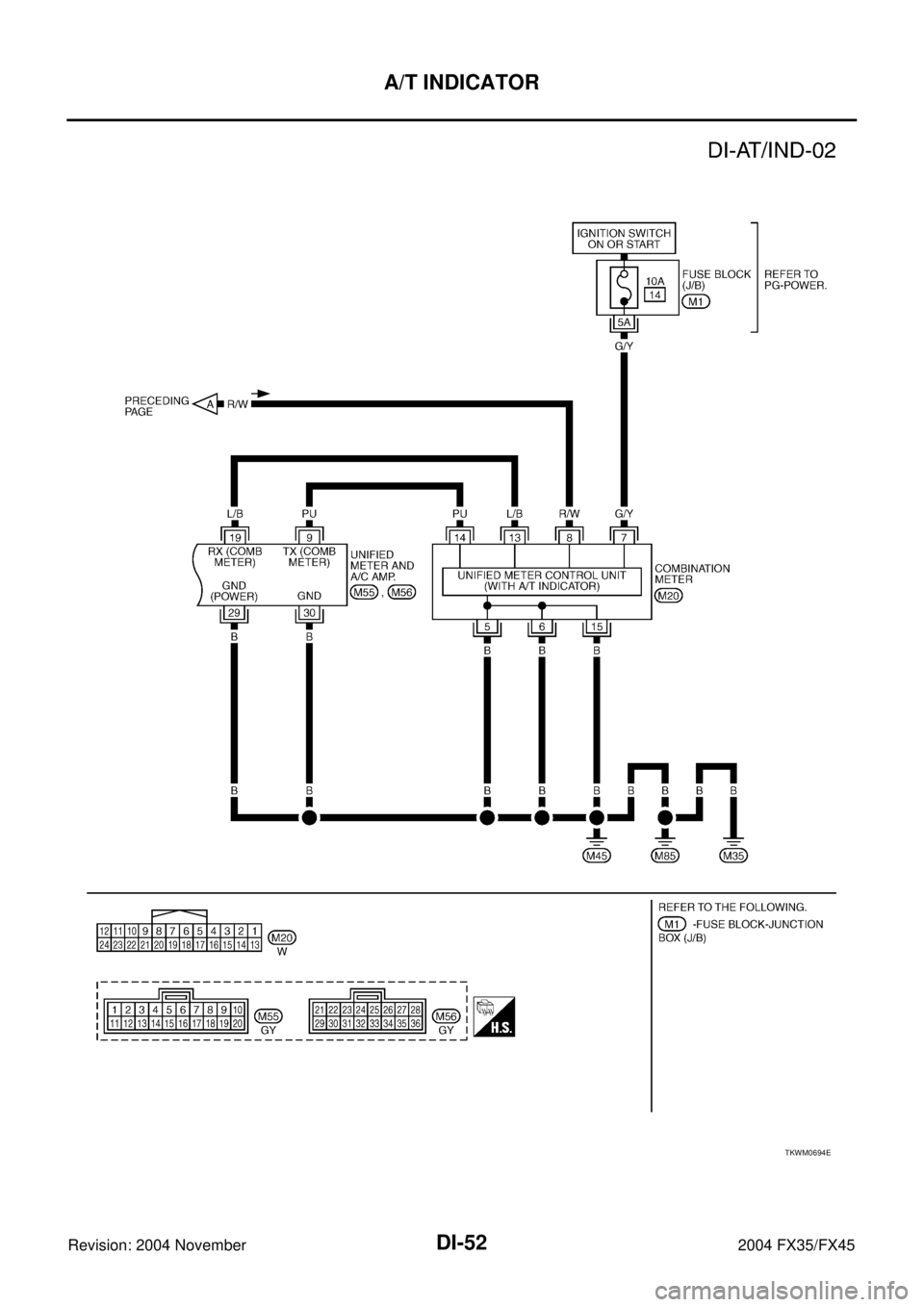

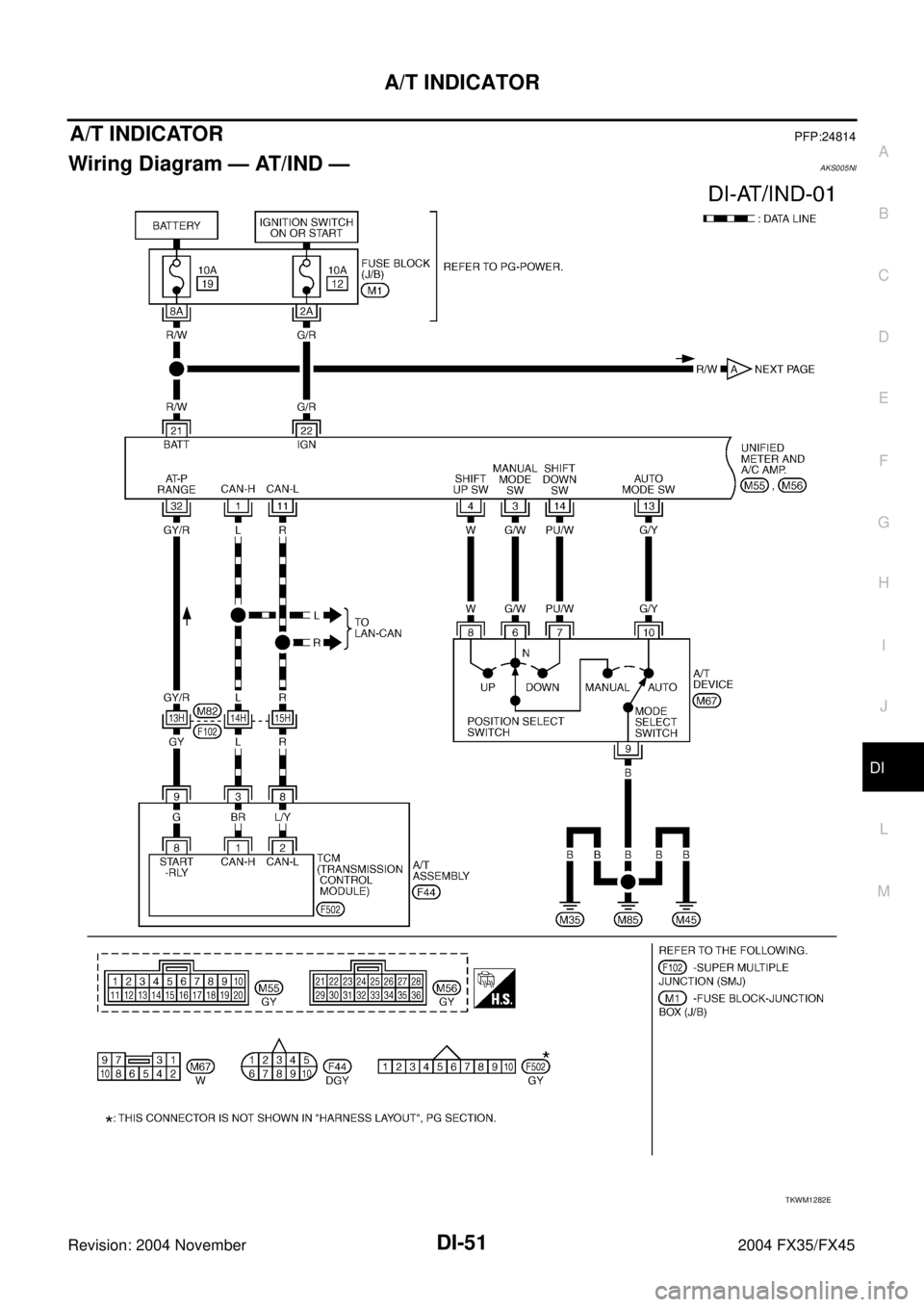

Wiring Diagram — AT/IND —AKS005NI
TKWM1282E
Page 1295 of 4449
DI-52
A/T INDICATOR
Revision: 2004 November 2004 FX35/FX45
TKWM0694E
Page 1296 of 4449

A/T INDICATOR
DI-53
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
A/T Indicator Is MalfunctionAKS005NJ
1. CHECK SELF-DIAGNOSIS OF COMBINATION METER
Perform combination meter self-diagnosis. Refer to DI-12, "
HOW TO
ALTERNATE DIAGNOSIS MODE" .
Are all segments displayed?
YES >> GO TO 2.
NO >> Replace combination meter.
2. CHECK SELF-DIAGNOSIS RESULTS OF UNIFIED METER AND A/C AMP.
1. Start engine.
2. Select “METER A/C AMP” on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp.
Refer to DI-31, "
CONSULT-II Function" .
3. After erasing the self-diagnostic results, perform self-diagnosis again.
Self-diagnostic results content
No malfunction detected>> GO TO 3.
Malfunction detected>> Go to DI-16, "
Symptom Chart 2" in “COMBINATION METER”.
3. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Connect CONSULT-II and start engine.
2. Use “DATA MONITOR” of “METER A/C AMP” on CONSULT-II.
Confirm each indication on the monitor when operating the shift
lever.
OK or NG
OK >> Replace combination meter.
NG >> GO TO 4.
EL-3828D
CONSULT-II display Switch operationOperation
status
AT-M INDManual mode range ON
Except for manual mode range OFF
AT-M GEARManual mode range (shift- up or down) 5-1
Except for manual mode range 1
P RANGE INDP range position ON
Except for P range position OFF
R RANGE INDR range position ON
Except for R range position OFF
N RANGE INDN range position ON
Except for N range position OFF
D RANGE INDD range position ON
Except for D range position OFF
SKIA6259E
