AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
CAN Communication System DescriptionAIS003MN
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAIS004UO
Refer to LAN-6, "CAN COMMUNICATION" .
PIIA5082E
Page 4146 of 4449
AUTOMATIC DRIVE POSITIONER
SE-17
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45

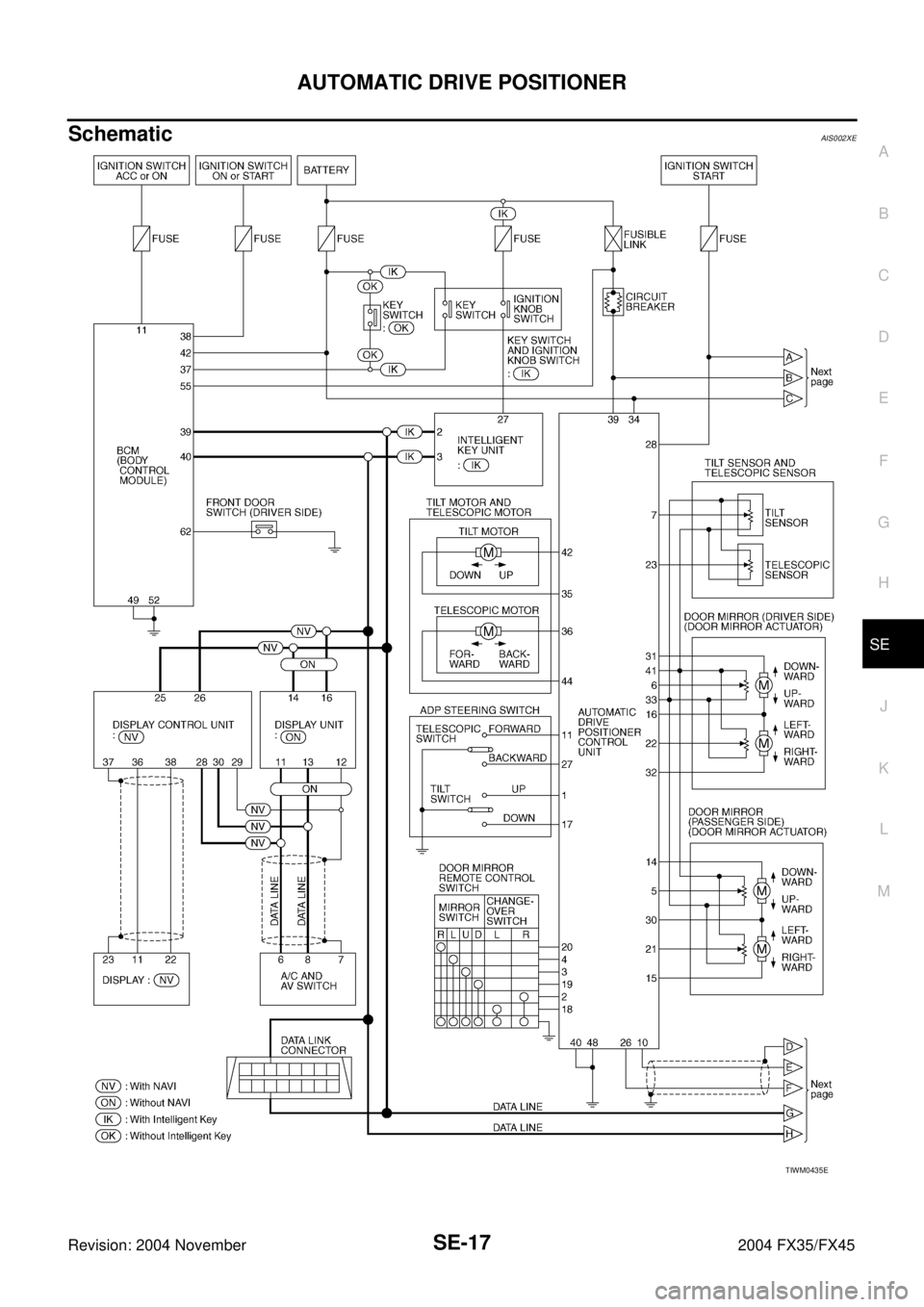

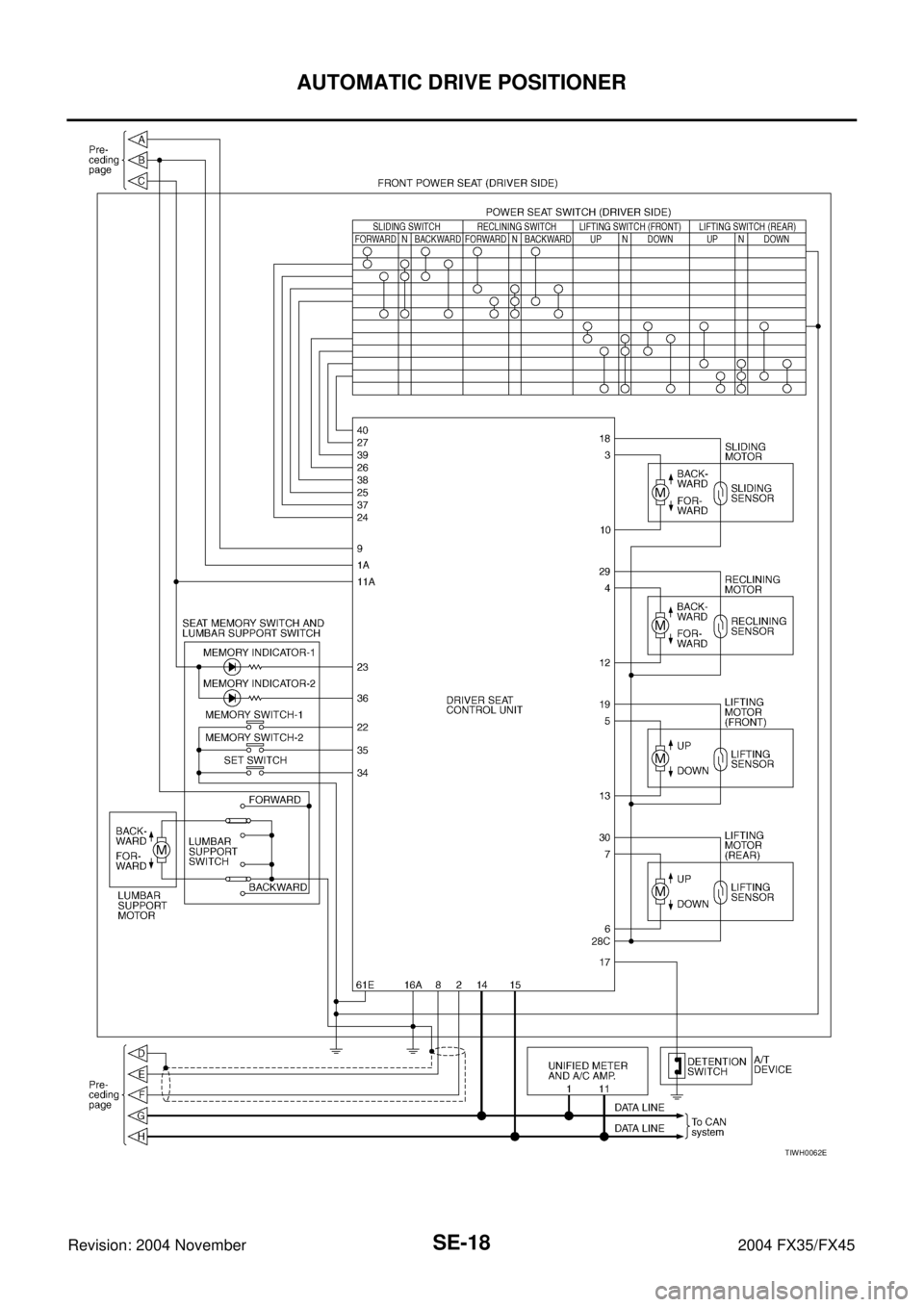

SchematicAIS002XE
TIWM0435E
Page 4147 of 4449
SE-18
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
TIWH0062E
Page 4148 of 4449
AUTOMATIC DRIVE POSITIONER
SE-19
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45

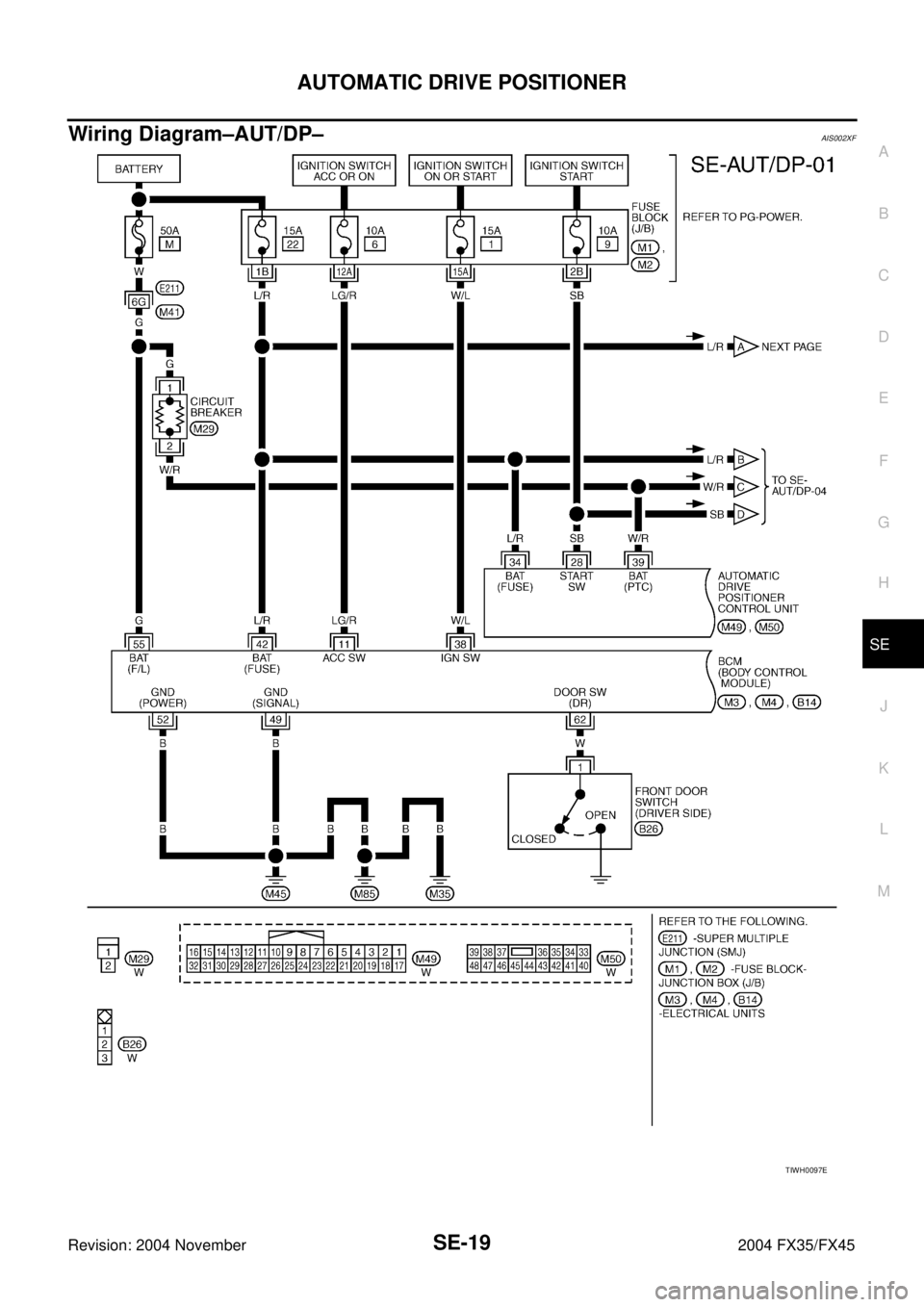

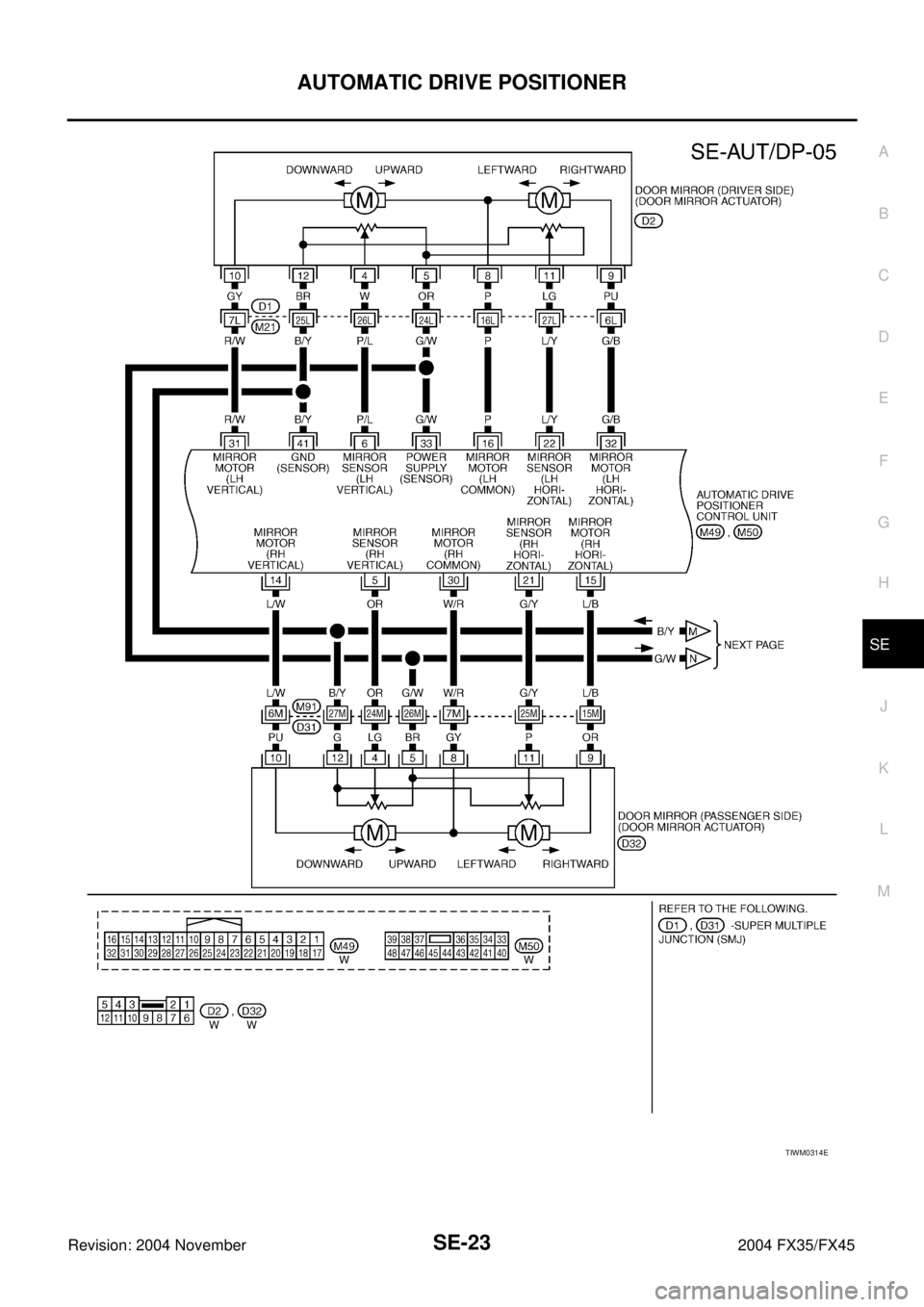

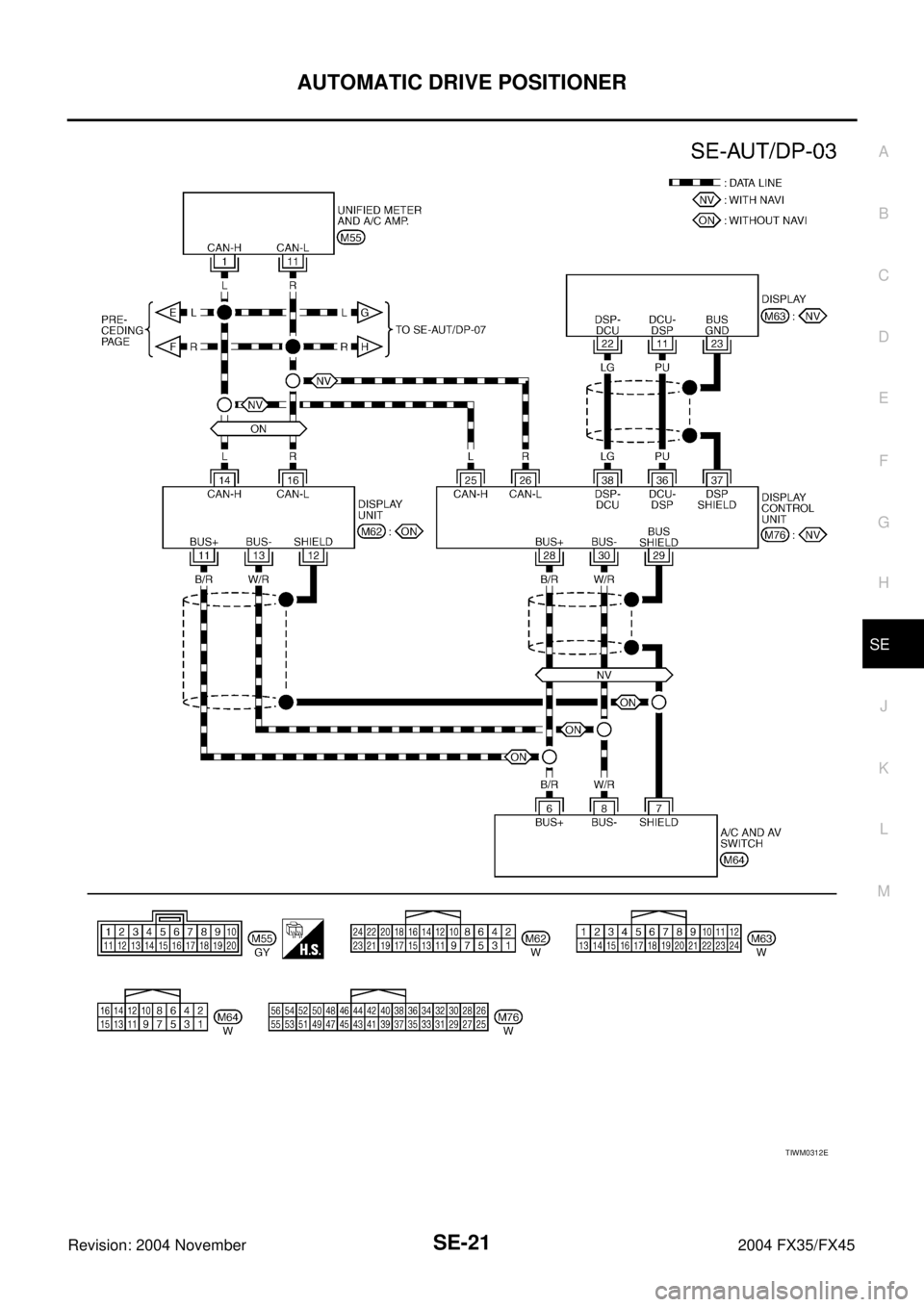

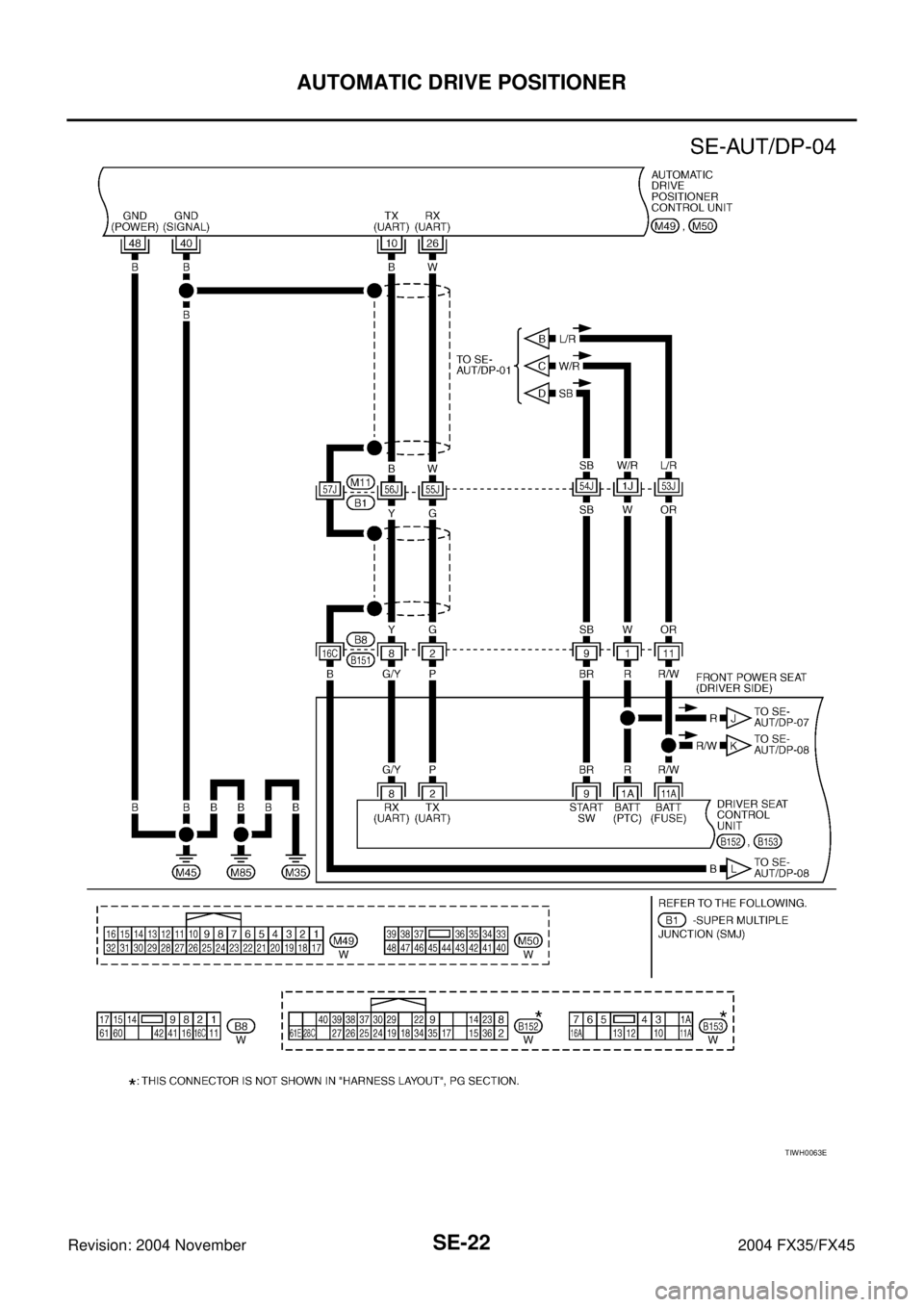

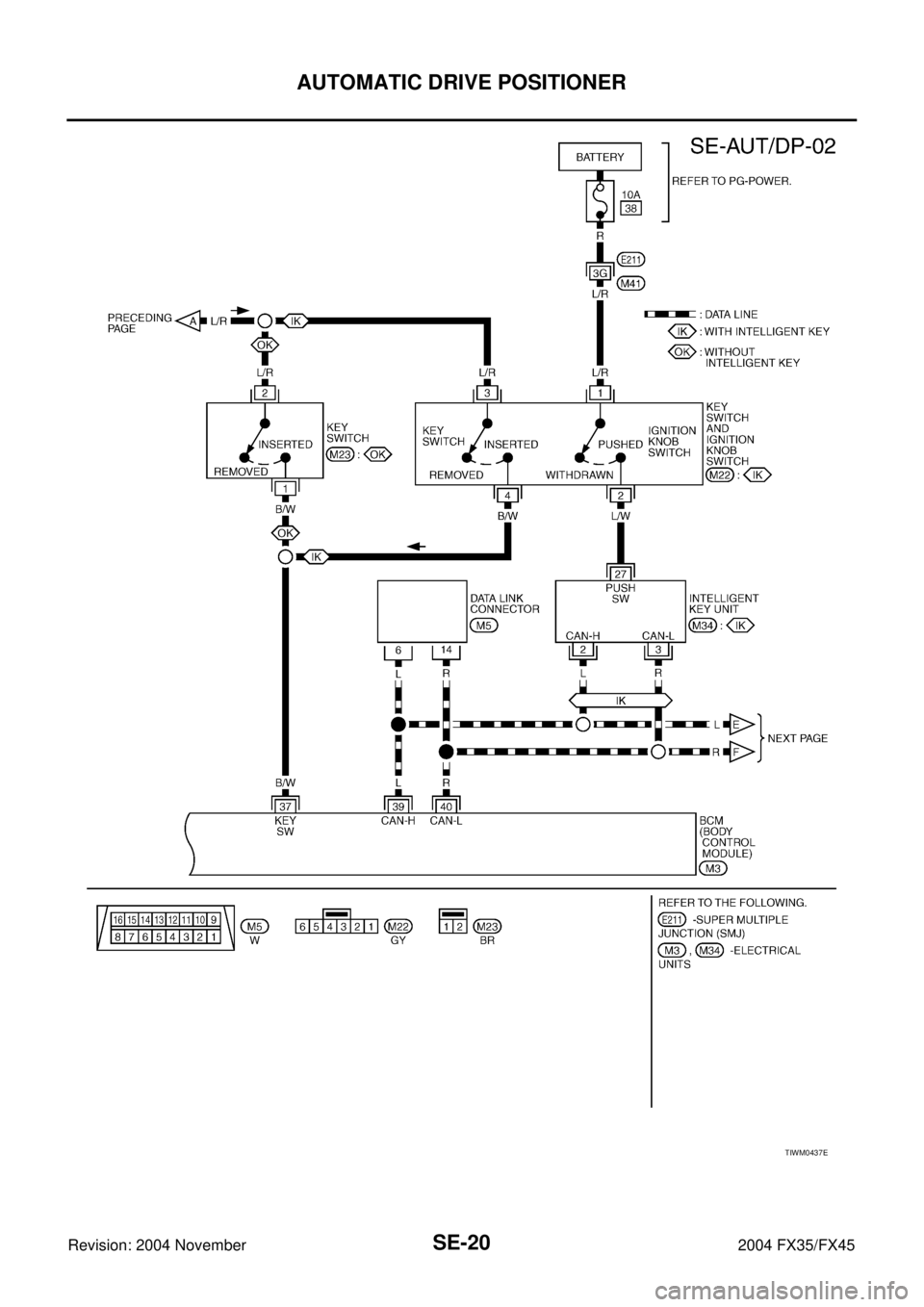

Wiring Diagram–AUT/DP–AIS002XF
