Page 2961 of 4449

INFINITI FX35 2004 Service Manual EM-236
[VK45DE]
ENGINE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
ENGINE ASSEMBLYPFP:10001
Removal and InstallationABS006IT
WARNING:
Situate vehicle on a flat and solid surface.
Place chocks at

Page 2962 of 4449

INFINITI FX35 2004 Service Manual ENGINE ASSEMBLY
EM-237
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
2. Drain engine coolant from radiator. Refer to CO-36, "Changing Engine Coolant" .
3. Disconnect both b

ENGINE ASSEMBLY
EM-237
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
2. Drain engine coolant from radiator. Refer to CO-36, "Changing Engine Coolant" .
3. Disconnect both battery terminal. Refer to SC-4, "
BATTERY" .
4. Remove crankshaft position sensor (POS) from transmission.
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location where they are exposed to magnetism.
5. Remove the following parts:
Hood assembly; Refer to BL-14, "HOOD" .
Engine cover; Refer to EM-168, "ENGINE ROOM COVER" .
Front and rear engine undercover
Air duct (inlet), air duct and air cleaner case assembly; Refer to EM-172, "AIR CLEANER AND AIR
DUCT" .
Drive belts; Refer to EM-169, "DRIVE BELTS" .
Radiator and radiator hoses (upper and lower); Refer to CO-39, "RADIATOR" .
Front road wheels and tires
6. Discharge refrigerant from A/C circuit. Refer to ATC-137, "
REFRIGERANT LINES" .
Engine Room LH
1. Disconnect engine room harness from the engine side and set it aside for easier work.
2. Disconnect heater hoses, and install plugs to avoid leakage of engine coolant.
3. Disconnect ground cable from exhaust manifold cover to vehicle.
4. Disconnect vacuum hose between vehicle and engine and set it aside.
5. Remove A/C piping from A/C compressor, and temporarily fasten it on vehicle with a rope. Refer to AT C -
139, "Components" .
Engine Room RH
1. Disconnect fuel feed hose and EVAP hose. Refer to EM-188, "FUEL INJECTOR AND FUEL TUBE" .
CAUTION:
Fit plugs onto disconnected hose to prevent fuel leak.
2. Disconnect engine room harness from the engine side and set it aside for easier work.
3. Disconnect ground cable from exhaust manifold cover to vehicle.
4. Disconnect vacuum hose between vehicle and engine and set it aside.
5. Disconnect reservoir tank of power steering oil pump from engine, and move it aside for easier work.
CAUTION:
When temporarily securing, keep reservoir tank upright to avoid a fluid leak.
Vehicle underbody
1. Remove front cross bar. Refer to FSU-6, "FRONT SUSPENSION ASSEMBLY" .
2. Disconnect power steering oil pump from engine. Move it from its location and secure with a rope for eas-
ier work. Refer to PS-33, "
Removal and Installation (VK45DE models)" .
3. Remove A/T fluid cooler tube. Refer to AT- 2 6 9 , "
Removal and Installation (AWD models)" .
4. Remove exhaust front tube and center muffler with power tool. Refer to EX-3, "
EXHAUST SYSTEM" .
5. Remove RH and LH transverse link mounting bolts and nuts. Refer to FSU-14, "
TRANSVERSE LINK" .
6. Disconnect stabilizer connecting rod lower. Refer to FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
7. Remove A/T control rod at control device assembly side. Then temporarily secure it on transmission, so
that it does not sag. Refer to AT- 2 3 3 , "
SHIFT CONTROL SYSTEM" .
8. Remove rear plate cover, then remove drive plate to torque converter connecting bolts. Refer to AT- 2 6 9 ,
"Removal and Installation (AWD models)" .
9. Disconnect steering lower joint at power steering gear assembly side, and release steering lower shaft.
Refer to PS-12, "
STEERING COLUMN" .
10. Remove rear propeller shaft. Refer to PR-6, "
REAR PROPELLER SHAFT" .

Page 2963 of 4449

INFINITI FX35 2004 Service Manual EM-238
[VK45DE]
ENGINE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
After disconnection, plug the opening on transmission side.
11. Remove front drive shaft (both side). Refer to FAX-12, "
FRONT D

EM-238
[VK45DE]
ENGINE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
After disconnection, plug the opening on transmission side.
11. Remove front drive shaft (both side). Refer to FAX-12, "
FRONT DRIVE SHAFT" .
12. Remove front propeller shaft. Refer to PR-4, "
FRONT PROPELLER SHAFT" .
13. Remove three way catalyst (both bank). Refer to EM-178, "
EXHAUST MANIFOLD AND THREE WAY
CATALYST" .
Removal Work
1. Install engine slingers into front of left bank cylinder head and
front of right bank cylinder head.
2. Lift with hoist and secure engine in position.
3. Use manual lift table caddy (commercial service tool) or equivalently rigid tool such as transmission jack.
Securely support bottom of suspension member and transmission.
CAUTION:
Put a piece of wood or something similar as the supporting surface, secure a completely stable
condition.
4. Remove front suspension member mounting nuts with power tool. Refer to FSU-6, "
FRONT SUSPEN-
SION ASSEMBLY" .
5. Carefully lower jack, or raise lift to remove engine, transmission
front final drive and front suspension member assembly. When
performing work, observe the following caution:
CAUTION:
Confirm there is no interference with vehicle.
Make sure that all connection points have been discon-
nected.
Keep in mind the center of vehicle gravity changes. If
necessary, use jack(s) to support vehicle at rear jacking
point(s) to prevent it from falling it off the lift.
Separation Work
1. Change engine slinger installing to cylinder head (right bank).
NOTE:
In order to keep secure position when hoisting engine.
2. Remove engine mounting insulators (RH and LH) under side nut with power tool.
3. Lift with hoist and separate engine and transmission assembly from front suspension member.
CAUTION:
Before and during this lifting, always check if any harnesses are left connected.
Avoid damage to and oil/grease smearing or spills onto engine mounting insulator.
4. Remove alternator. Refer to SC-23, "
CHARGING SYSTEM" . Slinger bolts:
:33.4 N·m (3.4 kg-m, 25 ft-lb)
PBIC1556E
PBIC1557E
Slinger bolts:
:33.4 N·m (3.4 kg-m, 25 ft-lb)
PBIC2447E

Page 2964 of 4449

INFINITI FX35 2004 Service Manual ENGINE ASSEMBLY
EM-239
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
5. Remove starter motor. Refer to SC-10, "STARTING SYSTEM" .
6. Separate engine from transmission assem

ENGINE ASSEMBLY
EM-239
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
5. Remove starter motor. Refer to SC-10, "STARTING SYSTEM" .
6. Separate engine from transmission assembly. Refer to AT- 2 6 9 , "
Removal and Installation (AWD models)"
.
7. Remove front final drive from engine. Refer to FFD-10, "
FRONT FINAL DRIVE ASSEMBLY" .
8. Remove engine mounting insulators (RH and LH) and brackets (RH and LH) from engine with power tool.
9. Remove engine rear member and engine mounting insulator (rear) from transmission.
INSTALLATION
Note to the following, and install in the reverse order of removal.
Where positioning pin is used, be sure to securely insert it into the hole of mating part.
When installing engine mount brackets (RH and LH) to cylinder
block, tighten two upper bolts (shown as “A” in the figure) first.
Then tighten two lower bolts (shown as “B” in the figure).
INSPECTION AFTER INSTALLATION
Before starting engine, check the levels of engine coolant, engine oil and working fluid. If less than
required quantity, fill to the specified level.
Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
Warm up engine thoroughly to make sure there is no leakage of engine coolant, engine oil, working fluid,
fuel and exhaust gas.
Bleed air from passages in pipes and tubes of applicable lines, such as in cooling system.
After cooling down engine, again check amounts of engine coolant, engine oil and working fluid. Refill to
specified level, if necessary.
Summary of the inspection items:
PBIC2365E
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Working fluid Level Leakage Level
Fuel — Leakage —
Exhaust gas — Leakage —

Page 2965 of 4449

INFINITI FX35 2004 Service Manual EM-240
[VK45DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
CYLINDER BLOCKPFP:11010
Disassembly and AssemblyABS006IU
1. Knock sensor sub harness 2. Knock sensor 3. Cylinder block
4. Cover 5

Page 2966 of 4449

INFINITI FX35 2004 Service Manual CYLINDER BLOCK
EM-241
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
DISASSEMBLY
NOTE:
Explained here is how to disassemble with engine stand supporting transmission surface

CYLINDER BLOCK
EM-241
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45
DISASSEMBLY
NOTE:
Explained here is how to disassemble with engine stand supporting transmission surface. When using differ-
ent type of engine stand, note with difference in steps and etc.
1. Remove engine assembly from vehicle, and separate front suspension member, transmission and front
final drive from engine. Refer to EM-236, "
ENGINE ASSEMBLY" .
2. Remove the parts that may restrict installation of engine to widely use engine stand.
NOTE:
The procedure is described assuming that you use widely use engine holding the surface, to which trans-
mission is installed.
a. Remove drive plate.
Holding ring gear with ring gear stopper (SST).
Loosen mounting bolts diagonally order.
CAUTION:
Do not disassemble drive plate.
Do not place drive plate with signal plate facing down.
When handling signal plate, take care not to damage or
scratch it.
Handle signal plate in a manner that prevents it from
becoming magnetized.
b. Remove engine rear plate.
3. Lift engine with hoist to install it onto widely use engine stand.
CAUTION:
Use engine stand that has a load capacity [approximately 240kg (529 lb) or more] large enough for
supporting the engine weight.
If the load capacity of stand is not adequate, remove the following parts beforehand to reduce the
potential risk of overturning stand.
–Intake manifolds (upper and lower); Refer to EM-174, "INTAKE MANIFOLD" .
–Exhaust manifold; Refer to EM-178, "EXHAUST MANIFOLD AND THREE WAY CATALYST" .
–Fuel tube and fuel injector assembly; Refer to EM-188, "FUEL INJECTOR AND FUEL TUBE" .
–A/C compressor; Refer to ATC-139, "Components" .
–Ignition coil; Refer to EM-185, "IGNITION COIL" .
13. Piston pin 14. Connecting rod bearing 15. Connecting rod bearing cap
16. Block heater protector 17. Connector cap 18. Cylinder block heater
19. Gasket 20. Main bearing cap 21. Thrust bearing
22. Main bearing 23. Rear plate 24. Crankshaft
25. Pilot convertor 26. Drive plate 27. Thrust bearing
28. Side bolt 29. Reinforcement plate 30. Crankshaft position sensor (POS)
31. O-ring 32. Rear oil seal 33. Rear oil seal retainer
PBIC1656E
PBIC2367E

Page 2967 of 4449

INFINITI FX35 2004 Service Manual EM-242
[VK45DE]
CYLINDER BLOCK
Revision: 2004 November 2004 FX35/FX45
–Rocker cover; Refer to EM-193, "ROCKER COVER" .
–Other removable brackets
NOTE:
The figure shows an example of widely use eng

Page 2968 of 4449

INFINITI FX35 2004 Service Manual CYLINDER BLOCK
EM-243
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2004 November 2004 FX35/FX45

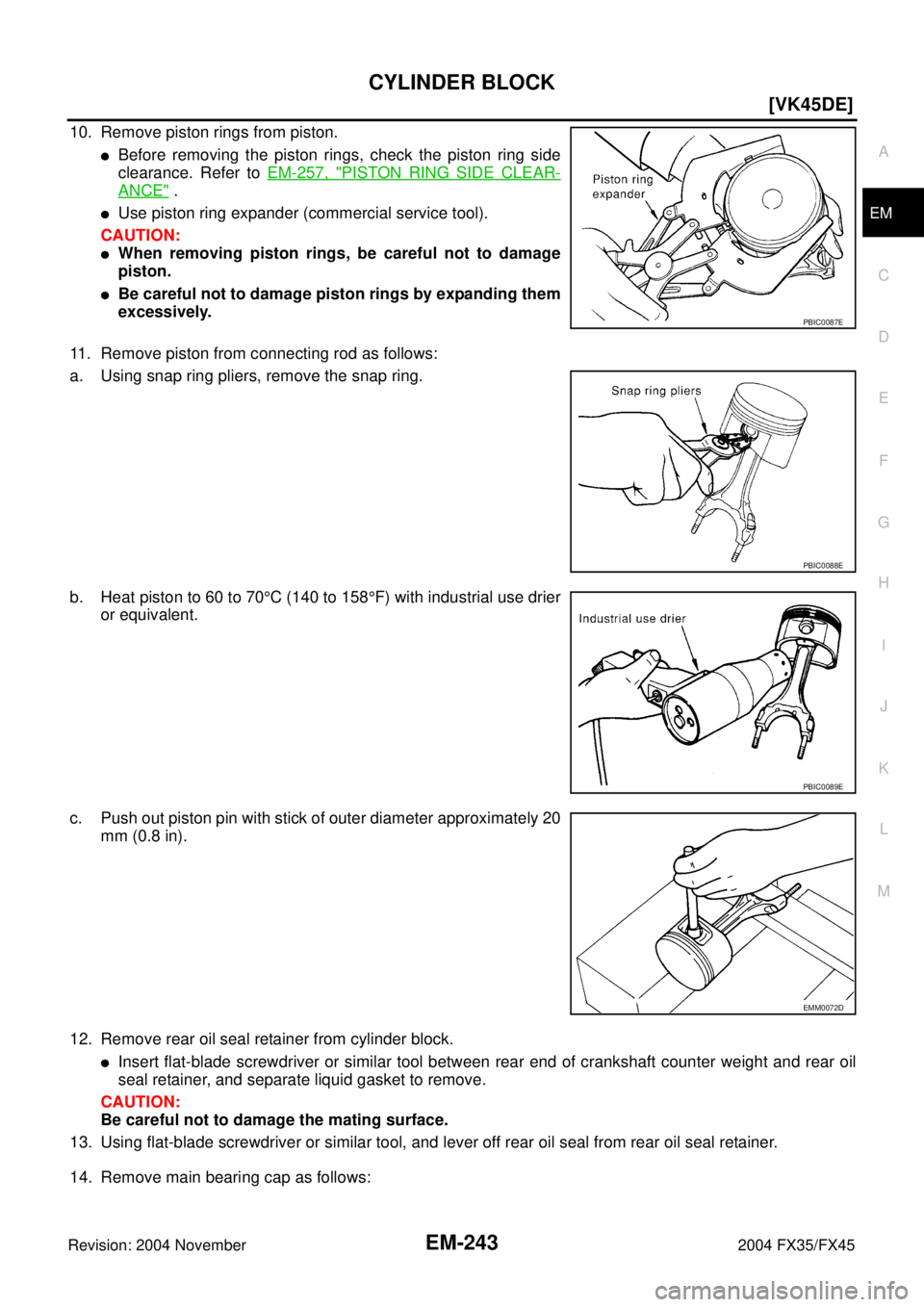

10. Remove piston rings from piston.
Before removing the piston rings, check the piston ring side
clea

Load next 8 pages

Page: < prev 1-10 ... 2929-2936 2937-2944 2945-2952 2953-2960 2961-2968 2969-2976 2977-2984 2985-2992 2993-3000 ... 4456 next >

tire type automatic transmission lumbar support TPMS reset jump start mileage
