Page 3049 of 4449

INFINITI FX35 2004 Service Manual FFD-14
FRONT FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
ComponentsADS000NB
COMPONENTS (VQ35DE)
SDIA1588E

Page 3050 of 4449

INFINITI FX35 2004 Service Manual FRONT FINAL DRIVE ASSEMBLY
FFD-15
C
E
F
G
H
I
J
K
L
MA
B
FFD
Revision: 2004 November 2004 FX35/FX45
1. Washer 2. Carrier cover 3. Gear oil defence
4. Breather joint 5. Dowel pin 6. Drive pinion

Page 3051 of 4449

INFINITI FX35 2004 Service Manual FFD-16
FRONT FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
COMPONENTS (VK45DE)
1. Washer 2. Carrier cover 3. Gear oil defence
4. Breather joint 5. Dowel pin 6. Drive pinion height adjust

Page 3052 of 4449

INFINITI FX35 2004 Service Manual FRONT FINAL DRIVE ASSEMBLY
FFD-17
C
E
F
G
H
I
J
K
L
MA
B
FFD
Revision: 2004 November 2004 FX35/FX45
7. Drive pinion 8. Drive gear 9. Side bearing adjusting washer
10. Differential case 11. Side bearin

Page 3053 of 4449

INFINITI FX35 2004 Service Manual FFD-18
FRONT FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
Side ShaftADS000NN
BEARING AND OIL SEAL REPLACEMENT
1. Hold the extension tube retainer with commercial service tool,
then pres

Page 3054 of 4449

INFINITI FX35 2004 Service Manual FRONT FINAL DRIVE ASSEMBLY
FFD-19
C
E
F
G
H
I
J
K
L
MA
B
FFD
Revision: 2004 November 2004 FX35/FX45
EXTENSION TUBE REPLACEMENT

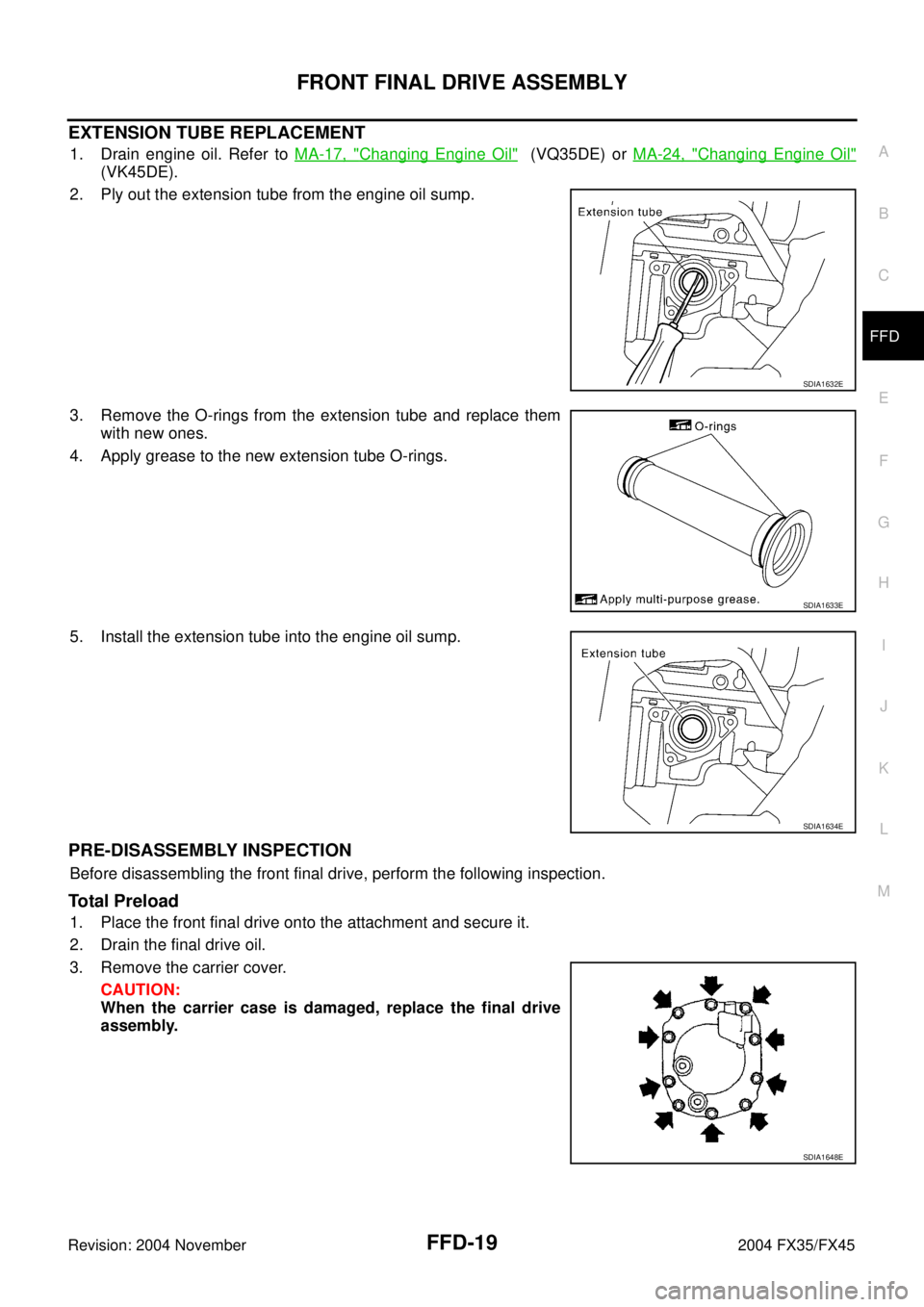

1. Drain engine oil. Refer to MA-17, "Changing Engine Oil" (VQ35DE) or M

Page 3055 of 4449

INFINITI FX35 2004 Service Manual FFD-20
FRONT FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45

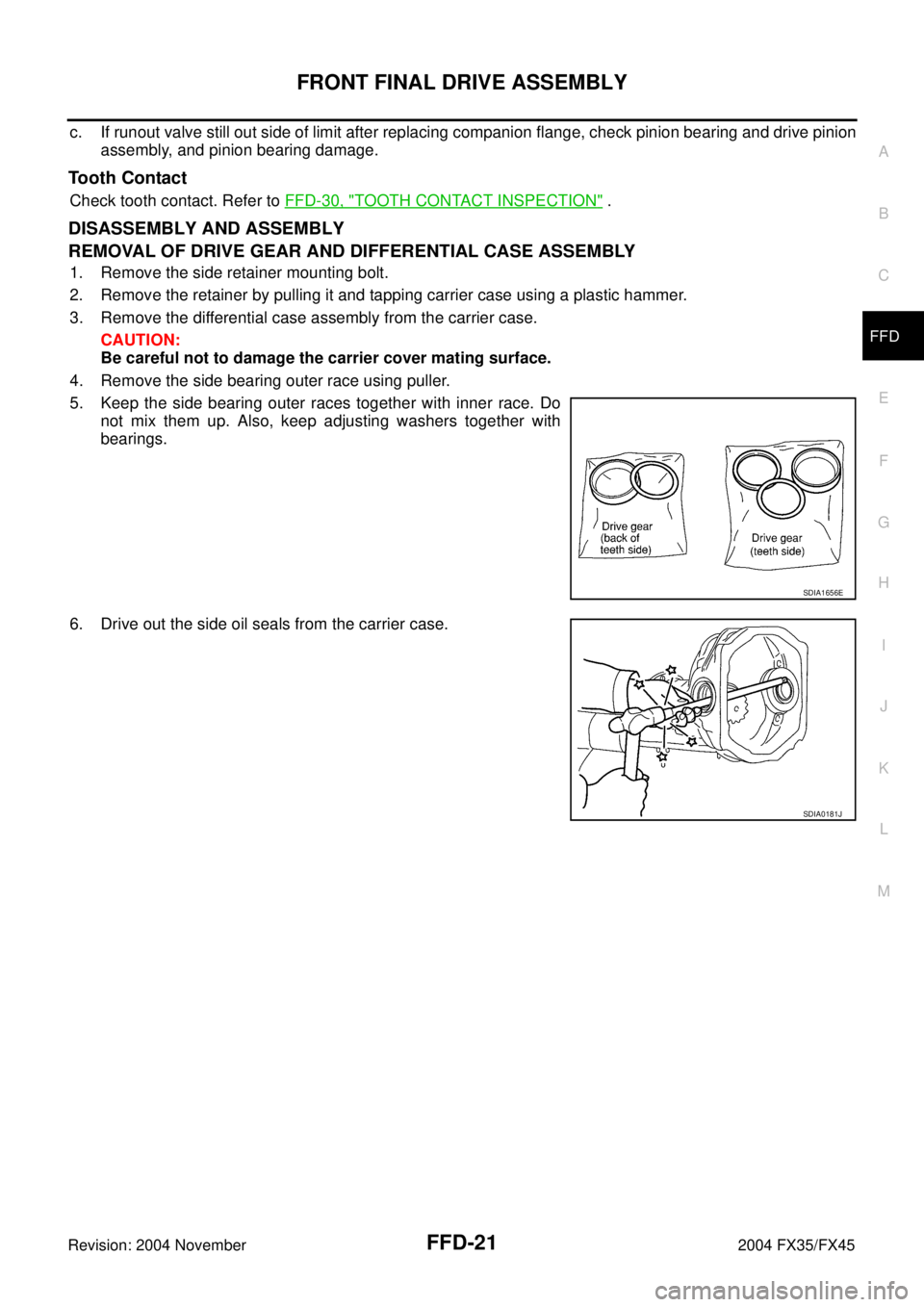

4. Turn the companion flange in both direction 20 times or more to
seat the bearing rollers.
5. Check total preload with specia

FFD-20
FRONT FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
4. Turn the companion flange in both direction 20 times or more to
seat the bearing rollers.
5. Check total preload with special service tool.
If the preload value is out of standard, adjust pinion bearing
preload and side bearing preload.
Drive Gear to Drive Pinion Gear Backlash
Set the dial indicator to the drive gear face and measure the back-
lash.
If the measured value is out of standard, adjust the backlash by
replacing the side bearing adjusting shim (differential case side).
If the backlash too large, decrease side bearing adjusting shim
thickness.
If the backlash too small, increase side bearing adjusting shim
thickness.
Drive Gear Runout
1. Set dial gauge to behind the drive gear and measure the ring gear runout.
a. If the runout is exceed limit, check for drive gear assembly:
any object between the drive gear and differential case
deformed differential case
deformed drive gear
b. If drive gear is deformed, replace the drive gear and pinion gear as a set. If the differential case is
deformed, replace the differential case.
Companion Flange Runout
1. Set the dial gauge to the companion flange face and measure
runout.
2. Set the dial gauge to the inside face of the companion flange
and measure the runout.
CAUTION:
Clean inside face of companion flange before measuring
runout.
a. If runout is out side limit, remove the companion from the drive
pinion. Turn the companion flange position 90° each, and measure the runout again.

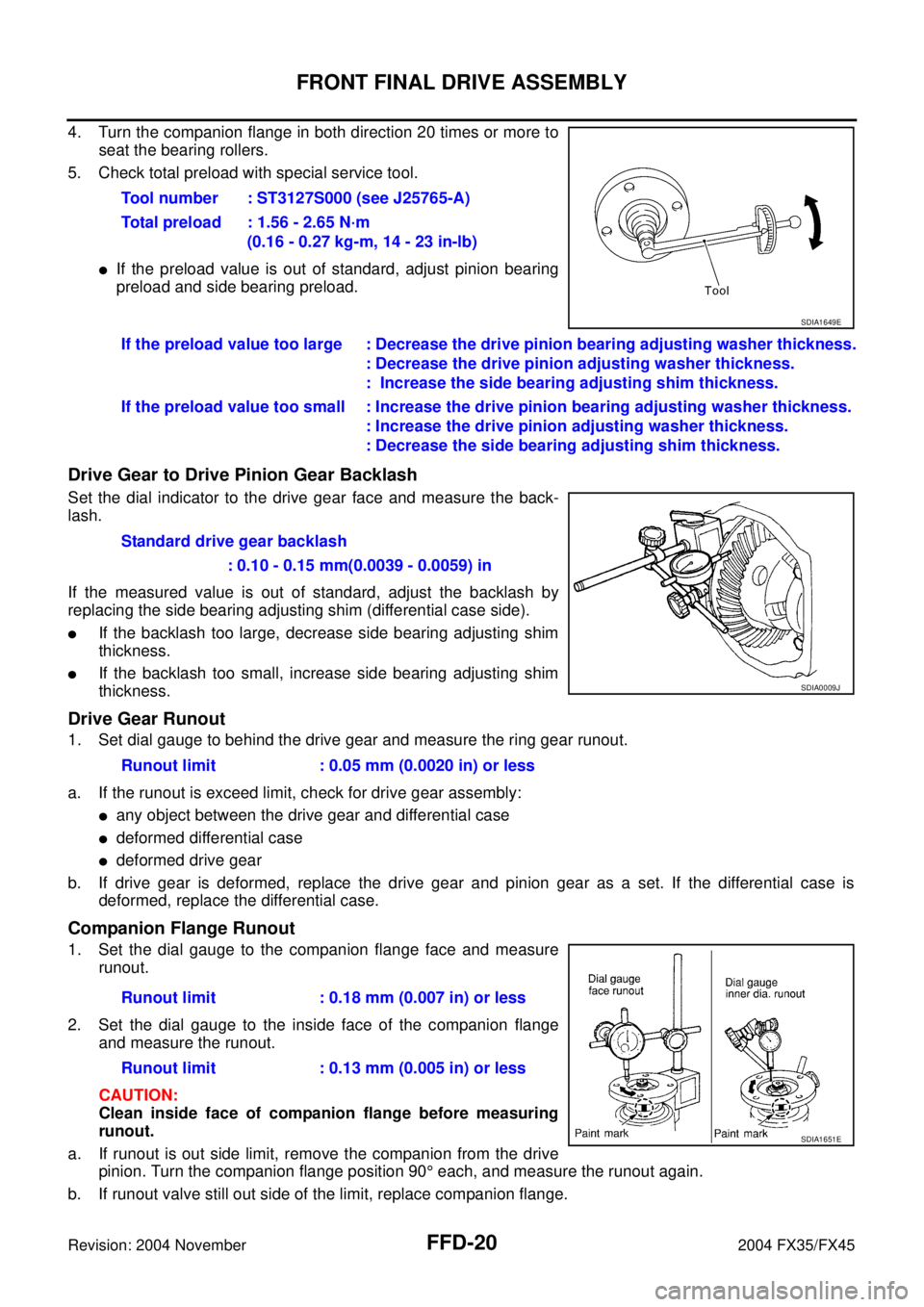

b. If runout valve still out side of the limit, replace companion flange.Tool number : ST3127S000 (see J25765-A)
Total preload : 1.56 - 2.65 N·m
(0.16 - 0.27 kg-m, 14 - 23 in-lb)
SDIA1649E
If the preload value too large : Decrease the drive pinion bearing adjusting washer thickness.
: Decrease the drive pinion adjusting washer thickness.
: Increase the side bearing adjusting shim thickness.
If the preload value too small : Increase the drive pinion bearing adjusting washer thickness.
: Increase the drive pinion adjusting washer thickness.
: Decrease the side bearing adjusting shim thickness.
Standard drive gear backlash
: 0.10 - 0.15 mm(0.0039 - 0.0059) in
SDIA0009J
Runout limit : 0.05 mm (0.0020 in) or less
Runout limit : 0.18 mm (0.007 in) or less
Runout limit : 0.13 mm (0.005 in) or less
SDIA1651E

Page 3056 of 4449

INFINITI FX35 2004 Service Manual FRONT FINAL DRIVE ASSEMBLY
FFD-21
C
E
F
G
H
I
J
K
L
MA
B
FFD
Revision: 2004 November 2004 FX35/FX45
c. If runout valve still out side of limit after replacing companion flange, check pinion bearing an
