INFINITI FX35 2004 Service Manual PB-6
PARKING BRAKE SHOE
Revision: 2004 November 2004 FX35/FX45
INSPECTION AFTER REMOVAL
Lining Thickness Inspection
Check thickness of lining.
Drum Inner Diameter Inspection
Check drum inner diamet

Page 3834 of 4449

INFINITI FX35 2004 Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
PB-7
C
D
E
G
H
I
J
K
L
MA
B
PB
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Parking Drum Brake AFS001TO
Parking Brake Con

Page 3835 of 4449

INFINITI FX35 2004 Service Manual PB-8
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45

Page 3836 of 4449

INFINITI FX35 2004 Service Manual PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: 2004 November 2004 FX35/FX45
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY RO

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION PG
A
B
PG
Revision: 2004 November 2004 FX35/FX45
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING CIRCUIT ...................... 3
Schematic ................................................................ 3
Wiring Diagram - POWER - ..................................... 4
BATTERY POWER SUPPLY - IGNITION SW. IN
ANY POSITION ..................................................... 4
ACCESSORY POWER SUPPLY - IGNITION SW.
IN “ACC” OR “ON” .............................................. 10
IGNITION POWER SUPPLY - IGNITION SW. IN
“ON” AND/OR “START” ....................................... 12
Fuse ....................................................................... 17
Fusible Link ............................................................ 17
Circuit Breaker ....................................................... 17
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ...................................... 18
System Description ................................................ 18
SYSTEMS CONTROLLED BY IPDM E/R ........... 18
CAN COMMUNICATION LINE CONTROL ......... 18
IPDM E/R STATUS CONTROL ........................... 19
CAN Communication System Description .............. 19
CAN Communication Unit ...................................... 19
Function of Detecting Ignition Relay Malfunction ... 19
CONSULT-II ........................................................... 20
CONSULT-II INSPECTION PROCEDURE ......... 20
SELF-DIAG RESULTS ........................................ 21
DATA MONITOR ................................................. 22
ACTIVE TEST ..................................................... 22
Auto Active Test ..................................................... 24
DESCRIPTION .................................................... 24
OPERATION PROCEDURE ............................... 24
INSPECTION IN AUTO ACTIVE TEST MODE ... 24
Schematic .............................................................. 26
IPDM E/R Terminal Arrangement ........................... 27
IPDM E/R Power/Ground Circuit Inspection .......... 28
Inspection With CONSULT-II (Self-Diagnosis) ....... 29
Removal and Installation of IPDM E/R ................... 30
REMOVAL ........................................................... 30
INSTALLATION ................................................... 30GROUND ................................................................... 31
Ground Distribution ................................................. 31
MAIN HARNESS ................................................. 31
ENGINE ROOM HARNESS ................................ 34
ENGINE HARNESS/VK ENGINE MODELS ........ 37
ENGINE HARNESS/VQ ENGINE MODELS ....... 38
ENGINE CONTROL HARNESS/VK ENGINE
MODELS ............................................................. 39
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS ............................................................. 40
BODY HARNESS ................................................ 41
BODY NO.2 HARNESS ...................................... 44
ROOM LAMP HARNESS .................................... 45
HARNESS ................................................................. 46
Harness Layout ...................................................... 46
HOW TO READ HARNESS LAYOUT ................. 46
OUTLINE ............................................................. 47
MAIN HARNESS ................................................. 48
ENGINE ROOM HARNESS ................................ 51
ENGINE HARNESS/VK ENGINE MODELS ........ 54
ENGINE HARNESS/VQ ENGINE MODELS ....... 55
ENGINE CONTROL HARNESS/VK ENGINE
MODELS ............................................................. 56
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS ............................................................. 58
BODY HARNESS ................................................ 60
BODY NO.2 HARNESS ...................................... 62
ROOM LAMP HARNESS .................................... 63
FRONT DOOR HARNESS .................................. 64
REAR DOOR HARNESS .................................... 65
BACK DOOR HARNESS .................................... 66
Wiring Diagram Codes (Cell Codes) ...................... 67
ELECTRICAL UNITS LOCATION ............................ 70
Electrical Units Location ......................................... 70
ENGINE COMPARTMENT .................................. 70
PASSENGER COMPARTMENT ......................... 71
LUGGAGE COMPARTMENT .............................. 73
HARNESS CONNECTOR ......................................... 74
Description .............................................................. 74
HERNESS CONNECTOR (TAB-LOCKING

Page 3837 of 4449

INFINITI FX35 2004 Service Manual PG-2Revision: 2004 November 2004 FX35/FX45TYPE) .................................................................. 74
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) ..........................................

Page 3838 of 4449

INFINITI FX35 2004 Service Manual POWER SUPPLY ROUTING CIRCUIT
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45
POWER SUPPLY ROUTING CIRCUITPFP:24110
SchematicAKS007VU
TKWM1305E

Page 3839 of 4449

INFINITI FX35 2004 Service Manual PG-4
POWER SUPPLY ROUTING CIRCUIT
Revision: 2004 November 2004 FX35/FX45
Wiring Diagram - POWER -AKS007VV

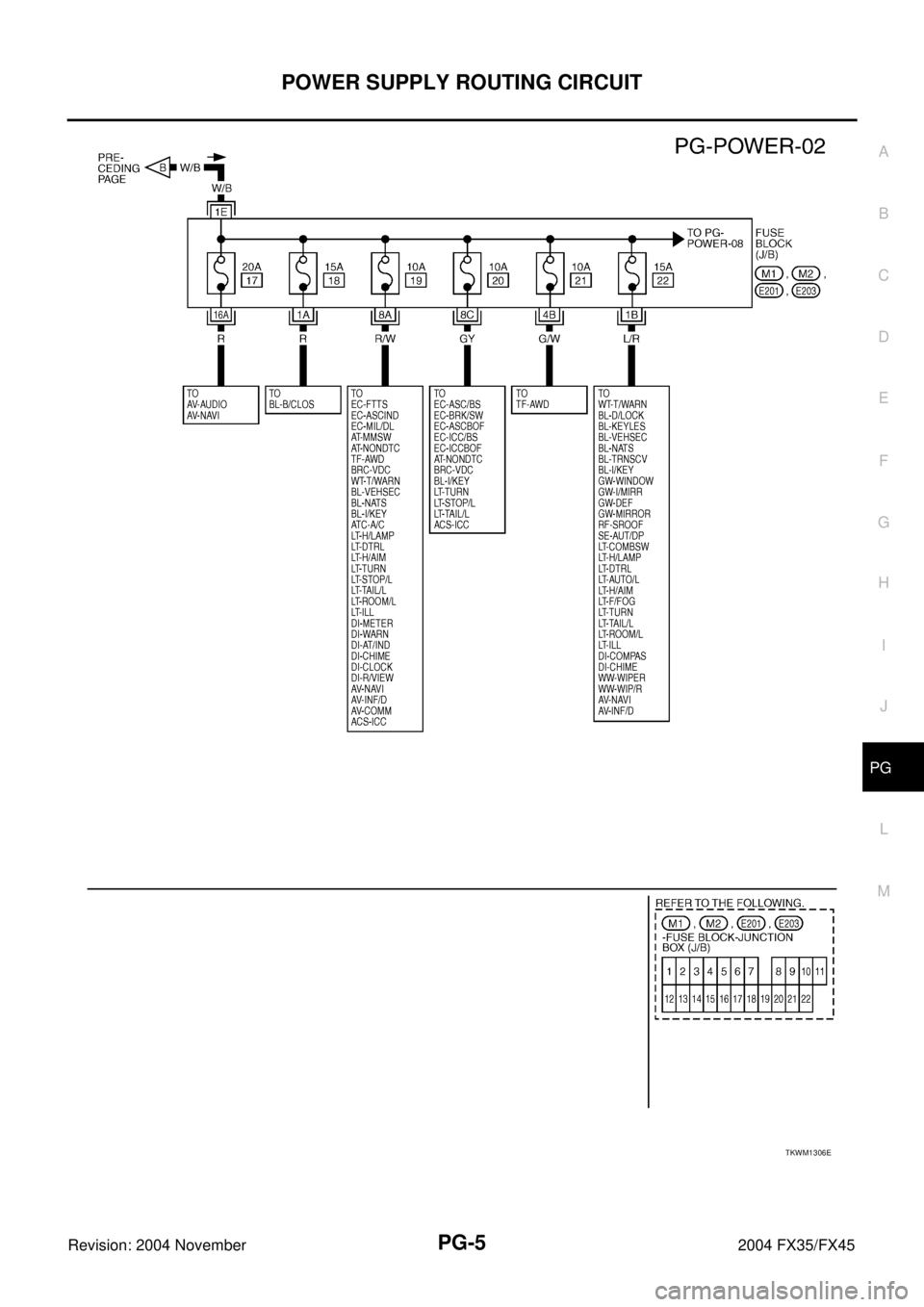

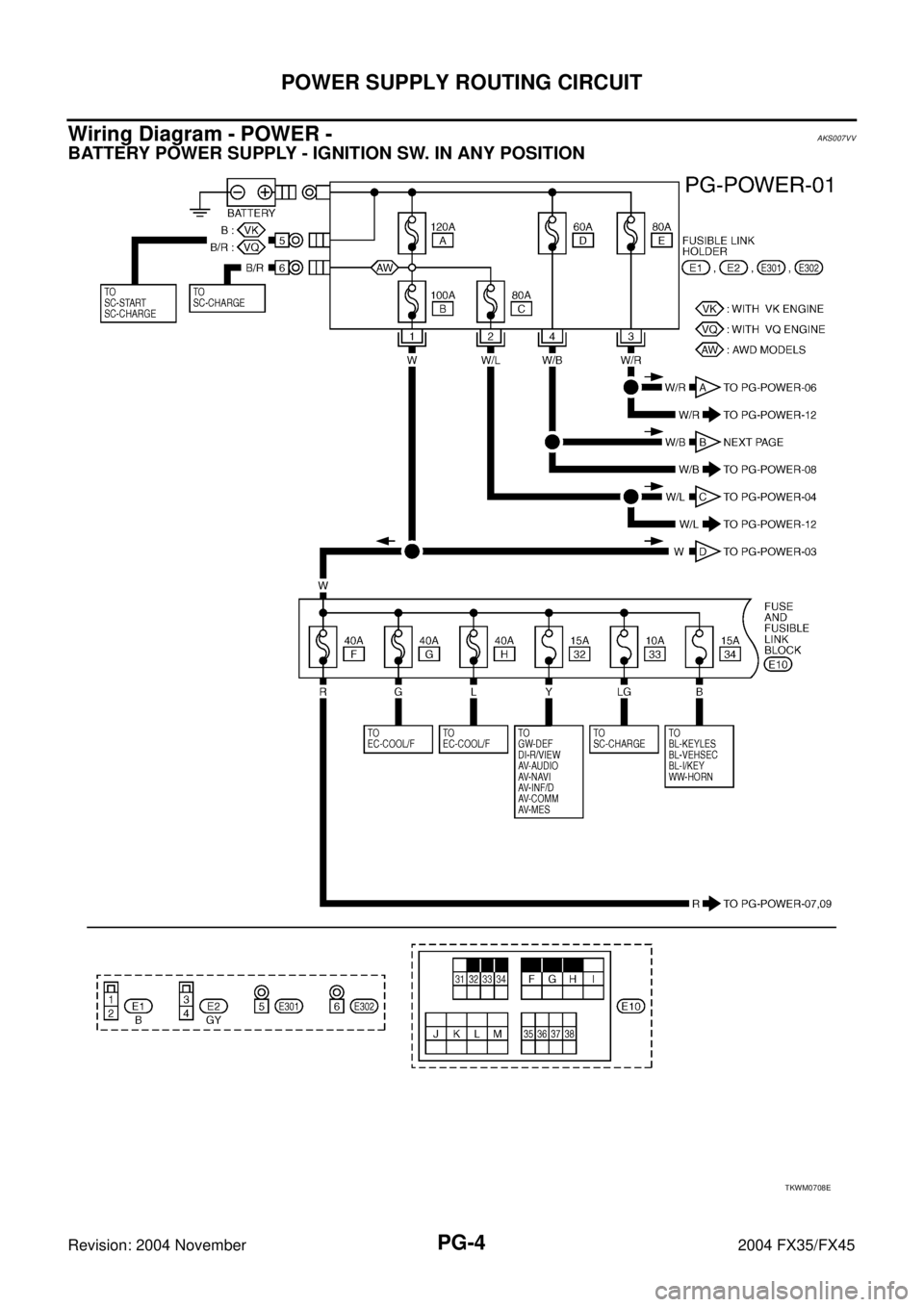

BATTERY POWER SUPPLY - IGNITION SW. IN ANY POSITION
TKWM0708E

Page 3840 of 4449

INFINITI FX35 2004 Service Manual POWER SUPPLY ROUTING CIRCUIT
PG-5
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45
TKWM1306E
