Page 1281 of 4449

INFINITI FX35 2004 Service Manual DI-38 COMPASS Revision: 2004 November 2004 FX35/FX45 Removal and Installation of CompassAKS007AQ Refer to GW-85, "Removal and Installation" .

Page 1282 of 4449

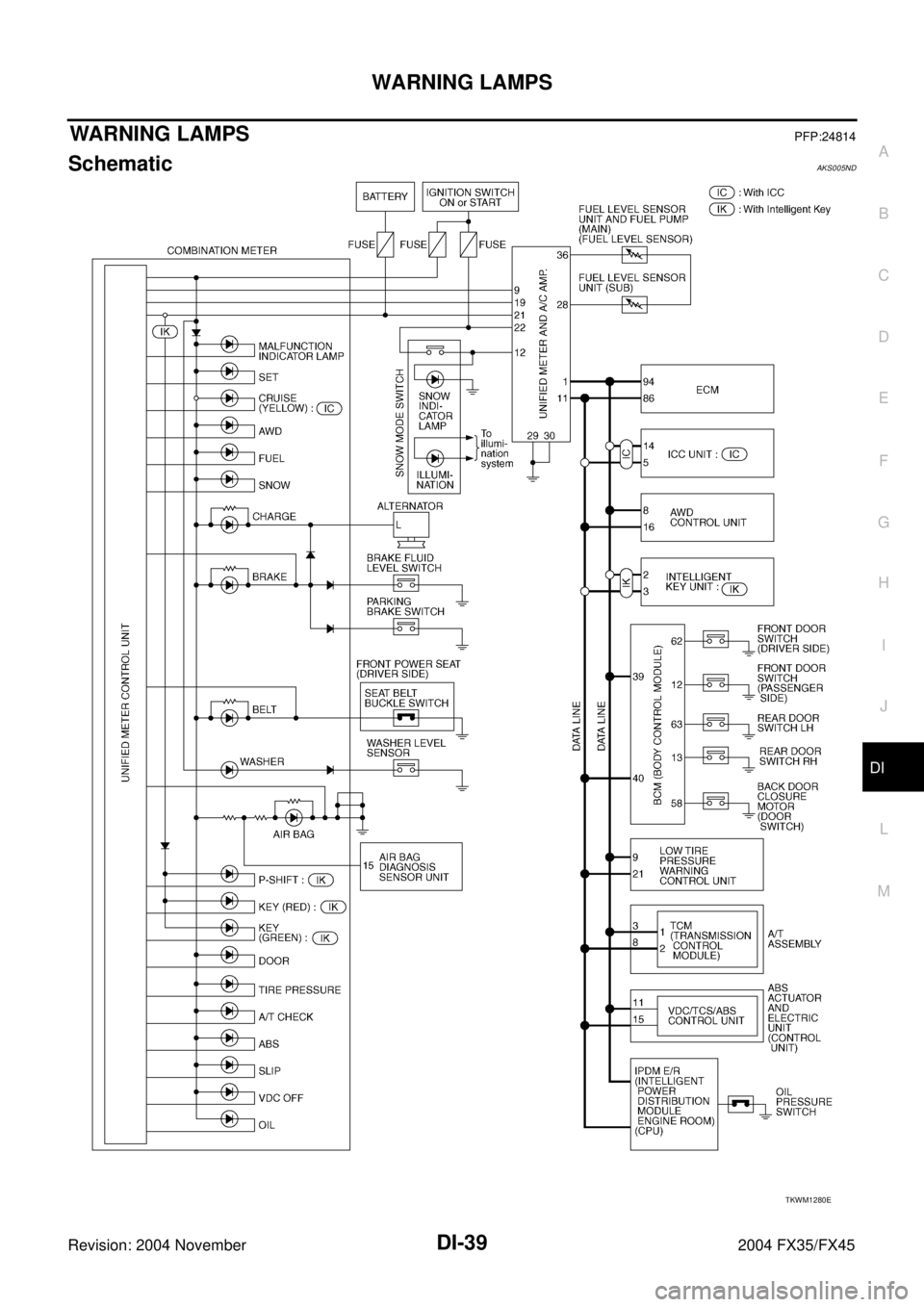

INFINITI FX35 2004 Service Manual WARNING LAMPS DI-39 C D E F G H I J L MA B DI Revision: 2004 November 2004 FX35/FX45 WARNING LAMPSPFP:24814 SchematicAKS005ND TKWM1280E

Page 1283 of 4449

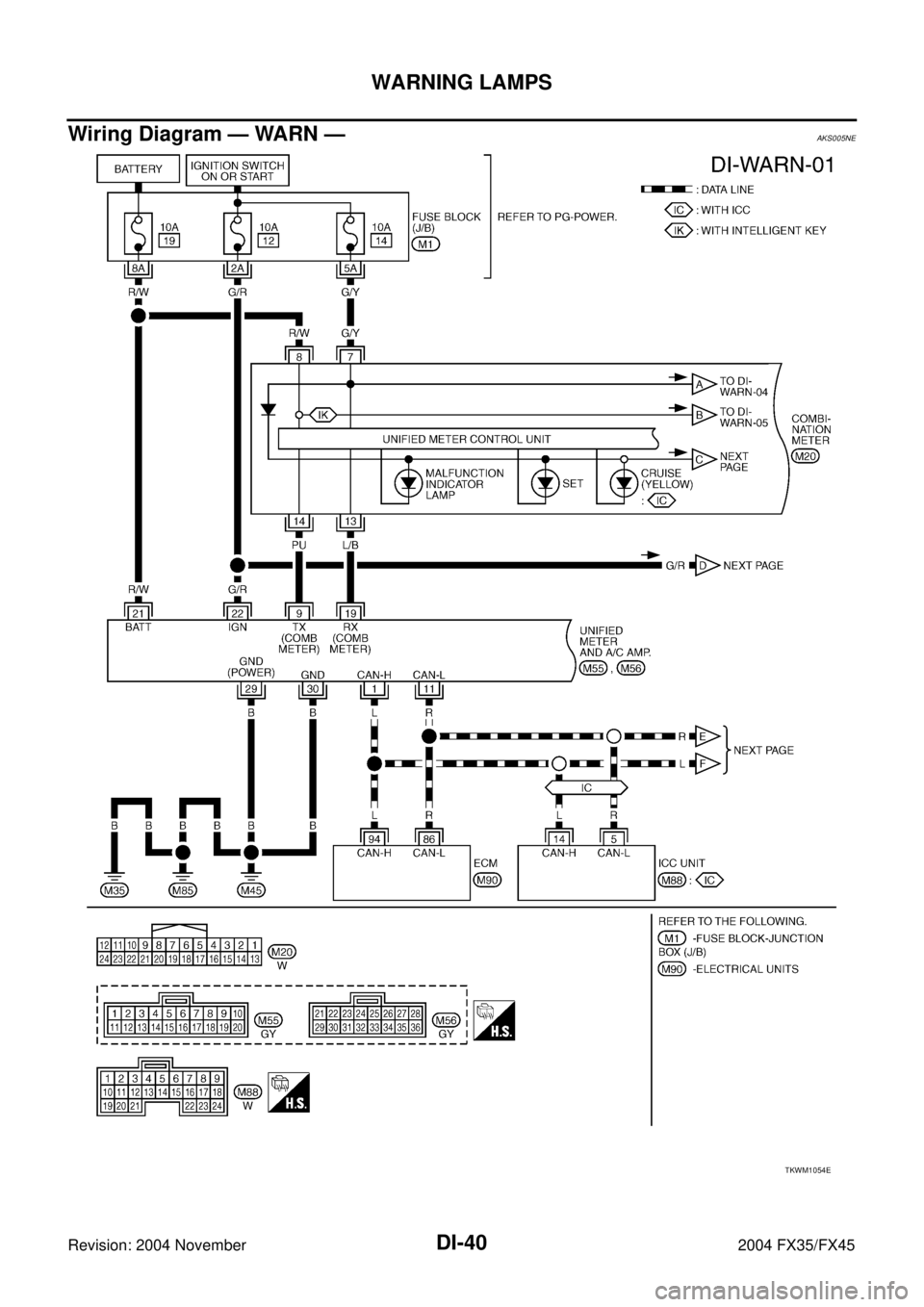

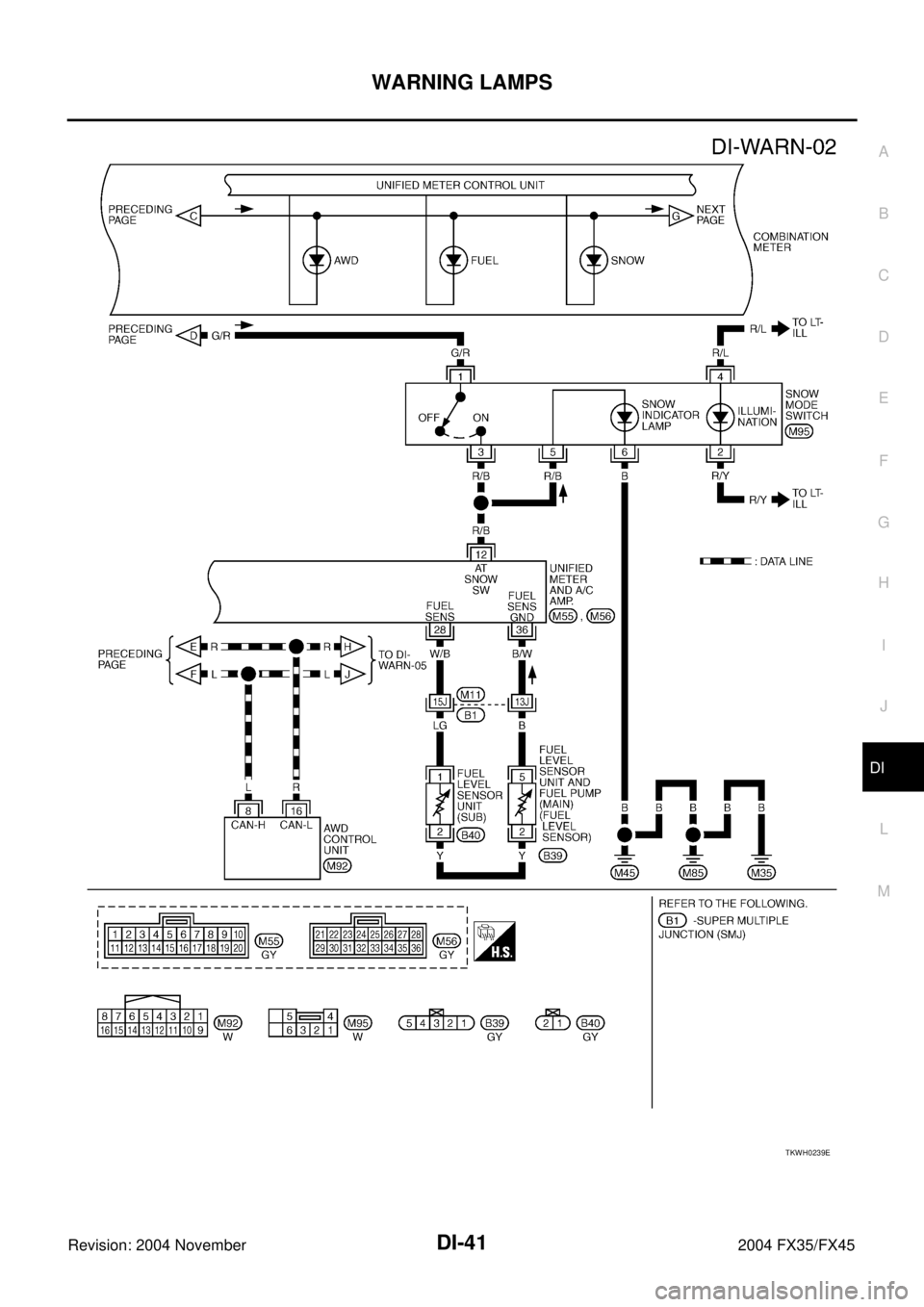

INFINITI FX35 2004 Service Manual DI-40 WARNING LAMPS Revision: 2004 November 2004 FX35/FX45 Wiring Diagram — WARN —AKS005NE TKWM1054E

Page 1284 of 4449

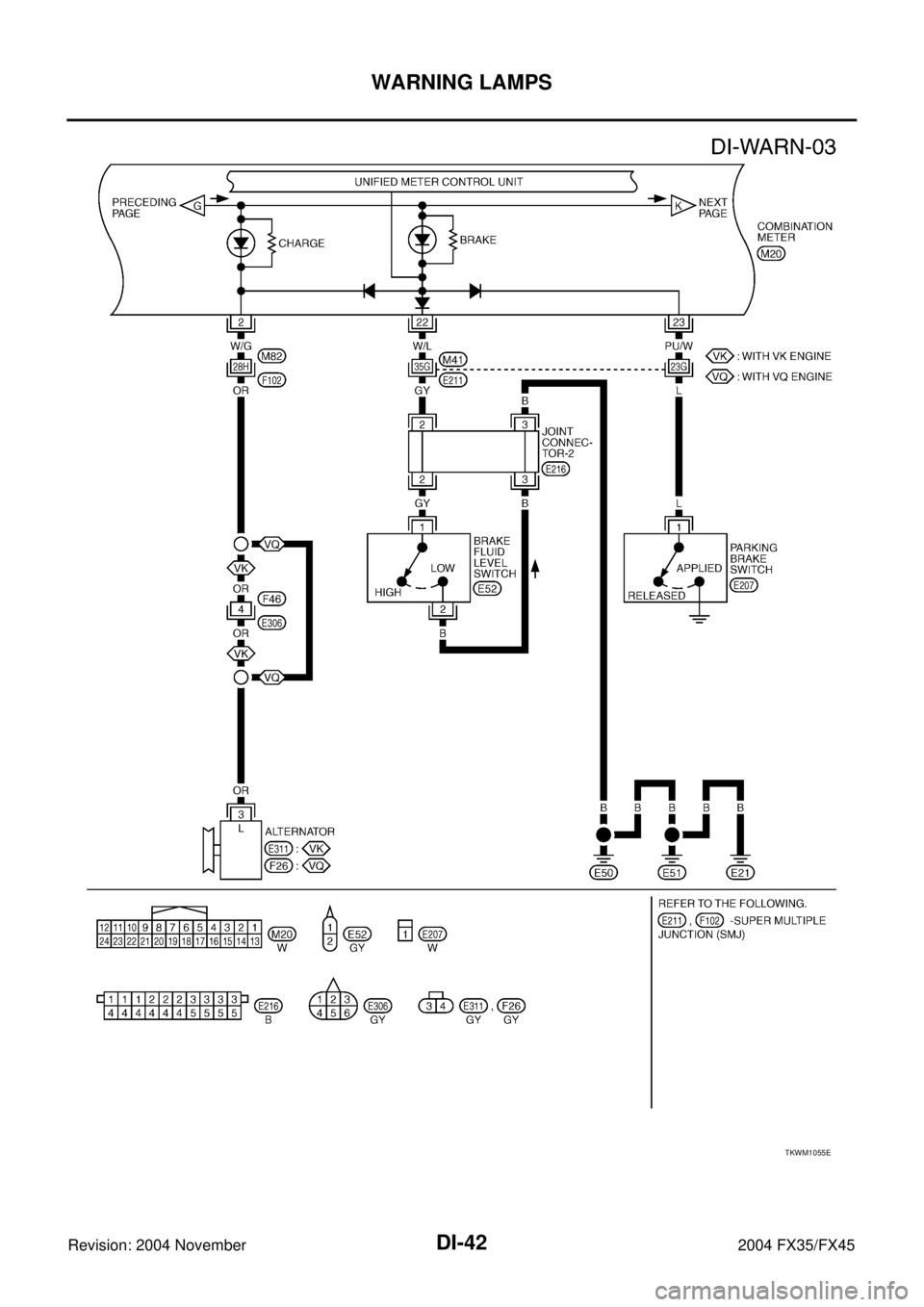

INFINITI FX35 2004 Service Manual WARNING LAMPS DI-41 C D E F G H I J L MA B DI Revision: 2004 November 2004 FX35/FX45 TKWH0239E

Page 1285 of 4449

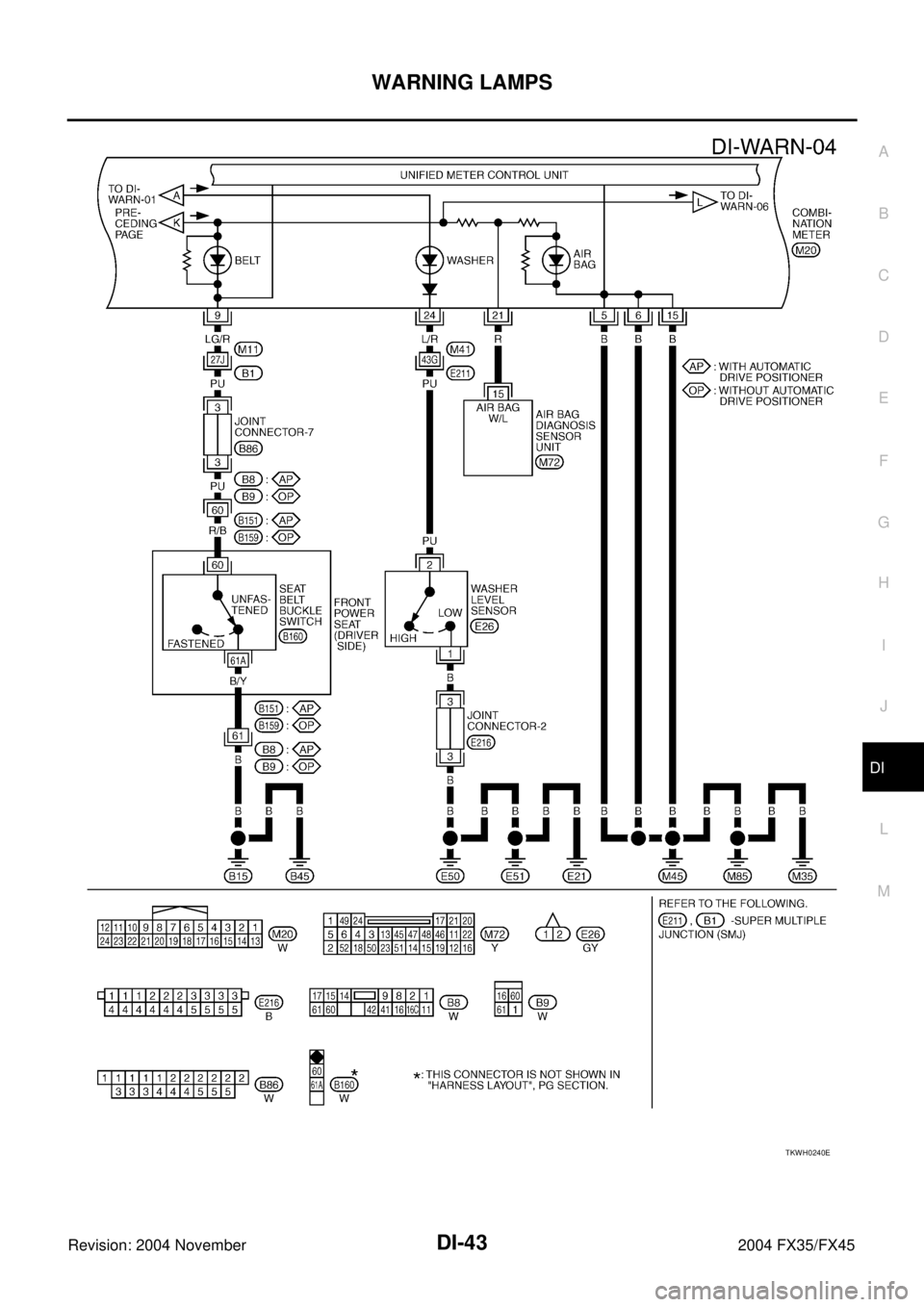

INFINITI FX35 2004 Service Manual DI-42 WARNING LAMPS Revision: 2004 November 2004 FX35/FX45 TKWM1055E

Page 1286 of 4449

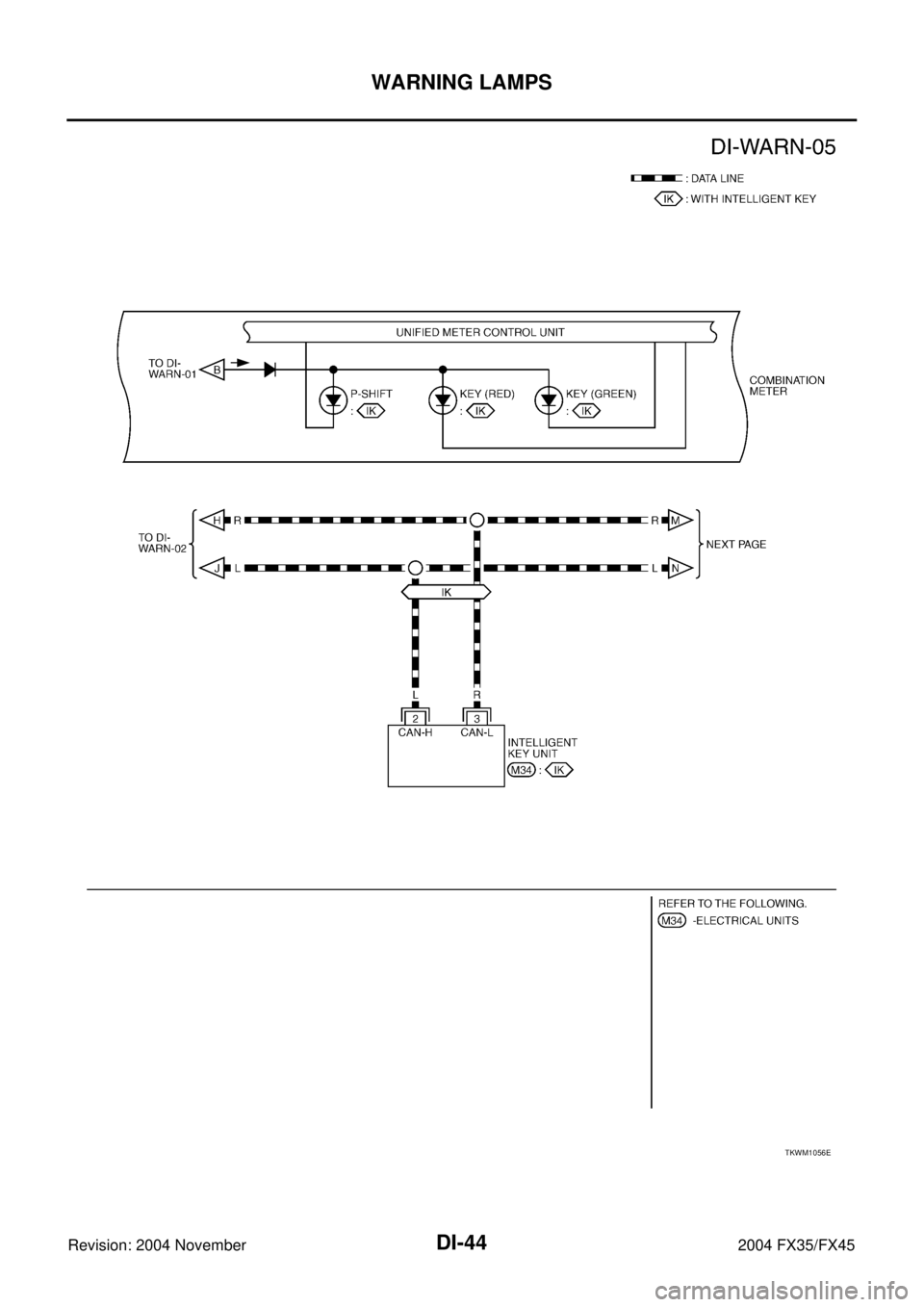

INFINITI FX35 2004 Service Manual WARNING LAMPS DI-43 C D E F G H I J L MA B DI Revision: 2004 November 2004 FX35/FX45 TKWH0240E

Page 1287 of 4449

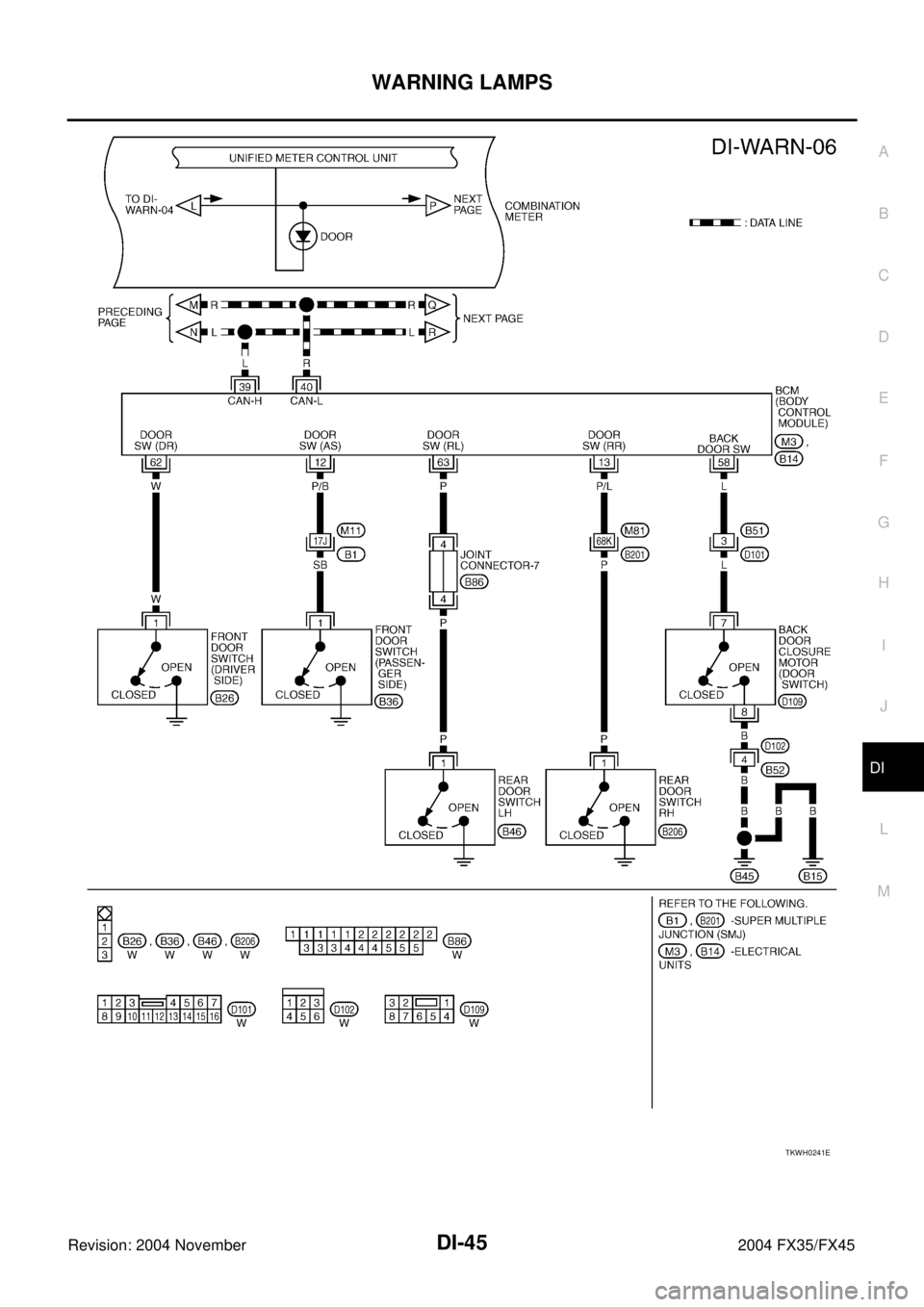

INFINITI FX35 2004 Service Manual DI-44 WARNING LAMPS Revision: 2004 November 2004 FX35/FX45 TKWM1056E

Page 1288 of 4449

INFINITI FX35 2004 Service Manual WARNING LAMPS DI-45 C D E F G H I J L MA B DI Revision: 2004 November 2004 FX35/FX45 TKWH0241E
