Page 1329 of 4449
DI-86
REAR VIEW MONITOR
Revision: 2004 November 2004 FX35/FX45

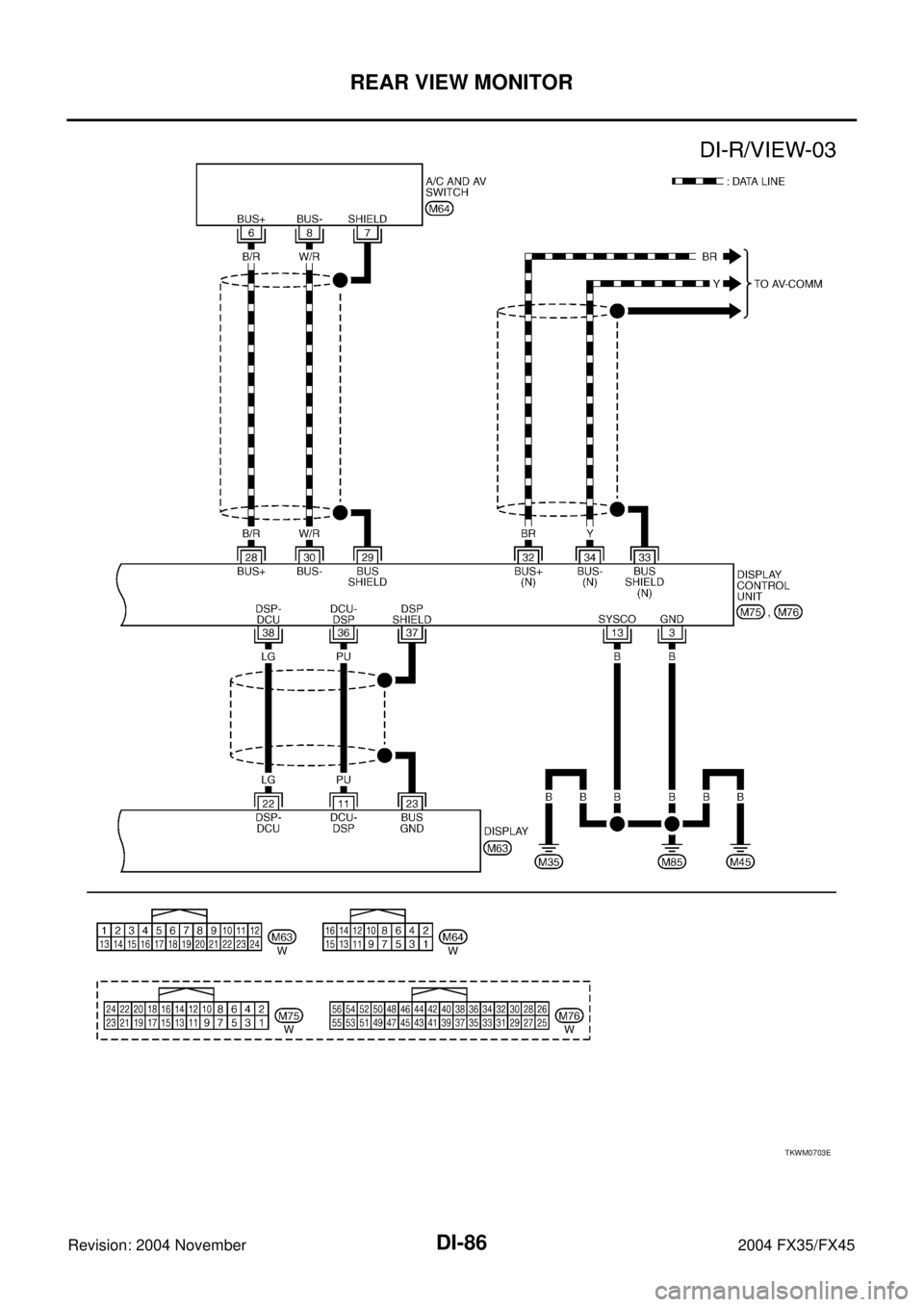

TKWM0703E
Page 1330 of 4449

REAR VIEW MONITOR
DI-87
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for Rear View Camera Control UnitAKS0068H
CONSULT-II FunctionAKS007FM
CONSULT-II performs the following functions communicating with the rear view camera control unit.
CONSULT-II BASIC OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
Te r m i n a l s
ItemCondition
Reference value
Terminal
No.Wire
colorIgnition
switchOperation
1 R/W Battery power supply OFF — Battery voltage
2 LG/R Ignition switch ACC or ON ACC — Battery voltage
3 B Ground ON — Approx. 0V
4 OR Reverse signal input ONA/T selector lever R range
positionBattery voltage
A/T selector lever in other than
R range positionApprox. 0V
5 G/Y CONTROL 1 ON — Approx. 0V
6 PU DDL — — —
8 R/W Camera power output ONA/T selector lever R range
positionApprox. 6V
9 — Camera image input (–) ON — Approx. 0V
10 G/W Camera image input (+) ONA/T selector lever R range
position
11 — Shield ground — — —
12 BR Composite image output ONA/T selector lever R range
position
14 YComposite image synchroni-
zation signal outputONA/T selector lever R range
position
SKIA4894E
SKIA4896E
SKIA5896E
System part Check item, diagnosis mode Description
REARVIEW CAMERA Work supportIt can adjust the side distance guidelines which overlap the rear view mon-
itor image.
Data monitor Displays rear view camera control unit input data in real time.
ECU part number Displays part number of rear view camera control unit.
Page 1331 of 4449
DI-88
REAR VIEW MONITOR
Revision: 2004 November 2004 FX35/FX45

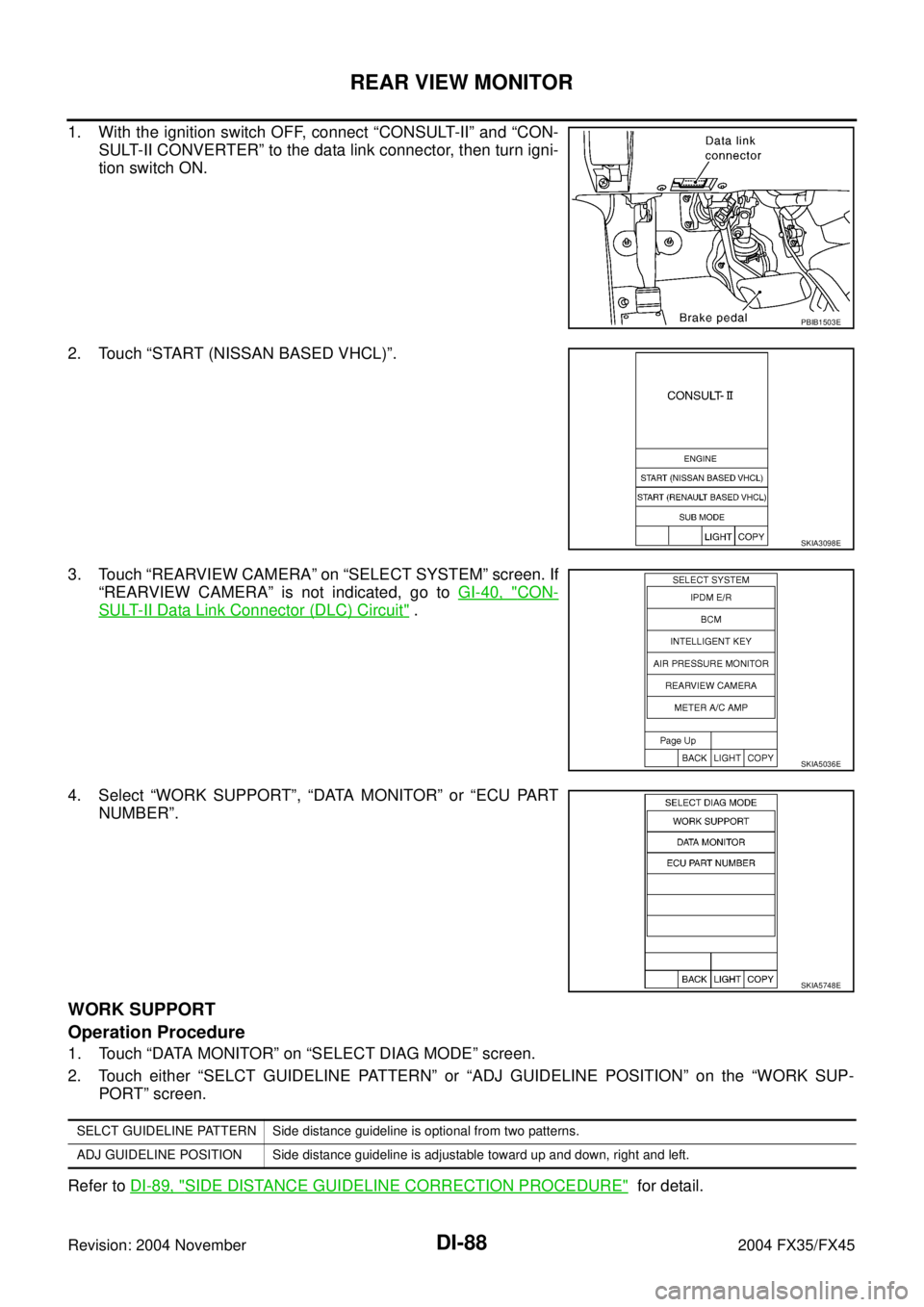

1. With the ignition switch OFF, connect “CONSULT-II” and “CON-
SULT-II CONVERTER” to the data link connector, then turn igni-
tion switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “REARVIEW CAMERA” on “SELECT SYSTEM” screen. If
“REARVIEW CAMERA” is not indicated, go to GI-40, "
CON-
SULT-II Data Link Connector (DLC) Circuit" .
4. Select “WORK SUPPORT”, “DATA MONITOR” or “ECU PART
NUMBER”.
WORK SUPPORT
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “SELCT GUIDELINE PATTERN” or “ADJ GUIDELINE POSITION” on the “WORK SUP-
PORT” screen.
Refer to DI-89, "
SIDE DISTANCE GUIDELINE CORRECTION PROCEDURE" for detail.
PBIB1503E
SKIA3098E
SKIA5036E
SKIA5748E
SELCT GUIDELINE PATTERN Side distance guideline is optional from two patterns.
ADJ GUIDELINE POSITION Side distance guideline is adjustable toward up and down, right and left.
Page 1332 of 4449

REAR VIEW MONITOR
DI-89
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR” screen.
3. When “SELECTION FROM MENU” is selected, touch individual items to be monitored. When “ALL SIG-
NALS” is selected, all items will be monitored.
4. Touch “START”.
5. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
Side Distance Guideline CorrectionAKS0068L
This mode is used to modify the side distance guidelines if they are dislocated from the rear view monitor
image, because of variations of body/camera mounting conditions.
SIDE DISTANCE GUIDELINE CORRECTION PROCEDURE
1. Create a correction line to modify the screen.
Draw lines on the rearward of the vehicle passing through the
following points: 0.2 m (7.87 inch) from both sides of the vehicle,
and
*1: 0.5 m (1.5 feet)
*2: 1 m (3 feet)
*3: 2 m (7 feet)
*4: 3 m (10 feet)
and from the rear end of the bumper
2. With the ignition switch OFF, connect “CONSULT-II” and “CON-
SULT-II CONVERTER” to the data link connector, then turn igni-
tion switch ON. Touch “REARVIEW CAMERA” on CONSULT-II.
CAUTION:
Stop engine for the safety when correcting side distance
guideline.
3. Shift the A/T select lever is R range position.
ALL SIGNALS Monitors all signals.
SELECTION FROM MENU Selects and monitors individual signal.
Display item [Unit] ALL SIGNALSSELECTION
FROM MENUContents
R POSI SIG [ON/OFF] X X Indicates [ON/OFF] condition of R range position signal input.
SKIA5637E
SKIA6103E
Page 1333 of 4449
DI-90
REAR VIEW MONITOR
Revision: 2004 November 2004 FX35/FX45
4. Touch “SELCT GUIDELINE PATTERN” on “SELECT WORK
ITEM” screen.
5. Touch “UP” or “DOWN”, and select the guide line, “PATTERN
NO. 0” or “PATTERN NO. 1”, which is the closest to the cor-
rected line.
6. Touch “SAVE”, and confirm the guide line.
7. Touch “END”.
8. Touch “ADJ GUIDELINE POSITION” on “SELECT WORK
ITEM” screen.
9. Adjust the guide line touching “X UP”, “X DOWN”, “Y UP” or “Y
DOWN” so that the corrected line can fit the guide line.
10. Touch “SAVE”, and confirm the guide line.
11. Touch “END” to finish correcting.
SKIA5638E
SKIA5639E
SKIA5638E
SKIA5642E
Page 1334 of 4449

REAR VIEW MONITOR
DI-91
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45

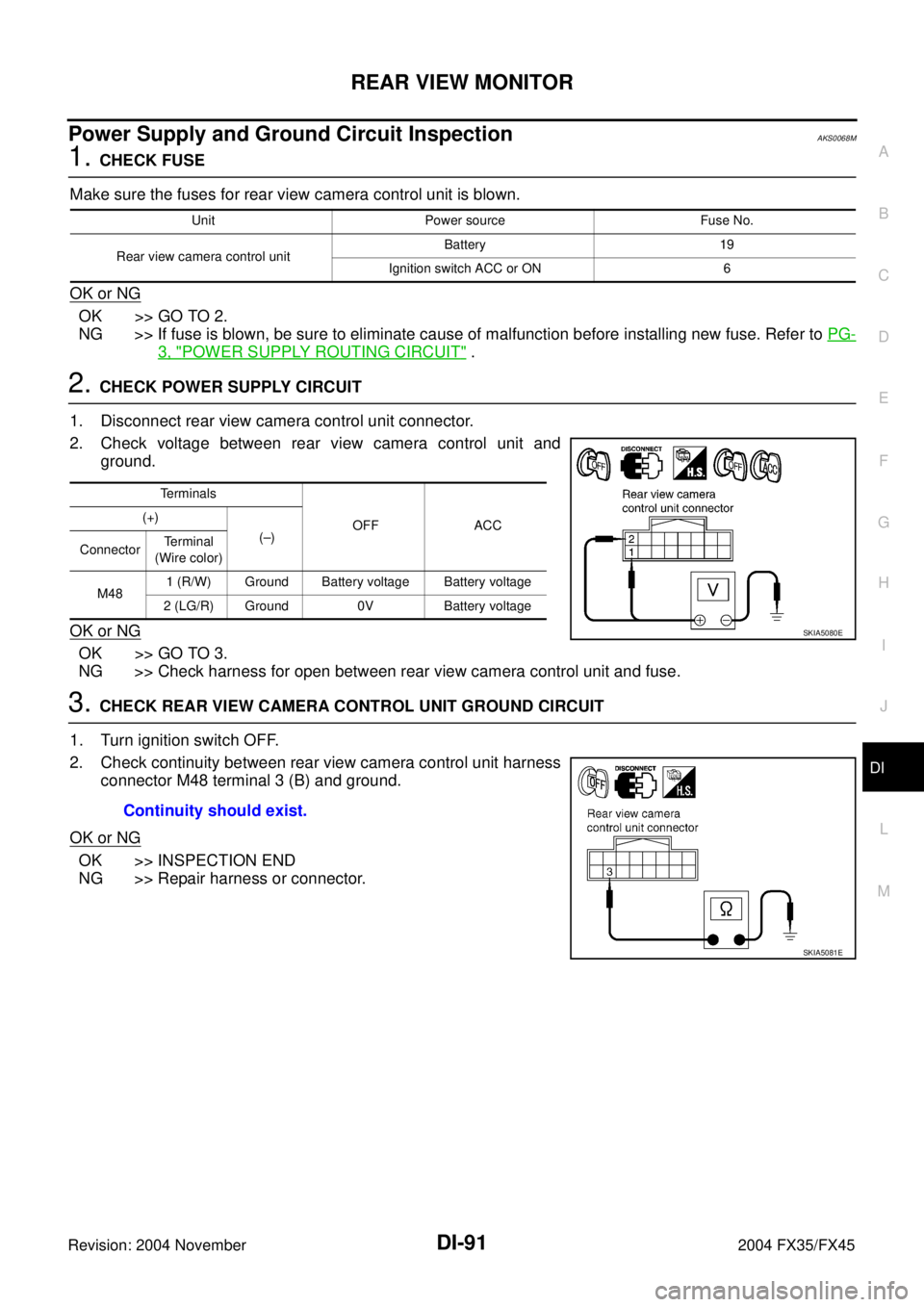

Power Supply and Ground Circuit InspectionAKS0068M
1. CHECK FUSE
Make sure the fuses for rear view camera control unit is blown.
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Disconnect rear view camera control unit connector.
2. Check voltage between rear view camera control unit and
ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between rear view camera control unit and fuse.
3. CHECK REAR VIEW CAMERA CONTROL UNIT GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between rear view camera control unit harness
connector M48 terminal 3 (B) and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Unit Power source Fuse No.
Rear view camera control unitBattery 19
Ignition switch ACC or ON 6
Terminals
OFF ACC (+)
(–)
ConnectorTerminal
(Wire color)
M481 (R/W) Ground Battery voltage Battery voltage
2 (LG/R) Ground 0V Battery voltage
SKIA5080E
Continuity should exist.
SKIA5081E
Page 1335 of 4449

DI-92
REAR VIEW MONITOR
Revision: 2004 November 2004 FX35/FX45
Rear View Is Not Displayed With The A/T Selector Lever In R-positionAKS0068N
1. BACK-UP LAMP INSPECTION
1. Turn ignition switch ON.
2. Shift A/T selector lever to R-position.
Dose back-up lamp illuminate?
YES >> GO TO 2.
NO >> Check back-up lamp system. Refer to LT- 1 2 5 , "
BACK-UP LAMP" in LT section.
2. CHECK REVERSE POSITION INPUT SIGNAL
With CONSULT-II
Select “DATA MONITOR” of “REARVIEW CAMERA”. Operate igni-
tion switch with “R POSI SIG” of “DATA MONITOR” and check oper-
ate status.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect rear view camera control unit connector.
3. Turn ignition switch ON.
4. Shift A/T selector lever to R-position.
5. Check voltage between rear view camera control unit harness
connector M48 terminal 4 (OR) and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open or short between rear view
camera control unit and back-up lamp relay.
3. CHECK DISPLAY CONTROL UNIT OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear view camera control unit connector.
3. Turn ignition switch ON.
4. Check voltage between rear view camera control unit harness
connector M48 terminal 5 (G/Y) and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
SKIA7147E
Battery voltage should exist.
SKIA5086E
Approx. 5V
SKIA7148E
Page 1336 of 4449

REAR VIEW MONITOR
DI-93
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45

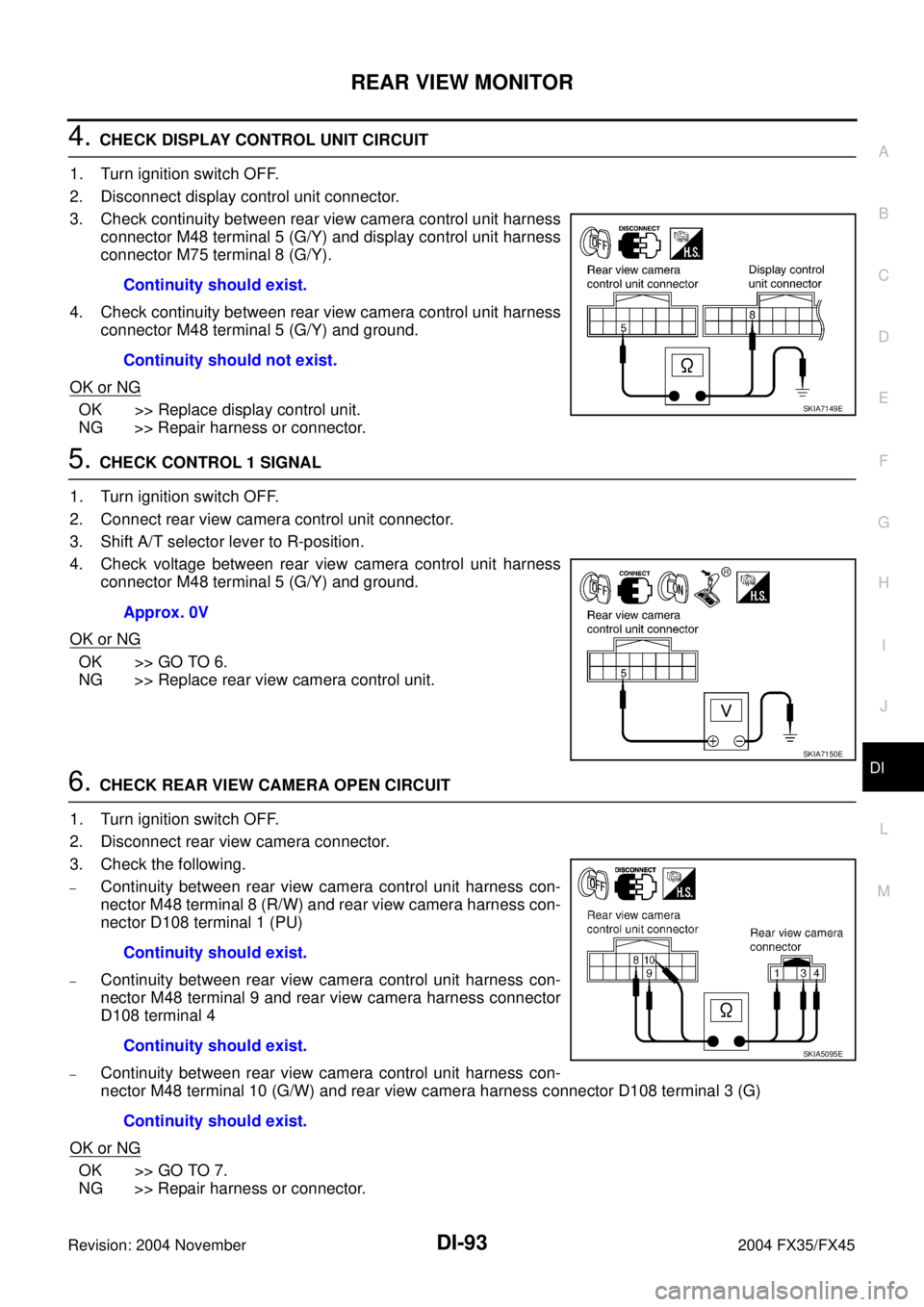

4. CHECK DISPLAY CONTROL UNIT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect display control unit connector.
3. Check continuity between rear view camera control unit harness
connector M48 terminal 5 (G/Y) and display control unit harness
connector M75 terminal 8 (G/Y).
4. Check continuity between rear view camera control unit harness
connector M48 terminal 5 (G/Y) and ground.
OK or NG
OK >> Replace display control unit.
NG >> Repair harness or connector.
5. CHECK CONTROL 1 SIGNAL
1. Turn ignition switch OFF.
2. Connect rear view camera control unit connector.
3. Shift A/T selector lever to R-position.
4. Check voltage between rear view camera control unit harness
connector M48 terminal 5 (G/Y) and ground.
OK or NG
OK >> GO TO 6.
NG >> Replace rear view camera control unit.
6. CHECK REAR VIEW CAMERA OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear view camera connector.
3. Check the following.
–Continuity between rear view camera control unit harness con-
nector M48 terminal 8 (R/W) and rear view camera harness con-
nector D108 terminal 1 (PU)
–Continuity between rear view camera control unit harness con-
nector M48 terminal 9 and rear view camera harness connector
D108 terminal 4
–Continuity between rear view camera control unit harness con-
nector M48 terminal 10 (G/W) and rear view camera harness connector D108 terminal 3 (G)
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.Continuity should exist.
Continuity should not exist.
SKIA7149E
Approx. 0V
SKIA7150E
Continuity should exist.
Continuity should exist.
Continuity should exist.
SKIA5095E
