INFINITI FX35 2004 Service Manual LAN-172 [CAN] CAN SYSTEM (TYPE 5) Revision: 2004 November 2004 FX35/FX45 Work FlowAKS00C1Q 1. When there are no indications of “BCM”, “METER A/C AMP”, “AUTO DRIVE POS.” or “IPDM E/R” o

Page 3474 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 5) LAN-173 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 8. Mark the “NG” or “UNKWN” item of the check sheet table with “v” from the result of CA

Page 3475 of 4449

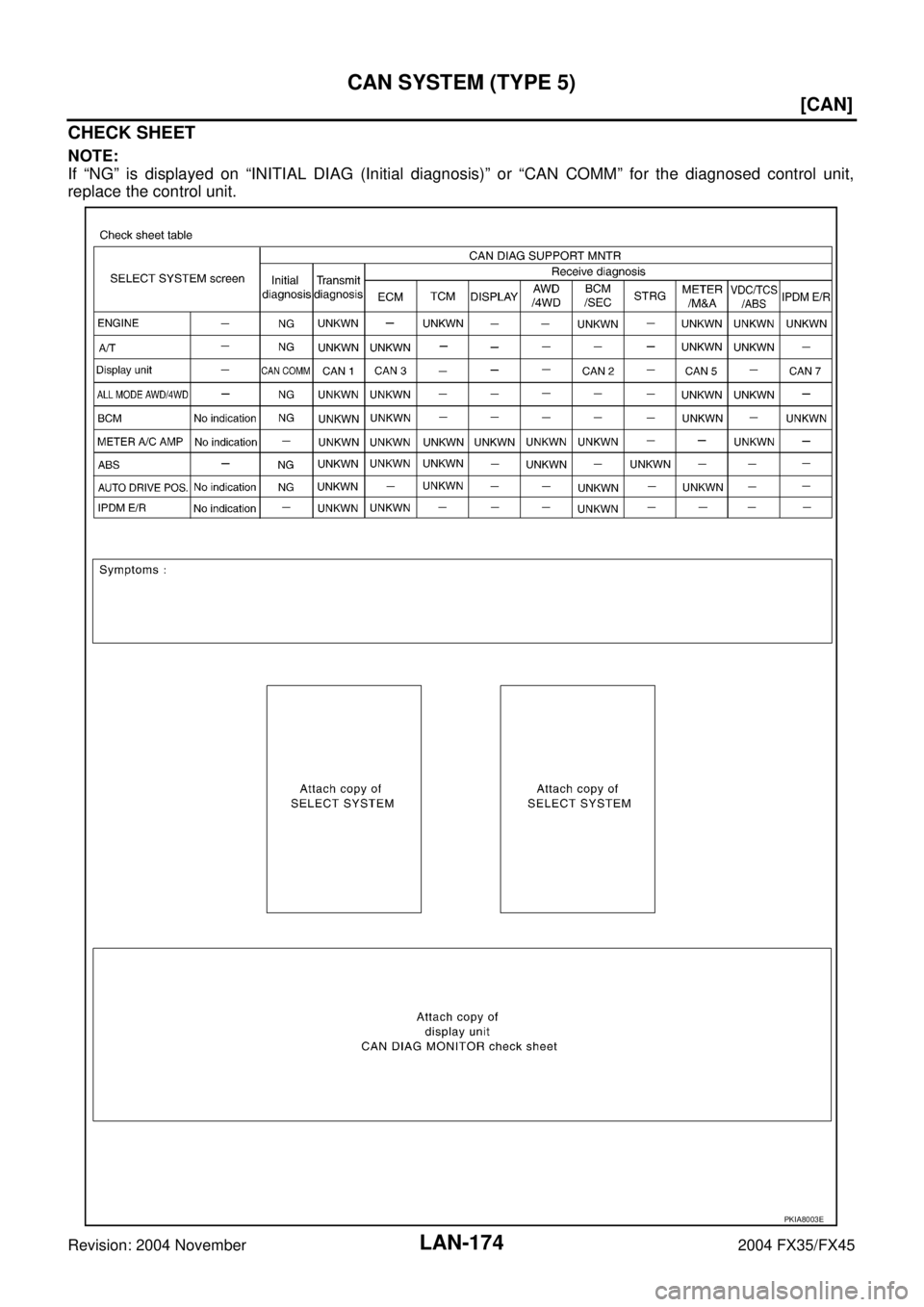

INFINITI FX35 2004 Service Manual LAN-174 [CAN] CAN SYSTEM (TYPE 5) Revision: 2004 November 2004 FX35/FX45 CHECK SHEET NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed contro

Page 3476 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 5) LAN-175 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 PKIA8004E

Page 3477 of 4449

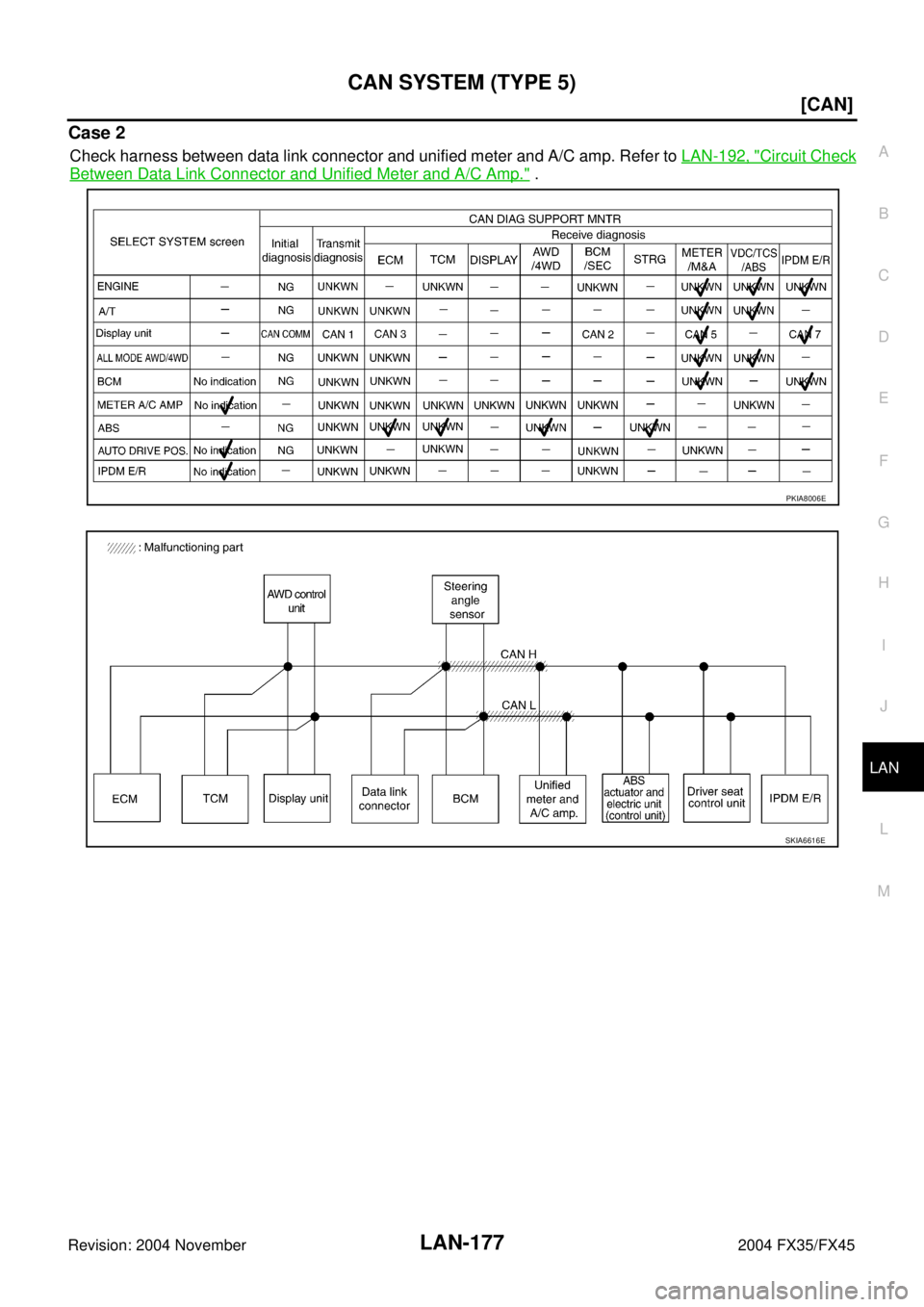

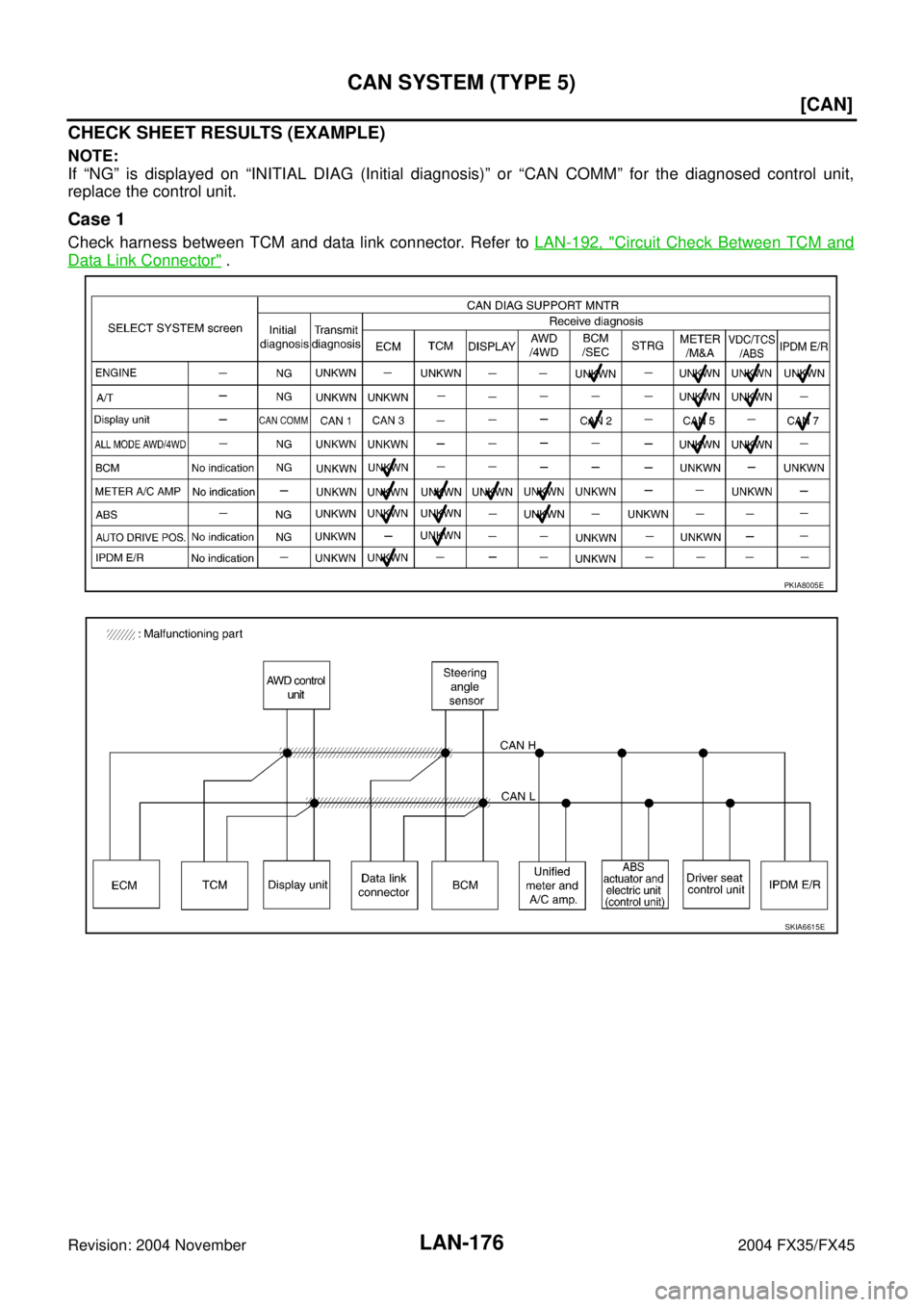

INFINITI FX35 2004 Service Manual LAN-176 [CAN] CAN SYSTEM (TYPE 5) Revision: 2004 November 2004 FX35/FX45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for th

Page 3478 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 5) LAN-177 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-192, "C

Page 3479 of 4449

INFINITI FX35 2004 Service Manual LAN-178 [CAN] CAN SYSTEM (TYPE 5) Revision: 2004 November 2004 FX35/FX45 Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to LAN-193, "

Page 3480 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 5) LAN-179 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat control u
