Page 3897 of 4449

INFINITI FX35 2004 Service Manual PG-62 HARNESS Revision: 2004 November 2004 FX35/FX45 BODY NO.2 HARNESS TKIH0011E

Page 3898 of 4449

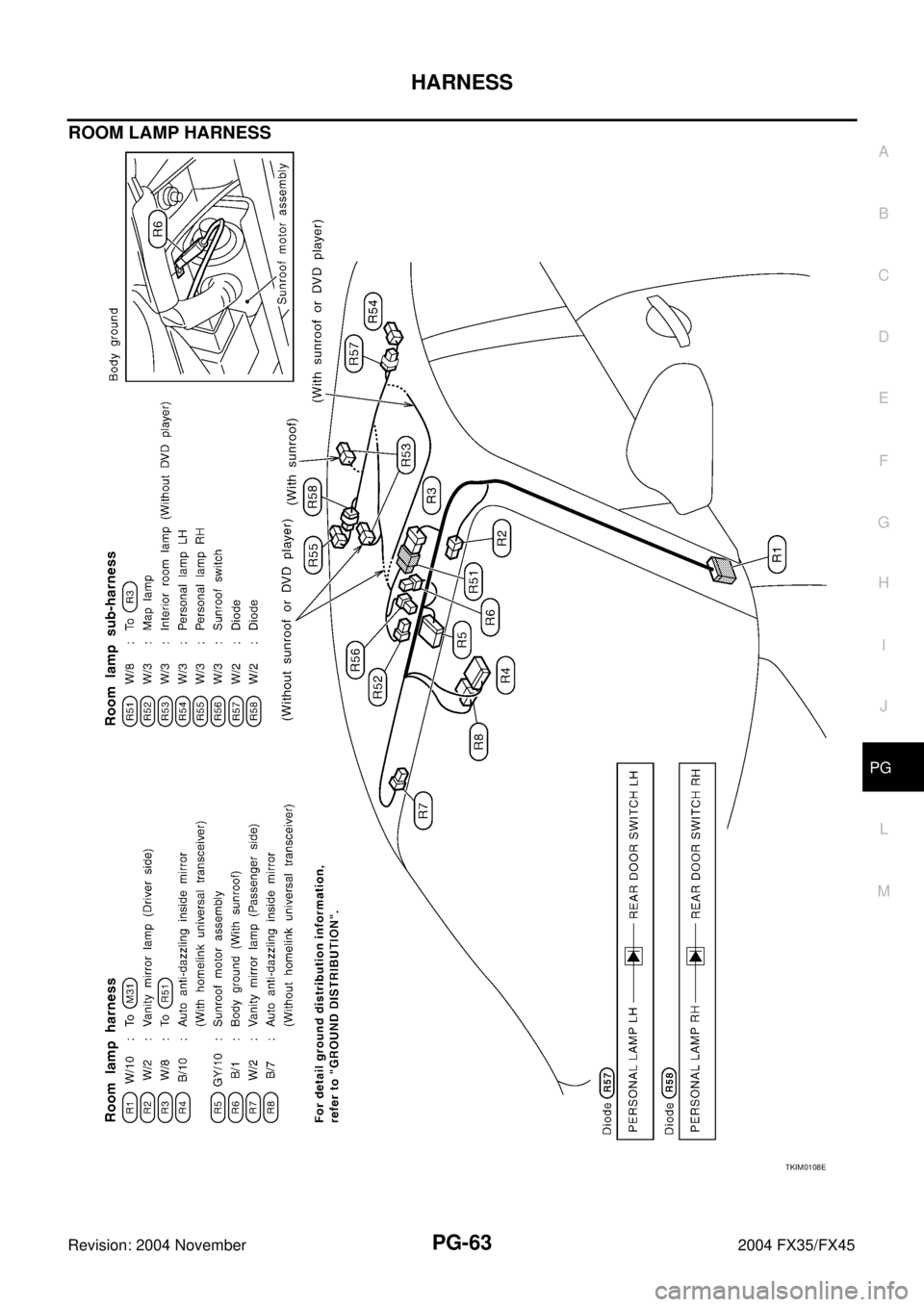

INFINITI FX35 2004 Service Manual HARNESS PG-63 C D E F G H I J L MA B PG Revision: 2004 November 2004 FX35/FX45 ROOM LAMP HARNESS TKIM0108E

Page 3899 of 4449

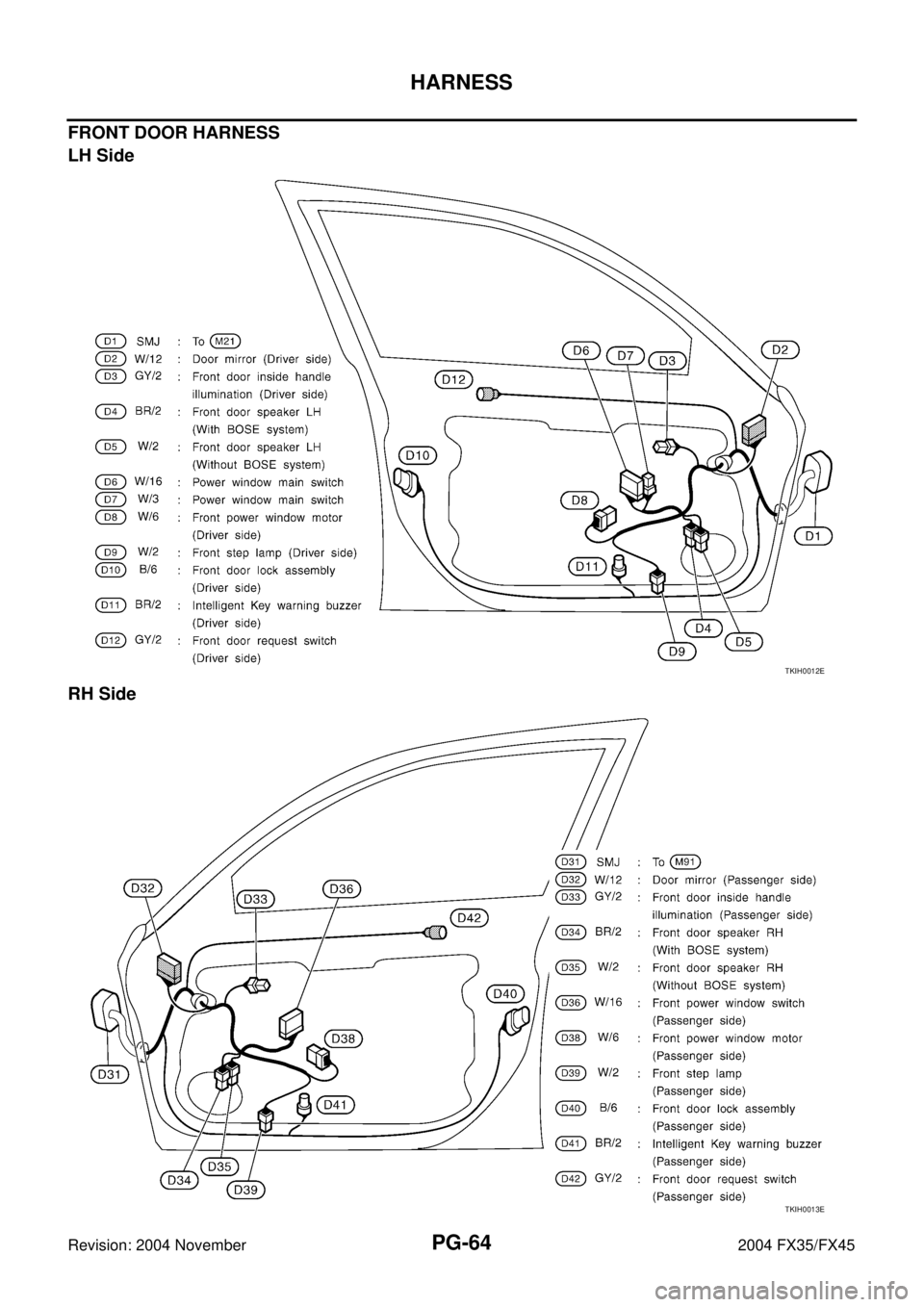

INFINITI FX35 2004 Service Manual PG-64 HARNESS Revision: 2004 November 2004 FX35/FX45 FRONT DOOR HARNESS LH Side RH Side TKIH0012E TKIH0013E

Page 3900 of 4449

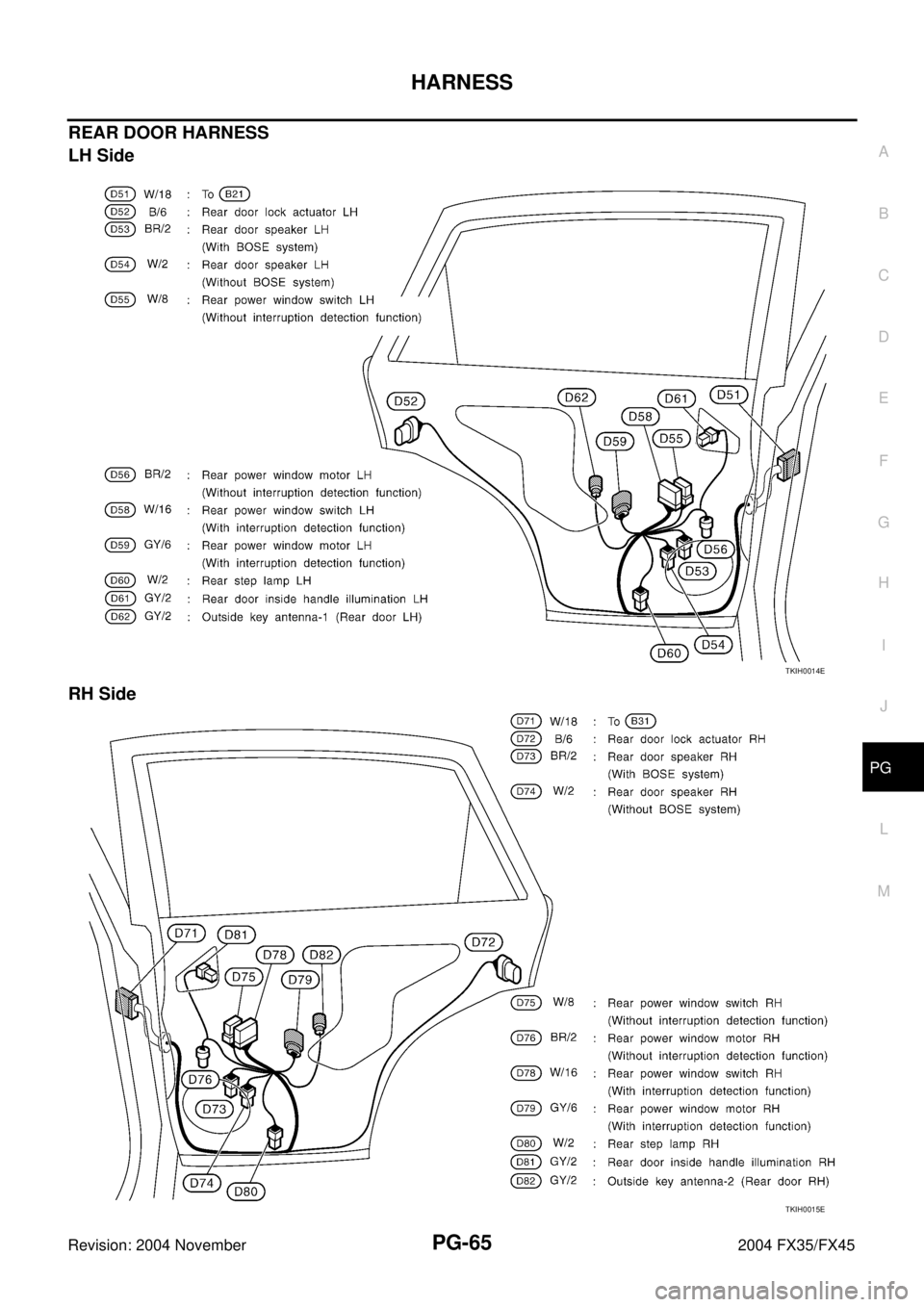

INFINITI FX35 2004 Service Manual HARNESS PG-65 C D E F G H I J L MA B PG Revision: 2004 November 2004 FX35/FX45 REAR DOOR HARNESS LH Side RH Side TKIH0014E TKIH0015E

Page 3901 of 4449

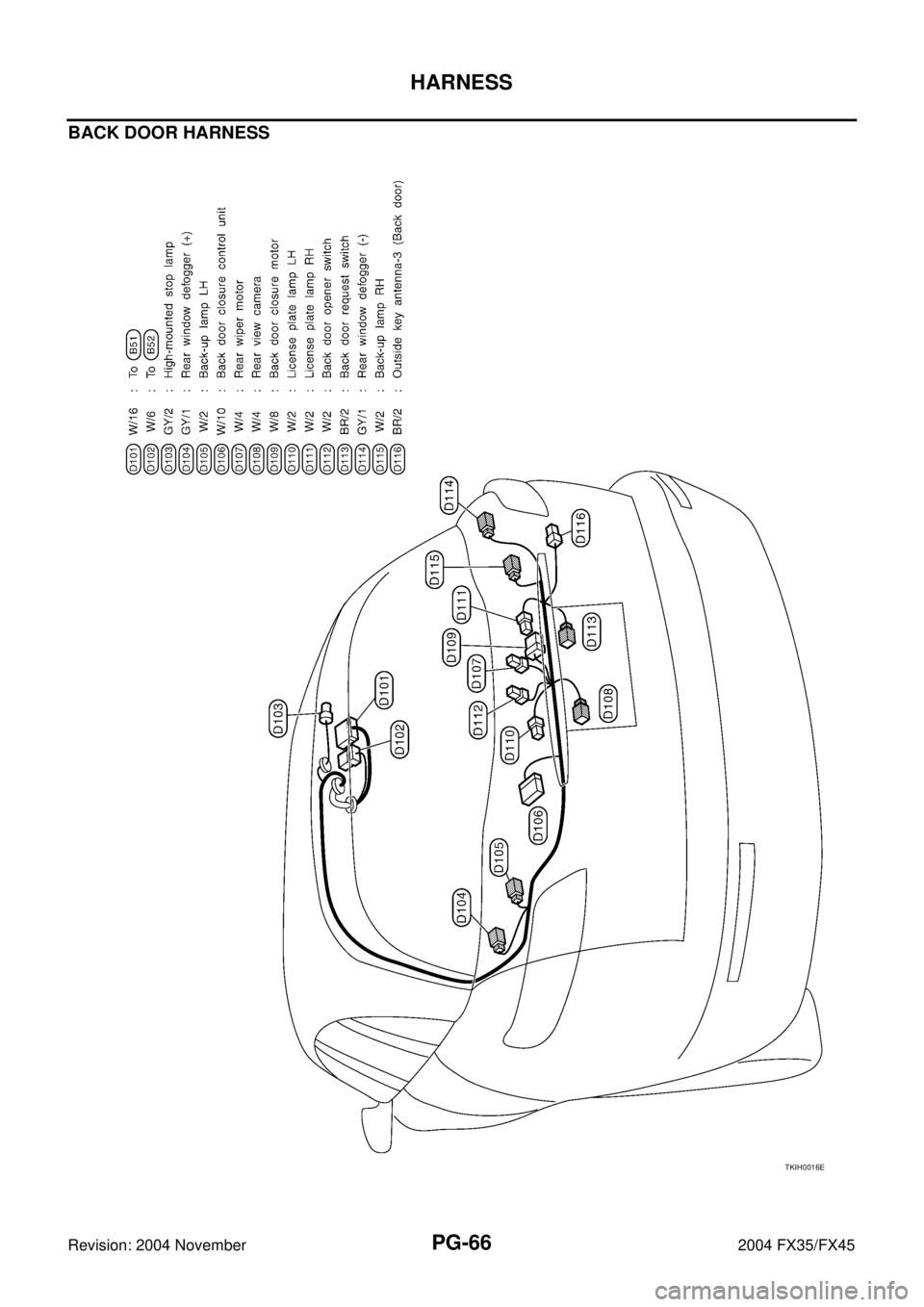

INFINITI FX35 2004 Service Manual PG-66 HARNESS Revision: 2004 November 2004 FX35/FX45 BACK DOOR HARNESS TKIH0016E

Page 3902 of 4449

INFINITI FX35 2004 Service Manual HARNESS PG-67 C D E F G H I J L MA B PG Revision: 2004 November 2004 FX35/FX45 Wiring Diagram Codes (Cell Codes) AKS007X0 Use the chart below to find out what each wiring diagram code stands for. Refe

Page 3903 of 4449

INFINITI FX35 2004 Service Manual PG-68 HARNESS Revision: 2004 November 2004 FX35/FX45 H/AIM LT Headlamp Aiming Control System H/LAMP LT Headlamp HORN WW Horn HSEAT SE Heated Seat I/KEY BL Intelligent Key System I/MIRR GW Inside Mirro

Page 3904 of 4449

INFINITI FX35 2004 Service Manual HARNESS PG-69 C D E F G H I J L MA B PG Revision: 2004 November 2004 FX35/FX45 PHASE EC Camshaft Position Sensor (PHASE) PHSB1 EC Camshaft Position Sensor (PHASE) (Bank1) PHSB2 EC Camshaft Position Se
