Page 2689 of 4449

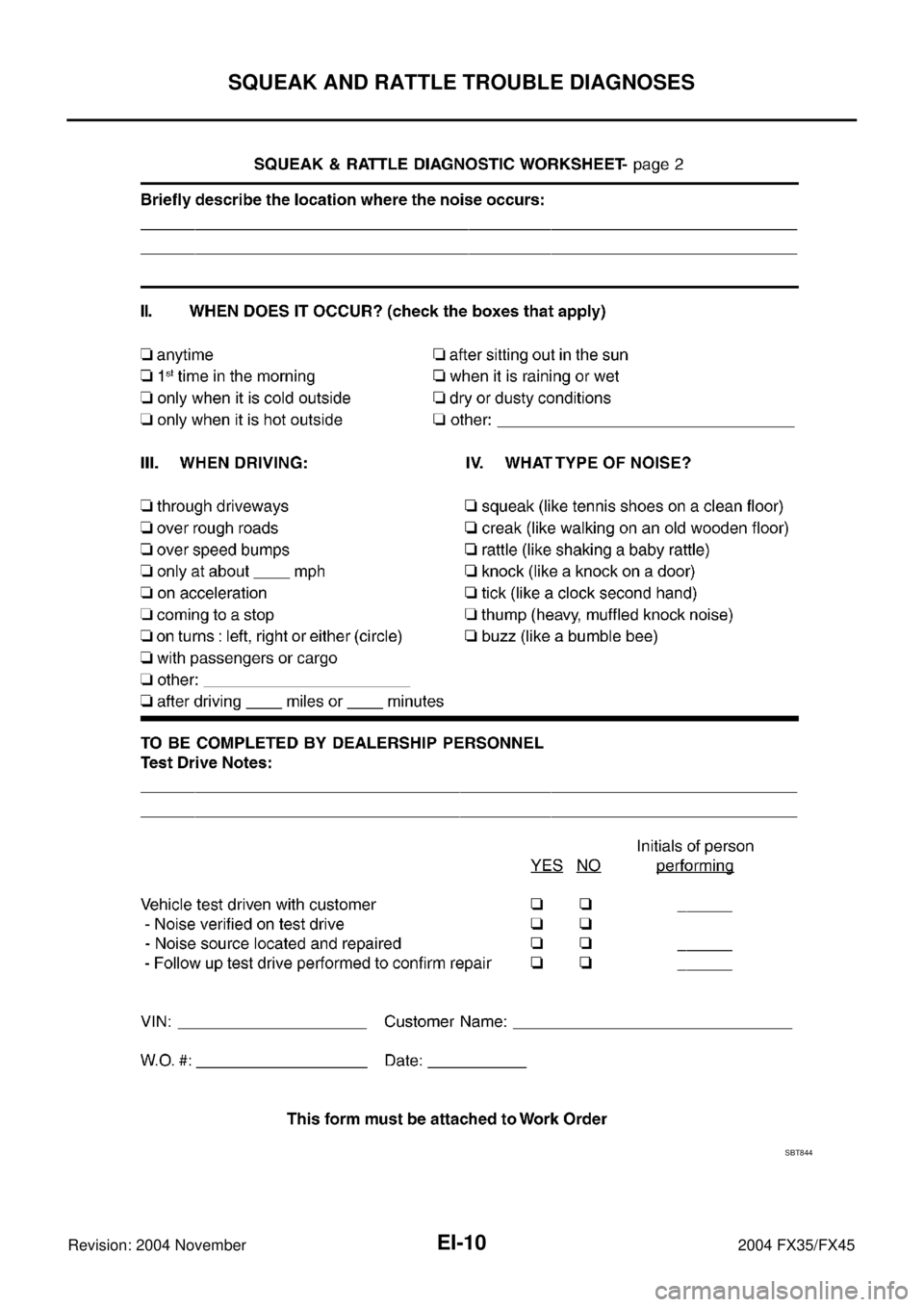

INFINITI FX35 2004 Service Manual EI-10 SQUEAK AND RATTLE TROUBLE DIAGNOSES Revision: 2004 November 2004 FX35/FX45 SBT844

Page 2690 of 4449

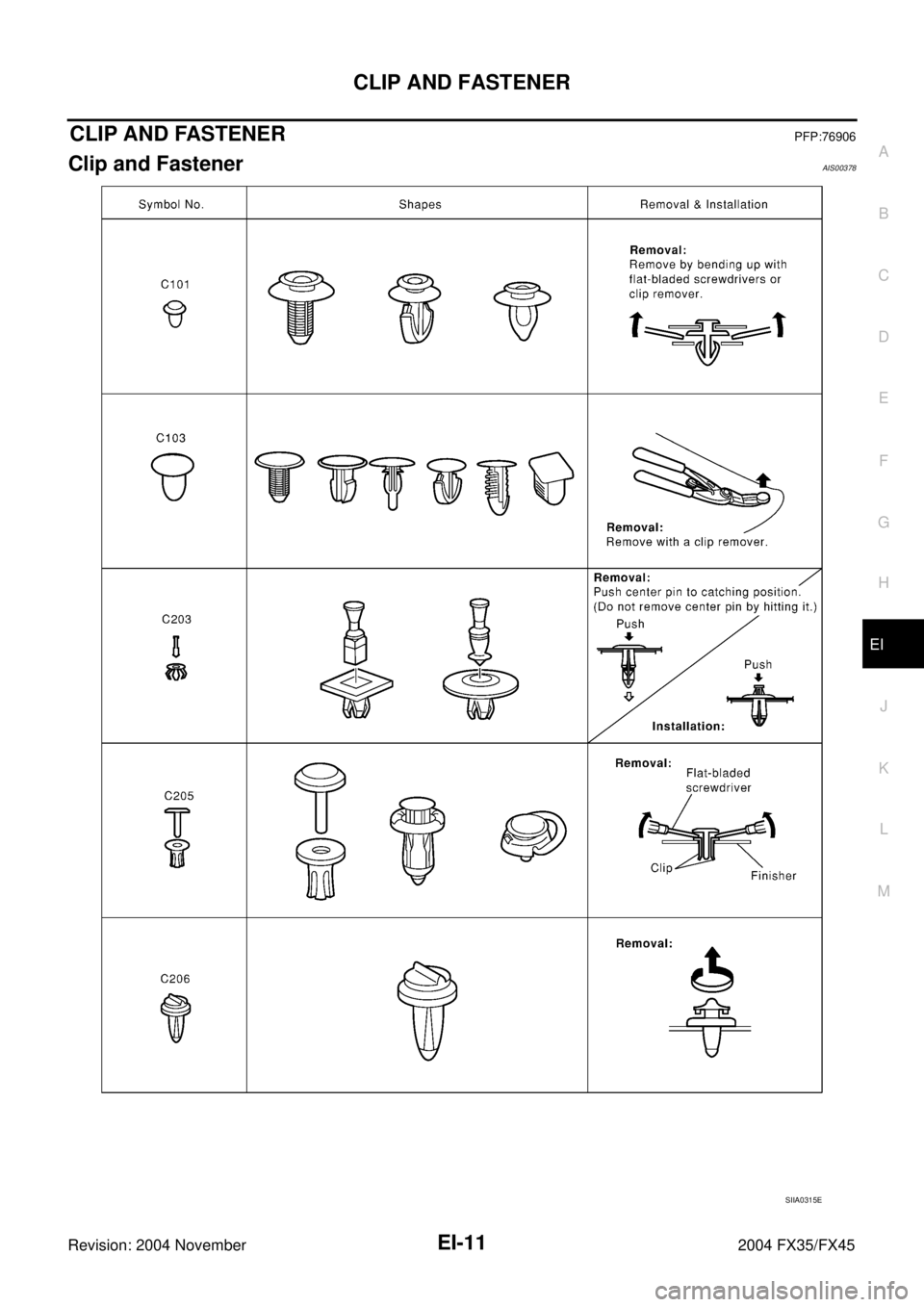

INFINITI FX35 2004 Service Manual CLIP AND FASTENER EI-11 C D E F G H J K L MA B EI Revision: 2004 November 2004 FX35/FX45 CLIP AND FASTENERPFP:76906 Clip and FastenerAIS00378 SIIA0315E

Page 2691 of 4449

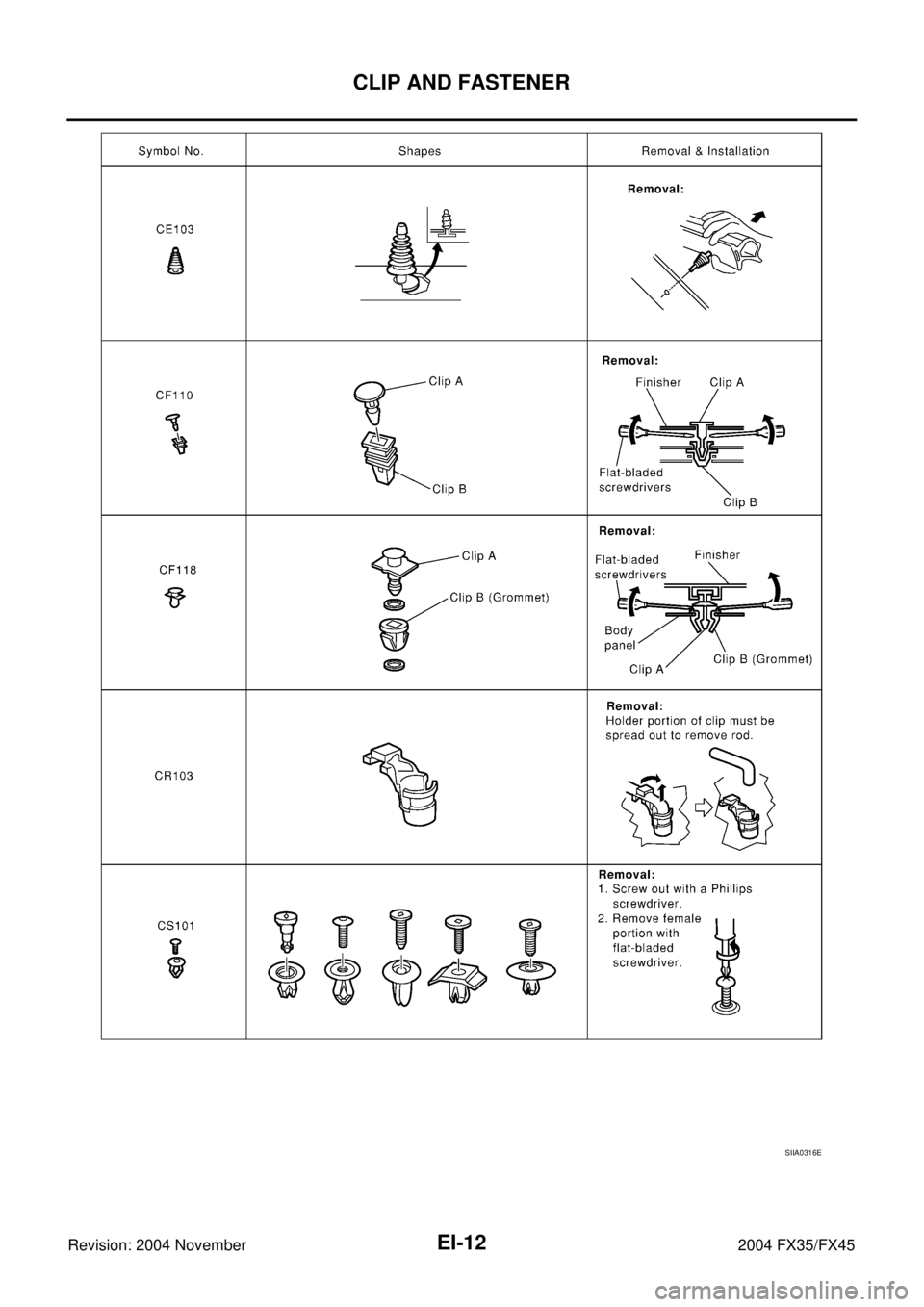

INFINITI FX35 2004 Service Manual EI-12 CLIP AND FASTENER Revision: 2004 November 2004 FX35/FX45 SIIA0316E

Page 2692 of 4449

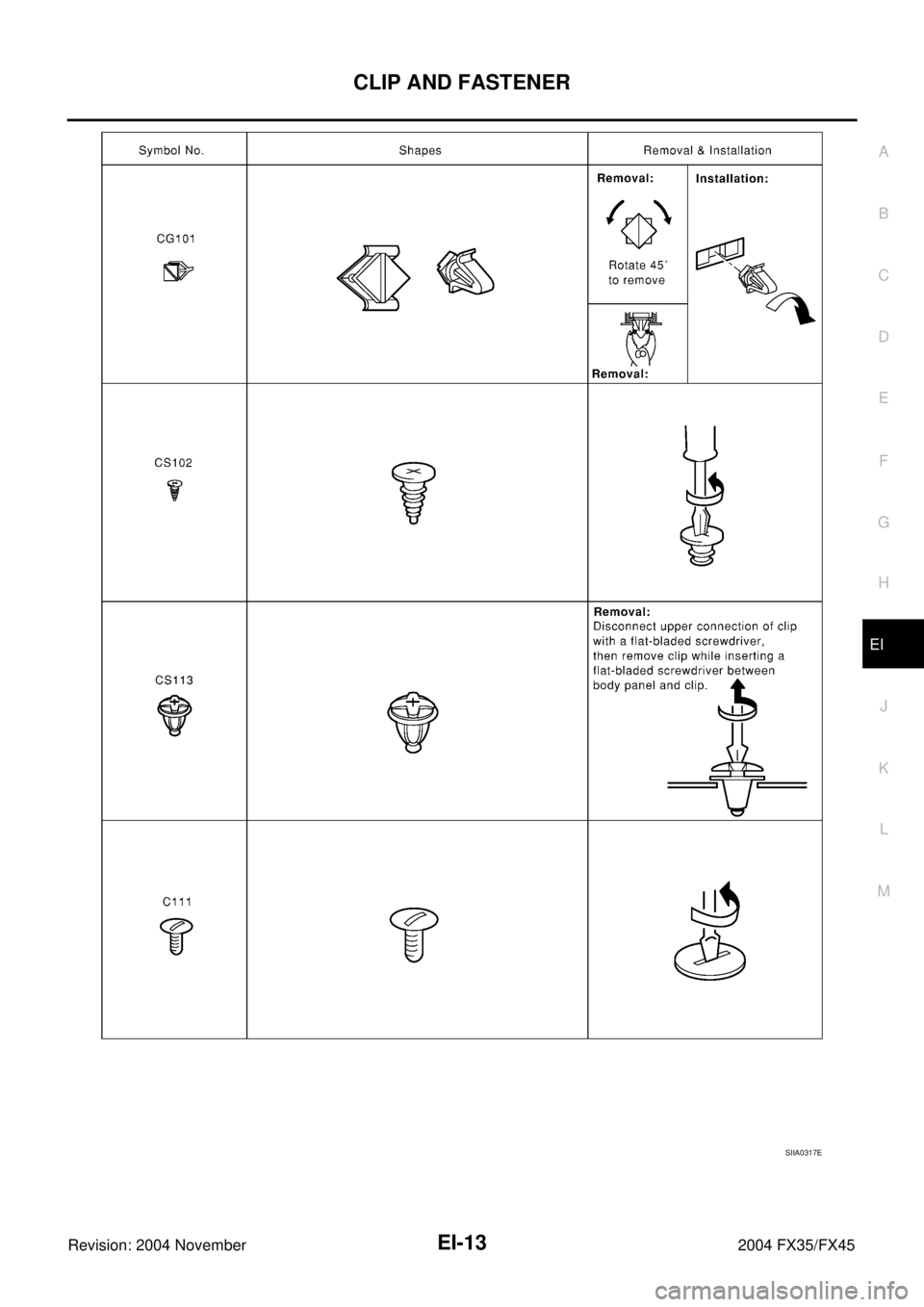

INFINITI FX35 2004 Service Manual CLIP AND FASTENER EI-13 C D E F G H J K L MA B EI Revision: 2004 November 2004 FX35/FX45 SIIA0317E

Page 2693 of 4449

INFINITI FX35 2004 Service Manual EI-14 FRONT BUMPER Revision: 2004 November 2004 FX35/FX45 FRONT BUMPERPFP:F2022 Removal and InstallationAIS00379 CAUTION: Bumper fascia is made of resin. Do not apply strong force to it, and be carefu

Page 2694 of 4449

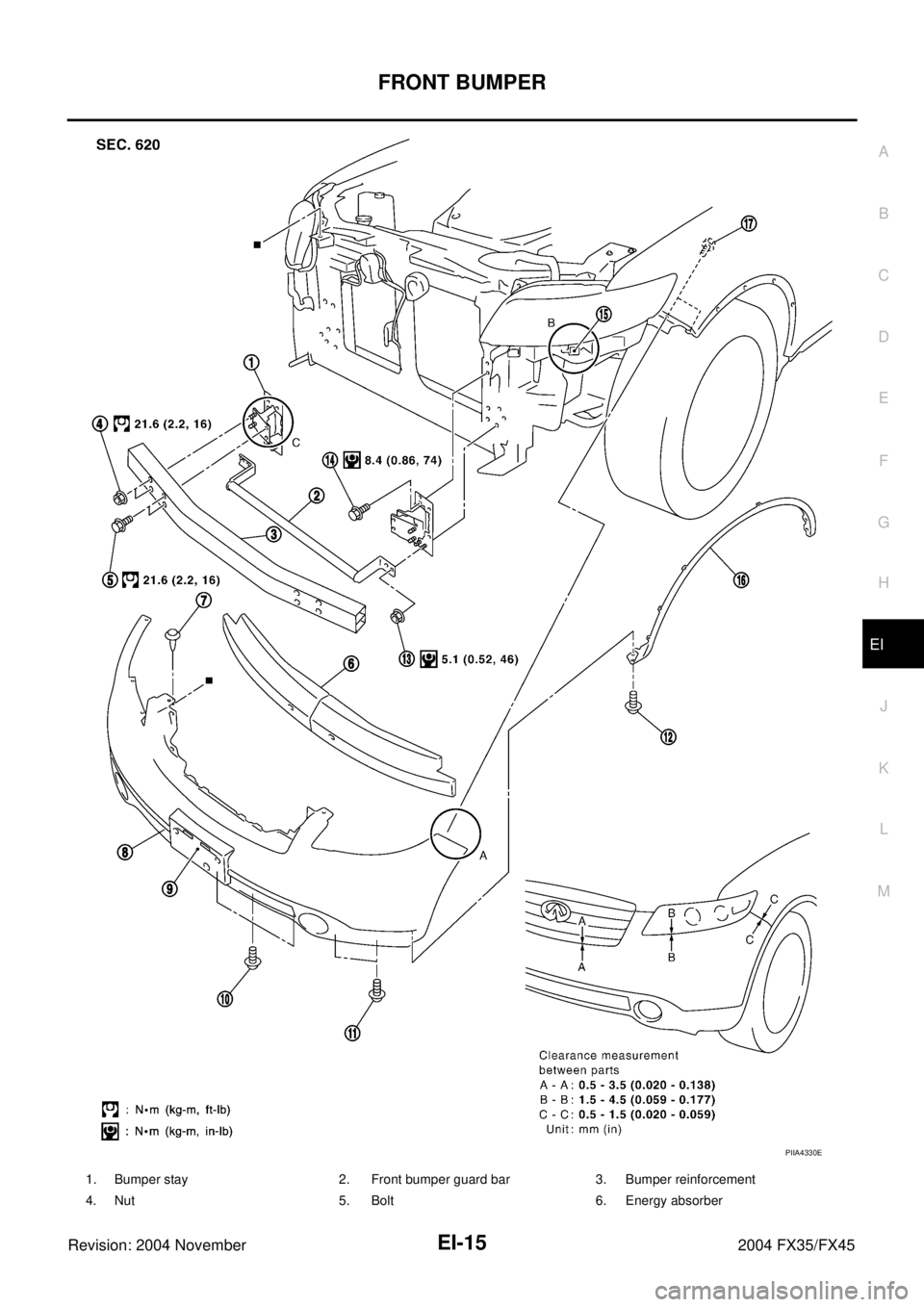

INFINITI FX35 2004 Service Manual FRONT BUMPER EI-15 C D E F G H J K L MA B EI Revision: 2004 November 2004 FX35/FX45 PIIA4330E 1. Bumper stay 2. Front bumper guard bar 3. Bumper reinforcement 4. Nut 5. Bolt 6. Energy absorber

Page 2695 of 4449

INFINITI FX35 2004 Service Manual EI-16 FRONT BUMPER Revision: 2004 November 2004 FX35/FX45 REMOVAL 1. Remove front grille. Refer to EI-23, "Removal and Installation" . 2. Remove fillet molding assembly. Only the place connected with

Page 2696 of 4449

INFINITI FX35 2004 Service Manual FRONT BUMPER EI-17 C D E F G H J K L MA B EI Revision: 2004 November 2004 FX35/FX45 FRONT FILLET MOLDING ASSEMBLY Removal 1. Remove screws of fillet molding assembly. 2. Remove clips of fillet moldin
