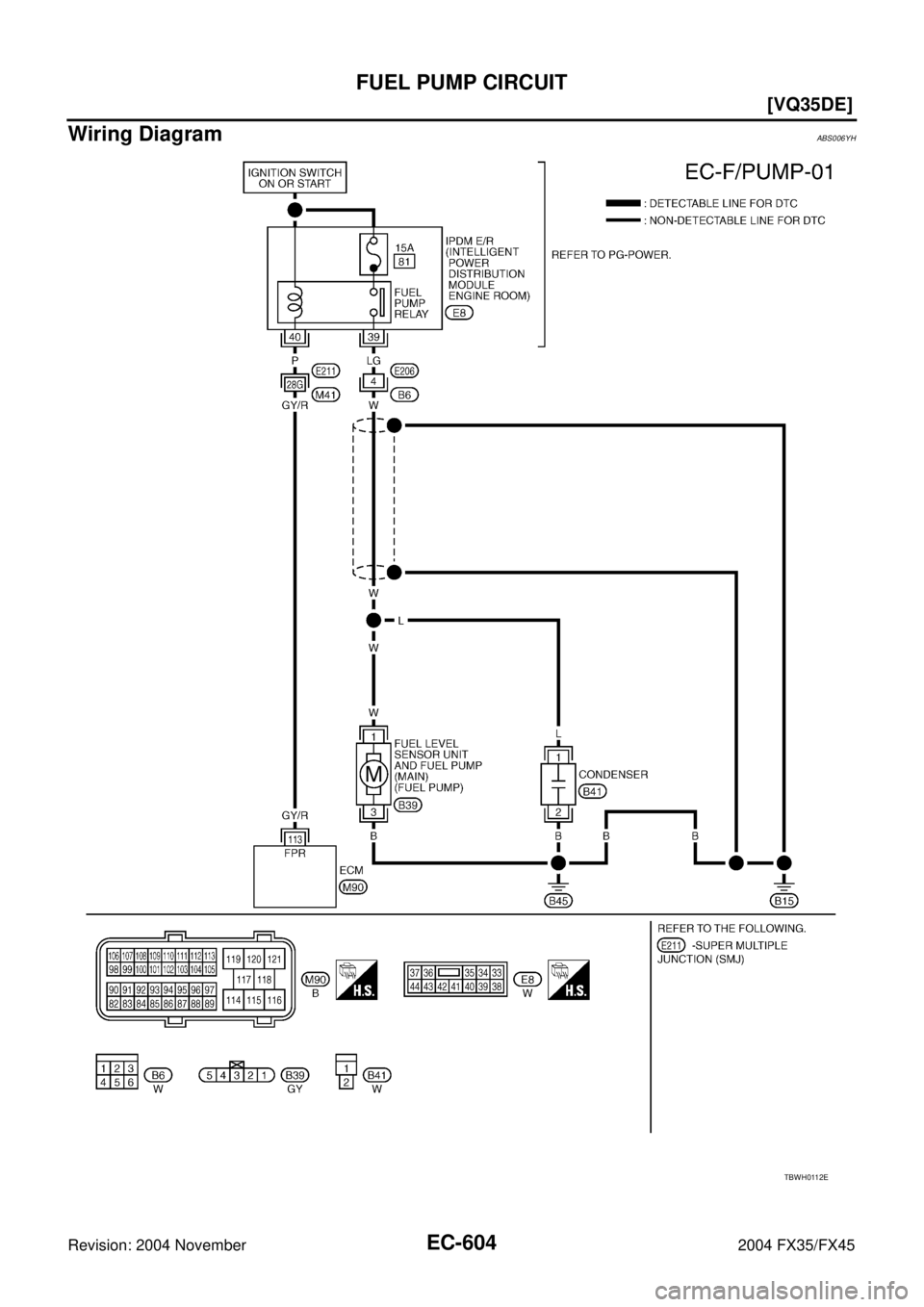

Wiring DiagramABS006YH
TBWH0112E
Page 1946 of 4449
![INFINITI FX35 2004 Service Manual FUEL PUMP CIRCUIT
EC-605
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
D INFINITI FX35 2004 Service Manual FUEL PUMP CIRCUIT
EC-605
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
D](/manual-img/42/57021/w960_57021-1945.png)
FUEL PUMP CIRCUIT
EC-605
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00D11
1. CHECK OVERALL FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose with two fingers.
Fuel pressure pulsation should be felt on the fuel feed hose
for 1 second after ignition switch is turned ON.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Turn ignition switch ON.
4. Check voltage between ECM terminal 113 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
113 GY/R Fuel pump relay[Ignition switch: ON]
For 1 second after turning ignition switch ON
[Engine is running]0 - 1.5V
[Ignition switch: ON]
More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
PBIB1612E
Voltage: Battery voltage
PBIB1187E
Page 1947 of 4449
![INFINITI FX35 2004 Service Manual EC-606
[VQ35DE]
FUEL PUMP CIRCUIT
Revision: 2004 November 2004 FX35/FX45
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II
Check voltage between IPDM E/R terminal 40 and ground with
CONSULT-II or tester.
OK INFINITI FX35 2004 Service Manual EC-606
[VQ35DE]
FUEL PUMP CIRCUIT
Revision: 2004 November 2004 FX35/FX45
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II
Check voltage between IPDM E/R terminal 40 and ground with
CONSULT-II or tester.
OK](/manual-img/42/57021/w960_57021-1946.png)
EC-606
[VQ35DE]
FUEL PUMP CIRCUIT
Revision: 2004 November 2004 FX35/FX45
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II
Check voltage between IPDM E/R terminal 40 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 14.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between IPDM E/R and ECM
>> Repair harness or connectors.
5. CHECK CONDENSER POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect condenser harness connector.
4. Turn ignition switch ON.
5. Check voltage between condenser terminal 1 and ground with
CONSULT-II or tester.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 6.
6. CHECK 15A FUSE
1. Turn ignition switch OFF.
2. Disconnect 15A fuse.
3. Check 15A fuse.
OK or NG
OK >> GO TO 7.
NG >> Replace fuse.Voltage: Battery voltage
PBIB1926E
Voltage: Battery voltage should exist for 1 sec-
ond after ignition switch is turned ON.
PBIB0624E
Page 1948 of 4449
![INFINITI FX35 2004 Service Manual FUEL PUMP CIRCUIT
EC-607
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
7. CHECK CONDENSER POWER SUPPLY CIRCUIT-II
1. Disconnect IPDM E/R harness connector E8.
2. Check harn INFINITI FX35 2004 Service Manual FUEL PUMP CIRCUIT
EC-607
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
7. CHECK CONDENSER POWER SUPPLY CIRCUIT-II
1. Disconnect IPDM E/R harness connector E8.
2. Check harn](/manual-img/42/57021/w960_57021-1947.png)
FUEL PUMP CIRCUIT
EC-607
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
7. CHECK CONDENSER POWER SUPPLY CIRCUIT-II
1. Disconnect IPDM E/R harness connector E8.
2. Check harness continuity between IPDM E/R terminal 39 and condenser terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E206, B6
Harness for open or short between IPDM E/R and condenser
>> Repair harness or connectors.
9. CHECK CONDENSER GROUND CIRCUIT
1. Check harness continuity between condenser terminal 2 and ground.
Refer to Wiring Diagram.
2. Also check harness for short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to power in harness or connectors.
10. CHECK CONDENSER
Refer to EC-608, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> Replace condenser.
11 . CHECK FUEL PUMP POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect “fuel level sensor unit and fuel pump” harness con-
nector.
3. Disconnect harness connector E206, B6.
4. Check harness continuity between “fuel level sensor unit and
fuel pump” terminal 1 and harness connector B6 terminal 4, “fuel
level sensor unit and fuel pump” terminal 3 and ground.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.Continuity should exist.
Continuity should exist.
Continuity should exist.
PBIB1572E
Page 1949 of 4449
![INFINITI FX35 2004 Service Manual EC-608
[VQ35DE]
FUEL PUMP CIRCUIT
Revision: 2004 November 2004 FX35/FX45
12. DETECT MALFUNCTIONING PART
Check the following.
Harness connector B6
Harness for open or short between “fuel level sens INFINITI FX35 2004 Service Manual EC-608
[VQ35DE]
FUEL PUMP CIRCUIT
Revision: 2004 November 2004 FX35/FX45
12. DETECT MALFUNCTIONING PART
Check the following.
Harness connector B6
Harness for open or short between “fuel level sens](/manual-img/42/57021/w960_57021-1948.png)
EC-608
[VQ35DE]
FUEL PUMP CIRCUIT
Revision: 2004 November 2004 FX35/FX45
12. DETECT MALFUNCTIONING PART
Check the following.
Harness connector B6
Harness for open or short between “fuel level sensor unit and fuel pump” and harness connector B6
Harness for open or short between “fuel level sensor unit and fuel pump” and ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK FUEL PUMP
Refer to EC-608, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace fuel pump.
14. CHECK INTERMITTENT INCIDENT
Refer to EC-135, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair or replace harness or connectors.
Component InspectionABS006YJ
FUEL PUMP
1. Disconnect “fuel level sensor unit and fuel pump” harness connector.
2. Check resistance between “fuel level sensor unit and fuel pump”
terminals 1 and 3.
CONDENSER
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Check resistance between condenser terminals as 1 and 2.
Removal and InstallationABS006YK
FUEL PUMP
Refer to FL-4, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY" . Resistance: Approximately 0.2 - 5.0Ω [at 25°C (77°F)]
SEC918C
Resistance Above 1 MΩ at 25°C (77°F)
PBIB0794E
Page 1950 of 4449
REFRIGERANT PRESSURE SENSOR
EC-609
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
REFRIGERANT PRESSURE SENSORPFP:92136
Component DescriptionABS006YL
The refrigerant pressure sensor is installed at the condenser of the
air conditioner system. The sensor uses an electrostatic volume
pressure transducer to convert refrigerant pressure to voltage. The
voltage signal is sent to ECM, and ECM controls cooling fan system.
PBIB2007E
PBIB2657E
Page 1951 of 4449
EC-610
[VQ35DE]
REFRIGERANT PRESSURE SENSOR
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS006YM
TBWM0312E
Page 1952 of 4449
![INFINITI FX35 2004 Service Manual REFRIGERANT PRESSURE SENSOR
EC-611
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
INFINITI FX35 2004 Service Manual REFRIGERANT PRESSURE SENSOR
EC-611
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.](/manual-img/42/57021/w960_57021-1951.png)
REFRIGERANT PRESSURE SENSOR
EC-611
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00CIJ
1. CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower switch ON.
3. Check voltage between ECM terminal 70 and ground with CON-
SULT-II or tester.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to EC-141, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
49 PUSensor power supply
(Refrigerant pressure sen-
sor)[Ignition switch: ON]Approximately 5V
67 B/WSensor ground
(Refrigerant pressure sen-
sor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
70 L/R Refrigerant pressure sensor[Engine is running]
Warm-up condition
Both A/C switch and blower switch are ON
(Compressor operates)1.0 - 4.0V
Voltage: 1.0 - 4.0V
PBIB1188E
PBIB2195E
