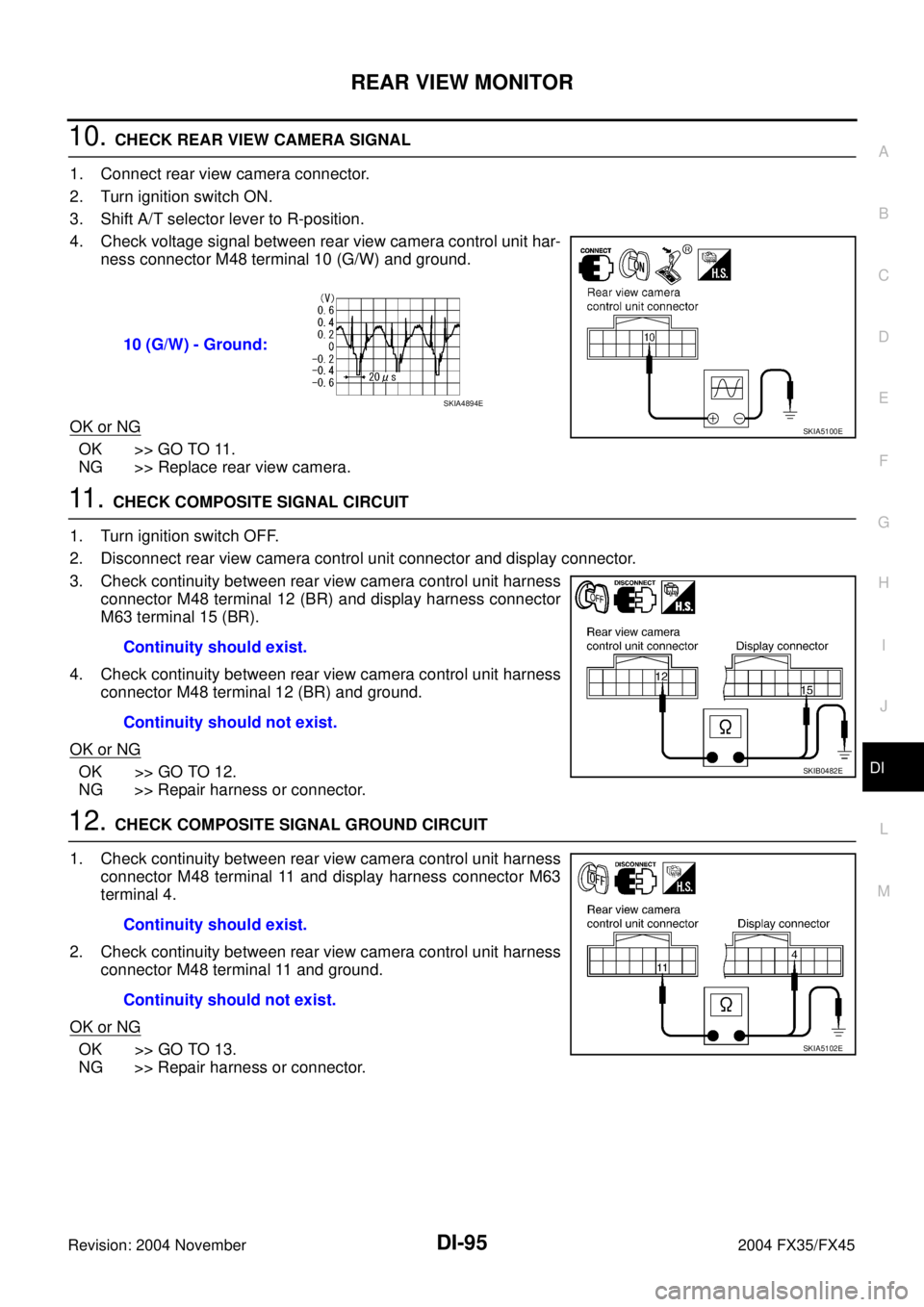

Page 1337 of 4449

INFINITI FX35 2004 Service Manual DI-94
REAR VIEW MONITOR
Revision: 2004 November 2004 FX35/FX45
7. CHECK REAR VIEW CAMERA SHORT CIRCUIT
Check the following.
Continuity between rear view camera control unit harness con-
nector M48 te

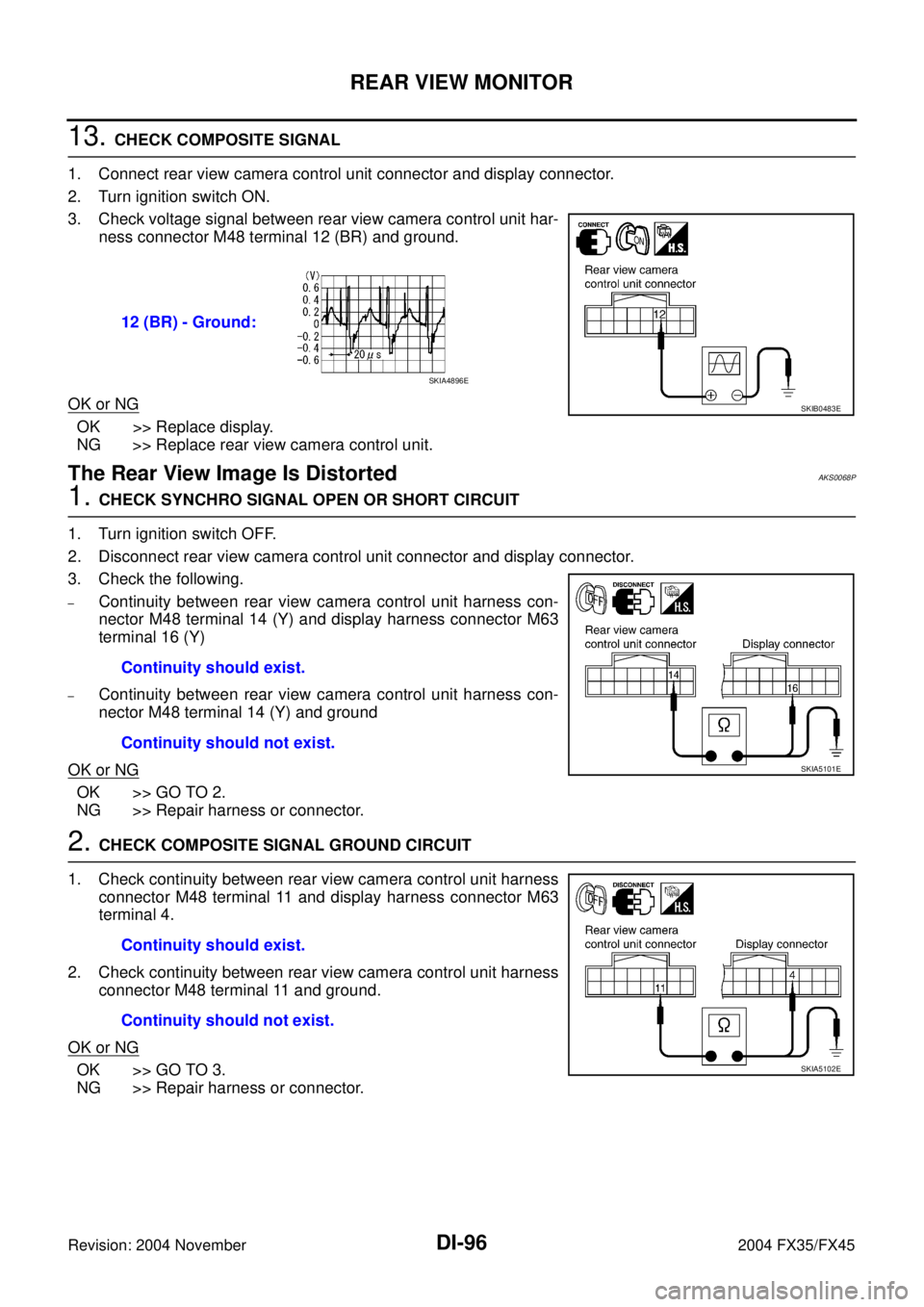

Page 1338 of 4449

INFINITI FX35 2004 Service Manual REAR VIEW MONITOR
DI-95
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
10. CHECK REAR VIEW CAMERA SIGNAL
1. Connect rear view camera connector.
2. Turn ignition switch ON.
3. Shift A

Page 1339 of 4449

INFINITI FX35 2004 Service Manual DI-96
REAR VIEW MONITOR
Revision: 2004 November 2004 FX35/FX45
13. CHECK COMPOSITE SIGNAL
1. Connect rear view camera control unit connector and display connector.
2. Turn ignition switch ON.
3. Check

Page 1340 of 4449

INFINITI FX35 2004 Service Manual REAR VIEW MONITOR
DI-97
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2004 November 2004 FX35/FX45
3. CHECK REAR VIEW CONTROL UNIT SYNCHRO SIGNAL
1. Connect rear view camera control unit connector and display c

Page 1341 of 4449

INFINITI FX35 2004 Service Manual DI-98
REAR VIEW MONITOR
Revision: 2004 November 2004 FX35/FX45
4. Remove screws (2), and remove rear view camera.
INSTALLATION
Install in the reverse order of removal.
SKIA6196E

Page 1342 of 4449

INFINITI FX35 2004 Service Manual EC-1
ENGINE CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EC
A
EC
Revision: 2004 November 2004 FX35/FX45
ENGINE CONTROL SYSTEM
VQ35DE
INDEX FOR DTC .................................

EC-1
ENGINE CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EC
A
EC
Revision: 2004 November 2004 FX35/FX45
ENGINE CONTROL SYSTEM
VQ35DE
INDEX FOR DTC ...................................................... 15
Alphabetical Index .................................................. 15
DTC No. Index ....................................................... 19
PRECAUTIONS ........................................................ 23
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................ 23
On Board Diagnostic (OBD) System of Engine and
A/T .......................................................................... 23
Precaution .............................................................. 23
Wiring Diagrams and Trouble Diagnosis ................ 26
PREPARATION ......................................................... 27
Special Service Tools ............................................. 27
Commercial Service Tools ...................................... 28
ENGINE CONTROL SYSTEM .................................. 29
System Diagram ..................................................... 29
Vacuum Hose Drawing ........................................... 30
System Chart ......................................................... 31
Multiport Fuel Injection (MFI) System .................... 32
Electronic Ignition (EI) System ............................... 34
Air Conditioning Cut Control ................................... 35
Fuel Cut Control (at No Load and High Engine
Speed) .................................................................... 35
CAN communication .............................................. 36
BASIC SERVICE PROCEDURE .............................. 37
Idle Speed and Ignition Timing Check .................... 37
Idle Speed/Ignition Timing/Idle Mixture Ratio
Adjustment ............................................................. 38
Accelerator Pedal Released Position Learning ...... 49
Throttle Valve Closed Position Learning ................ 49
Idle Air Volume Learning ........................................ 49
Fuel Pressure Check .............................................. 51
ON BOARD DIAGNOSTIC (OBD) SYSTEM ............ 53
Introduction ............................................................ 53
Two Trip Detection Logic ........................................ 53
Emission-Related Diagnostic Information .............. 54
IVIS (Infiniti Vehicle Immobilizer System — NATS) ... 68
Malfunction Indicator Lamp (MIL) ........................... 68
OBD System Operation Chart ................................ 72TROUBLE DIAGNOSIS ............................................ 77
Trouble Diagnosis Introduction ............................... 77
DTC Inspection Priority Chart ................................. 80
Fail-Safe Chart ....................................................... 82
Basic Inspection ..................................................... 83
Symptom Matrix Chart ............................................ 88
Engine Control Component Parts Location ............ 92
Circuit Diagram ....................................................... 98
ECM Harness Connector Terminal Layout ...........100
ECM Terminals and Reference Value ...................100
CONSULT-II Function ...........................................109
Generic Scan Tool (GST) Function .......................122
CONSULT-II Reference Value in Data Monitor .....125
Major Sensor Reference Graph in Data Monitor
Mode .....................................................................129
TROUBLE DIAGNOSIS - SPECIFICATION VALUE .131
Description ............................................................131
Testing Condition ..................................................131
Inspection Procedure ............................................131
Diagnostic Procedure ...........................................132
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT .......................................................................135
Description ............................................................135
Diagnostic Procedure ...........................................135
POWER SUPPLY AND GROUND CIRCUIT ...........136
Wiring Diagram .....................................................136
Diagnostic Procedure ...........................................137
Ground Inspection ................................................141
DTC U1000, U1001 CAN COMMUNICATION LINE .142
Description ............................................................142
On Board Diagnosis Logic ....................................142
DTC Confirmation Procedure ...............................142
Wiring Diagram .....................................................143
Diagnostic Procedure ...........................................144
DTC P0011, P0021 IVT CONTROL ........................145
Description ............................................................145
CONSULT-II Reference Value in Data Monitor Mode
.145
On Board Diagnosis Logic ....................................146
