LT-118
STOP LAMP
Revision: 2004 November 2004 FX35/FX45

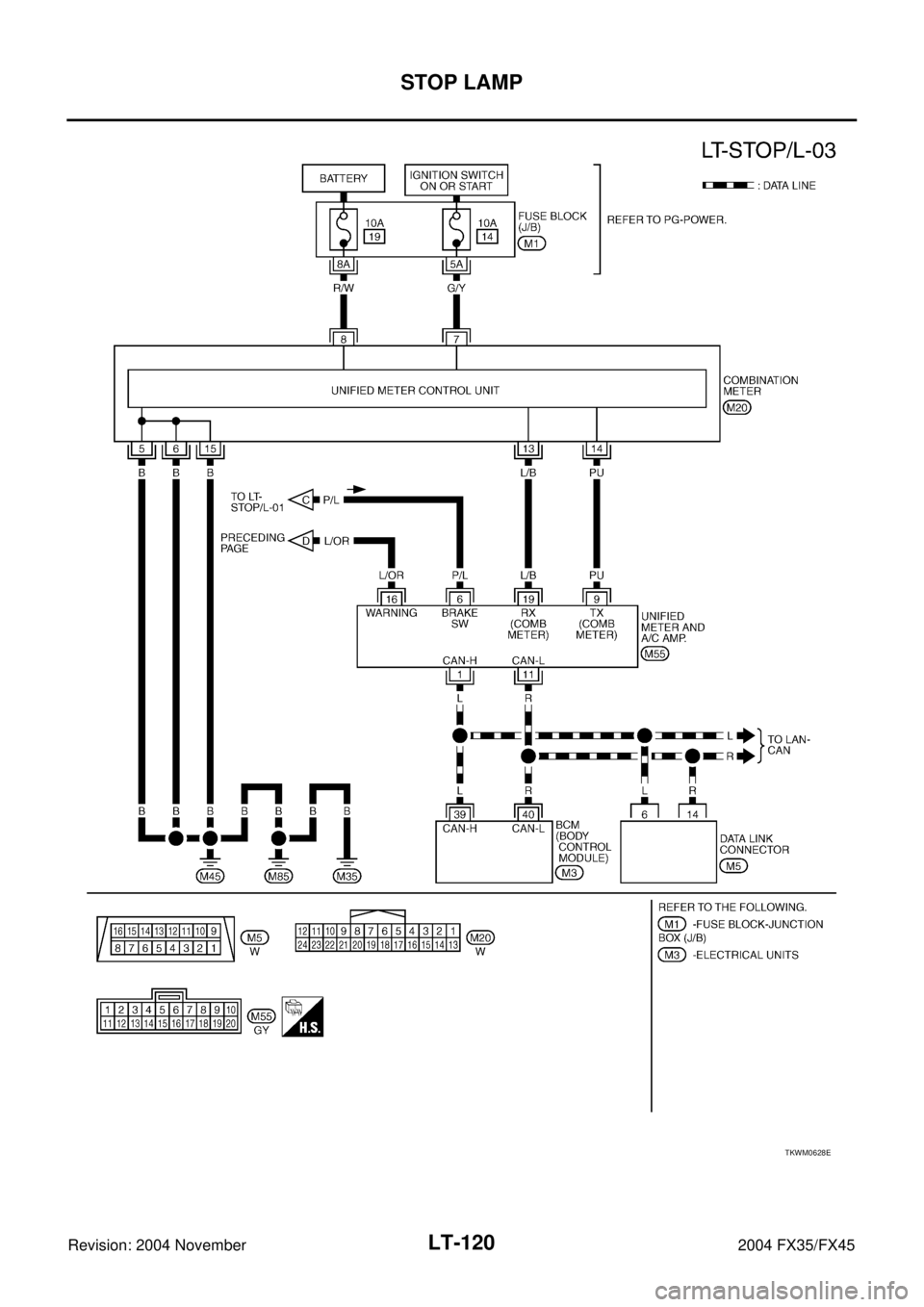

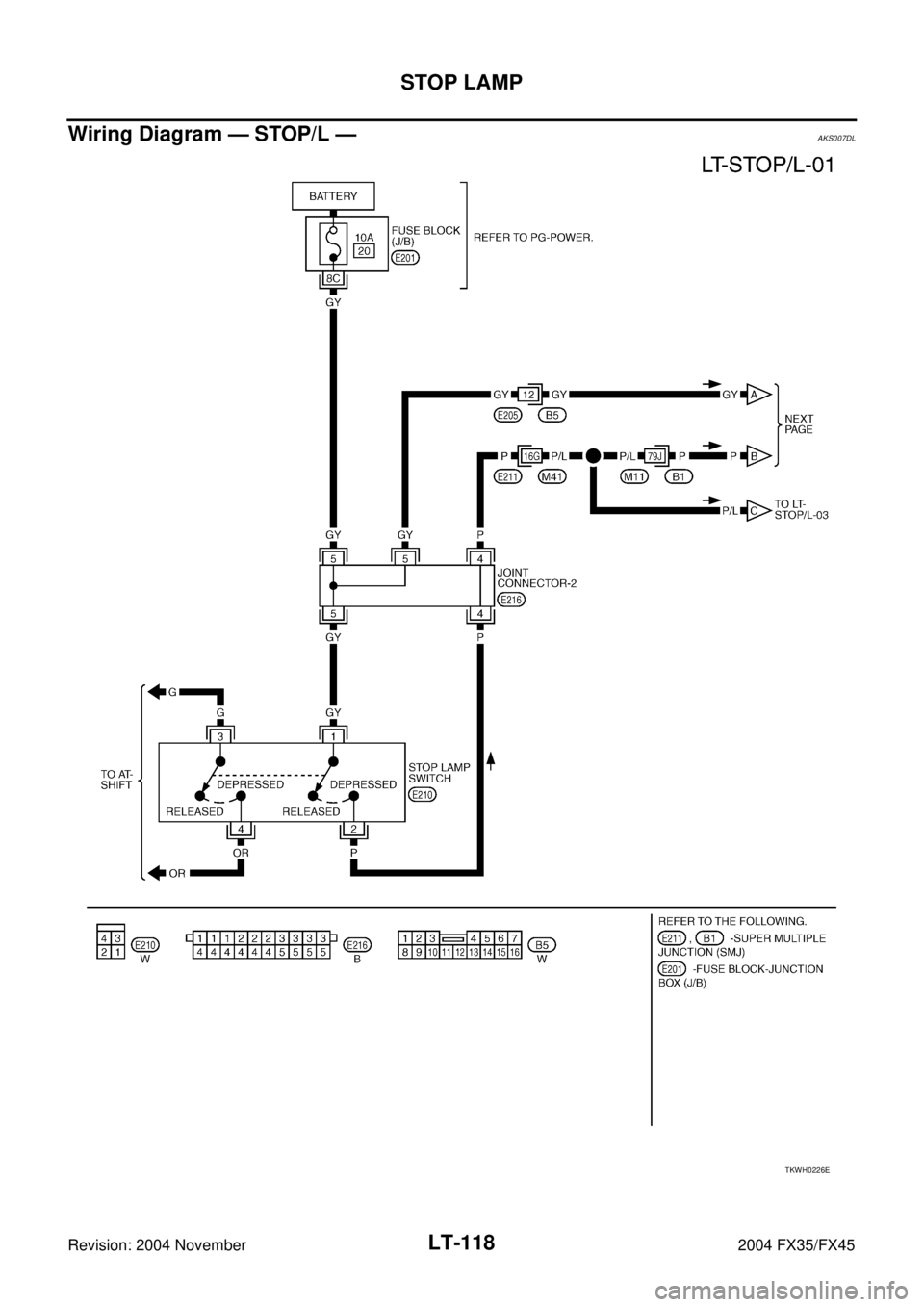

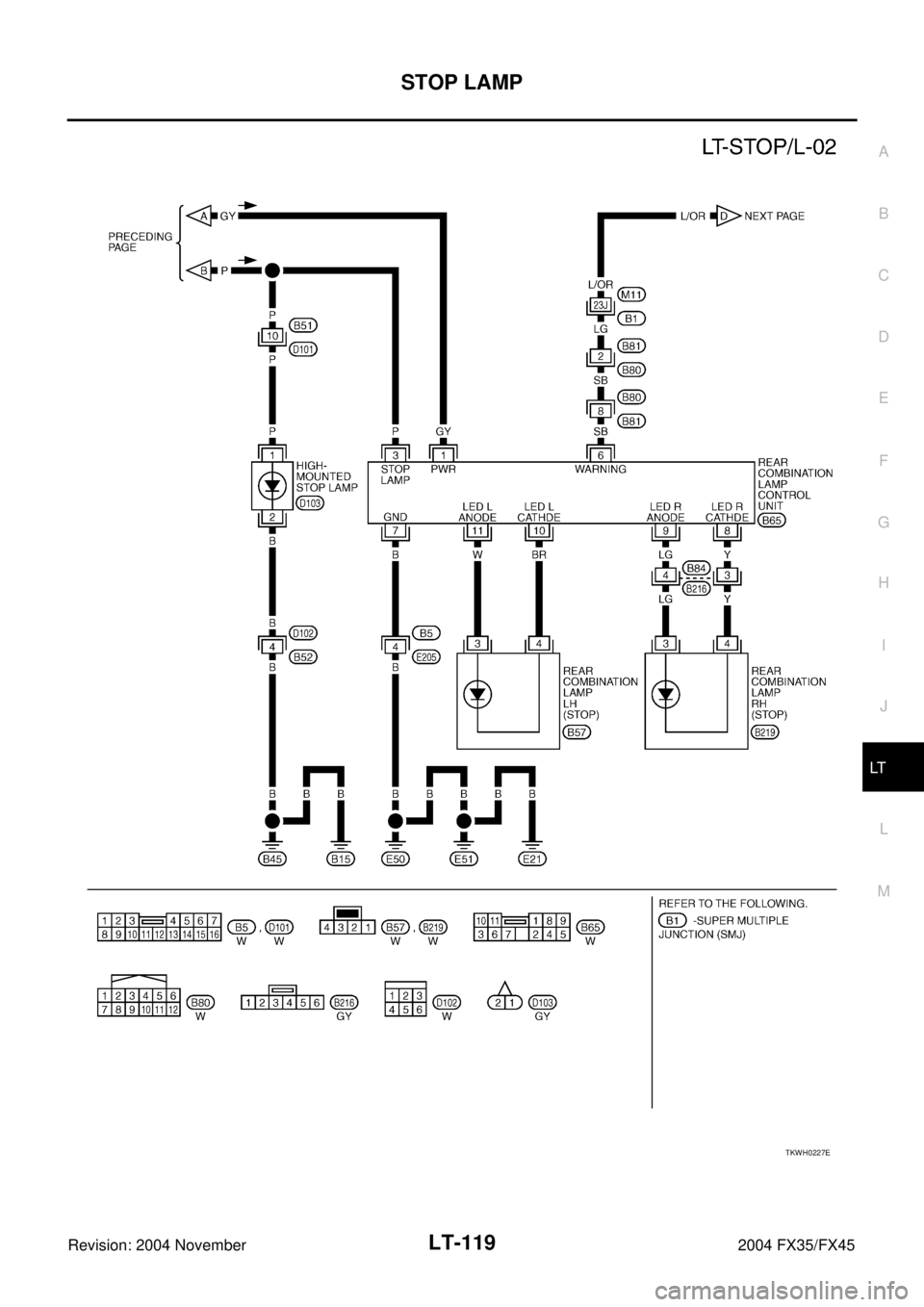

Wiring Diagram — STOP/L —AKS007DL
TKWH0226E
Page 3674 of 4449
STOP LAMP
LT-119
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
TKWH0227E
Page 3675 of 4449
LT-120
STOP LAMP
Revision: 2004 November 2004 FX35/FX45
TKWM0628E
Page 3676 of 4449

STOP LAMP
LT-121
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
Stop Lamp Does Not OperateAKS007IJ
1. CHECK TAIL LANP AND TURN SIGNAL LAMP
Make sure tail lamps and turn signal lamps are illuminated.
OK or NG
OK >> GO TO 2.
NG >> GO TO 6.
2. CHECK FUSE
Check fuse No. 20 is blow out.
OK or NG
OK >> GO TO 3.
NG >> If fuse is blow out, be sure to eliminate cause of malfunction before installing new fuse.
3. CHECK INPUT SIGNAL
Check voltage between rear combination lamp control unit harness
connector B65 terminal 3 (P) and ground.
OK or NG
OK >> Replace rear combination lamp control unit.
NG >> GO TO 4.
4. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch connector.
3. Check voltage between stop lamp switch harness connector
E210 terminal 1 (GY) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK STOP LAMP SWITCH CIRCUIT
1. Disconnect rear combination lamp control unit connector.
2. Check continuity between stop lamp switch harness connector
E210 terminal 2 (P) and rear combination lamp control unit har-
ness connector B65 terminal 3 (P).
OK or NG
OK >> Replace stop lamp switch.
NG >> Repair harness or connector.
Terminals
(-) Condition Voltage
ConnectorTerminal
(Wire color)
B65 3 (P) GroundStop lamp switch is ON.
(Depressed)Battery voltage
Stop lamp switch is OFF.
(Released)Approx. 0
PKIA5233E
1 (GY) – Ground : Battery voltage should exist.
PKIA5234E
2 (P) – 3 (P) : Continuity should exist.
PKIA5235E
Page 3677 of 4449

LT-122
STOP LAMP
Revision: 2004 November 2004 FX35/FX45
6. CHECK POWER SUPPLY CIRCUIT
1. Disconnect rear combination lamp control unit connector.
2. Check voltage between rear combination lamp control unit har-
ness connector B65 terminal 1 (GY) and ground.
OK or NG
OK >> GO TO 7.
NG >> Repair harness or connector.
7. CHECK GROUND CIRCUIT
Check continuity between rear combination lamp control unit har-
ness connector B65 terminal 7 (B) and ground.
OK or NG
OK >> GO TO 8.
NG >> Repair harness or connector.
8. CHECK STOP LAMPS CIRCUIT
1. Disconnect rear combination lamp RH and LH connector.
2. Check continuity between rear combination lamp control unit
harness connector B65 terminal 11 (W) and rear combination
lamp LH harness connector B57 terminal 3 (W).
3. Check continuity between rear combination lamp control unit
harness connector B65 terminal 10 (BR) and rear combination
lamp LH harness connector B57 terminal 4 (BR).
4. Check continuity between rear combination lamp control unit
harness connector B65 terminal 9 (LG) and rear combination lamp RH harness connector B77 terminal 3
(LG).
5. Check continuity between rear combination lamp control unit harness connector B65 terminal 8 (Y) and
rear combination lamp RH harness connector B77 terminal 4 (Y).
OK or NG
OK >> Replace rear combination lamp control unit or rear combination lamp, and then check if turn signal
lamps is illuminated.
NG >> Repair harness or connector.1 (GY) – Ground : Battery voltage should exist.
SKIA5907E
7 (B) – Ground : Continuity should exist.
SKIA5908E
11 (W) – 3 (W) : Continuity should exist.
10 (BR) – 4 (BR) : Continuity should exist.
9 (LG) – 3 (LG) : Continuity should exist.
8 (Y) – 4 (Y) : Continuity should exist.
SKIA5910E
Page 3678 of 4449

STOP LAMP
LT-123
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
High-Mounted Stop LampAKS007DM
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove cap from back door finisher and remove nuts. Refer to
EI-46, "
Removal and Installation" in “EI” section.
2. Disconnect high-mounted stop lamp connector.
3. Remove washer tube from high-mounted stop lamp, and
remove high-mounted stop lamp from the rear air spoiler.
4. Remove seal packing from the rear air spoiler.
5. Install in the reverse order of removal.
CAUTION:
Seal packing cannot be reused.
Stop LampAKS007DN
BULB REPLACEMENT
Refer to LT- 1 4 7 , "Bulb Replacement" in “REAR COMBINATION LAMP”.
REMOVAL AND INSTALLATION
Refer to LT- 1 4 7 , "Removal and Installation" in “REAR COMBINATION LAMP”.
Rear Combination Lamp Control UnitAKS007NY
REMOVAL AND INSTALLATION
Refer to LT- 1 0 7 , "Removal and Installation of Rear Combination Lamp Control Unit" in “TURN SIGNAL AND
HAZARD WARNING LAMPS”.High-mounted stop lamp : LED
SKIA5562E
Page 3679 of 4449
LT-124
STEP LAMP
Revision: 2004 November 2004 FX35/FX45
STEP LAMPPFP:26420
Front Door Step LampAKS007DO
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove door finisher. Refer to EI-35, "Removal and Installation"
in “EI” section.
2. Insert a screwdriver in lens and remove lens.
3. Remove bulb.
4. Install in the reverse order of removal.
Rear Door Step LampAKS007DP
BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove door finisher. Refer to in “EI” section.
2. Insert a screwdriver in lens and remove lens.
3. Remove bulb.
4. Install in the reverse order of removal.Step lamp : 12V - 5W
SKIA5564E
Step lamp : 12V - 5W
SKIA5565E
Page 3680 of 4449
BACK-UP LAMP
LT-125
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
BACK-UP LAMPPFP:26550

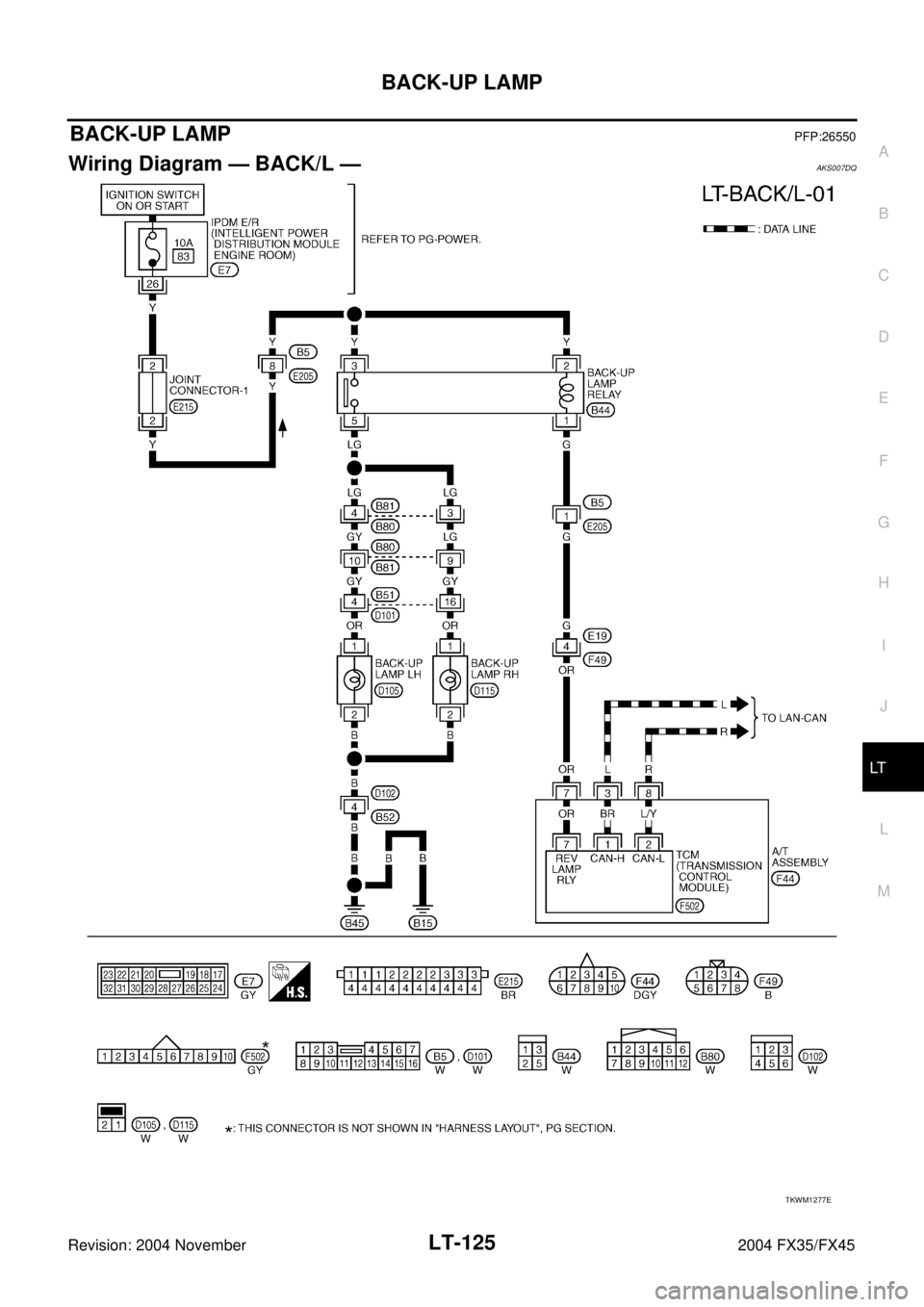

Wiring Diagram — BACK/L —AKS007DQ
TKWM1277E
