INSTALLATION
Note the following, and install in the reverse order of removal.
NOTE:
After installation, add water up to the upper level of the washer tank inlet, and check for water leaks.
Removal and Installation of Washer MotorAKS0057G
REMOVAL
1. Remove fillet molding (RH) and fender protector (RH). Refer to
EI-14, "
Removal and Installation" , EI-25, "Removal and Installa-
tion" in “EI” section.
2. Disconnect washer motor connector and tube.
3. Pull out washer motor in direction shown by the arrow in the fig-
ure. Remove washer motor from washer tank.
INSTALLATION
Note the following, and install in the reverse order of removal.
NOTE:
When installing washer motor, there should be no packing twists, etc.Washer tank mounting screw : 5.8 N·m (0.59 kg-m, 51 in-lb)
Washer tank mounting nut : 5.8 N·m (0.59 kg-m, 51 in-lb)
Washer tank inlet mounting bolt : 6.9 N·m (0.70 kg-m, 61 in-lb)
SKIA5079E
Page 4426 of 4449

REAR WIPER AND WASHER SYSTEM
WW-35
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
REAR WIPER AND WASHER SYSTEMPFP:28710

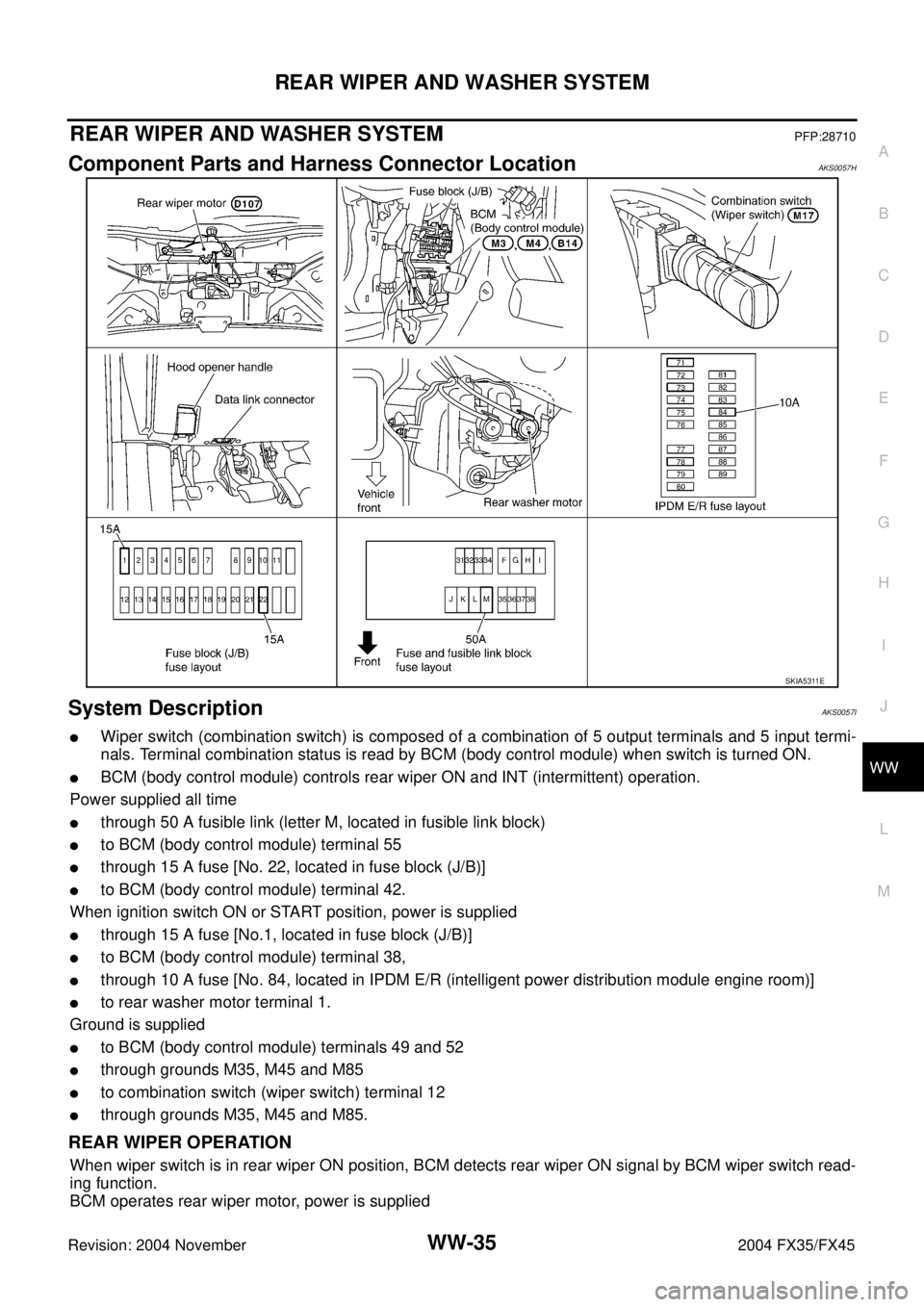

Component Parts and Harness Connector LocationAKS0057H
System DescriptionAKS0057I
Wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input termi-
nals. Terminal combination status is read by BCM (body control module) when switch is turned ON.
BCM (body control module) controls rear wiper ON and INT (intermittent) operation.
Power supplied all time
through 50 A fusible link (letter M, located in fusible link block)
to BCM (body control module) terminal 55
through 15 A fuse [No. 22, located in fuse block (J/B)]
to BCM (body control module) terminal 42.
When ignition switch ON or START position, power is supplied
through 15 A fuse [No.1, located in fuse block (J/B)]
to BCM (body control module) terminal 38,
through 10 A fuse [No. 84, located in IPDM E/R (intelligent power distribution module engine room)]
to rear washer motor terminal 1.
Ground is supplied
to BCM (body control module) terminals 49 and 52
through grounds M35, M45 and M85
to combination switch (wiper switch) terminal 12
through grounds M35, M45 and M85.
REAR WIPER OPERATION
When wiper switch is in rear wiper ON position, BCM detects rear wiper ON signal by BCM wiper switch read-
ing function.
BCM operates rear wiper motor, power is supplied
SKIA5311E
Page 4427 of 4449

WW-36
REAR WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
through BCM terminal 70
to rear wiper motor 4.
Ground is supplied
to rear wiper motor terminal 2
through grounds B15 and B45.
With power and ground supplied, the rear wiper operates.
INTERMITTENT OPERATION
The rear wiper motor operates the wiper arms at low speed approximately every 7 seconds.
When wiper switch is in rear wiper INT position, BCM detects rear wiper INT signal by BCM wiper switch read-
ing function (Refer to BCS-3, "
COMBINATION SWITCH READING FUNCTION" ).
BCM operates rear wiper motor, power supplied
through BCM terminal 70
to rear wiper motor terminal 4.
Ground is supplied
to rear wiper motor terminal 2
through grounds B15 and B45.
With power and ground supplied, rear wiper operates at intermittent.
AUTO STOP OPERATION
With rear wiper switch turned OFF, rear wiper motor will continue to operate until wiper arm reaches rear wiper
stopper.
Then wiper motor turns the other way and wiper arm moves once until wiper arm reaches stopper.
WASHER OPERATION
When wiper switch is in rear wiper washer position, BCM detects rear wiper washer signal by BCM wiper
switch reading function (Refer to BCS-3, "
COMBINATION SWITCH READING FUNCTION" ), and combina-
tion switch (wiper switch) ground is supplied
to rear washer motor terminal 2
through combination switch (wiper switch) terminal 13
to combination switch (wiper switch) terminal 12
through grounds M35, M45 and M85.
With ground supplied, rear washer motor is operated.
When BCM detects that rear washer motor has operated for. 0.4 seconds or linger, BCM operates rear wiper
motor low speed.
When BCM detects washer switch is OFF, low speed operation cycles approximately 3 times and then stops.
BCM WIPER SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" in BODY CONTROL SYSTEM.
Page 4428 of 4449
REAR WIPER AND WASHER SYSTEM
WW-37
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45

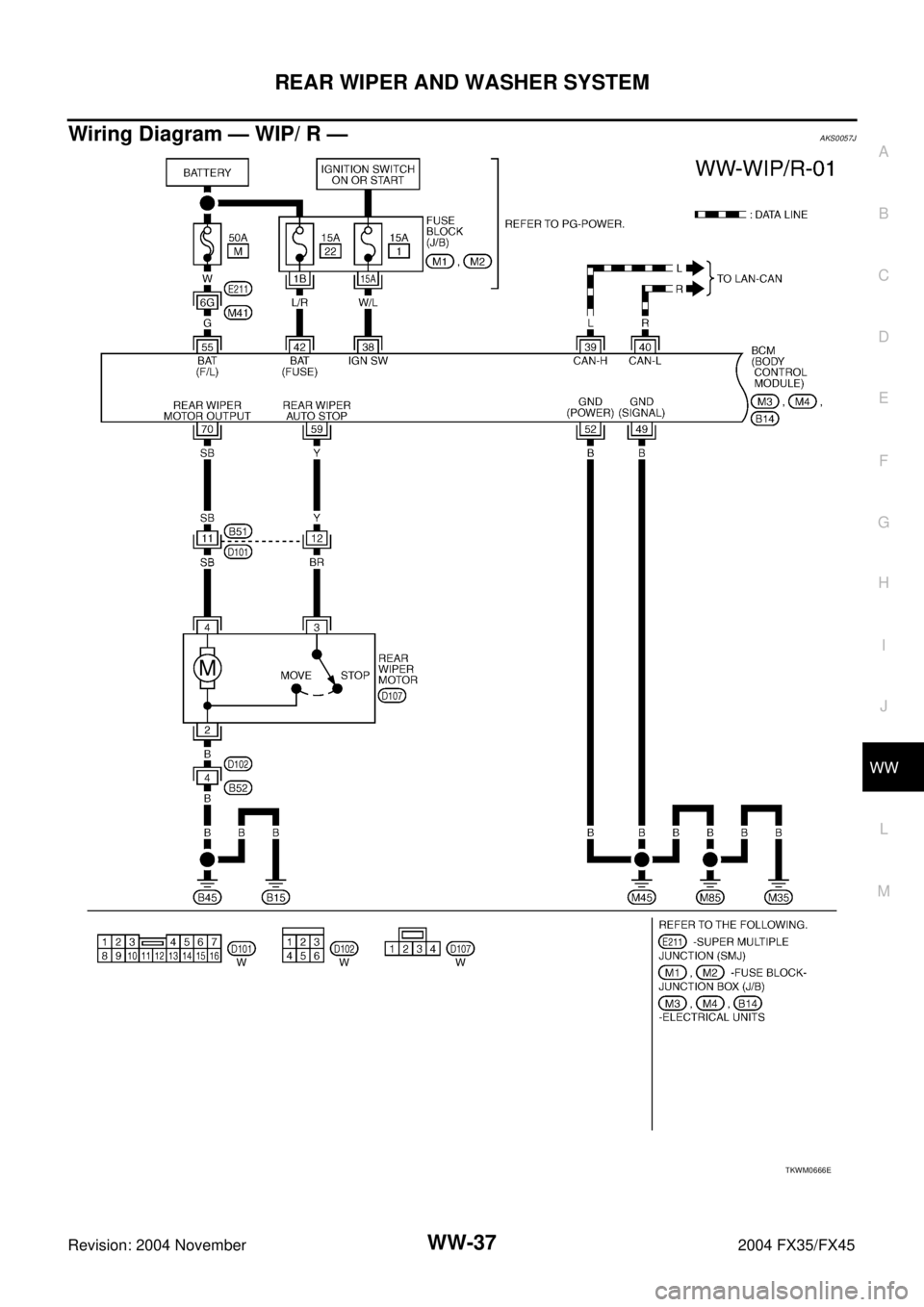

Wiring Diagram — WIP/ R —AKS0057J
TKWM0666E
Page 4429 of 4449
WW-38
REAR WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45

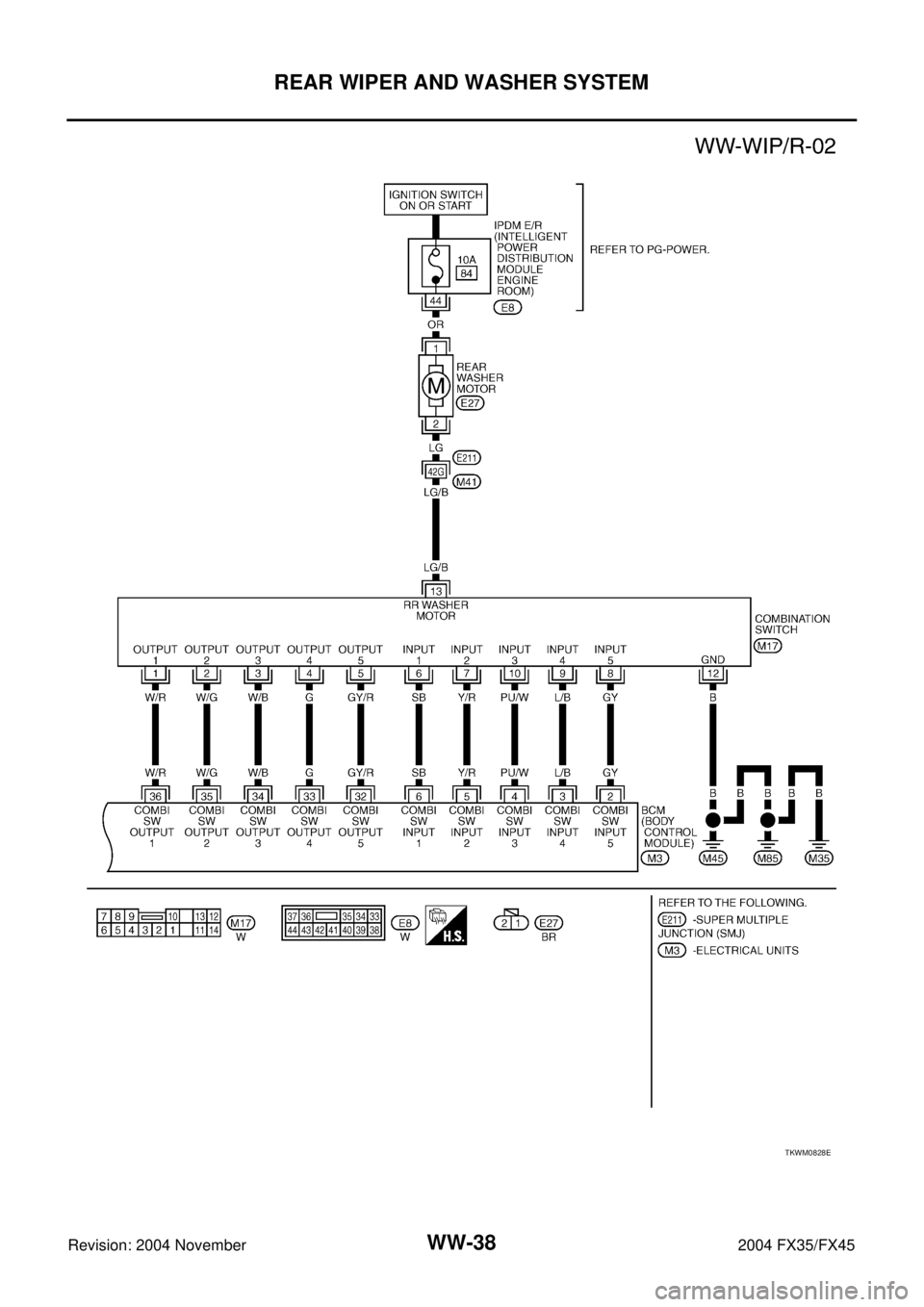

TKWM0828E
Page 4430 of 4449

REAR WIPER AND WASHER SYSTEM
WW-39
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Values for BCMAKS0079S
Terminal No.
(Wire color)Signal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
2 (GY) Combination switch input 5 ON
Lighting switch and wiper switch
OFF
Wiper dial position 4
3 (L/B) Combination switch input 4 ON
Lighting switch and wiper switch
OFF
Wiper dial position 4
4 (PU/W) Combination switch input 3 ON
Lighting switch and wiper switch
OFF
Wiper dial position 4
5 (Y/R) Combination switch input 2
ON
Lighting switch and wiper switch
OFF
Wiper dial position 4 6 (SB) Combination switch input 1
32 (GY/R) Combination switch output 5 ON
Lighting switch and wiper switch
OFF
Wiper dial position 4
33 (G) Combination switch output 4 ON
Lighting switch and wiper switch
OFF
Wiper dial position 4
34 (W/B) Combination switch output 3 ON
Lighting switch and wiper switch
OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
Page 4431 of 4449

WW-40
REAR WIPER AND WASHER SYSTEM
Revision: 2004 November 2004 FX35/FX45
How to Proceed With Trouble DiagnosisAKS0057L
1. Confirm the symptoms and customer complaint.
2. Understand operation description and function description. Refer to WW-35, "
System Description" .
3. Perform the Preliminary Check. Refer to WW-40, "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the rear wiper and washer operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. INSPECTION END
Preliminary CheckAKS0057M
INSPECTION POWER SUPPLY AND GROUND CIRCUIT
Inspection Procedure
1. CHECK FUSE
Check if wiper and washer fusible link and fuse is blown.
Refer to WW-37, "Wiring Diagram — WIP/ R —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
35 (W/G) Combination switch output 2
ON
Lighting switch and wiper switch
OFF
Wiper dial position 4 36 (W/R) Combination switch output 1
38 (W/L) Ignition switch (ON) ON — Battery voltage
39 (L) CAN H — — —
40 (R) CAN L — — —
42 (L/R) Battery power supply OFF — Battery voltage
49 (B) Ground ON — Approx. 0 V
52 (B) Ground ON — Approx. 0 V
55 (G) Battery power supply OFF — Battery voltage
59 (Y) Rear wiper auto stop signal ONWiper operating Approx. 0 V
Wiper stopped Battery voltage
70 (SB) Rear wiper motor output signal ON Wiper switchOFF Approx. 0 V
ON Battery voltage Terminal No.
(Wire color)Signal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
SKIA5292E
Unit Power source Fuse and fusible link No.
BCMBatteryM
22
Ignition ON or START 1
Rear washer motor Ignition ON or START 84
Page 4432 of 4449

REAR WIPER AND WASHER SYSTEM
WW-41
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2004 November 2004 FX35/FX45
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector terminal and
ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open or short between fuse, fusible link and BCM.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector M4 terminal 49
(B), 52 (B) and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
CONSULT-II FunctionsAKS007AG
CONSULT-II can display each diagnostic item using the following diagnostic test modes: work support, self-
diagnostic results, data monitor and active test through data reception and command transmission via the
BCM CAN communication line.
CONSULT-II OPERATION
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn the
ignition switch ON.
Terminals Ignition switch position
(+)
(-) OFF ON
Connector Terminal (Wire color)
M4 42 (L/R)
GroundBattery voltage Battery voltage
M4 55 (G) Battery voltage Battery voltage
M3 38 (W/L) 0V Battery voltage
PKIA5190E
49 (B), 52 (B) - Ground : Continuity should exist.
PKIA5191E
BCM diagnosis position Check item, Diagnosis mode Description
WiperData monitor Displays BCM input data in real time.
Active test Device operation can be checked by applying a drive signal to device.
BCM CAN DIAG SUPPORT MNTR The result of transmit/receive of CAN communication can be read.
