Page 2593 of 4449
![INFINITI FX35 2004 Service Manual EC-1252
[VK45DE]
DTC P2138 APP SENSOR
Revision: 2004 November 2004 FX35/FX45
10. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. INFINITI FX35 2004 Service Manual EC-1252
[VK45DE]
DTC P2138 APP SENSOR
Revision: 2004 November 2004 FX35/FX45
10. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3.](/manual-img/42/57021/w960_57021-2592.png)
EC-1252
[VK45DE]
DTC P2138 APP SENSOR
Revision: 2004 November 2004 FX35/FX45
10. CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 3 and ECM terminal 82, APP sensor terminal 1
and ECM terminal 83.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 106 and APP sensor terminal 5, ECM terminal 98 and
APP sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK APP SENSOR
Refer to EC-1253, "
Component Inspection" .
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.Continuity should exist.
Continuity should exist.
Page 2594 of 4449
![INFINITI FX35 2004 Service Manual DTC P2138 APP SENSOR
EC-1253
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
15. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-698, INFINITI FX35 2004 Service Manual DTC P2138 APP SENSOR
EC-1253
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
15. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-698,](/manual-img/42/57021/w960_57021-2593.png)
DTC P2138 APP SENSOR
EC-1253
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
15. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-698, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-698, "
Throttle Valve Closed Position Learning" .
4. Perform EC-698, "
Idle Air Volume Learning" .
>>INSPECTION END
16. CHECK INTERMITTENT INCIDENT
Refer to EC-784, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionABS00CEB
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly and go to next step.
5. Perform EC-698, "
Accelerator Pedal Released Position Learning" .
6. Perform EC-698, "
Throttle Valve Closed Position Learning" .
7. Perform EC-698, "
Idle Air Volume Learning" .
Removal and InstallationABS00CEC
ACCELERATOR PEDAL
Refer to ACC-3, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1)Fully released 0.5 - 1.0V
Fully depressed 3.9 - 4.7V
98
(Accelerator pedal position
sensor 2)Fully released 0.15 - 0.60V
Fully depressed 1.95 - 2.40V
MBIB0023E
Page 2595 of 4449
![INFINITI FX35 2004 Service Manual EC-1254
[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
Revision: 2004 November 2004 FX35/FX45
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)PFP:14956
DescriptionABS00CED
SYSTEM DESCRIPTION
*: The INFINITI FX35 2004 Service Manual EC-1254
[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
Revision: 2004 November 2004 FX35/FX45
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)PFP:14956
DescriptionABS00CED
SYSTEM DESCRIPTION
*: The](/manual-img/42/57021/w960_57021-2594.png)
EC-1254
[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
Revision: 2004 November 2004 FX35/FX45
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)PFP:14956
DescriptionABS00CED
SYSTEM DESCRIPTION
*: The ECM determines the start signal status by the signals of engine speed and battery voltage.
When the engine is running at low or medium speed, the power valve is fully closed. Under this condition, the
effective suction port length is equivalent to the total length of the intake manifold collector's suction port
including the intake valve. This long suction port provides increased air intake which results in improved suc-
tion efficiency and higher torque generation.
The surge tank and one-way valve are provided. When engine is running at high speed, the ECM sends the
signal to the VIAS control solenoid valve. This signal introduces the intake manifold vacuum into the power
valve actuator and therefore opens the power valve to two suction passages together in the collector.
Under this condition, the effective port length is equivalent to the length of the suction port provided indepen-
dently for each cylinder. This shortened port length results in enhanced engine output with reduced suction
resistance under high speeds.
The power valve is always open regardless of the engine speed when gear position is in N or P.
Sensor Input signal to ECM ECM function Actuator
Mass air flow sensor Amount of intake air
VIAS control VIAS control solenoid valve Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery Battery voltage*
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
Engine coolant temperature sensor Engine coolant temperature
PBIB1876E
Page 2596 of 4449
![INFINITI FX35 2004 Service Manual VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1255
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
COMPONENT DESCRIPTION
Power Valve
The power valve is installed in intake INFINITI FX35 2004 Service Manual VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1255
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
COMPONENT DESCRIPTION
Power Valve
The power valve is installed in intake](/manual-img/42/57021/w960_57021-2595.png)
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1255
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
COMPONENT DESCRIPTION
Power Valve
The power valve is installed in intake manifold collector and used to
control the suction passage of the variable induction air control sys-
tem. It is set in the fully closed or fully opened position by the power
valve actuator operated by the vacuum stored in the surge tank. The
vacuum in the surge tank is controlled by the VIAS control solenoid
valve.
VIAS Control Solenoid Valve
The VIAS control solenoid valve cuts the intake manifold vacuum
signal for power valve control. It responds to ON/OFF signals from
the ECM. When the solenoid is off, the vacuum signal from the
intake manifold is cut. When the ECM sends an ON signal the coil
pulls the plunger downward and feeds the vacuum signal to the
power valve actuator.
CONSULT-II Reference Value in Data Monitor ModeABS00CEE
PBIB1498E
PBIB1498E
MONITOR ITEM CONDITION SPECIFICATION
VIAS S/V Engine speed: IdleGear position: P or N ON
Except above OFF
Page 2597 of 4449
EC-1256
[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
Revision: 2004 November 2004 FX35/FX45

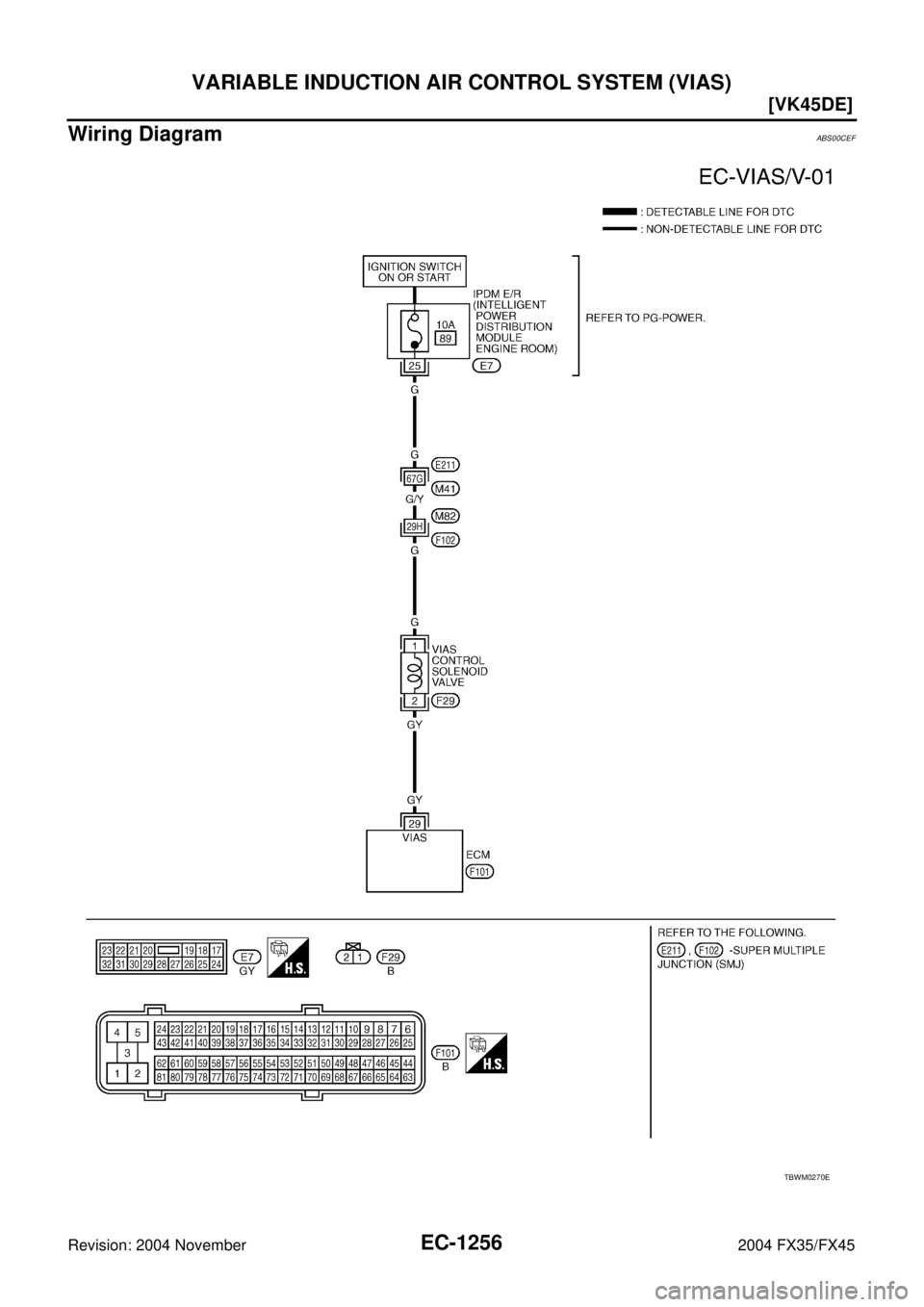

Wiring DiagramABS00CEF
TBWM0270E
Page 2598 of 4449
![INFINITI FX35 2004 Service Manual VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1257
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each ter INFINITI FX35 2004 Service Manual VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1257
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each ter](/manual-img/42/57021/w960_57021-2597.png)
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1257
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00CEG
1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode with CONSULT-II.
3. Turn VIAS control solenoid valve ON and OFF, and make sure that power valve actuator rod moves.
Without CONSULT-II
1. Lift up the vehicle.
2. Start engine and warm it up to normal operating temperature.
3. Make sure that power valve actuator rod moves when changing
the gear position to N and D alternately.
OK or NG
OK >>INSPECTION END
NG (With CONSULT-II)>>GO TO 2.
NG (Without CONSULT-II)>>GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
29 GYVIAS control solenoid
valve[Engine is running]
Shift lever position is P or N0 - 1.0V
[Engine is running]
Shift lever position is DBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Engine speed is above 5,000 rpm0 - 1.0V
PBIB0171E
PBIB0172E
Page 2599 of 4449
![INFINITI FX35 2004 Service Manual EC-1258
[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
Revision: 2004 November 2004 FX35/FX45
2. CHECK VACUUM EXISTENCE
With CONSULT-II
1. Stop engine and disconnect vacuum hose connected to p INFINITI FX35 2004 Service Manual EC-1258
[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
Revision: 2004 November 2004 FX35/FX45
2. CHECK VACUUM EXISTENCE
With CONSULT-II
1. Stop engine and disconnect vacuum hose connected to p](/manual-img/42/57021/w960_57021-2598.png)
EC-1258
[VK45DE]
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
Revision: 2004 November 2004 FX35/FX45
2. CHECK VACUUM EXISTENCE
With CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Start engine and let it idle.
3. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode with CONSULT-II.
4. Turn VIAS control solenoid valve ON and OFF, and check vacuum existence under the following condi-
tions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
3. CHECK VACUUM EXISTENCE
Without CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Disconnect VIAS control solenoid valve harness connector.
3. Start engine and let it idle.
4. Apply 12V of direct current between VIAS control solenoid valve terminals 1 and 2.
5. Check vacuum existence under the following conditions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
VIAS SOL VALVE Vacuum
ON Should exist.
OFF Should not exist.
PBIB0174E
Condition Vacuum
12V direct current supply Should exist.
No supply Should not exist.
PBIB0175E
Page 2600 of 4449
VARIABLE INDUCTION AIR CONTROL SYSTEM (VIAS)
EC-1259
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
4. CHECK VACUUM HOSE
1. Stop engine.
2. Check hoses and tubes between intake manifold and power
valve actuator for crack, clogging, improper connection or dis-
connection. Refer to EC-677, "
Vacuum Hose Drawing" .
OK or NG
OK >> GO TO 5.
NG >> Repair hoses or tubes.
5. CHECK VACUUM TANK
Refer to EC-1260, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace vacuum tank.
6. CHECK VIAS CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect VIAS control solenoid valve harness connector.
3. Turn ignition switch ON.
4. Check voltage between terminal 1 and ground with CONSULT-II
or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
SEF109L
PBIB1498E
Voltage: Battery voltage
PBIB0173E
