Page 3361 of 4449

INFINITI FX35 2004 Service Manual LAN-60 [CAN] CAN SYSTEM (TYPE 2) Revision: 2004 November 2004 FX35/FX45 Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-74, "Circuit Check Between Data Lin

Page 3362 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 2) LAN-61 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control u

Page 3363 of 4449

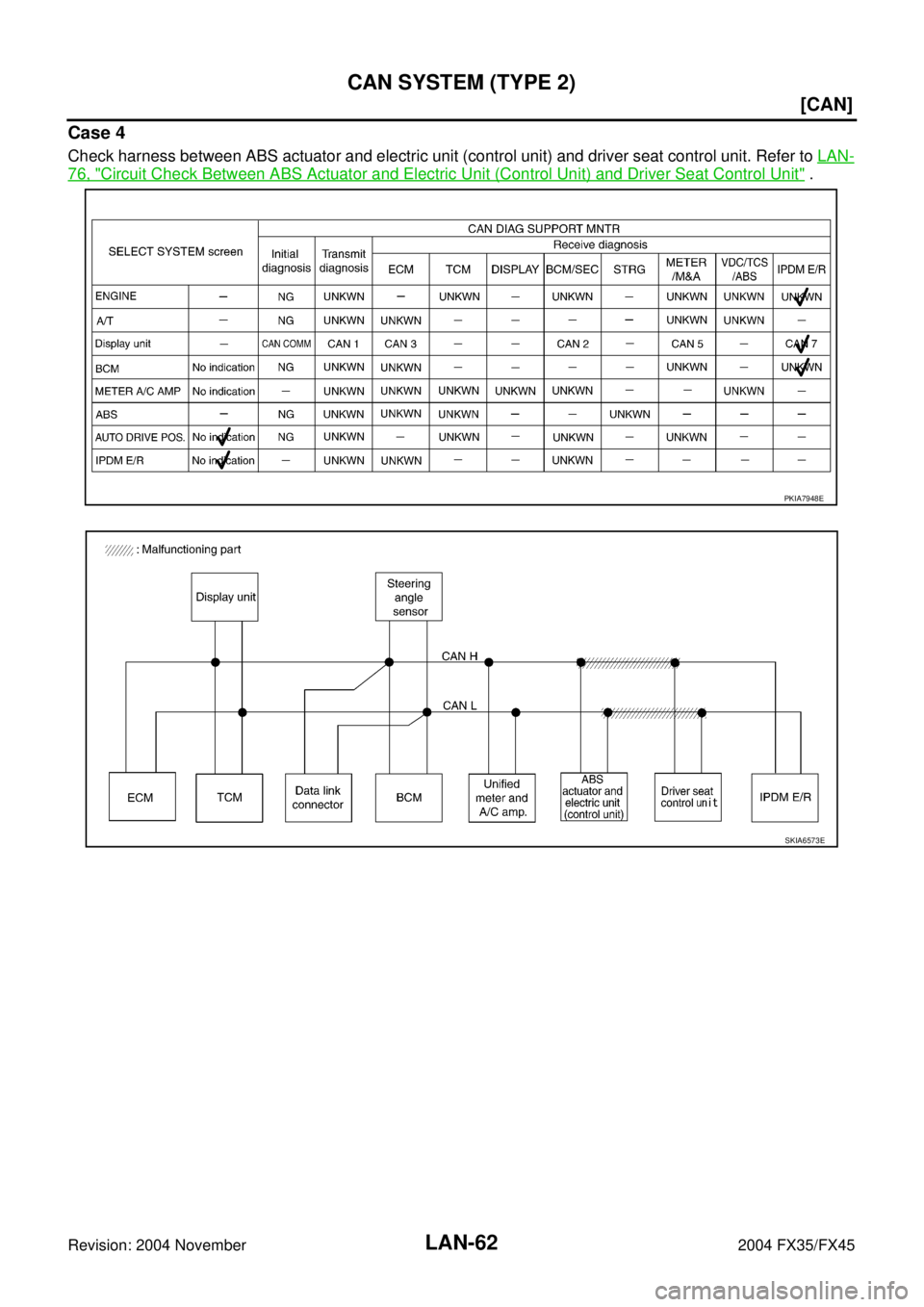

INFINITI FX35 2004 Service Manual LAN-62 [CAN] CAN SYSTEM (TYPE 2) Revision: 2004 November 2004 FX35/FX45 Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN- 76, "Circ

Page 3364 of 4449

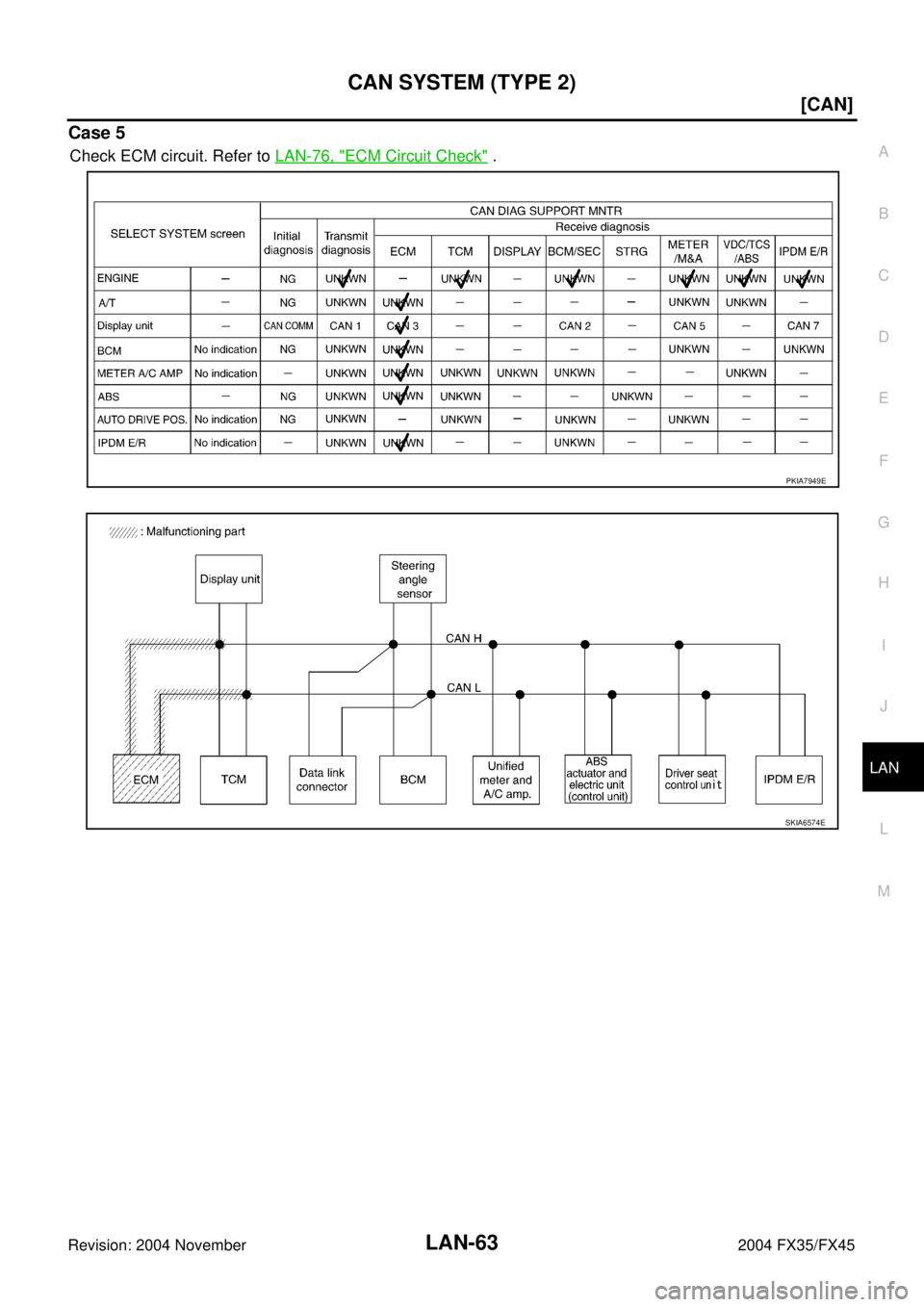

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 2) LAN-63 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 5 Check ECM circuit. Refer to LAN-76, "ECM Circuit Check" . PKIA7949E SKIA6574E

Page 3365 of 4449

INFINITI FX35 2004 Service Manual LAN-64 [CAN] CAN SYSTEM (TYPE 2) Revision: 2004 November 2004 FX35/FX45 Case 6 Check TCM circuit. Refer to LAN-77, "TCM Circuit Check" . PKIA7950E SKIA6575E

Page 3366 of 4449

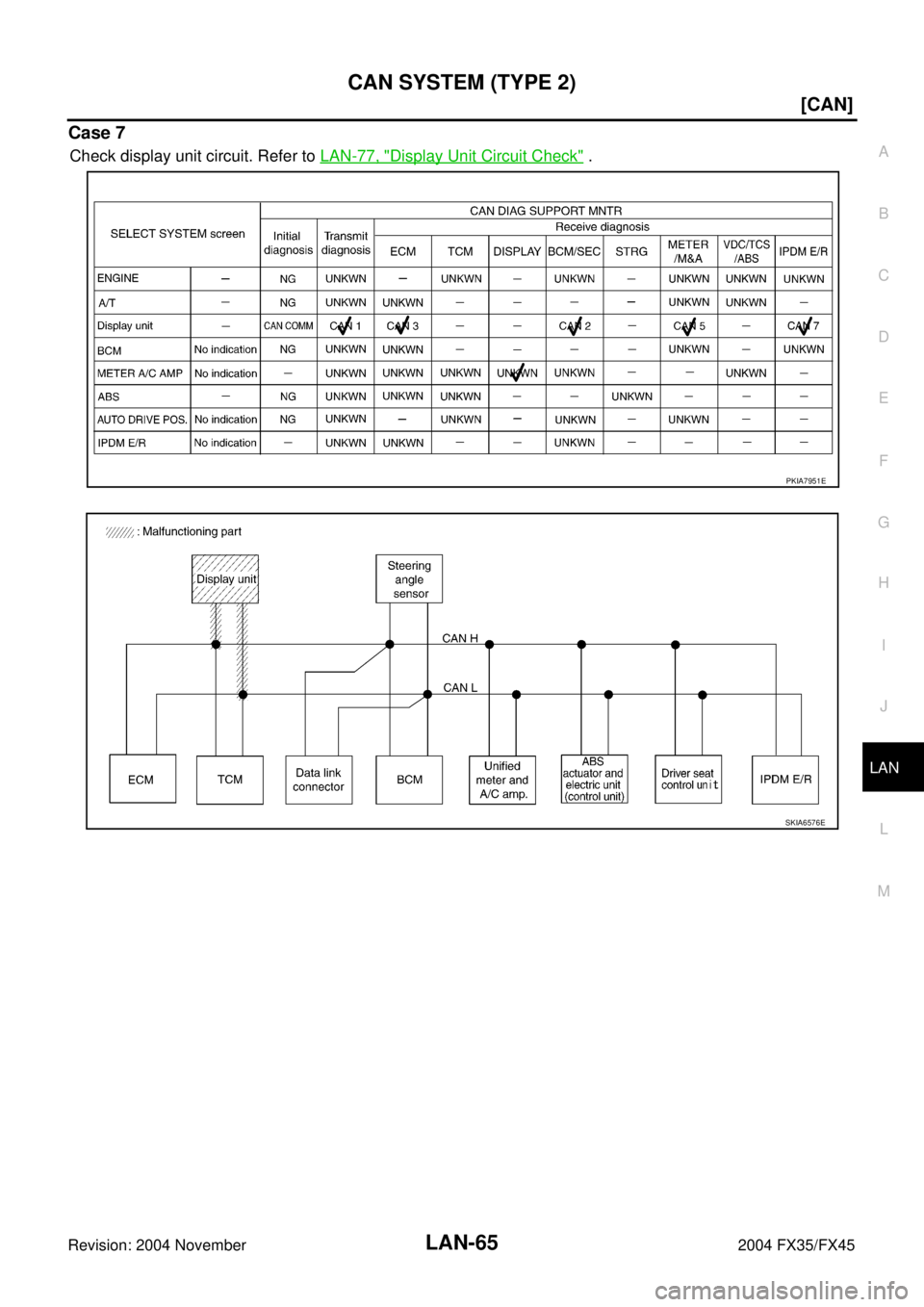

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 2) LAN-65 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 7 Check display unit circuit. Refer to LAN-77, "Display Unit Circuit Check" . PKIA7951E SKIA6576

Page 3367 of 4449

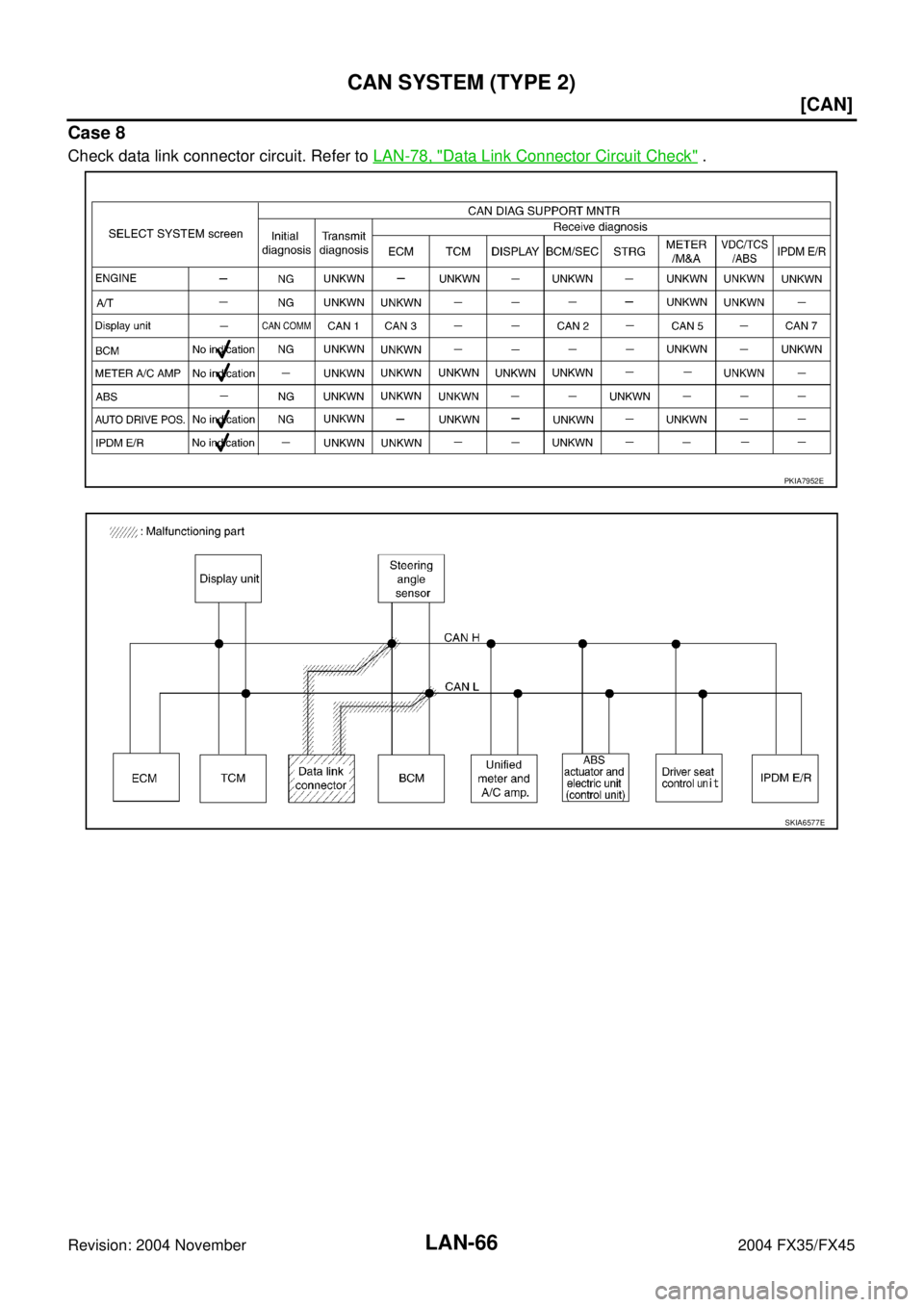

INFINITI FX35 2004 Service Manual LAN-66 [CAN] CAN SYSTEM (TYPE 2) Revision: 2004 November 2004 FX35/FX45 Case 8 Check data link connector circuit. Refer to LAN-78, "Data Link Connector Circuit Check" . PKIA7952E SKIA6577E

Page 3368 of 4449

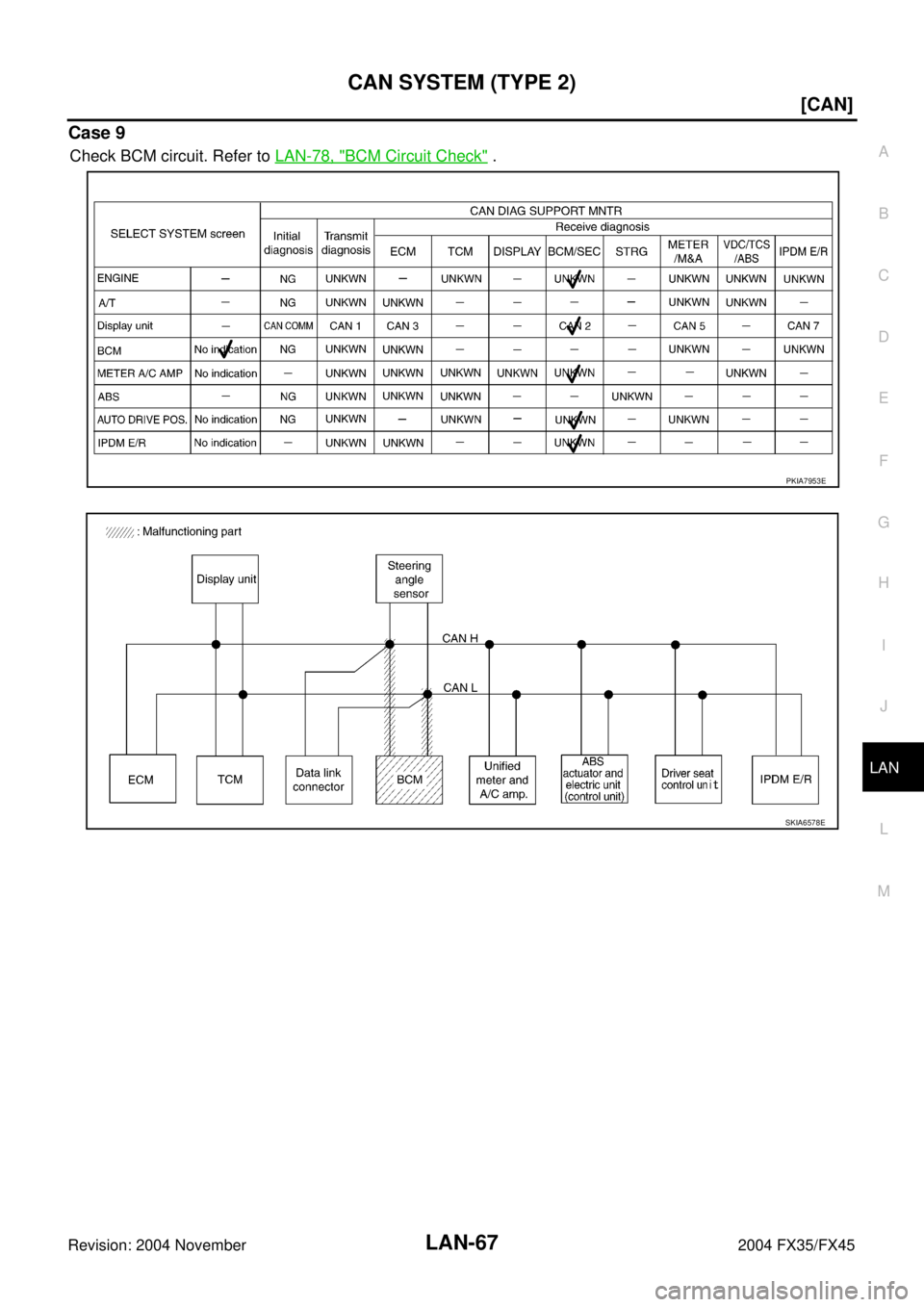

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 2) LAN-67 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 9 Check BCM circuit. Refer to LAN-78, "BCM Circuit Check" . PKIA7953E SKIA6578E
