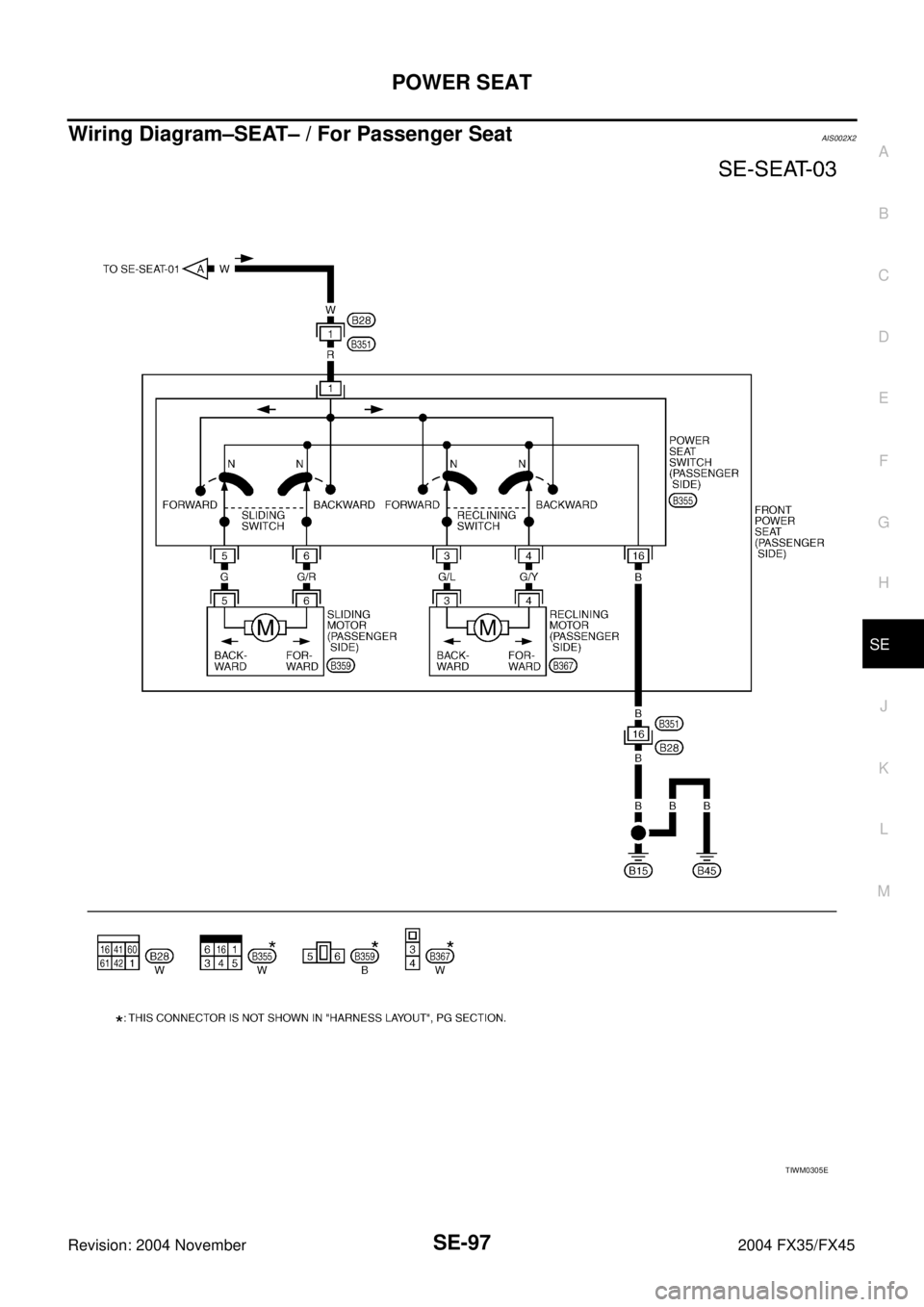

INFINITI FX35 2004 Service Manual SE-96 POWER SEAT Revision: 2004 November 2004 FX35/FX45 TIWM0304E

Page 4226 of 4449

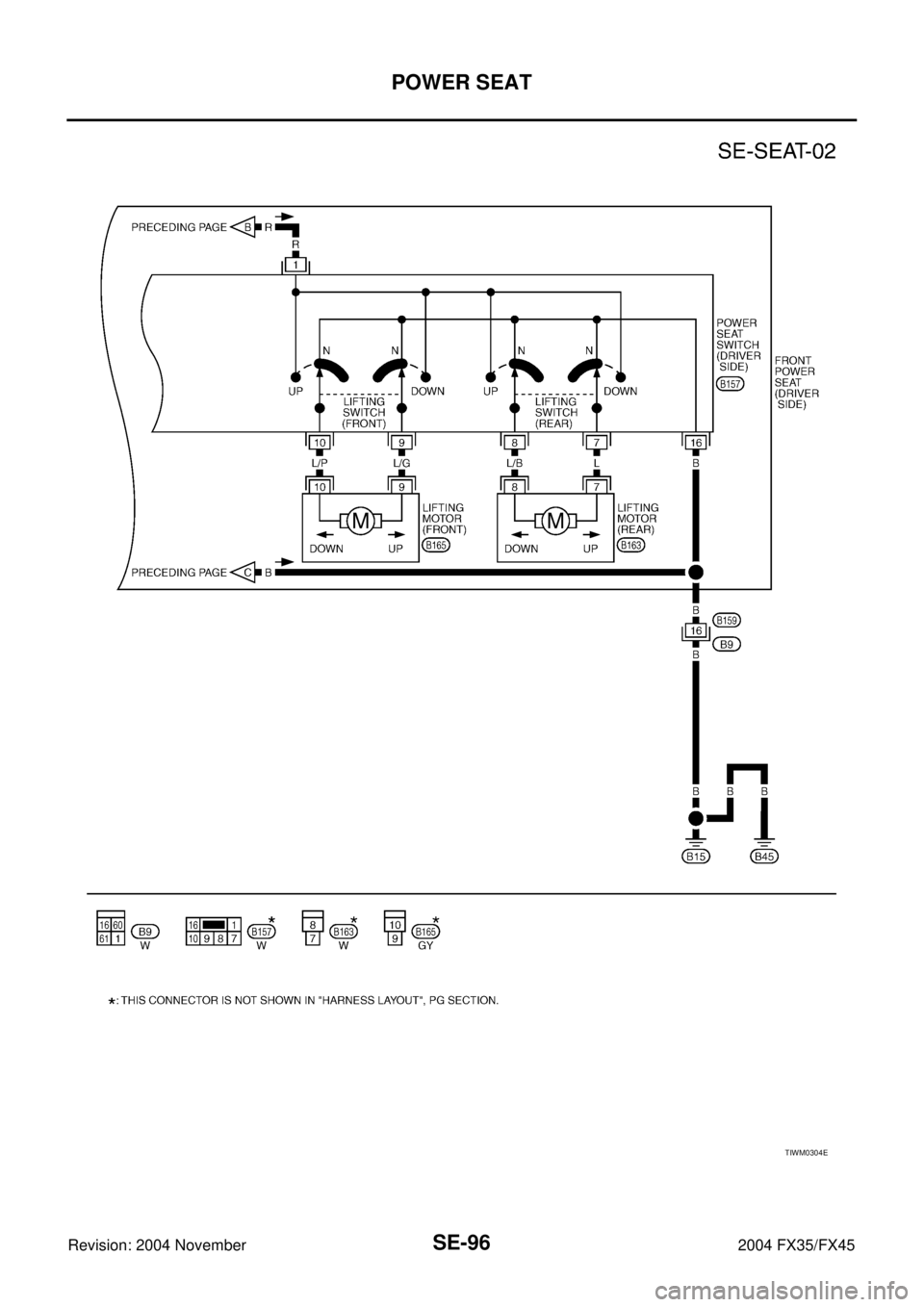

INFINITI FX35 2004 Service Manual POWER SEAT SE-97 C D E F G H J K L MA B SE Revision: 2004 November 2004 FX35/FX45 Wiring Diagram–SEAT– / For Passenger SeatAIS002X2 TIWM0305E

Page 4227 of 4449

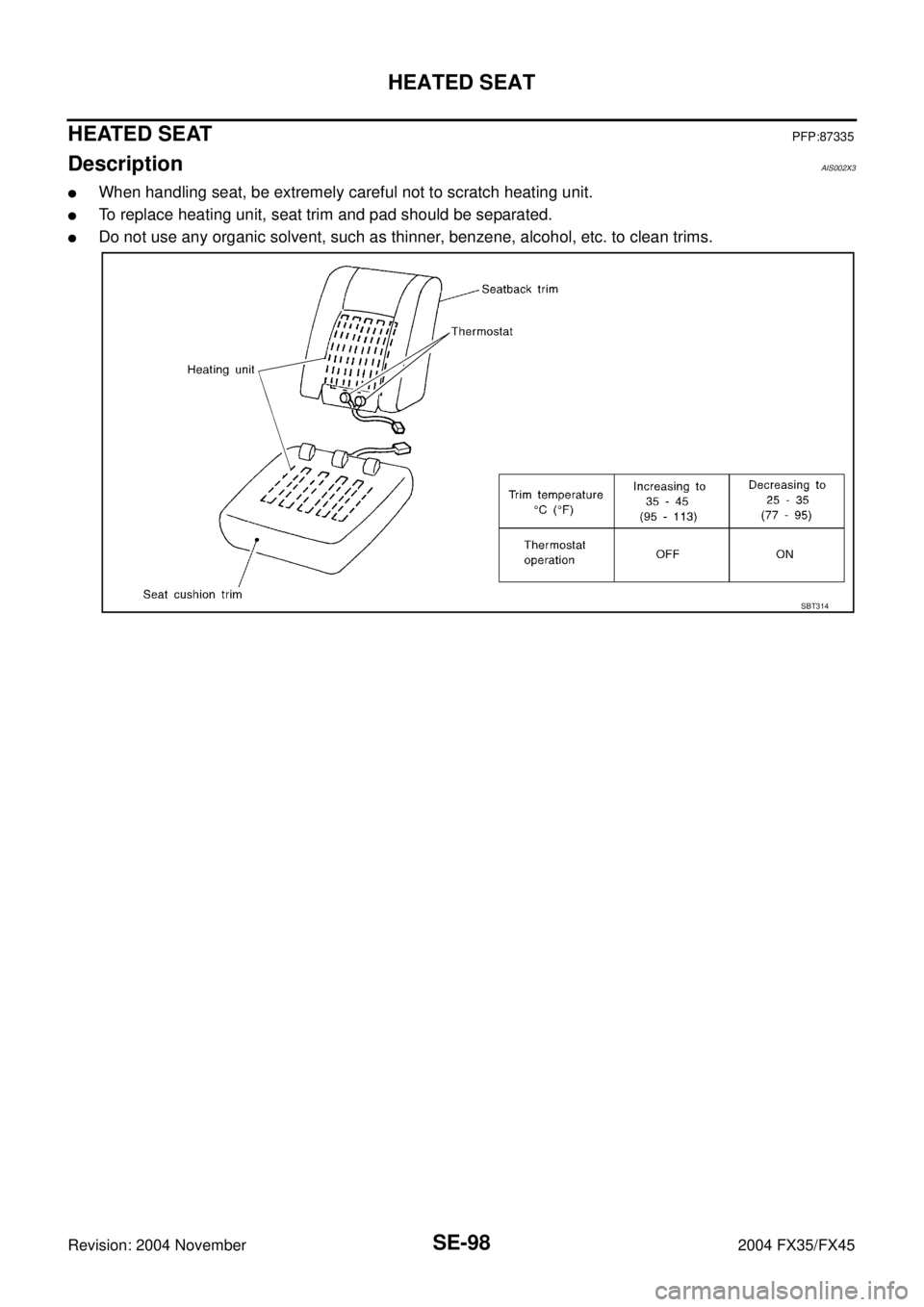

INFINITI FX35 2004 Service Manual SE-98 HEATED SEAT Revision: 2004 November 2004 FX35/FX45 HEATED SEATPFP:87335 DescriptionAIS002X3 When handling seat, be extremely careful not to scratch heating unit. To replace heating unit, seat

Page 4228 of 4449

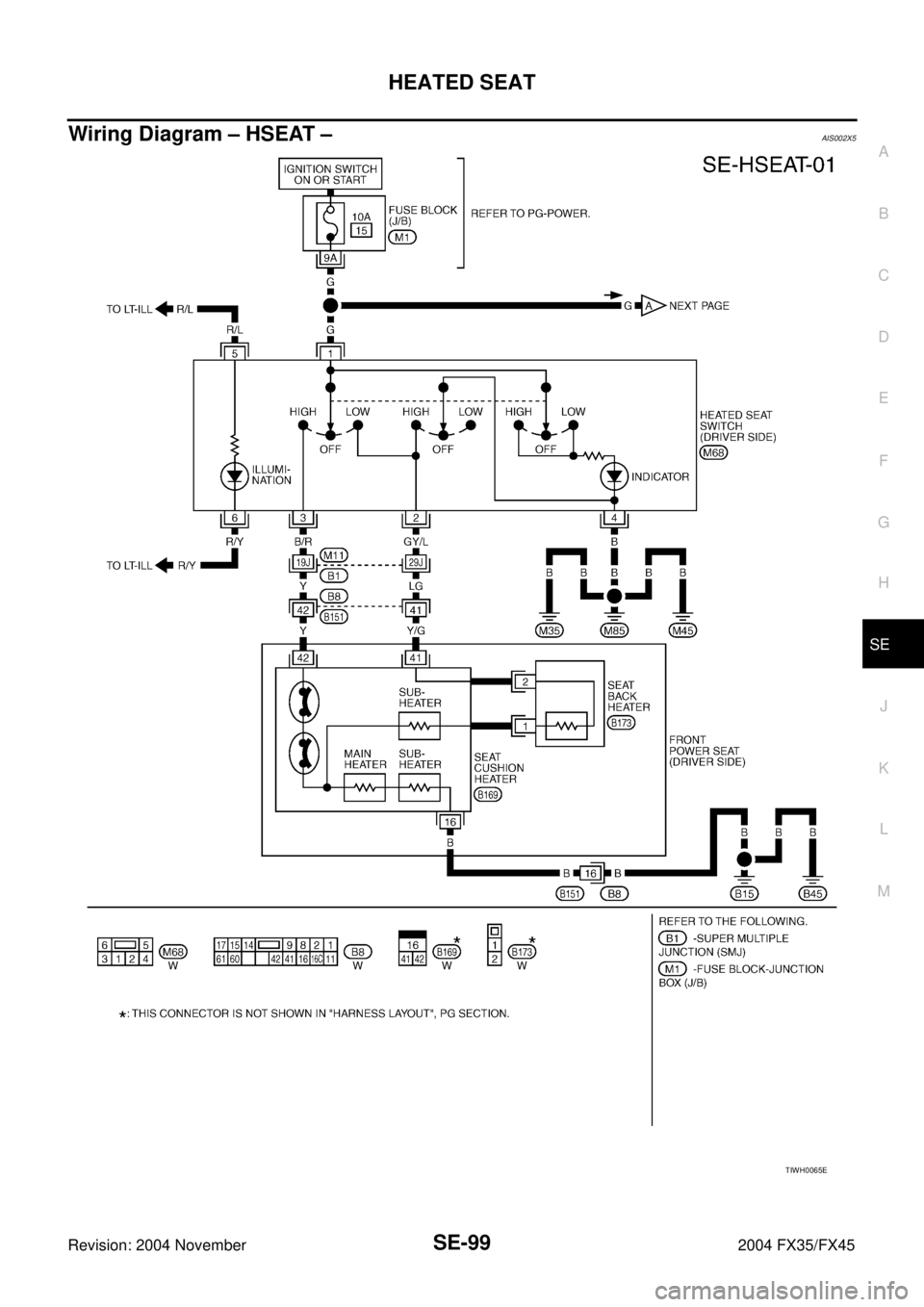

INFINITI FX35 2004 Service Manual HEATED SEAT SE-99 C D E F G H J K L MA B SE Revision: 2004 November 2004 FX35/FX45 Wiring Diagram – HSEAT –AIS002X5 TIWH0065E

Page 4229 of 4449

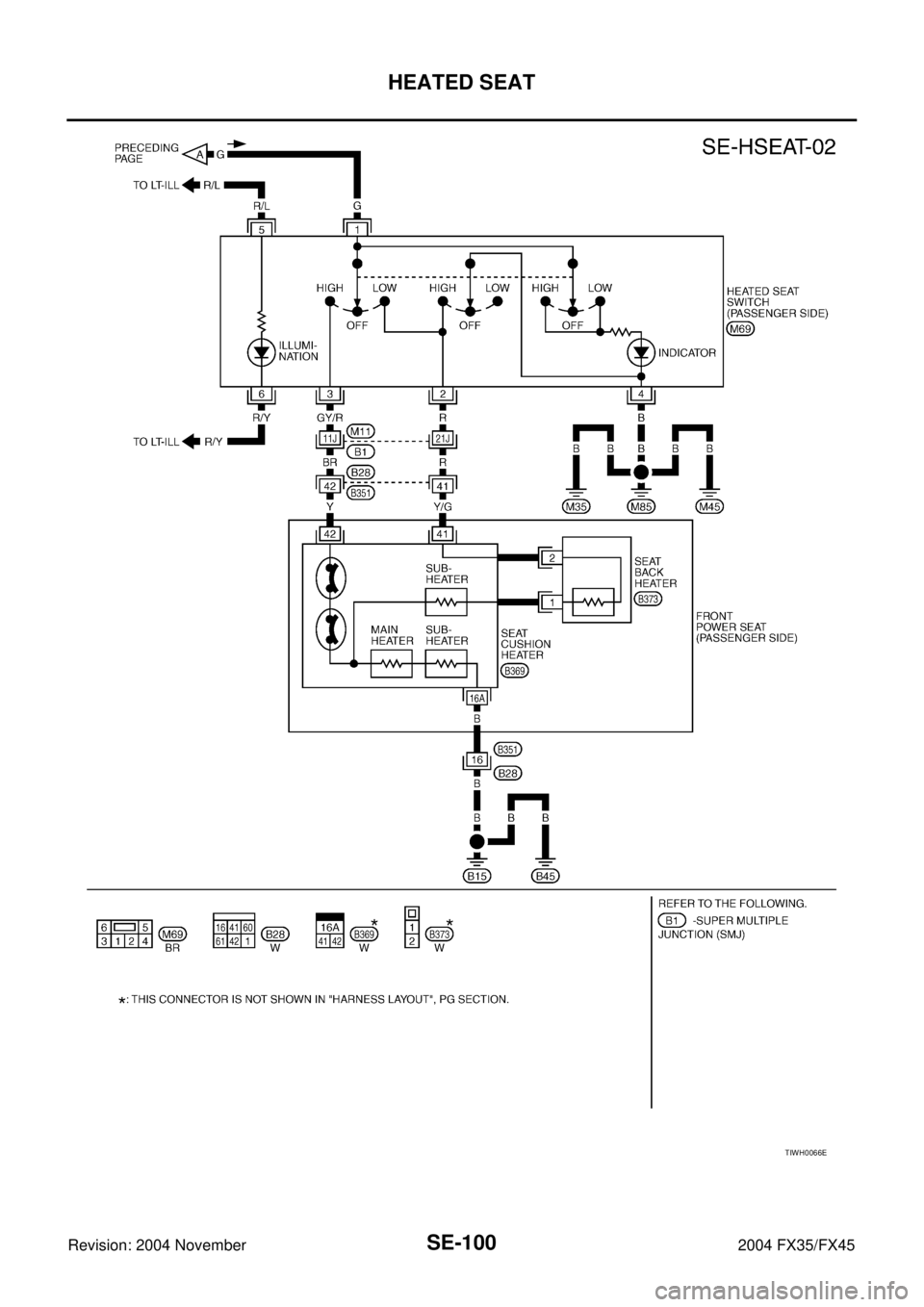

INFINITI FX35 2004 Service Manual SE-100 HEATED SEAT Revision: 2004 November 2004 FX35/FX45 TIWH0066E

Page 4230 of 4449

INFINITI FX35 2004 Service Manual FRONT SEAT SE-101 C D E F G H J K L MA B SE Revision: 2004 November 2004 FX35/FX45 FRONT SEATPFP:87000 Removal and InstallationAIS002X6 PIIB0431E

Page 4231 of 4449

INFINITI FX35 2004 Service Manual SE-102 FRONT SEAT Revision: 2004 November 2004 FX35/FX45 1. Headrest 2. Headrest holder (Free) 3. Headrest holder (Looked) 4. Seatback pad 5. Seatback trim 6. Seat cushion inner finisher 7. Screw 8. P

Page 4232 of 4449

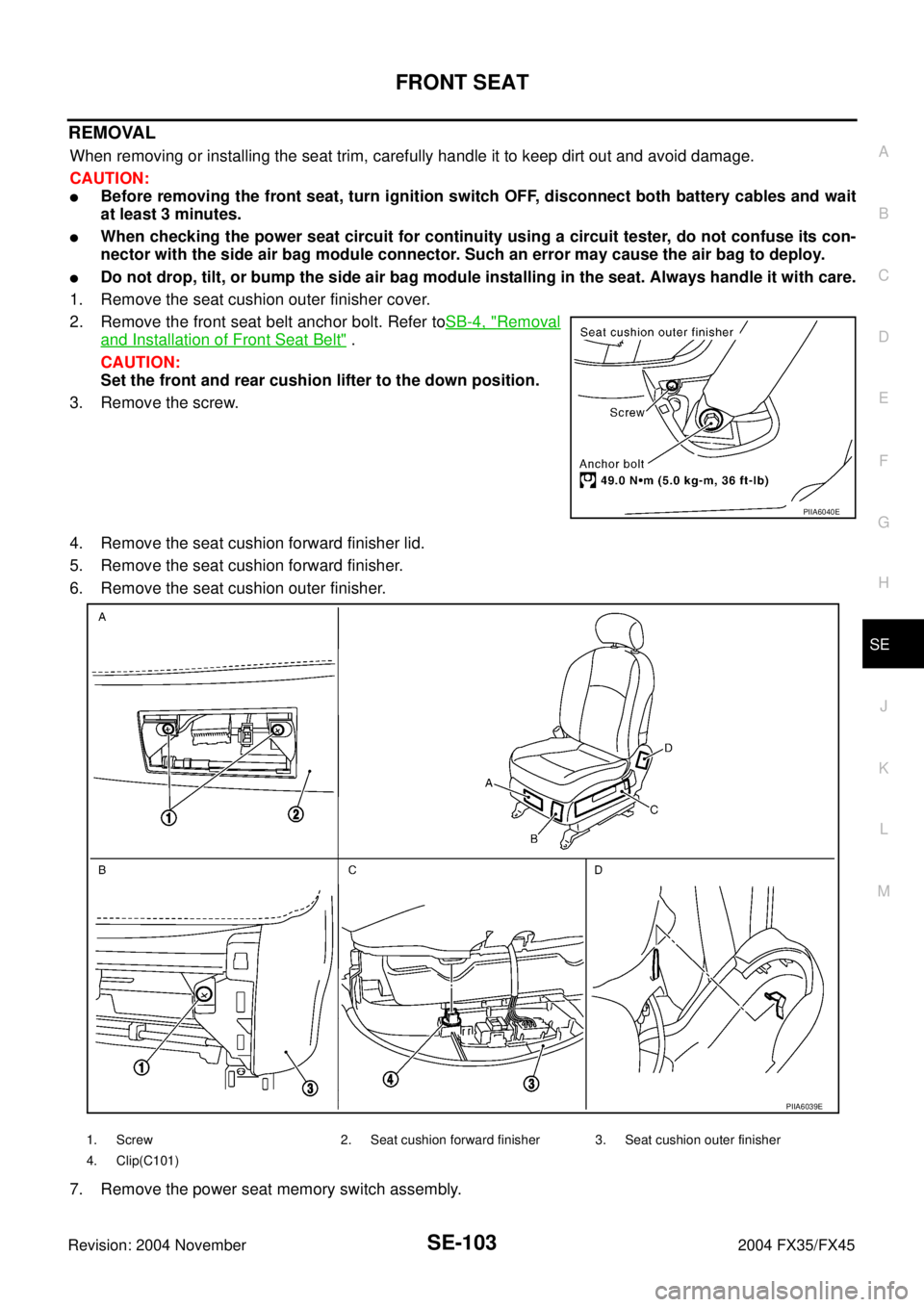

INFINITI FX35 2004 Service Manual FRONT SEAT SE-103 C D E F G H J K L MA B SE Revision: 2004 November 2004 FX35/FX45 REMOVAL When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage. CAUTION: B
