EC-564
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2004 November 2004 FX35/FX45

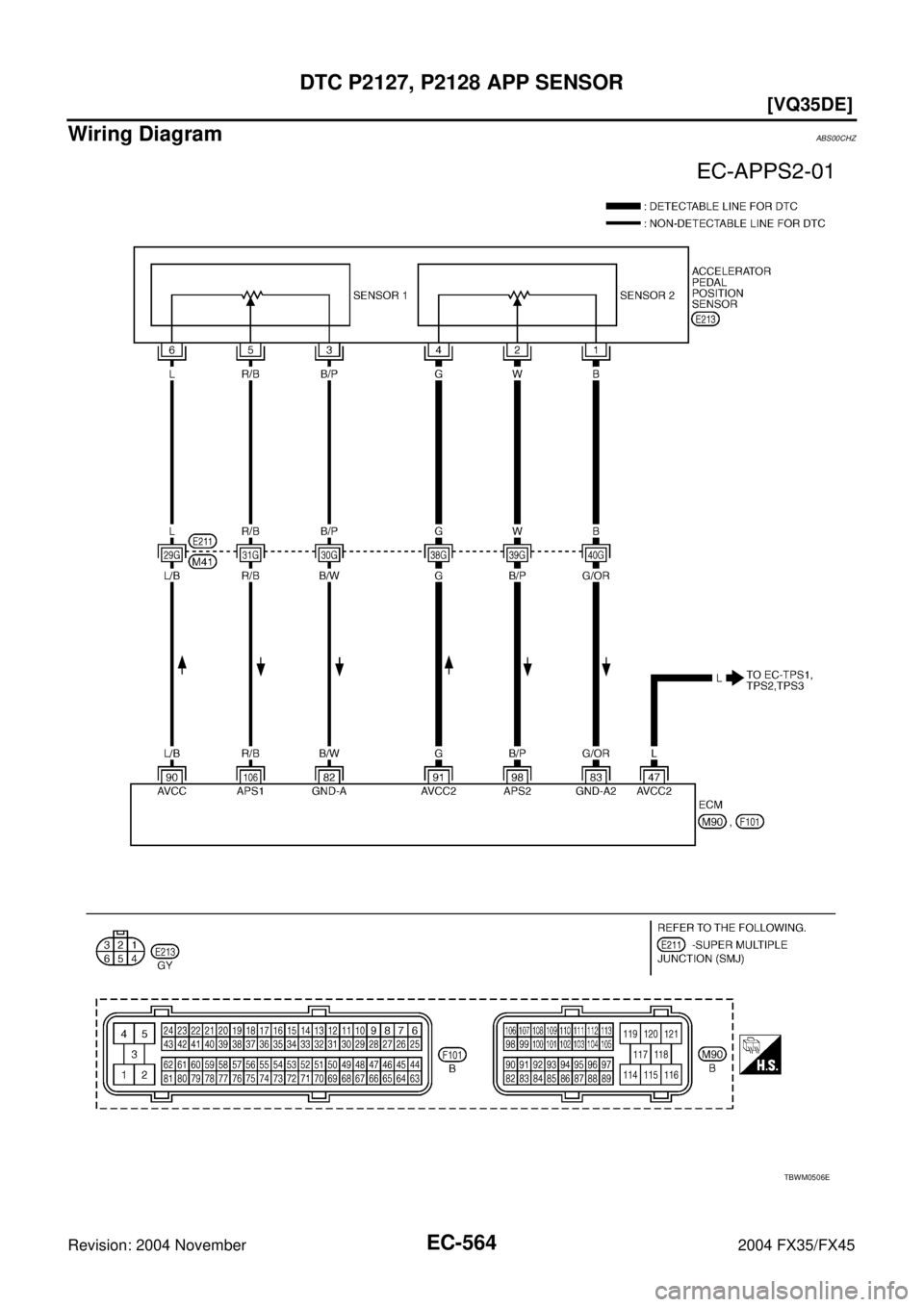

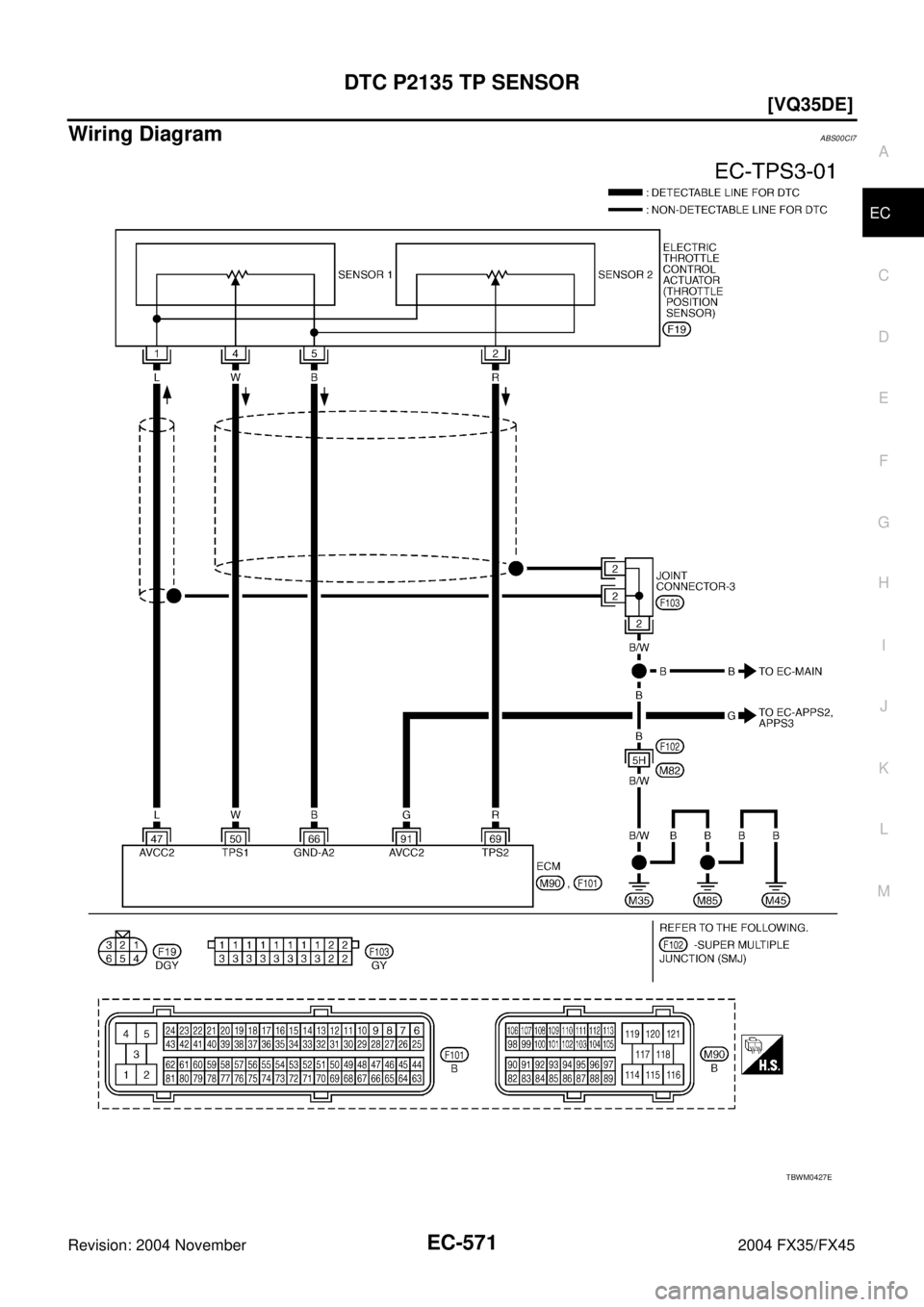

Wiring DiagramABS00CHZ
TBWM0506E
Page 1906 of 4449
![INFINITI FX35 2004 Service Manual DTC P2127, P2128 APP SENSOR
EC-565
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
INFINITI FX35 2004 Service Manual DTC P2127, P2128 APP SENSOR
EC-565
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.](/manual-img/42/57021/w960_57021-1905.png)
DTC P2127, P2128 APP SENSOR
EC-565
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS00CI0

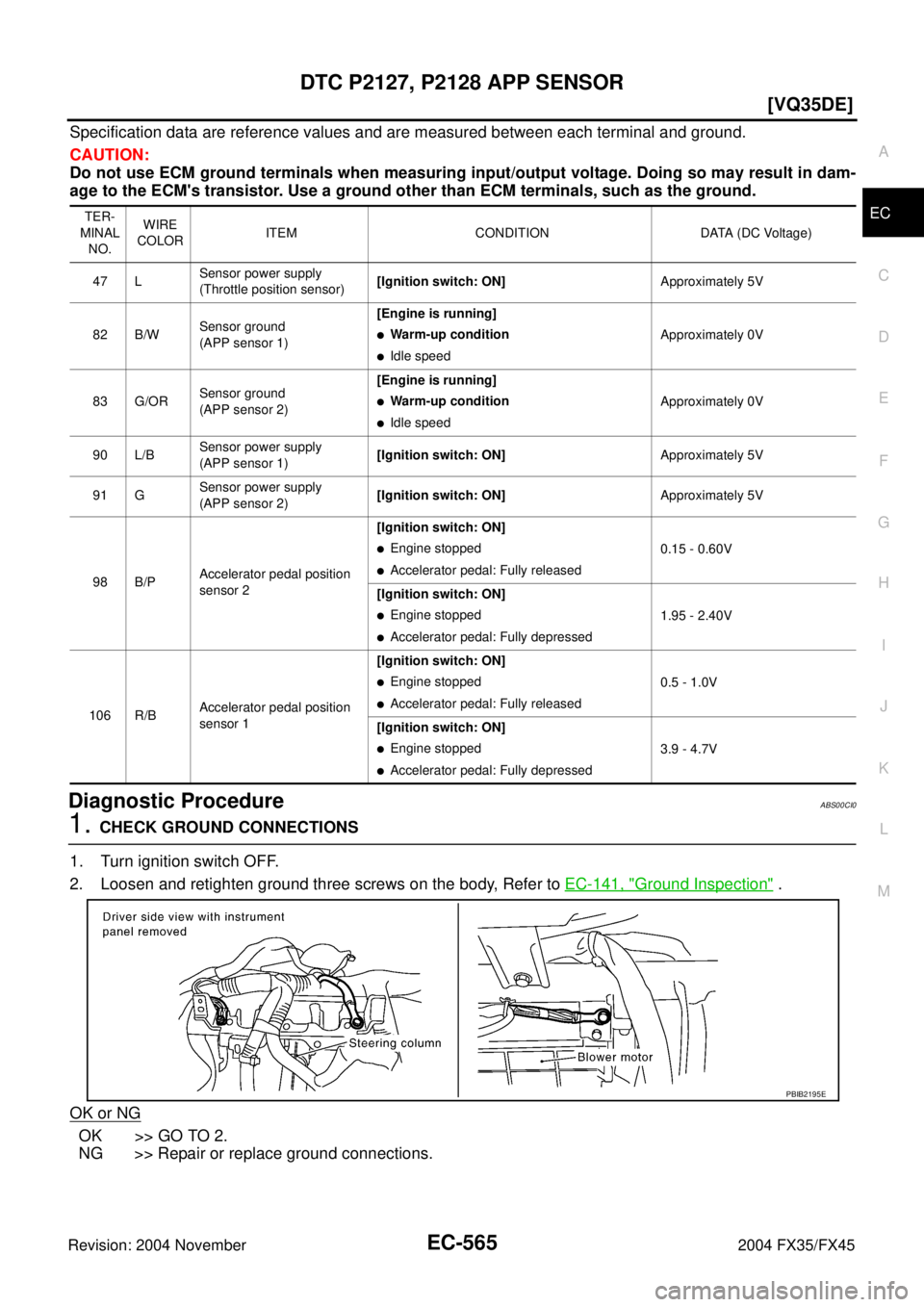

1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body, Refer to EC-141, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
47 LSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
82 B/WSensor ground
(APP sensor 1)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
83 G/ORSensor ground
(APP sensor 2)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
90 L/BSensor power supply
(APP sensor 1)[Ignition switch: ON]Approximately 5V
91 GSensor power supply
(APP sensor 2)[Ignition switch: ON]Approximately 5V
98 B/PAccelerator pedal position
sensor 2[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released0.15 - 0.60V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed1.95 - 2.40V
106 R/BAccelerator pedal position
sensor 1[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released0.5 - 1.0V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed3.9 - 4.7V
PBIB2195E
Page 1907 of 4449
![INFINITI FX35 2004 Service Manual EC-566
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2004 November 2004 FX35/FX45

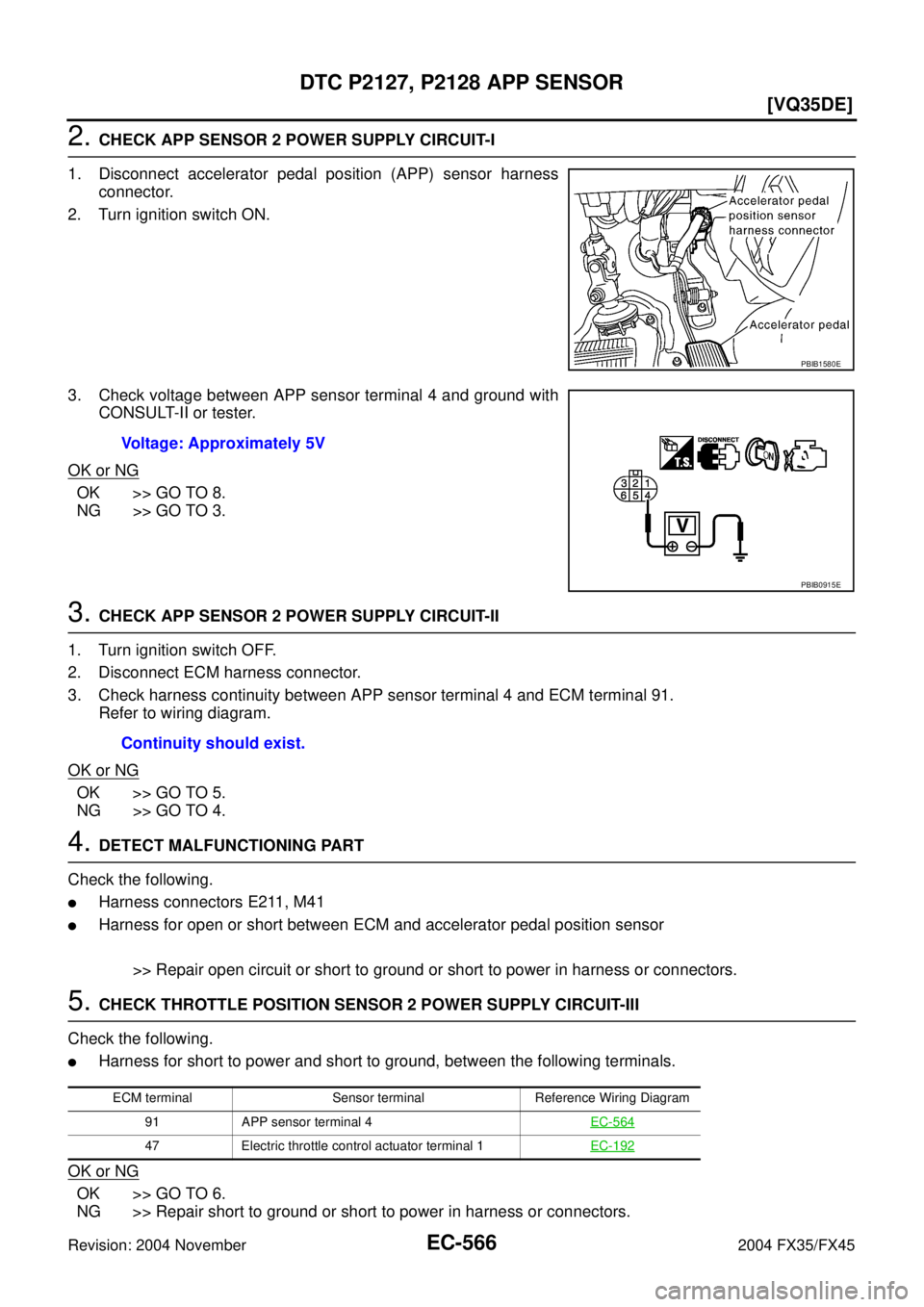

2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor harness
connector. INFINITI FX35 2004 Service Manual EC-566
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2004 November 2004 FX35/FX45
2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor harness
connector.](/manual-img/42/57021/w960_57021-1906.png)
EC-566
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2004 November 2004 FX35/FX45
2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 4 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 4 and ECM terminal 91.
Refer to wiring diagram.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-III
Check the following.
Harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 6.
NG >> Repair short to ground or short to power in harness or connectors.
PBIB1580E
Voltage: Approximately 5V
PBIB0915E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
91 APP sensor terminal 4EC-564
47 Electric throttle control actuator terminal 1EC-192
Page 1908 of 4449
![INFINITI FX35 2004 Service Manual DTC P2127, P2128 APP SENSOR
EC-567
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
6. CHECK THROTTLE POSITION SENSOR
Refer to EC-575, "
Component Inspection" .
OK or NG
OK >> INFINITI FX35 2004 Service Manual DTC P2127, P2128 APP SENSOR
EC-567
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
6. CHECK THROTTLE POSITION SENSOR
Refer to EC-575, "
Component Inspection" .
OK or NG
OK >>](/manual-img/42/57021/w960_57021-1907.png)
DTC P2127, P2128 APP SENSOR
EC-567
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
6. CHECK THROTTLE POSITION SENSOR
Refer to EC-575, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> GO TO 7.
7. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Perform EC-49, "
Throttle Valve Closed Position Learning" .
3. Perform EC-49, "
Idle Air Volume Learning" .
>>INSPECTION END
8. CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 1 and ECM terminal 83.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 98 and APP sensor terminal 2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors. Continuity should exist.
Continuity should exist.
Page 1909 of 4449
![INFINITI FX35 2004 Service Manual EC-568
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2004 November 2004 FX35/FX45
12. CHECK APP SENSOR
Refer to EC-568, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. REPLACE INFINITI FX35 2004 Service Manual EC-568
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2004 November 2004 FX35/FX45
12. CHECK APP SENSOR
Refer to EC-568, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. REPLACE](/manual-img/42/57021/w960_57021-1908.png)
EC-568
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2004 November 2004 FX35/FX45
12. CHECK APP SENSOR
Refer to EC-568, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-49, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-49, "
Throttle Valve Closed Position Learning" .
4. Perform EC-49, "
Idle Air Volume Learning" .
>>INSPECTION END
14. CHECK INTERMITTENT INCIDENT
Refer to EC-135, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

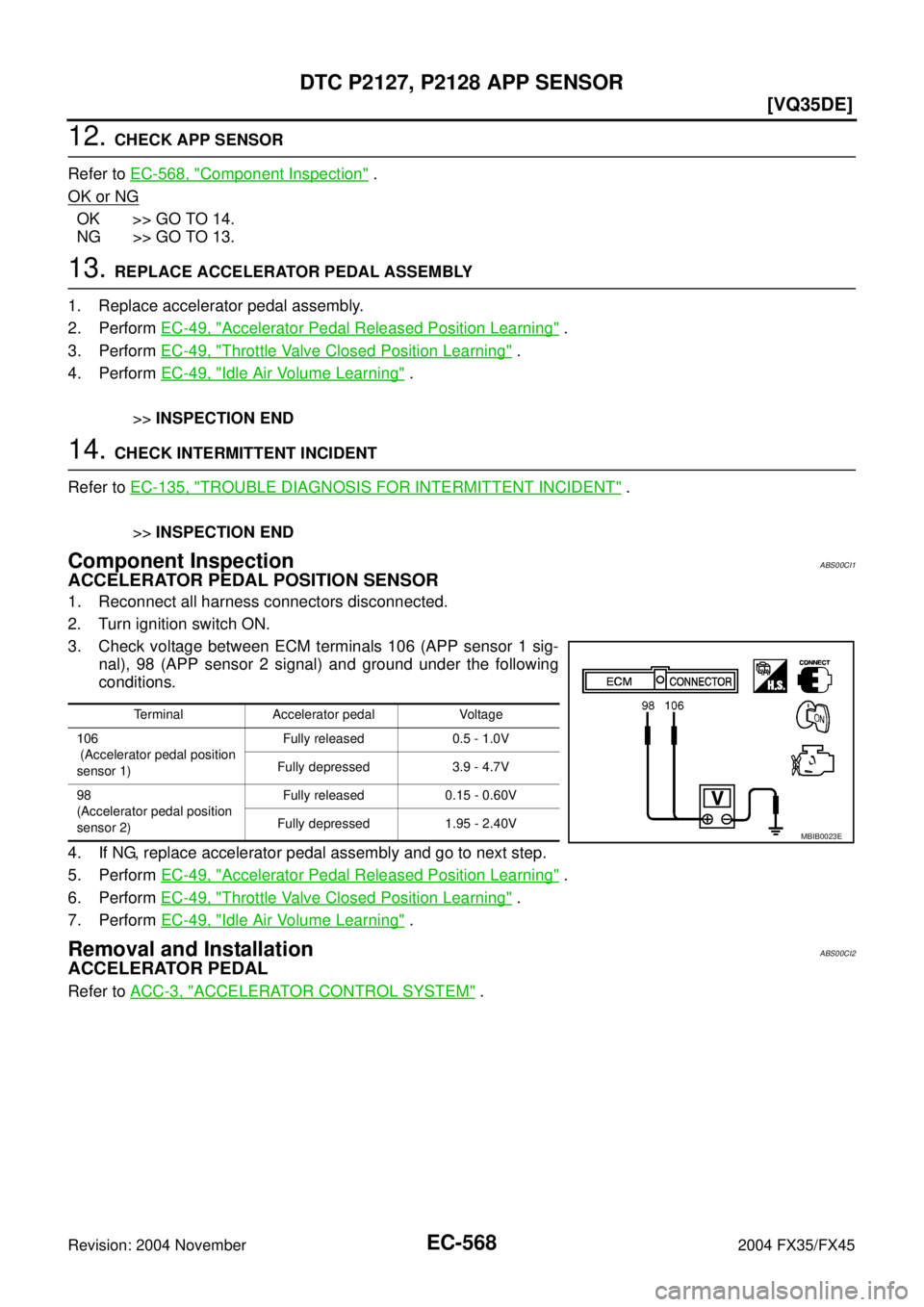

Component InspectionABS00CI1
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly and go to next step.
5. Perform EC-49, "
Accelerator Pedal Released Position Learning" .
6. Perform EC-49, "
Throttle Valve Closed Position Learning" .
7. Perform EC-49, "
Idle Air Volume Learning" .
Removal and InstallationABS00CI2
ACCELERATOR PEDAL
Refer to ACC-3, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1)Fully released 0.5 - 1.0V
Fully depressed 3.9 - 4.7V
98
(Accelerator pedal position
sensor 2)Fully released 0.15 - 0.60V
Fully depressed 1.95 - 2.40V
MBIB0023E
Page 1910 of 4449
![INFINITI FX35 2004 Service Manual DTC P2135 TP SENSOR
EC-569
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P2135 TP SENSORPFP:16119
Component DescriptionABS00CI3
Electric throttle control actuator consi INFINITI FX35 2004 Service Manual DTC P2135 TP SENSOR
EC-569
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P2135 TP SENSORPFP:16119
Component DescriptionABS00CI3
Electric throttle control actuator consi](/manual-img/42/57021/w960_57021-1909.png)
DTC P2135 TP SENSOR
EC-569
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
DTC P2135 TP SENSORPFP:16119
Component DescriptionABS00CI3
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeABS00CI4
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicABS00CI5
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN1
THRTL SEN2*
Ignition switch: ON
(Engine stopped)
Shift lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2135
2135Throttle position sensor
circuit range/perfor-
mance problemRationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2.
Harness or connector
(The TP sensor 1 and 2 circuit is open or
shorted.)
(APP sensor 2 circuit is shorted).
Electric throttle control actuator
(TP sensor 1 and 2)
Accelerator pedal position sensor.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Page 1911 of 4449
EC-570
[VQ35DE]
DTC P2135 TP SENSOR
Revision: 2004 November 2004 FX35/FX45
DTC Confirmation ProcedureABS00CI6
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-572, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 1912 of 4449
DTC P2135 TP SENSOR
EC-571
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2004 November 2004 FX35/FX45
Wiring DiagramABS00CI7
TBWM0427E
