2004 INFINITI FX35 coolant

QUICK REFERENCE CHART FX35/FX45
ENGINE TUNE-UP DATA (VK45DE)
FRONT WHEEL ALIGNMENT (Unladen* )
ELS0003X
* : Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.Engine modelVK45DE
Firing order1-8-7-3-6-5-4-2
Idle speed
A/T (In “P” or “N” position) rpm650±50
Ignition timing
(BTDC at idle speed)12°±5°
CO% at idle 0.7 - 9.9 % and engine runs smoothly
Tensions of drive belts Auto adjustment by auto tensioner
Radiater cap relief pressure
kPa (kg/cm
2 , psi)
Standard 78 - 98 (0.8 - 1.0 , 11 - 14 )
Limit 59 (0.6, 9)
Cooling system leakage testing pressure
157(1.6, 23)
kPa (kg/cm
2 , psi)
Compression pressure
kPa (kg/cm
2 , psi)/rpm
Standard 1,320 (13.5, 191) /300
Minimum 1,130 (11.5, 164)/300
Spark plug Standard type PLFR5A - 11
Hot type PLFR4A - 11
Cold type PLFR6A - 11
Camber Degree minute (Decimal degree) Minimum – 1° 29′ ( – 1.48° )
Nominal – 0° 44′ ( – 0.73° )
Maximum 0° 01′ ( 0.02° )
Left and right difference 45′ ( 0.75° ) or less
Caster Degree minute (Decimal degree) Minimum 3° 02′ ( 3.03° )
Nominal 3° 47′ ( 3.78° )
Maximum 4° 32′ ( 4.53° )
Left and right difference 45′ ( 0.75° ) or less
Kingpin inclination Degree minute (Decimal degree) Minimum 12° 20′ ( 12.33° )
Nominal 13° 05′ ( 13.08° )
Maximum 13 50′ ( 13.83° )
Total toe-in Distance (A – B) Minimum 0.6 mm ( 0.024 in )
Nominal 1.6 mm ( 0.063 in )
Maximum 2.6 mm ( 0.102 in )
Angle (left plus right)
Degree minute (Degree)Minimum –
Nominal 6′ ( 0.1° )
Maximum –
Wheel turning angle (Full turn) Inside MInimum 32° 00′ ( 32.0° )
Degree minute (Decimal degree) Nominal 35° 00′ ( 35.0° )
Maximum 36° 00′ ( 36.0° )
Outside
Nominal 30° 00′ ( 30.0° )
Degree minute (Decimal degree)
2004

QUICK REFERENCE CHART FX35/FX45
REAR WHEEL ALIGNMENT (Unladen*)
ELS0003Y
* : Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
BRAKEELS0003Z
* : Under force of 490 N( 50 kg, 110 lb ) with engine running.
REFILL CAPACITIESELS00040
Camber
Degree minute (Decimal degree)Minimum – 1° 18′ ( – 1.30° )
Nominal – 0° 48′ ( – 0.80° )
Maximum – 0° 18′ ( – 0.30° )
To t a l t o e - i nDistance ( A – B ) Minimum 2.4 mm ( 0.094 in )
Nominal 4.7 mm ( 0.185 in )
Maximum 7.0 mm ( 0.276 in )
Angle (left plus right )
Degree minute (Degree)Minimum 0° 05′ ( 0.08° )
Nominal 0° 10′ ( 0.17° )
Maximum 0° 15′ ( 0.25° )
Front brake Pad wear limit 2.0 mm ( 0.079 in )
Rotor repair limit 26.0 mm ( 1.024 in )
Rear brake Pad wear limit 2.0 mm ( 0.079 in )
Rotor repair limit 14.0 mm ( 0.551 in )
Pedal free height 161.5 - 171.5 mm ( 6.358 - 6.752 in )
Pedal depressed height* More than 80 mm ( 3.15 in )
UNITLiter US measure
Fuel tank90 23 - 3/4 gal
Coolant ( With reservoir tank )VQ35DE 8.6 9 - 1/8 qt
VK45DE 10.0 10 - 5/8 qt
Engine(VQ35DE)Drain and refill
With oil filter change 4.7 5 qt
Without oil filter change 4.4 4 - 5/8 qt
Dry engine (Overhaul) 5.4 5 - 3/4 qt
Engine(VK45DE)Drain and refill
With oil filter change 6.6 7qt
Without oil filter change 6.0 6 - 3/8 qt
Dry engine (Overhaul) 7.7 8 - 1/8 qt
Transmission A/T 10.3 10 - 7/8 qt
Transfer1.25 2 - 5/8 pt
Differential carrierFront 0.65 1 - 3/8 pt
Rear 1.4 3 pt
Power steering system 1.0 1 - 1/8 qt
Air conditioning systemCompressor oil 0.18 6.0 fl oz
Refrigerant 0.55 kg 1.21 lb
2004

ACS-12
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2004 November 2004 FX35/FX45
LASER BEAM AIMING ADJUSTMENTPFP:00026
OutlineAKS006YI
Adjust the laser beam aiming every time the ICC sensor is removed or installed.
CAUTION:

Place the vehicle on the level ground when the laser beam aiming adjustment is operated.

Follow the CONSULT-II when adjusting the Laser beam aiming (Laser beam aiming adjustment
cannot be operated without CONSULT-II).
PreparationAKS006YJ

Keep all tires inflated to correct pressures. Adjust the tire pressure to the specified pressure value.

See that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.

Shift the gear into “P” position and release the parking brake.

Clean the sensor with a soft cloth.
Outline of Adjustment ProcedureAKS006YK
1. Set up the ICC target board [KV99110100 (J-45718)].
2. Adjust the sensor following the procedure on CONSULT-II (Turn manually the screw for up-down position
adjustment. ICC sensor automatically adjust the right-left position.).
Setting the ICC Target BoardAKS006YL
Accurate ICC target board setting is required for the laser beam aiming adjustment.
CAUTION:
ICC system does not function normally if laser beam aiming is not accurate.
ADJUSTING HEIGHT OF THE TARGET
1. Attach a triangle scale as shown in the right figure.
SKIA6179E
SKIA5974E

ON BOARD DIAGNOSTIC (OBD) SYSTEM
AT-39
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
If the DTC is being detected currently, the time data will be “0”.
If a 1st trip DTC is stored in the ECM, the time data will be “1t”.
Freeze Frame Data and 1st Trip Freeze Frame Data
The ECM has a memory function, which stores the driving condition such as fuel system status, calculated
load value, engine coolant temperature, short term fuel trim, long term fuel trim, engine speed and vehicle
speed at the moment the ECM detects a malfunction.
Data which are stored in the ECM memory, along with the 1st trip DTC, are called 1st trip freeze frame data,
and the data, stored together with the DTC data, are called freeze frame data and displayed on CONSULT-II
or GST. The 1st trip freeze frame data can only be displayed on the CONSULT-II screen, not on the GST. For
detail, refer to EC-109, "
CONSULT-II Function" (for VQ35DE) or EC-759, "CONSULT-II Function" (for
VK45DE).
Only one set of freeze frame data (either 1st trip freeze frame data of freeze frame data) can be stored in the
ECM. 1st trip freeze frame data is stored in the ECM memory along with the 1st trip DTC. There is no priority
for 1st trip freeze frame data and it is updated each time a different 1st trip DTC is detected. However, once
freeze frame data (2nd trip detection/MIL on) is stored in the ECM memory, 1st trip freeze frame data is no
longer stored. Remember, only one set of freeze frame data can be stored in the ECM. The ECM has the fol-
lowing priorities to update the data.
Both 1st trip freeze frame data and freeze frame data (along with the DTC) are cleared when the ECM mem-
ory is erased.
HOW TO ERASE DTC
The diagnostic trouble code can be erased by CONSULT-II, GST or ECM DIAGNOSTIC TEST MODE as
described following.

If the battery cable is disconnected, the diagnostic trouble code will be lost within 24 hours.

When you erase the DTC, using CONSULT-II or GST is easier and quicker than switching the mode
selector on the ECM.
The following emission-related diagnostic information is cleared from the ECM memory when erasing DTC
related to OBD-II. For details, refer to EC-54, "
Emission-Related Diagnostic Information" (for VQ35DE) or EC-
704, "Emission-related Diagnostic Information" (for VK45DE).

Diagnostic trouble codes (DTC)
SAT015K
SAT016K
Priority Items
1 Freeze frame data Misfire — DTC: P0300 - P0306
Fuel Injection System Function — DTC: P0171, P0172, P0174, P0175
2 Except the above items (Includes A/T related items)
3 1st trip freeze frame data

ATC-32
AIR CONDITIONER CONTROL
Revision: 2004 November 2004 FX35/FX45
Stop Signal:
At the end of each transmission, a stop operation, in-operation, or internal error message is delivered to the
unified meter and A/C amp. This completes one data transmission and control cycle.
AIR MIX DOOR CONTROL (AUTOMATIC TEMPERATURE CONTROL)
The air mix door is automatically controlled so that in-vehicle temperature is maintained at a predetermined
value by the temperature setting, ambient temperature, in-vehicle temperature and amount of sunload.
FAN SPEED CONTROL
Blower speed is automatically controlled by temperature setting, ambient temperature, in-vehicle temperature,
intake temperature, amount of sunload and air mix door position.
When pressing AUTO switch, the blower motor starts to gradually increase air flow volume.
When engine coolant temperature is low, the blower motor operation is delayed to prevent cool air from flow-
ing.
INTAKE DOOR CONTROL
The intake doors are automatically controlled by the temperature setting, ambient temperature, in-vehicle tem-
perature, intake temperature, amount of sunload and ON-OFF operation of the compressor.
OUTLET DOOR CONTROL
The outlet door is automatically controlled by the temperature setting, ambient temperature, in-vehicle temper-
ature, intake temperature and amount of sunload.
RJIA1749E

TROUBLE DIAGNOSIS
ATC-81
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2004 November 2004 FX35/FX45
Starting Fan Speed Control
Start Up from COLD SOAK Condition (Automatic mode)
In a cold start up condition where the engine coolant temperature is below 56°C (133°F), the blower will not
operate for a short period of time (up to 150 seconds). The exact start delay time varies depending on the
ambient and engine coolant temperature.
In the most extreme case (very low ambient) the blower starting delay will be 150 seconds as described
above. After this delay, the blower will operate at low speed until the engine coolant temperature rises above
56°C (133°F), at which time the blower speed will increase to the objective speed.
Start Up from Usual or HOT SOAK Condition (Automatic mode)
The blower will begin operation momentarily after the AUTO switch is pushed. The blower speed will gradually
rise to the objective speed over a time period of 3 seconds or less (actual time depends on the objective
blower speed).
Blower Speed Compensation
Sunload
When the in-vehicle temperature and the set temperature are very close, the blower will be operating at low
speed. The low speed will vary depending on the sunload. During conditions of low or no sunload, the blower
low speed is usual low speed (duty ratio 25%). During high sunload conditions, the unified meter and A/C
amp. causes the blower speed to increase (duty ratio 49%).
Fan Speed Control Specification
COMPONENT DESCRIPTION
Brush-less Motor
The blower motor utilizes a brush-less motor with a rotating magnet.
Quietness is improved over previous motors where the brush was
the point of contact and the coil rotated.
DIAGNOSTIC PROCEDURE FOR BLOWER MOTOR
SYMPTOM: Blower motor operation is malfunctioning under starting
fan speed control.
RJIA1996E
ZHA152H
SJIA0266E

ATC-100
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
Insufficient HeatingAJS00150
SYMPTOM: Insufficient heating
INSPECTION FLOW
*1ATC-61, "Operational Check".*2AT C - 7 3 , "Air Mix Door Motor Circuit".*3ATC-54, "FUNCTION CONFIRMA-
TION PROCEDURE", see No. 4 to
6.
*4ATC-54, "
FUNCTION CONFIRMA-
TION PROCEDURE", see No. 13.*5AT C - 6 6 , "
LAN System Circuit".*6ATC-79, "Blower Motor Circuit".
*7EC-185, "
DTC P0117, P0118 ECT
SENSOR" (VQ35DE) or EC-842,
"DTC P0117, P0118 ECT SEN-
SOR" (VK45DE).*8CO-11, "
Changing Engine Coolant"
(VQ35DE) or CO-36, "
Changing
Engine Coolant" (VK45DE).*9CO-15, "
Checking Radiator Cap"
(VQ35DE) or CO-41, "
Checking
Radiator Cap" (VK45DE).
RJIA2013E

ATC-126
HEATER & COOLING UNIT ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
HEATER & COOLING UNIT ASSEMBLYPFP:27110
Removal and InstallationAJS0015J
REMOVAL
1. Use a refrigerant collecting equipment (for HFC-134a) to discharge refrigerant.
2. Drain coolant from cooling system. Refer to CO-11, "
Changing Engine Coolant" (VQ35DE) or CO-36,
"Changing Engine Coolant" (VK45DE).
3. Remove cowl top cover. Refer to EI-24, "
COWL TOP" .
4. Remove high-pressure pipe 2 mounting clip.
5. Remove low-pressure flexible hose bracket mounting bolts.
6. Disconnect evaporator-side one touch joint.
a. Set a disconnector (High-pressure side: 92530-89908, Low-
pressure side: 92530-89916) on A/C piping.
b. Slide a disconnector toward vehicle front until it clicks.
c. Slide A/C piping toward vehicle front and disconnect it.
CAUTION:
Seal connection opening of piping with a cap or vinyl tape
to avoid exposure to atmosphere.
7. Remove electronic control throttle assembly (VQ35DE). Refer to
EM-19, "
INTAKE MANIFOLD COLLECTOR" .

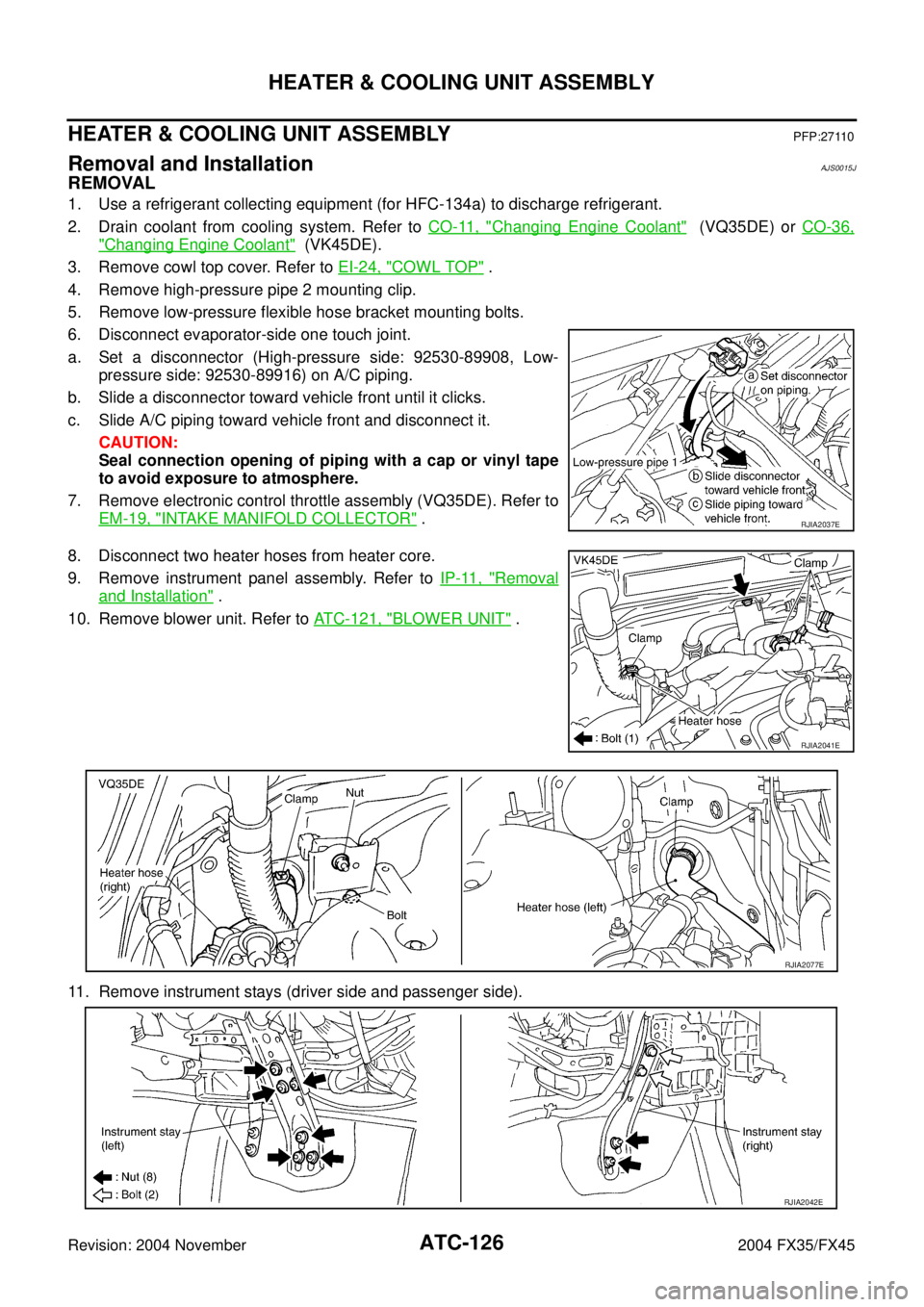

8. Disconnect two heater hoses from heater core.
9. Remove instrument panel assembly. Refer to IP-11, "
Removal
and Installation" .
10. Remove blower unit. Refer to ATC-121, "
BLOWER UNIT" .
11. Remove instrument stays (driver side and passenger side).
RJIA2037E
RJIA2041E
RJIA2077E
RJIA2042E
