Page 3329 of 4449

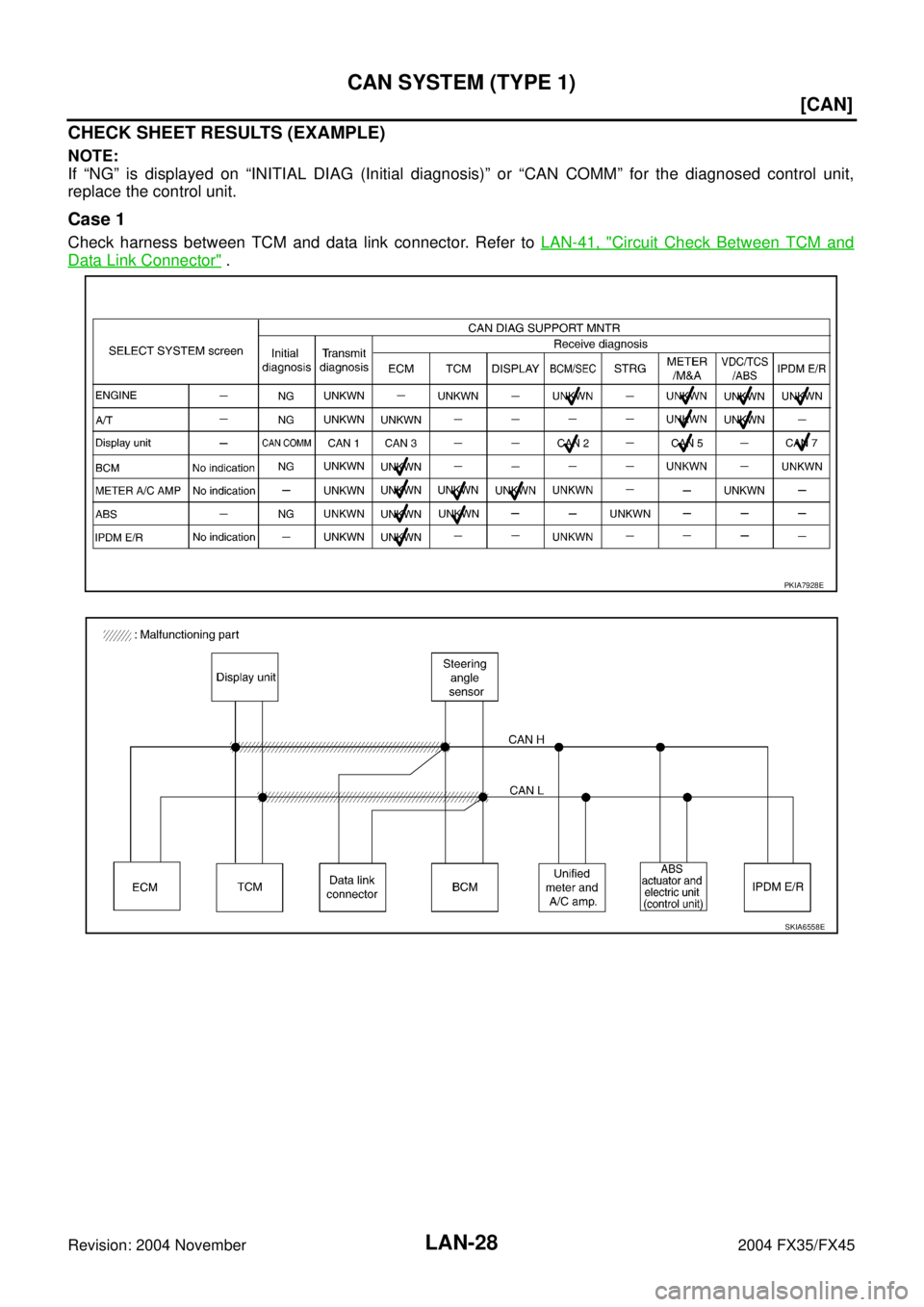

INFINITI FX35 2004 Service Manual LAN-28 [CAN] CAN SYSTEM (TYPE 1) Revision: 2004 November 2004 FX35/FX45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the

Page 3330 of 4449

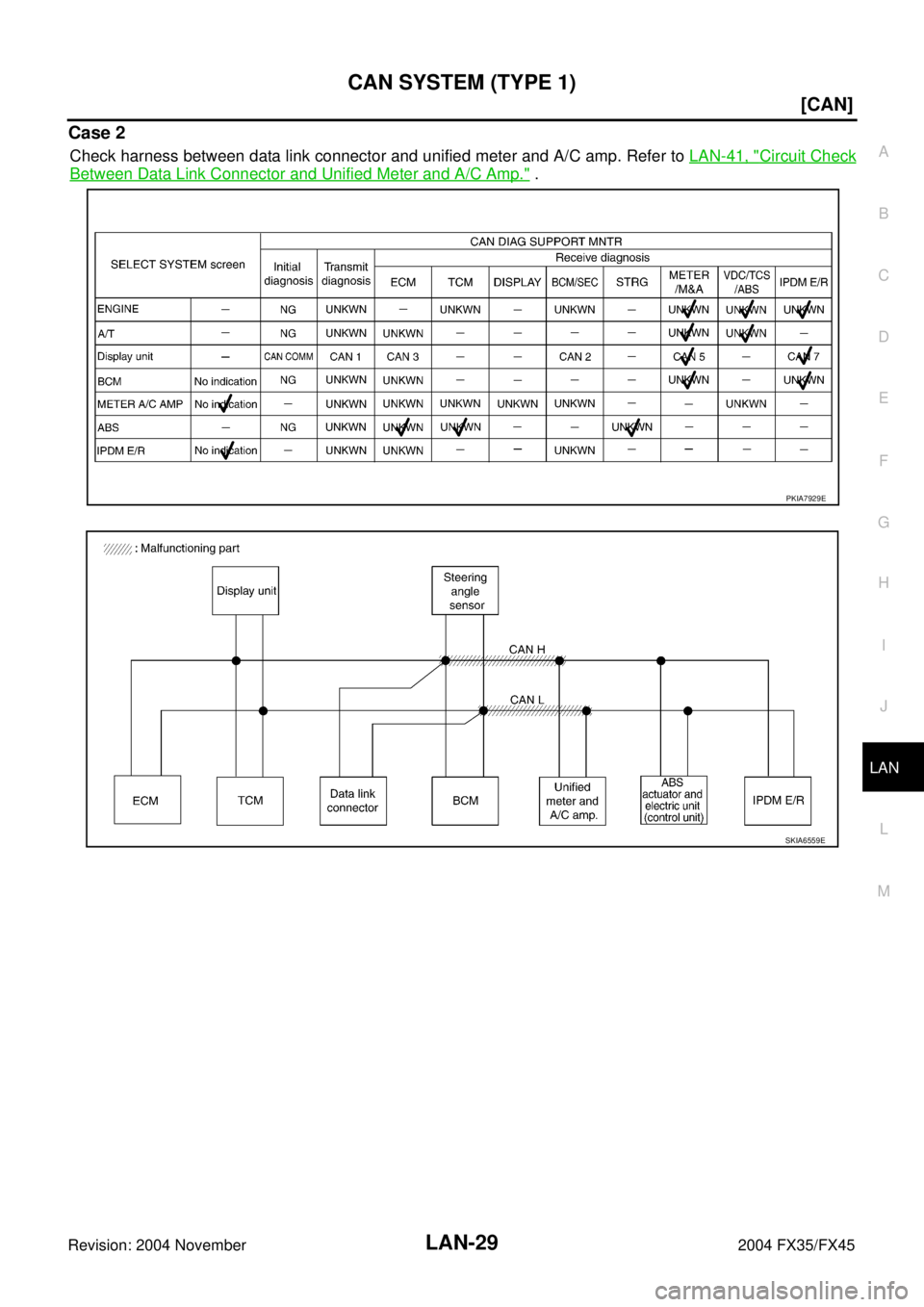

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 1) LAN-29 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-41, "Cir

Page 3331 of 4449

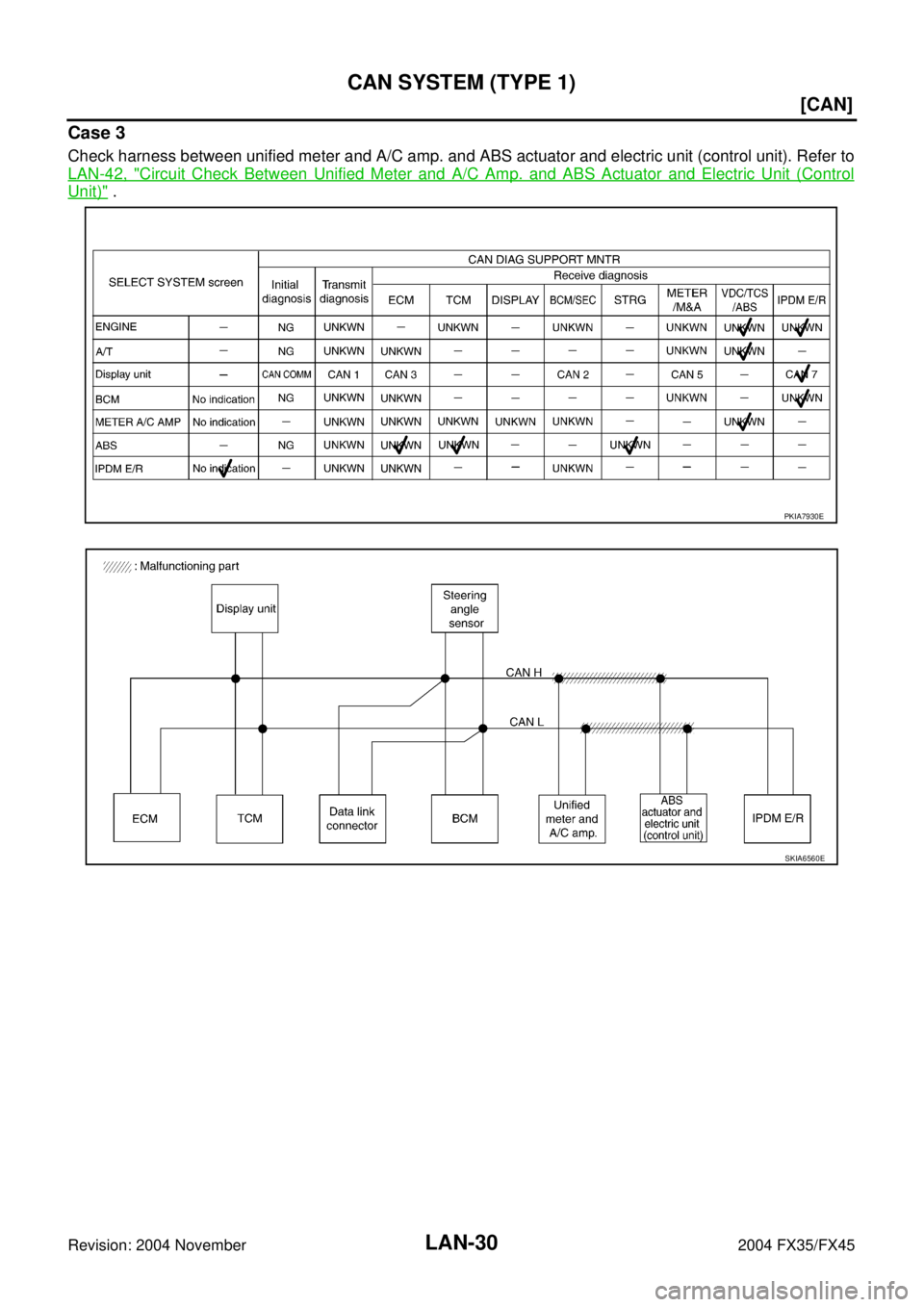

INFINITI FX35 2004 Service Manual LAN-30 [CAN] CAN SYSTEM (TYPE 1) Revision: 2004 November 2004 FX35/FX45 Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to LAN-42, " Ci

Page 3332 of 4449

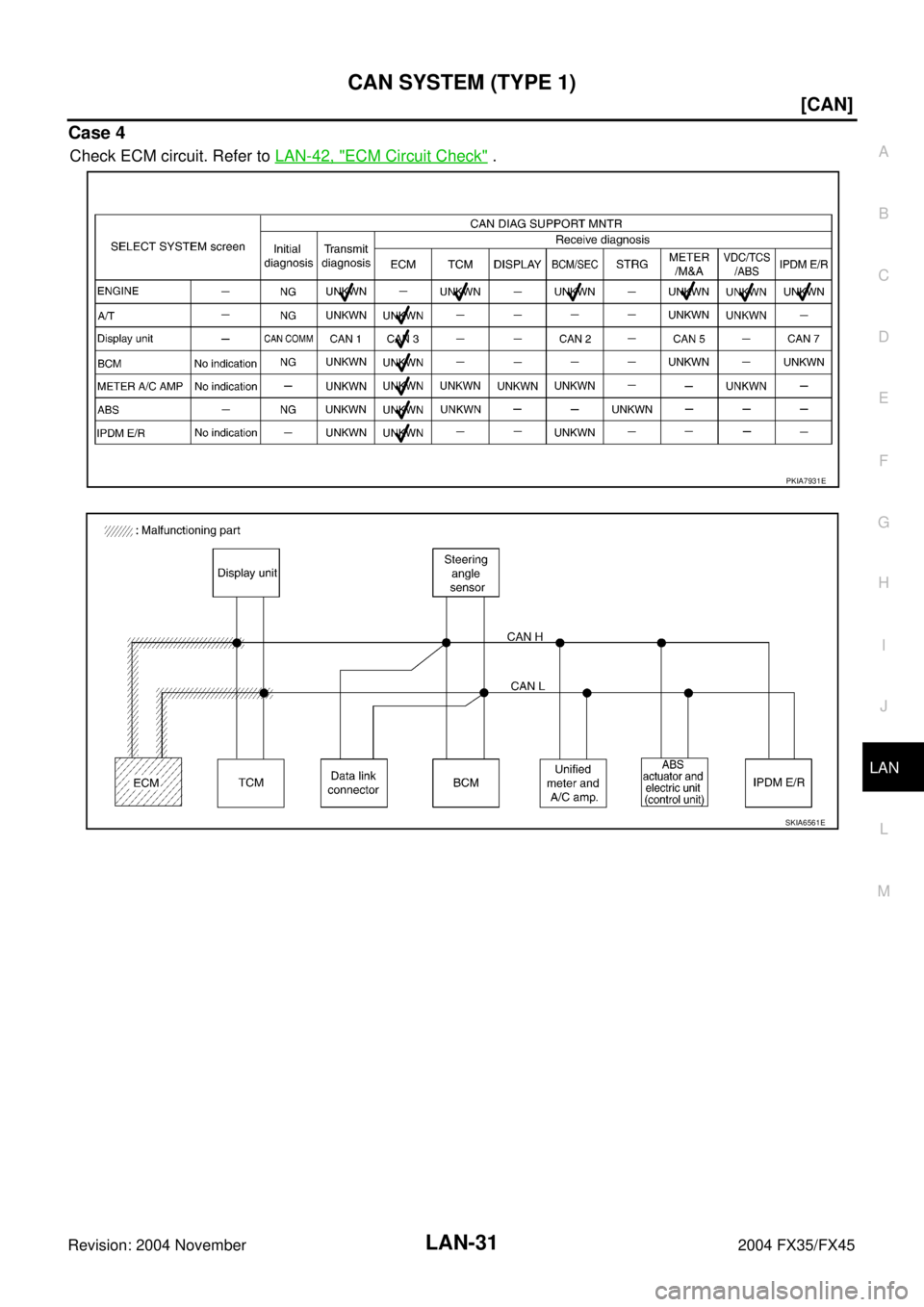

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 1) LAN-31 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 4 Check ECM circuit. Refer to LAN-42, "ECM Circuit Check" . PKIA7931E SKIA6561E

Page 3333 of 4449

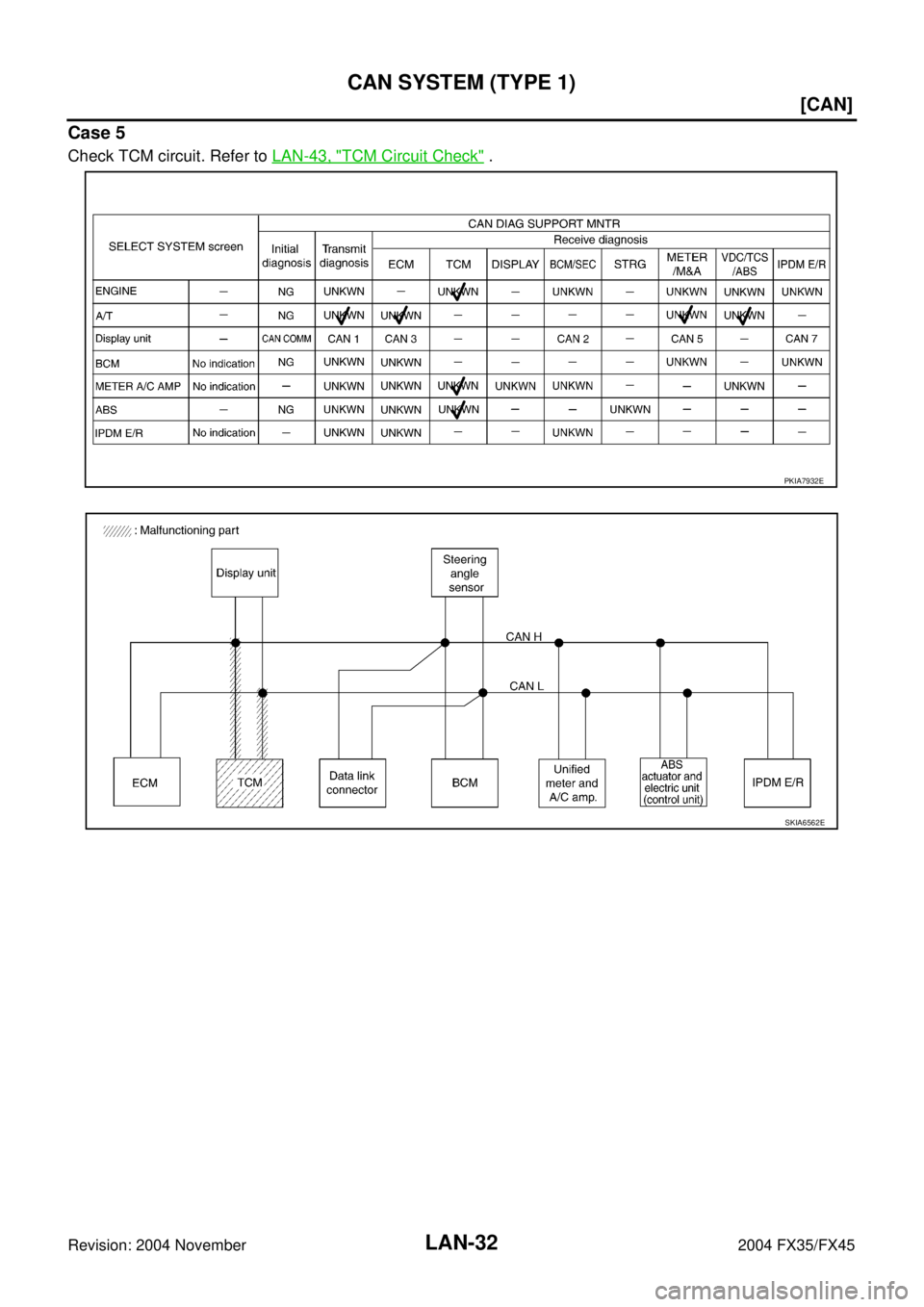

INFINITI FX35 2004 Service Manual LAN-32 [CAN] CAN SYSTEM (TYPE 1) Revision: 2004 November 2004 FX35/FX45 Case 5 Check TCM circuit. Refer to LAN-43, "TCM Circuit Check" . PKIA7932E SKIA6562E

Page 3334 of 4449

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 1) LAN-33 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 6 Check display unit circuit. Refer to LAN-43, "Display Unit Circuit Check" . PKIA7933E SKIA6563

Page 3335 of 4449

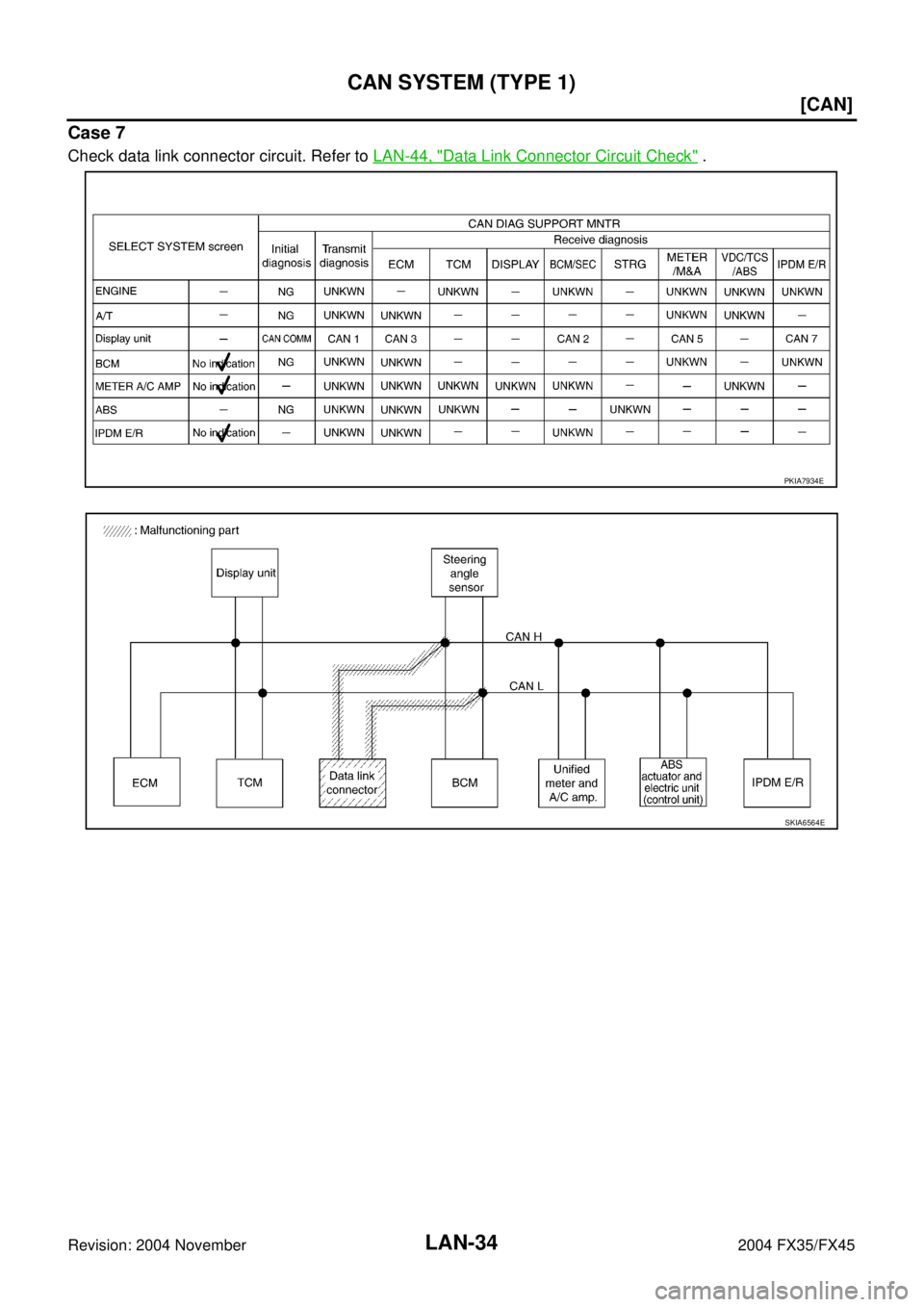

INFINITI FX35 2004 Service Manual LAN-34 [CAN] CAN SYSTEM (TYPE 1) Revision: 2004 November 2004 FX35/FX45 Case 7 Check data link connector circuit. Refer to LAN-44, "Data Link Connector Circuit Check" . PKIA7934E SKIA6564E

Page 3336 of 4449

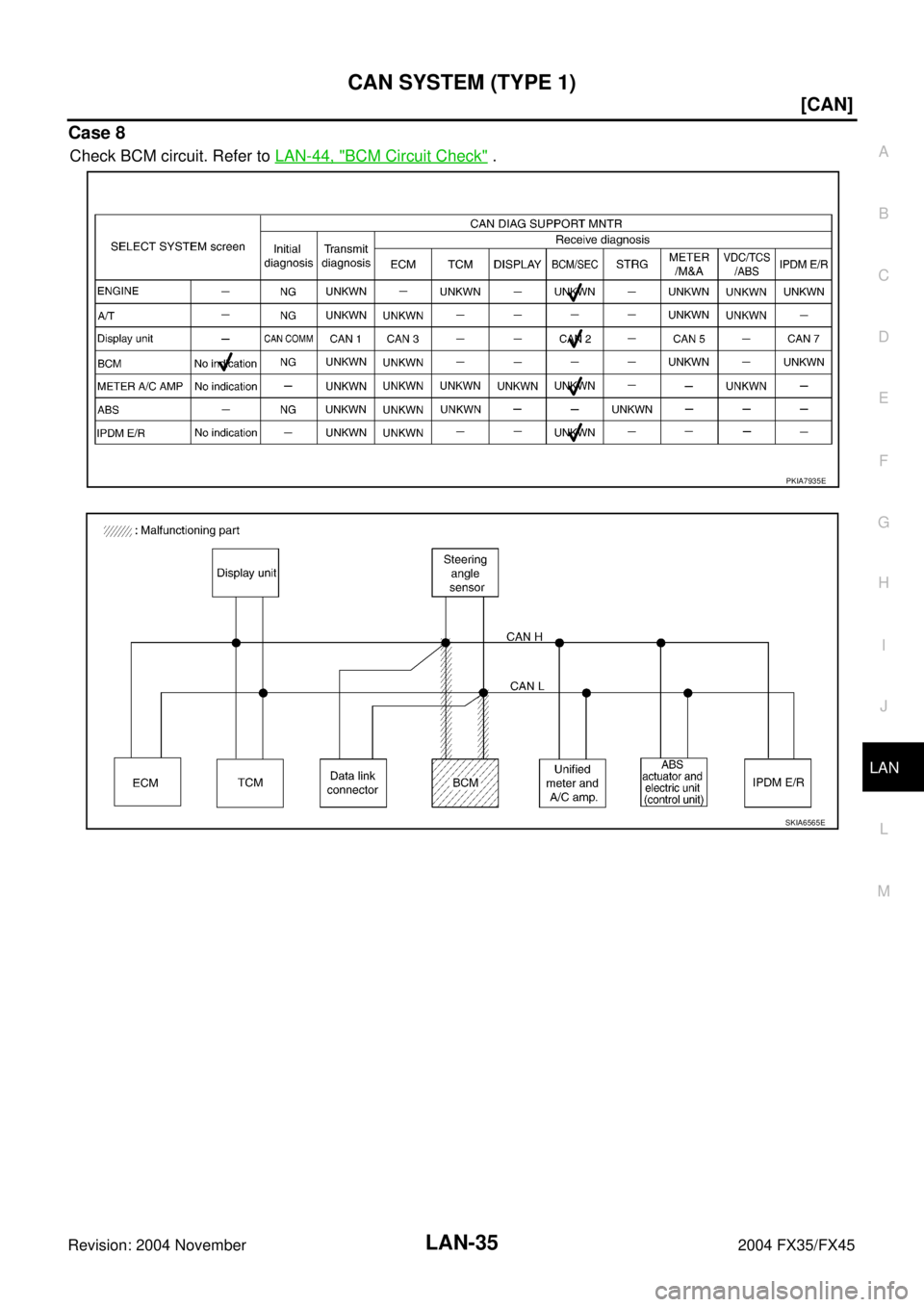

INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 1) LAN-35 [CAN] C D E F G H I J L MA B LAN Revision: 2004 November 2004 FX35/FX45 Case 8 Check BCM circuit. Refer to LAN-44, "BCM Circuit Check" . PKIA7935E SKIA6565E
