Page 3417 of 4284

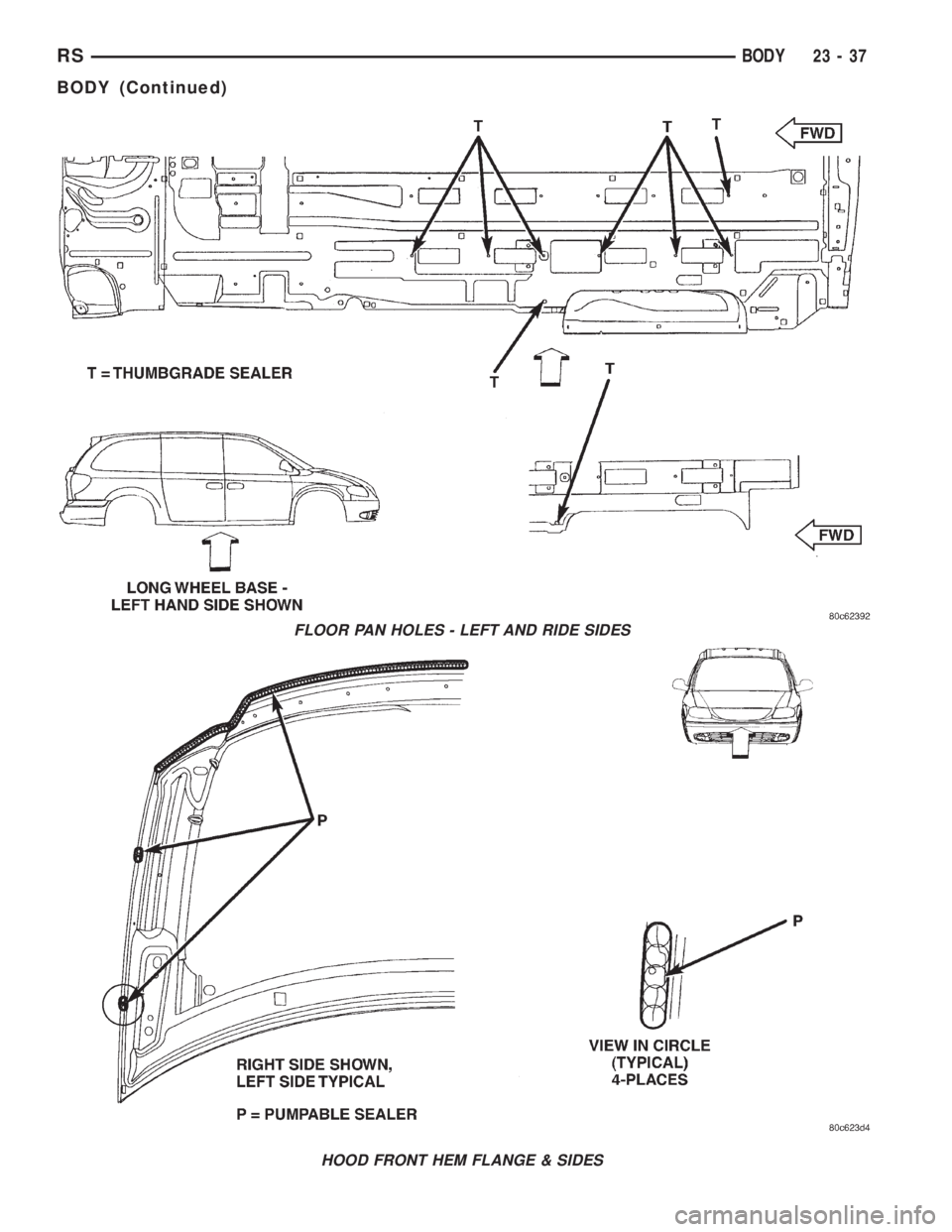

CHRYSLER VOYAGER 2001 Service Manual FLOOR PAN HOLES - LEFT AND RIDE SIDES HOOD FRONT HEM FLANGE & SIDES RSBODY23-37 BODY (Continued)

Page 3418 of 4284

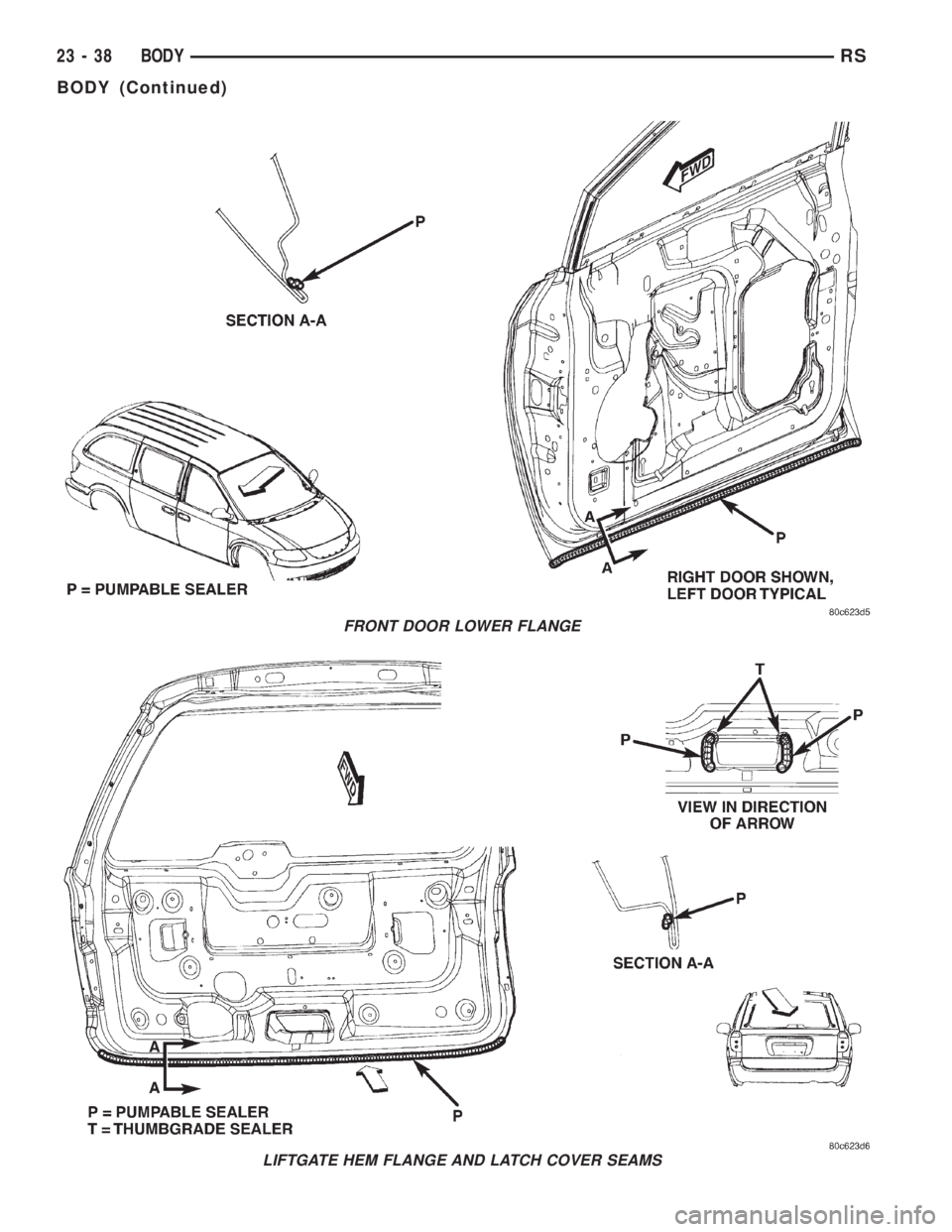

CHRYSLER VOYAGER 2001 Service Manual FRONT DOOR LOWER FLANGE LIFTGATE HEM FLANGE AND LATCH COVER SEAMS 23 - 38 BODYRS BODY (Continued)

Page 3419 of 4284

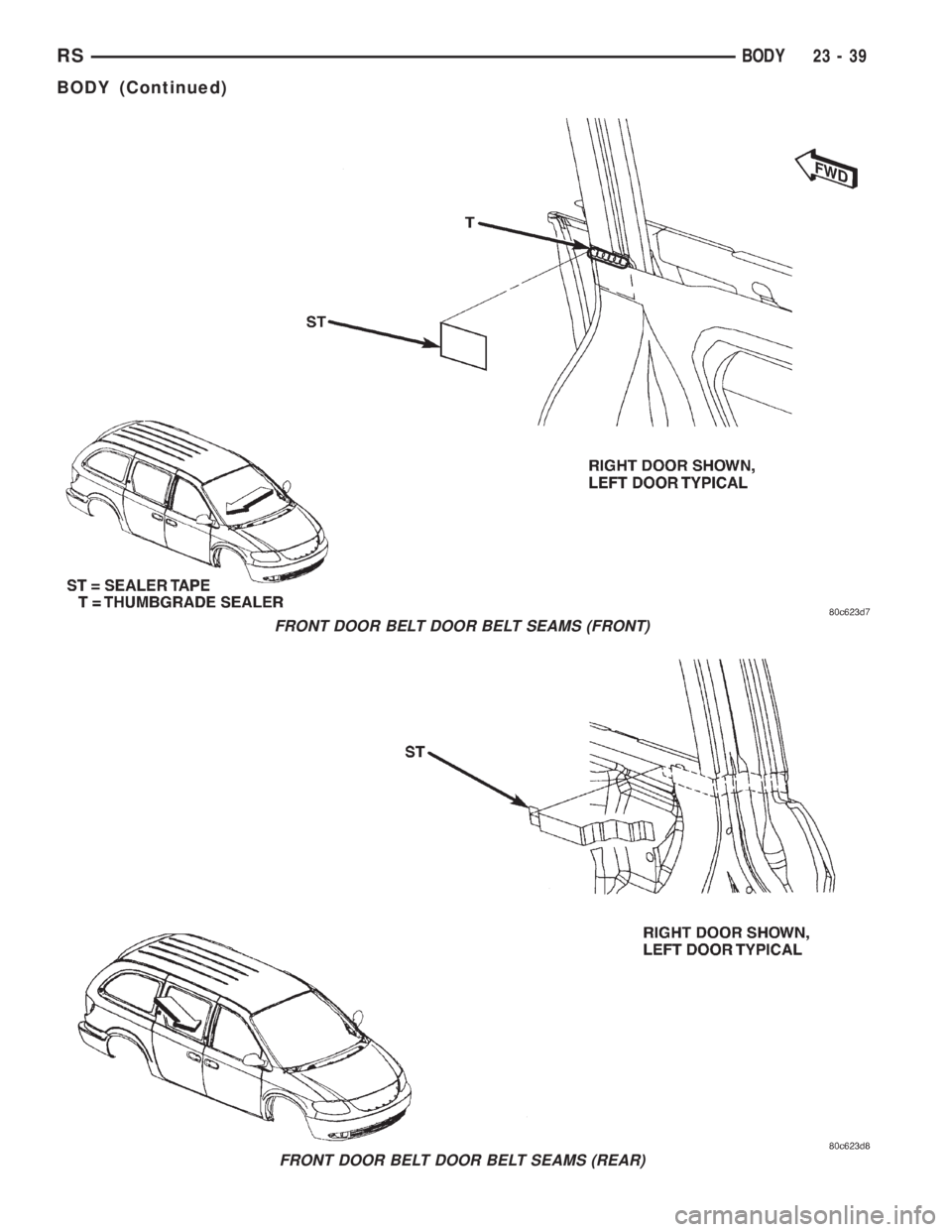

CHRYSLER VOYAGER 2001 Service Manual FRONT DOOR BELT DOOR BELT SEAMS (FRONT) FRONT DOOR BELT DOOR BELT SEAMS (REAR) RSBODY23-39 BODY (Continued)

Page 3420 of 4284

CHRYSLER VOYAGER 2001 Service Manual STRUCTURAL ADHESIVE LOCATIONS UPPER COWL PLENUM, UPPER AND LOWER DASH PANEL 23 - 40 BODYRS BODY (Continued)

Page 3421 of 4284

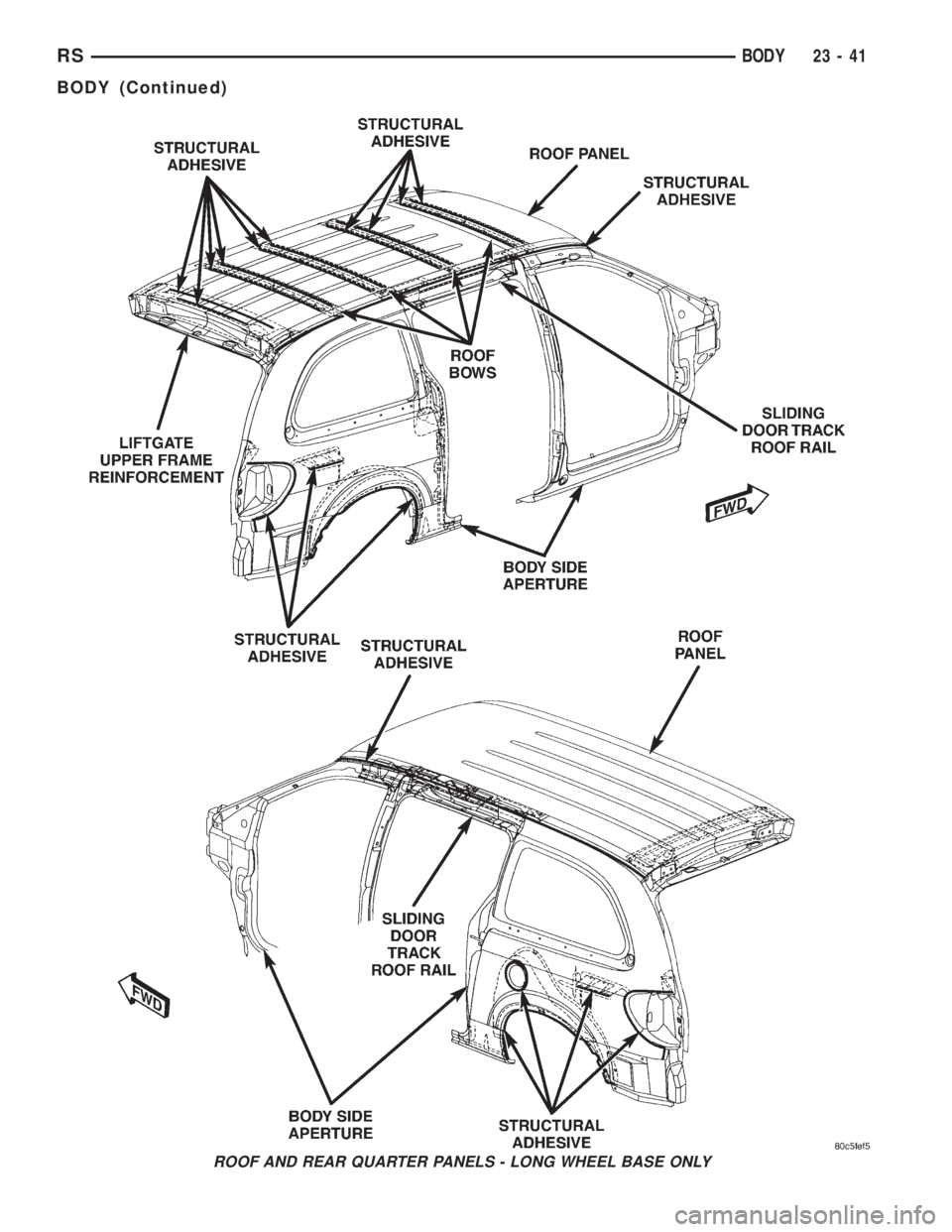

CHRYSLER VOYAGER 2001 Service Manual ROOF AND REAR QUARTER PANELS - LONG WHEEL BASE ONLY RSBODY23-41 BODY (Continued)

Page 3422 of 4284

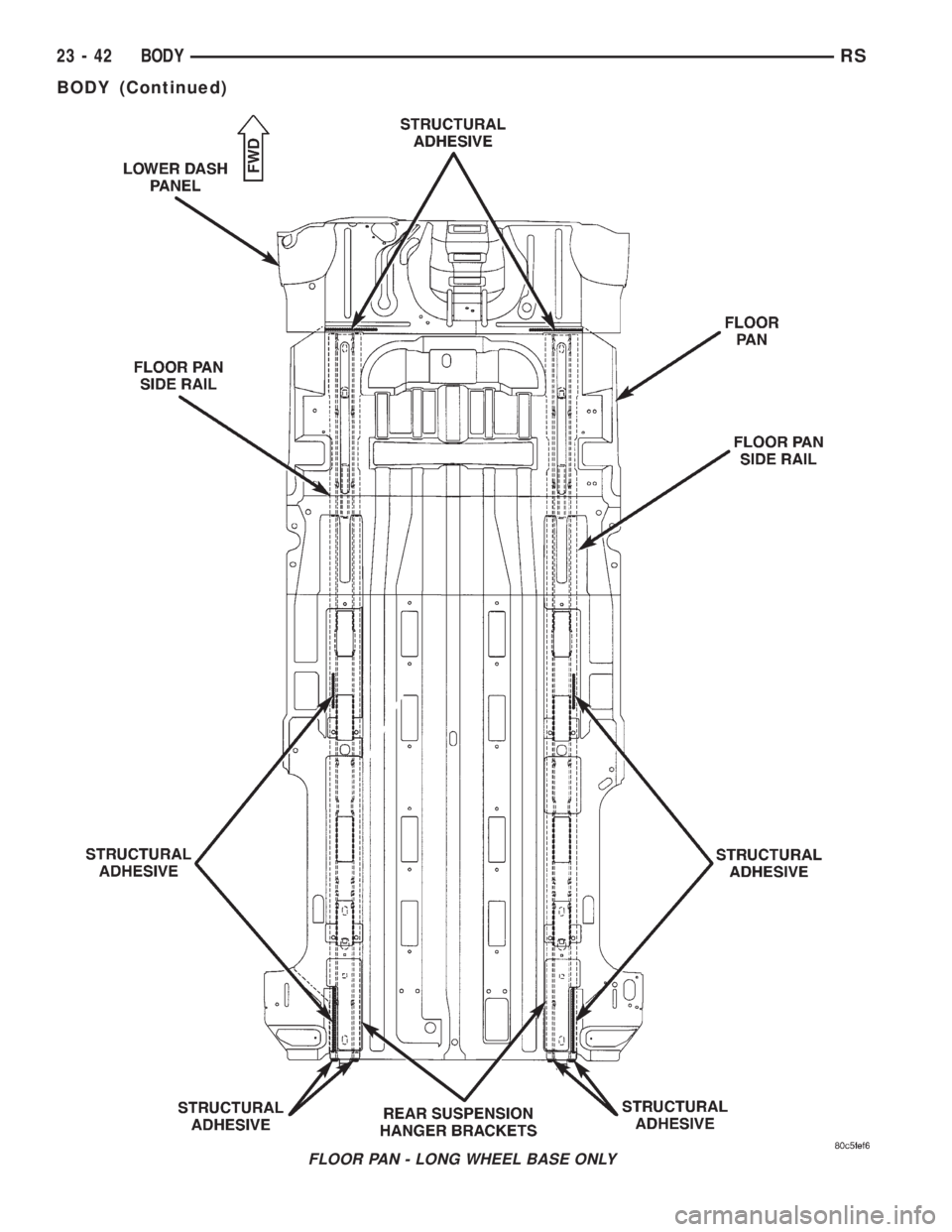

CHRYSLER VOYAGER 2001 Service Manual FLOOR PAN - LONG WHEEL BASE ONLY 23 - 42 BODYRS BODY (Continued)

Page 3423 of 4284

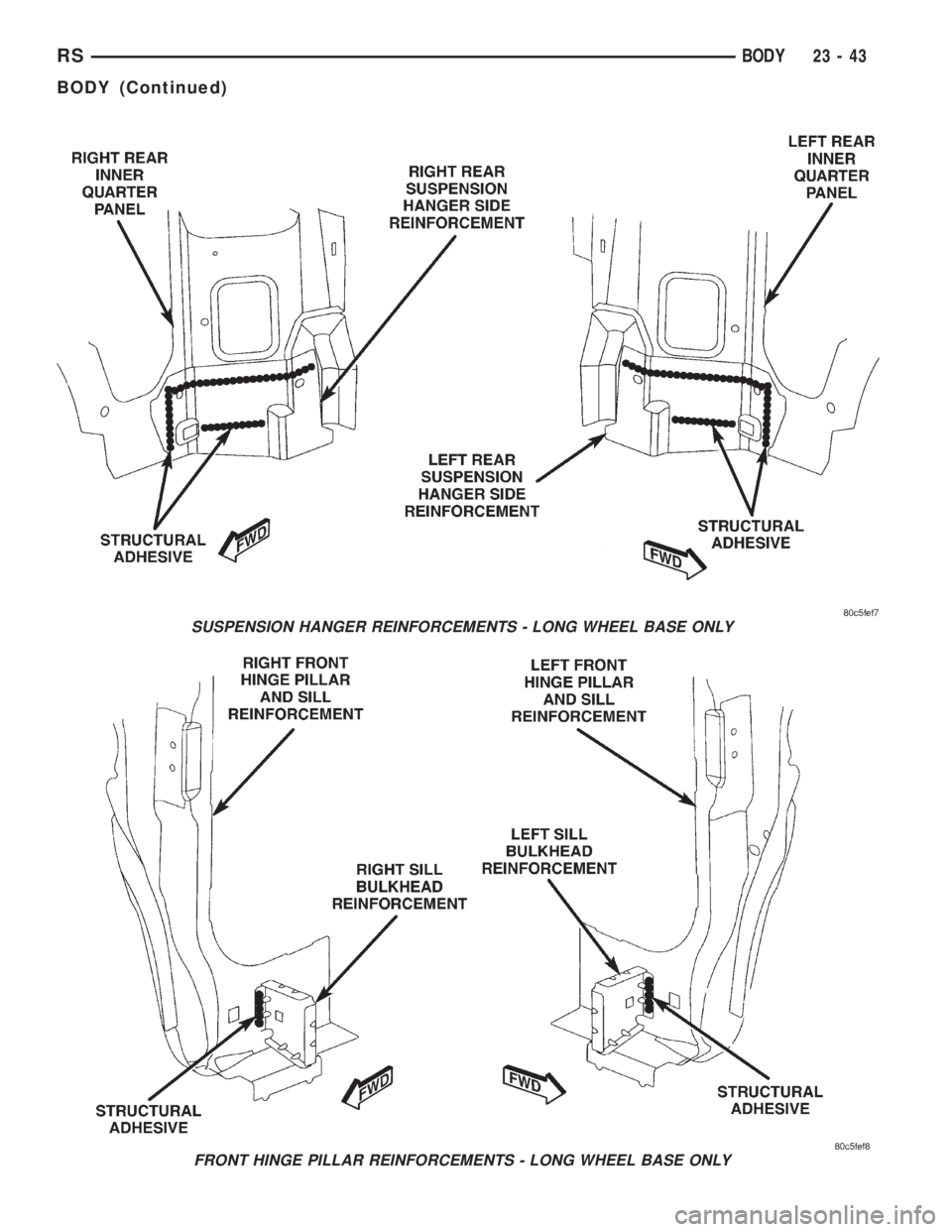

CHRYSLER VOYAGER 2001 Service Manual SUSPENSION HANGER REINFORCEMENTS - LONG WHEEL BASE ONLY FRONT HINGE PILLAR REINFORCEMENTS - LONG WHEEL BASE ONLY RSBODY23-43 BODY (Continued)

Page 3424 of 4284

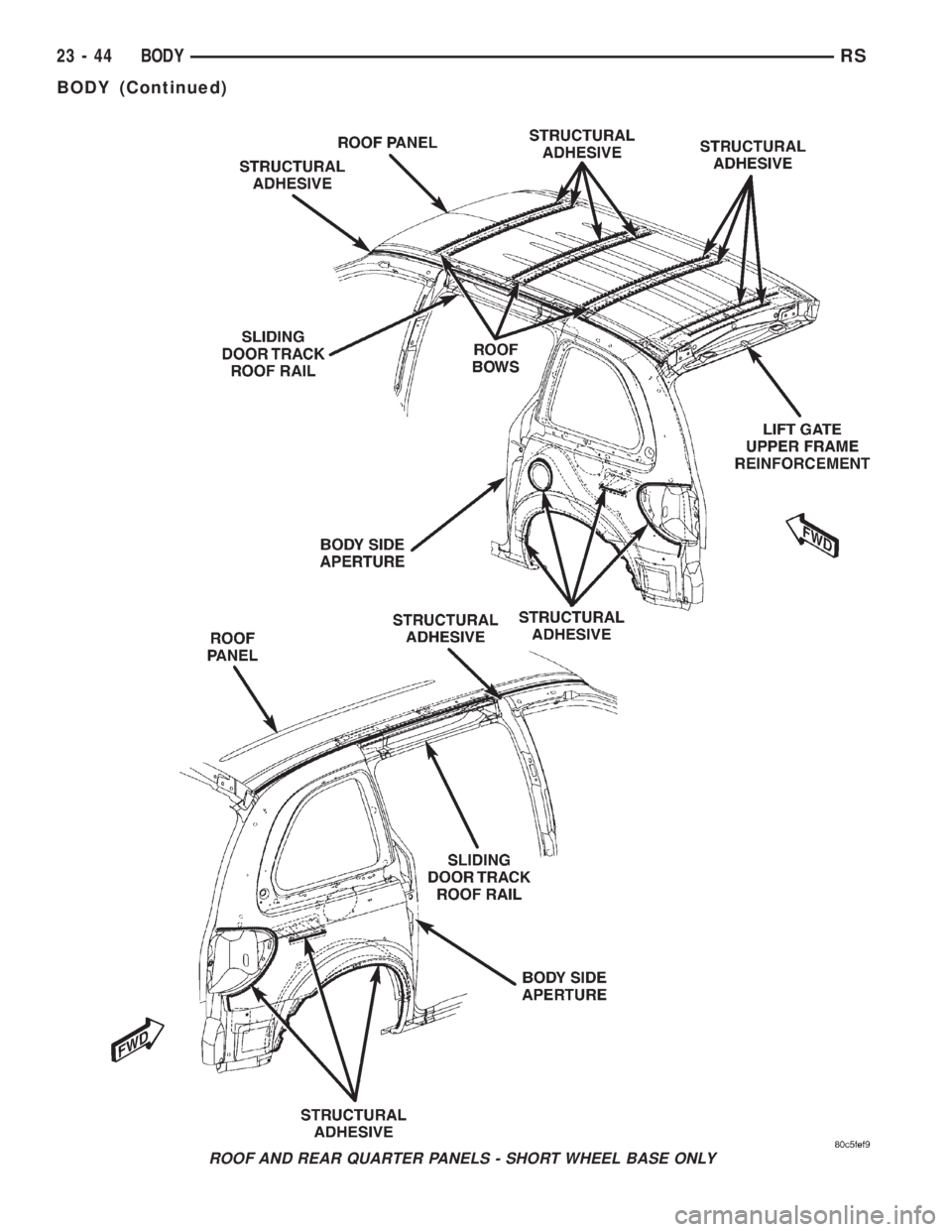

CHRYSLER VOYAGER 2001 Service Manual ROOF AND REAR QUARTER PANELS - SHORT WHEEL BASE ONLY 23 - 44 BODYRS BODY (Continued)
