Page 121 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
ORC, DRIVER SBT CIRCUIT SHORT - ACTIVE
When Monitored and Set Condition:
ORC, DRIVER SBT CIRCUIT SHORT - ACTIVE
When Monitored: When the ignition is on, the ORC monitors the resistance of the

Page 122 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver SBT.
Disconnect the Occupant Restraint Controller connector

Page 123 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
ORC, DRIVER SBT SHORT TO BATTERY - ACTIVE
When Monitored and Set Condition:
ORC, DRIVER SBT SHORT TO BATTERY - ACTIVE
When Monitored: When the ignition is on, the ORC monitors the voltage of

Page 124 of 4284

TEST ACTION APPLICABILITY
2WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver SBT.
Disconnect the Occupant Restraint Controller Connector.
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 ORC adaptor to the Occupant Restraint Controller
connector.
Turn Ignition On and then reconnect the Battery.
Measure the voltage of the Driver SBT Line 1 between the Driver SBT connector and
ground.
Is the voltage above 0.5 volts?All
Ye s®Repair Driver Seat Belt Tensioner Line 1 circuit shorted to
battery.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 3
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
3WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver SBT connector.
Disconnect the Occupant Restraint Controller connector.
NOTE: Check connectors - Clean and repair as necessary.
WARNING: TURN IGNITION ON, THEN RECONNECT THE BATTERY.
Measure the voltage of the Driver SBT Line 2 circuit between the Driver SBT
connector and ground.
Is the voltage above 0.5 volts?All
Ye s®Repair Driver Seat Belt Tensioner Line 2 circuit shorted to
battery.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 4
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
4WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Occupant Restraint Controller (ORC) in accordance
with the Service information. WARNING: Make sure the battery
is disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
95
AIRBAG
ORC, DRIVER SBT SHORT TO BATTERY - ACTIVE ÐContinued

Page 125 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
ORC, DRIVER SBT SHORT TO GROUND - ACTIVE
When Monitored and Set Condition:
ORC, DRIVER SBT SHORT TO GROUND - ACTIVE
When Monitored: When the ignition is on, the ORC monitors the voltage of th

Page 126 of 4284

TEST ACTION APPLICABILITY
2WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver SBT.
Disconnect the Occupant Restraint Controller Connector
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 ORC adaptor to the Occupant Restraint Controller
connector.
Measure the resistance of the Driver SBT Line 1 circuit between the Driver SBT
connector and ground.
Is the resistance below 5.0 Ohms?All
Ye s®Repair Driver Seat Belt Tensioner Line 1 circuit shorted to
ground.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 3
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
3WARNING: TURN IGNITION OFF, DISCONNECT THE BATTERY AND WAIT
TWO MINUTES BEFORE PROCEEDING.
Disconnect the Driver SBT connector.
Disconnect the Occupant Restraint Controller connector
NOTE: Check connectors - Clean and repair as necessary.
Connect the SRS Load Tool 8443 ORC adaptor to the Occupant Restraint Controller
connector.
Measure the resistance of the Driver SBT Line 2 circuit between the Driver SBT
connector and ground.
Is the resistance below 5.0 Ohms?All
Ye s®Repair Driver Seat Belt Tensioner Line 2 circuit for a short to
ground.
Perform AIRBAG VERIFICATION TEST - VER 1.
No®Go To 4
NOTE: When reconnecting airbag system components the Ignition must be
turned off and the Battery must be disconnected.
4WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: IF THE OCCUPANT RESTRAINT CONTROLLER IS DROPPED
AT ANY TIME, IT MUST BE REPLACED.
If there are no possible causes remaining, view repair.All
Repair
Replace the Occupant Restraint Controller (ORC) in accordance
with the Service information. WARNING: Make sure the battery
is disconnected and wait 2 minutes before proceeding.
Perform AIRBAG VERIFICATION TEST - VER 1.
NOTE: When reconnecting Airbag system components, the ignition must be
turned off and the battery must be disconnected.
97
AIRBAG
ORC, DRIVER SBT SHORT TO GROUND - ACTIVE ÐContinued

Page 127 of 4284

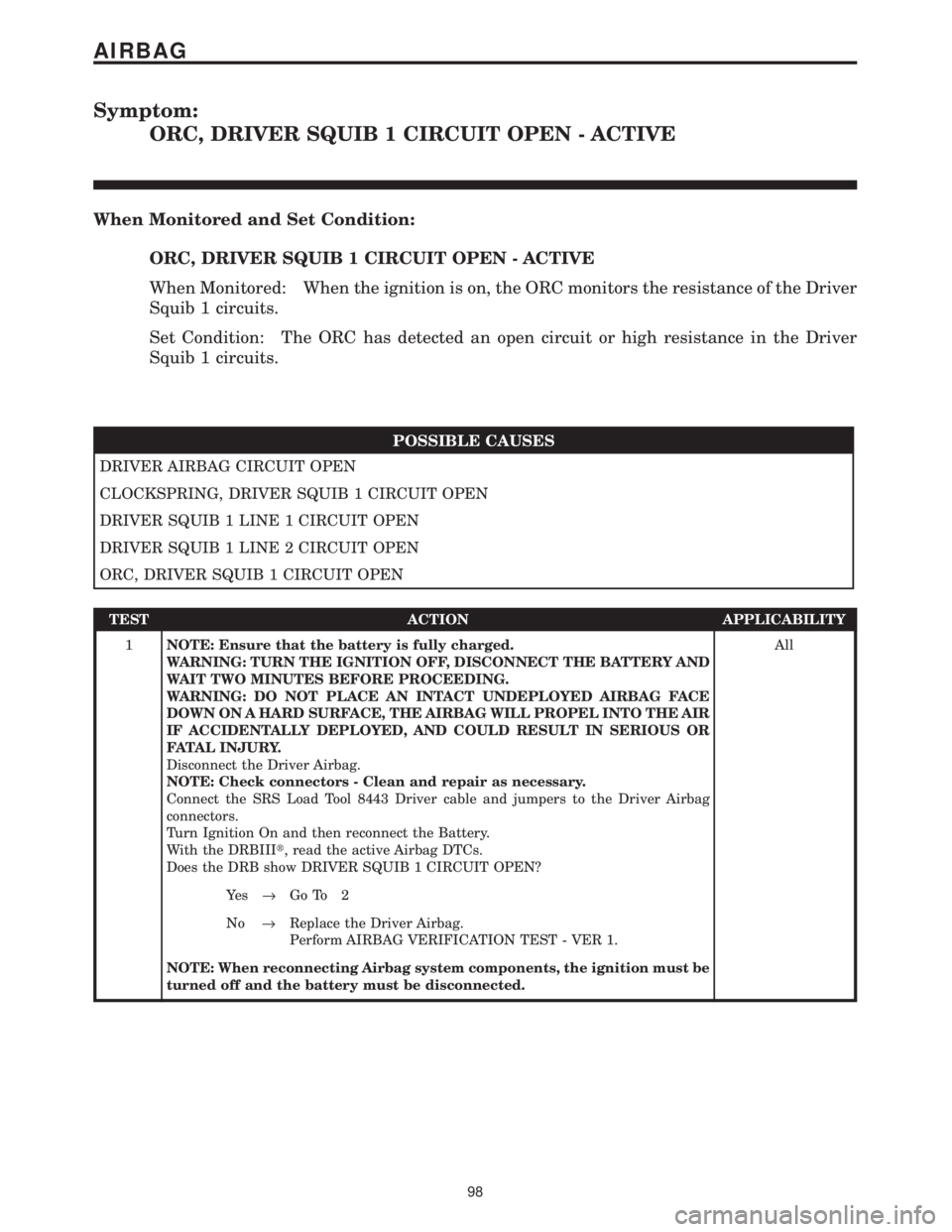

CHRYSLER VOYAGER 2001 Service Manual Symptom:
ORC, DRIVER SQUIB 1 CIRCUIT OPEN - ACTIVE
When Monitored and Set Condition:
ORC, DRIVER SQUIB 1 CIRCUIT OPEN - ACTIVE
When Monitored: When the ignition is on, the ORC monitors the resistance

Page 128 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2NOTE: Ensure that the battery is fully charged.
WARNING: TURN THE IGNITION OFF, DISCONNECT THE BATTERY AND
WAIT TWO MINUTES BEFORE PROCEEDING.
WARNING: DO NOT PLACE AN INTAC
