CHRYSLER VOYAGER 2001 Service Manual MEMORY SEAT/MIRROR MODULE C1 - GRAY 2 WAYCAV CIRCUIT FUNCTION 1 Z849 14BK/OR GROUND 2 A210 14OR/RD FUSED SEAT SWITCH DRIVER MEMORY SEAT/MIRROR MODULE C2 - GRAY 26 WAYCAV CIRCUIT FUNCTION 1 P69 20TN/WT

Page 1090 of 4284

CHRYSLER VOYAGER 2001 Service Manual MEMORY SEAT/MIRROR MODULE C4 - WHITE 12 WAYCAV CIRCUIT FUNCTION 1 P111 14LG/YL DRIVER SEAT REAR UP DRIVER 2 P115 14LG DRIVER SEAT HORIZONTAL FORWARD DRIVER 3 P119 14LG/DG DRIVER SEAT FRONT UP DRIVER 4

Page 1091 of 4284

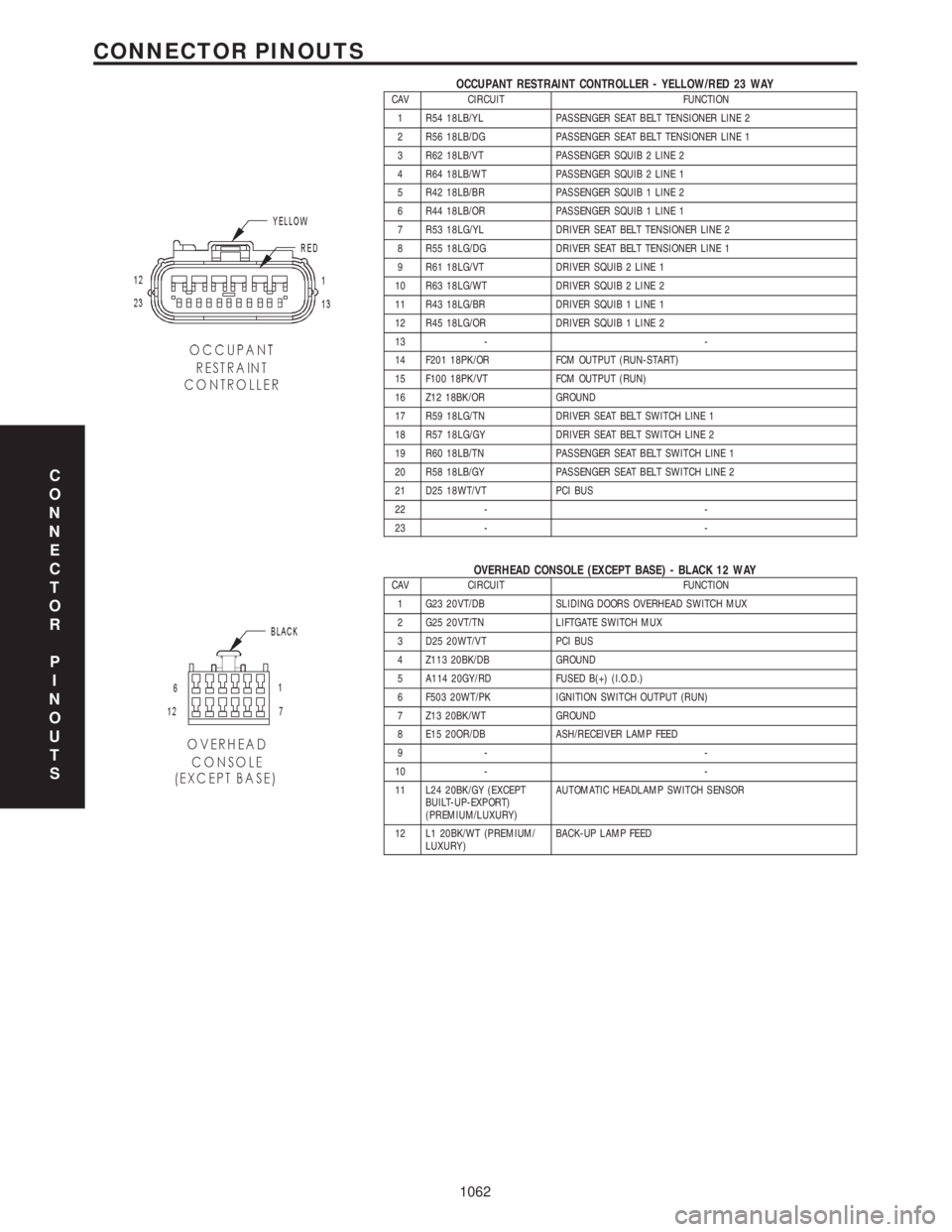

CHRYSLER VOYAGER 2001 Service Manual OCCUPANT RESTRAINT CONTROLLER - YELLOW/RED 23 WAYCAV CIRCUIT FUNCTION 1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2 2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1 3 R62 18LB/VT PASSENGER SQUI

Page 1092 of 4284

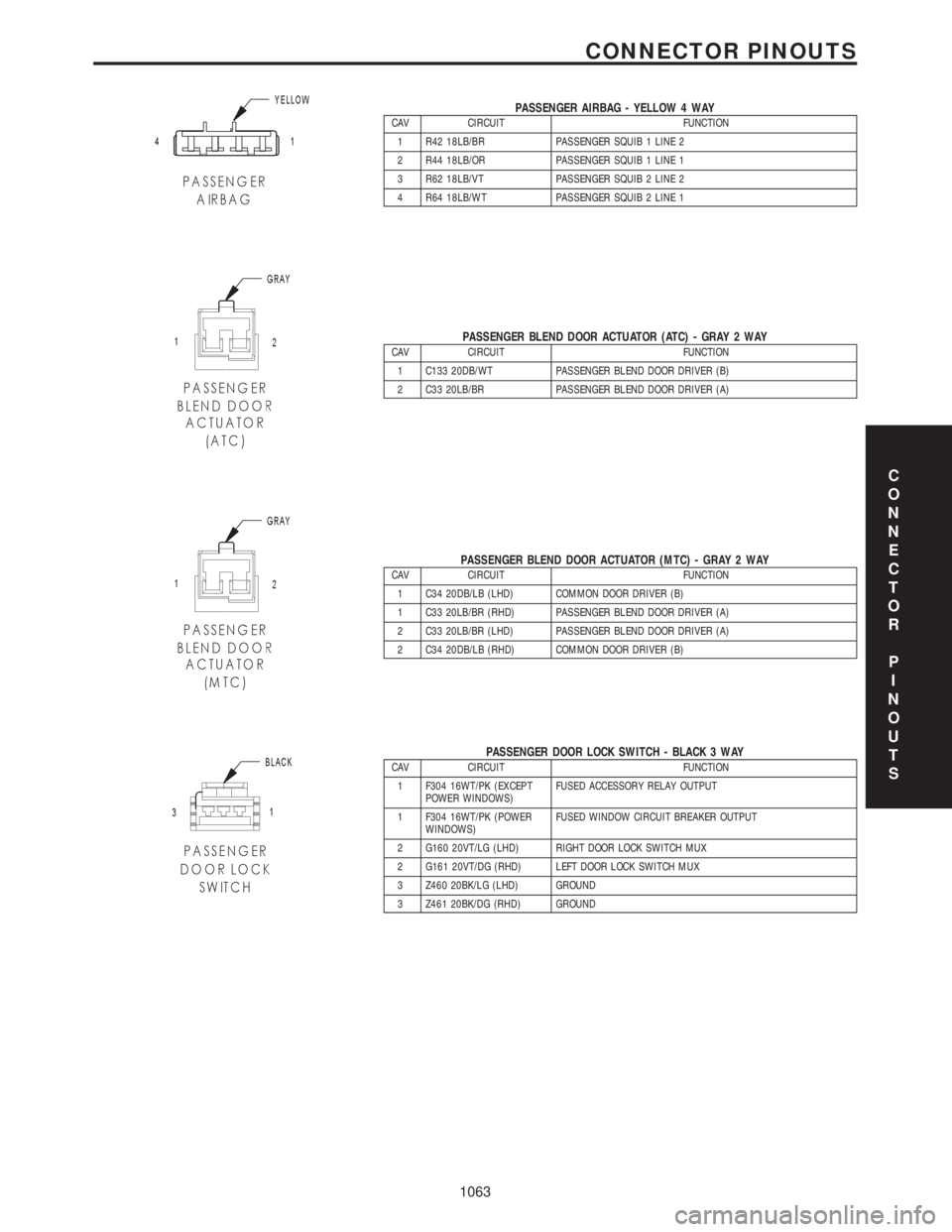

CHRYSLER VOYAGER 2001 Service Manual PASSENGER AIRBAG - YELLOW 4 WAYCAV CIRCUIT FUNCTION 1 R42 18LB/BR PASSENGER SQUIB 1 LINE 2 2 R44 18LB/OR PASSENGER SQUIB 1 LINE 1 3 R62 18LB/VT PASSENGER SQUIB 2 LINE 2 4 R64 18LB/WT PASSENGER SQUIB 2

Page 1093 of 4284

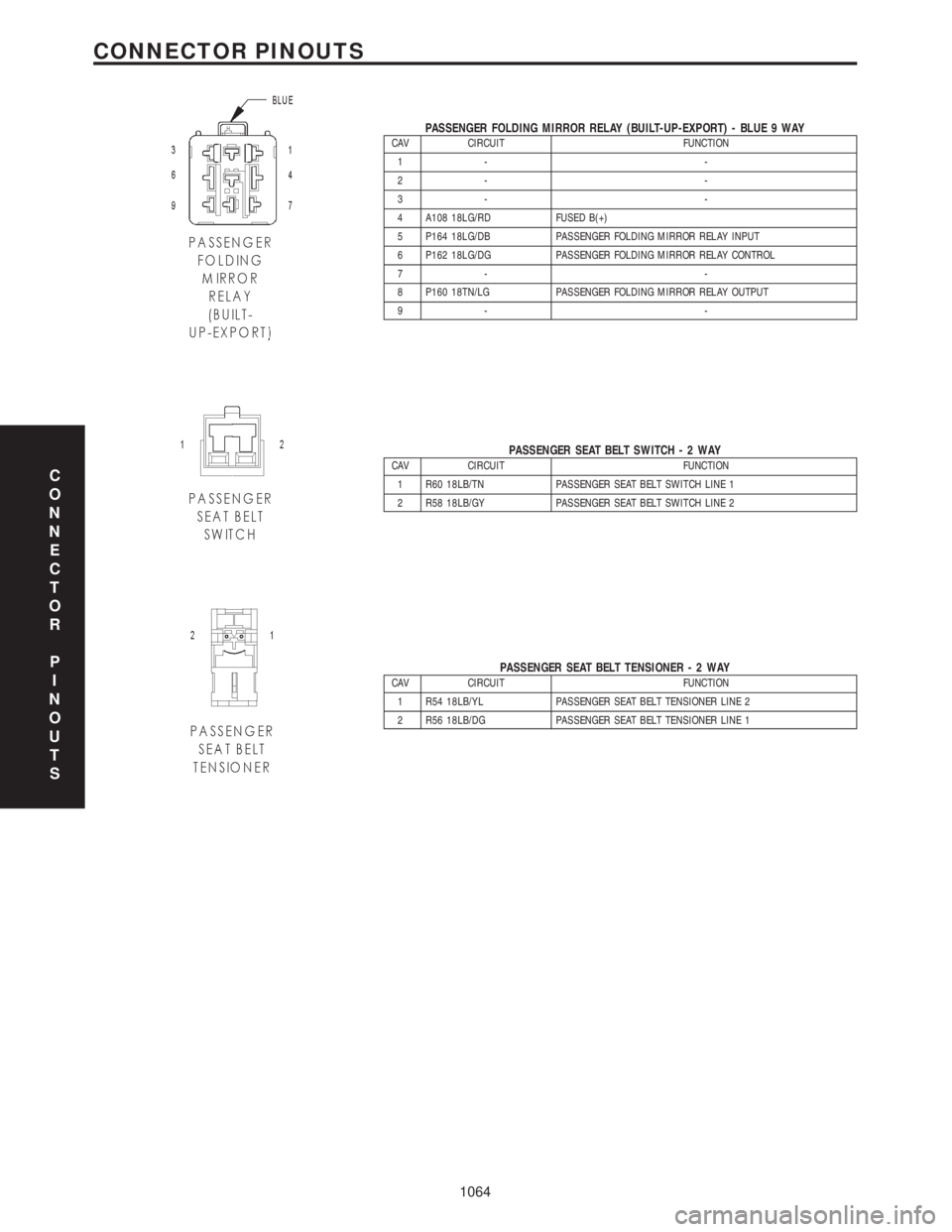

CHRYSLER VOYAGER 2001 Service Manual PASSENGER FOLDING MIRROR RELAY (BUILT-UP-EXPORT) - BLUE 9 WAYCAV CIRCUIT FUNCTION 1- - 2- - 3- - 4 A108 18LG/RD FUSED B(+) 5 P164 18LG/DB PASSENGER FOLDING MIRROR RELAY INPUT 6 P162 18LG/DG PASSENGER

Page 1094 of 4284

CHRYSLER VOYAGER 2001 Service Manual C O N N E C T O R P I N O U T S 1065 CONNECTOR PINOUTS

Page 1095 of 4284

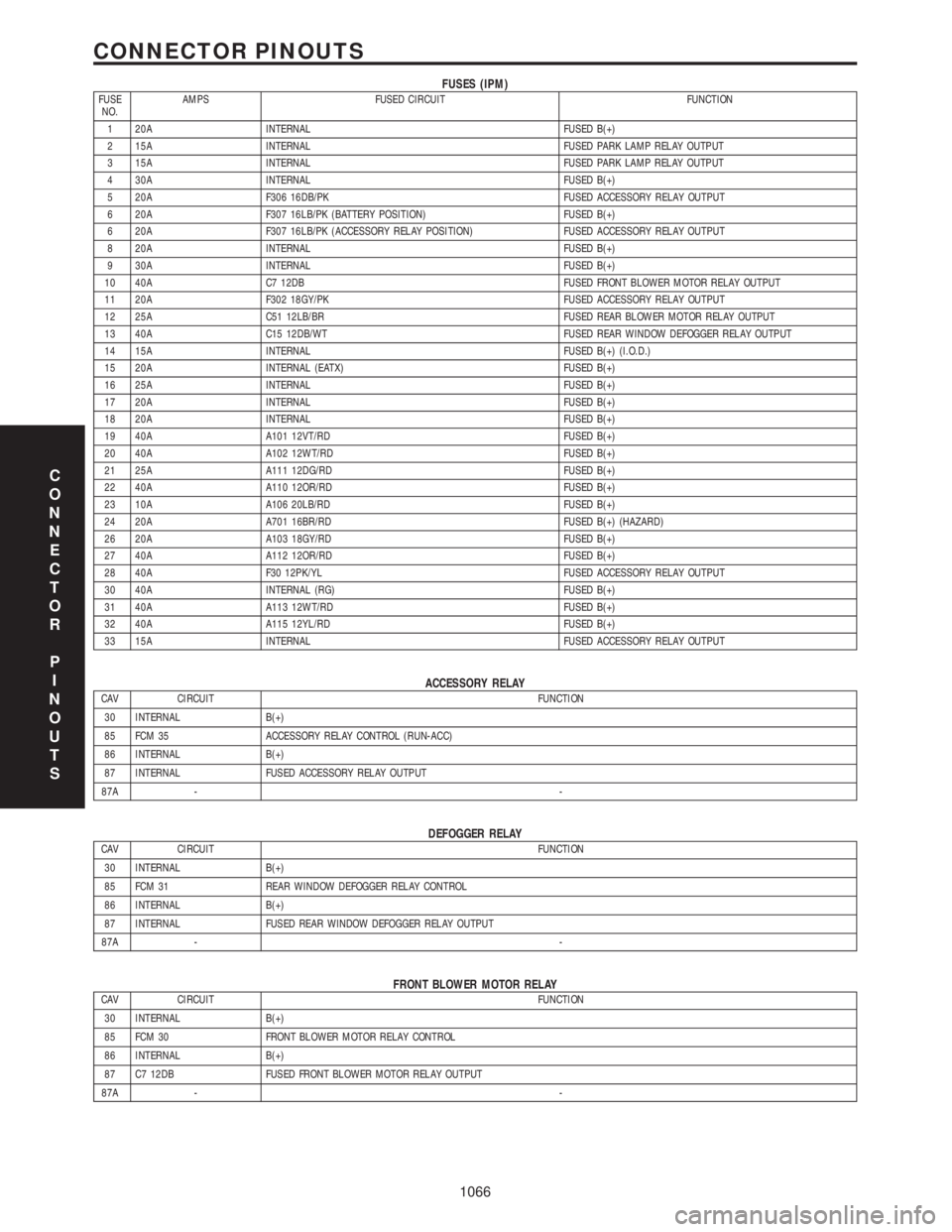

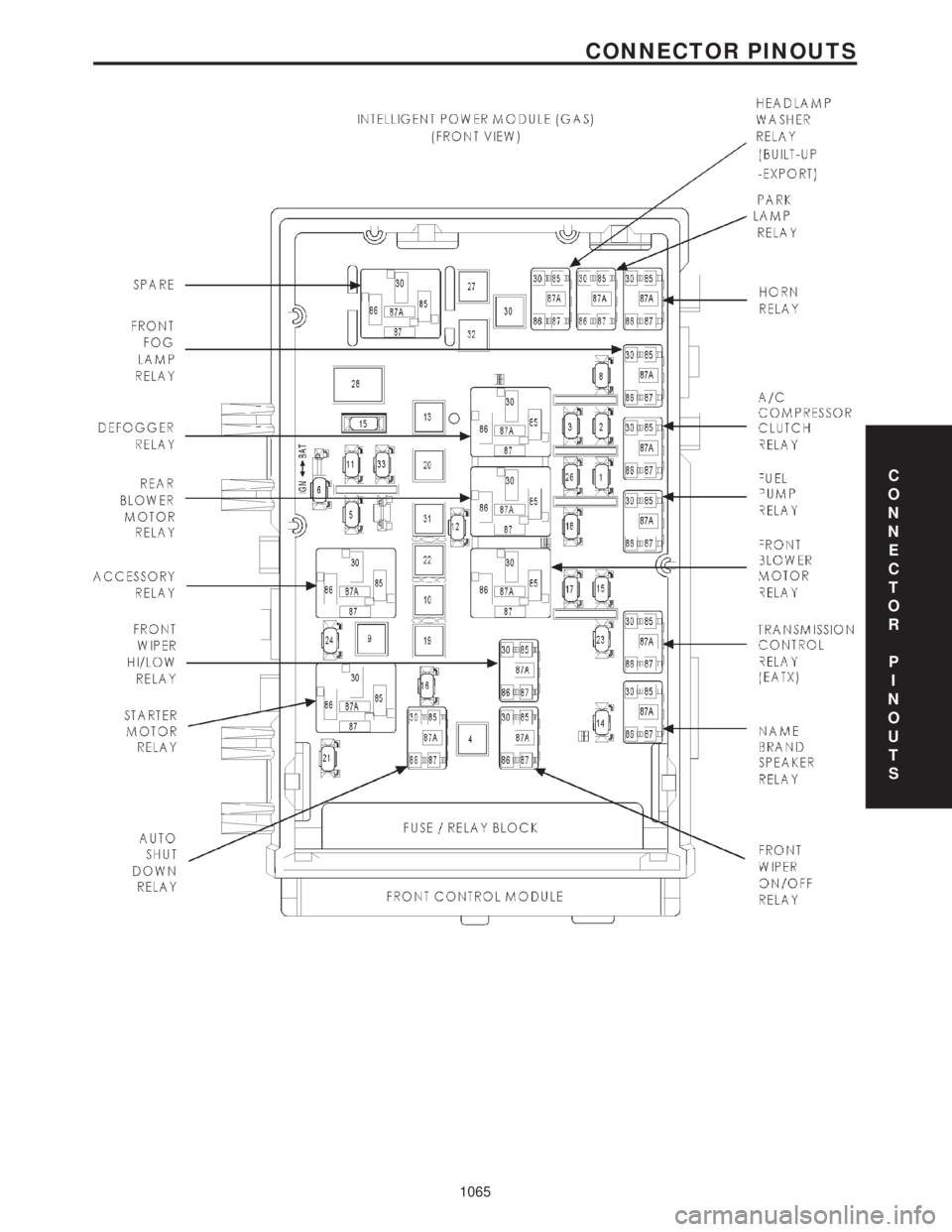

CHRYSLER VOYAGER 2001 Service Manual FUSES (IPM)FUSE NO.AMPS FUSED CIRCUIT FUNCTION 1 20A INTERNAL FUSED B(+) 2 15A INTERNAL FUSED PARK LAMP RELAY OUTPUT 3 15A INTERNAL FUSED PARK LAMP RELAY OUTPUT 4 30A INTERNAL FUSED B(+) 5 20A F306 16

Page 1096 of 4284

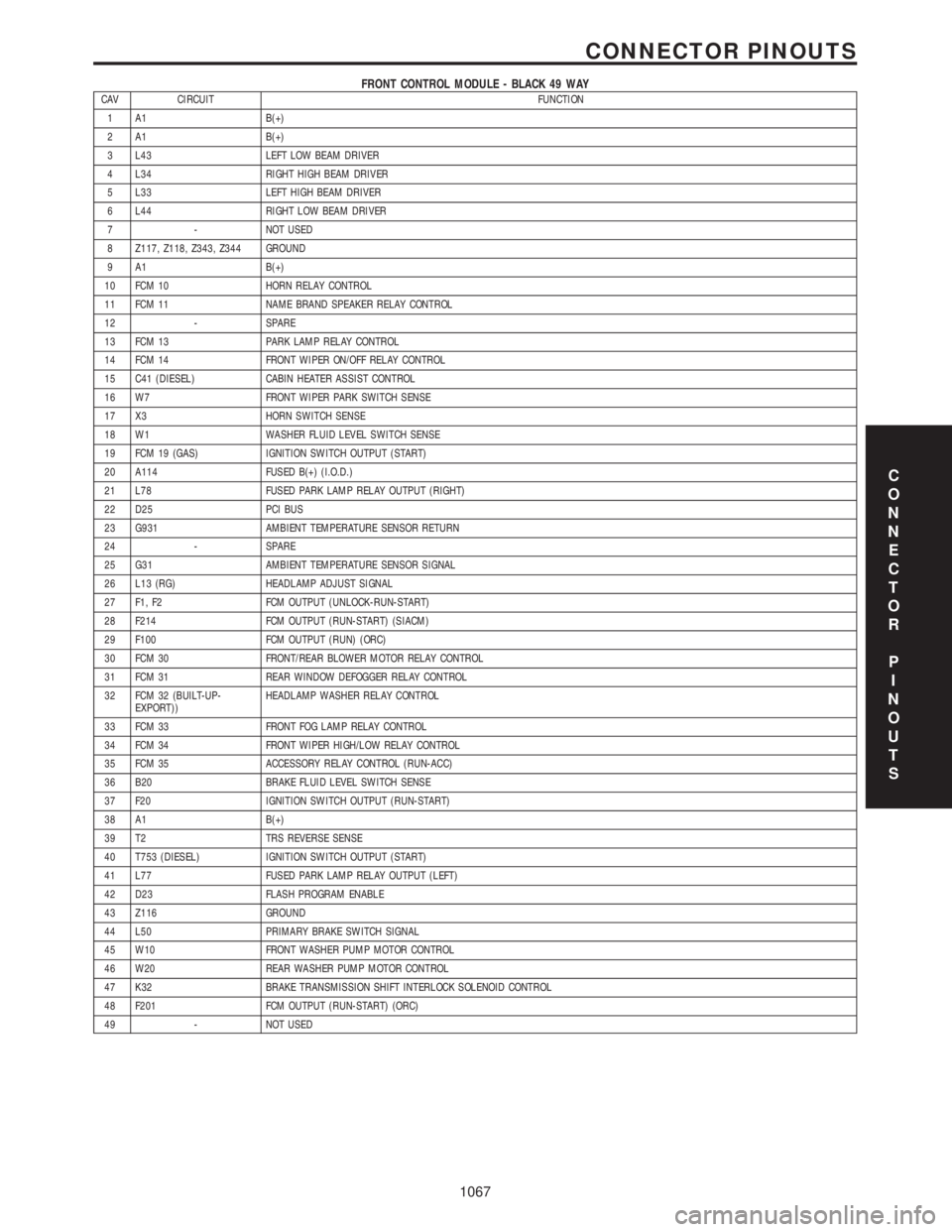

CHRYSLER VOYAGER 2001 Service Manual FRONT CONTROL MODULE - BLACK 49 WAYCAV CIRCUIT FUNCTION 1 A1 B(+) 2 A1 B(+) 3 L43 LEFT LOW BEAM DRIVER 4 L34 RIGHT HIGH BEAM DRIVER 5 L33 LEFT HIGH BEAM DRIVER 6 L44 RIGHT LOW BEAM DRIVER 7 - NOT USED
