CHRYSLER VOYAGER 2001 Service Manual REAR BLOWER REAR CONTROL SWITCH C1 (3 ZONE HVAC) - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 C153 12DB/BR REAR BLOWER MOTOR HIGH 2 C152 16LB/LG REAR BLOWER MOTOR MED 3 C151 18LB/DG REAR BLOWER MOTOR LOW 4 C5

Page 2546 of 4284

CHRYSLER VOYAGER 2001 Service Manual REAR TEMPERATURE MOTOR (ATC) - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 C54 18LB/YL REAR BLEND DOOR DRIVER (A) 2 C169 18LB/TN REAR BLEND DOOR DRIVER (B) REAR WASHER PUMP MOTOR - BLACK 2 WAY CAV CIRCUIT FUNCT

Page 2547 of 4284

CHRYSLER VOYAGER 2001 Service Manual REMOTE KEYLESS ENTRY ANTENNA (JAPAN) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 D10 18WT REMOTE KEYLESS ENTRY ANTENNA (+) 2 D10 18WT/LB REMOTE KEYLESS ENTRY ANTENNA (-) REMOTE KEYLESS ENTRY MODULE - BLACK/R

Page 2548 of 4284

CHRYSLER VOYAGER 2001 Service Manual RIGHT CYLINDER LOCK SWITCH - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 Z462 20BK/WT GROUND 2 G162 20VT/WT RIGHT CYLINDER LOCK SWITCH MUX RIGHT DOOR SPEAKER - BLACK/RED 6 WAY CAV CIRCUIT FUNCTION 1 X154 20GY/

Page 2549 of 4284

CHRYSLER VOYAGER 2001 Service Manual RIGHT FRONT PARK/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER 2 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT) 3 Z378 18B

Page 2550 of 4284

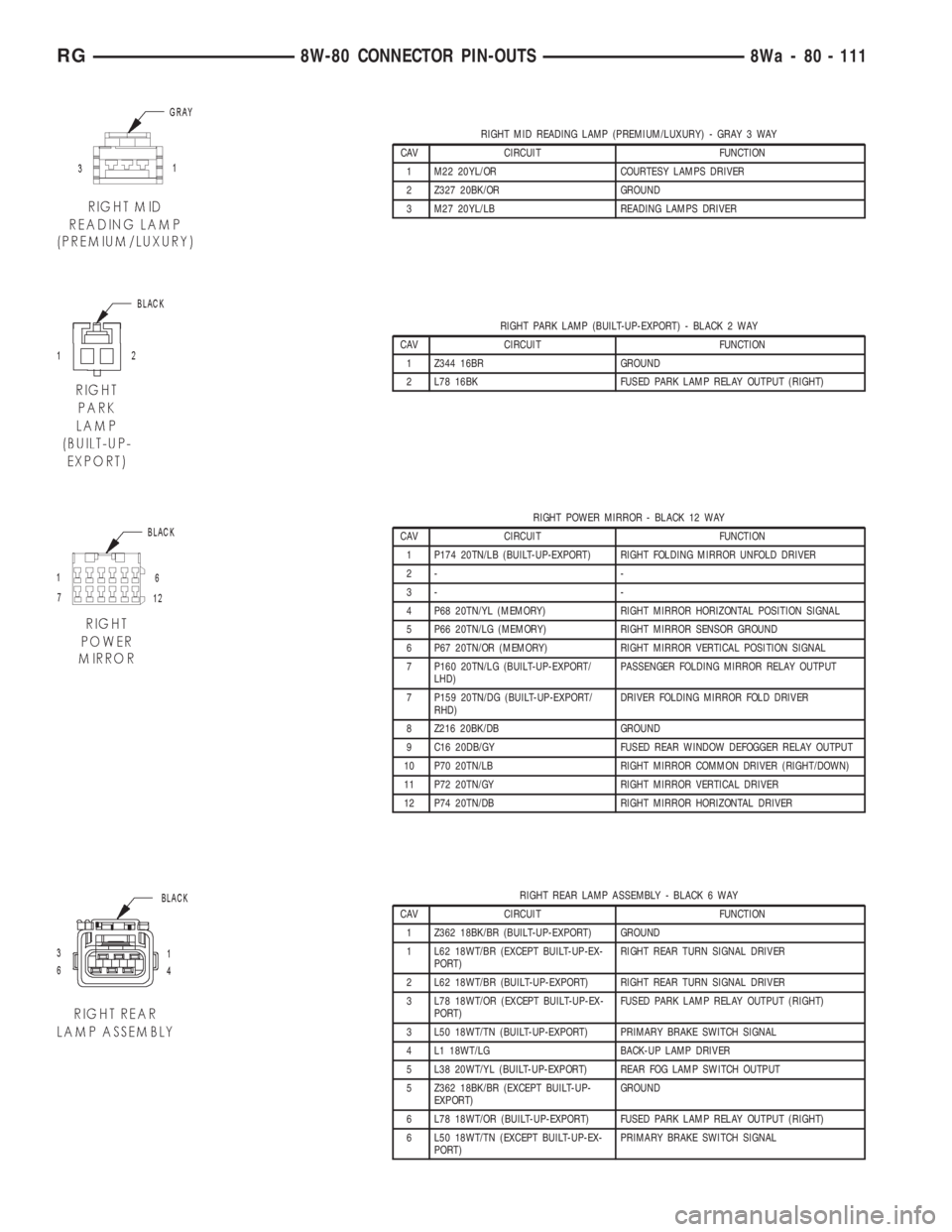

CHRYSLER VOYAGER 2001 Service Manual RIGHT HEADLAMP LEVELING MOTOR (BUILT-UP-EXPORT) - WHITE 3 WAY CAV CIRCUIT FUNCTION 1 Z203 16BR GROUND 2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT) 3 L13 16RD HEADLAMP ADJUST SIGNAL RIGHT HIGH BEAM

Page 2551 of 4284

CHRYSLER VOYAGER 2001 Service Manual RIGHT MID READING LAMP (PREMIUM/LUXURY) - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 M22 20YL/OR COURTESY LAMPS DRIVER 2 Z327 20BK/OR GROUND 3 M27 20YL/LB READING LAMPS DRIVER RIGHT PARK LAMP (BUILT-UP-EXPORT)

Page 2552 of 4284

CHRYSLER VOYAGER 2001 Service Manual RIGHT REAR PILLAR SPEAKER - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 X158 20GY/YL RIGHT REAR PILLAR SPEAKER (+) 2 X152 20GY/WT RIGHT REAR PILLAR SPEAKER (-) RIGHT REAR READING LAMP (LUXURY) - GRAY 3 WAY CAV
