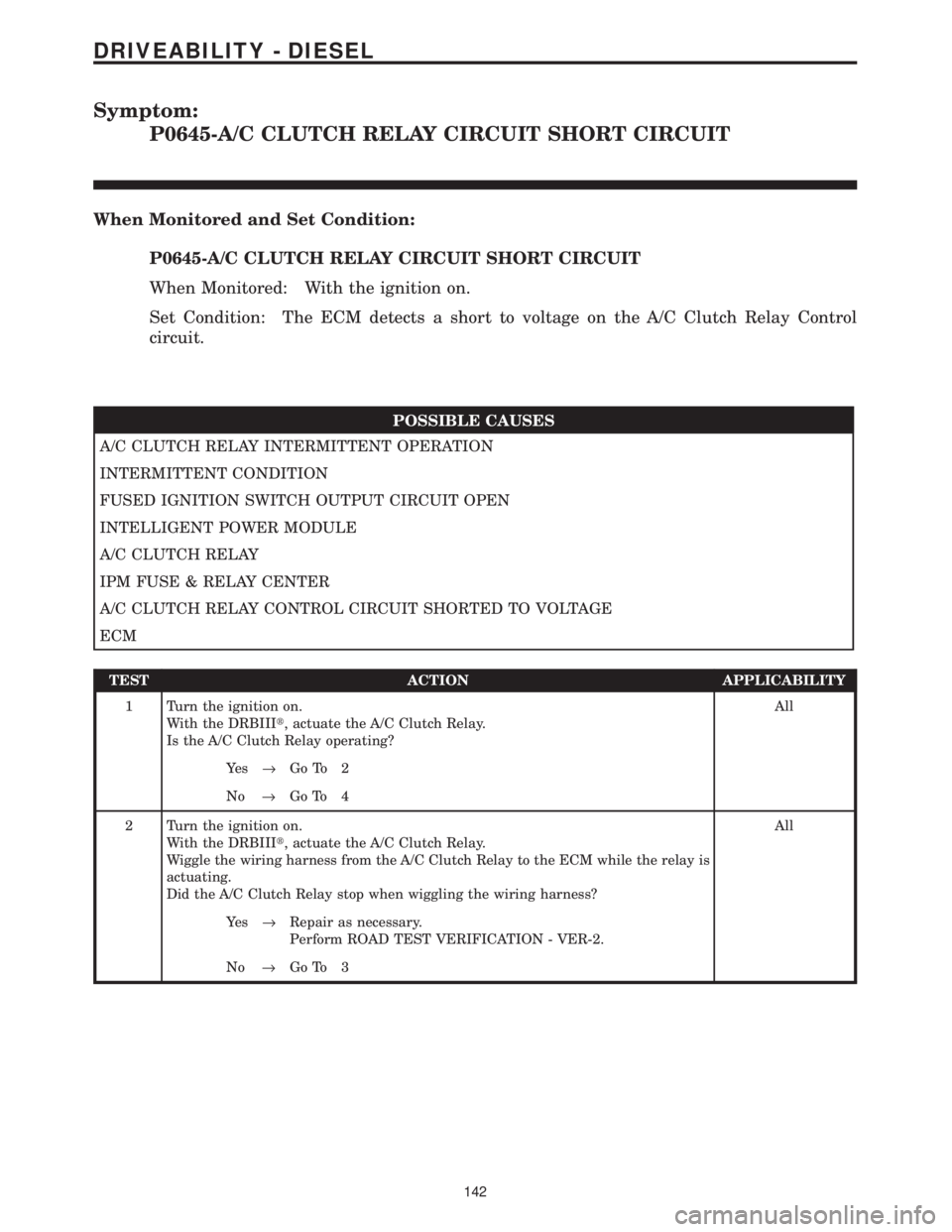

Symptom:
P0645-A/C CLUTCH RELAY CIRCUIT SHORT CIRCUIT
When Monitored and Set Condition:
P0645-A/C CLUTCH RELAY CIRCUIT SHORT CIRCUIT
When Monitored: With the ignition on.
Set Condition: The ECM detects a short to voltage on the A/C Clutch Relay Control
circuit.
POSSIBLE CAUSES
A/C CLUTCH RELAY INTERMITTENT OPERATION
INTERMITTENT CONDITION
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
INTELLIGENT POWER MODULE
A/C CLUTCH RELAY
IPM FUSE & RELAY CENTER
A/C CLUTCH RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE
ECM
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRBIIIt, actuate the A/C Clutch Relay.
Is the A/C Clutch Relay operating?All
Ye s®Go To 2
No®Go To 4
2 Turn the ignition on.
With the DRBIIIt, actuate the A/C Clutch Relay.
Wiggle the wiring harness from the A/C Clutch Relay to the ECM while the relay is
actuating.
Did the A/C Clutch Relay stop when wiggling the wiring harness?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 3
142

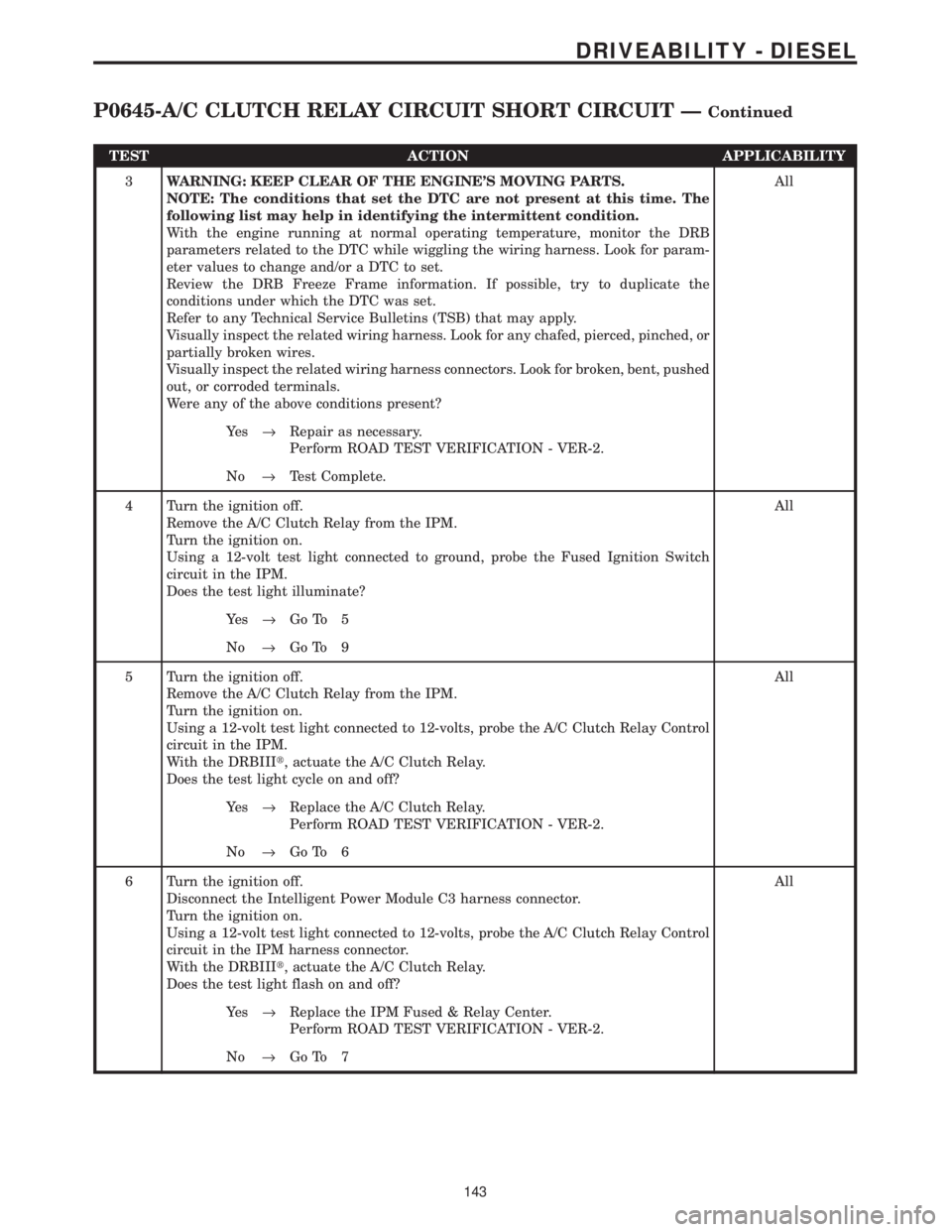

DRIVEABILITY - DIESEL
Page 1362 of 4284

TEST ACTION APPLICABILITY
3WARNING: KEEP CLEAR OF THE ENGINE'S MOVING PARTS.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DRB Freeze Frame information. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Test Complete.
4 Turn the ignition off.
Remove the A/C Clutch Relay from the IPM.
Turn the ignition on.
Using a 12-volt test light connected to ground, probe the Fused Ignition Switch
circuit in the IPM.
Does the test light illuminate?All
Ye s®Go To 5
No®Go To 9
5 Turn the ignition off.
Remove the A/C Clutch Relay from the IPM.
Turn the ignition on.
Using a 12-volt test light connected to 12-volts, probe the A/C Clutch Relay Control
circuit in the IPM.
With the DRBIIIt, actuate the A/C Clutch Relay.
Does the test light cycle on and off?All
Ye s®Replace the A/C Clutch Relay.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 6
6 Turn the ignition off.
Disconnect the Intelligent Power Module C3 harness connector.
Turn the ignition on.
Using a 12-volt test light connected to 12-volts, probe the A/C Clutch Relay Control
circuit in the IPM harness connector.
With the DRBIIIt, actuate the A/C Clutch Relay.
Does the test light flash on and off?All
Ye s®Replace the IPM Fused & Relay Center.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 7
143

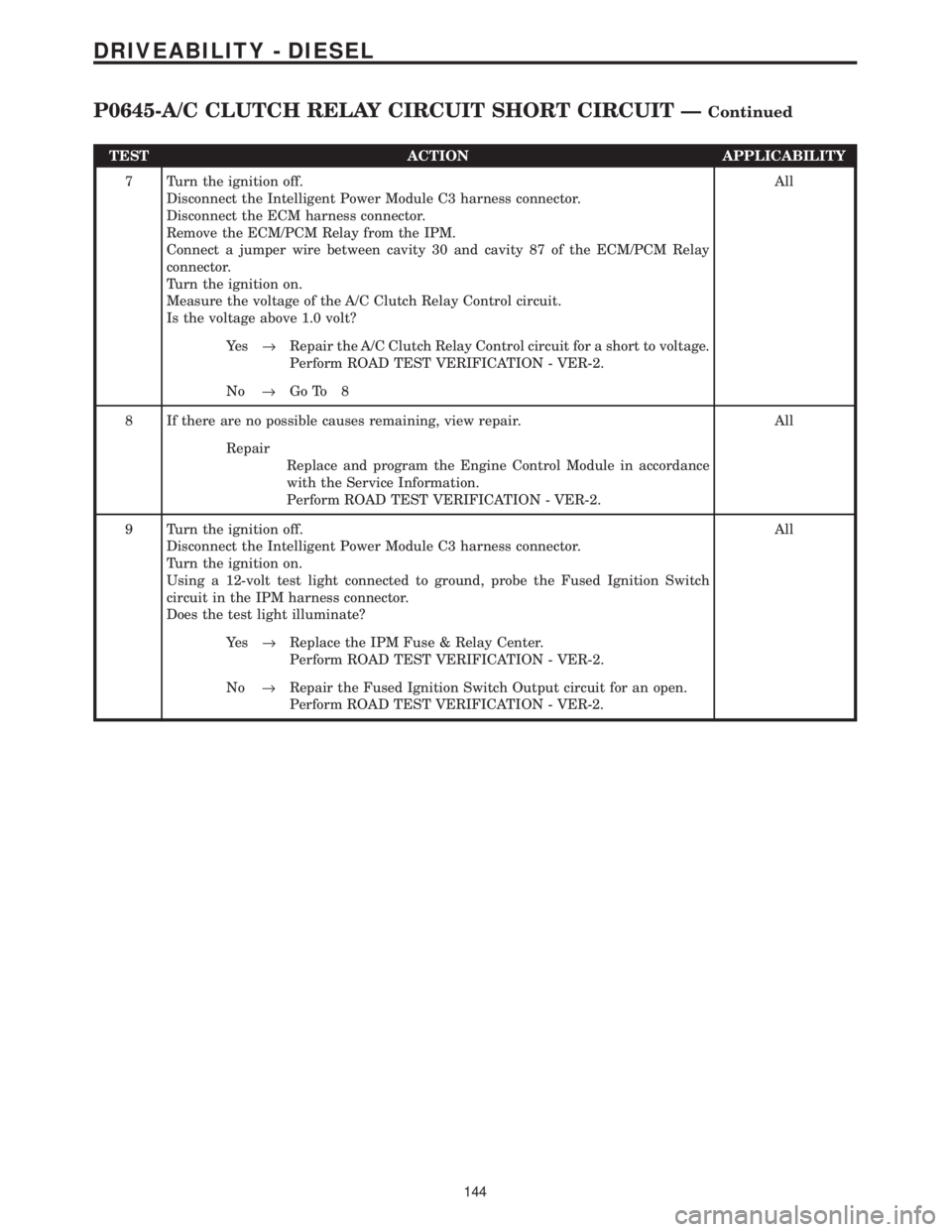

DRIVEABILITY - DIESEL
P0645-A/C CLUTCH RELAY CIRCUIT SHORT CIRCUIT ÐContinued
Page 1363 of 4284

TEST ACTION APPLICABILITY
7 Turn the ignition off.
Disconnect the Intelligent Power Module C3 harness connector.
Disconnect the ECM harness connector.
Remove the ECM/PCM Relay from the IPM.
Connect a jumper wire between cavity 30 and cavity 87 of the ECM/PCM Relay
connector.
Turn the ignition on.
Measure the voltage of the A/C Clutch Relay Control circuit.
Is the voltage above 1.0 volt?All
Ye s®Repair the A/C Clutch Relay Control circuit for a short to voltage.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 8
8 If there are no possible causes remaining, view repair. All
Repair
Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
9 Turn the ignition off.
Disconnect the Intelligent Power Module C3 harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, probe the Fused Ignition Switch
circuit in the IPM harness connector.
Does the test light illuminate?All
Ye s®Replace the IPM Fuse & Relay Center.
Perform ROAD TEST VERIFICATION - VER-2.
No®Repair the Fused Ignition Switch Output circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
144

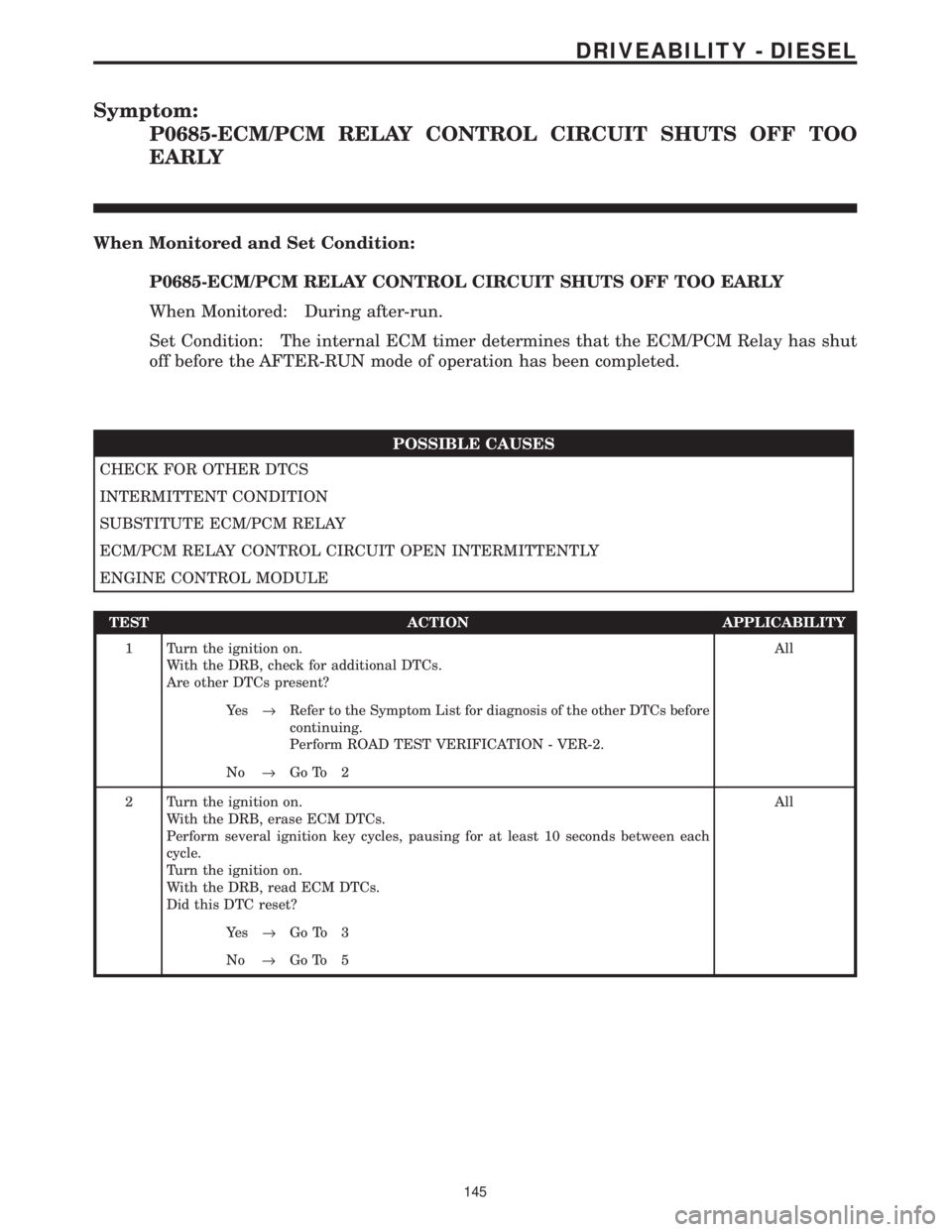

DRIVEABILITY - DIESEL
P0645-A/C CLUTCH RELAY CIRCUIT SHORT CIRCUIT ÐContinued
Page 1364 of 4284

Symptom:
P0685-ECM/PCM RELAY CONTROL CIRCUIT SHUTS OFF TOO
EARLY
When Monitored and Set Condition:
P0685-ECM/PCM RELAY CONTROL CIRCUIT SHUTS OFF TOO EARLY
When Monitored: During after-run.
Set Condition: The internal ECM timer determines that the ECM/PCM Relay has shut
off before the AFTER-RUN mode of operation has been completed.
POSSIBLE CAUSES
CHECK FOR OTHER DTCS
INTERMITTENT CONDITION
SUBSTITUTE ECM/PCM RELAY
ECM/PCM RELAY CONTROL CIRCUIT OPEN INTERMITTENTLY
ENGINE CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, check for additional DTCs.
Are other DTCs present?All
Ye s®Refer to the Symptom List for diagnosis of the other DTCs before
continuing.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 2
2 Turn the ignition on.
With the DRB, erase ECM DTCs.
Perform several ignition key cycles, pausing for at least 10 seconds between each
cycle.
Turn the ignition on.
With the DRB, read ECM DTCs.
Did this DTC reset?All
Ye s®Go To 3
No®Go To 5
145

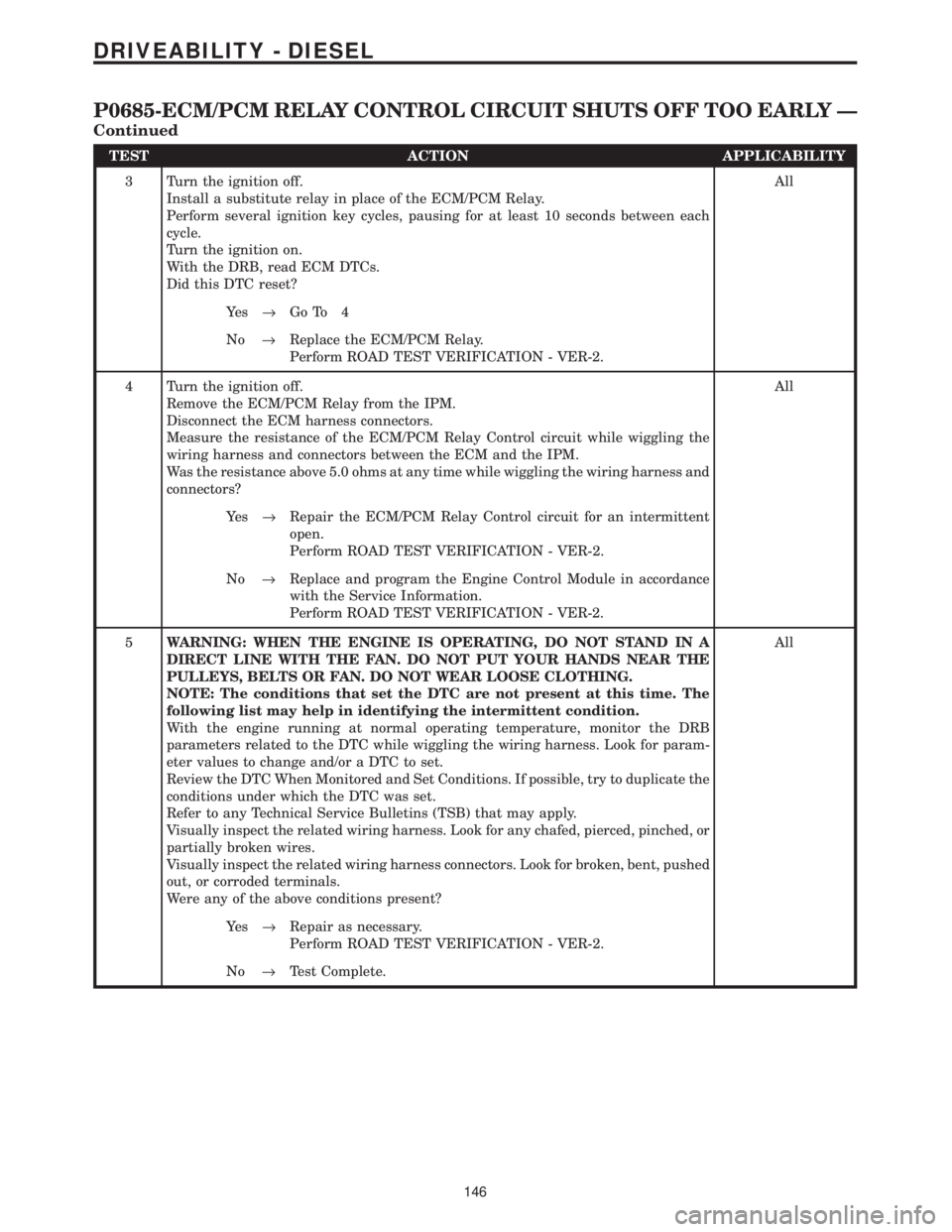

DRIVEABILITY - DIESEL
Page 1365 of 4284

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Install a substitute relay in place of the ECM/PCM Relay.
Perform several ignition key cycles, pausing for at least 10 seconds between each
cycle.
Turn the ignition on.
With the DRB, read ECM DTCs.
Did this DTC reset?All
Ye s®Go To 4
No®Replace the ECM/PCM Relay.
Perform ROAD TEST VERIFICATION - VER-2.
4 Turn the ignition off.
Remove the ECM/PCM Relay from the IPM.
Disconnect the ECM harness connectors.
Measure the resistance of the ECM/PCM Relay Control circuit while wiggling the
wiring harness and connectors between the ECM and the IPM.
Was the resistance above 5.0 ohms at any time while wiggling the wiring harness and
connectors?All
Ye s®Repair the ECM/PCM Relay Control circuit for an intermittent
open.
Perform ROAD TEST VERIFICATION - VER-2.
No®Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
5WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Test Complete.
146

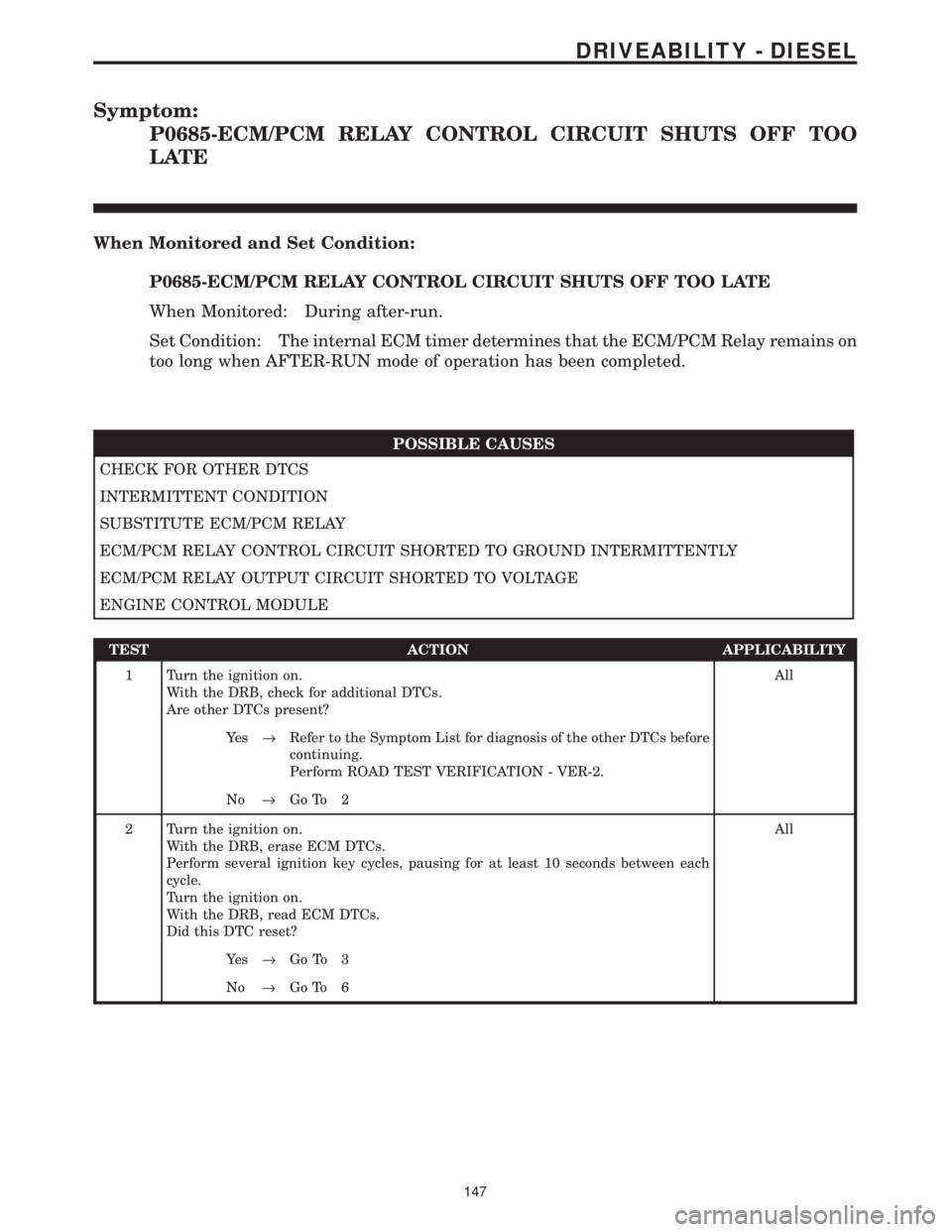

DRIVEABILITY - DIESEL
P0685-ECM/PCM RELAY CONTROL CIRCUIT SHUTS OFF TOO EARLY Ð
Continued
Page 1366 of 4284

Symptom:
P0685-ECM/PCM RELAY CONTROL CIRCUIT SHUTS OFF TOO
LATE
When Monitored and Set Condition:
P0685-ECM/PCM RELAY CONTROL CIRCUIT SHUTS OFF TOO LATE
When Monitored: During after-run.
Set Condition: The internal ECM timer determines that the ECM/PCM Relay remains on
too long when AFTER-RUN mode of operation has been completed.
POSSIBLE CAUSES
CHECK FOR OTHER DTCS
INTERMITTENT CONDITION
SUBSTITUTE ECM/PCM RELAY
ECM/PCM RELAY CONTROL CIRCUIT SHORTED TO GROUND INTERMITTENTLY
ECM/PCM RELAY OUTPUT CIRCUIT SHORTED TO VOLTAGE
ENGINE CONTROL MODULE
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, check for additional DTCs.
Are other DTCs present?All
Ye s®Refer to the Symptom List for diagnosis of the other DTCs before
continuing.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 2
2 Turn the ignition on.
With the DRB, erase ECM DTCs.
Perform several ignition key cycles, pausing for at least 10 seconds between each
cycle.
Turn the ignition on.
With the DRB, read ECM DTCs.
Did this DTC reset?All
Ye s®Go To 3
No®Go To 6
147

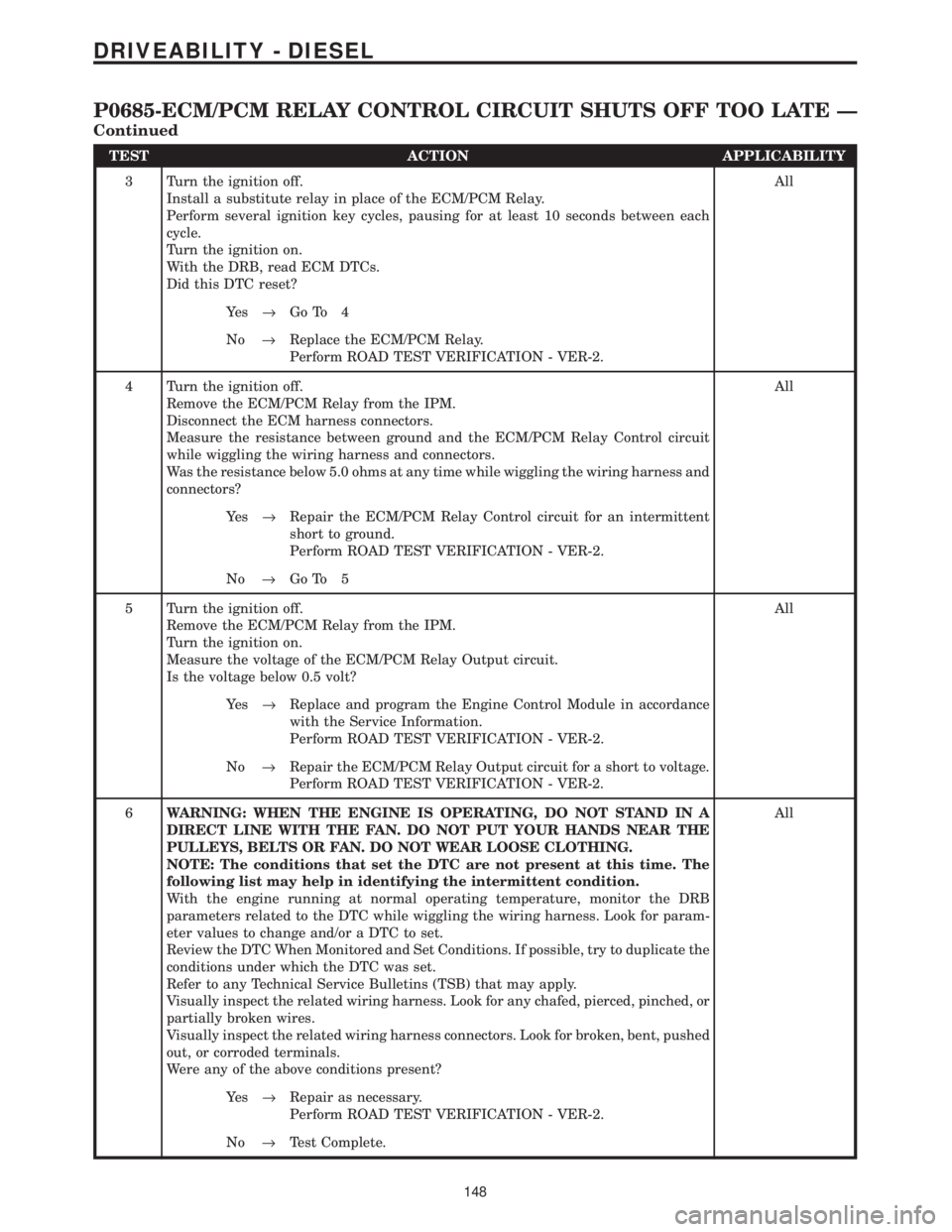

DRIVEABILITY - DIESEL
Page 1367 of 4284

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Install a substitute relay in place of the ECM/PCM Relay.
Perform several ignition key cycles, pausing for at least 10 seconds between each
cycle.
Turn the ignition on.
With the DRB, read ECM DTCs.
Did this DTC reset?All
Ye s®Go To 4
No®Replace the ECM/PCM Relay.
Perform ROAD TEST VERIFICATION - VER-2.
4 Turn the ignition off.
Remove the ECM/PCM Relay from the IPM.
Disconnect the ECM harness connectors.
Measure the resistance between ground and the ECM/PCM Relay Control circuit
while wiggling the wiring harness and connectors.
Was the resistance below 5.0 ohms at any time while wiggling the wiring harness and
connectors?All
Ye s®Repair the ECM/PCM Relay Control circuit for an intermittent
short to ground.
Perform ROAD TEST VERIFICATION - VER-2.
No®Go To 5
5 Turn the ignition off.
Remove the ECM/PCM Relay from the IPM.
Turn the ignition on.
Measure the voltage of the ECM/PCM Relay Output circuit.
Is the voltage below 0.5 volt?All
Ye s®Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
No®Repair the ECM/PCM Relay Output circuit for a short to voltage.
Perform ROAD TEST VERIFICATION - VER-2.
6WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Test Complete.
148
DRIVEABILITY - DIESEL
P0685-ECM/PCM RELAY CONTROL CIRCUIT SHUTS OFF TOO LATE Ð
Continued
Page 1368 of 4284

Symptom List:
P0703-BRAKE SWITCH SIGNAL CIRCUITS PLAUSIBILITY WITH
REDUNDANT CONTACT
P0703-BRAKE SWITCH SIGNAL CKTS PLAUS W/REDUNDANT
CONTACT AFTER INITIALIZATION
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be P0703-BRAKE SWITCH SIGNAL
CIRCUITS PLAUSIBILITY WITH REDUNDANT CONTACT.
When Monitored and Set Condition:

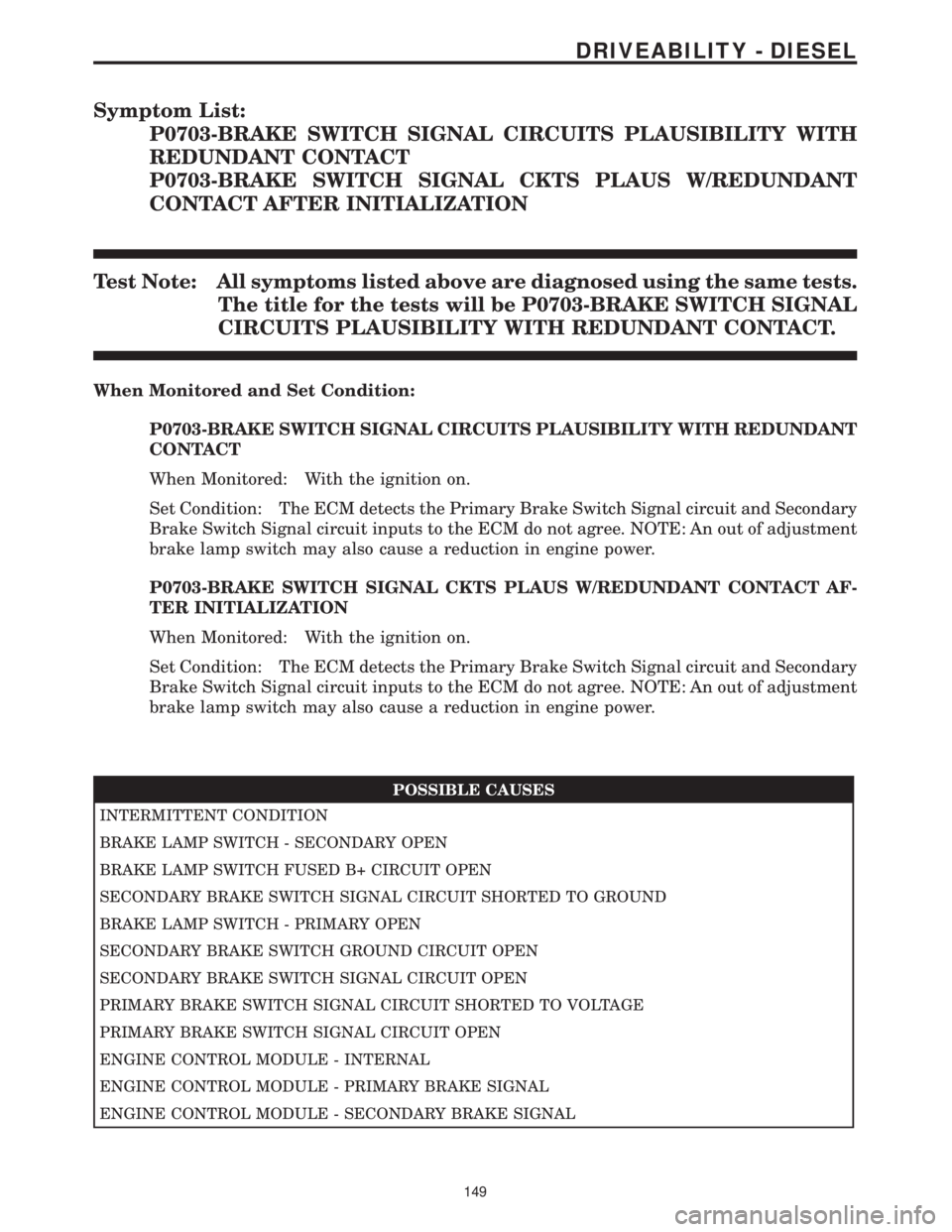

P0703-BRAKE SWITCH SIGNAL CIRCUITS PLAUSIBILITY WITH REDUNDANT
CONTACT
When Monitored: With the ignition on.
Set Condition: The ECM detects the Primary Brake Switch Signal circuit and Secondary
Brake Switch Signal circuit inputs to the ECM do not agree. NOTE: An out of adjustment
brake lamp switch may also cause a reduction in engine power.
P0703-BRAKE SWITCH SIGNAL CKTS PLAUS W/REDUNDANT CONTACT AF-
TER INITIALIZATION
When Monitored: With the ignition on.
Set Condition: The ECM detects the Primary Brake Switch Signal circuit and Secondary
Brake Switch Signal circuit inputs to the ECM do not agree. NOTE: An out of adjustment
brake lamp switch may also cause a reduction in engine power.
POSSIBLE CAUSES
INTERMITTENT CONDITION
BRAKE LAMP SWITCH - SECONDARY OPEN
BRAKE LAMP SWITCH FUSED B+ CIRCUIT OPEN
SECONDARY BRAKE SWITCH SIGNAL CIRCUIT SHORTED TO GROUND
BRAKE LAMP SWITCH - PRIMARY OPEN
SECONDARY BRAKE SWITCH GROUND CIRCUIT OPEN
SECONDARY BRAKE SWITCH SIGNAL CIRCUIT OPEN
PRIMARY BRAKE SWITCH SIGNAL CIRCUIT SHORTED TO VOLTAGE
PRIMARY BRAKE SWITCH SIGNAL CIRCUIT OPEN
ENGINE CONTROL MODULE - INTERNAL
ENGINE CONTROL MODULE - PRIMARY BRAKE SIGNAL
ENGINE CONTROL MODULE - SECONDARY BRAKE SIGNAL
149
DRIVEABILITY - DIESEL
