Page 1049 of 4284

CHRYSLER VOYAGER 2001 Service Manual C200 - GRAY (INSTRUMENT PANEL SIDE)CAV CIRCUIT 1 C200 20LB/DG (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL) 1 C151 18LB/DG (3 ZONE HVAC) 2 A106 20LB/RD 3 A108 18LG/RD 4 C152 16LB/LG (3 ZONE HVAC)

Page 1050 of 4284

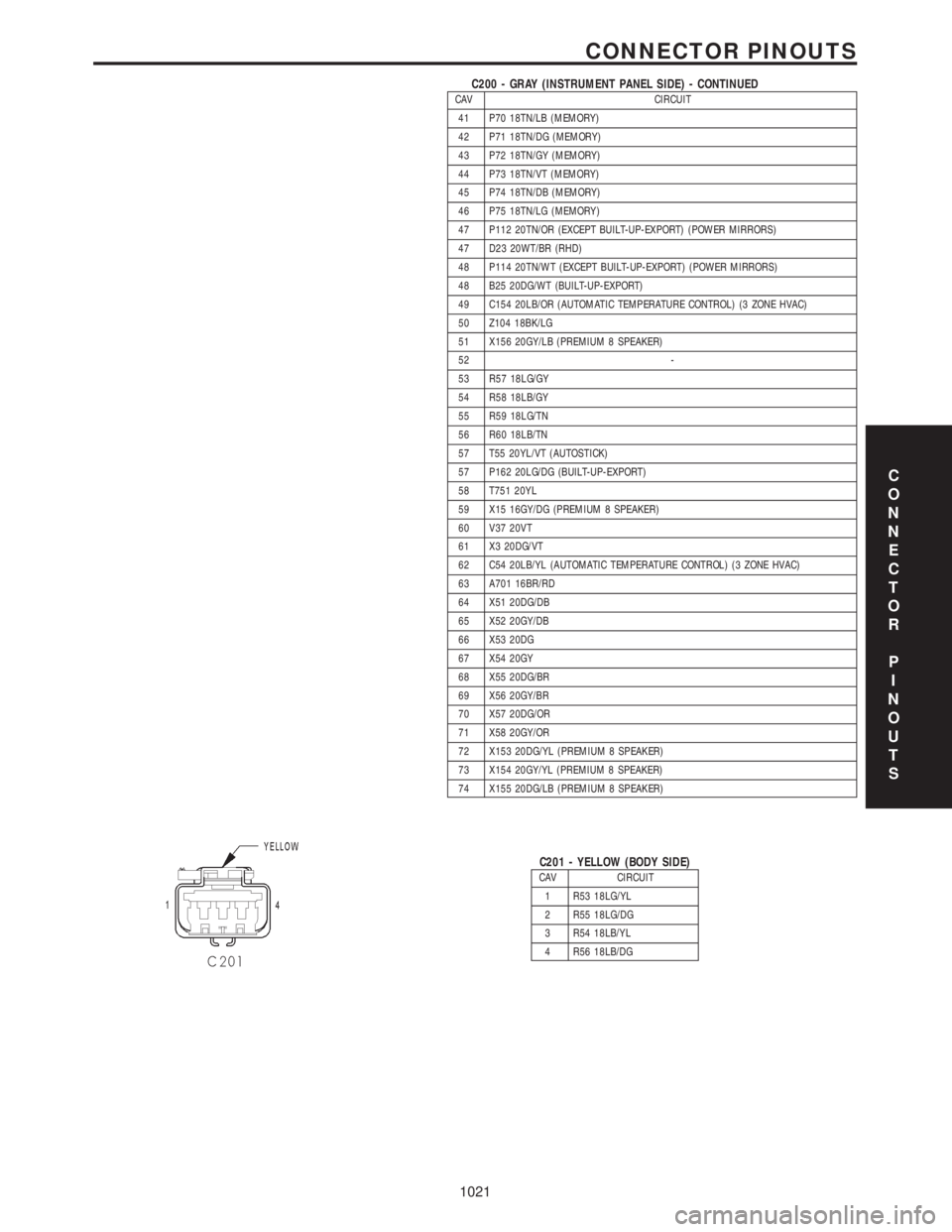

CHRYSLER VOYAGER 2001 Service Manual C200 - GRAY (INSTRUMENT PANEL SIDE) - CONTINUEDCAV CIRCUIT 41 P70 18TN/LB (MEMORY) 42 P71 18TN/DG (MEMORY) 43 P72 18TN/GY (MEMORY) 44 P73 18TN/VT (MEMORY) 45 P74 18TN/DB (MEMORY) 46 P75 18TN/LG (MEMOR

Page 1051 of 4284

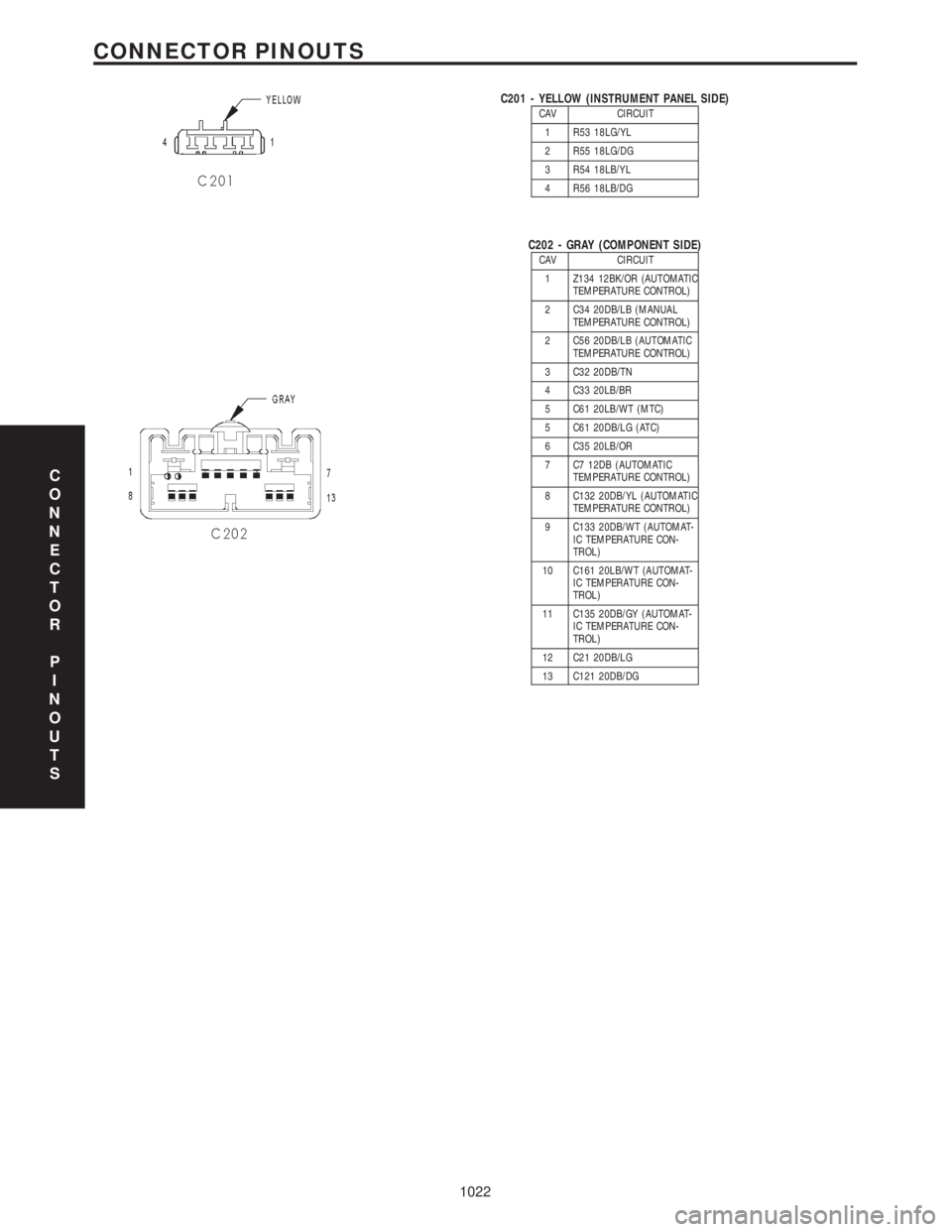

CHRYSLER VOYAGER 2001 Service Manual C201 - YELLOW (INSTRUMENT PANEL SIDE)CAV CIRCUIT 1 R53 18LG/YL 2 R55 18LG/DG 3 R54 18LB/YL 4 R56 18LB/DG C202 - GRAY (COMPONENT SIDE)CAV CIRCUIT 1 Z134 12BK/OR (AUTOMATIC TEMPERATURE CONTROL) 2 C34 20

Page 1052 of 4284

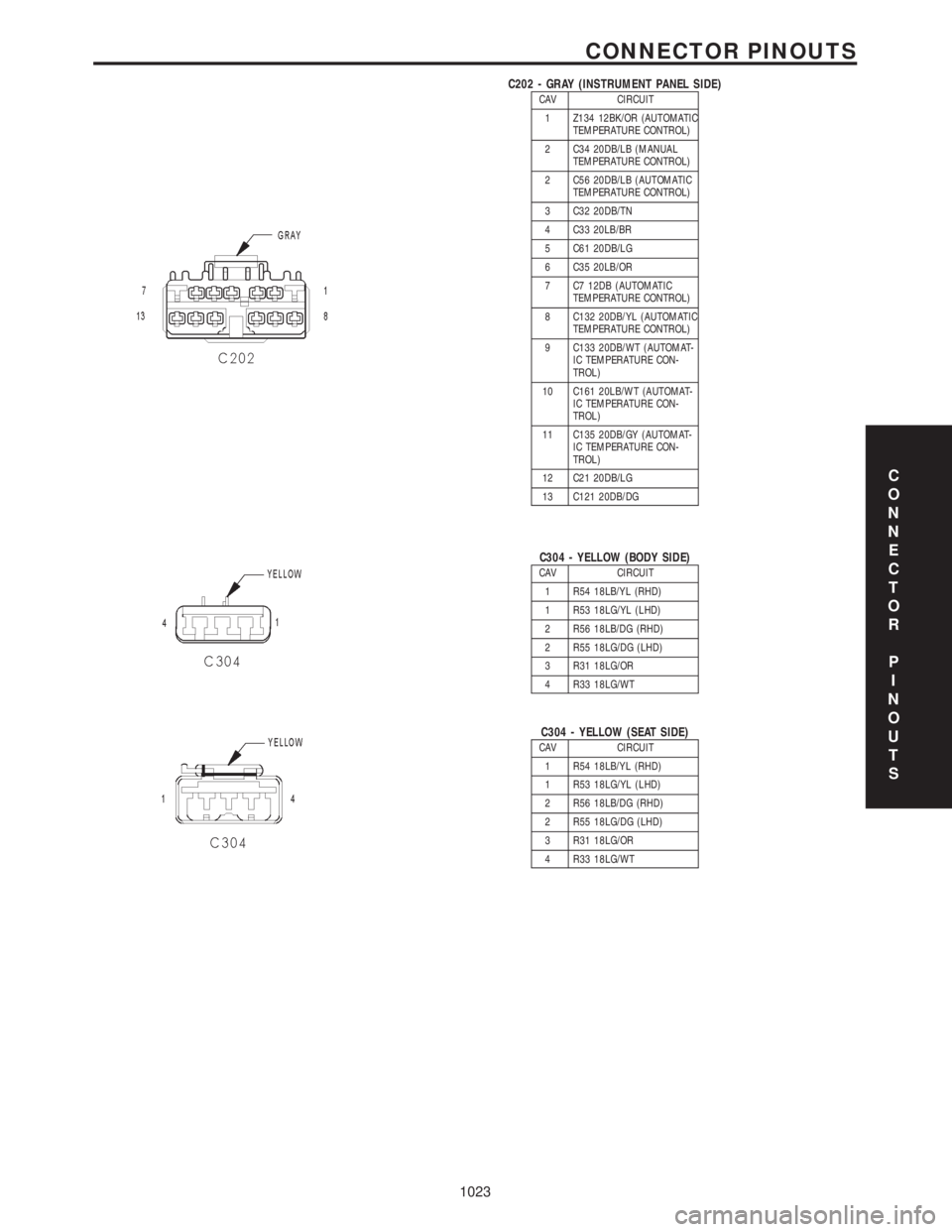

CHRYSLER VOYAGER 2001 Service Manual C202 - GRAY (INSTRUMENT PANEL SIDE)CAV CIRCUIT 1 Z134 12BK/OR (AUTOMATIC TEMPERATURE CONTROL) 2 C34 20DB/LB (MANUAL TEMPERATURE CONTROL) 2 C56 20DB/LB (AUTOMATIC TEMPERATURE CONTROL) 3 C32 20DB/TN 4 C

Page 1053 of 4284

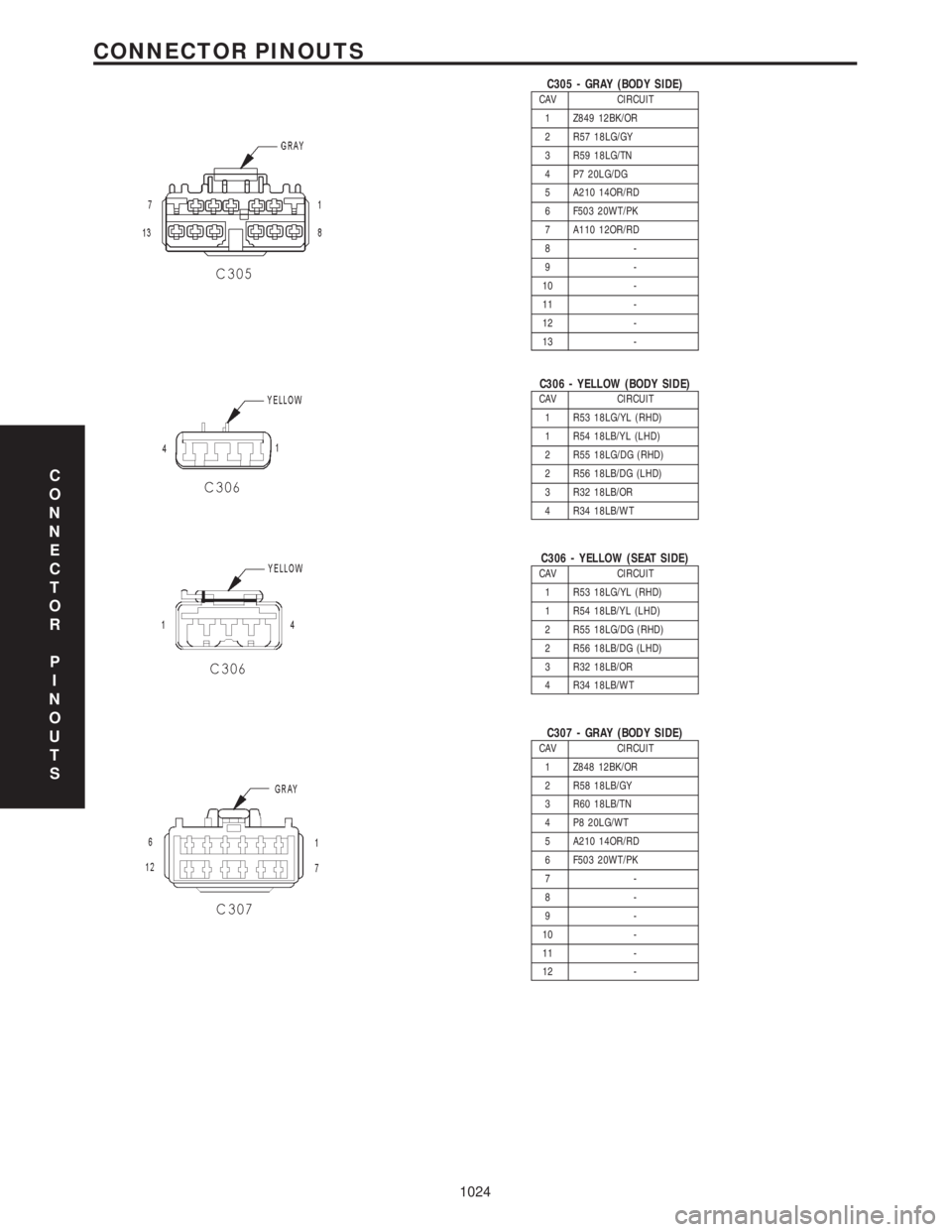

CHRYSLER VOYAGER 2001 Service Manual C305 - GRAY (BODY SIDE)CAV CIRCUIT 1 Z849 12BK/OR 2 R57 18LG/GY 3 R59 18LG/TN 4 P7 20LG/DG 5 A210 14OR/RD 6 F503 20WT/PK 7 A110 12OR/RD 8- 9- 10 - 11 - 12 - 13 - C306 - YELLOW (BODY SIDE)CAV CIRCUIT 1

Page 1054 of 4284

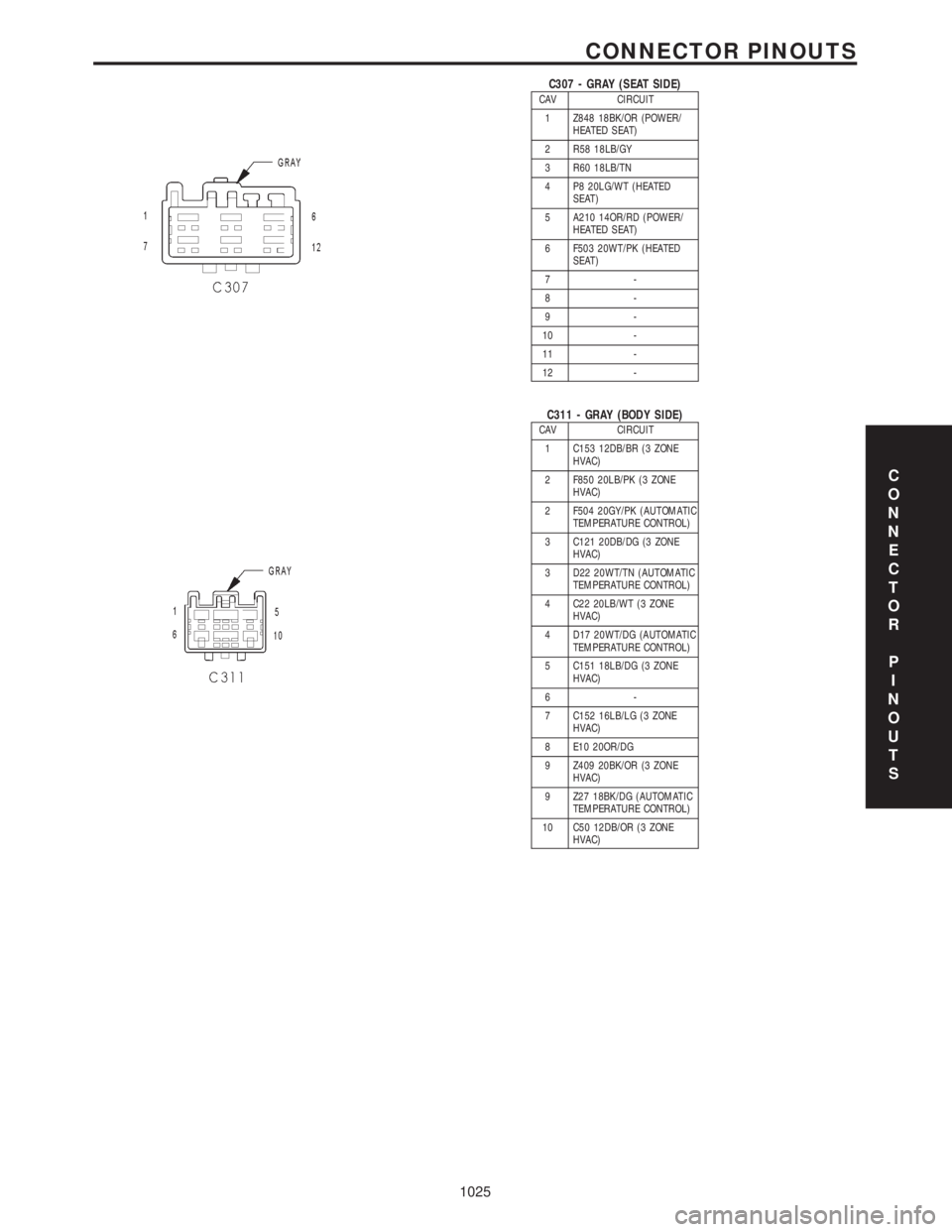

CHRYSLER VOYAGER 2001 Service Manual C307 - GRAY (SEAT SIDE)CAV CIRCUIT 1 Z848 18BK/OR (POWER/ HEATED SEAT) 2 R58 18LB/GY 3 R60 18LB/TN 4 P8 20LG/WT (HEATED SEAT) 5 A210 14OR/RD (POWER/ HEATED SEAT) 6 F503 20WT/PK (HEATED SEAT) 7- 8- 9-

Page 1055 of 4284

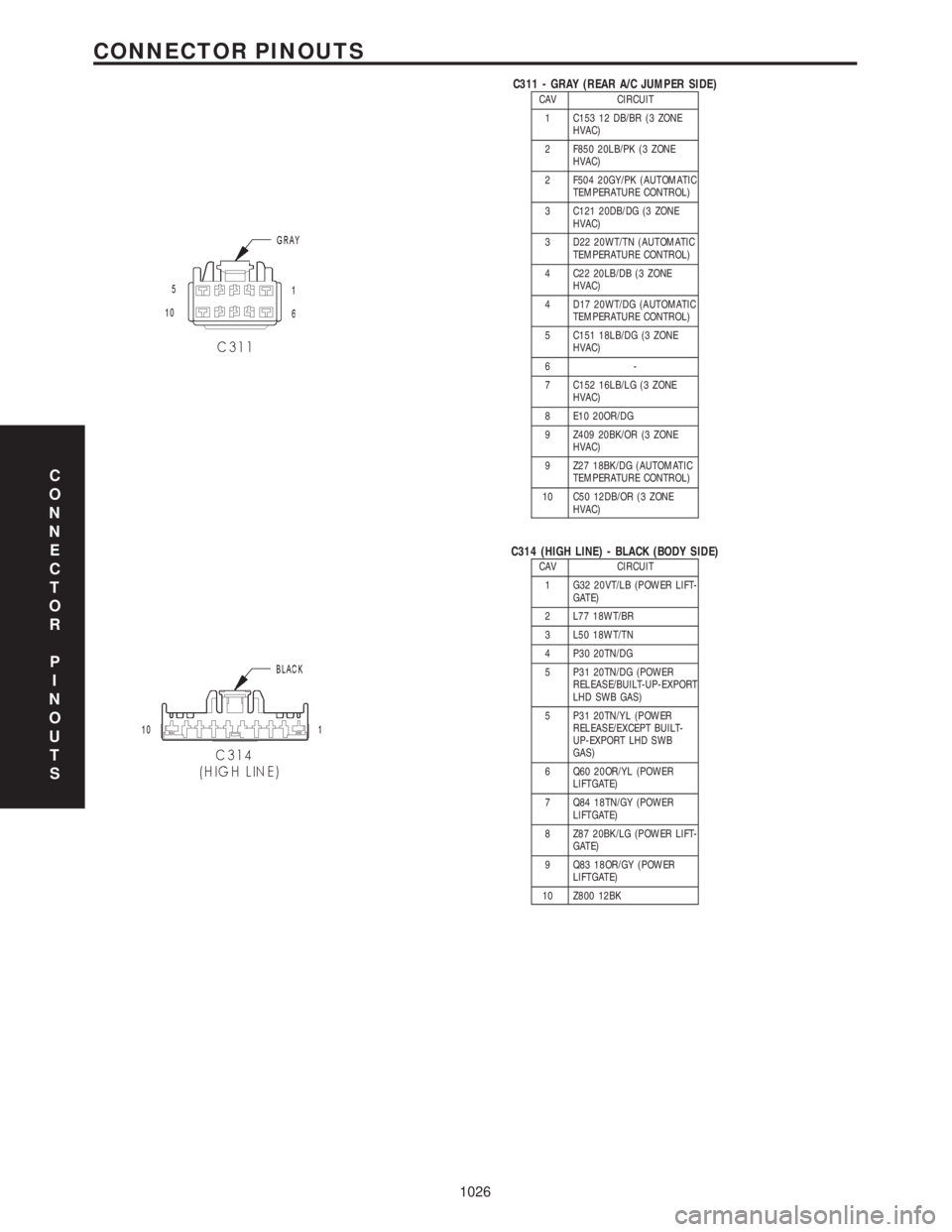

CHRYSLER VOYAGER 2001 Service Manual C311 - GRAY (REAR A/C JUMPER SIDE)CAV CIRCUIT 1 C153 12 DB/BR (3 ZONE HVAC) 2 F850 20LB/PK (3 ZONE HVAC) 2 F504 20GY/PK (AUTOMATIC TEMPERATURE CONTROL) 3 C121 20DB/DG (3 ZONE HVAC) 3 D22 20WT/TN (AUTO

Page 1056 of 4284

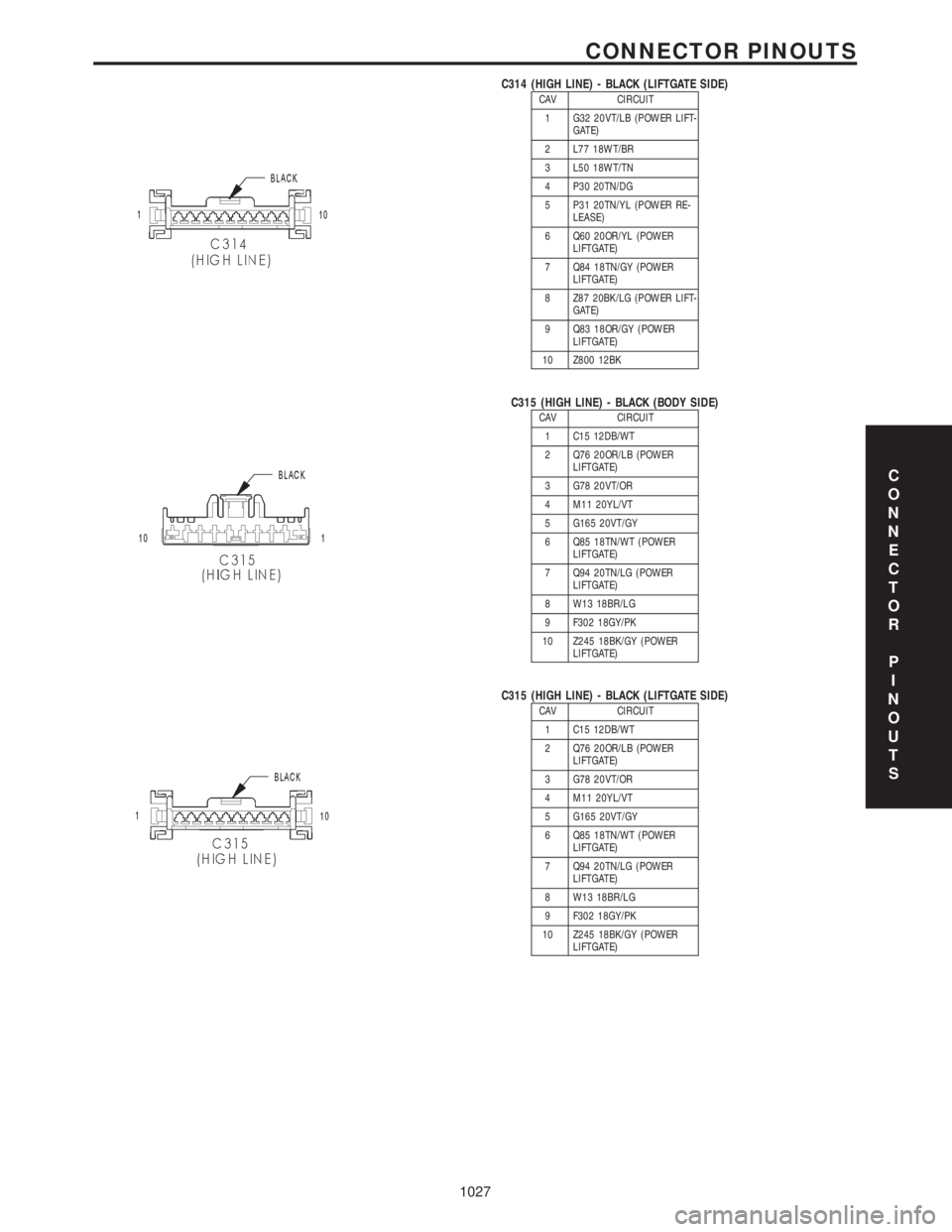

CHRYSLER VOYAGER 2001 Service Manual C314 (HIGH LINE) - BLACK (LIFTGATE SIDE)CAV CIRCUIT 1 G32 20VT/LB (POWER LIFT- GATE) 2 L77 18WT/BR 3 L50 18WT/TN 4 P30 20TN/DG 5 P31 20TN/YL (POWER RE- LEASE) 6 Q60 20OR/YL (POWER LIFTGATE) 7 Q84 18TN
