Page 2601 of 4284

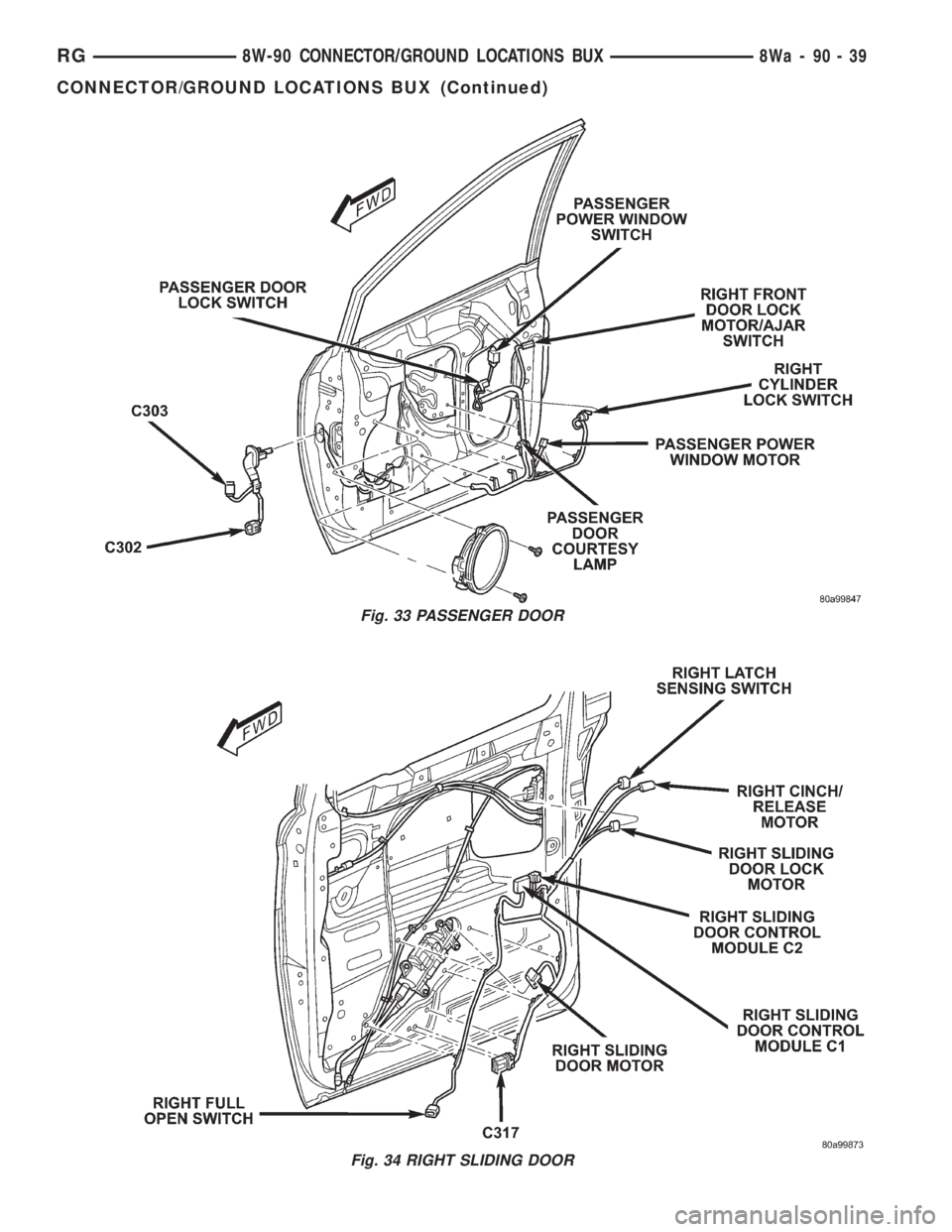

CHRYSLER VOYAGER 2001 Service Manual Fig. 33 PASSENGER DOOR
Fig. 34 RIGHT SLIDING DOOR
RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-39
CONNECTOR/GROUND LOCATIONS BUX (Continued)

Page 2602 of 4284

CHRYSLER VOYAGER 2001 Service Manual Fig. 35 LIFTGATE AND SLIDING DOOR MODULES
8Wa - 90 - 40 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG
CONNECTOR/GROUND LOCATIONS BUX (Continued)

Page 2603 of 4284

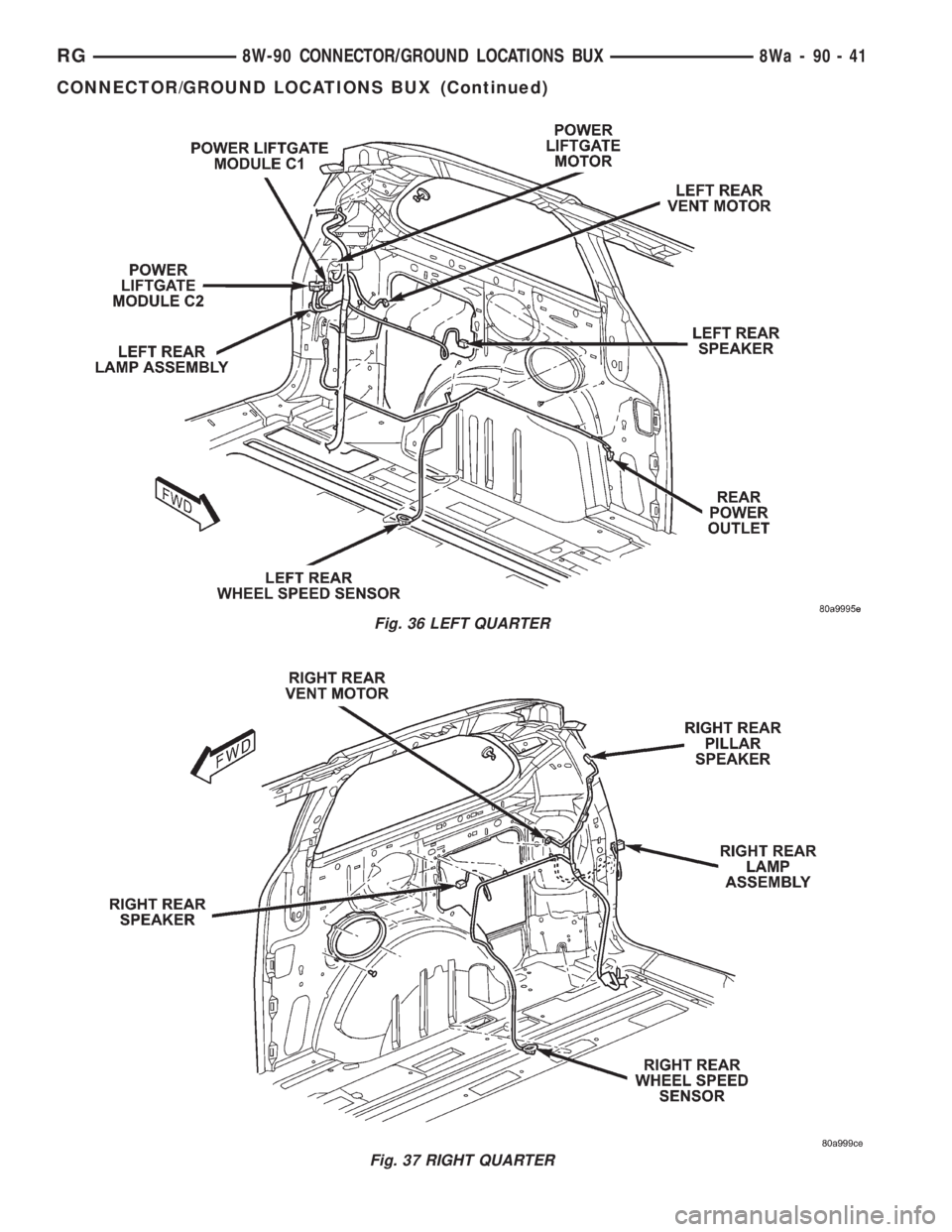

CHRYSLER VOYAGER 2001 Service Manual Fig. 36 LEFT QUARTER
Fig. 37 RIGHT QUARTER
RG8W-90 CONNECTOR/GROUND LOCATIONS BUX8Wa-90-41
CONNECTOR/GROUND LOCATIONS BUX (Continued)

Page 2604 of 4284

CHRYSLER VOYAGER 2001 Service Manual Fig. 38 LIFTGATE
8Wa - 90 - 42 8W-90 CONNECTOR/GROUND LOCATIONS BUXRG
CONNECTOR/GROUND LOCATIONS BUX (Continued)

Page 2605 of 4284

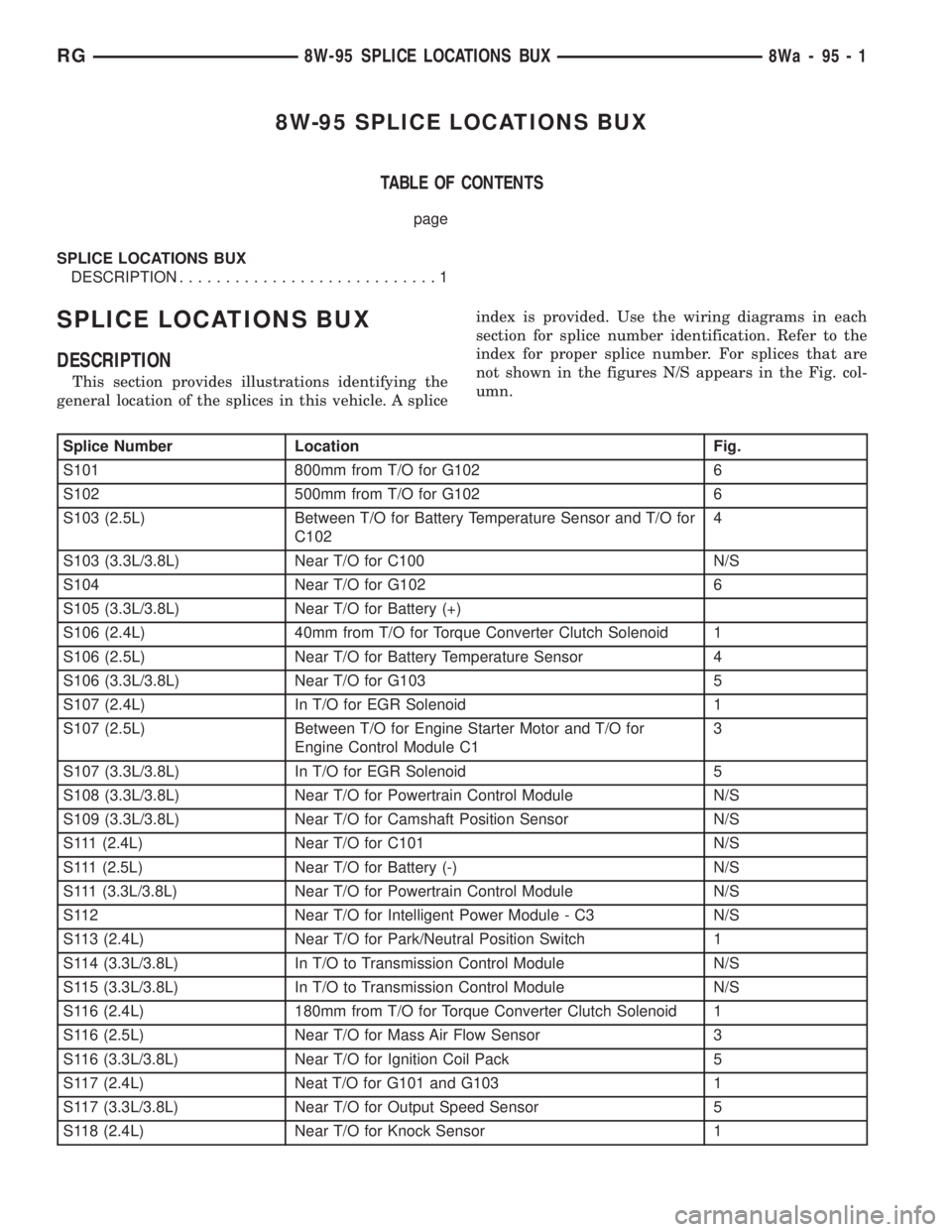

CHRYSLER VOYAGER 2001 Service Manual 8W-95 SPLICE LOCATIONS BUX
TABLE OF CONTENTS
page
SPLICE LOCATIONS BUX
DESCRIPTION............................1
SPLICE LOCATIONS BUX
DESCRIPTION
This section provides illustrations identifying the
gen

Page 2606 of 4284

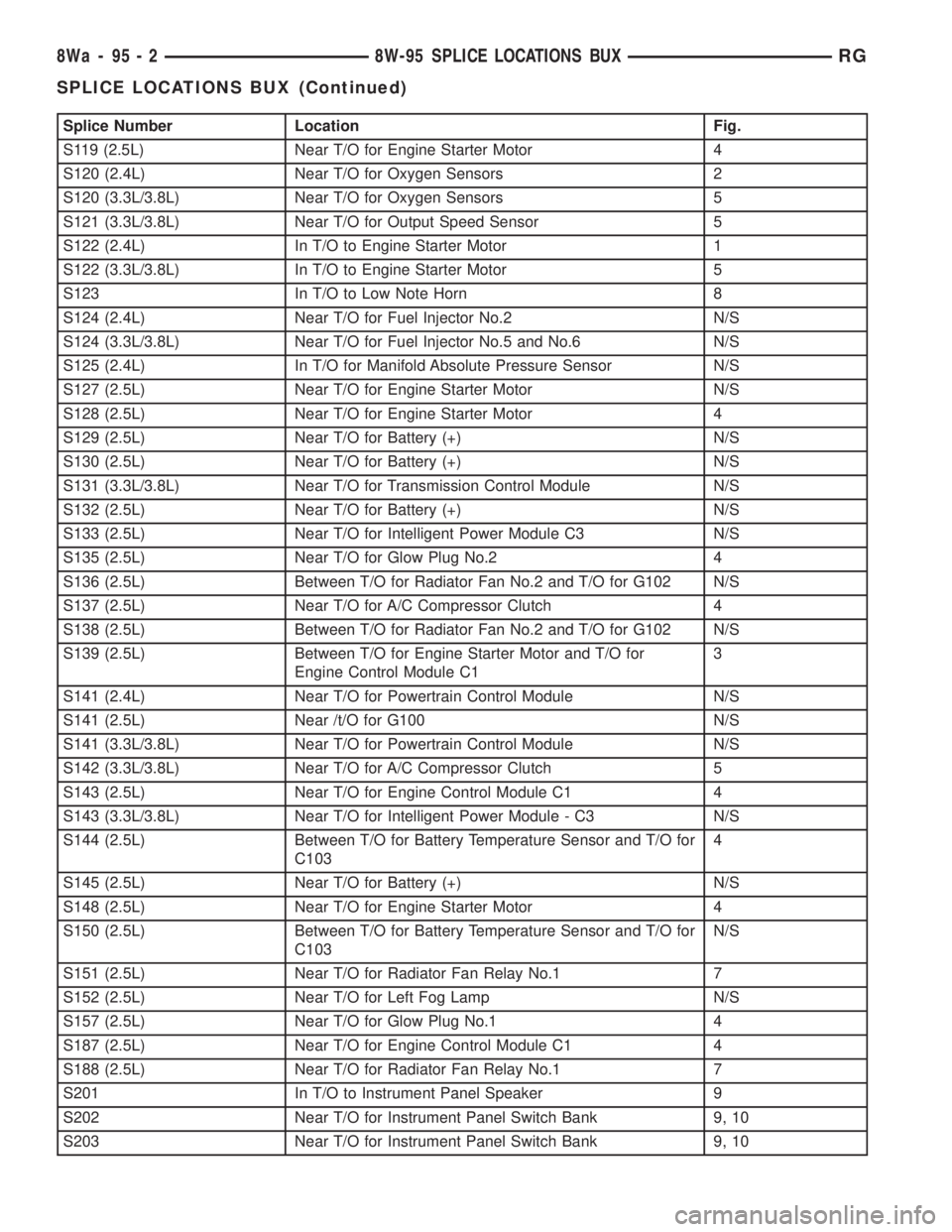

CHRYSLER VOYAGER 2001 Service Manual Splice Number Location Fig.
S119 (2.5L) Near T/O for Engine Starter Motor 4
S120 (2.4L) Near T/O for Oxygen Sensors 2
S120 (3.3L/3.8L) Near T/O for Oxygen Sensors 5
S121 (3.3L/3.8L) Near T/O for Outpu

Splice Number Location Fig.
S119 (2.5L) Near T/O for Engine Starter Motor 4
S120 (2.4L) Near T/O for Oxygen Sensors 2
S120 (3.3L/3.8L) Near T/O for Oxygen Sensors 5
S121 (3.3L/3.8L) Near T/O for Output Speed Sensor 5
S122 (2.4L) In T/O to Engine Starter Motor 1
S122 (3.3L/3.8L) In T/O to Engine Starter Motor 5
S123 In T/O to Low Note Horn 8
S124 (2.4L) Near T/O for Fuel Injector No.2 N/S
S124 (3.3L/3.8L) Near T/O for Fuel Injector No.5 and No.6 N/S
S125 (2.4L) In T/O for Manifold Absolute Pressure Sensor N/S
S127 (2.5L) Near T/O for Engine Starter Motor N/S
S128 (2.5L) Near T/O for Engine Starter Motor 4
S129 (2.5L) Near T/O for Battery (+) N/S
S130 (2.5L) Near T/O for Battery (+) N/S
S131 (3.3L/3.8L) Near T/O for Transmission Control Module N/S
S132 (2.5L) Near T/O for Battery (+) N/S
S133 (2.5L) Near T/O for Intelligent Power Module C3 N/S
S135 (2.5L) Near T/O for Glow Plug No.2 4
S136 (2.5L) Between T/O for Radiator Fan No.2 and T/O for G102 N/S
S137 (2.5L) Near T/O for A/C Compressor Clutch 4
S138 (2.5L) Between T/O for Radiator Fan No.2 and T/O for G102 N/S
S139 (2.5L) Between T/O for Engine Starter Motor and T/O for
Engine Control Module C13
S141 (2.4L) Near T/O for Powertrain Control Module N/S
S141 (2.5L) Near /t/O for G100 N/S
S141 (3.3L/3.8L) Near T/O for Powertrain Control Module N/S
S142 (3.3L/3.8L) Near T/O for A/C Compressor Clutch 5
S143 (2.5L) Near T/O for Engine Control Module C1 4
S143 (3.3L/3.8L) Near T/O for Intelligent Power Module - C3 N/S
S144 (2.5L) Between T/O for Battery Temperature Sensor and T/O for
C1034
S145 (2.5L) Near T/O for Battery (+) N/S
S148 (2.5L) Near T/O for Engine Starter Motor 4
S150 (2.5L) Between T/O for Battery Temperature Sensor and T/O for
C103N/S
S151 (2.5L) Near T/O for Radiator Fan Relay No.1 7
S152 (2.5L) Near T/O for Left Fog Lamp N/S
S157 (2.5L) Near T/O for Glow Plug No.1 4
S187 (2.5L) Near T/O for Engine Control Module C1 4
S188 (2.5L) Near T/O for Radiator Fan Relay No.1 7
S201 In T/O to Instrument Panel Speaker 9
S202 Near T/O for Instrument Panel Switch Bank 9, 10
S203 Near T/O for Instrument Panel Switch Bank 9, 10
8Wa - 95 - 2 8W-95 SPLICE LOCATIONS BUXRG
SPLICE LOCATIONS BUX (Continued)

Page 2607 of 4284

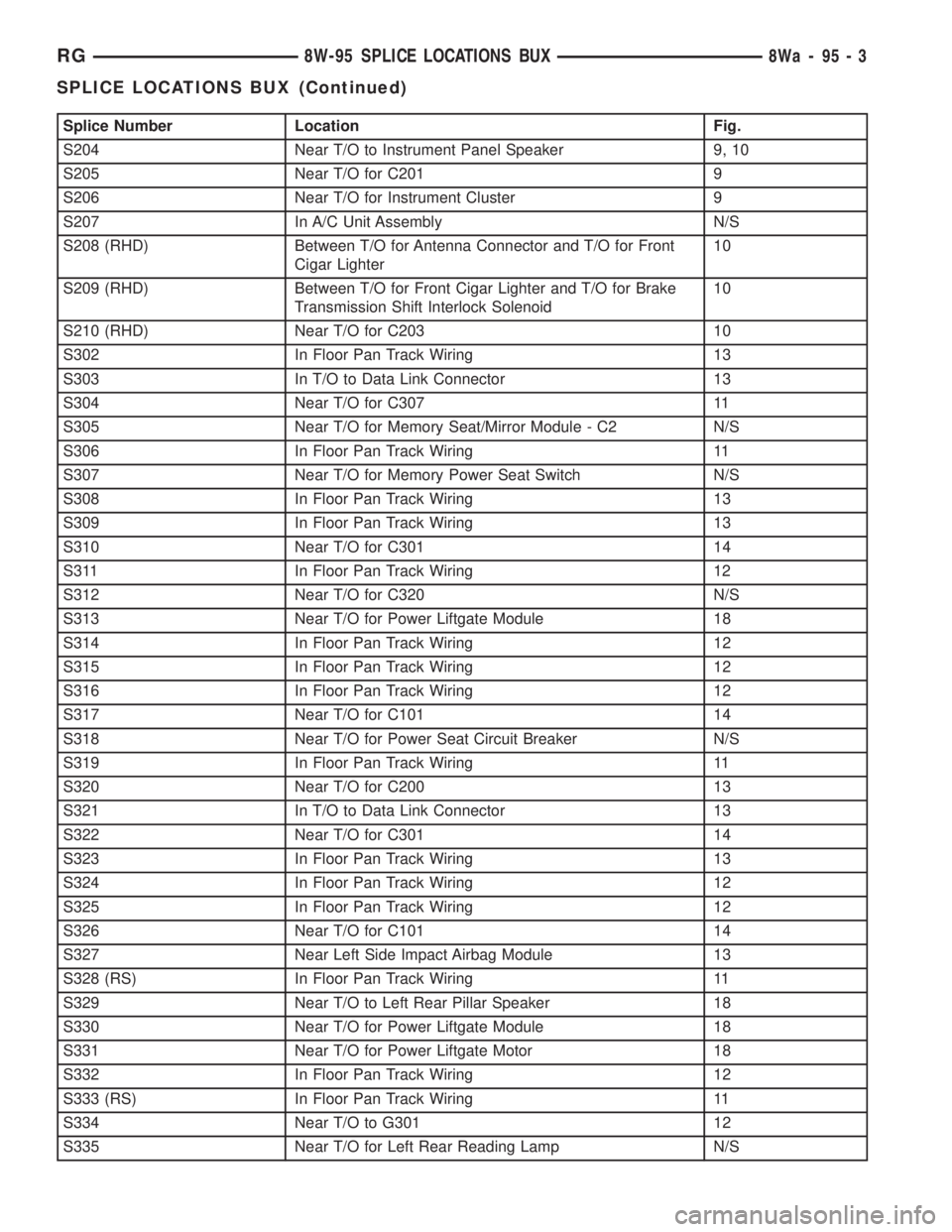

CHRYSLER VOYAGER 2001 Service Manual Splice Number Location Fig.
S204 Near T/O to Instrument Panel Speaker 9, 10
S205 Near T/O for C201 9
S206 Near T/O for Instrument Cluster 9
S207 In A/C Unit Assembly N/S
S208 (RHD) Between T/O for Ant

Page 2608 of 4284

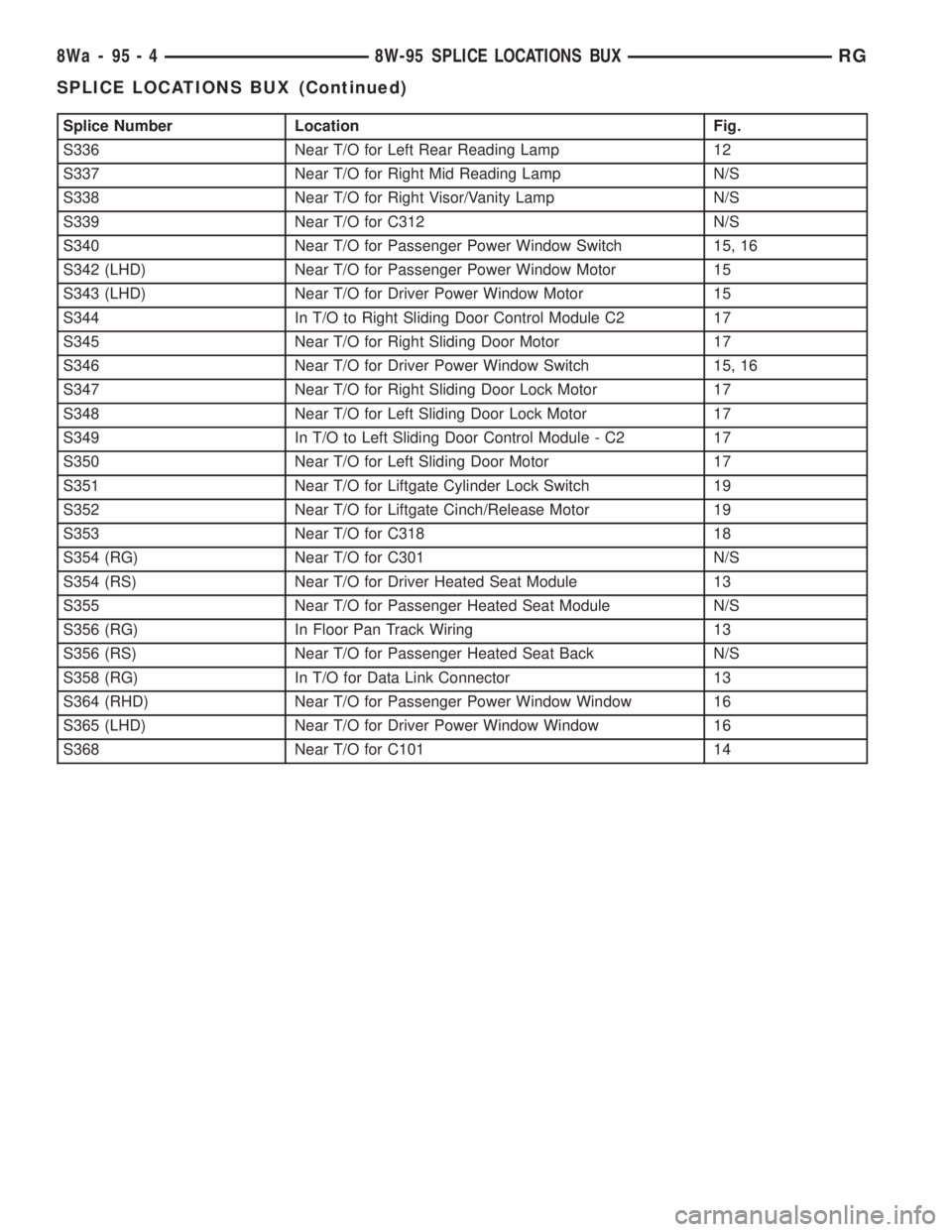

CHRYSLER VOYAGER 2001 Service Manual Splice Number Location Fig.
S336 Near T/O for Left Rear Reading Lamp 12
S337 Near T/O for Right Mid Reading Lamp N/S
S338 Near T/O for Right Visor/Vanity Lamp N/S
S339 Near T/O for C312 N/S
S340 Near
