Page 1041 of 4284

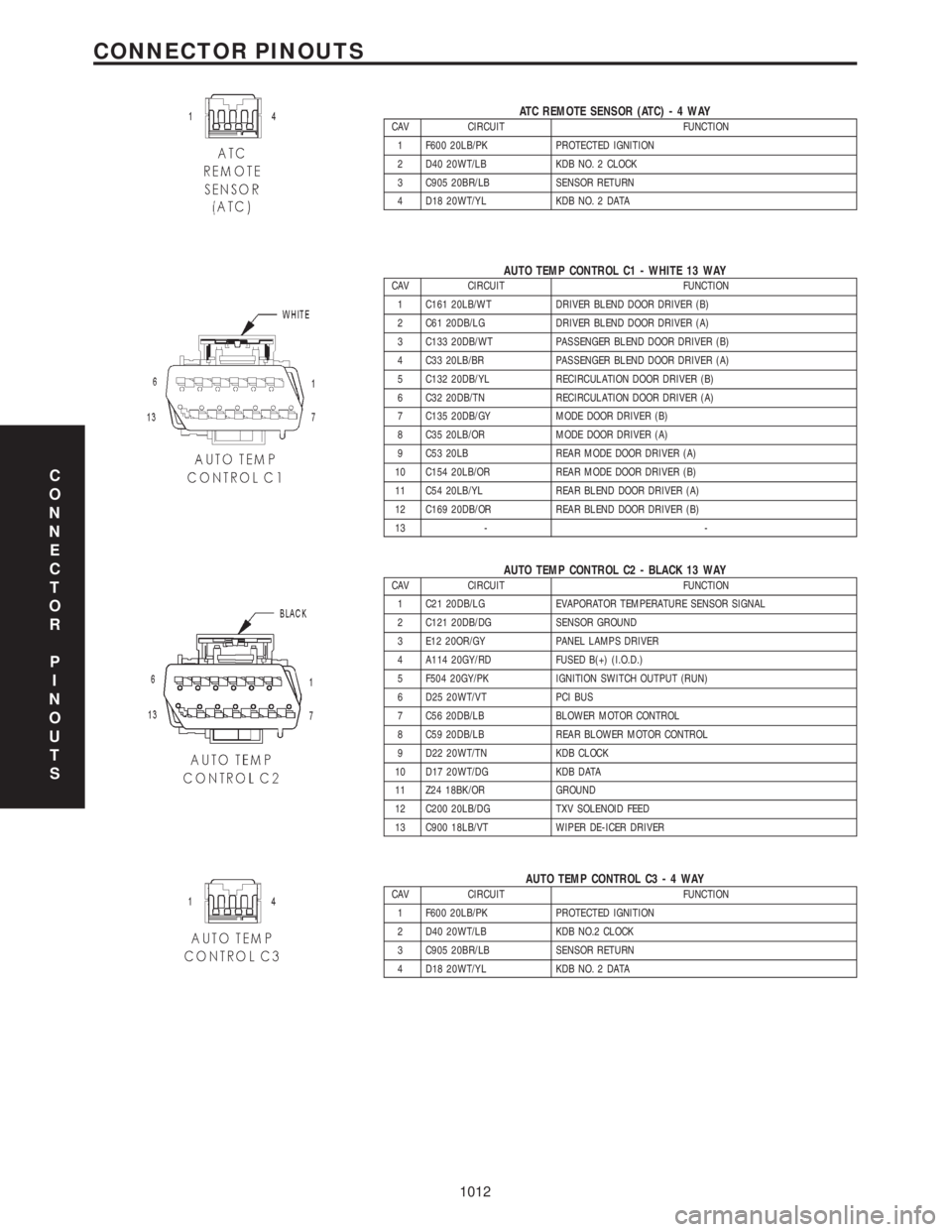

CHRYSLER VOYAGER 2001 Service Manual ATC REMOTE SENSOR (ATC)-4WAYCAV CIRCUIT FUNCTION 1 F600 20LB/PK PROTECTED IGNITION 2 D40 20WT/LB KDB NO. 2 CLOCK 3 C905 20BR/LB SENSOR RETURN 4 D18 20WT/YL KDB NO. 2 DATA AUTO TEMP CONTROL C1 - WHITE

Page 1042 of 4284

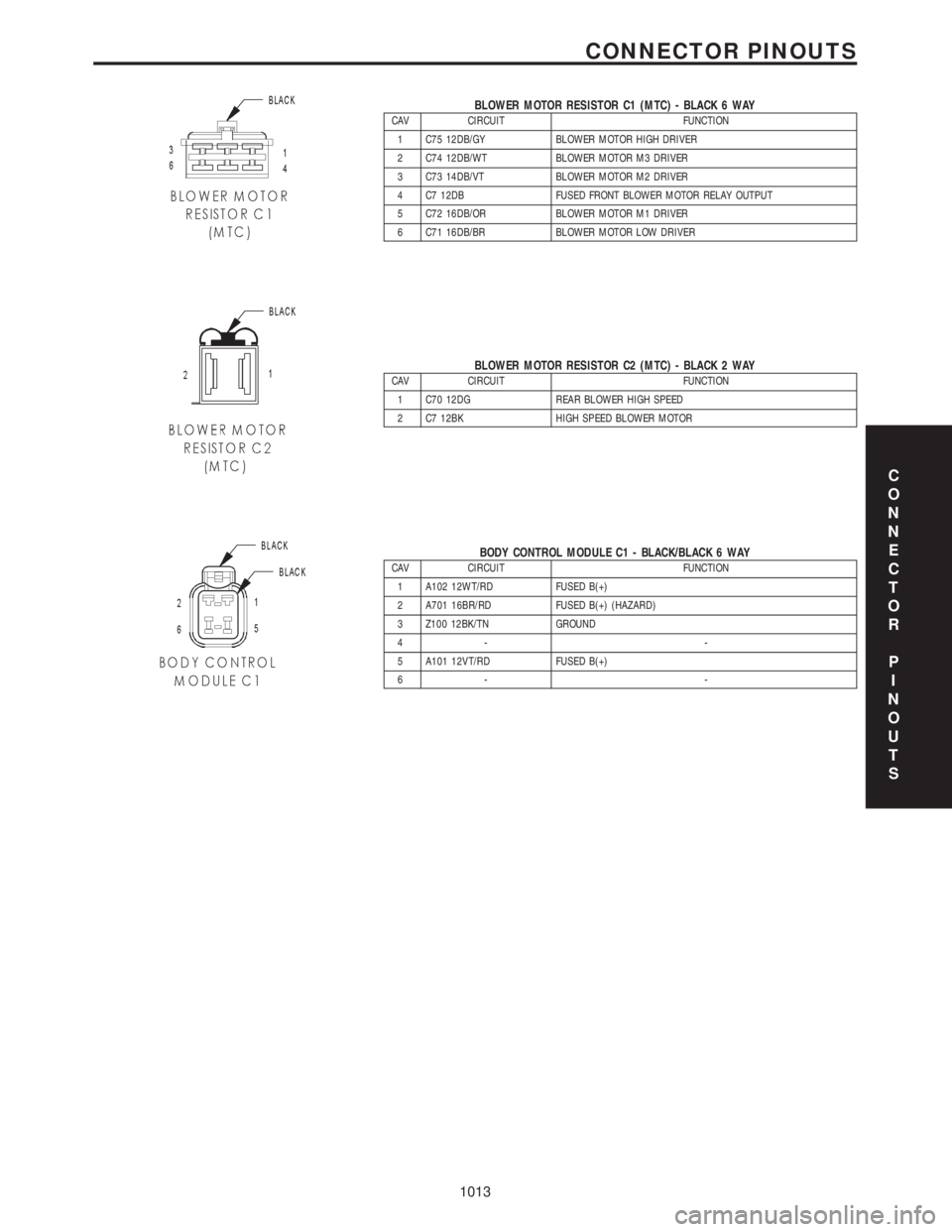

CHRYSLER VOYAGER 2001 Service Manual BLOWER MOTOR RESISTOR C1 (MTC) - BLACK 6 WAYCAV CIRCUIT FUNCTION 1 C75 12DB/GY BLOWER MOTOR HIGH DRIVER 2 C74 12DB/WT BLOWER MOTOR M3 DRIVER 3 C73 14DB/VT BLOWER MOTOR M2 DRIVER 4 C7 12DB FUSED FRONT

Page 1043 of 4284

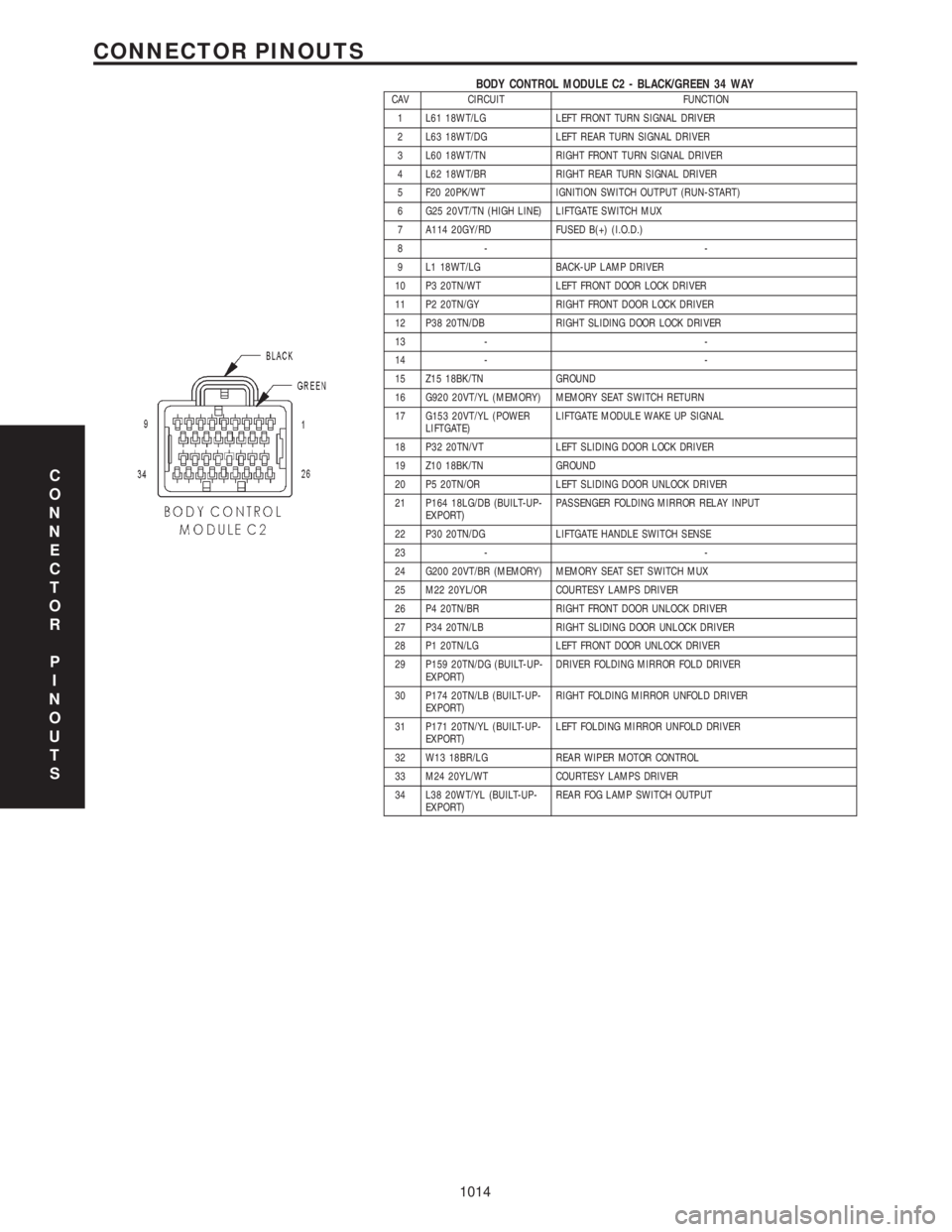

CHRYSLER VOYAGER 2001 Service Manual BODY CONTROL MODULE C2 - BLACK/GREEN 34 WAYCAV CIRCUIT FUNCTION 1 L61 18WT/LG LEFT FRONT TURN SIGNAL DRIVER 2 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER 3 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER 4 L6

Page 1044 of 4284

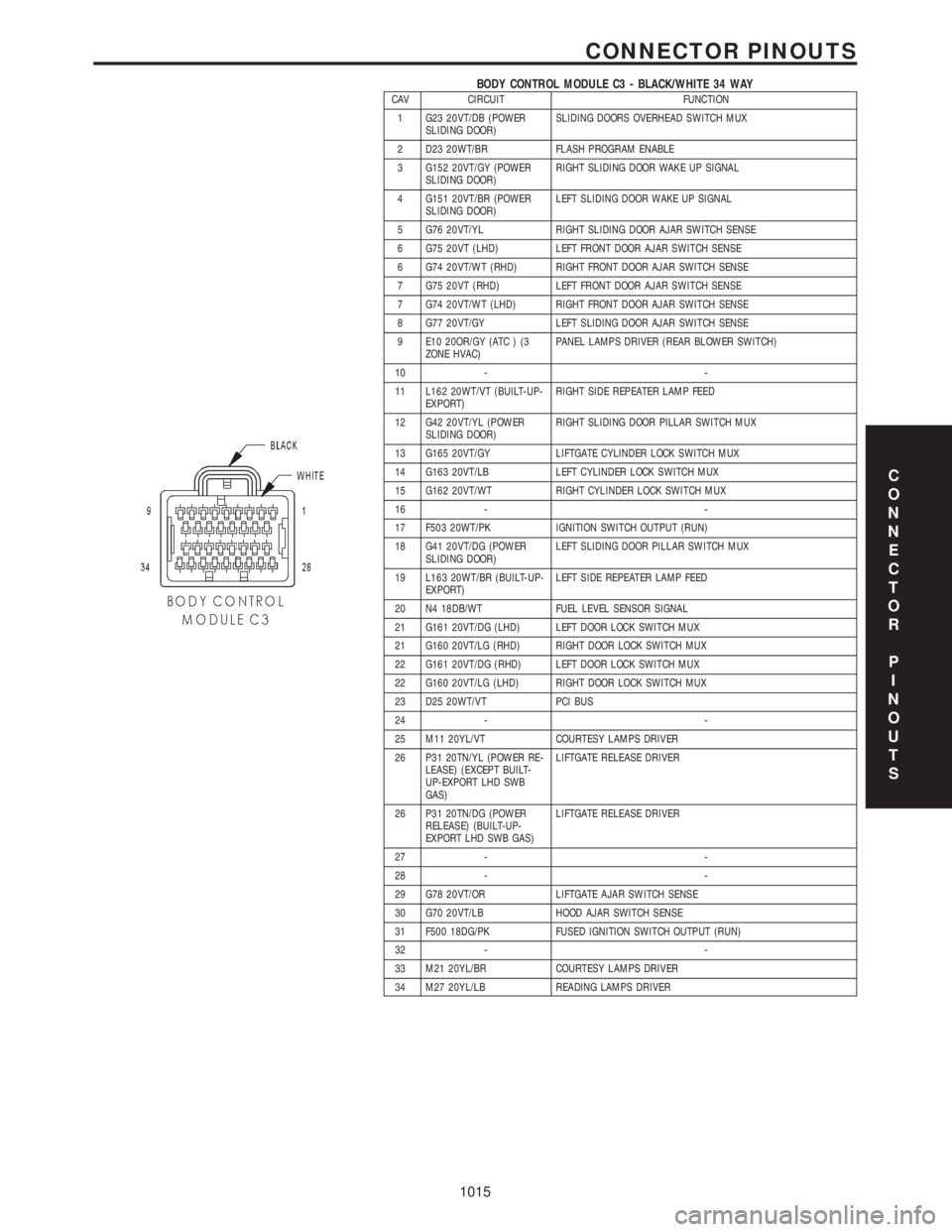

CHRYSLER VOYAGER 2001 Service Manual BODY CONTROL MODULE C3 - BLACK/WHITE 34 WAYCAV CIRCUIT FUNCTION 1 G23 20VT/DB (POWER SLIDING DOOR)SLIDING DOORS OVERHEAD SWITCH MUX 2 D23 20WT/BR FLASH PROGRAM ENABLE 3 G152 20VT/GY (POWER SLIDING DOO

Page 1045 of 4284

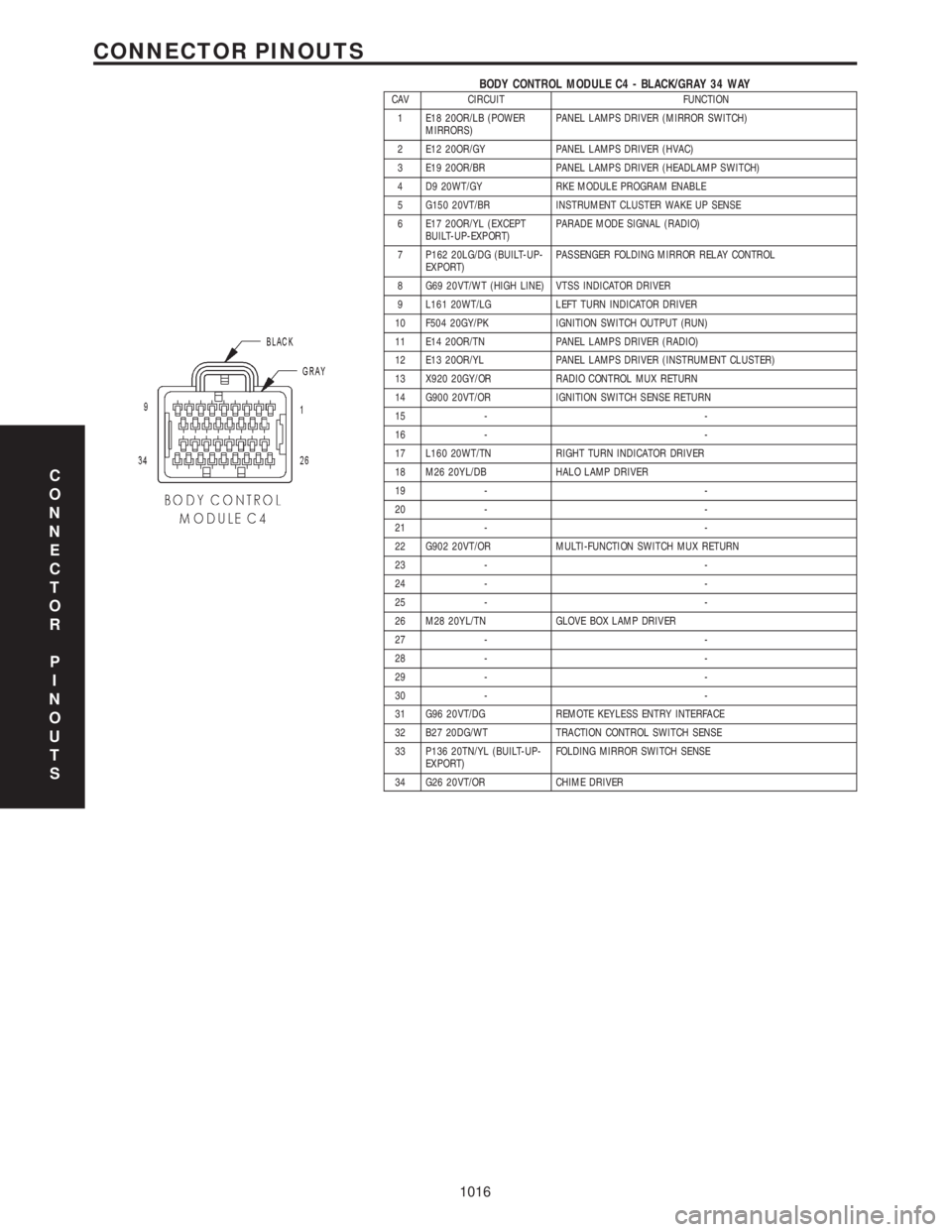

CHRYSLER VOYAGER 2001 Service Manual BODY CONTROL MODULE C4 - BLACK/GRAY 34 WAYCAV CIRCUIT FUNCTION 1 E18 20OR/LB (POWER MIRRORS)PANEL LAMPS DRIVER (MIRROR SWITCH) 2 E12 20OR/GY PANEL LAMPS DRIVER (HVAC) 3 E19 20OR/BR PANEL LAMPS DRIVER

Page 1046 of 4284

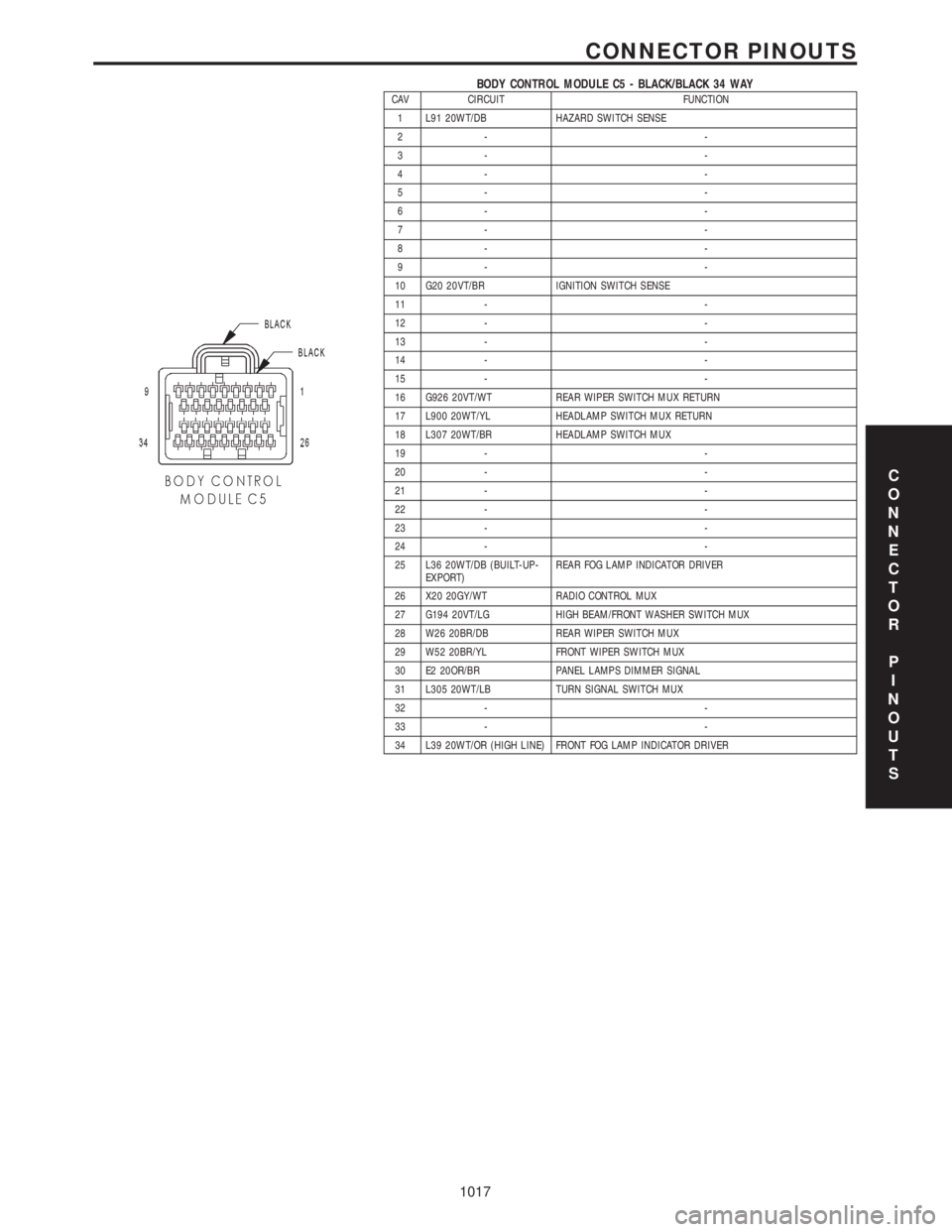

CHRYSLER VOYAGER 2001 Service Manual BODY CONTROL MODULE C5 - BLACK/BLACK 34 WAYCAV CIRCUIT FUNCTION 1 L91 20WT/DB HAZARD SWITCH SENSE 2- - 3- - 4- - 5- - 6- - 7- - 8- - 9- - 10 G20 20VT/BR IGNITION SWITCH SENSE 11 - - 12 - - 13 - - 14 -

Page 1047 of 4284

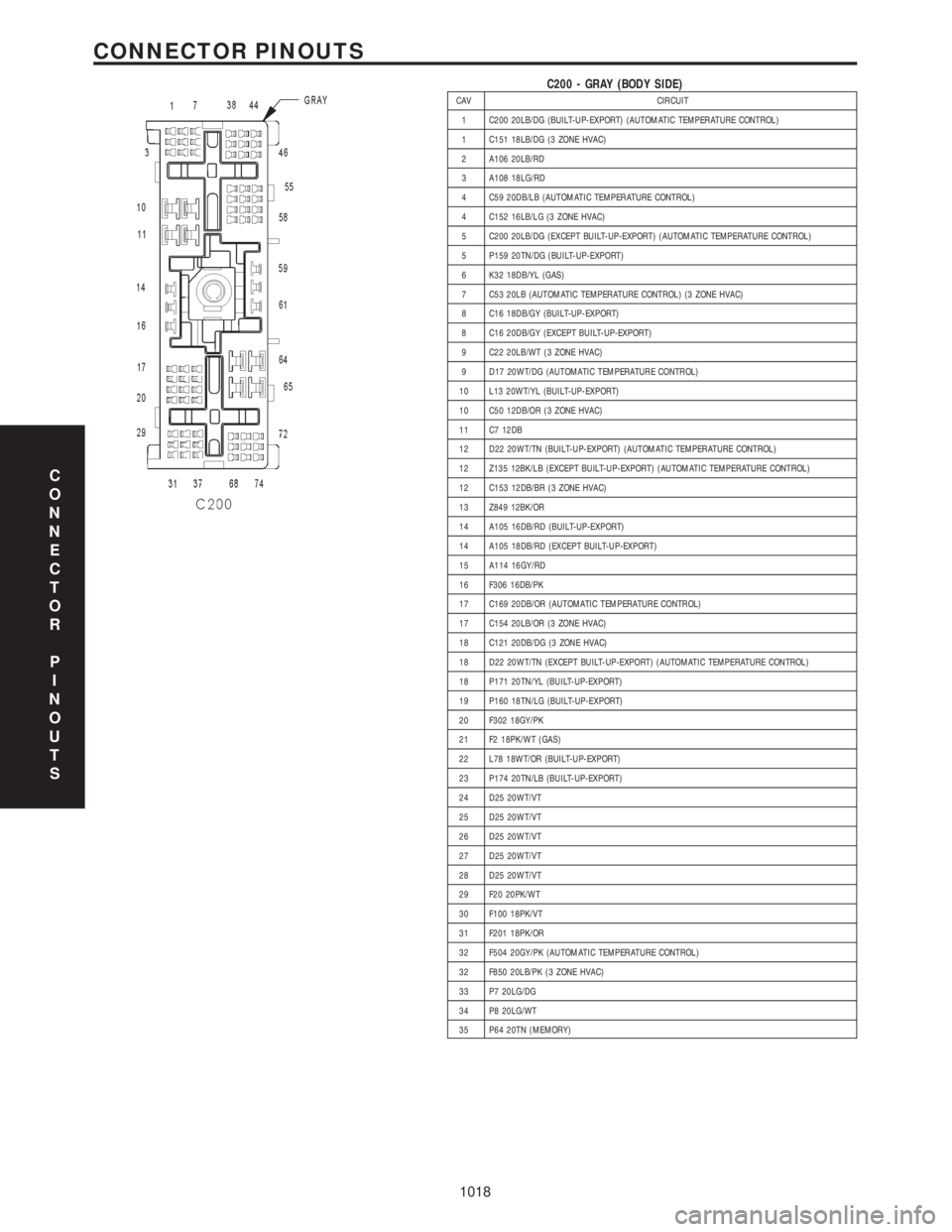

CHRYSLER VOYAGER 2001 Service Manual C200 - GRAY (BODY SIDE)CAV CIRCUIT 1 C200 20LB/DG (BUILT-UP-EXPORT) (AUTOMATIC TEMPERATURE CONTROL) 1 C151 18LB/DG (3 ZONE HVAC) 2 A106 20LB/RD 3 A108 18LG/RD 4 C59 20DB/LB (AUTOMATIC TEMPERATURE CONT

Page 1048 of 4284

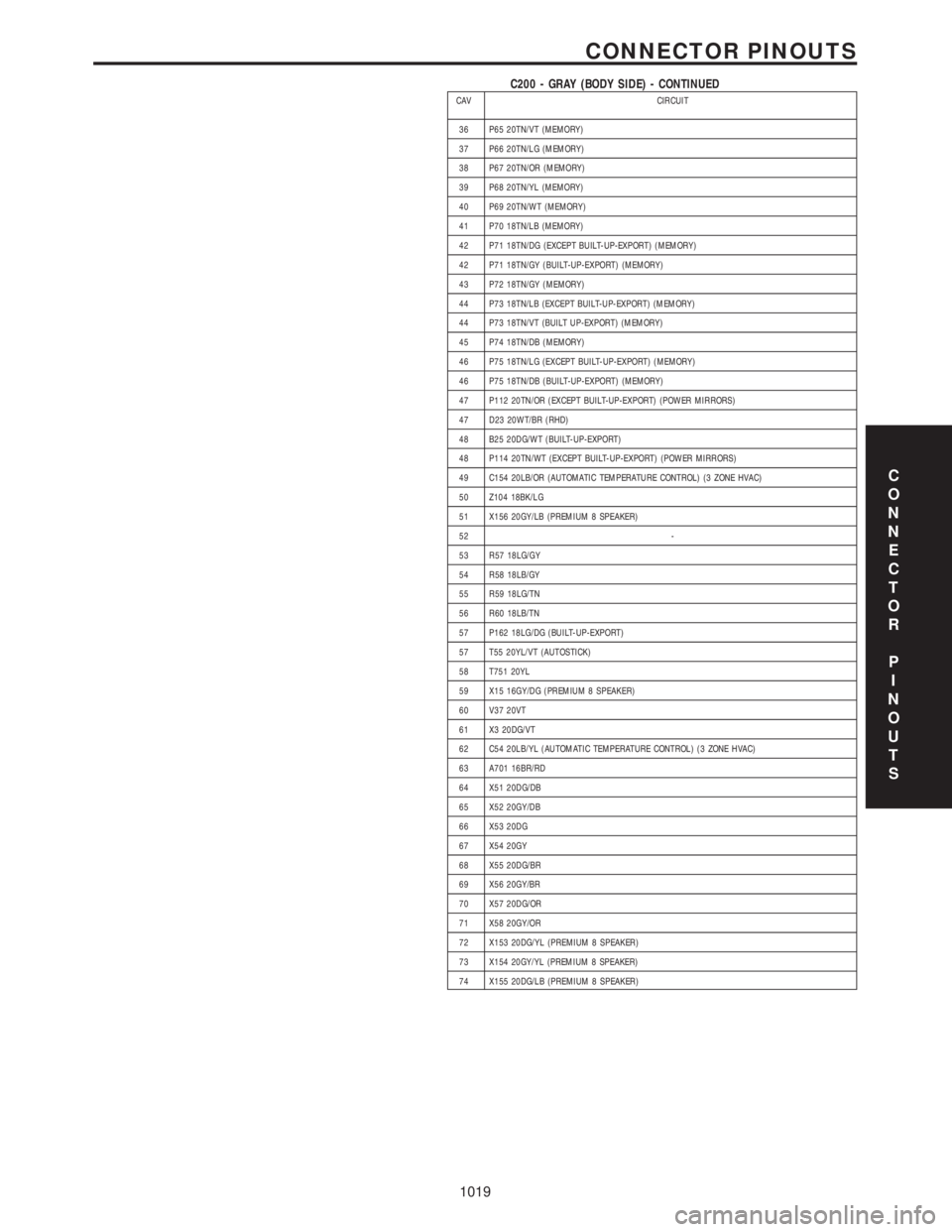

CHRYSLER VOYAGER 2001 Service Manual C200 - GRAY (BODY SIDE) - CONTINUEDCAV CIRCUIT 36 P65 20TN/VT (MEMORY) 37 P66 20TN/LG (MEMORY) 38 P67 20TN/OR (MEMORY) 39 P68 20TN/YL (MEMORY) 40 P69 20TN/WT (MEMORY) 41 P70 18TN/LB (MEMORY) 42 P71 18
