Page 1273 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom List: P0203-CYLINDER 3-INJECTOR CIRCUIT CURRENT DECREASE P0203-CYLINDER 3-INJECTOR CIRCUIT LOAD DROP P0203-CYLINDER 3-INJECTOR CIRCUIT OVERCURRENT HIGH SIDE P0203-CYLINDER 3-INJECTOR CIRCUIT O

Page 1274 of 4284

CHRYSLER VOYAGER 2001 Service Manual POSSIBLE CAUSES COMMON DRIVER CIRCUIT SHORTED TO VOLTAGE FUEL INJECTOR #3 DRIVER CIRCUIT SHORTED TO VOLTAGE TEST ACTION APPLICABILITY 1 Turn the ignition on. With the DRBIIIt, erase the ECM DTCs. Test

Page 1275 of 4284

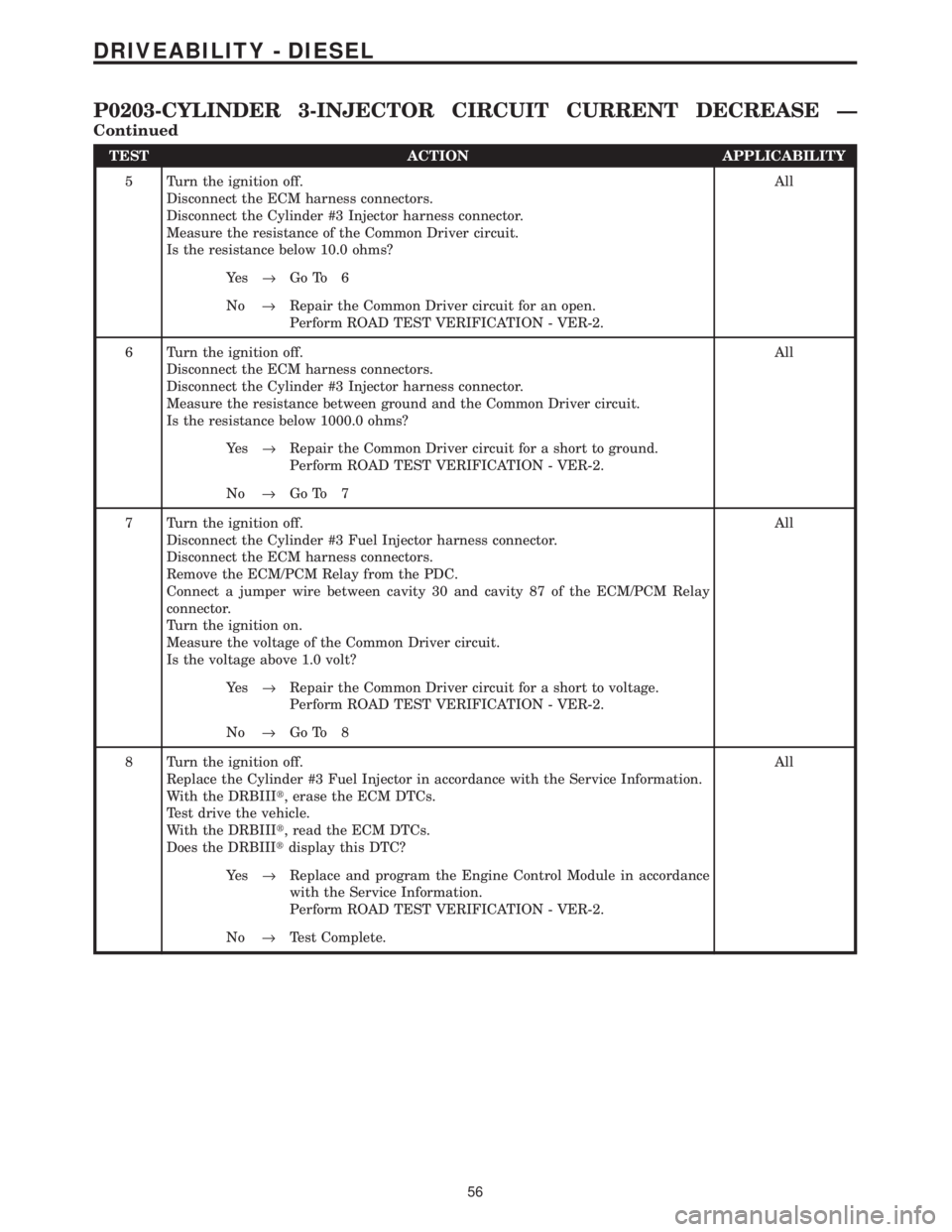

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 5 Turn the ignition off. Disconnect the ECM harness connectors. Disconnect the Cylinder #3 Injector harness connector. Measure the resistance of the Common Driver circuit. Is

Page 1276 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 9WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING. NOTE: Th

Page 1277 of 4284

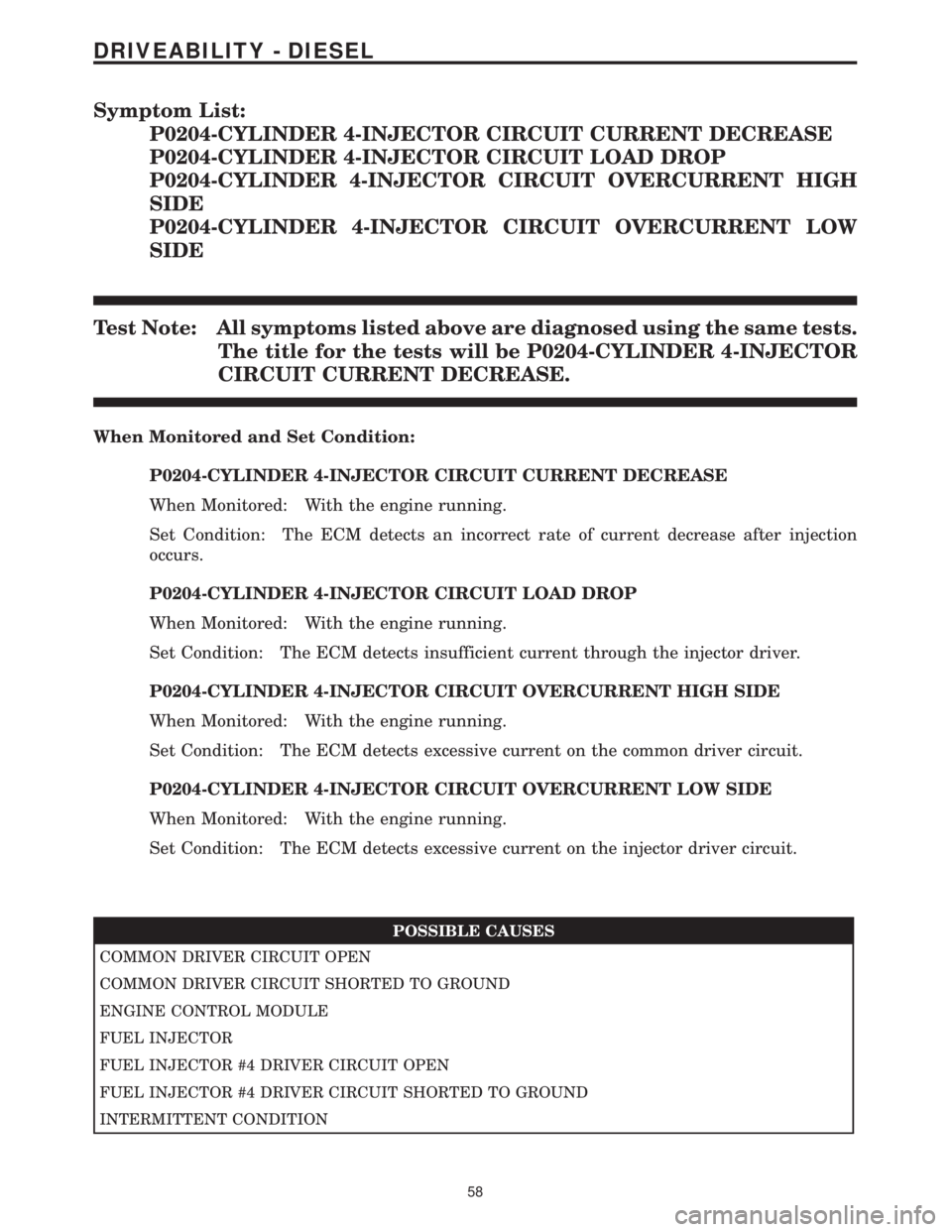

CHRYSLER VOYAGER 2001 Service Manual Symptom List: P0204-CYLINDER 4-INJECTOR CIRCUIT CURRENT DECREASE P0204-CYLINDER 4-INJECTOR CIRCUIT LOAD DROP P0204-CYLINDER 4-INJECTOR CIRCUIT OVERCURRENT HIGH SIDE P0204-CYLINDER 4-INJECTOR CIRCUIT O

Page 1278 of 4284

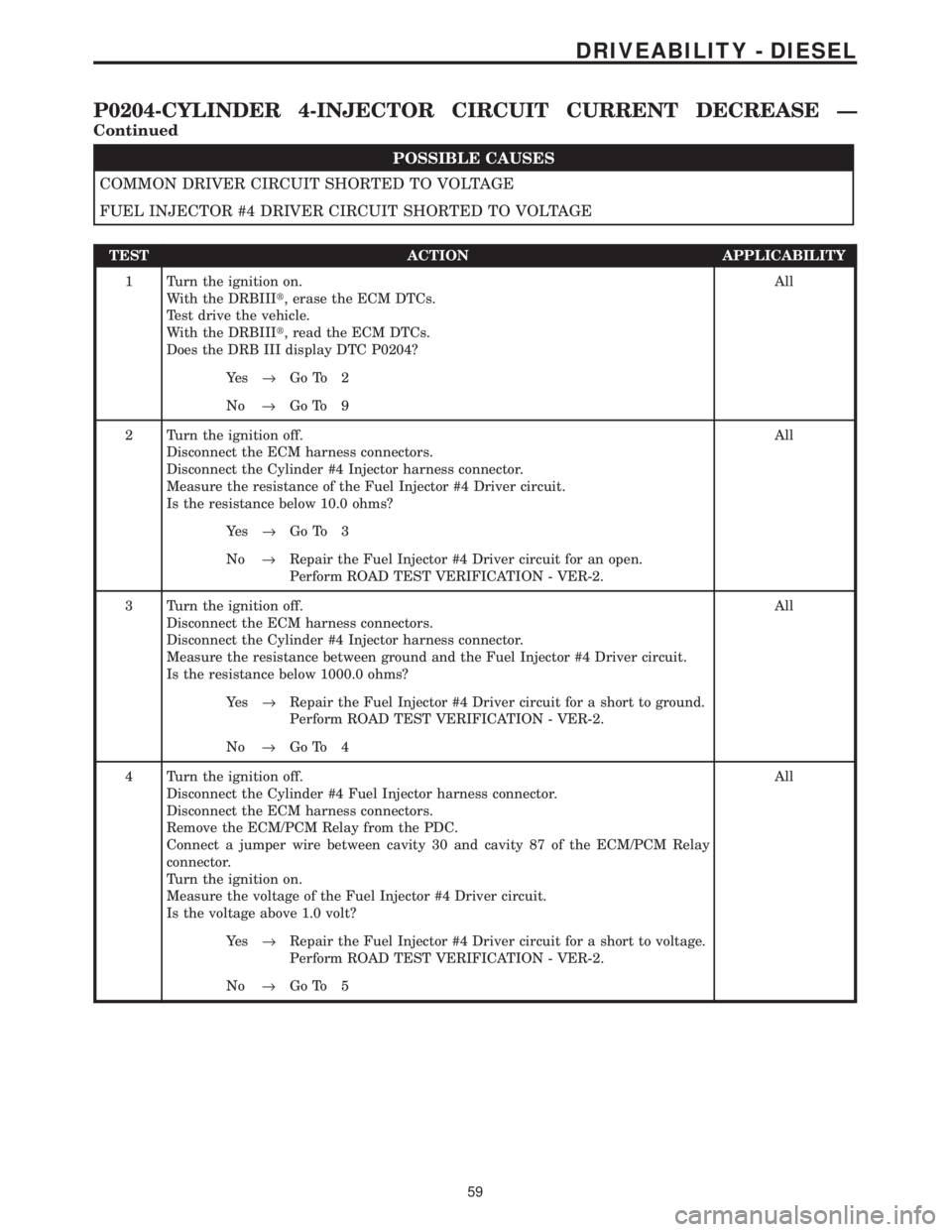

CHRYSLER VOYAGER 2001 Service Manual POSSIBLE CAUSES COMMON DRIVER CIRCUIT SHORTED TO VOLTAGE FUEL INJECTOR #4 DRIVER CIRCUIT SHORTED TO VOLTAGE TEST ACTION APPLICABILITY 1 Turn the ignition on. With the DRBIIIt, erase the ECM DTCs. Test

Page 1279 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 5 Turn the ignition off. Disconnect the ECM harness connectors. Disconnect the Cylinder #4 Injector harness connector. Measure the resistance of the Common Driver circuit. Is

Page 1280 of 4284

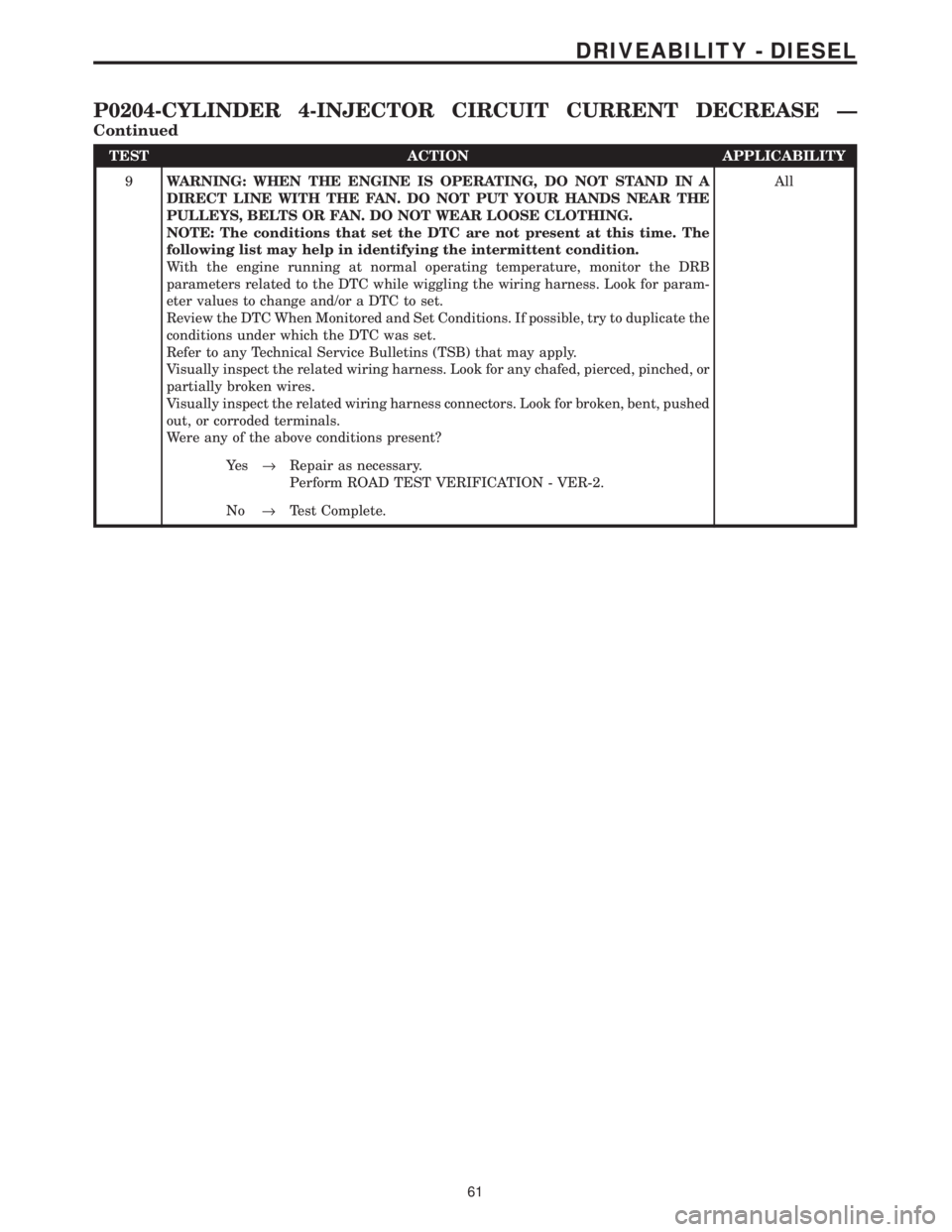

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 9WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING. NOTE: Th
