Page 489 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: LEFT FRONT TURN SIGNAL OUTPUT SHORT When Monitored and Set Condition: LEFT FRONT TURN SIGNAL OUTPUT SHORT When Monitored: Anytime the IPM is active. Set Condition: When output voltage status

Page 490 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 3 Turn the ignition off. Disconnect the Left Front Turn Signal Lamp connector. Turn the ignition on. Turn the Left Turn Signal on. Using a 12-volt test light connected to gro

Page 491 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: LEFT HIGH BEAM HEADLAMP CIRCUIT OPEN POSSIBLE CAUSES FRONT CONTROL MODULE GROUND CIRCUIT OPEN LEFT HEADLAMP LEFT HIGH BEAM DRIVER CIRCUIT OPEN WIRING HARNESS INSPECTION TEST ACTION APPLICABIL

Page 492 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 4 Turn the ignition off. Disconnect the Left Headlamp harness connector. Using a 12-volt test light connected to ground, check the Left High Beam Driver circuit in the Left H

Page 493 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: LEFT HIGH BEAM HEADLAMP CIRCUIT SHORTED TO GROUND POSSIBLE CAUSES FRONT CONTROL MODULE LEFT HEADLAMP LEFT HIGH BEAM DRIVER CIRCUIT SHORTED TO GROUND WIRING PROBLEM WIRING HARNESS INSPECTION T

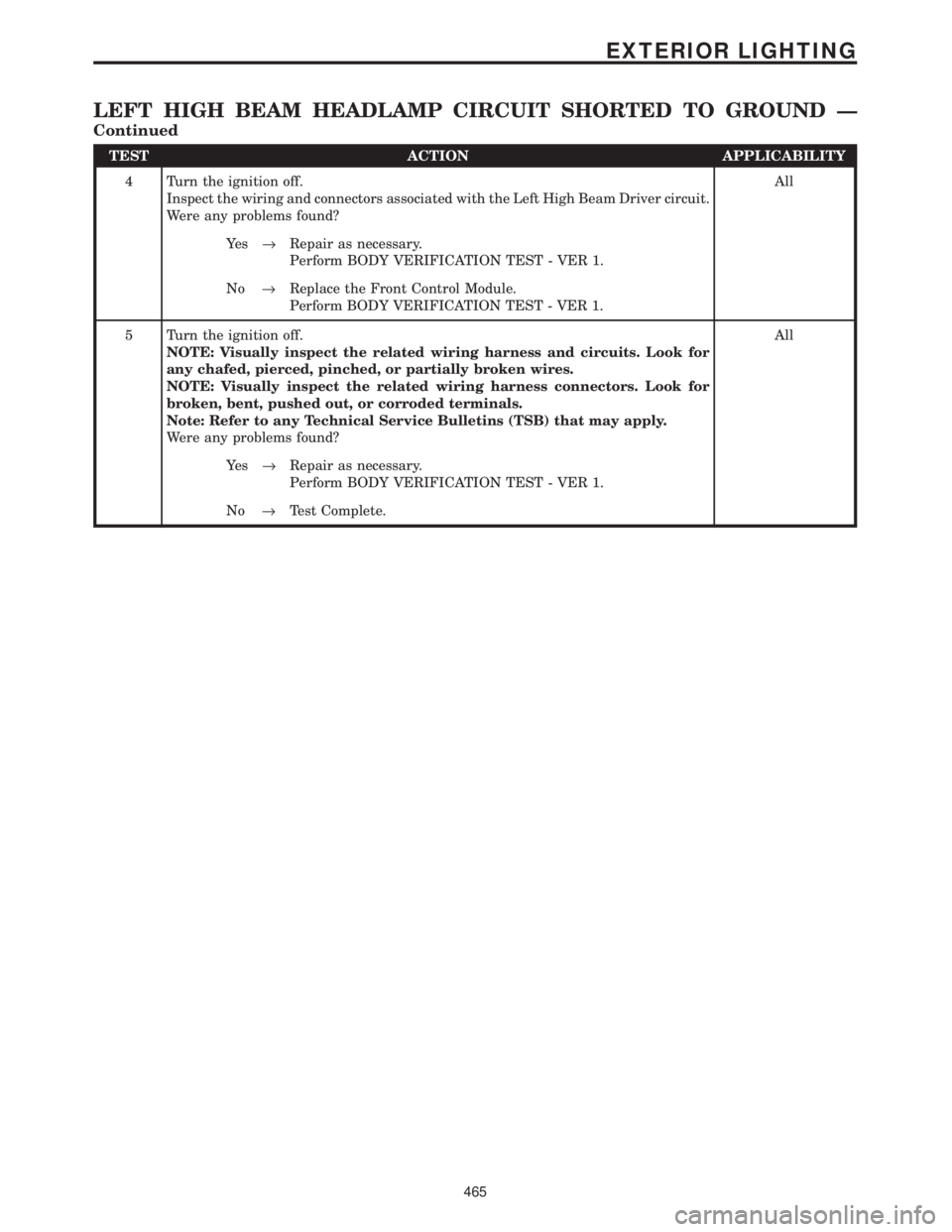

Page 494 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 4 Turn the ignition off. Inspect the wiring and connectors associated with the Left High Beam Driver circuit. Were any problems found?All Ye s®Repair as necessary. Perform B

Page 495 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom: LEFT HIGH BEAM HEADLAMP CIRCUIT SHORTED TO VOLTAGE POSSIBLE CAUSES FRONT CONTROL MODULE GROUND CIRCUIT OPEN HIGH BEAM AND LOW BEAM DRIVERS CIRCUITS SHORTED TOGETHER LEFT HEADLAMP LEFT HIGH BE

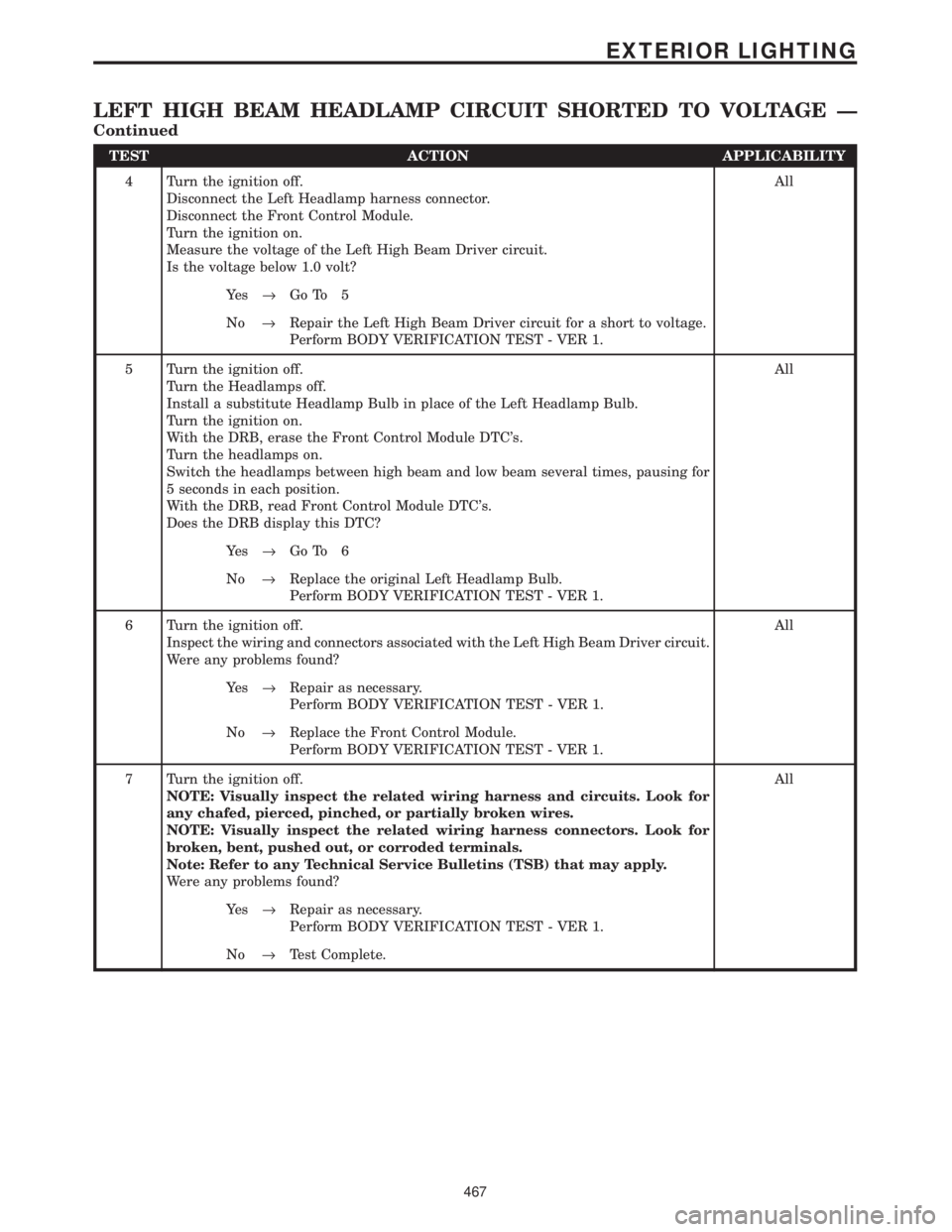

Page 496 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 4 Turn the ignition off. Disconnect the Left Headlamp harness connector. Disconnect the Front Control Module. Turn the ignition on. Measure the voltage of the Left High Beam
