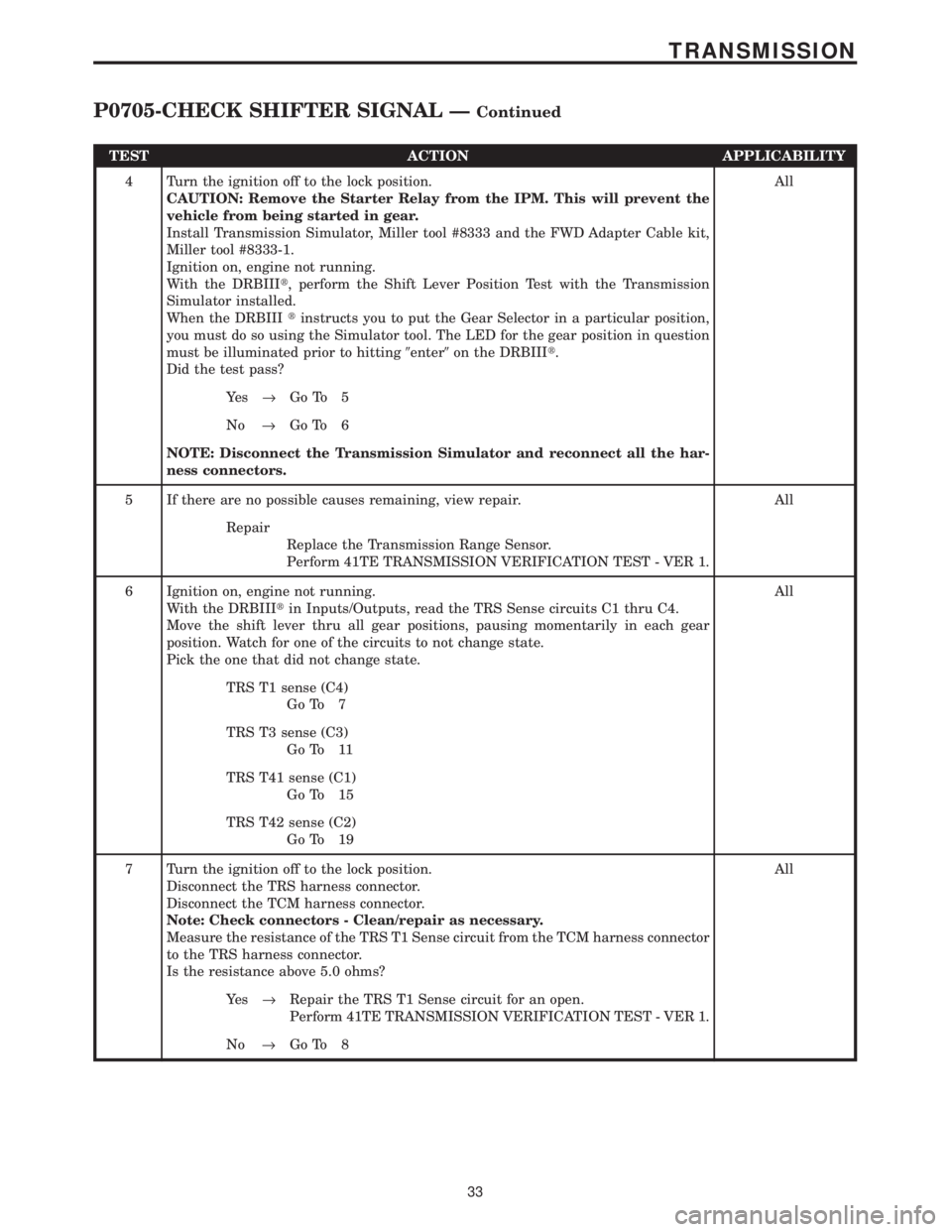

Page 4137 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
4 Turn the ignition off to the lock position.
CAUTION: Remove the Starter Relay from the IPM. This will prevent the
vehicle from being started in gear.
Install Transmission S

Page 4138 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
8 Turn the ignition off to the lock position.
Disconnect the TRS harness connector.
Disconnect the TCM harness connector.
Note: Check connectors - Clean/repair as necessary.

TEST ACTION APPLICABILITY
8 Turn the ignition off to the lock position.
Disconnect the TRS harness connector.
Disconnect the TCM harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance between the TRS T1 Sense circuit at the TCM connector and
ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the TRS T1 Sense circuit for a short to ground.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 9
9 Turn the ignition off to the lock position.
Disconnect the TRS harness connector.
Disconnect the TCM harness connector.
Remove the Transmission Control Relay from the IPM.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire between the Fused B+ circuit and the Transmission Control
Relay Output circuit in the Transmission Control Relay connector in the IPM.
Ignition on, engine not running.
Measure the voltage of the TRS T1 Sense circuit at the TCM harness connector.
Is the voltage above 0.5 volt?All
Ye s®Repair the TRS T1 Sense circuit for a short to voltage.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 10
10 If there are no possible causes remaining, view repair. All
Repair
Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
11 Turn the ignition off to the lock position.
Disconnect the TRS harness connector.
Disconnect the TCM harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the TRS T3 Sense circuit from the TCM harness connector
to the TRS harness connector.
Is the resistance above 5.0 ohms?All
Ye s®Repair the TRS T3 Sense circuit for an open.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 12
12 Turn the ignition off to the lock position.
Disconnect the TRS harness connector.
Disconnect the TCM harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the TRS T3 Sense circuit in the TCM
harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Repair the TRS T3 Sense circuit for a short to ground.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 13
34
TRANSMISSION
P0705-CHECK SHIFTER SIGNAL ÐContinued

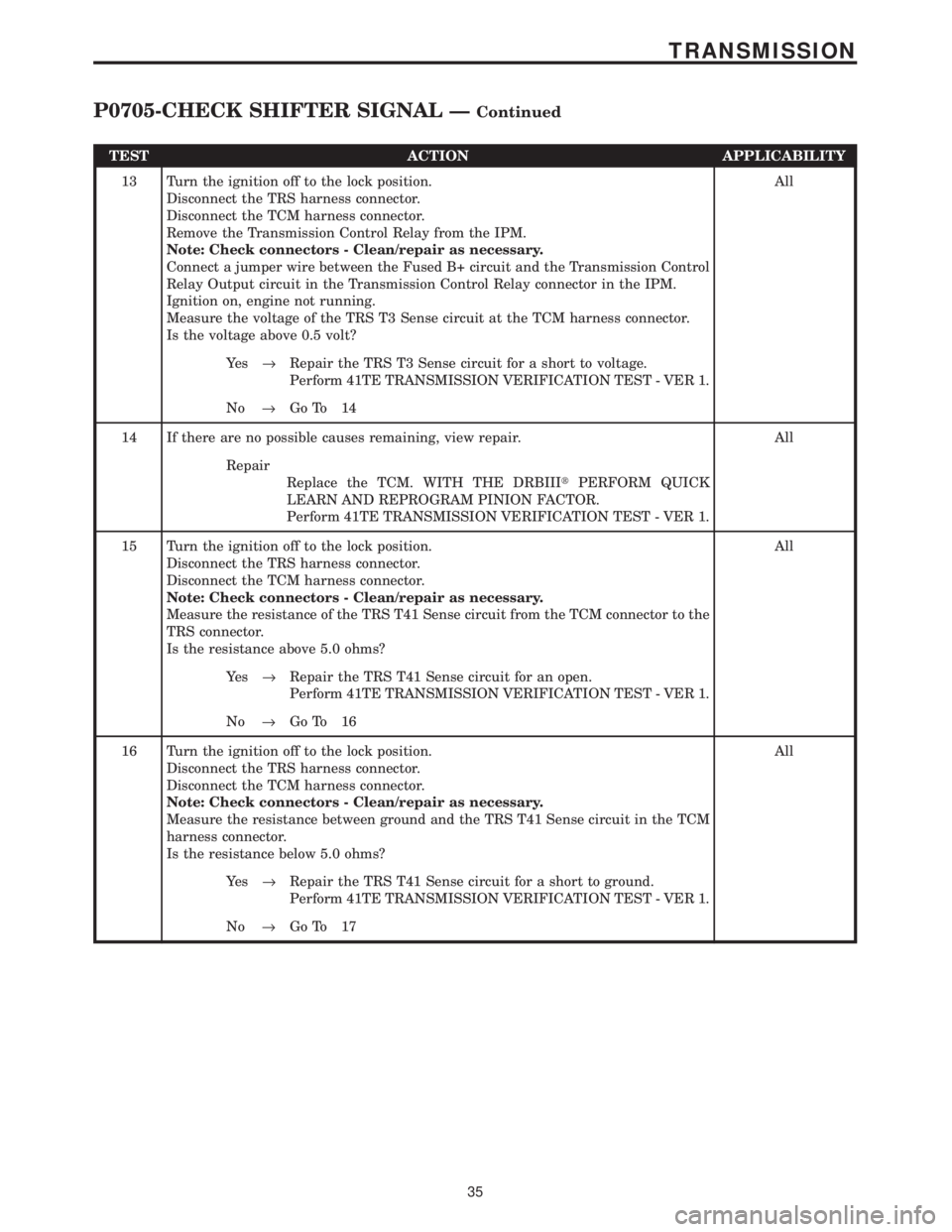

Page 4139 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
13 Turn the ignition off to the lock position.
Disconnect the TRS harness connector.
Disconnect the TCM harness connector.
Remove the Transmission Control Relay from the IPM.

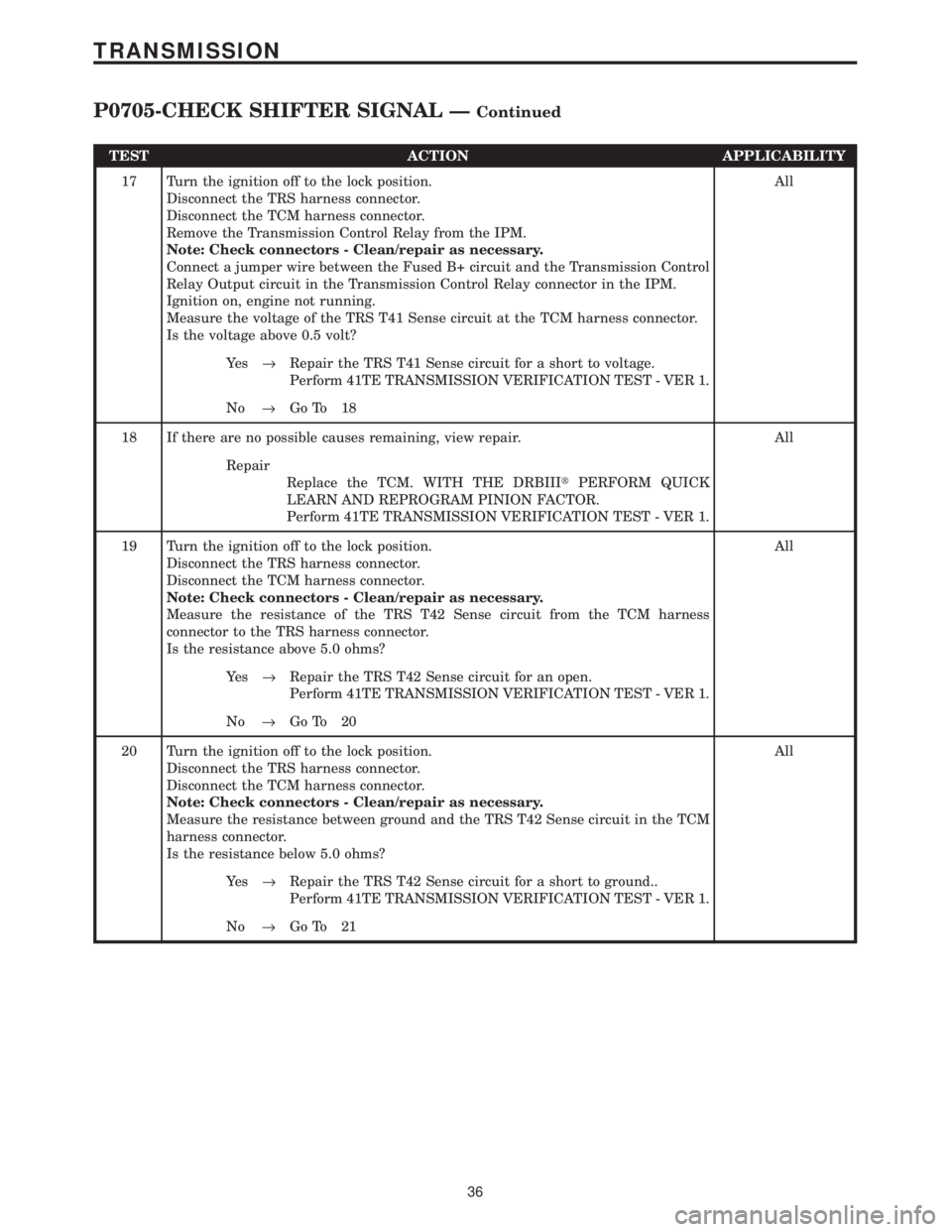

Page 4140 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
17 Turn the ignition off to the lock position.
Disconnect the TRS harness connector.
Disconnect the TCM harness connector.
Remove the Transmission Control Relay from the IPM.

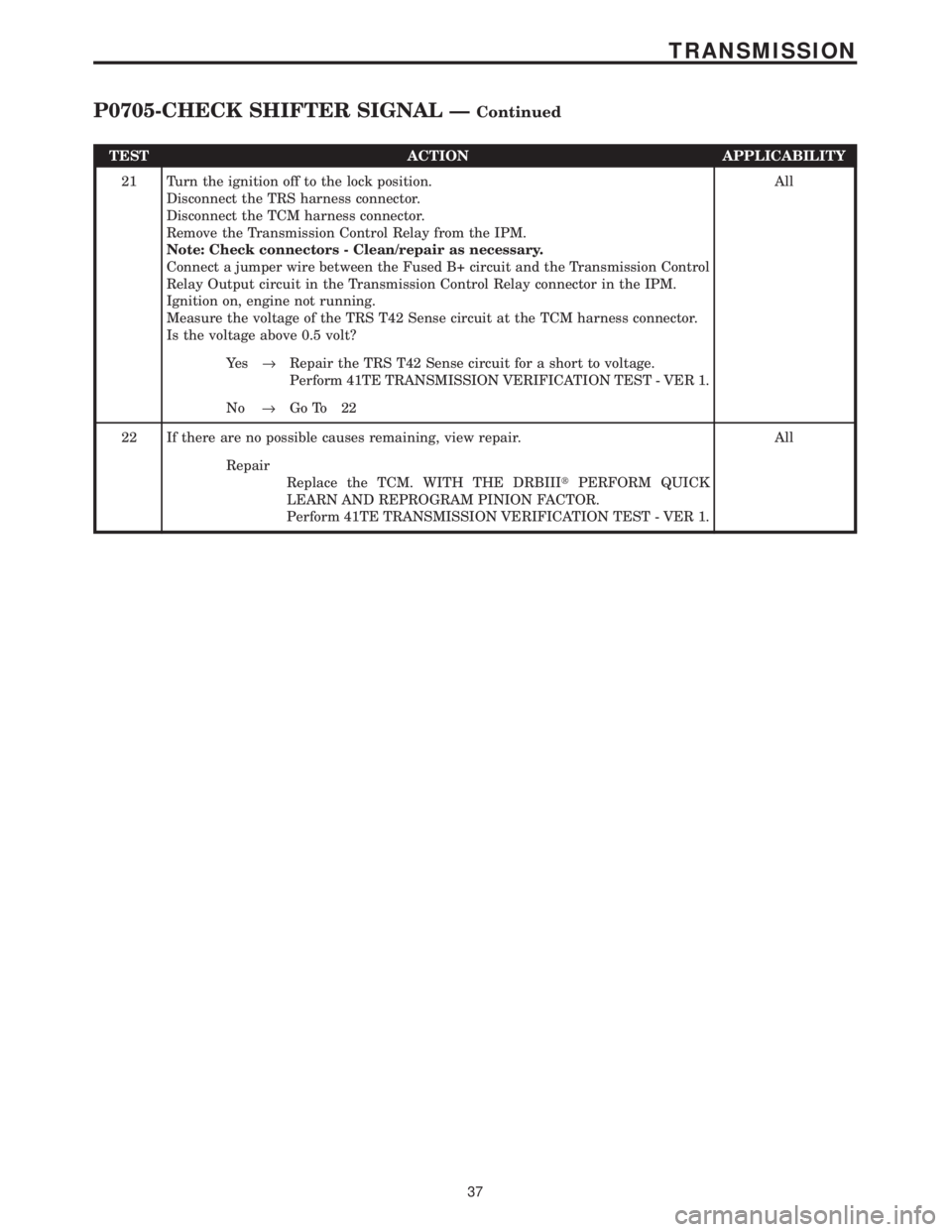

Page 4141 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
21 Turn the ignition off to the lock position.
Disconnect the TRS harness connector.
Disconnect the TCM harness connector.
Remove the Transmission Control Relay from the IPM.

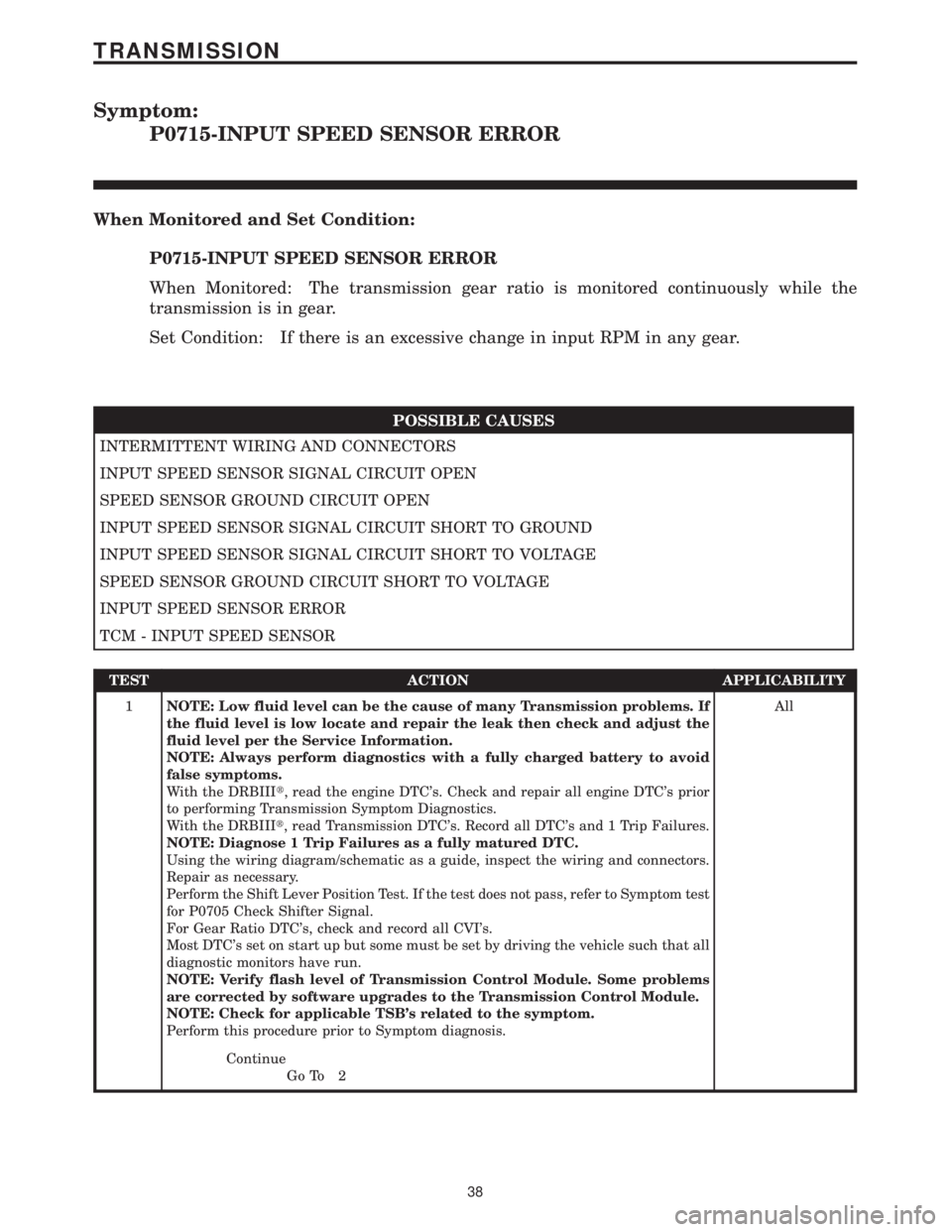

Page 4142 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P0715-INPUT SPEED SENSOR ERROR
When Monitored and Set Condition:
P0715-INPUT SPEED SENSOR ERROR
When Monitored: The transmission gear ratio is monitored continuously while the
transmission is

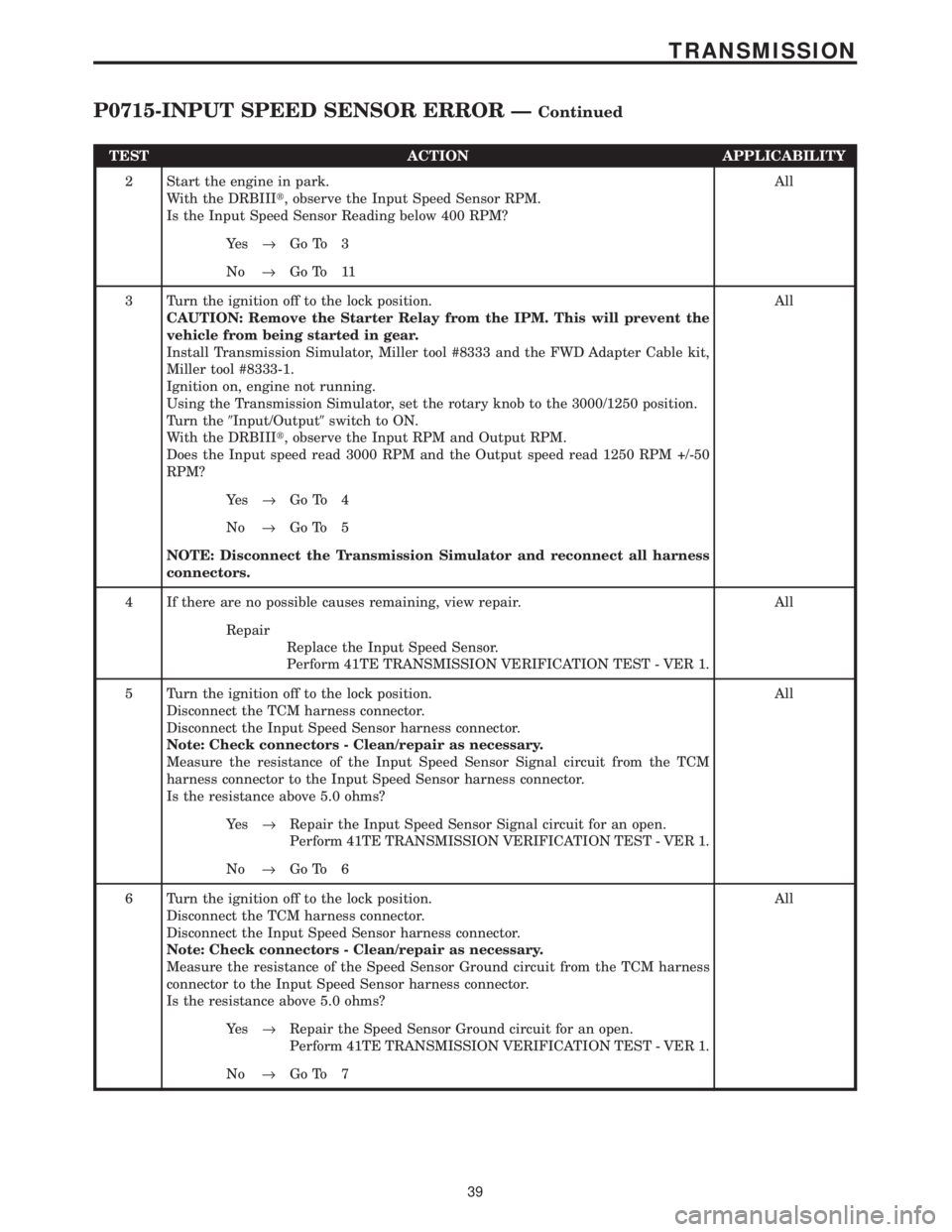

Page 4143 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2 Start the engine in park.
With the DRBIIIt, observe the Input Speed Sensor RPM.
Is the Input Speed Sensor Reading below 400 RPM?All
Ye s®Go To 3
No®Go To 11
3 Turn the ig

TEST ACTION APPLICABILITY
2 Start the engine in park.
With the DRBIIIt, observe the Input Speed Sensor RPM.
Is the Input Speed Sensor Reading below 400 RPM?All
Ye s®Go To 3
No®Go To 11
3 Turn the ignition off to the lock position.
CAUTION: Remove the Starter Relay from the IPM. This will prevent the
vehicle from being started in gear.
Install Transmission Simulator, Miller tool #8333 and the FWD Adapter Cable kit,
Miller tool #8333-1.
Ignition on, engine not running.
Using the Transmission Simulator, set the rotary knob to the 3000/1250 position.
Turn the9Input/Output9switch to ON.
With the DRBIIIt, observe the Input RPM and Output RPM.
Does the Input speed read 3000 RPM and the Output speed read 1250 RPM +/-50
RPM?All
Ye s®Go To 4
No®Go To 5
NOTE: Disconnect the Transmission Simulator and reconnect all harness
connectors.
4 If there are no possible causes remaining, view repair. All
Repair
Replace the Input Speed Sensor.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
5 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Input Speed Sensor harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the Input Speed Sensor Signal circuit from the TCM
harness connector to the Input Speed Sensor harness connector.
Is the resistance above 5.0 ohms?All
Ye s®Repair the Input Speed Sensor Signal circuit for an open.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 6
6 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Input Speed Sensor harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the Speed Sensor Ground circuit from the TCM harness
connector to the Input Speed Sensor harness connector.
Is the resistance above 5.0 ohms?All
Ye s®Repair the Speed Sensor Ground circuit for an open.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 7
39
TRANSMISSION
P0715-INPUT SPEED SENSOR ERROR ÐContinued

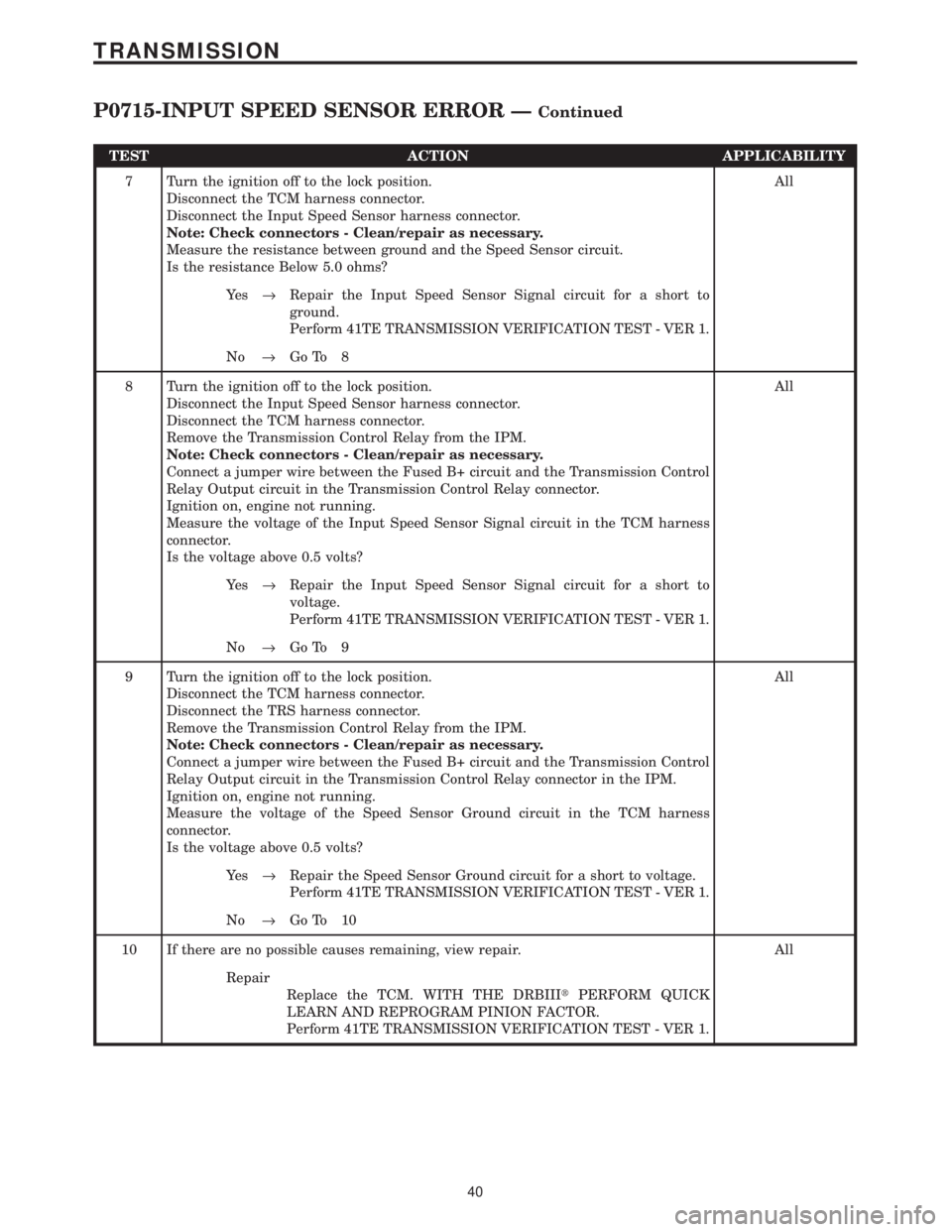

Page 4144 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
7 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Input Speed Sensor harness connector.
Note: Check connectors - Clean/repair

TEST ACTION APPLICABILITY
7 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Input Speed Sensor harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the Speed Sensor circuit.
Is the resistance Below 5.0 ohms?All
Ye s®Repair the Input Speed Sensor Signal circuit for a short to
ground.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 8
8 Turn the ignition off to the lock position.
Disconnect the Input Speed Sensor harness connector.
Disconnect the TCM harness connector.
Remove the Transmission Control Relay from the IPM.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire between the Fused B+ circuit and the Transmission Control
Relay Output circuit in the Transmission Control Relay connector.
Ignition on, engine not running.
Measure the voltage of the Input Speed Sensor Signal circuit in the TCM harness
connector.
Is the voltage above 0.5 volts?All
Ye s®Repair the Input Speed Sensor Signal circuit for a short to
voltage.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 9
9 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the TRS harness connector.
Remove the Transmission Control Relay from the IPM.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire between the Fused B+ circuit and the Transmission Control
Relay Output circuit in the Transmission Control Relay connector in the IPM.
Ignition on, engine not running.
Measure the voltage of the Speed Sensor Ground circuit in the TCM harness
connector.
Is the voltage above 0.5 volts?All
Ye s®Repair the Speed Sensor Ground circuit for a short to voltage.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 10
10 If there are no possible causes remaining, view repair. All
Repair
Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
40
TRANSMISSION
P0715-INPUT SPEED SENSOR ERROR ÐContinued
