Page 2505 of 4284

CHRYSLER VOYAGER 2001 Service Manual HOOD AJAR SWITCH - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 G70 20VT/LB HOOD AJAR SWITCH SENSE 2 Z470 20BK/LB GROUND IDLE AIR CONTROL MOTOR (2.4L) - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 K59 18BR/DG IDLE AIR C

Page 2506 of 4284

CHRYSLER VOYAGER 2001 Service Manual IGNITION SWITCH - BLACK 5 WAY CAV CIRCUIT FUNCTION 1 G900 20VT/OR IGNITION SWITCH SENSE RETURN 2 G20 20VT/BR IGNITION SWITCH SENSE 3 F20 20PK/WT (LHD) IGNITION SWITCH OUTPUT (RUN-START) 3 F20 20PK/WT

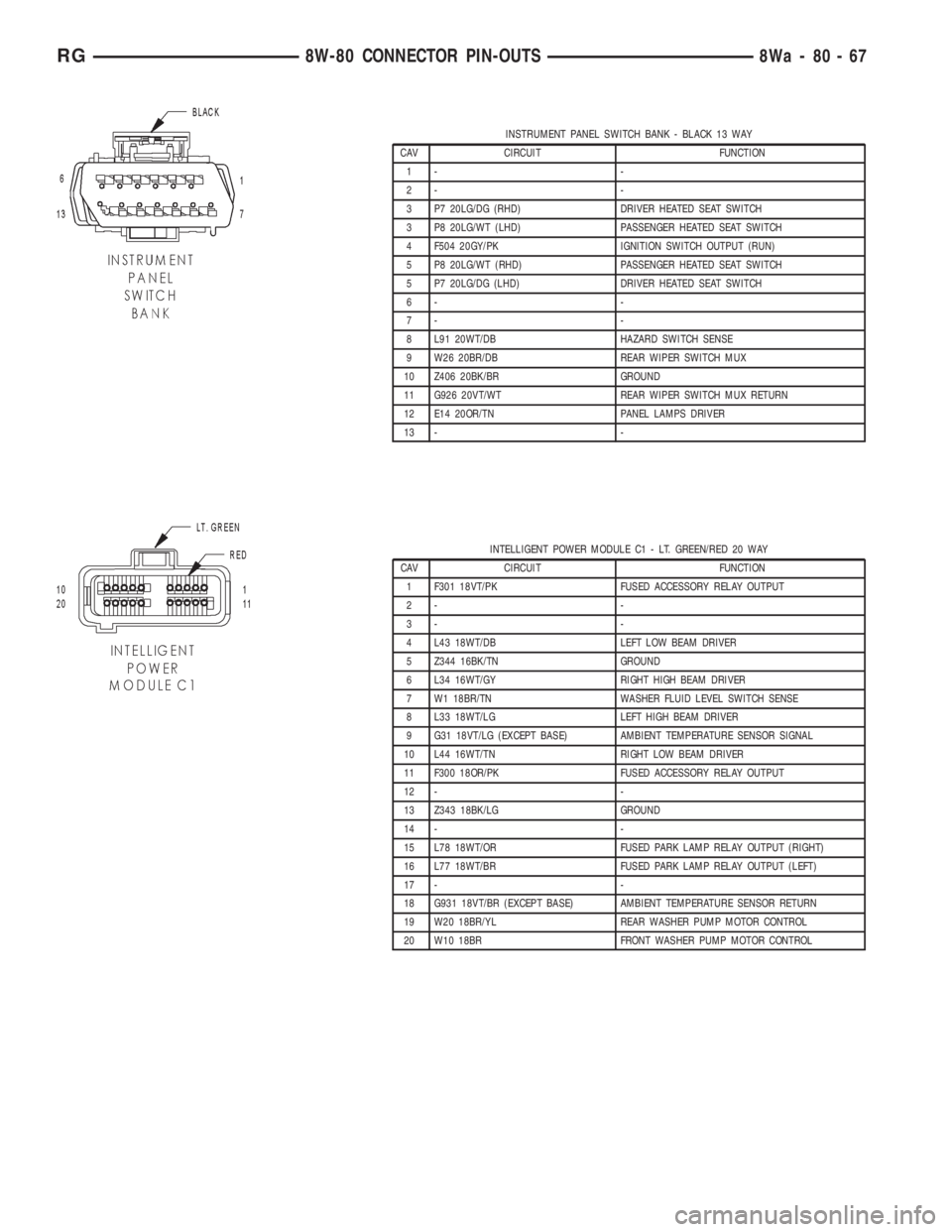

Page 2507 of 4284

CHRYSLER VOYAGER 2001 Service Manual INSTRUMENT PANEL SWITCH BANK - BLACK 13 WAY CAV CIRCUIT FUNCTION 1- - 2- - 3 P7 20LG/DG (RHD) DRIVER HEATED SEAT SWITCH 3 P8 20LG/WT (LHD) PASSENGER HEATED SEAT SWITCH 4 F504 20GY/PK IGNITION SWITCH O

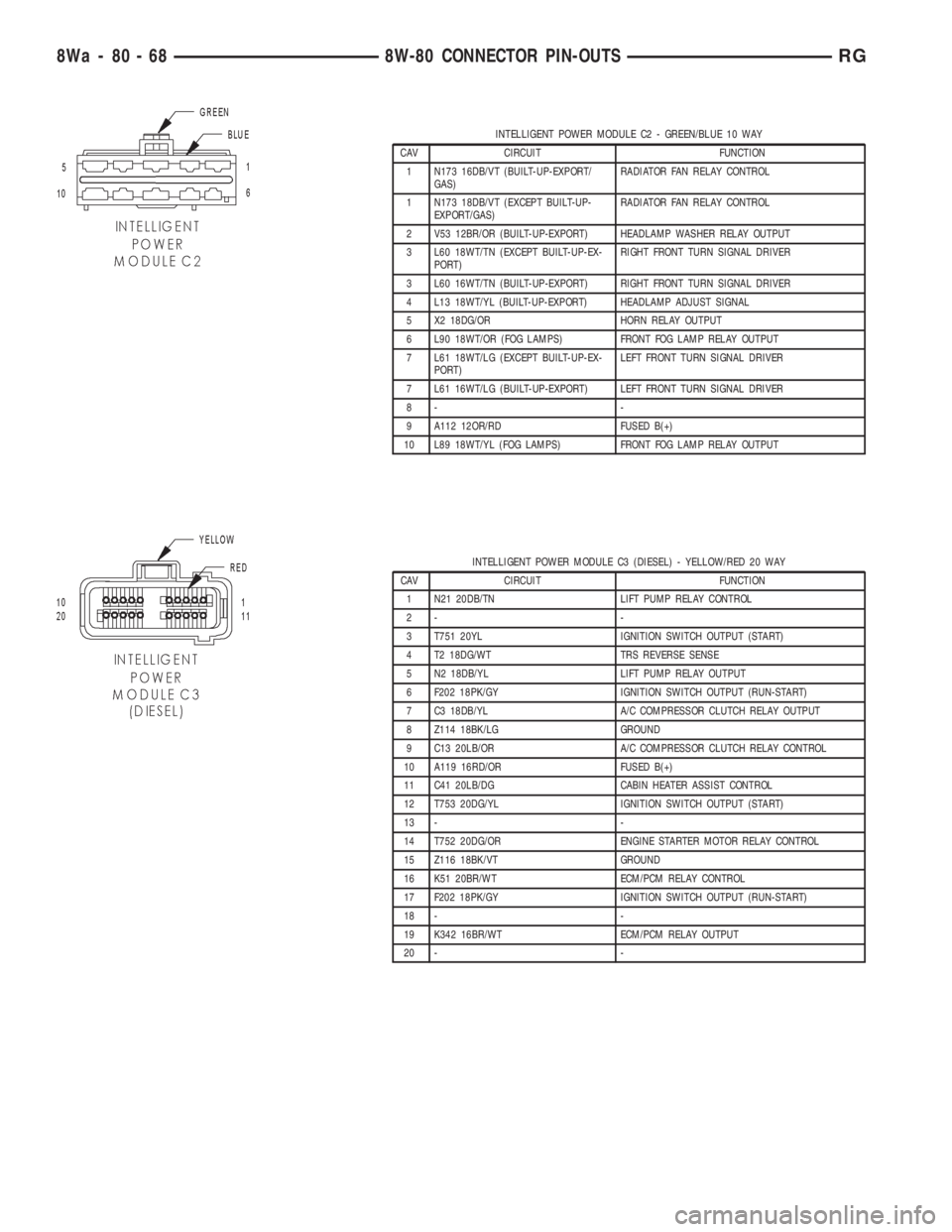

Page 2508 of 4284

CHRYSLER VOYAGER 2001 Service Manual INTELLIGENT POWER MODULE C2 - GREEN/BLUE 10 WAY CAV CIRCUIT FUNCTION 1 N173 16DB/VT (BUILT-UP-EXPORT/ GAS)RADIATOR FAN RELAY CONTROL 1 N173 18DB/VT (EXCEPT BUILT-UP- EXPORT/GAS)RADIATOR FAN RELAY CONT

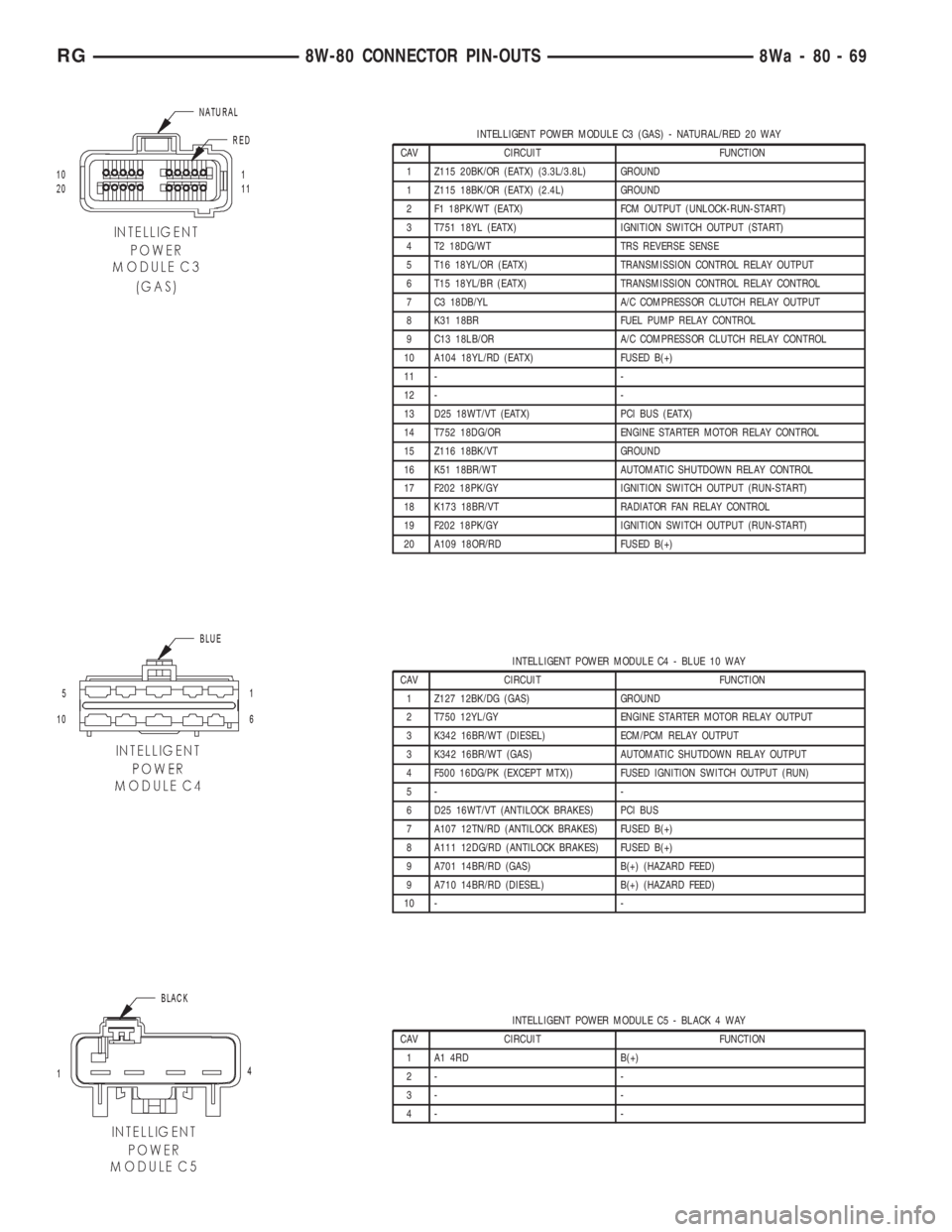

Page 2509 of 4284

CHRYSLER VOYAGER 2001 Service Manual INTELLIGENT POWER MODULE C3 (GAS) - NATURAL/RED 20 WAY CAV CIRCUIT FUNCTION 1 Z115 20BK/OR (EATX) (3.3L/3.8L) GROUND 1 Z115 18BK/OR (EATX) (2.4L) GROUND 2 F1 18PK/WT (EATX) FCM OUTPUT (UNLOCK-RUN-STAR

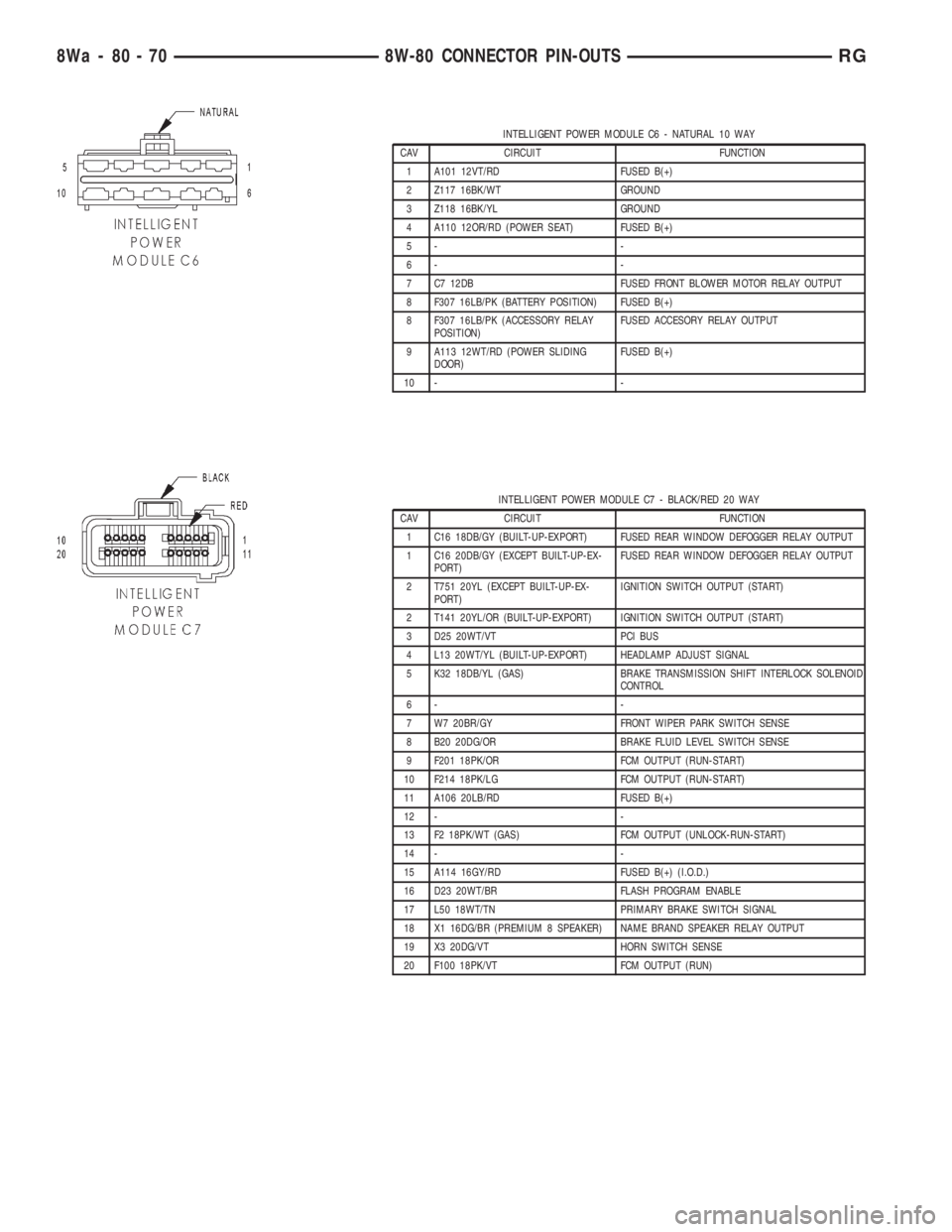

Page 2510 of 4284

CHRYSLER VOYAGER 2001 Service Manual INTELLIGENT POWER MODULE C6 - NATURAL 10 WAY CAV CIRCUIT FUNCTION 1 A101 12VT/RD FUSED B(+) 2 Z117 16BK/WT GROUND 3 Z118 16BK/YL GROUND 4 A110 12OR/RD (POWER SEAT) FUSED B(+) 5- - 6- - 7 C7 12DB FUSED

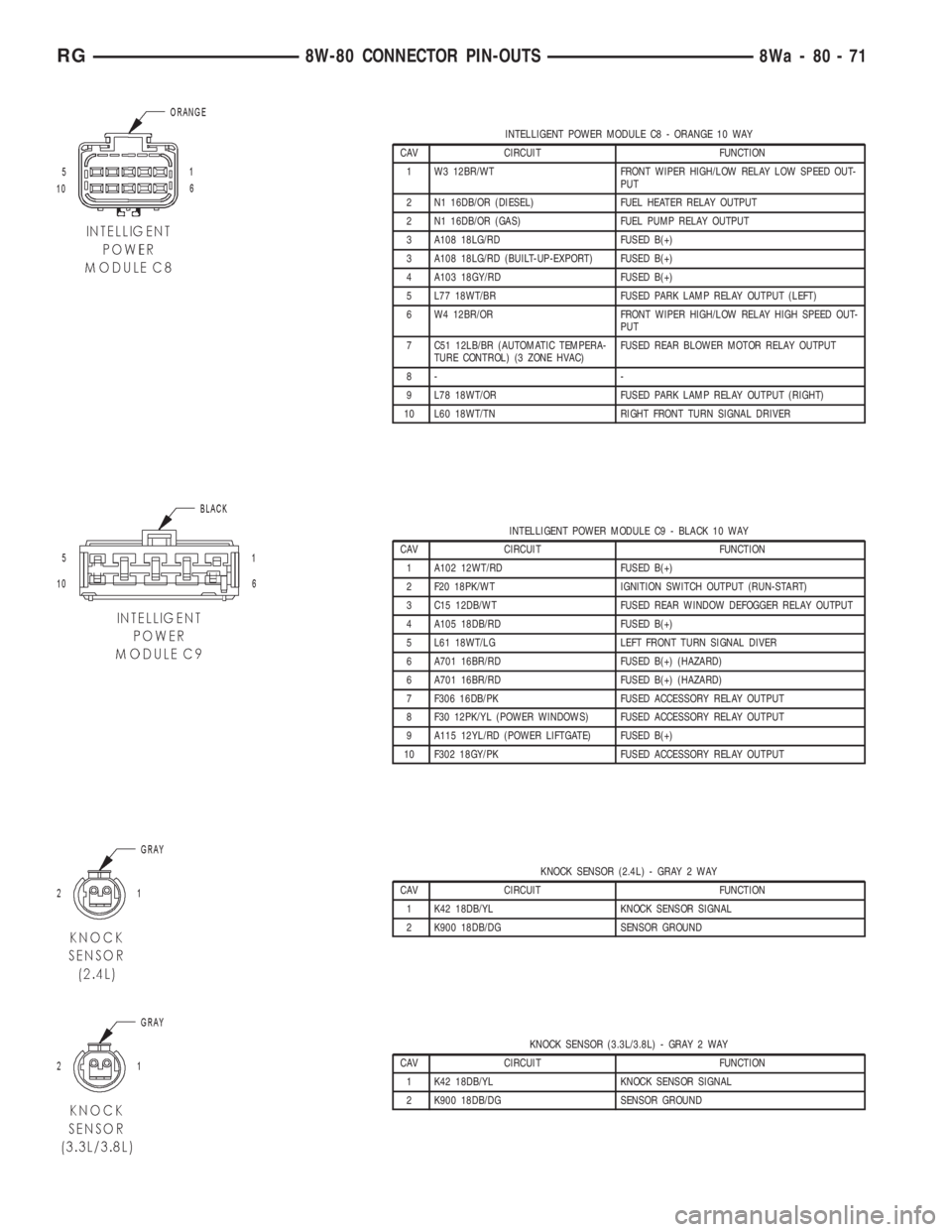

Page 2511 of 4284

CHRYSLER VOYAGER 2001 Service Manual INTELLIGENT POWER MODULE C8 - ORANGE 10 WAY CAV CIRCUIT FUNCTION 1 W3 12BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUT- PUT 2 N1 16DB/OR (DIESEL) FUEL HEATER RELAY OUTPUT 2 N1 16DB/OR (GAS) FUEL PUMP

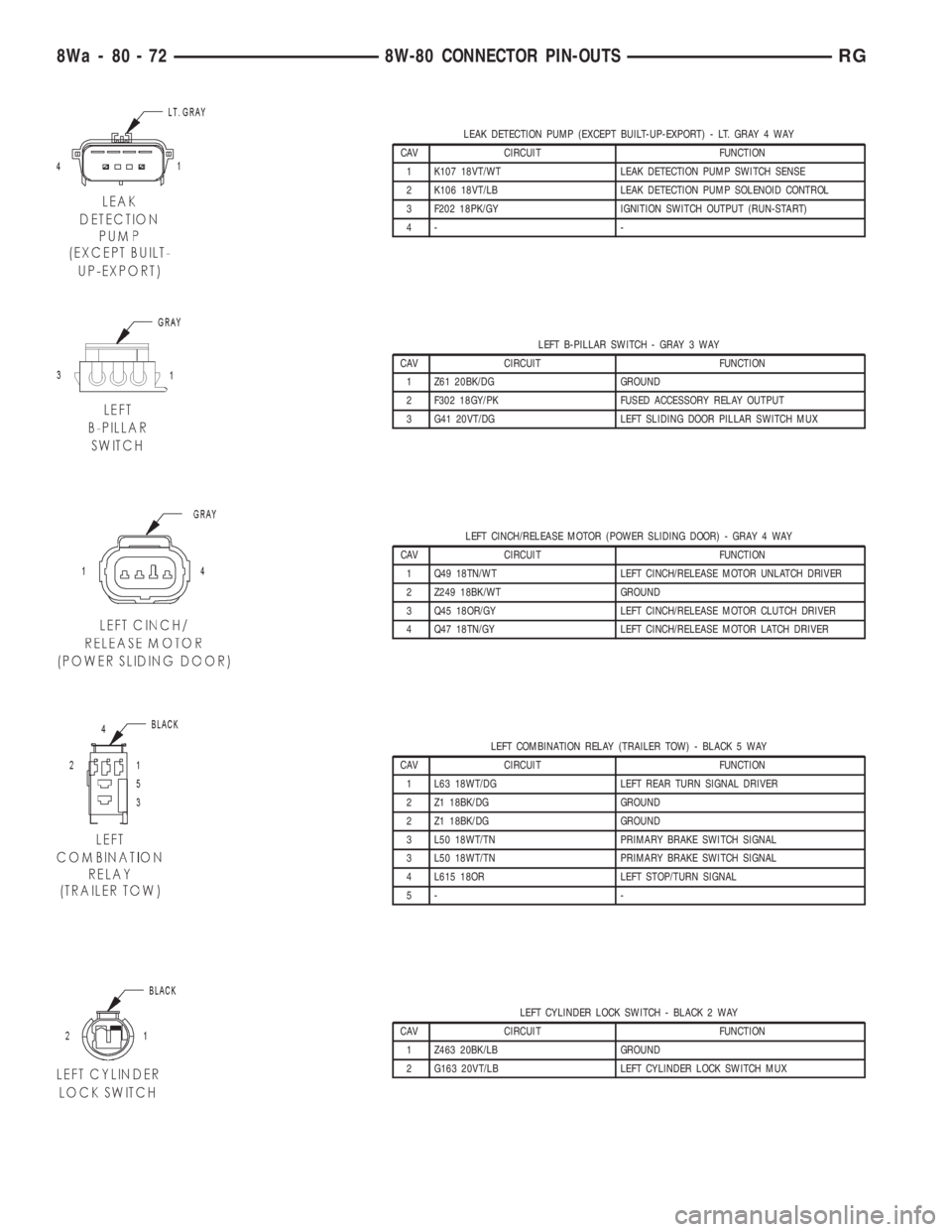

Page 2512 of 4284

CHRYSLER VOYAGER 2001 Service Manual LEAK DETECTION PUMP (EXCEPT BUILT-UP-EXPORT) - LT. GRAY 4 WAY CAV CIRCUIT FUNCTION 1 K107 18VT/WT LEAK DETECTION PUMP SWITCH SENSE 2 K106 18VT/LB LEAK DETECTION PUMP SOLENOID CONTROL 3 F202 18PK/GY IG
