Page 3481 of 4284

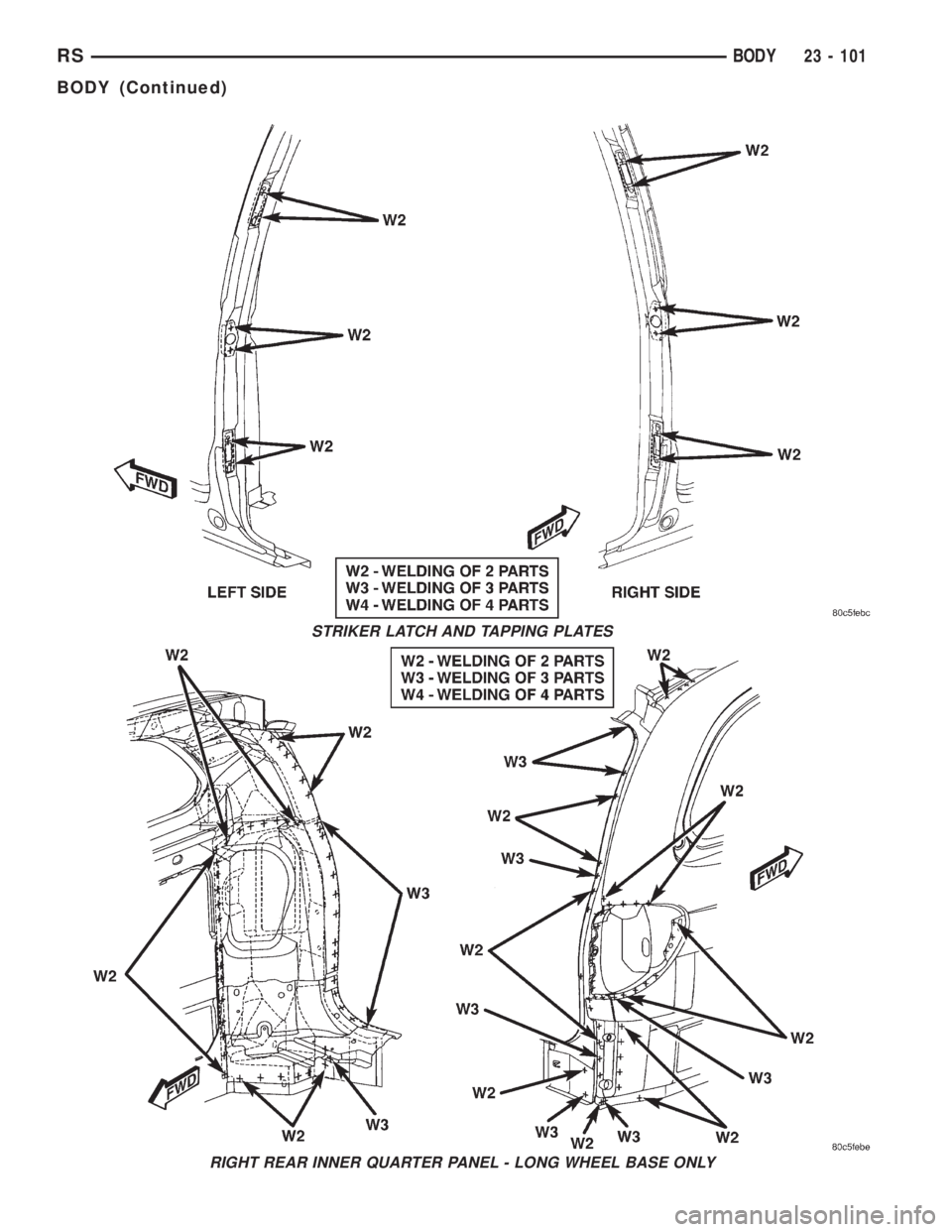

CHRYSLER VOYAGER 2001 Service Manual STRIKER LATCH AND TAPPING PLATES RIGHT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY RSBODY23 - 101 BODY (Continued)

Page 3482 of 4284

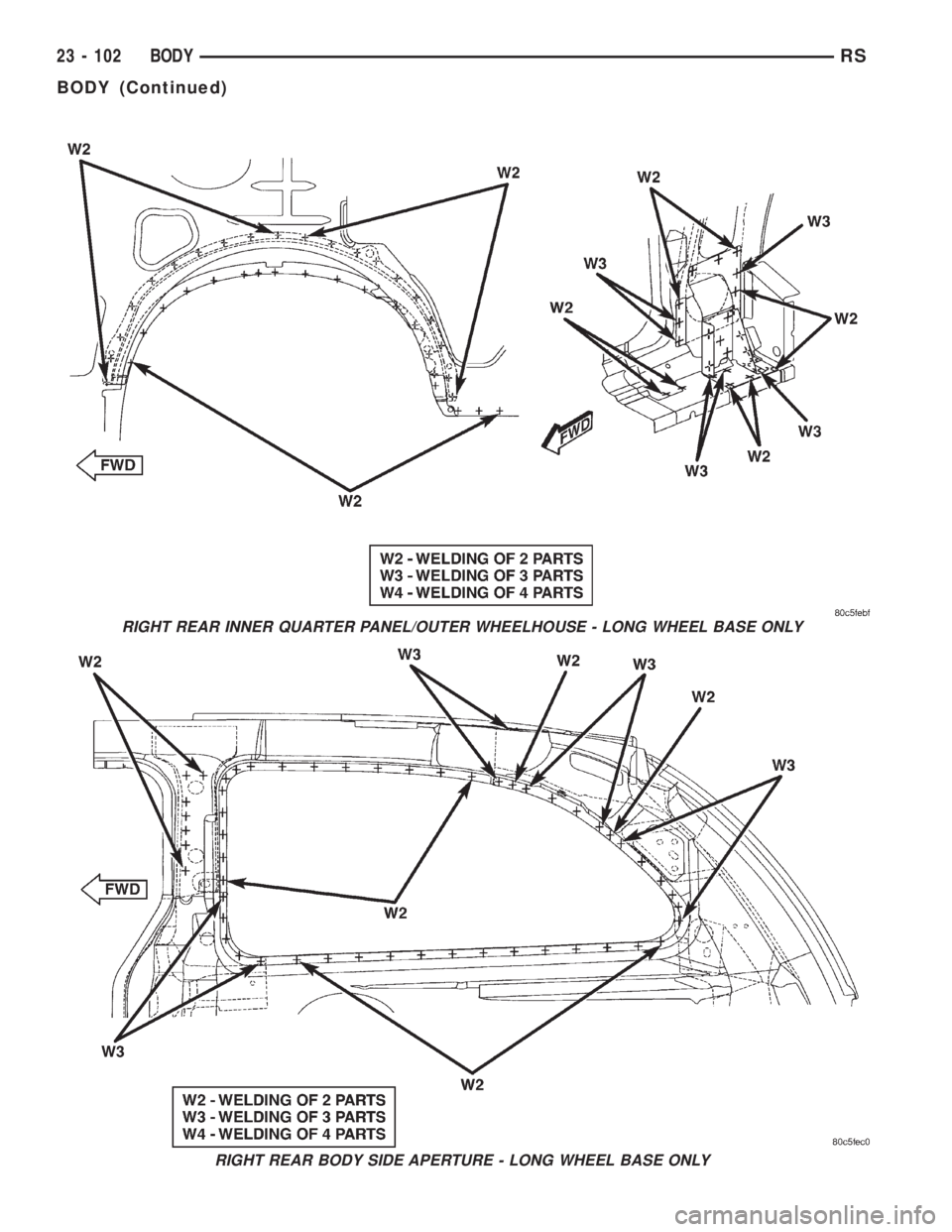

CHRYSLER VOYAGER 2001 Service Manual RIGHT REAR INNER QUARTER PANEL/OUTER WHEELHOUSE - LONG WHEEL BASE ONLY RIGHT REAR BODY SIDE APERTURE - LONG WHEEL BASE ONLY 23 - 102 BODYRS BODY (Continued)

Page 3483 of 4284

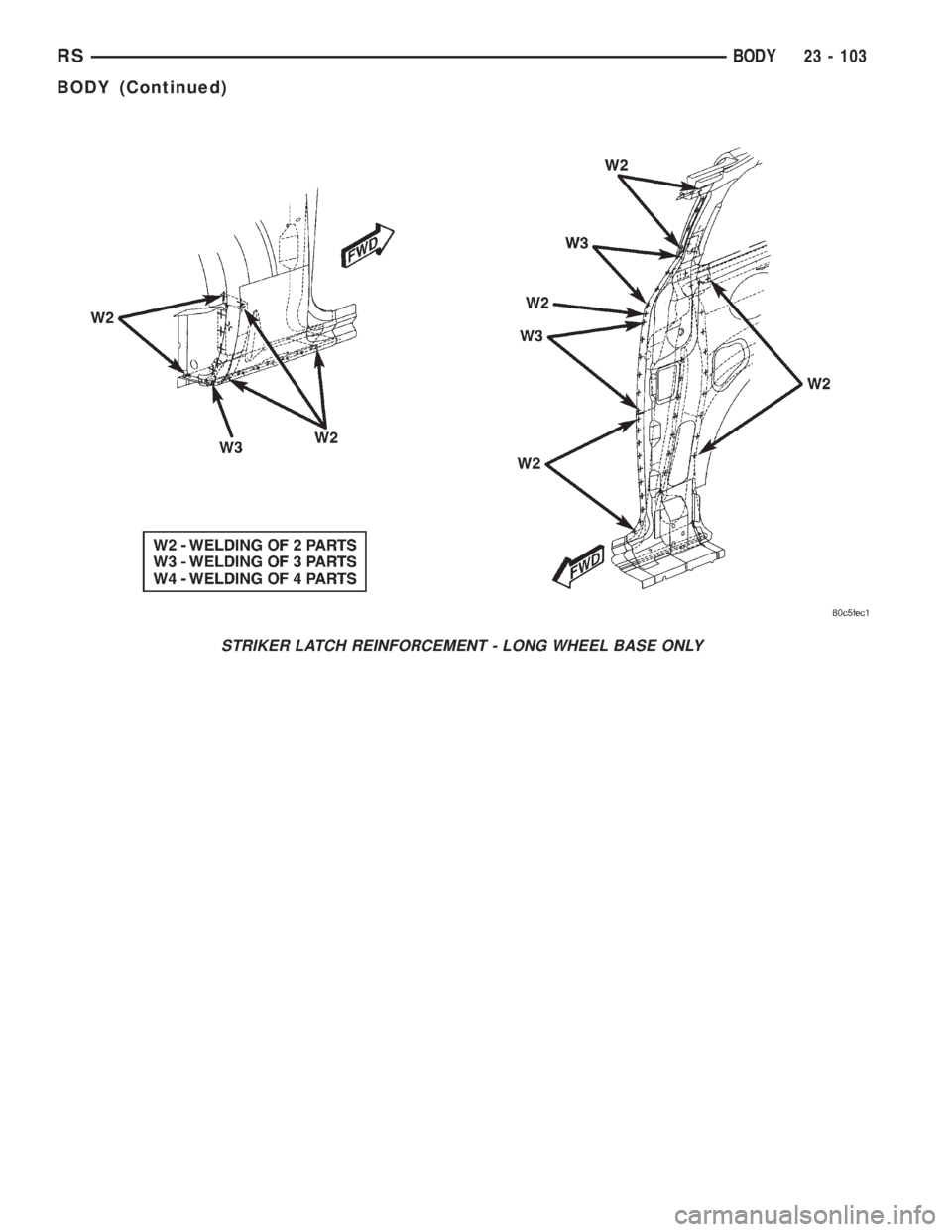

CHRYSLER VOYAGER 2001 Service Manual STRIKER LATCH REINFORCEMENT - LONG WHEEL BASE ONLY RSBODY23 - 103 BODY (Continued)

Page 3484 of 4284

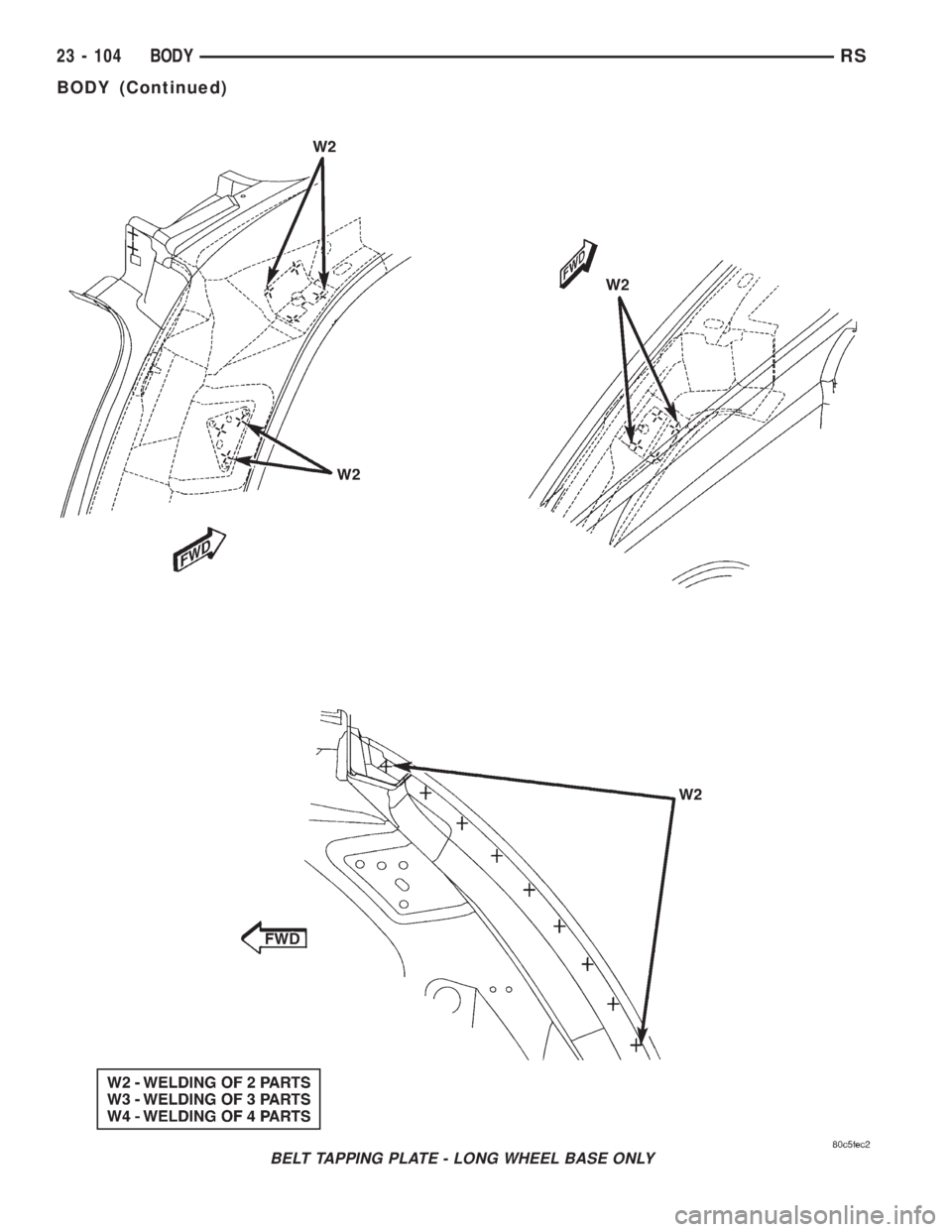

CHRYSLER VOYAGER 2001 Service Manual BELT TAPPING PLATE - LONG WHEEL BASE ONLY 23 - 104 BODYRS BODY (Continued)

Page 3485 of 4284

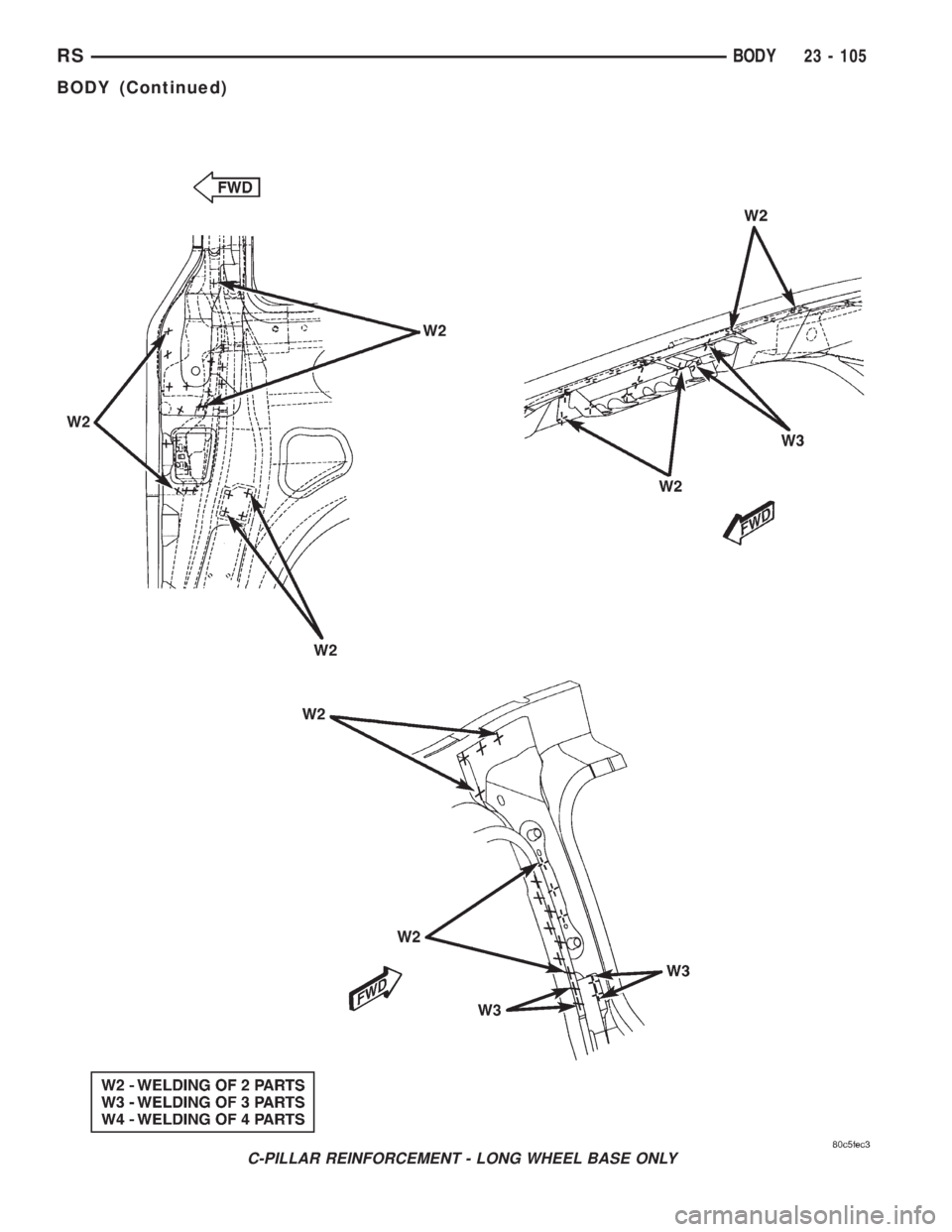

CHRYSLER VOYAGER 2001 Service Manual C-PILLAR REINFORCEMENT - LONG WHEEL BASE ONLY RSBODY23 - 105 BODY (Continued)

Page 3486 of 4284

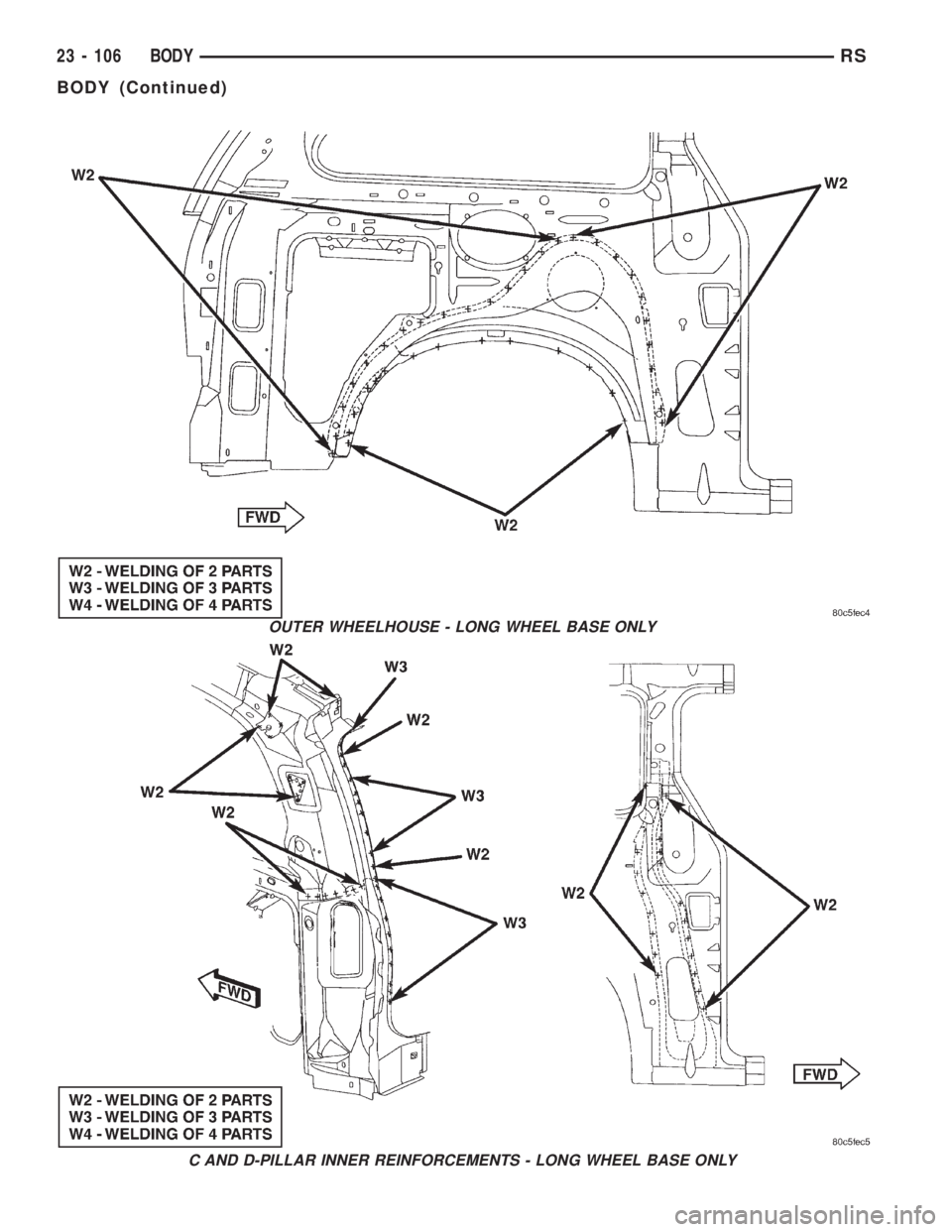

CHRYSLER VOYAGER 2001 Service Manual OUTER WHEELHOUSE - LONG WHEEL BASE ONLY C AND D-PILLAR INNER REINFORCEMENTS - LONG WHEEL BASE ONLY 23 - 106 BODYRS BODY (Continued)

Page 3487 of 4284

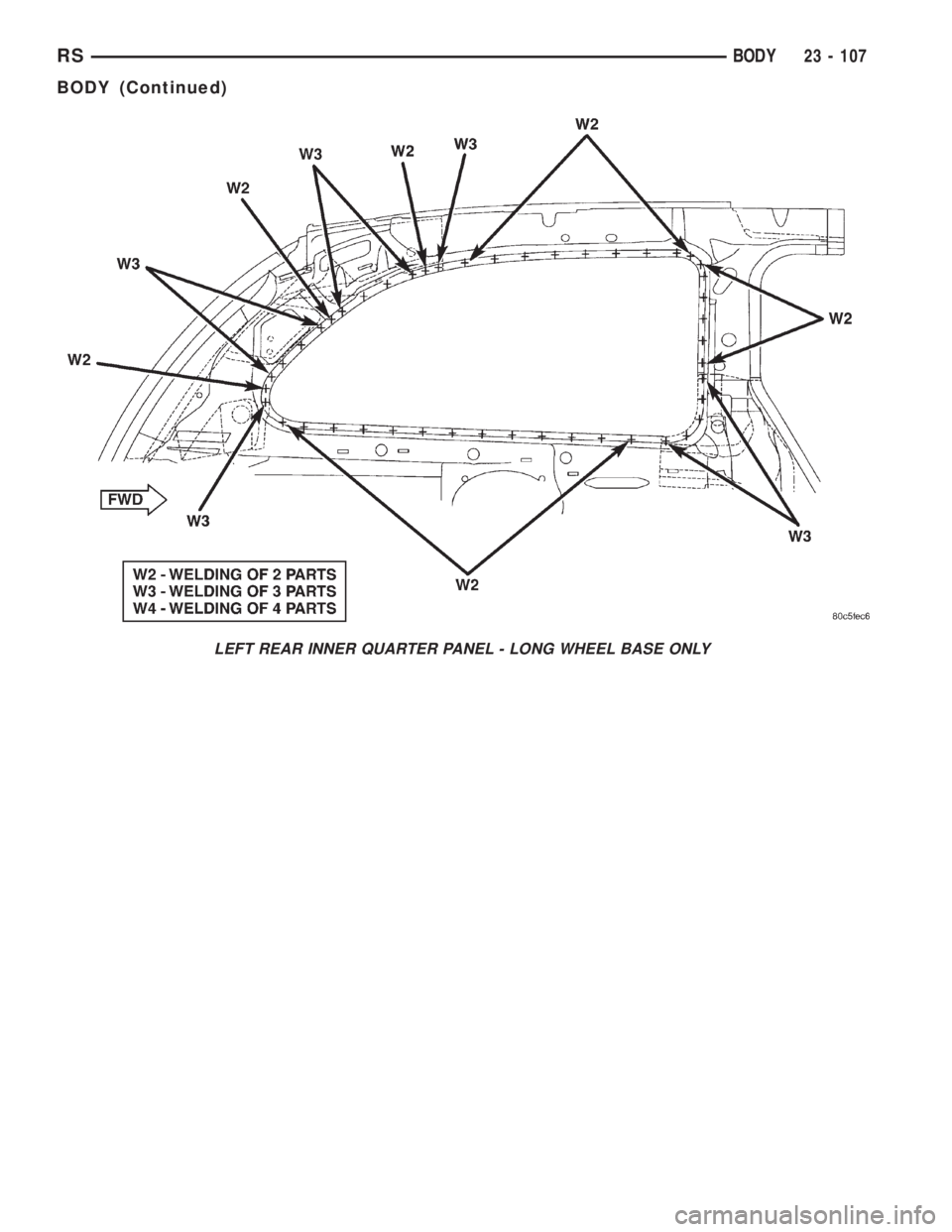

CHRYSLER VOYAGER 2001 Service Manual LEFT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY RSBODY23 - 107 BODY (Continued)

Page 3488 of 4284

CHRYSLER VOYAGER 2001 Service Manual OUTER WHEELHOUSE EXTENSION - LONG WHEEL BASE ONLY 23 - 108 BODYRS BODY (Continued)
