Page 4089 of 4284

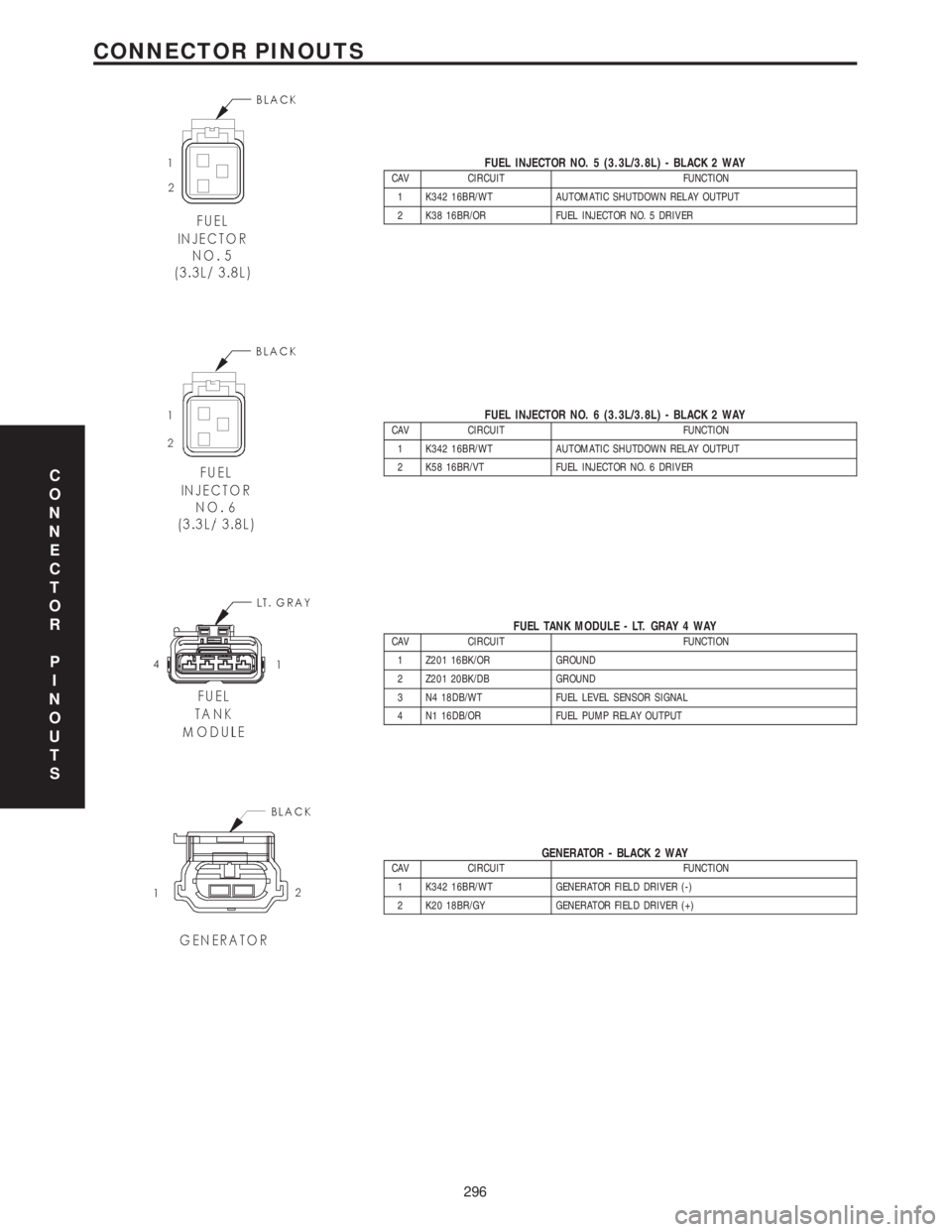

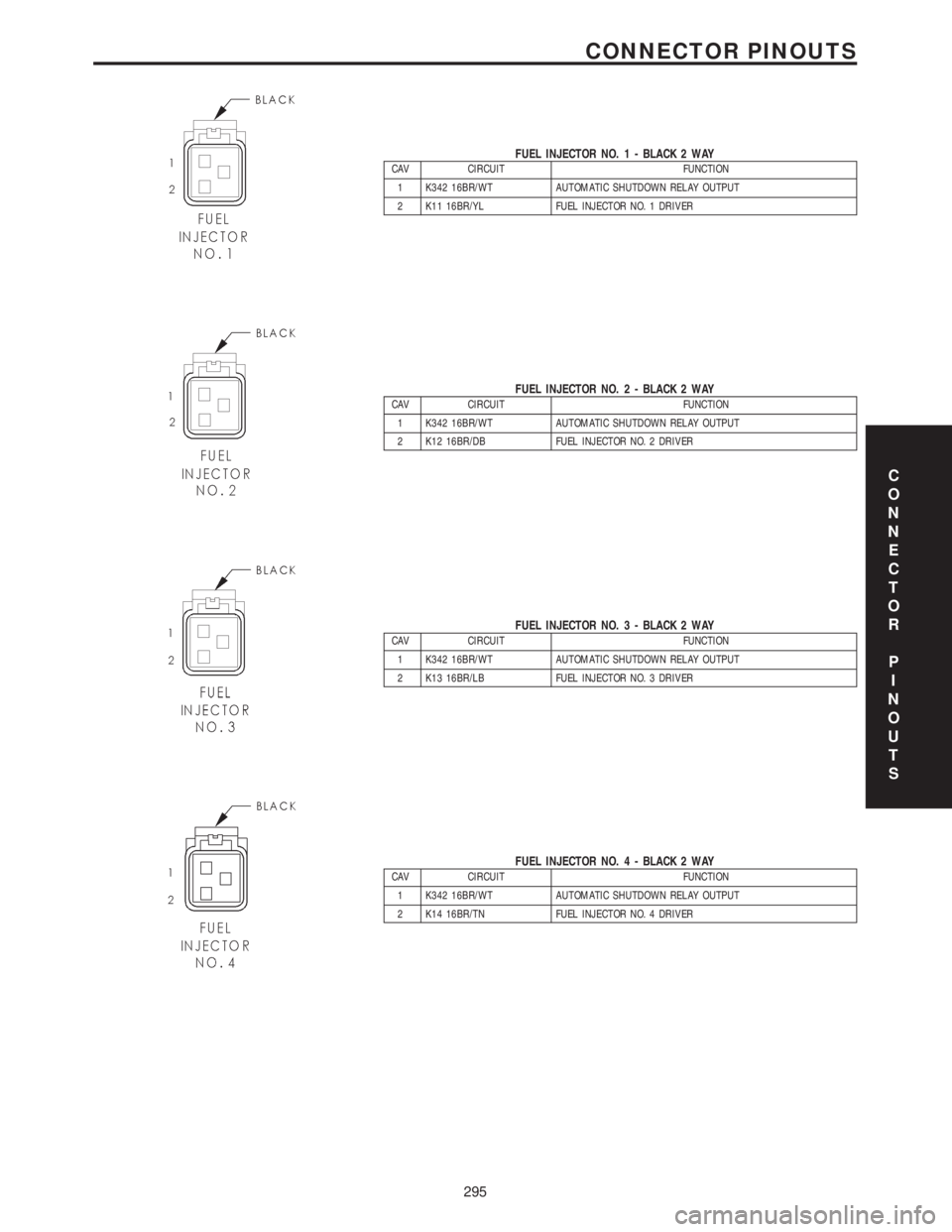

CHRYSLER VOYAGER 2001 Service Manual FUEL INJECTOR NO. 1 - BLACK 2 WAYCAV CIRCUIT FUNCTION 1 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT 2 K11 16BR/YL FUEL INJECTOR NO. 1 DRIVER FUEL INJECTOR NO. 2 - BLACK 2 WAYCAV CIRCUIT FUNCTION 1 K3

Page 4090 of 4284

CHRYSLER VOYAGER 2001 Service Manual FUEL INJECTOR NO. 5 (3.3L/3.8L) - BLACK 2 WAYCAV CIRCUIT FUNCTION 1 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT 2 K38 16BR/OR FUEL INJECTOR NO. 5 DRIVER FUEL INJECTOR NO. 6 (3.3L/3.8L) - BLACK 2 WAYC

Page 4091 of 4284

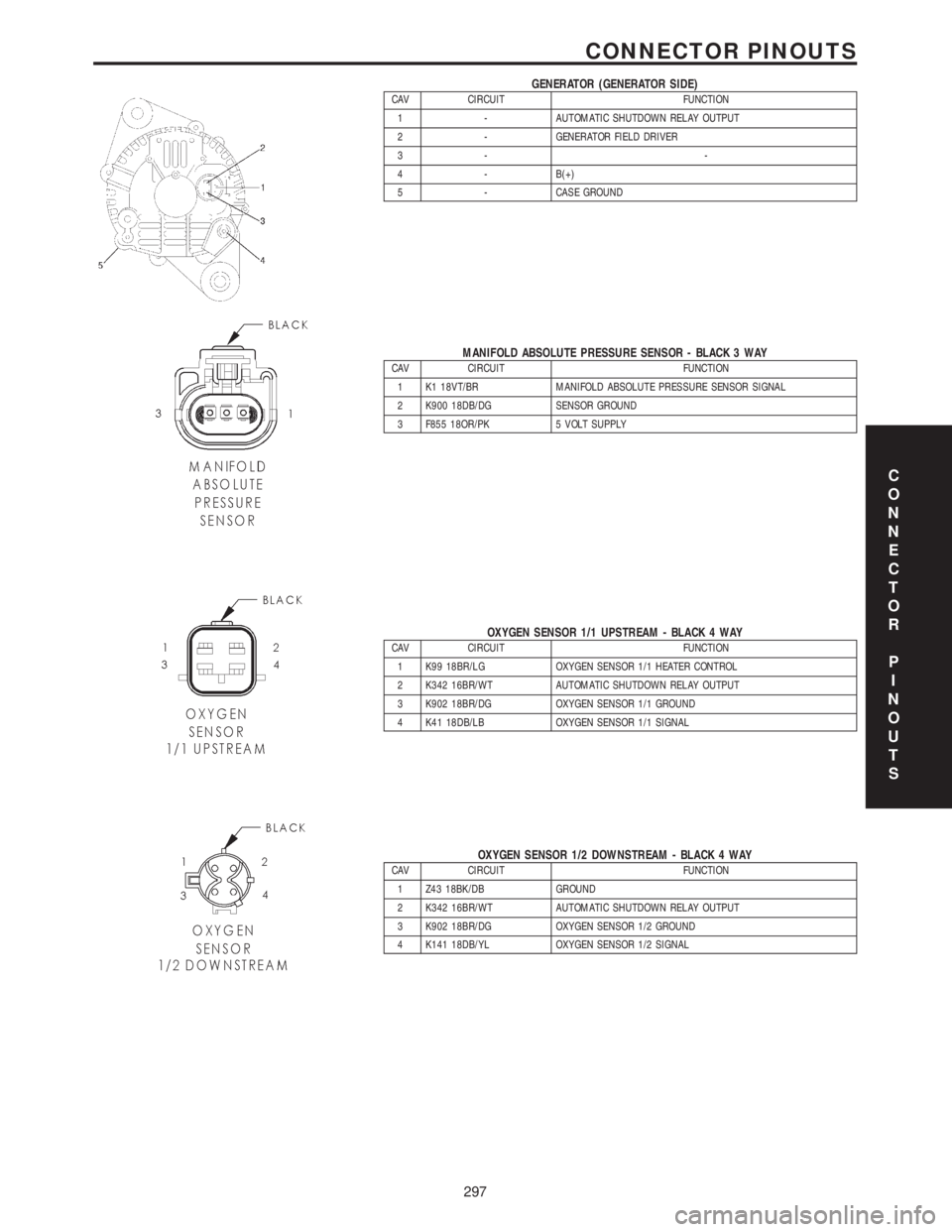

CHRYSLER VOYAGER 2001 Service Manual GENERATOR (GENERATOR SIDE)CAV CIRCUIT FUNCTION 1 - AUTOMATIC SHUTDOWN RELAY OUTPUT 2 - GENERATOR FIELD DRIVER 3- - 4 - B(+) 5 - CASE GROUND MANIFOLD ABSOLUTE PRESSURE SENSOR - BLACK 3 WAYCAV CIRCUIT F

Page 4092 of 4284

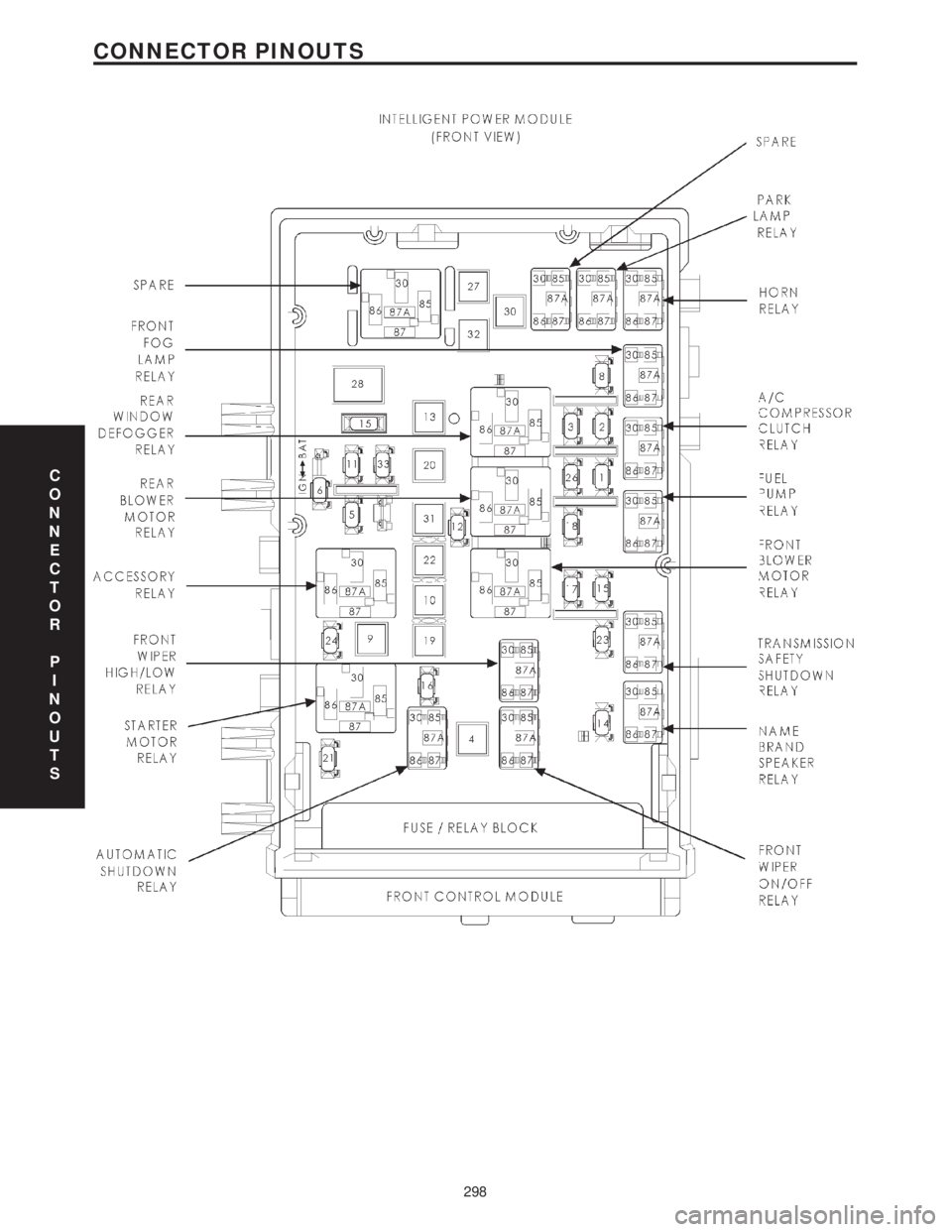

CHRYSLER VOYAGER 2001 Service Manual C O N N E C T O R P I N O U T S 298 CONNECTOR PINOUTS

Page 4093 of 4284

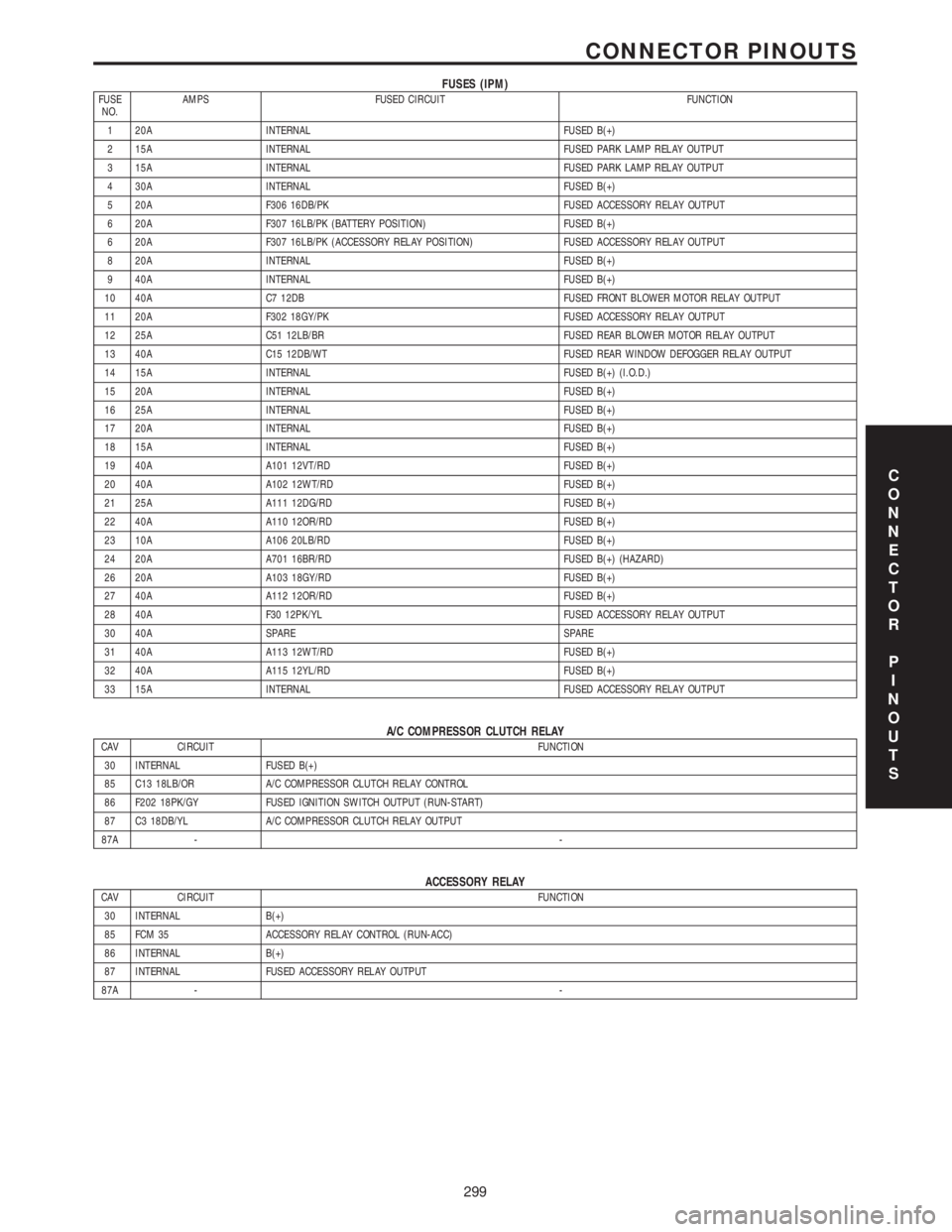

CHRYSLER VOYAGER 2001 Service Manual FUSES (IPM)FUSE NO.AMPS FUSED CIRCUIT FUNCTION 1 20A INTERNAL FUSED B(+) 2 15A INTERNAL FUSED PARK LAMP RELAY OUTPUT 3 15A INTERNAL FUSED PARK LAMP RELAY OUTPUT 4 30A INTERNAL FUSED B(+) 5 20A F306 16

Page 4094 of 4284

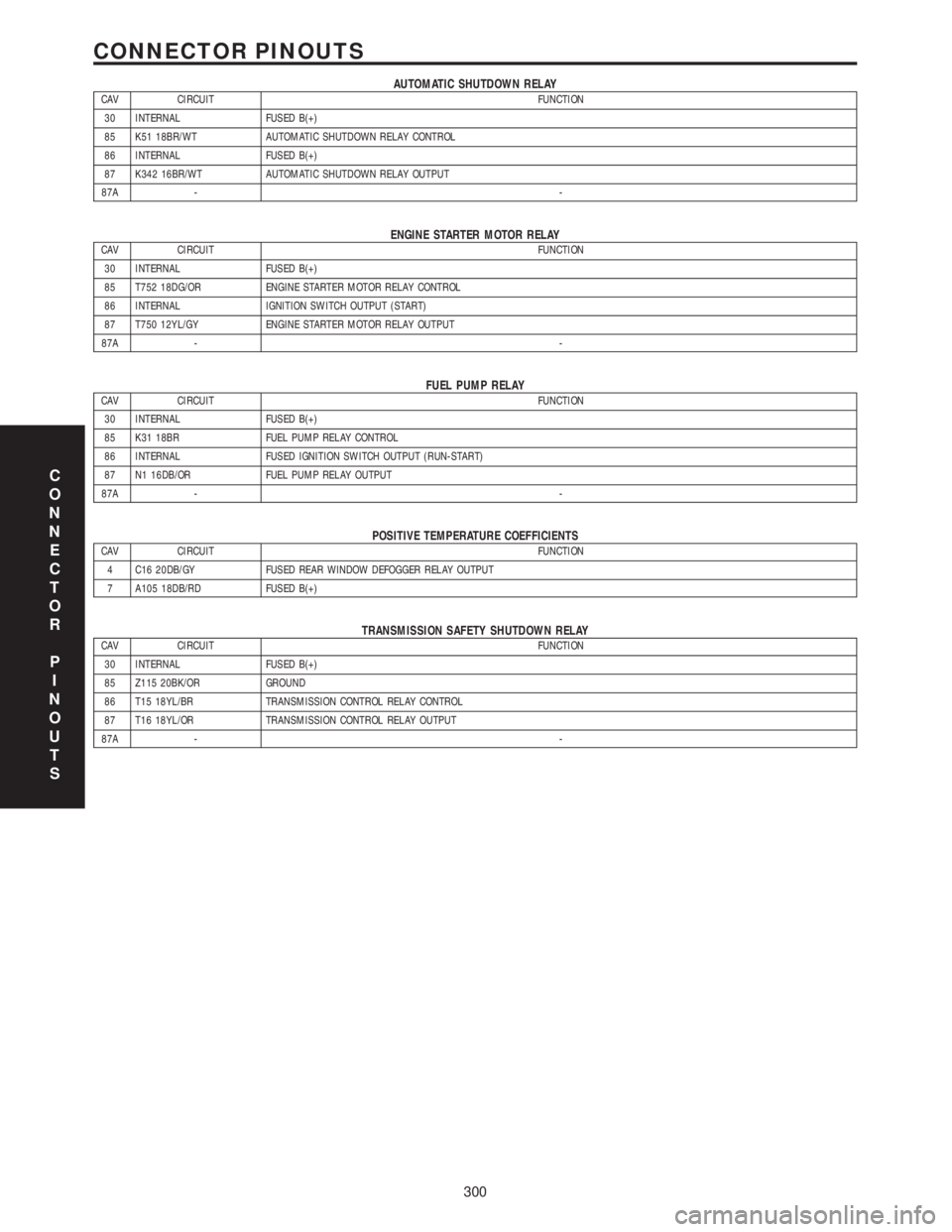

CHRYSLER VOYAGER 2001 Service Manual AUTOMATIC SHUTDOWN RELAYCAV CIRCUIT FUNCTION 30 INTERNAL FUSED B(+) 85 K51 18BR/WT AUTOMATIC SHUTDOWN RELAY CONTROL 86 INTERNAL FUSED B(+) 87 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT 87A -- ENGINE

Page 4095 of 4284

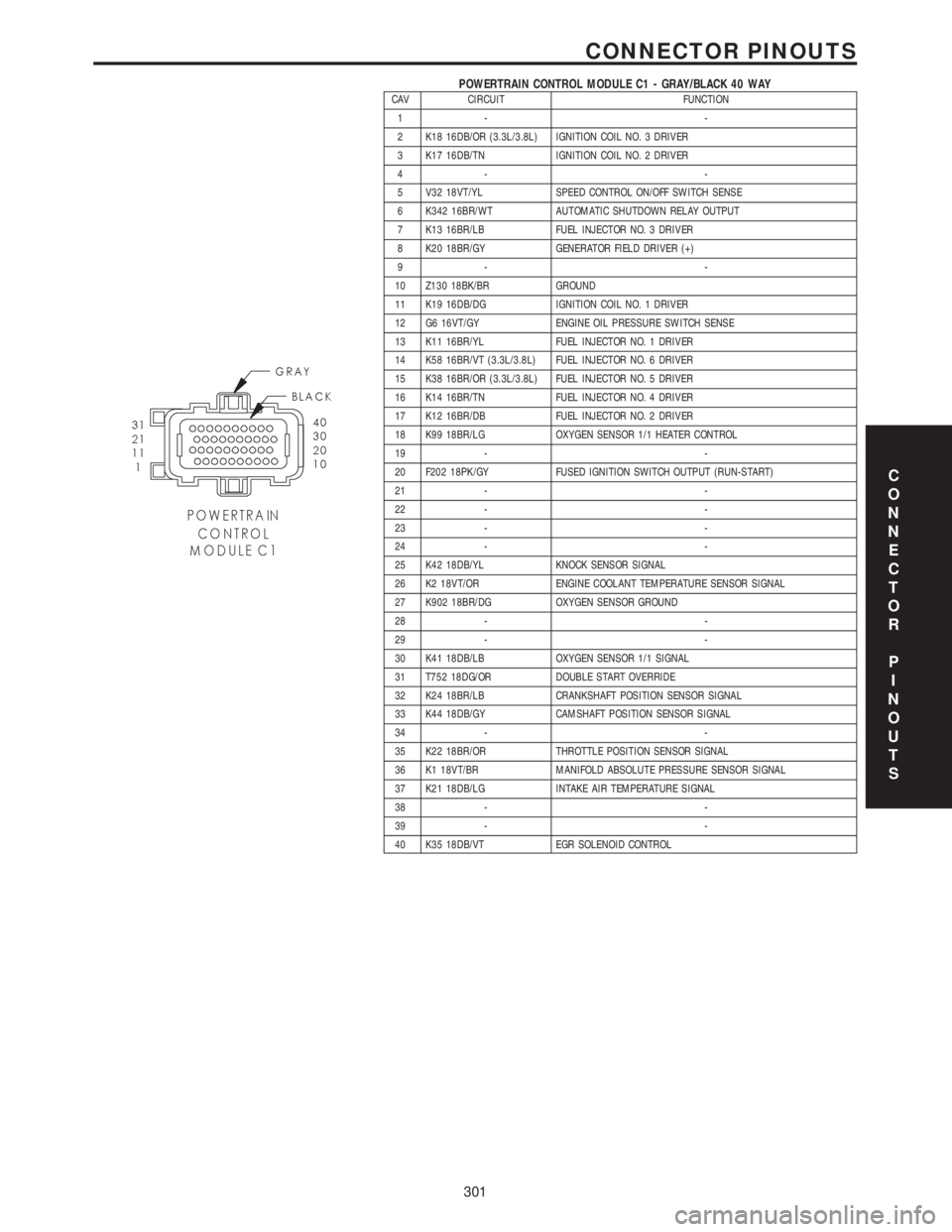

CHRYSLER VOYAGER 2001 Service Manual POWERTRAIN CONTROL MODULE C1 - GRAY/BLACK 40 WAYCAV CIRCUIT FUNCTION 1- - 2 K18 16DB/OR (3.3L/3.8L) IGNITION COIL NO. 3 DRIVER 3 K17 16DB/TN IGNITION COIL NO. 2 DRIVER 4- - 5 V32 18VT/YL SPEED CONTROL

Page 4096 of 4284

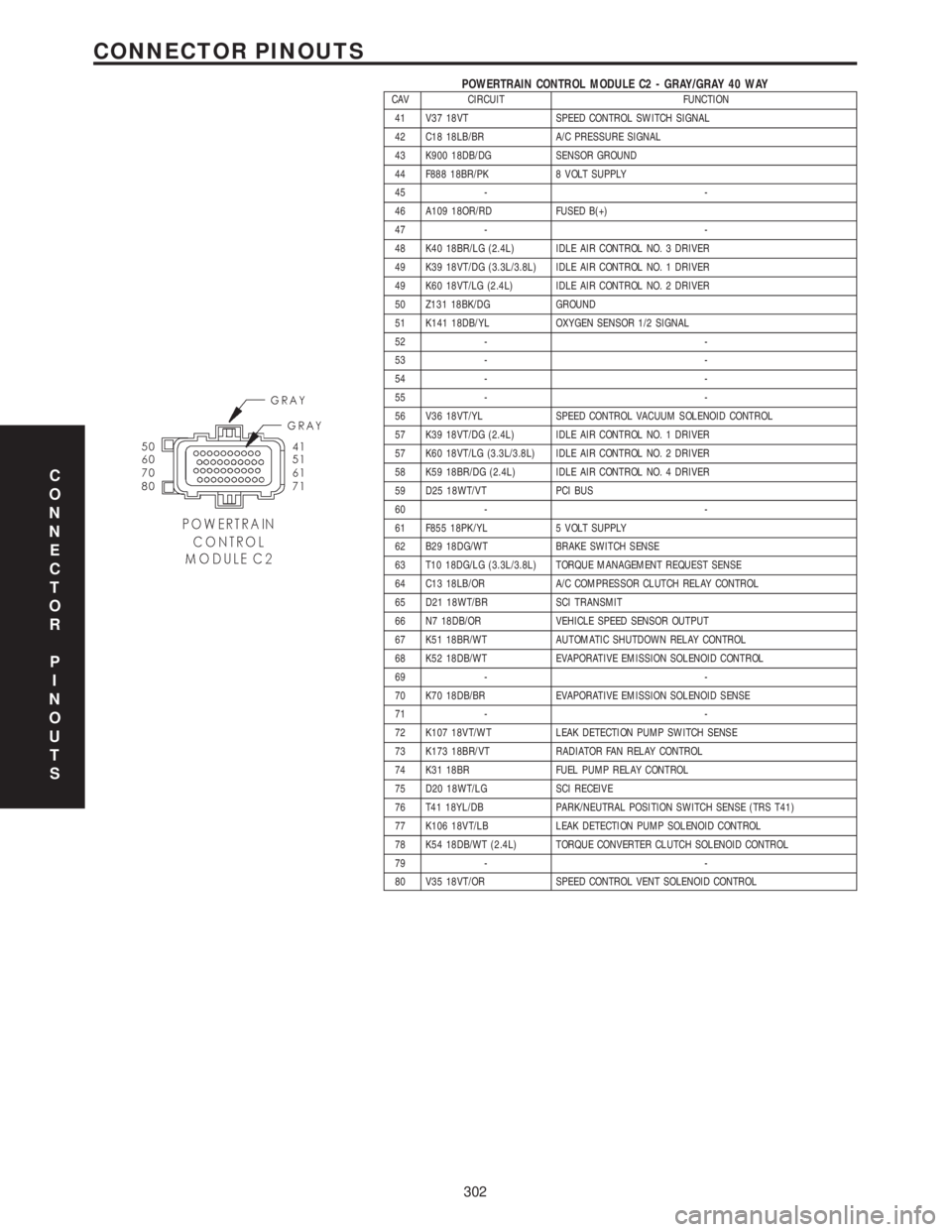

CHRYSLER VOYAGER 2001 Service Manual POWERTRAIN CONTROL MODULE C2 - GRAY/GRAY 40 WAYCAV CIRCUIT FUNCTION 41 V37 18VT SPEED CONTROL SWITCH SIGNAL 42 C18 18LB/BR A/C PRESSURE SIGNAL 43 K900 18DB/DG SENSOR GROUND 44 F888 18BR/PK 8 VOLT SUPP
