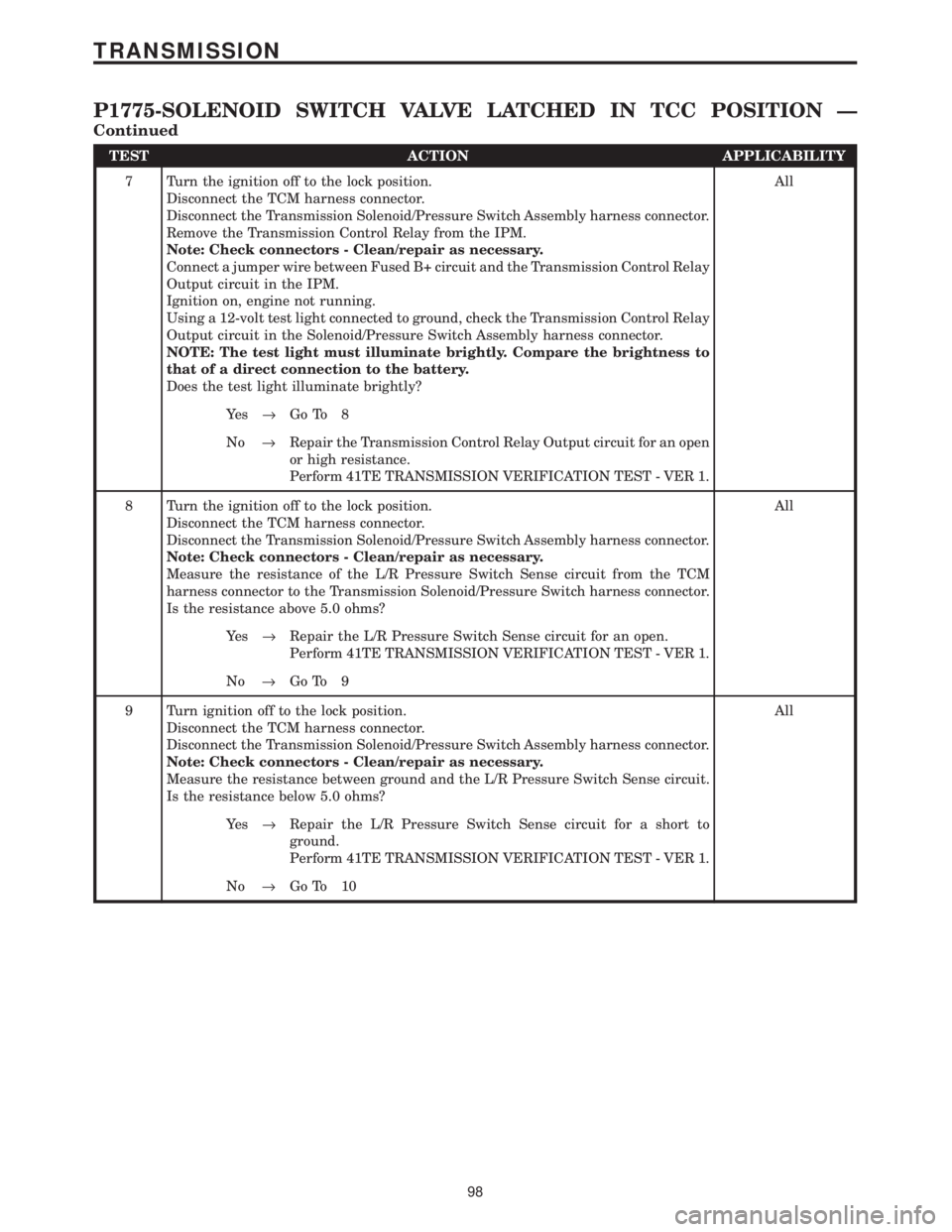

Page 4201 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2 With the DRBIIIt, check for other Transmission DTCs
Is DTC P1784 present also?All
Ye s®Refer to symptom list and perform test for DTC P1784.
Perform 41TE TRANSMISSION VER

Page 4202 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
7 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Remove th

TEST ACTION APPLICABILITY
7 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Remove the Transmission Control Relay from the IPM.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire between Fused B+ circuit and the Transmission Control Relay
Output circuit in the IPM.
Ignition on, engine not running.
Using a 12-volt test light connected to ground, check the Transmission Control Relay
Output circuit in the Solenoid/Pressure Switch Assembly harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s®Go To 8
No®Repair the Transmission Control Relay Output circuit for an open
or high resistance.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
8 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the L/R Pressure Switch Sense circuit from the TCM
harness connector to the Transmission Solenoid/Pressure Switch harness connector.
Is the resistance above 5.0 ohms?All
Ye s®Repair the L/R Pressure Switch Sense circuit for an open.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 9
9 Turn ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the L/R Pressure Switch Sense circuit.
Is the resistance below 5.0 ohms?All
Ye s®Repair the L/R Pressure Switch Sense circuit for a short to
ground.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 10
98
TRANSMISSION
P1775-SOLENOID SWITCH VALVE LATCHED IN TCC POSITION Ð
Continued

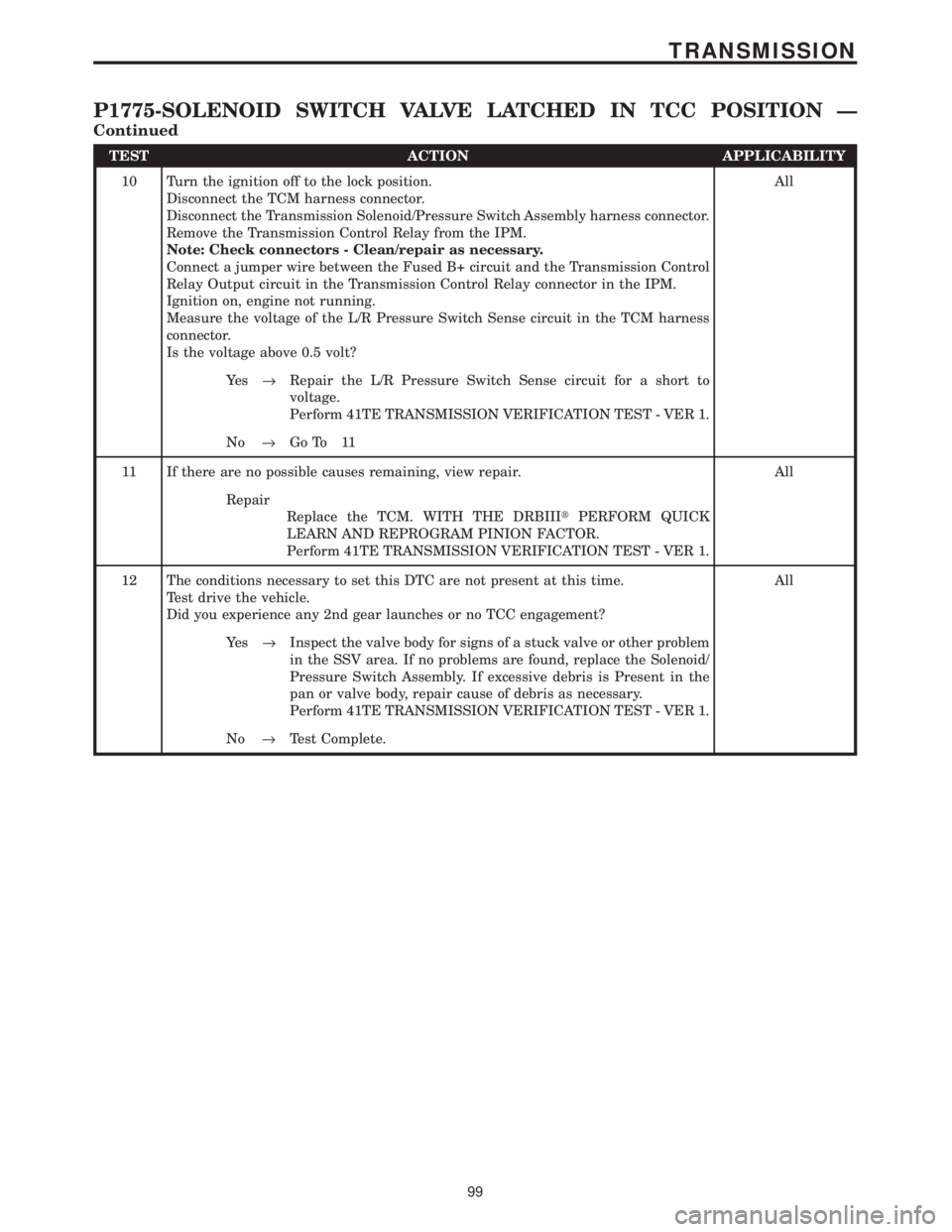

Page 4203 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
10 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Remove t

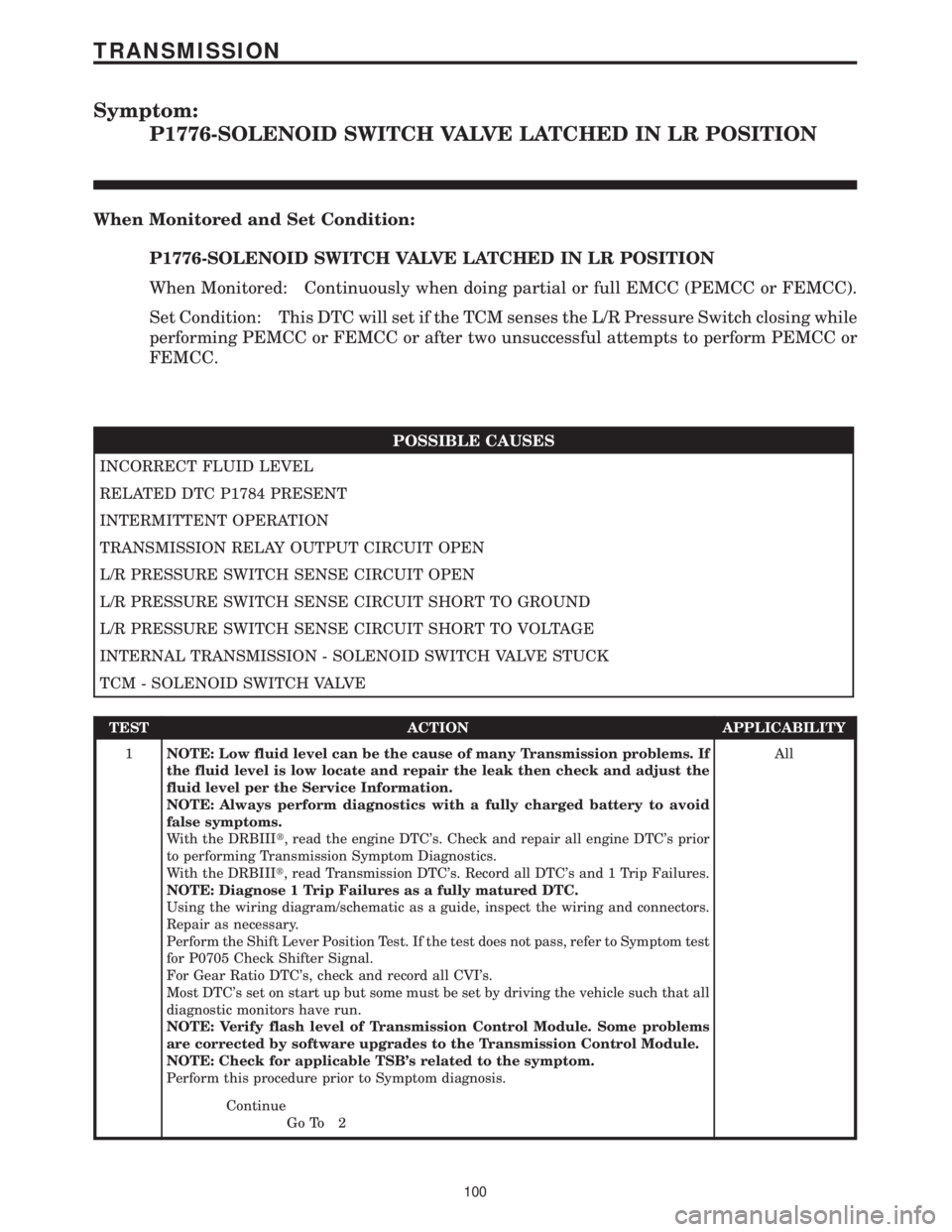

Page 4204 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P1776-SOLENOID SWITCH VALVE LATCHED IN LR POSITION
When Monitored and Set Condition:
P1776-SOLENOID SWITCH VALVE LATCHED IN LR POSITION
When Monitored: Continuously when doing partial or full

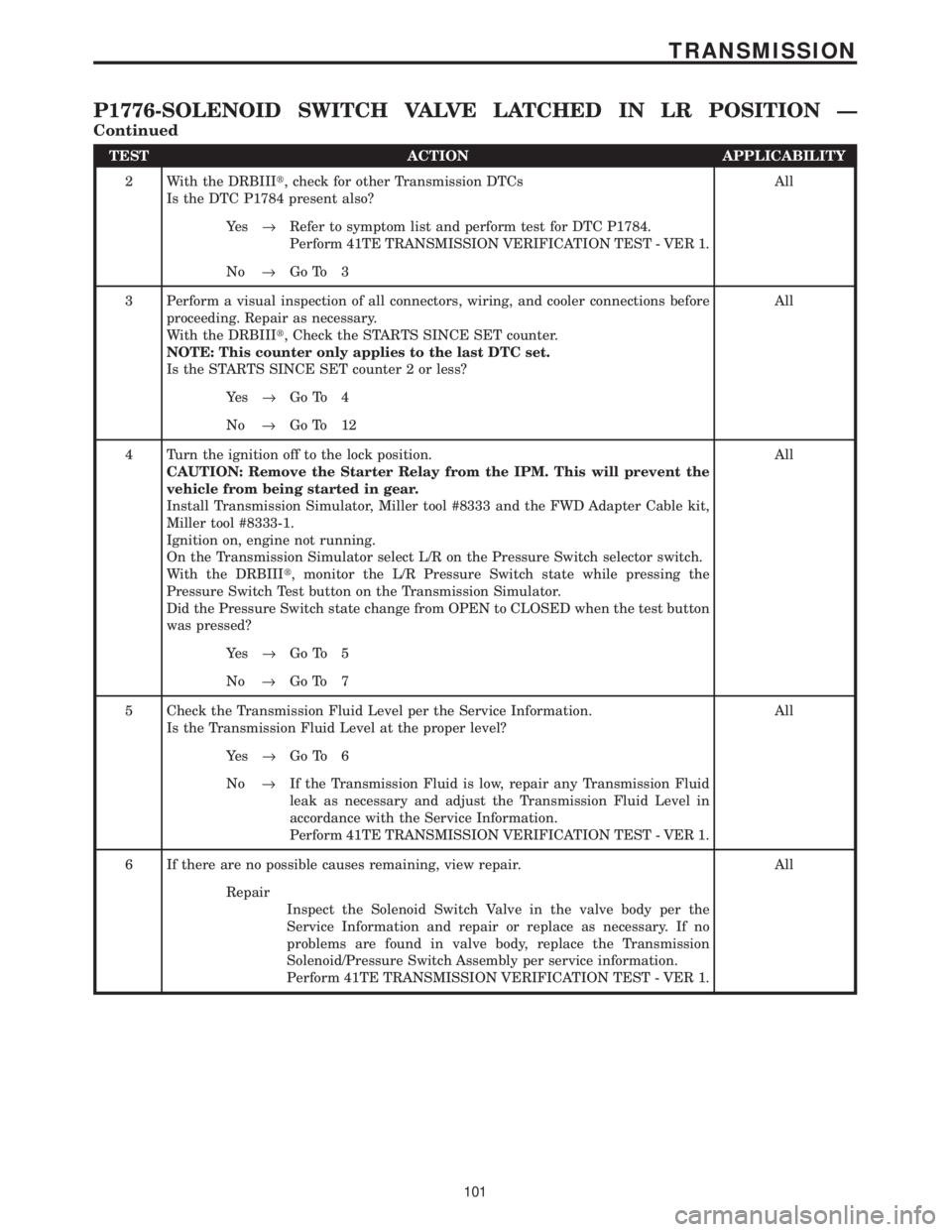

Page 4205 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
2 With the DRBIIIt, check for other Transmission DTCs
Is the DTC P1784 present also?All
Ye s®Refer to symptom list and perform test for DTC P1784.
Perform 41TE TRANSMISSION

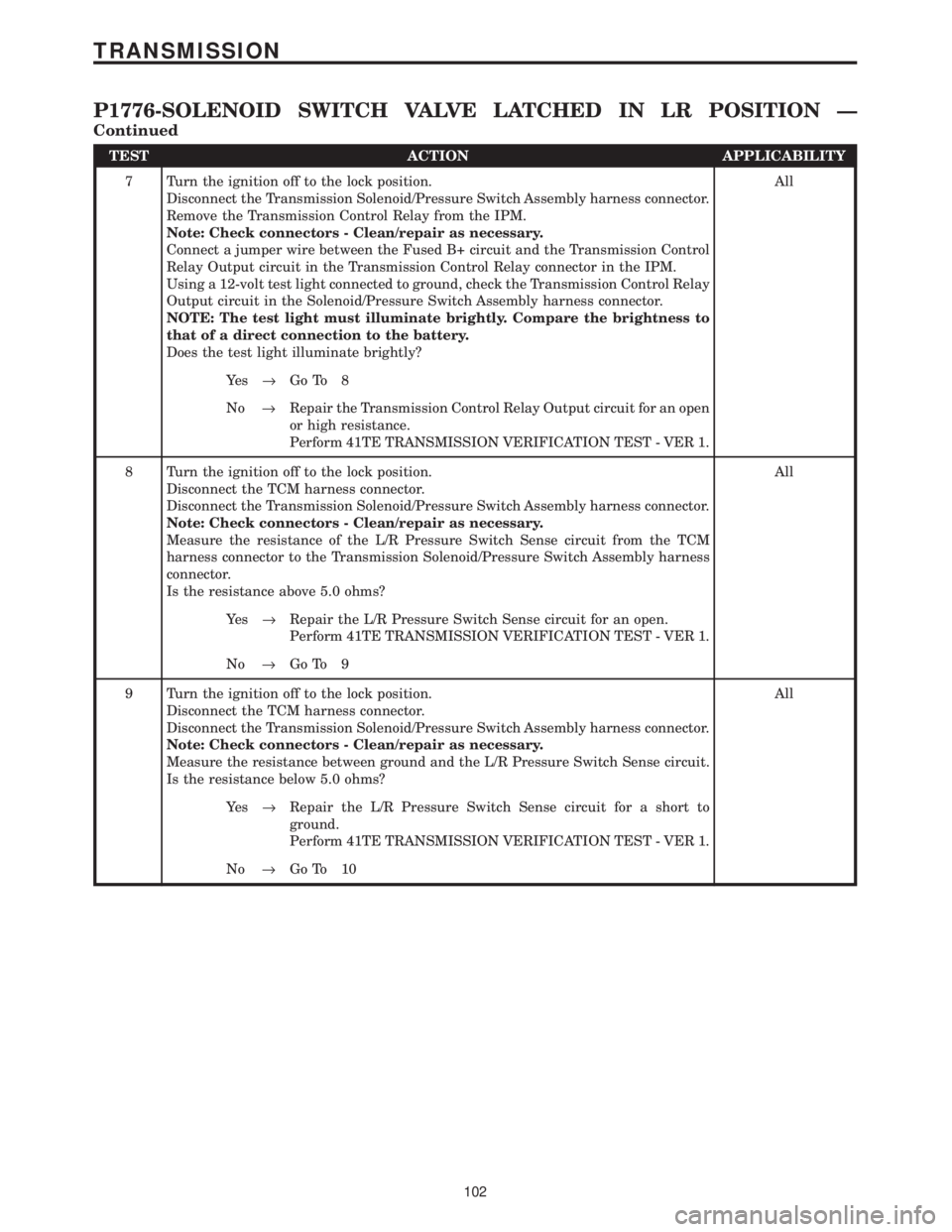

Page 4206 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
7 Turn the ignition off to the lock position.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Remove the Transmission Control Relay from the

Page 4207 of 4284

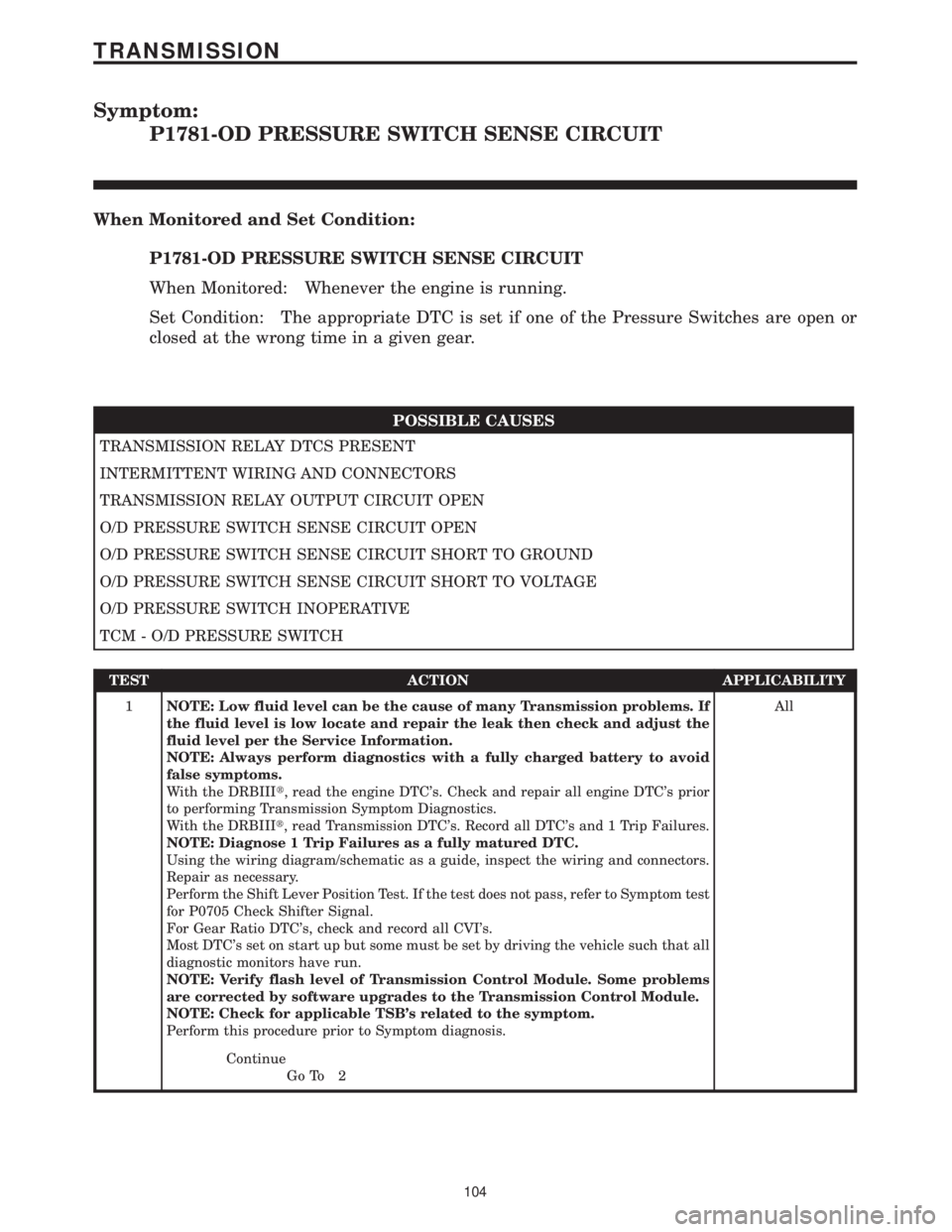

Page 4208 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P1781-OD PRESSURE SWITCH SENSE CIRCUIT
When Monitored and Set Condition:
P1781-OD PRESSURE SWITCH SENSE CIRCUIT
When Monitored: Whenever the engine is running.
Set Condition: The appropriate
