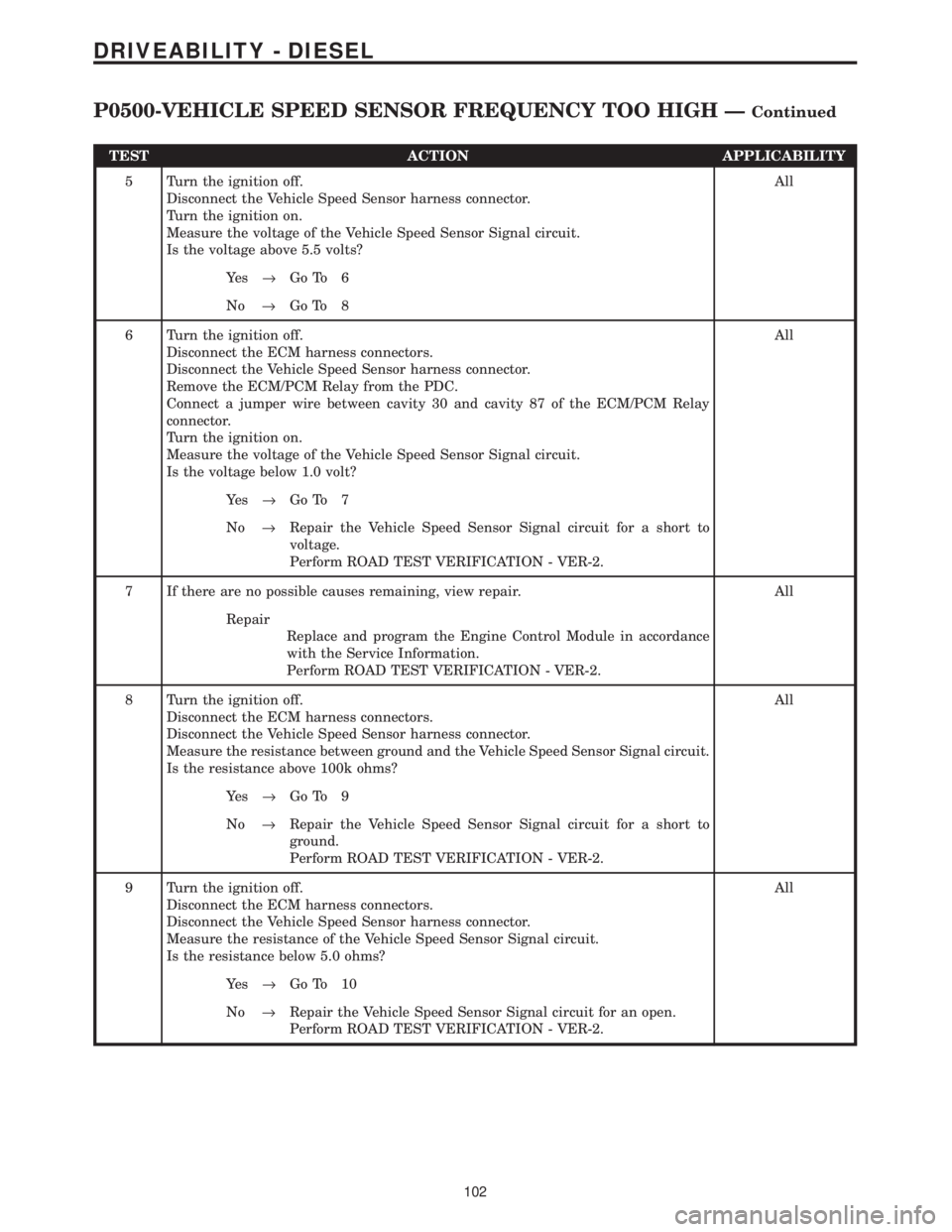

Page 1321 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
5 Turn the ignition off.
Disconnect the Vehicle Speed Sensor harness connector.
Turn the ignition on.
Measure the voltage of the Vehicle Speed Sensor Signal circuit.
Is the v

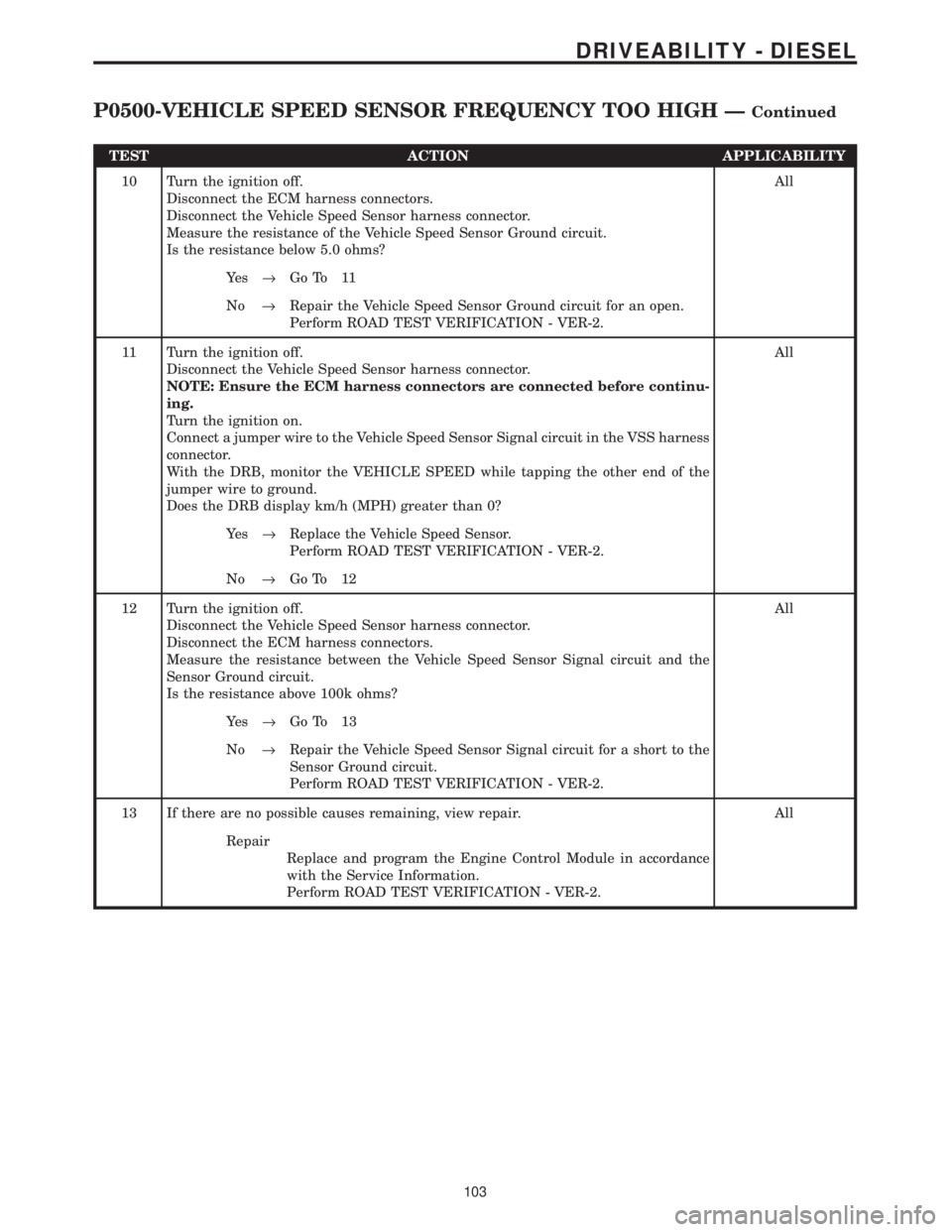

Page 1322 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
10 Turn the ignition off.
Disconnect the ECM harness connectors.
Disconnect the Vehicle Speed Sensor harness connector.
Measure the resistance of the Vehicle Speed Sensor Gro

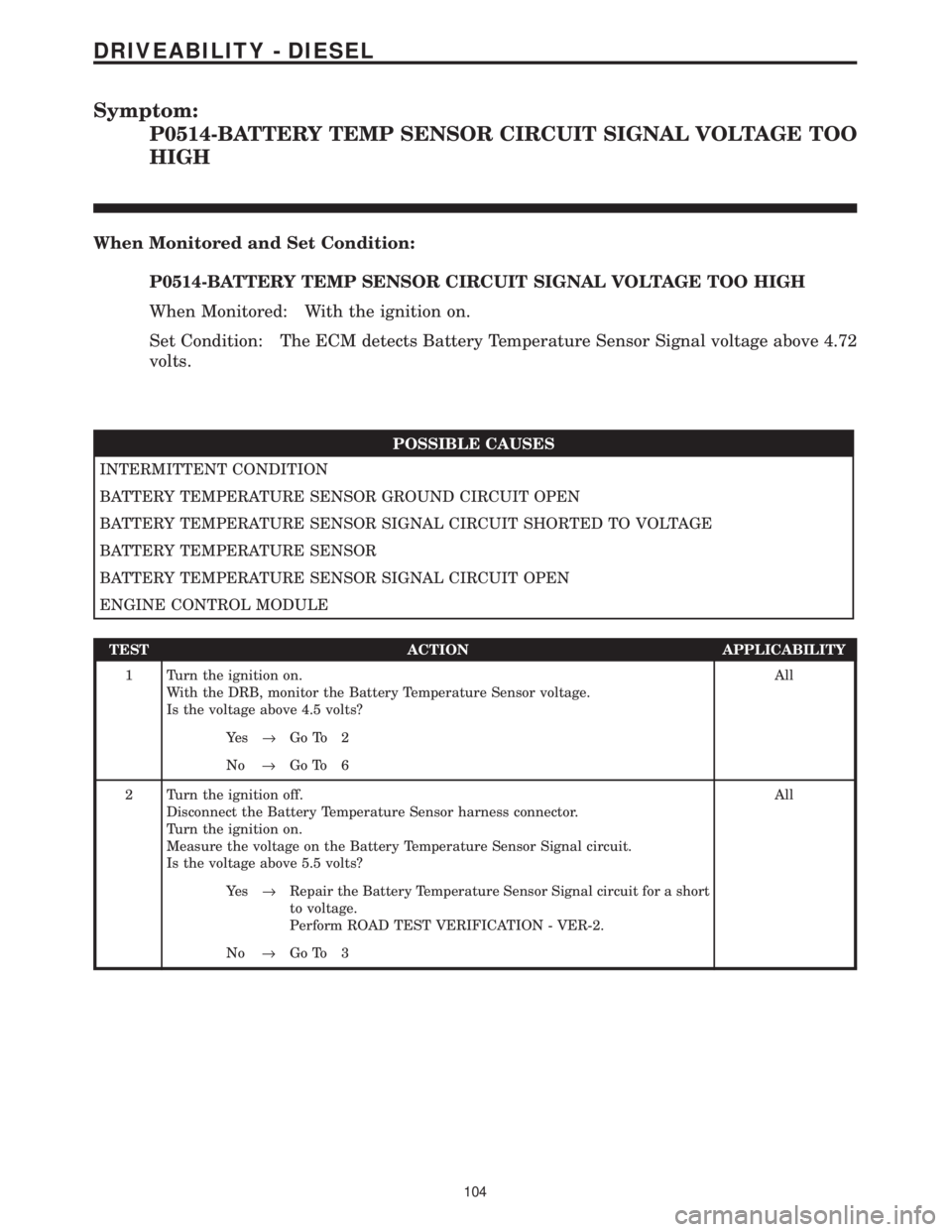

Page 1323 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P0514-BATTERY TEMP SENSOR CIRCUIT SIGNAL VOLTAGE TOO
HIGH
When Monitored and Set Condition:
P0514-BATTERY TEMP SENSOR CIRCUIT SIGNAL VOLTAGE TOO HIGH
When Monitored: With the ignition on.
Set

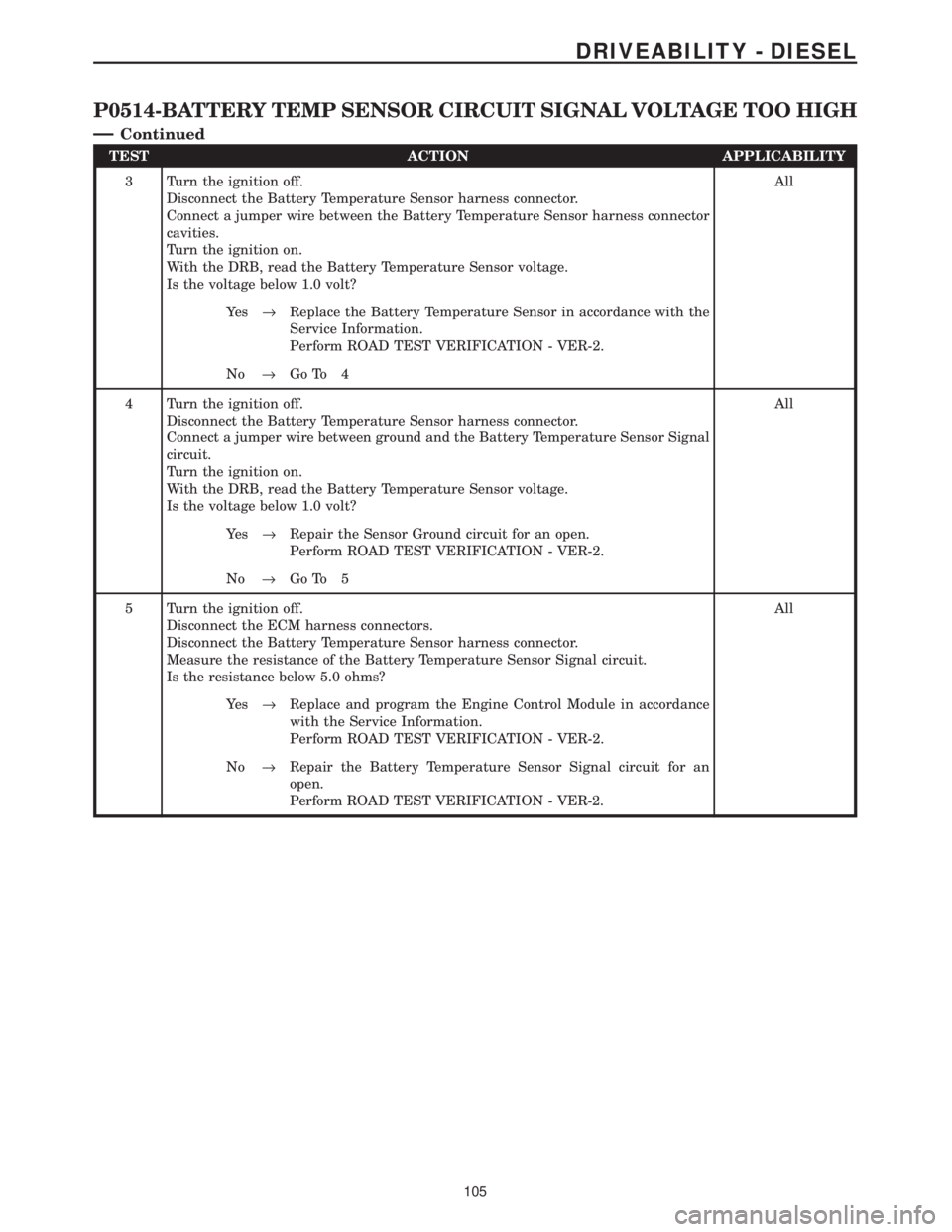

Page 1324 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Battery Temperature Sensor harness connector.
Connect a jumper wire between the Battery Temperature Sensor harness connector
cavities.

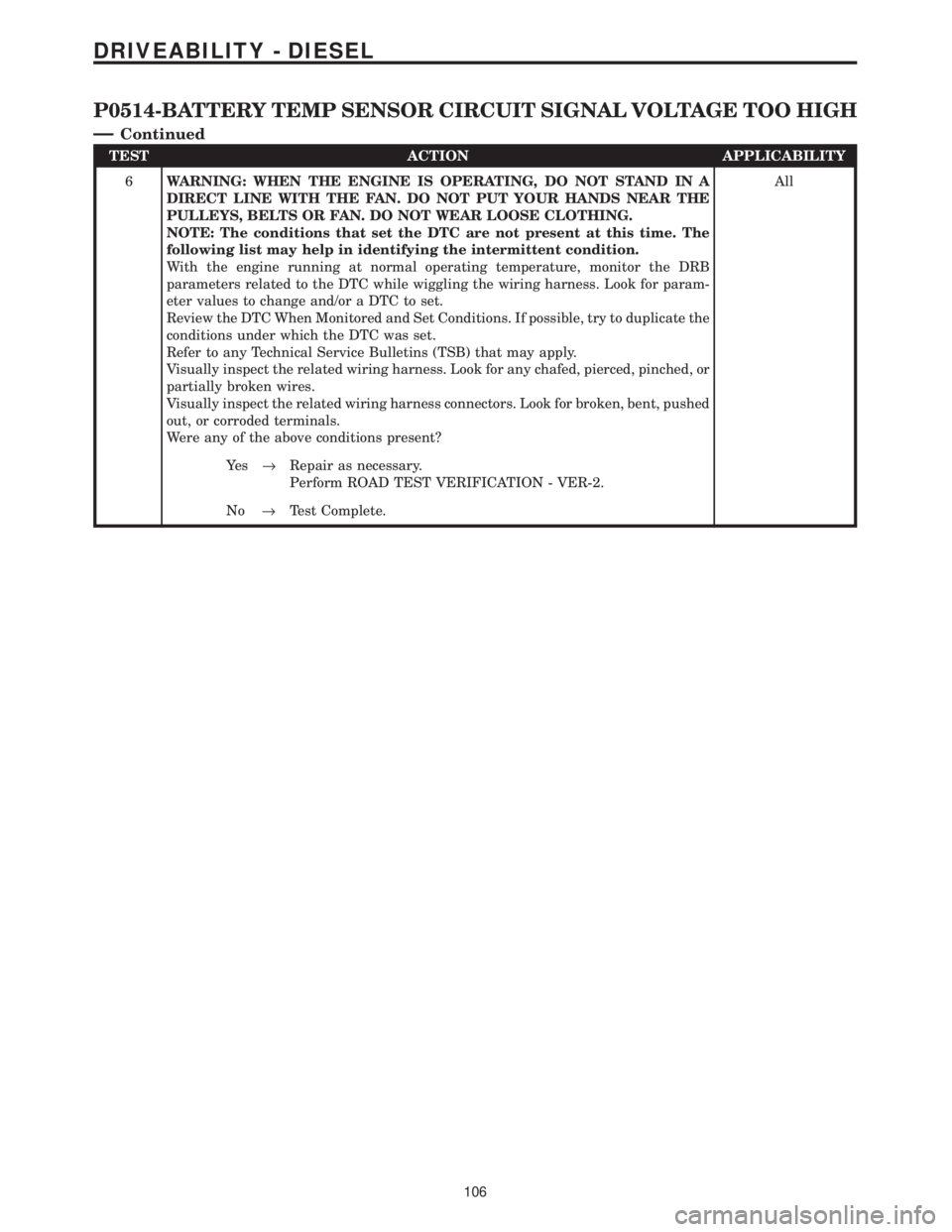

Page 1325 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
6WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: Th

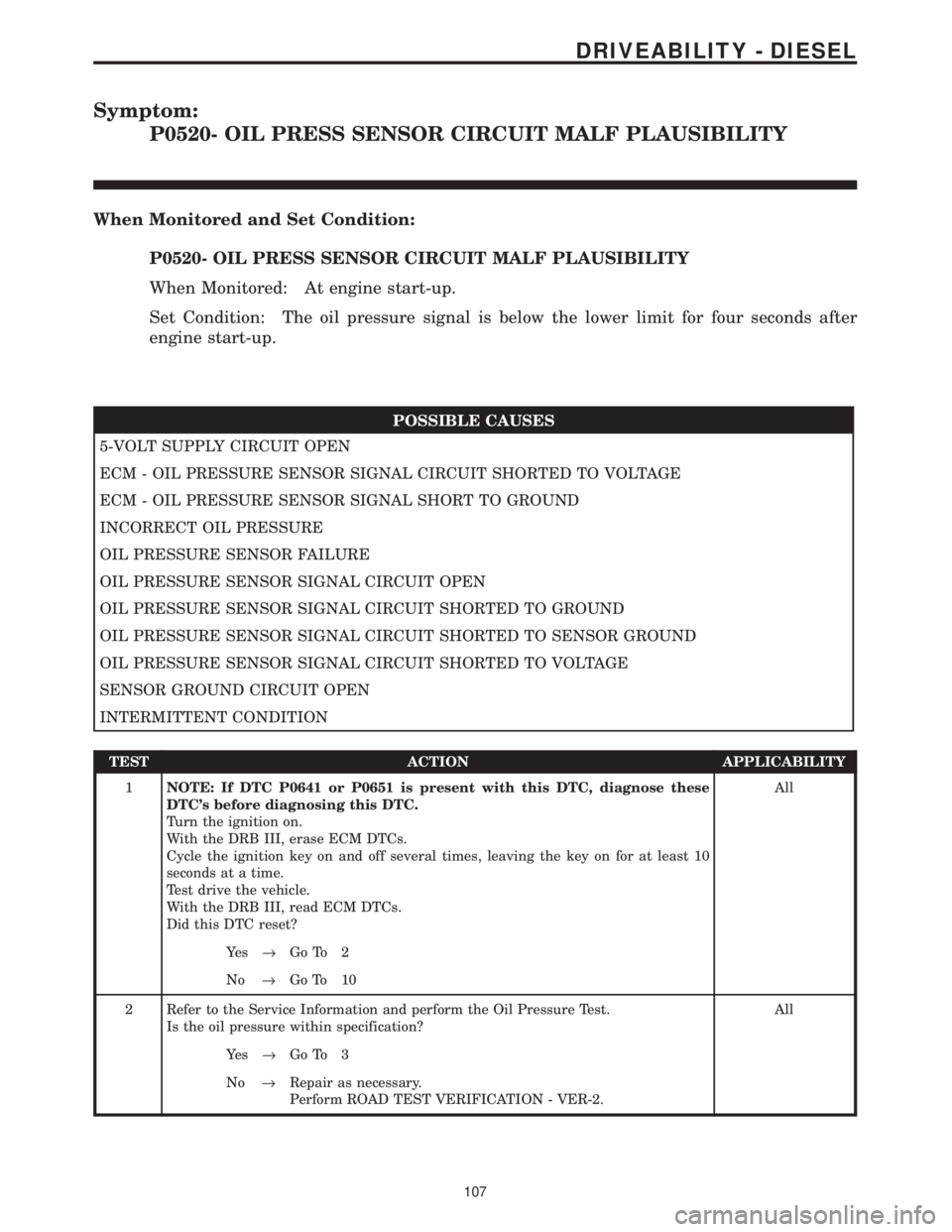

Page 1326 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom:
P0520- OIL PRESS SENSOR CIRCUIT MALF PLAUSIBILITY
When Monitored and Set Condition:
P0520- OIL PRESS SENSOR CIRCUIT MALF PLAUSIBILITY
When Monitored: At engine start-up.
Set Condition: The oi

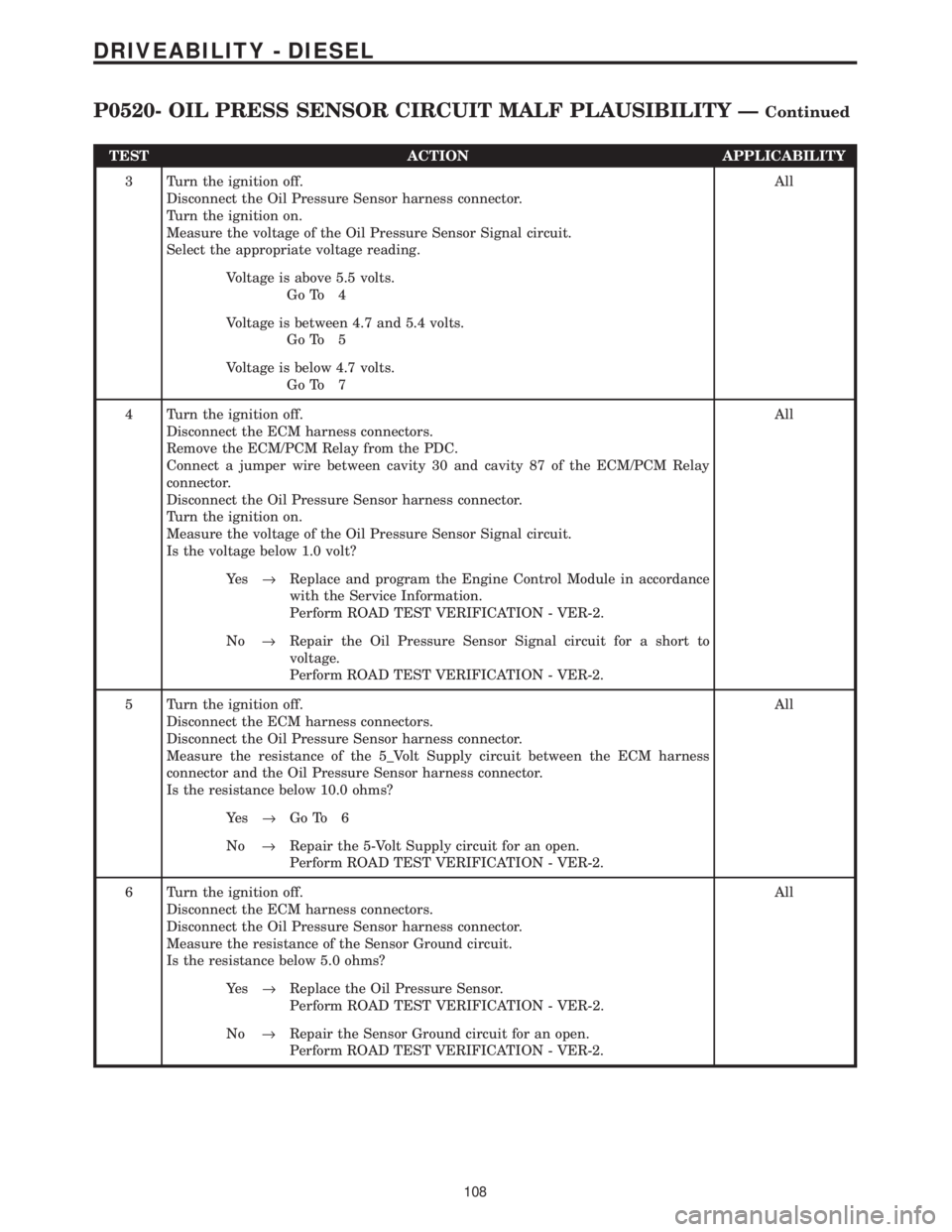

Page 1327 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the Oil Pressure Sensor harness connector.
Turn the ignition on.
Measure the voltage of the Oil Pressure Sensor Signal circuit.
Select the

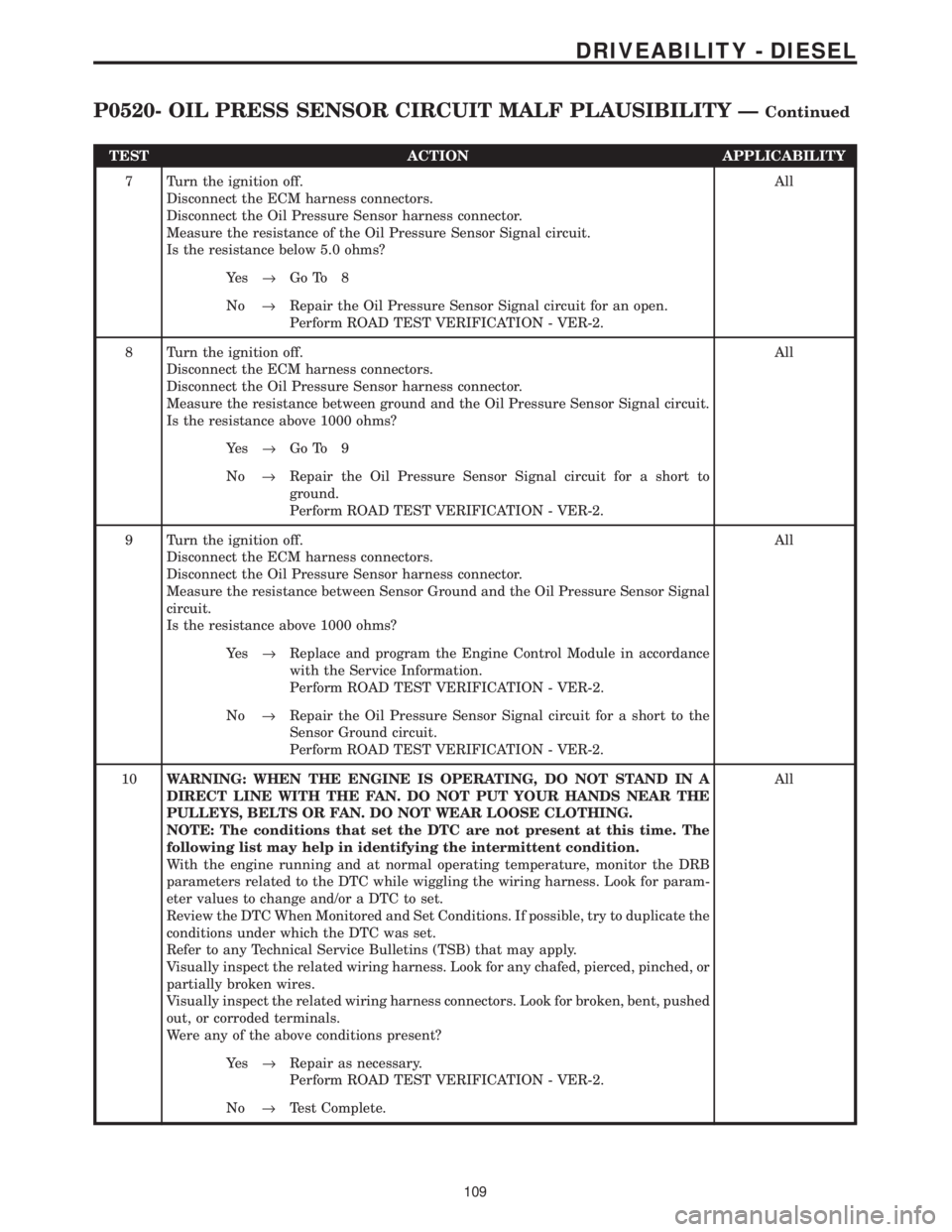

Page 1328 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY
7 Turn the ignition off.
Disconnect the ECM harness connectors.
Disconnect the Oil Pressure Sensor harness connector.
Measure the resistance of the Oil Pressure Sensor Signal

TEST ACTION APPLICABILITY
7 Turn the ignition off.
Disconnect the ECM harness connectors.
Disconnect the Oil Pressure Sensor harness connector.
Measure the resistance of the Oil Pressure Sensor Signal circuit.
Is the resistance below 5.0 ohms?All
Ye s®Go To 8
No®Repair the Oil Pressure Sensor Signal circuit for an open.
Perform ROAD TEST VERIFICATION - VER-2.
8 Turn the ignition off.
Disconnect the ECM harness connectors.
Disconnect the Oil Pressure Sensor harness connector.
Measure the resistance between ground and the Oil Pressure Sensor Signal circuit.
Is the resistance above 1000 ohms?All
Ye s®Go To 9
No®Repair the Oil Pressure Sensor Signal circuit for a short to
ground.
Perform ROAD TEST VERIFICATION - VER-2.
9 Turn the ignition off.
Disconnect the ECM harness connectors.
Disconnect the Oil Pressure Sensor harness connector.
Measure the resistance between Sensor Ground and the Oil Pressure Sensor Signal
circuit.
Is the resistance above 1000 ohms?All
Ye s®Replace and program the Engine Control Module in accordance
with the Service Information.
Perform ROAD TEST VERIFICATION - VER-2.
No®Repair the Oil Pressure Sensor Signal circuit for a short to the
Sensor Ground circuit.
Perform ROAD TEST VERIFICATION - VER-2.
10WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A
DIRECT LINE WITH THE FAN. DO NOT PUT YOUR HANDS NEAR THE
PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.
NOTE: The conditions that set the DTC are not present at this time. The
following list may help in identifying the intermittent condition.
With the engine running and at normal operating temperature, monitor the DRB
parameters related to the DTC while wiggling the wiring harness. Look for param-
eter values to change and/or a DTC to set.
Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the
conditions under which the DTC was set.
Refer to any Technical Service Bulletins (TSB) that may apply.
Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or
partially broken wires.
Visually inspect the related wiring harness connectors. Look for broken, bent, pushed
out, or corroded terminals.
Were any of the above conditions present?All
Ye s®Repair as necessary.
Perform ROAD TEST VERIFICATION - VER-2.
No®Test Complete.
109
DRIVEABILITY - DIESEL
P0520- OIL PRESS SENSOR CIRCUIT MALF PLAUSIBILITY ÐContinued
