Page 1433 of 4284

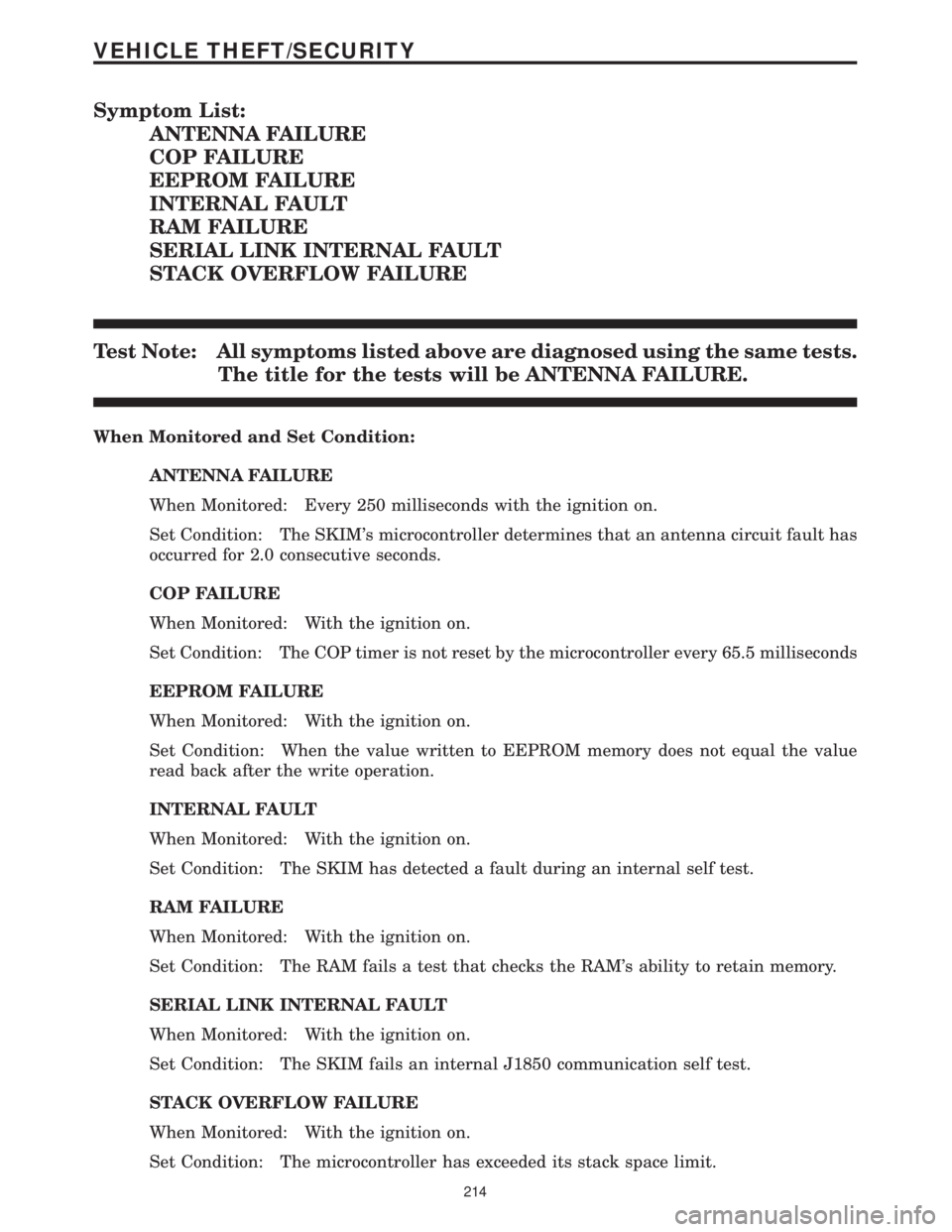

CHRYSLER VOYAGER 2001 Service Manual Symptom List: ANTENNA FAILURE COP FAILURE EEPROM FAILURE INTERNAL FAULT RAM FAILURE SERIAL LINK INTERNAL FAULT STACK OVERFLOW FAILURE Test Note: All symptoms listed above are diagnosed using the same

Page 1434 of 4284

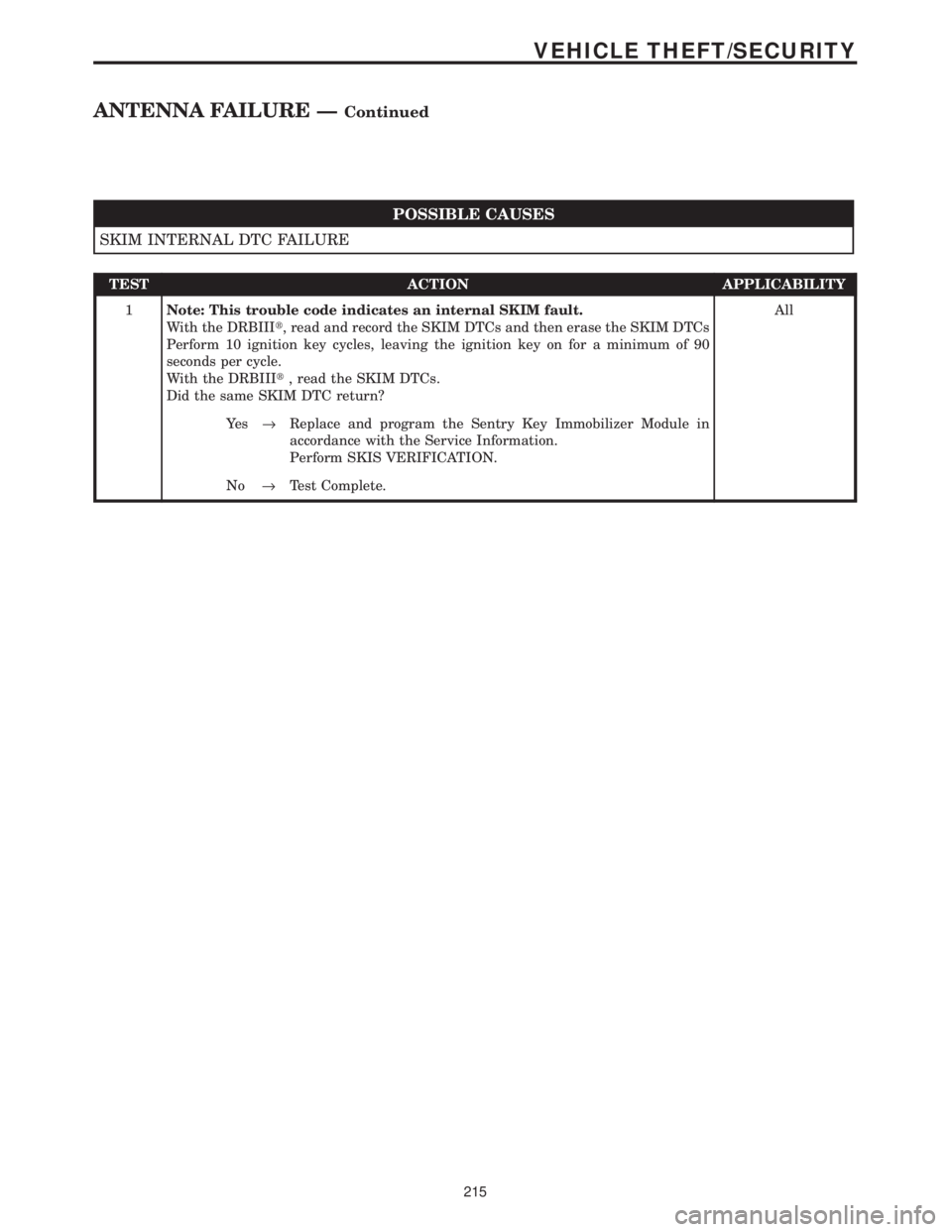

CHRYSLER VOYAGER 2001 Service Manual POSSIBLE CAUSES SKIM INTERNAL DTC FAILURE TEST ACTION APPLICABILITY 1Note: This trouble code indicates an internal SKIM fault. With the DRBIIIt, read and record the SKIM DTCs and then erase the SKIM D

Page 1435 of 4284

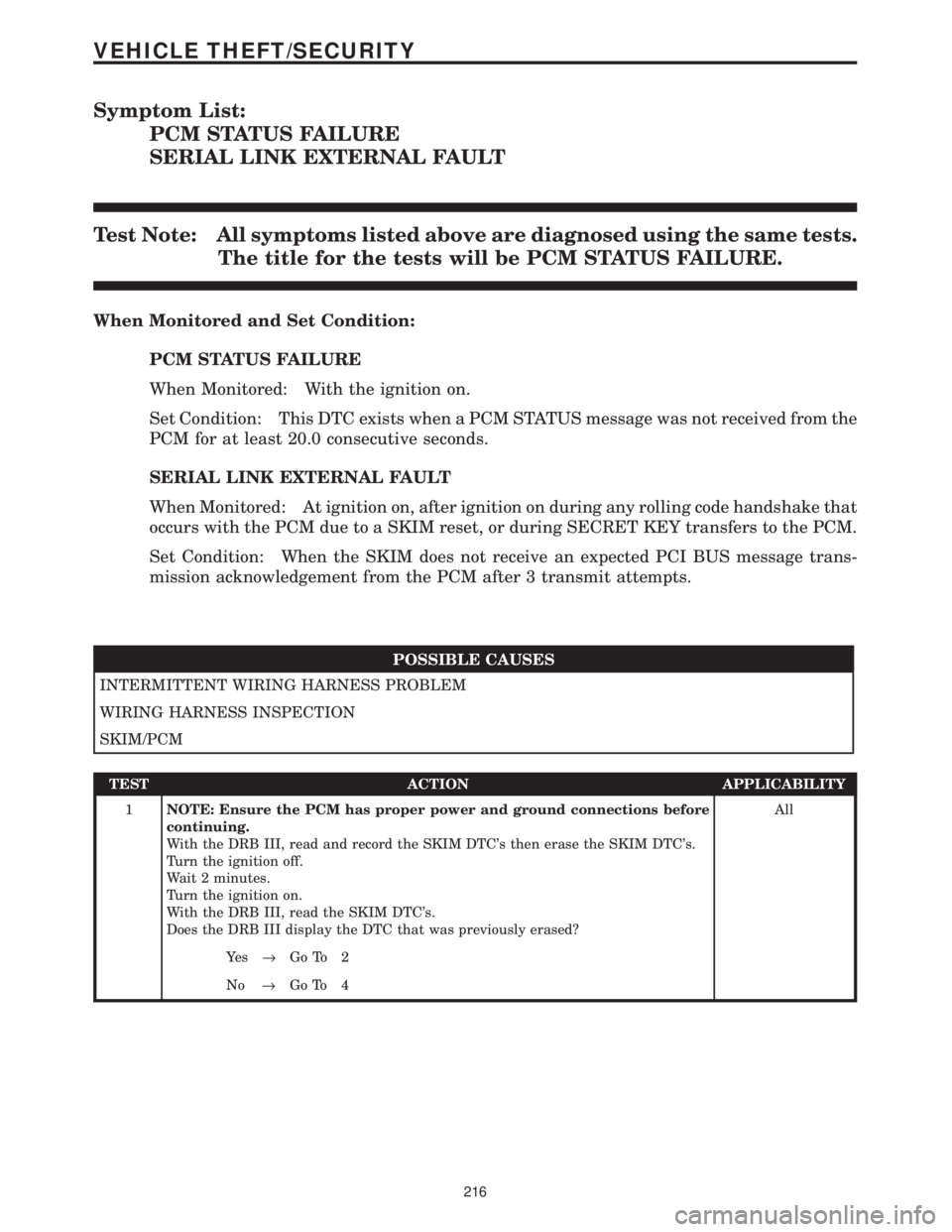

CHRYSLER VOYAGER 2001 Service Manual Symptom List: PCM STATUS FAILURE SERIAL LINK EXTERNAL FAULT Test Note: All symptoms listed above are diagnosed using the same tests. The title for the tests will be PCM STATUS FAILURE. When Monitored

Page 1436 of 4284

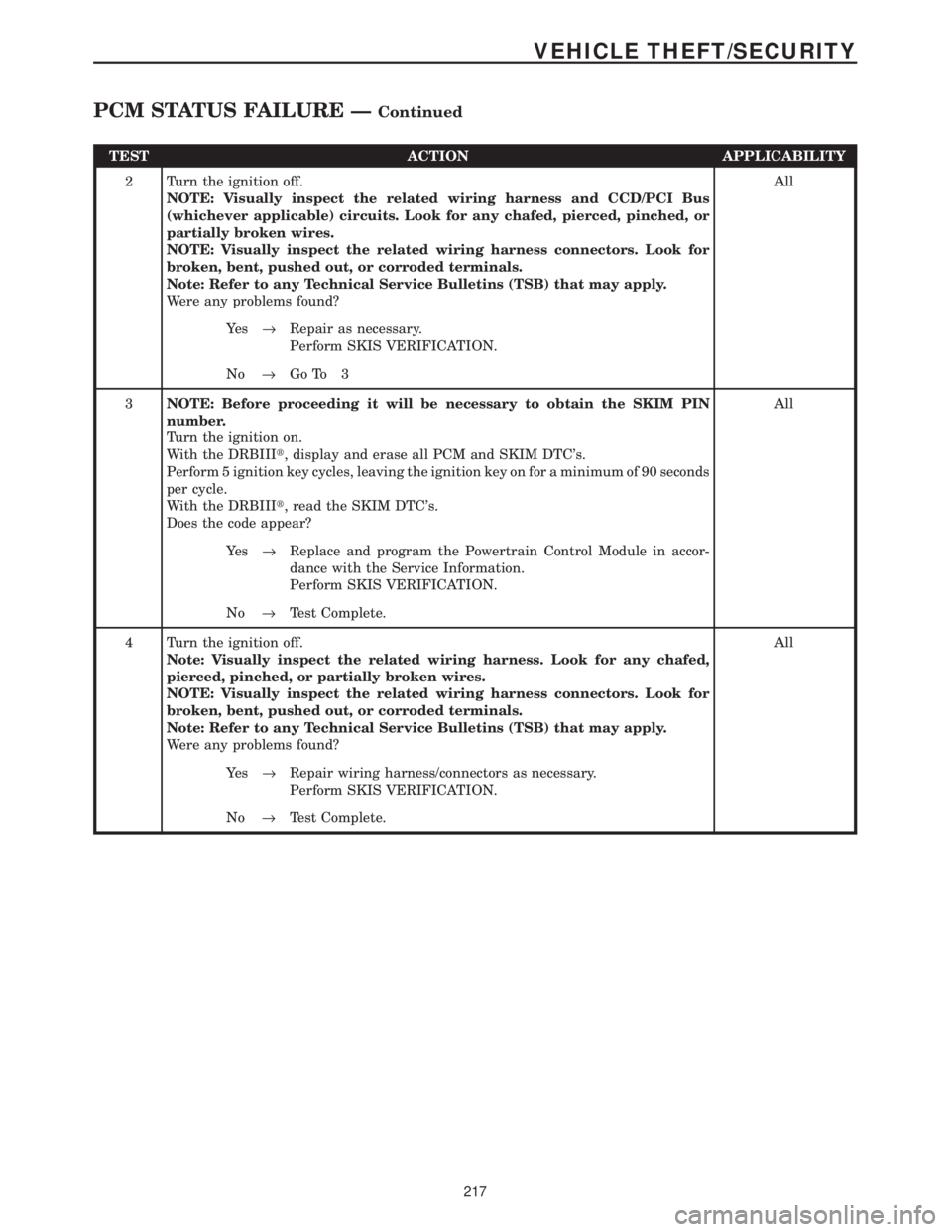

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 2 Turn the ignition off. NOTE: Visually inspect the related wiring harness and CCD/PCI Bus (whichever applicable) circuits. Look for any chafed, pierced, pinched, or partiall

Page 1437 of 4284

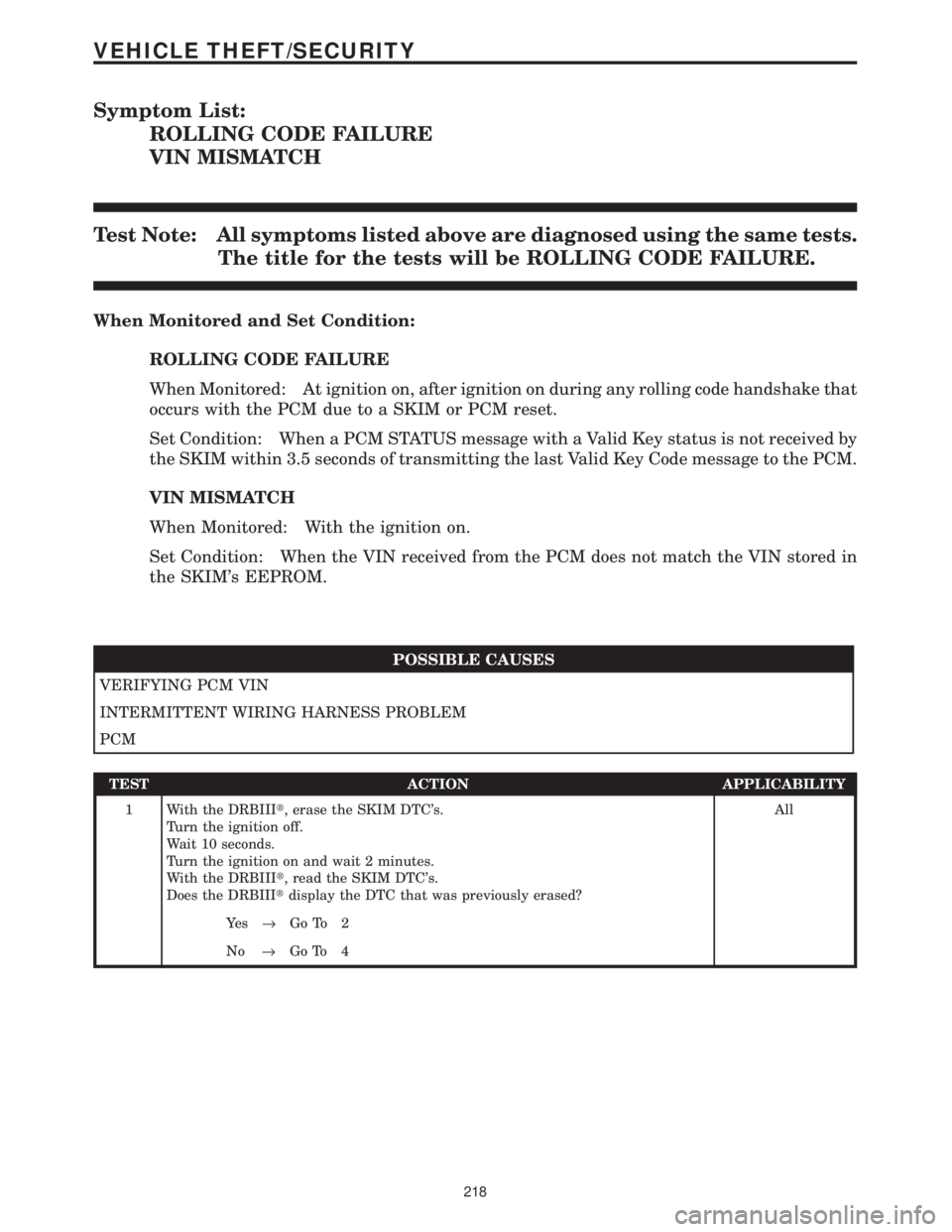

CHRYSLER VOYAGER 2001 Service Manual Symptom List: ROLLING CODE FAILURE VIN MISMATCH Test Note: All symptoms listed above are diagnosed using the same tests. The title for the tests will be ROLLING CODE FAILURE. When Monitored and Set Co

Page 1438 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 2NOTE: Ensure that a VIN has been programmed into the PCM. If a VIN is not displayed, attempt to program the PCM with the correct vehicle VIN before continuing. Turn the igni

Page 1439 of 4284

CHRYSLER VOYAGER 2001 Service Manual Symptom List: TRANSPONDER COMMUNICATION FAILURE TRANSPONDER CYCLIC REDUNDANCY CHECK (CRC) FAILURE TRANSPONDER ID MISMATCH TRANSPONDER RESPONSE MISMATCH Test Note: All symptoms listed above are diagnos

Page 1440 of 4284

CHRYSLER VOYAGER 2001 Service Manual TEST ACTION APPLICABILITY 1 With the DRBIIIt, read and record the SKIM DTCs. With the DRBIIIt, erase the SKIM DTCs. NOTE: Perform the following test several times to ensure the DTC is current. Turn th
