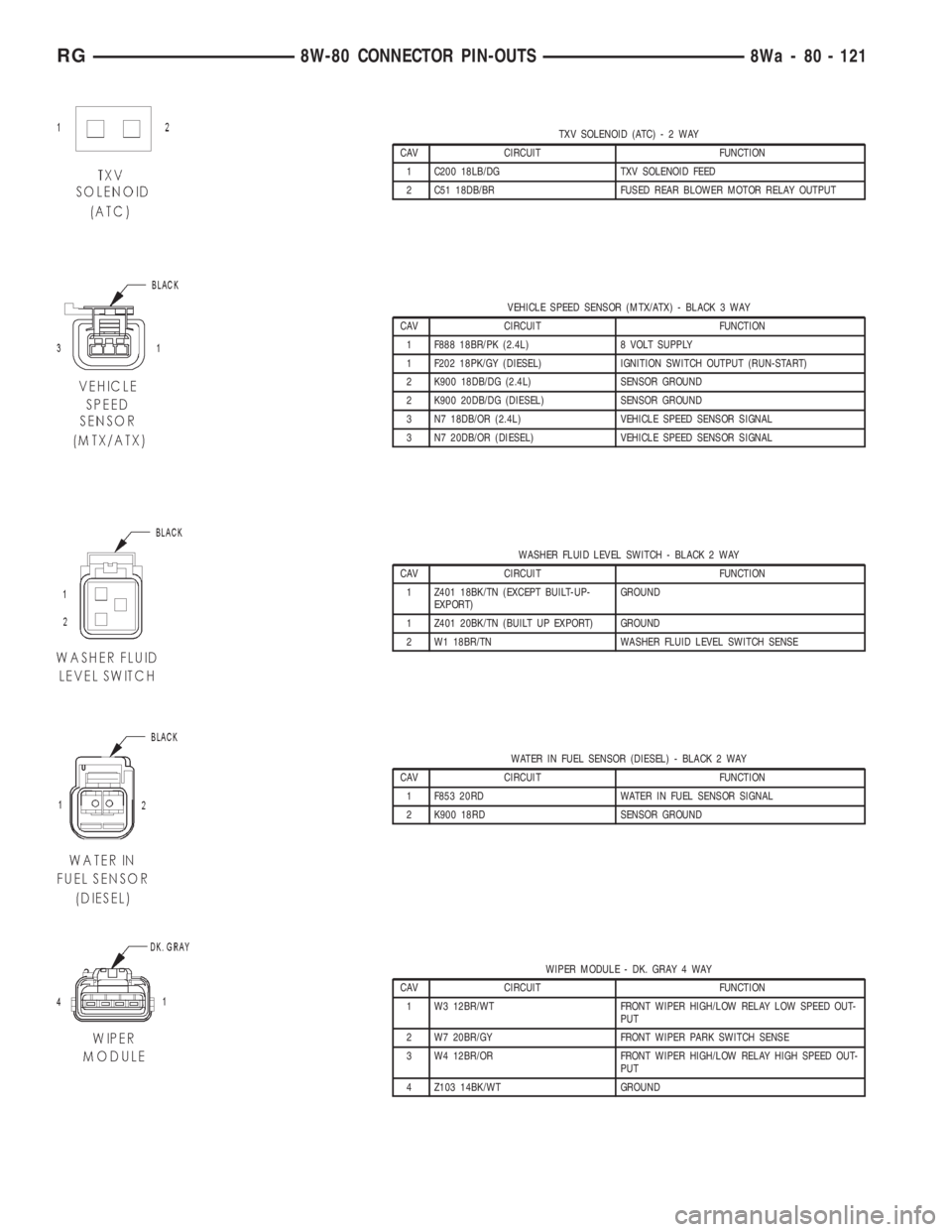

Page 2561 of 4284

CHRYSLER VOYAGER 2001 Service Manual TXV SOLENOID (ATC)-2WAY CAV CIRCUIT FUNCTION 1 C200 18LB/DG TXV SOLENOID FEED 2 C51 18DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT VEHICLE SPEED SENSOR (MTX/ATX) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 F88

Page 2562 of 4284

CHRYSLER VOYAGER 2001 Service Manual

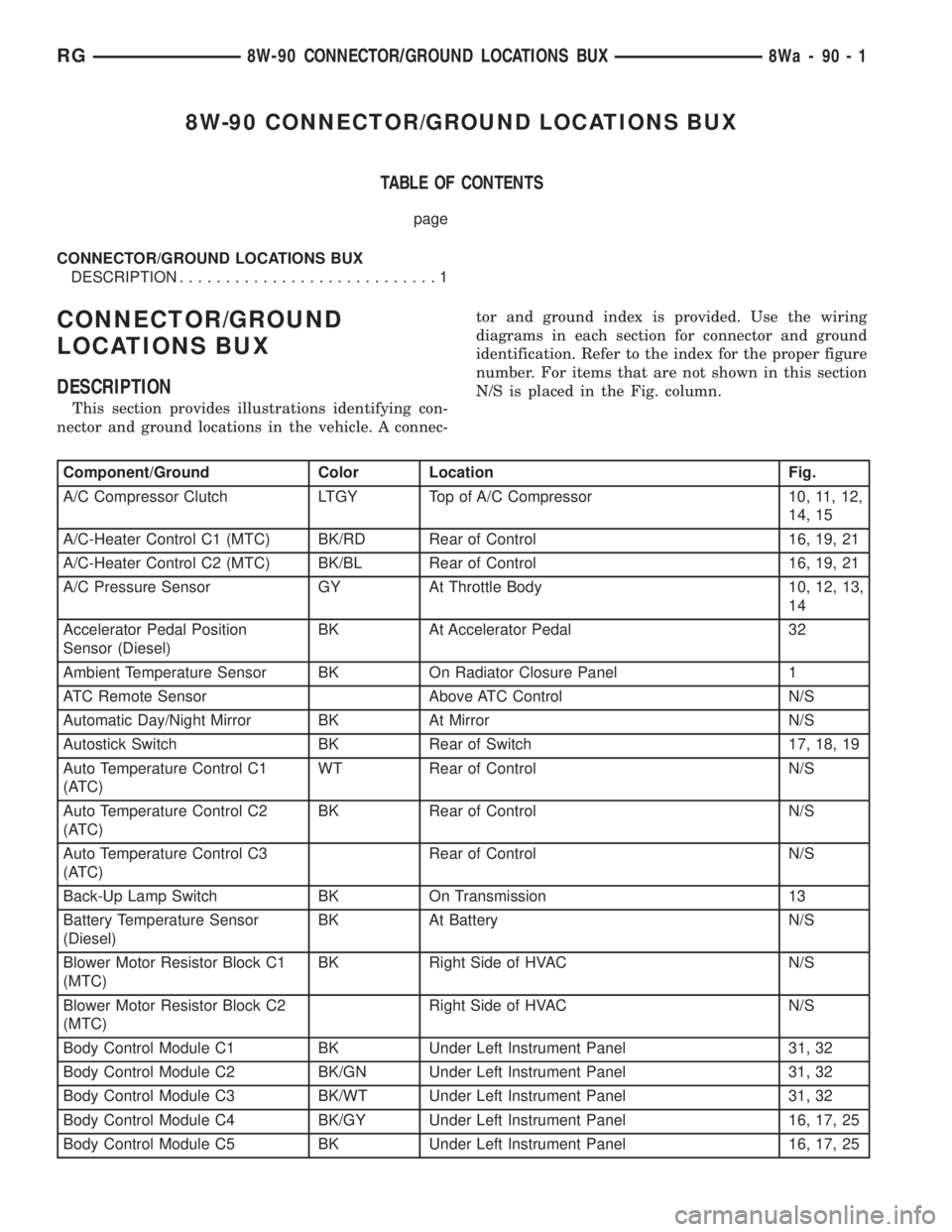

Page 2563 of 4284

CHRYSLER VOYAGER 2001 Service Manual 8W-90 CONNECTOR/GROUND LOCATIONS BUX TABLE OF CONTENTS page CONNECTOR/GROUND LOCATIONS BUX DESCRIPTION............................1 CONNECTOR/GROUND LOCATIONS BUX DESCRIPTION This section provides ill

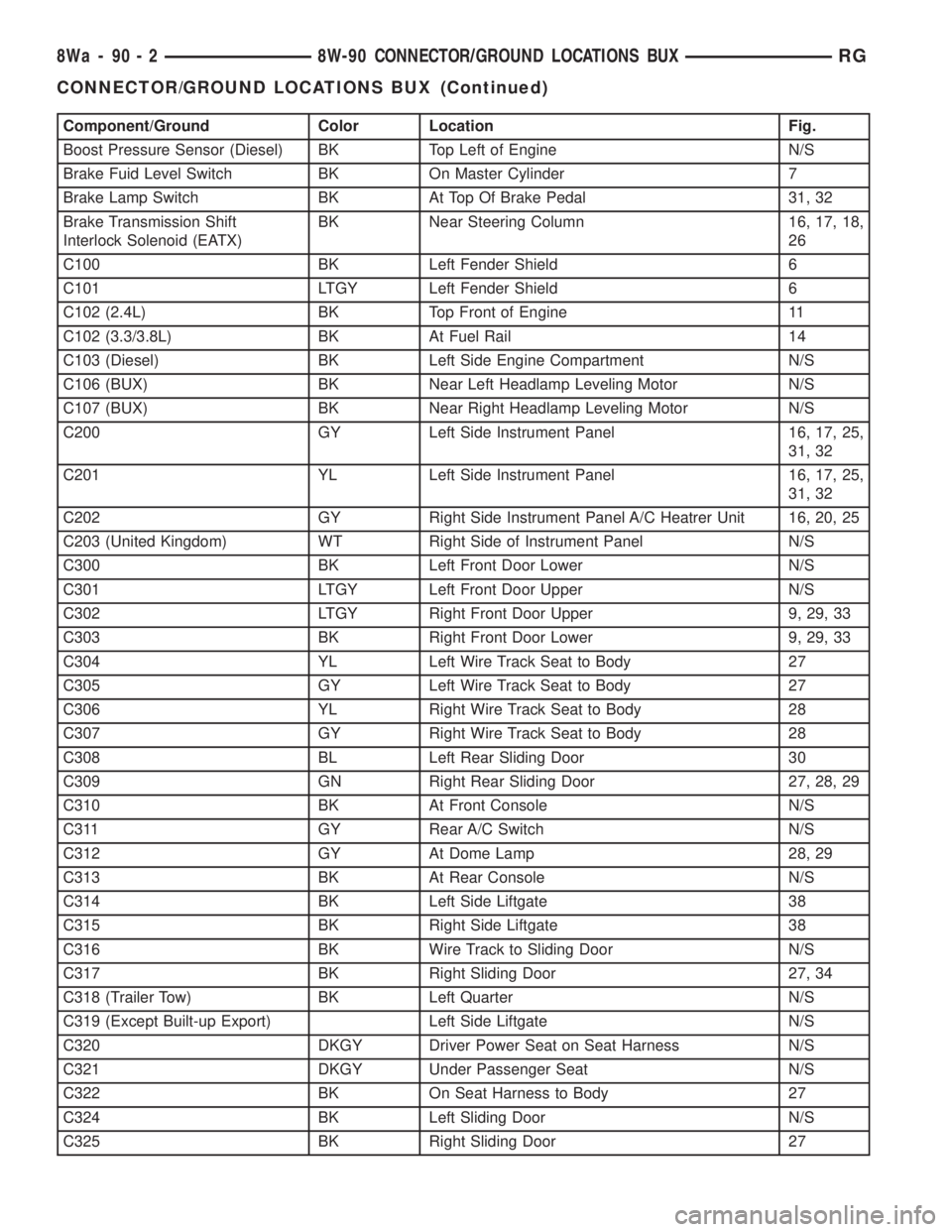

Page 2564 of 4284

CHRYSLER VOYAGER 2001 Service Manual Component/Ground Color Location Fig. Boost Pressure Sensor (Diesel) BK Top Left of Engine N/S Brake Fuid Level Switch BK On Master Cylinder 7 Brake Lamp Switch BK At Top Of Brake Pedal 31, 32 Brake Tr

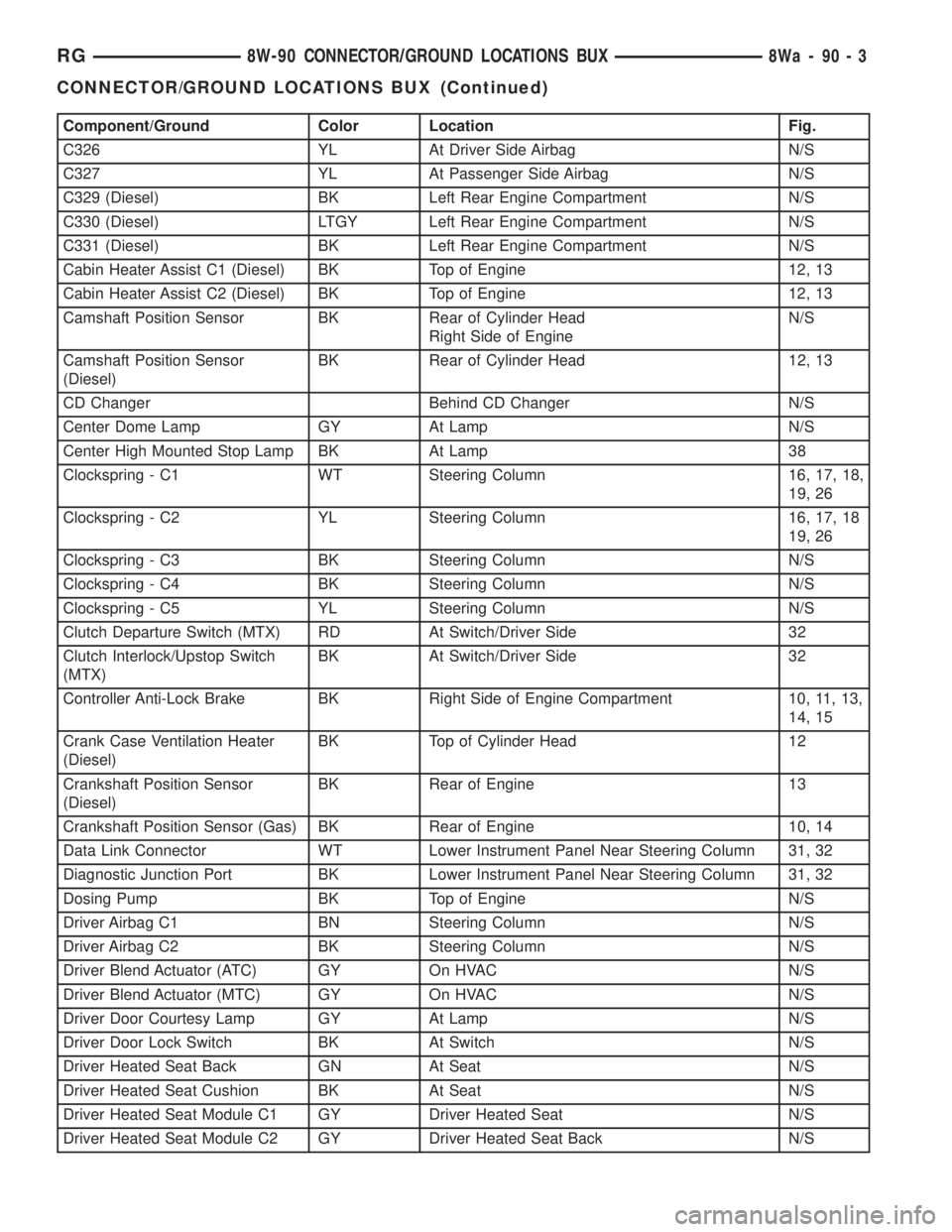

Page 2565 of 4284

CHRYSLER VOYAGER 2001 Service Manual Component/Ground Color Location Fig. C326 YL At Driver Side Airbag N/S C327 YL At Passenger Side Airbag N/S C329 (Diesel) BK Left Rear Engine Compartment N/S C330 (Diesel) LTGY Left Rear Engine Compar

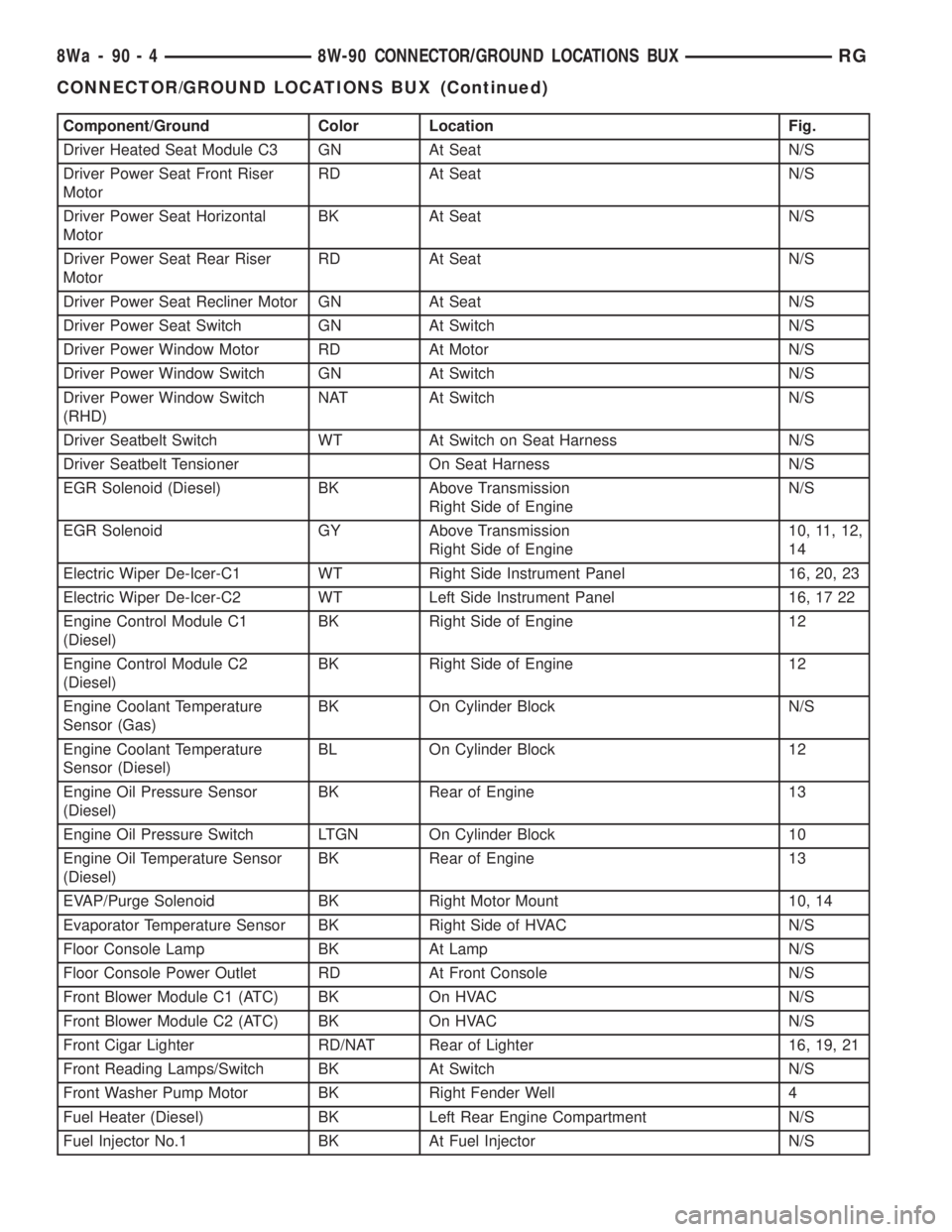

Page 2566 of 4284

CHRYSLER VOYAGER 2001 Service Manual Component/Ground Color Location Fig. Driver Heated Seat Module C3 GN At Seat N/S Driver Power Seat Front Riser MotorRD At Seat N/S Driver Power Seat Horizontal MotorBK At Seat N/S Driver Power Seat Re

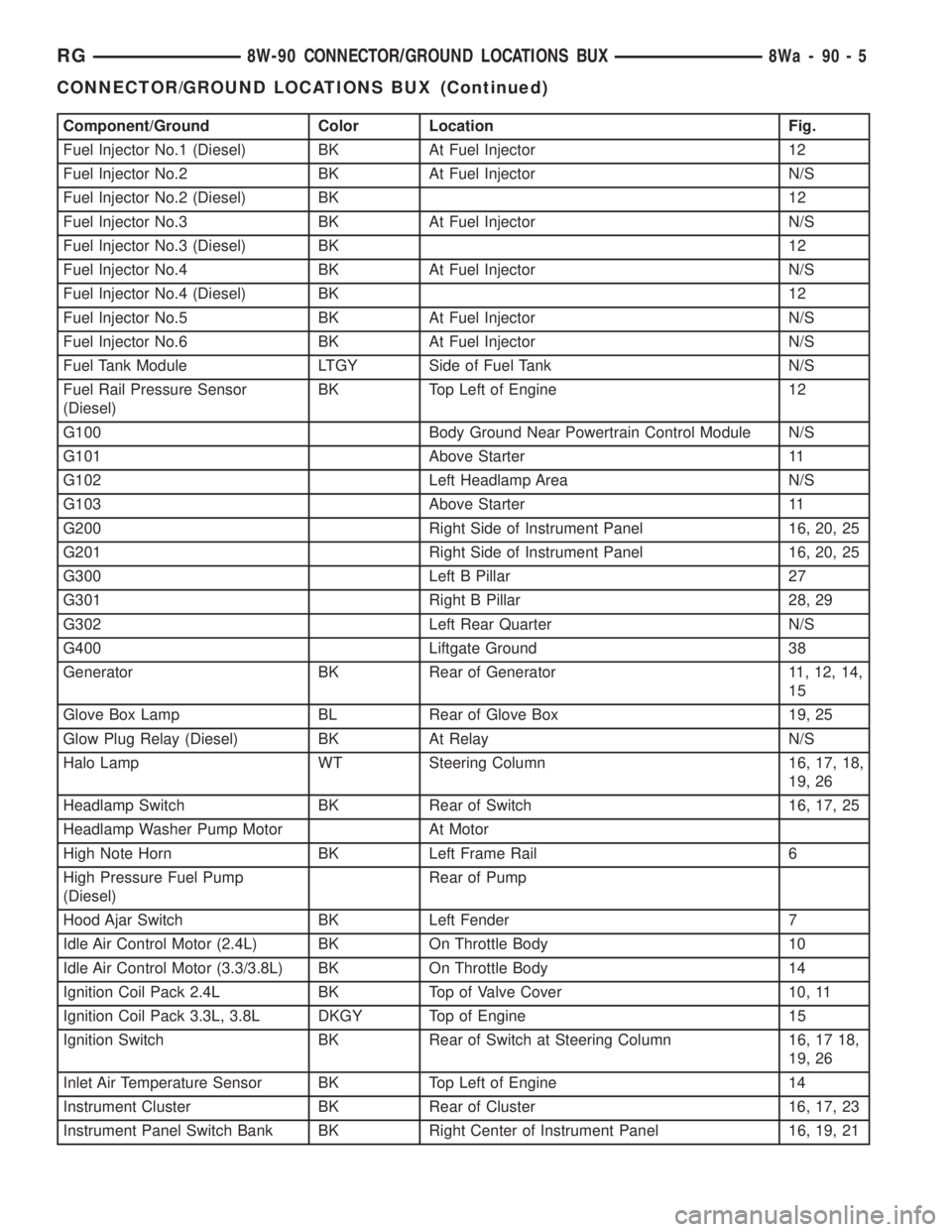

Page 2567 of 4284

CHRYSLER VOYAGER 2001 Service Manual Component/Ground Color Location Fig. Fuel Injector No.1 (Diesel) BK At Fuel Injector 12 Fuel Injector No.2 BK At Fuel Injector N/S Fuel Injector No.2 (Diesel) BK 12 Fuel Injector No.3 BK At Fuel Injec

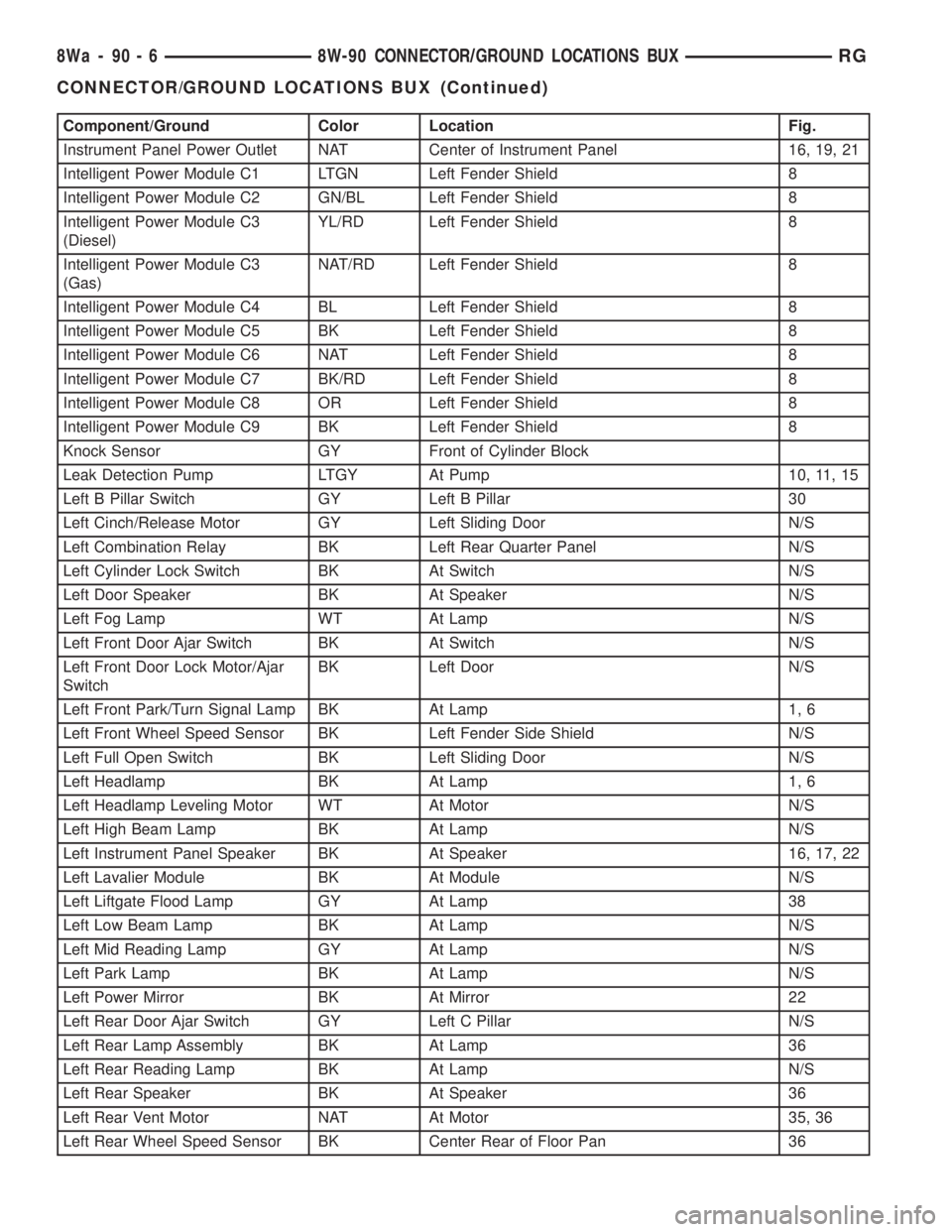

Page 2568 of 4284

CHRYSLER VOYAGER 2001 Service Manual Component/Ground Color Location Fig. Instrument Panel Power Outlet NAT Center of Instrument Panel 16, 19, 21 Intelligent Power Module C1 LTGN Left Fender Shield 8 Intelligent Power Module C2 GN/BL Lef
