Page 1145 of 4284

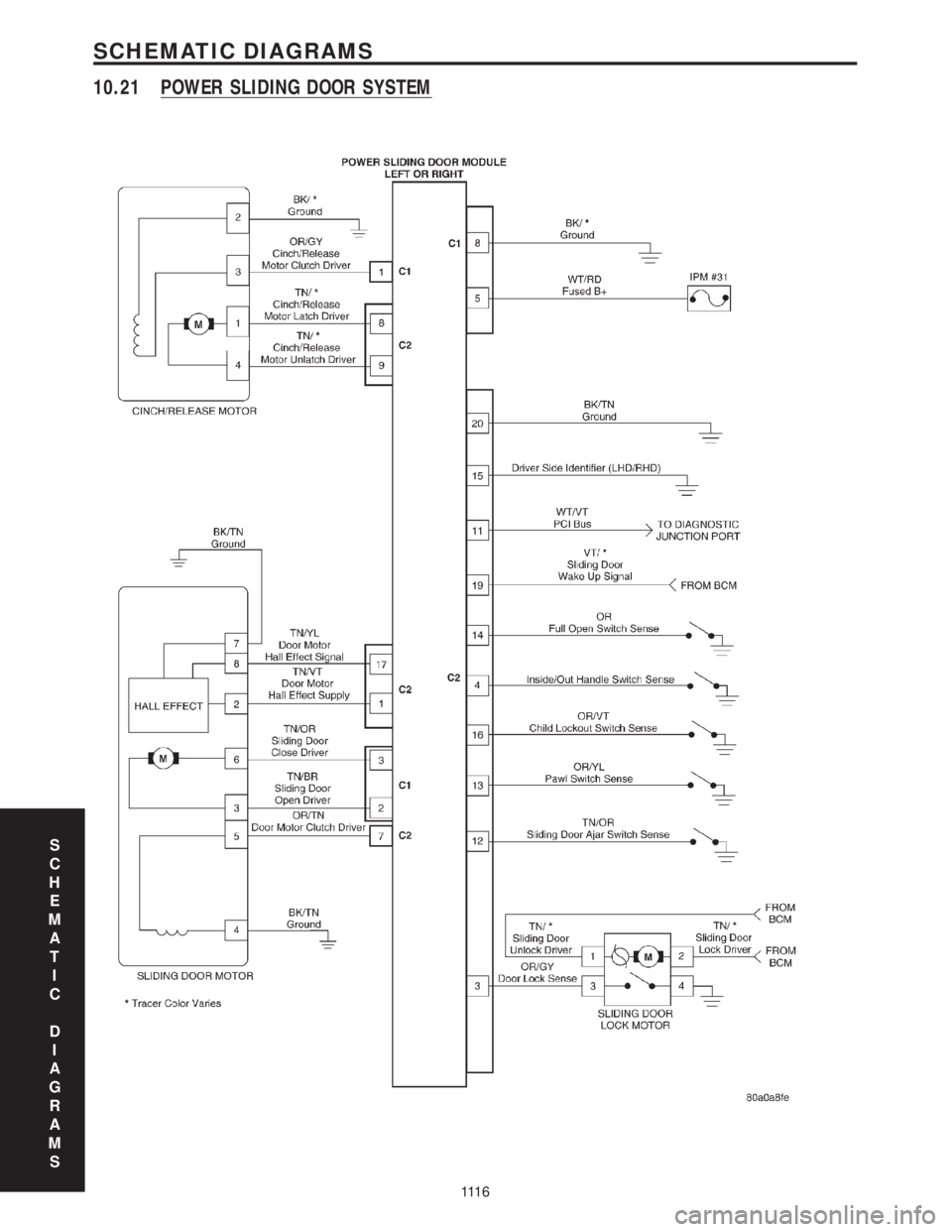

CHRYSLER VOYAGER 2001 Service Manual 10.21 POWER SLIDING DOOR SYSTEM S C H E M A T I C D I A G R A M S 111 6 SCHEMATIC DIAGRAMS

Page 1146 of 4284

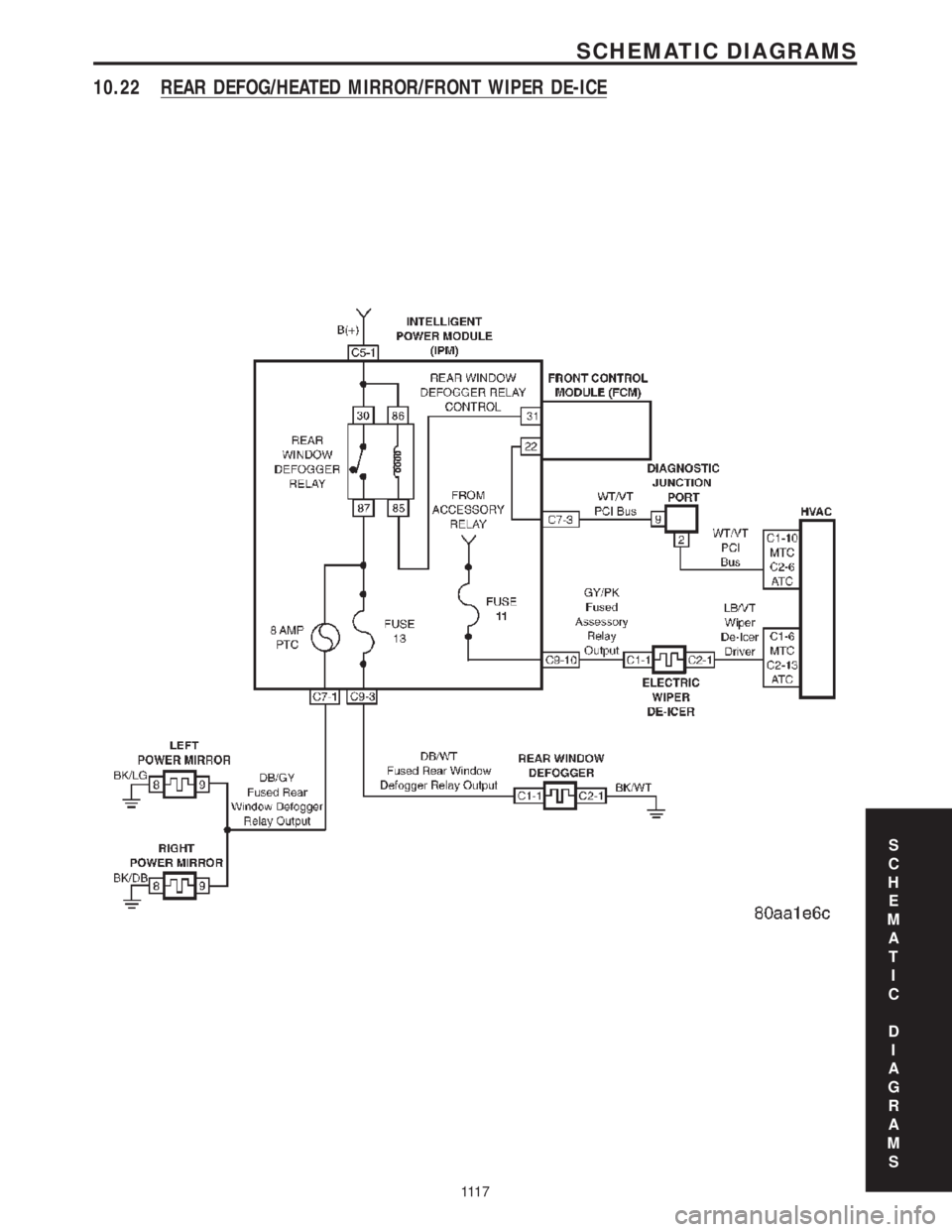

CHRYSLER VOYAGER 2001 Service Manual 10.22 REAR DEFOG/HEATED MIRROR/FRONT WIPER DE-ICE S C H E M A T I C D I A G R A M S 111 7 SCHEMATIC DIAGRAMS

Page 1147 of 4284

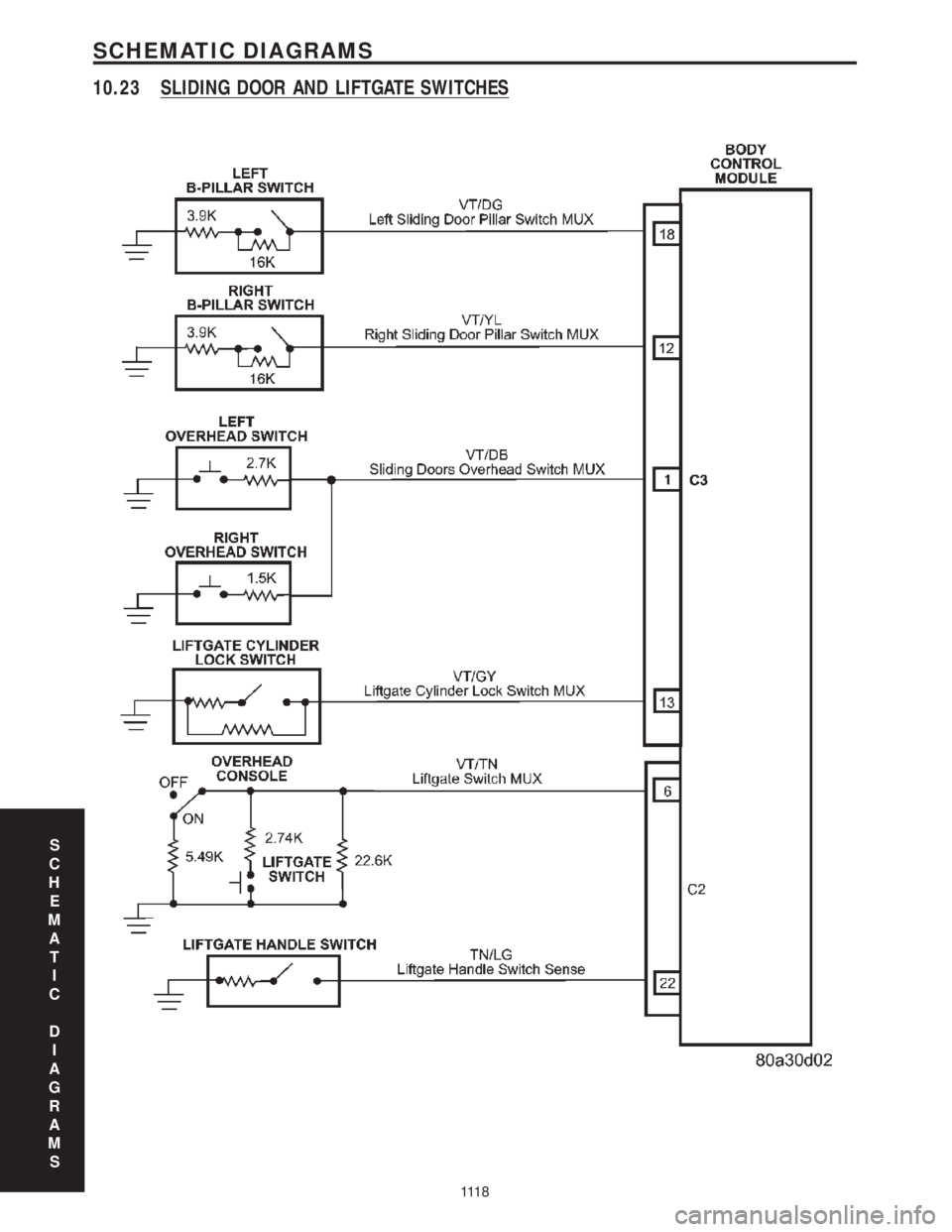

CHRYSLER VOYAGER 2001 Service Manual 10.23 SLIDING DOOR AND LIFTGATE SWITCHES S C H E M A T I C D I A G R A M S 111 8 SCHEMATIC DIAGRAMS

Page 1148 of 4284

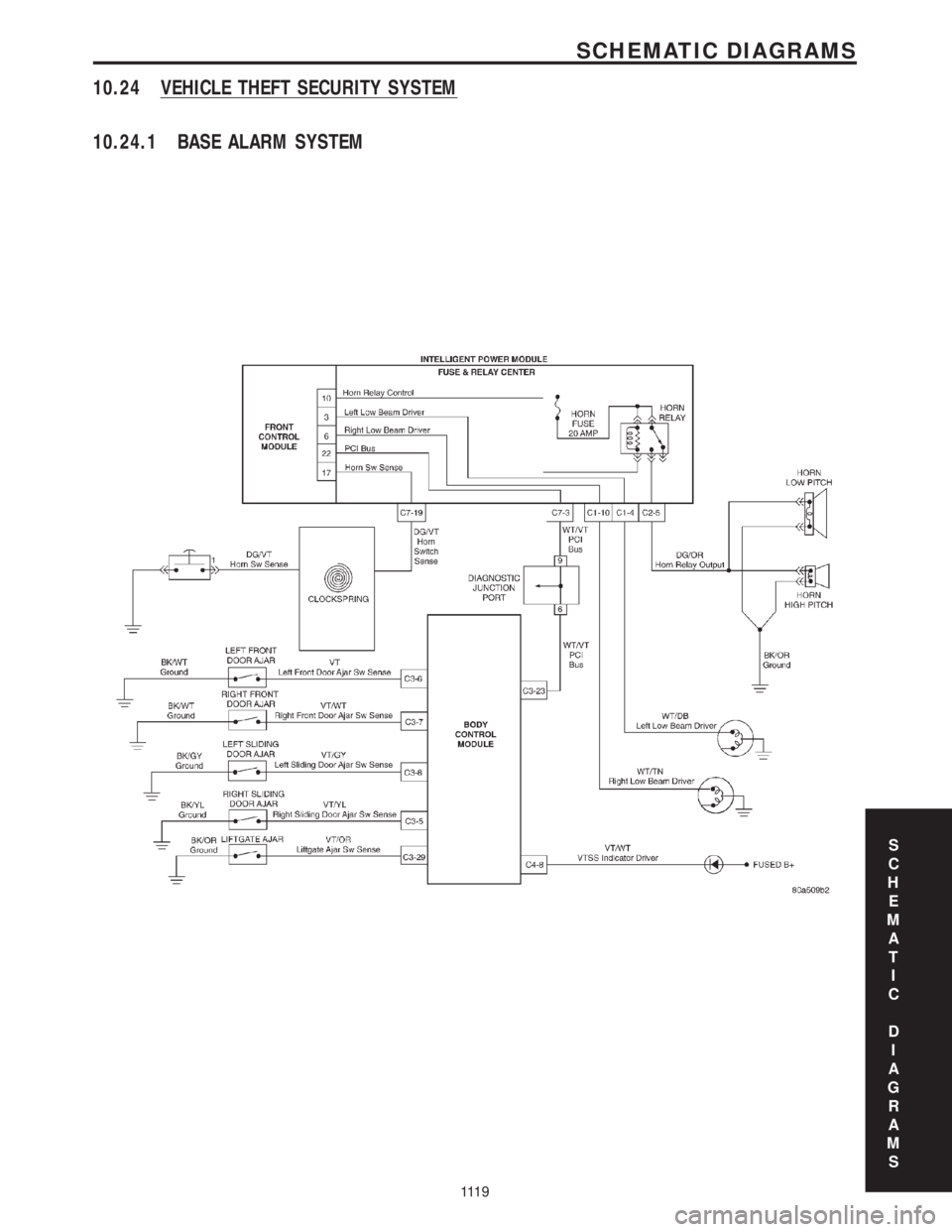

CHRYSLER VOYAGER 2001 Service Manual 10.24 VEHICLE THEFT SECURITY SYSTEM 10.24.1 BASE ALARM SYSTEM S C H E M A T I C D I A G R A M S 111 9 SCHEMATIC DIAGRAMS

Page 1149 of 4284

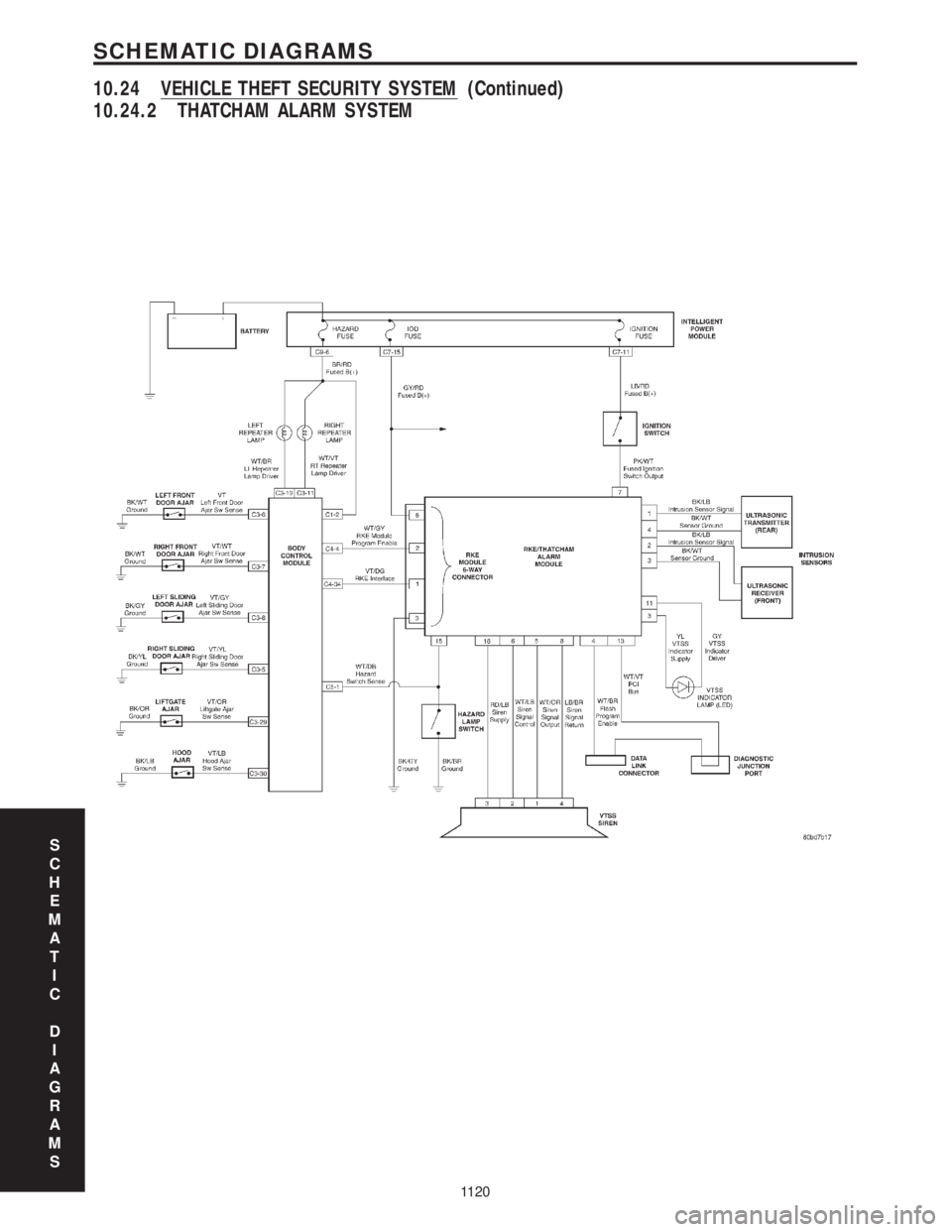

CHRYSLER VOYAGER 2001 Service Manual 10.24.2 THATCHAM ALARM SYSTEM S C H E M A T I C D I A G R A M S 1120 SCHEMATIC DIAGRAMS 10.24 VEHICLE THEFT SECURITY SYSTEM (Continued)

Page 1150 of 4284

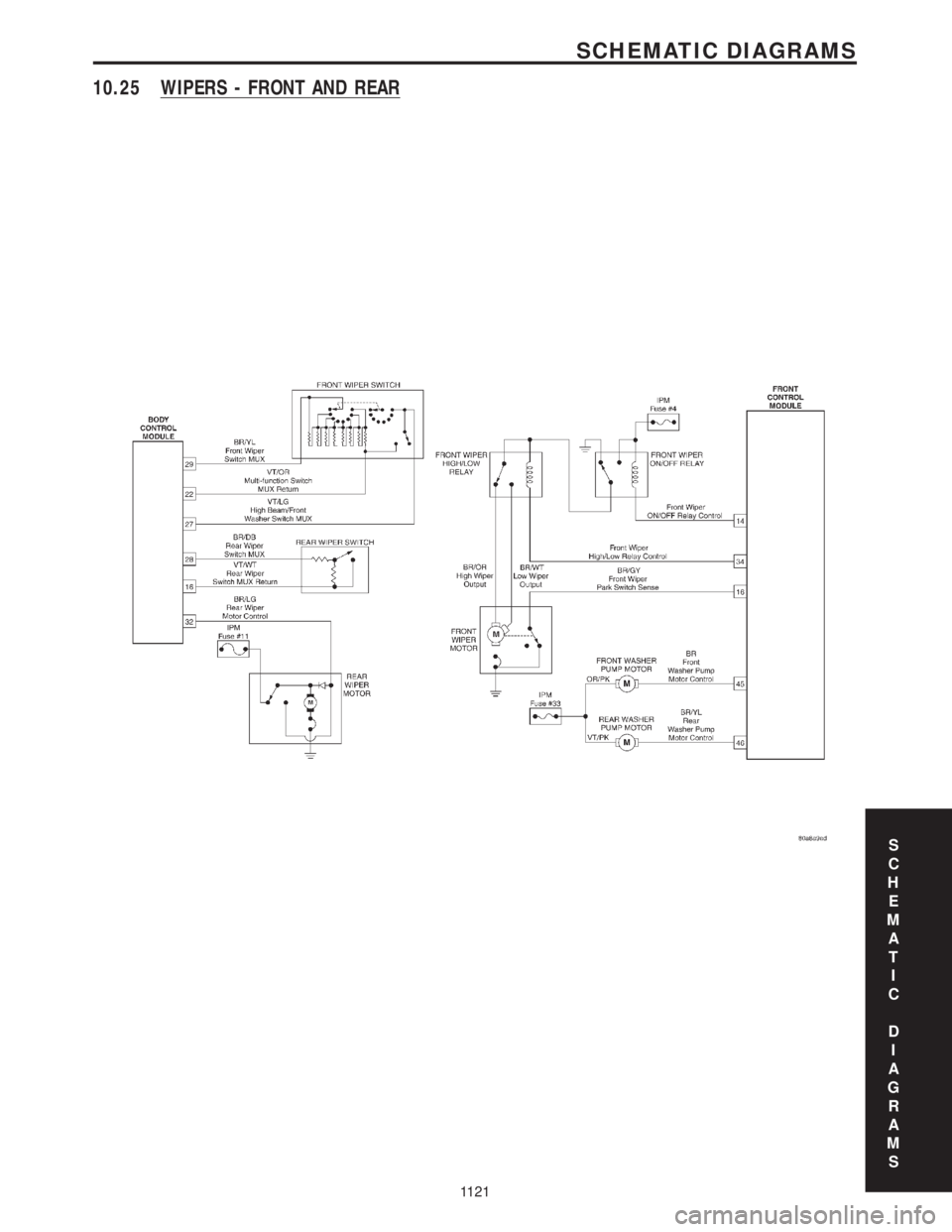

CHRYSLER VOYAGER 2001 Service Manual 10.25 WIPERS - FRONT AND REAR S C H E M A T I C D I A G R A M S 1121 SCHEMATIC DIAGRAMS

Page 1151 of 4284

CHRYSLER VOYAGER 2001 Service Manual NOTES 1122

Page 1152 of 4284

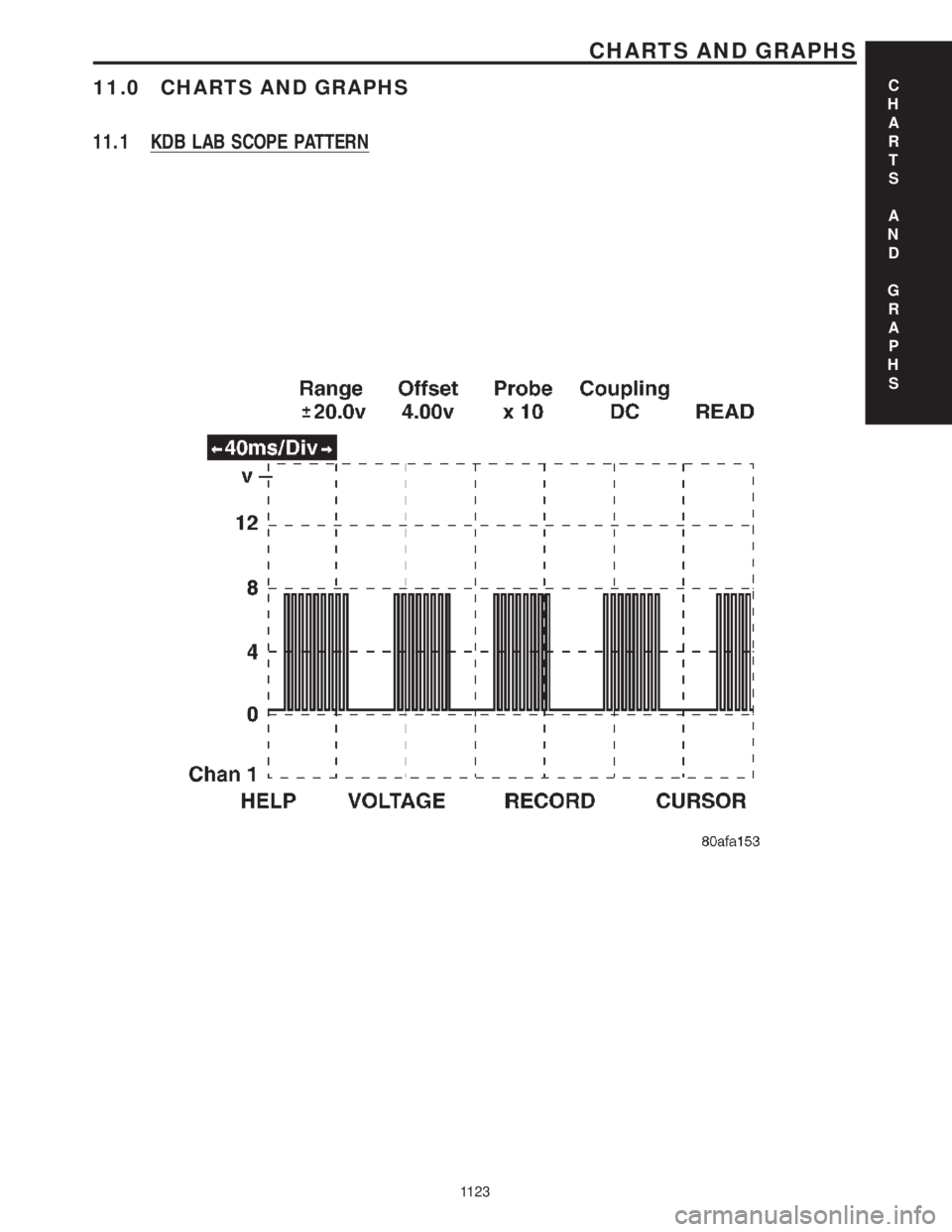

CHRYSLER VOYAGER 2001 Service Manual 11.0 CHARTS AND GRAPHS 11.1 KDB LAB SCOPE PATTERNC H A R T S A N D G R A P H S 1123 CHARTS AND GRAPHS
