Page 993 of 4284

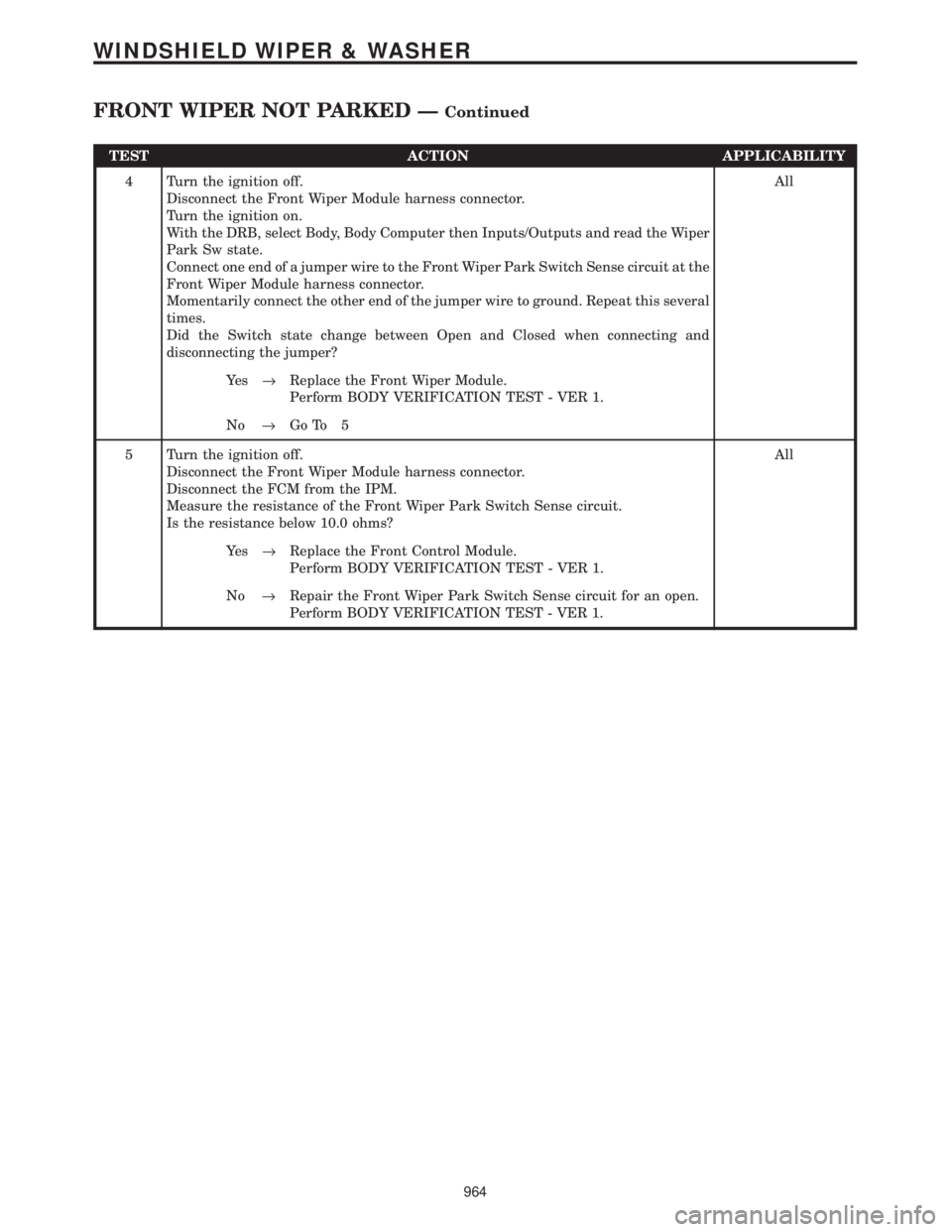

TEST ACTION APPLICABILITY
4 Turn the ignition off.
Disconnect the Front Wiper Module harness connector.
Turn the ignition on.
With the DRB, select Body, Body Computer then Inputs/Outputs and read the Wiper
Park Sw state.
Connect one end of a jumper wire to the Front Wiper Park Switch Sense circuit at the
Front Wiper Module harness connector.
Momentarily connect the other end of the jumper wire to ground. Repeat this several
times.
Did the Switch state change between Open and Closed when connecting and
disconnecting the jumper?All
Ye s®Replace the Front Wiper Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn the ignition off.
Disconnect the Front Wiper Module harness connector.
Disconnect the FCM from the IPM.
Measure the resistance of the Front Wiper Park Switch Sense circuit.
Is the resistance below 10.0 ohms?All
Ye s®Replace the Front Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the Front Wiper Park Switch Sense circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
964
WINDSHIELD WIPER & WASHER
FRONT WIPER NOT PARKED ÐContinued
Page 994 of 4284

Symptom:
FRONT WIPER ON RELAY OPEN
POSSIBLE CAUSES
FUSED B(+) CIRCUIT
WIPER ON/OFF RELAY
WIPER ON/OFF RELAY CONTROL CIRCUIT OPEN
FCM-ON/OFF RELAY DRIVER OPEN
TEST ACTION APPLICABILITY
1 Turn the ignition off.
Remove the Wiper On/Off Relay from the PDC.
Using a 12-volt test light connected to ground, probe both Fused B(+) circuits in the
PDC.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly at each terminal?All
Ye s®Go To 2
No®Repair the Fused B(+) circuit(s) for an open.
Perform BODY VERIFICATION TEST - VER 1.
2 Install a substitute relay in place of the Wiper On/Off Relay.
Turn the ignition on.
Turn the wipers on.
Does the system operate correctly?All
Ye s®Replace the Wiper On/Off Relay.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 3
3 Turn the ignition off.
Remove the Wiper On/Off Relay from the PDC.
Disconnect the FCM from the IPM.
Connect a jumper wire between the Wiper On/Off Relay Control circuit at the IPM
connector to ground.
Measure the resistance between ground and the Wiper On/Off Relay Control circuit
in the PDC.
Is the resistance below 5.0 ohms?All
Ye s®Replace the Front Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Repair the Wiper On/Off Relay Control circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
965
WINDSHIELD WIPER & WASHER
Page 995 of 4284
Symptom:
FRONT WIPER ON RELAY SHORT TO BATT
POSSIBLE CAUSES
WIPER ON/OFF RELAY
WIPER ON/OFF RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE
FCM
TEST ACTION APPLICABILITY
1 Turn the ignition off.
Remove the Wiper On/Off Relay from the PDC.
Disconnect the FCM from the IPM.
Turn the ignition on.
Measure the voltage of the Wiper On/Off Relay Control circuit at the PDC connector.
Is the voltage above 1.0 volt?All
Ye s®Repair the Wiper On/Off Relay Control circuit for a short to
voltage.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 2
2 Install a substitute relay in place of the Wiper On/Off Relay.
Turn the ignition on.
Turn the wipers on.
Does the system operate correctly?All
Ye s®Replace the Wiper On/Off Relay.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Front Control Module.
Perform BODY VERIFICATION TEST - VER 1.
966
WINDSHIELD WIPER & WASHER
Page 996 of 4284

Symptom:
FRONT WIPER PARK SWITCH SHORT TO GND
POSSIBLE CAUSES
FRONT CONTROL MODULE
FRONT WIPER MODULE
WIRING HARNESS INSPECTION
FRONT WIPER PARK SWITCH SENSE CIRCUIT SHORTED TO GROUND
TEST ACTION APPLICABILITY
1 Turn the ignition on.
Turn the Wipers on one of the intermittent settings.
With the DRB, select Body, Front Control Module, Inputs/Outputs and read the
Wiper Park Sw state.
Does the switch state change from Open to Closed during wiper operation?All
Ye s®Go To 2
No®Go To 3
2 Turn the ignition on.
With the DRBIIIt, erase all BCM and FCM DTCs.
Turn the ignition off.
NOTE: Visually inspect the related wiring harness and circuits. Look for
any chafed, pierced, pinched, or partially broken wires.
NOTE: Visually inspect the related wiring harness connectors. Look for
broken, bent, pushed out, or corroded terminals.
Note: Refer to any Technical Service Bulletins (TSB) that may apply.
Were any problems found?All
Ye s®Repair as necessary.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
3 Turn the ignition off.
Disconnect the Front Wiper Module harness connector.
Disconnect the FCM from the IPM.
Measure the resistance between ground and the Front Wiper Park Switch Sense
circuit.
Is the resistance below 1000.0 ohms?All
Ye s®Repair the Front Wiper Park Switch Sense circuit for a short to
ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 4
967
WINDSHIELD WIPER & WASHER
Page 997 of 4284

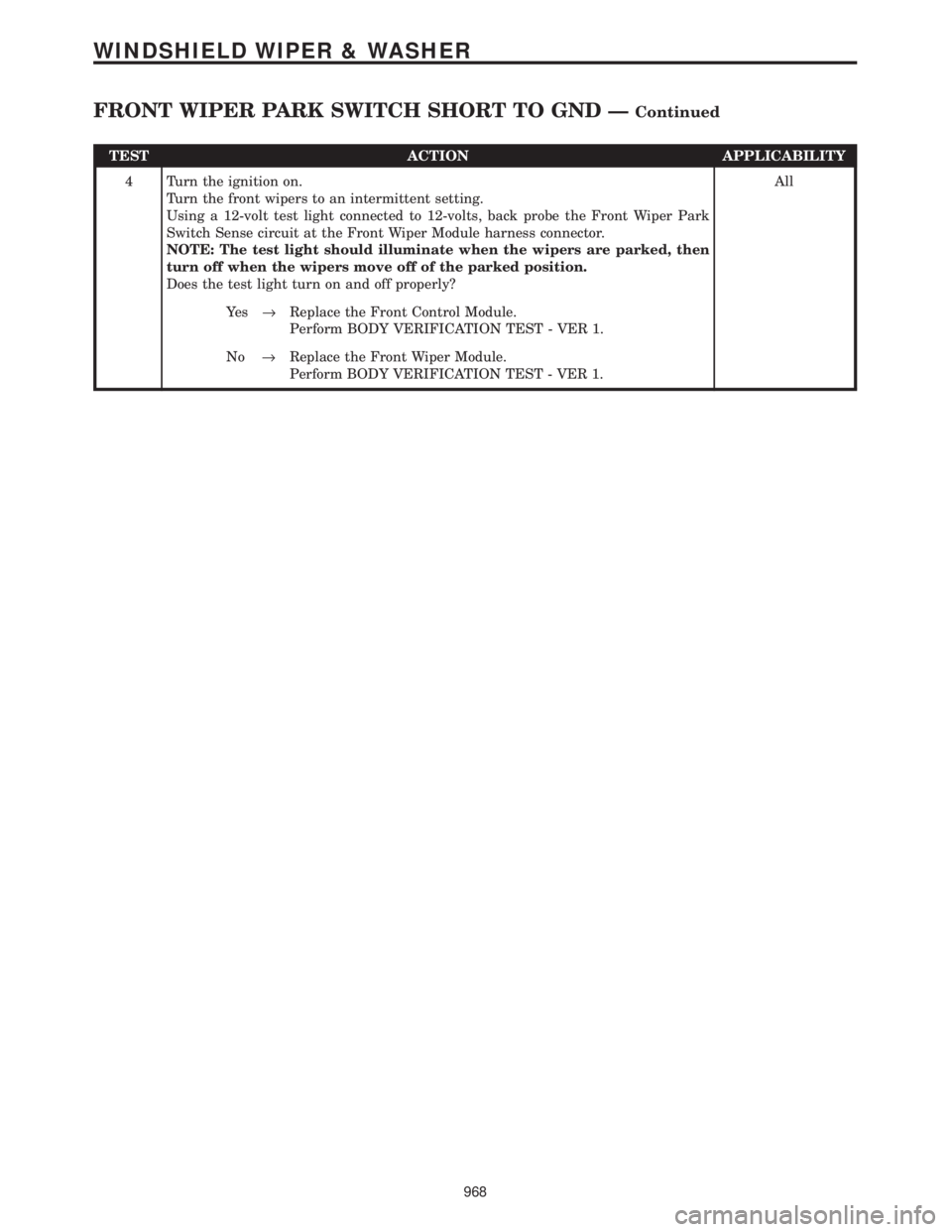

TEST ACTION APPLICABILITY
4 Turn the ignition on.
Turn the front wipers to an intermittent setting.
Using a 12-volt test light connected to 12-volts, back probe the Front Wiper Park
Switch Sense circuit at the Front Wiper Module harness connector.
NOTE: The test light should illuminate when the wipers are parked, then
turn off when the wipers move off of the parked position.
Does the test light turn on and off properly?All
Ye s®Replace the Front Control Module.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Front Wiper Module.
Perform BODY VERIFICATION TEST - VER 1.
968
WINDSHIELD WIPER & WASHER
FRONT WIPER PARK SWITCH SHORT TO GND ÐContinued
Page 998 of 4284

Symptom:
FRONT WIPER SWITCH MUX INPUT OPEN
POSSIBLE CAUSES
WIRING HARNESS INSPECTION
WINDSHIELD WIPER SWITCH MUX CIRCUIT OPEN
MULTIFUNCTION SWITCH MUX RETURN CIRCUIT OPEN
WIPER MUX CIRCUIT SHORTED TO VOLTAGE
BCM
MULTI-FUNCTION SWITCH
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, select Body, Body Controller and read the Front Wiper Sw volts.
Is the voltage above 4.8 volts?All
Ye s®Go To 2
No®Go To 6
2 Turn the ignition off.
Disconnect the Multi-Function Switch harness connector.
Disconnect the BCM C5 harness connector.
Measure the resistance of the Front Wiper Switch MUX circuit between the BCM C5
harness connector and the Multi-Function Switch harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 3
No®Repair the Front Wiper Switch MUX circuit for an open.
Perform BODY VERIFICATION TEST - VER 1.
3 Turn the ignition off.
Disconnect the Multi-Function Switch harness connector.
Disconnect the BCM C4 harness connector.
Measure the resistance of the Multi-Function Switch MUX Return circuit between
the BCM C4 harness connector and the Multi-Function Switch harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 4
No®Repair the Multi-Function Switch MUX Return circuit for an
open.
Perform BODY VERIFICATION TEST - VER 1.
4 Turn the ignition off.
Disconnect the Multi-Function Switch harness connector.
Disconnect the BCM C5 harness connector.
Turn the ignition on.
Measure the voltage of the Front Wiper MUX Switch Signal circuit.
Is the voltage above 1.0 volt?All
Ye s®Repair the Front Wiper Switch MUX circuit for a short to voltage.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 5
969
WINDSHIELD WIPER & WASHER
Page 999 of 4284

TEST ACTION APPLICABILITY
5 Turn the ignition off.
Disconnect the Multi-Function Switch harness connector.
Turn the ignition on.
Connect a jumper wire between the Front Wiper Switch MUX circuit and the
Mulit-Function Switch MUX Return circuit.
With the DRB, read the Front Wiper Sw volts?
Is the voltage below 0.5 volt?All
Ye s®Replace the Multi-Function Switch.
Perform BODY VERIFICATION TEST - VER 1.
No®Replace the Body Control Module.
Perform BODY VERIFICATION TEST - VER 1.
6 Turn the ignition on.
With the DRBIIIt, erase all BCM and FCM DTCs.
Turn the ignition off.
NOTE: Visually inspect the related wiring harness and circuits. Look for
any chafed, pierced, pinched, or partially broken wires.
NOTE: Visually inspect the related wiring harness connectors. Look for
broken, bent, pushed out, or corroded terminals.
Note: Refer to any Technical Service Bulletins (TSB) that may apply.
Were any problems found?All
Ye s®Repair as necessary.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
970
WINDSHIELD WIPER & WASHER
FRONT WIPER SWITCH MUX INPUT OPEN ÐContinued
Page 1000 of 4284

Symptom:
FRONT WIPER SWITCH MUX INPUT SHORT TO GROUND
POSSIBLE CAUSES
BCM
WIRING HARNESS INSPECTION
FRONT WIPER SWITCH MUX CIRCUIT SHORTED TO GROUND
FRONT WIPER SWITCH MUX CIRCUIT SHORTED TO M/F MUX RETURN CIRCUIT
MULTI-FUNCTION SWITCH
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRB, select Body, Body Controller and read the Front Wiper Sw volts?
Is the voltage above 0.3 volt?All
Ye s®Go To 2
No®Go To 3
2 Turn the ignition on.
With the DRBIIIt, erase all BCM and FCM DTCs.
Turn the ignition off.
NOTE: Visually inspect the related wiring harness and circuits. Look for
any chafed, pierced, pinched, or partially broken wires.
NOTE: Visually inspect the related wiring harness connectors. Look for
broken, bent, pushed out, or corroded terminals.
Note: Refer to any Technical Service Bulletins (TSB) that may apply.
Were any problems found?All
Ye s®Repair as necessary.
Perform BODY VERIFICATION TEST - VER 1.
No®Test Complete.
3 Turn the ignition off.
Disconnect the Multi-Function Switch harness connector.
Disconnect the BCM C5 harness connector.
Measure the resistance of the Front Wiper Switch MUX circuit between the BCM C5
harness connector and ground.
Is the resistance below 1000.0 ohms?All
Ye s®Repair the Front Wiper Switch MUX circuit for a short to ground.
Perform BODY VERIFICATION TEST - VER 1.
No®Go To 4
971
