Page 3185 of 4284

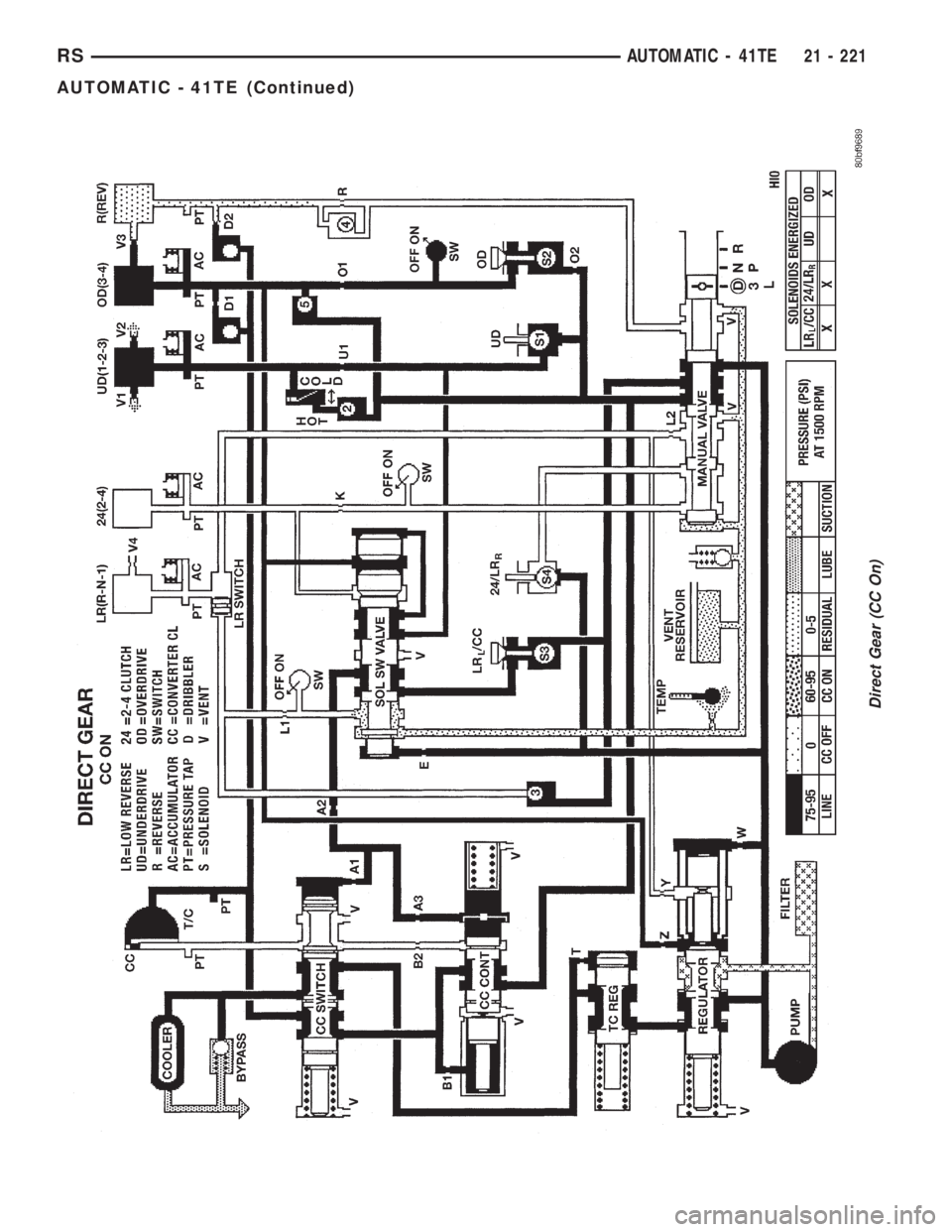

CHRYSLER VOYAGER 2001 Service Manual Direct Gear (CC On) RSAUTOMATIC - 41TE21 - 221 AUTOMATIC - 41TE (Continued)

Page 3186 of 4284

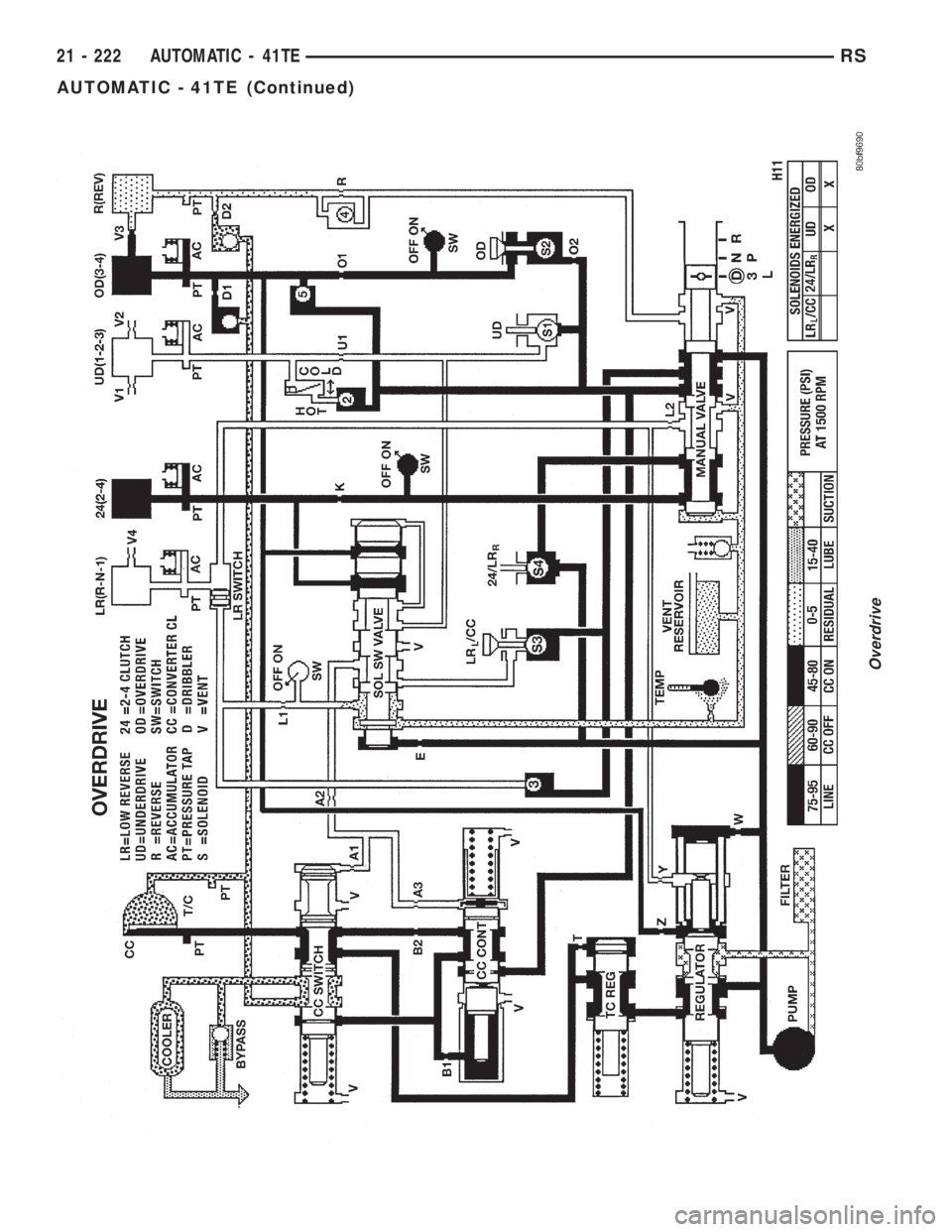

CHRYSLER VOYAGER 2001 Service Manual Overdrive 21 - 222 AUTOMATIC - 41TERS AUTOMATIC - 41TE (Continued)

Page 3187 of 4284

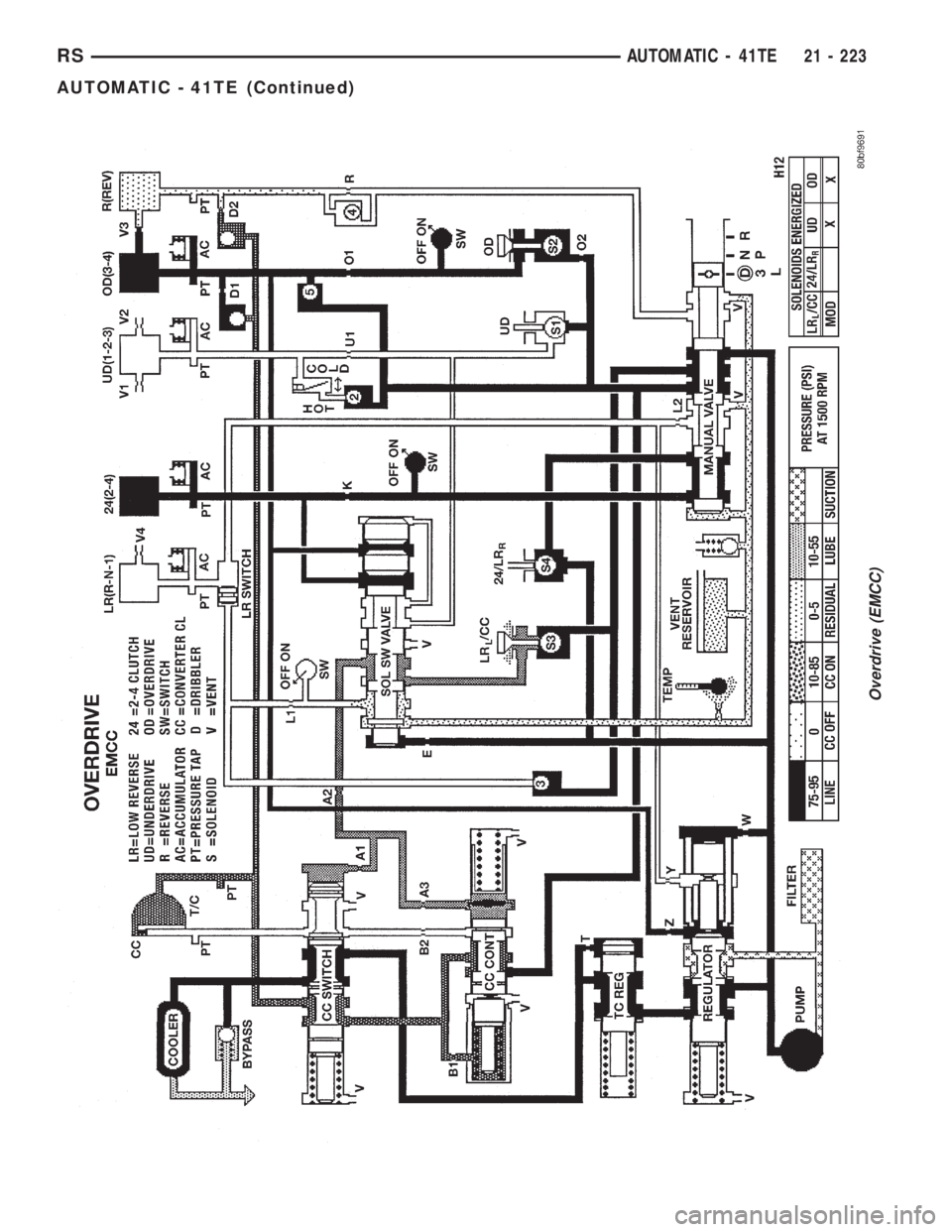

CHRYSLER VOYAGER 2001 Service Manual Overdrive (EMCC) RSAUTOMATIC - 41TE21 - 223 AUTOMATIC - 41TE (Continued)

Page 3188 of 4284

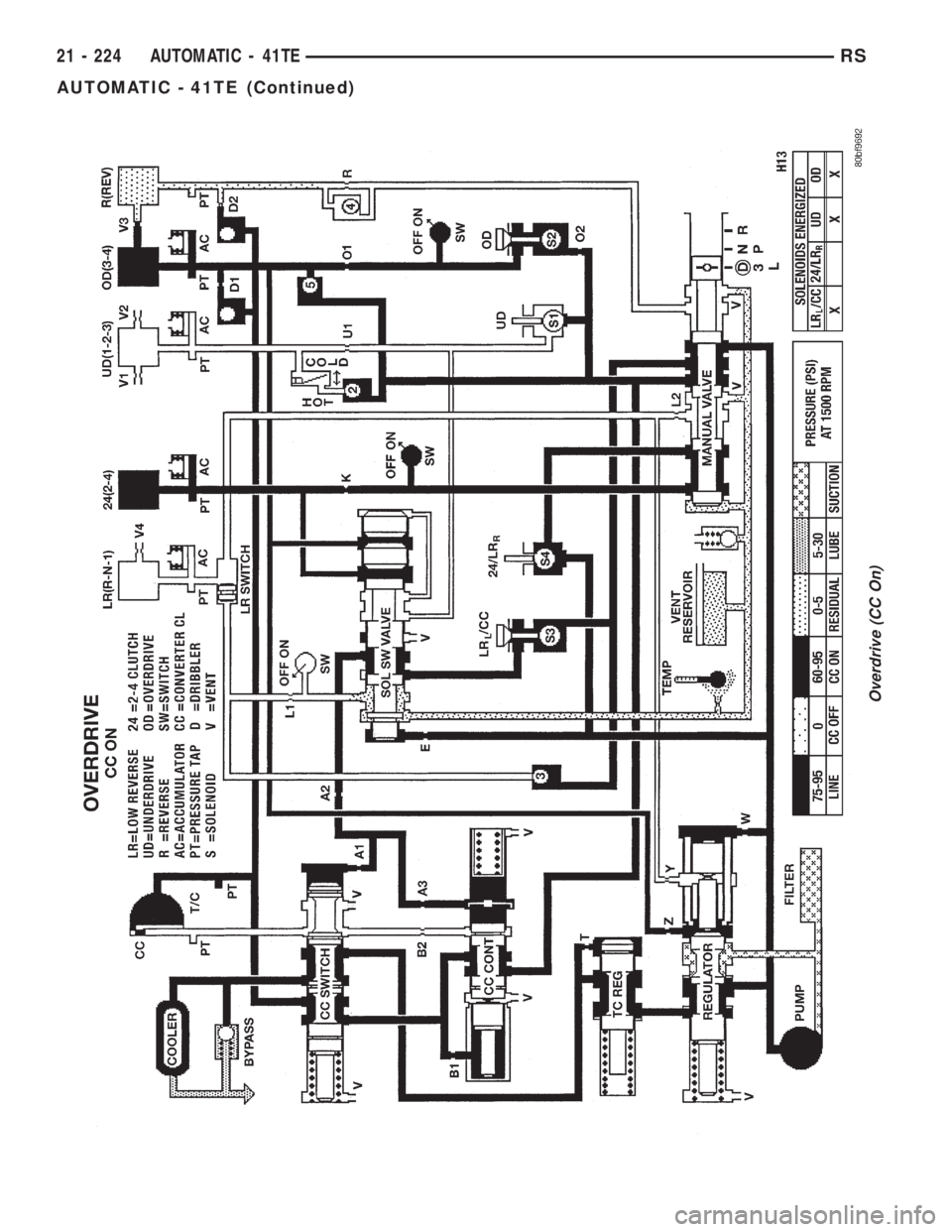

CHRYSLER VOYAGER 2001 Service Manual Overdrive (CC On) 21 - 224 AUTOMATIC - 41TERS AUTOMATIC - 41TE (Continued)

Page 3189 of 4284

CHRYSLER VOYAGER 2001 Service Manual SPECIFICATIONS SPECIFICATIONS - 41TE TRANSAXLE GENERAL SPECIFICATIONS DESCRIPTION SPECIFICATION Transaxle TypeFully adaptive, electronically controlled, four speed automatic with torque converter and

Page 3190 of 4284

CHRYSLER VOYAGER 2001 Service Manual INPUT SHAFT DESCRIPTION METRIC SPECIFICATION End Play 0.127-0.635mm 0.005-0.025 in. TORQUE SPECIFICATIONS DESCRIPTION N´m Ft. Lbs. In. Lbs. Bolt, Differential Cover-to-Case19 Ð 165 Bolt, Differentia

Page 3191 of 4284

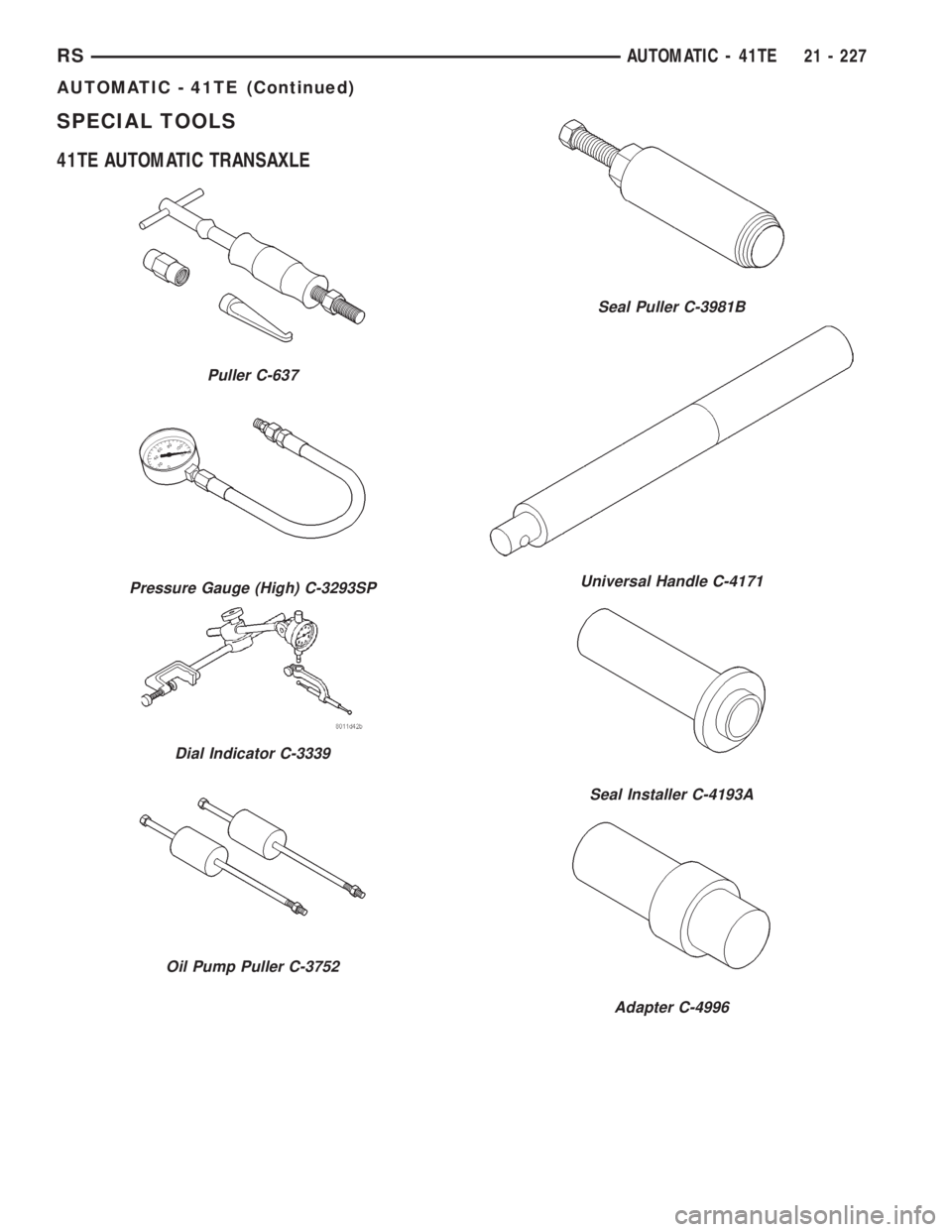

CHRYSLER VOYAGER 2001 Service Manual SPECIAL TOOLS 41TE AUTOMATIC TRANSAXLE Puller C-637 Pressure Gauge (High) C-3293SP Dial Indicator C-3339 Oil Pump Puller C-3752 Seal Puller C-3981B Universal Handle C-4171 Seal Installer C-4193A Adapt

Page 3192 of 4284

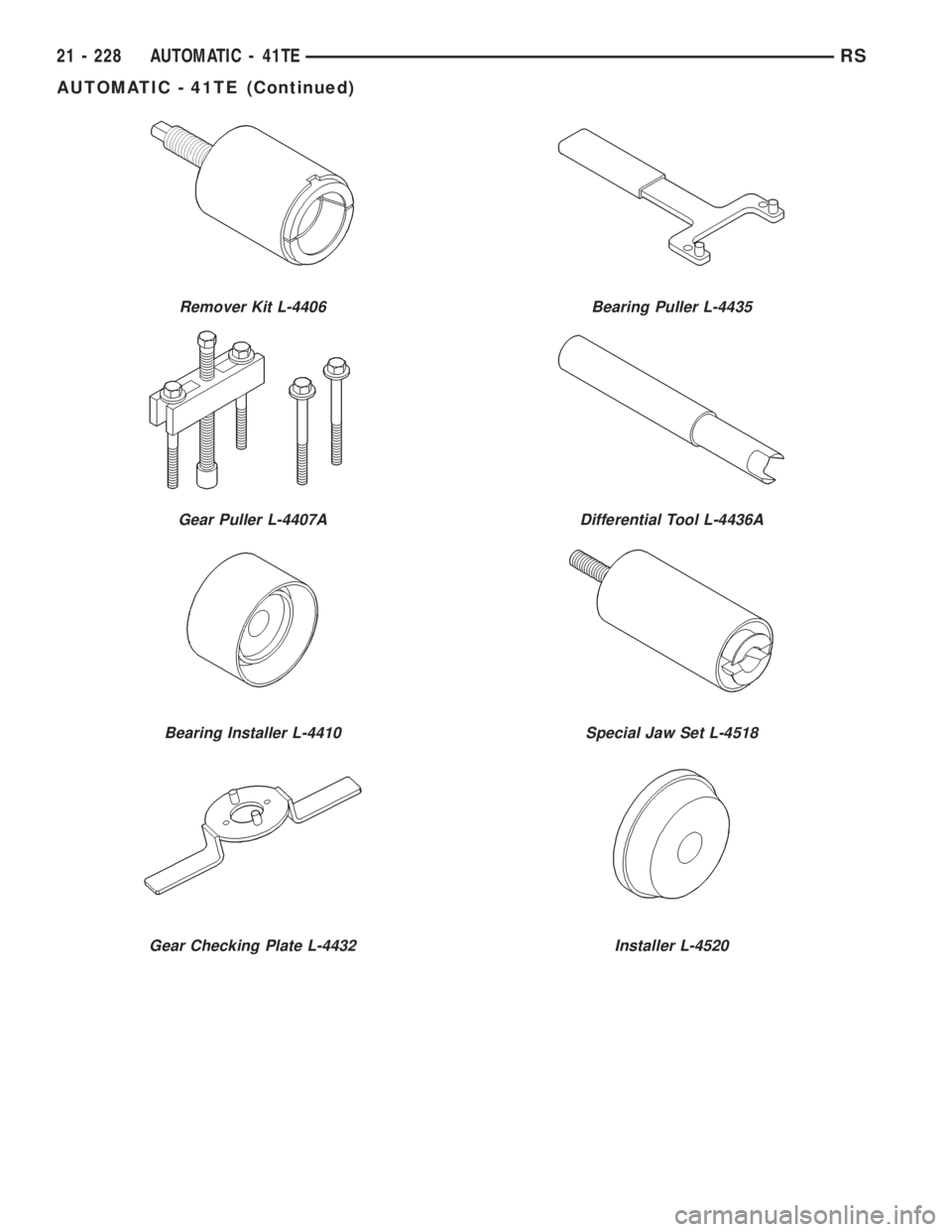

CHRYSLER VOYAGER 2001 Service Manual Remover Kit L-4406 Gear Puller L-4407A Bearing Installer L-4410 Gear Checking Plate L-4432 Bearing Puller L-4435 Differential Tool L-4436A Special Jaw Set L-4518 Installer L-4520 21 - 228 AUTOMATIC -
