Page 1065 of 4284

CHRYSLER VOYAGER 2001 Service Manual DIAGNOSTIC JUNCTION PORT - BLACK 16 WAYCAV CIRCUIT FUNCTION 1 D25 20WT/VT PCI BUS (PCM/SKIM/ECM/THATCHAM) 2 D25 20WT/VT PCI BUS (HVAC) 3 D25 20WT/VT PCI BUS (RADIO) 4 D25 20WT/VT PCI BUS (ORC) 5 D25 2

Page 1066 of 4284

CHRYSLER VOYAGER 2001 Service Manual DRIVER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAYCAV CIRCUIT FUNCTION 1 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A) 2 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B) DRIVER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAYCA

Page 1067 of 4284

CHRYSLER VOYAGER 2001 Service Manual DRIVER SEAT BELT TENSIONER-2WAYCAV CIRCUIT FUNCTION 1 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2 2 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1 ELECTRIC WIPER DE-ICER C1 - WHITE 2 WAYCAV CIRCUIT F

Page 1068 of 4284

CHRYSLER VOYAGER 2001 Service Manual ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAYCAV CIRCUIT FUNCTION 1 Z130 14BK/BR GROUND 2 Z131 14BK/DG GROUND 3 K20 14BR/GY GENERATOR FIELD CONTROL 4 K342 14BR/WT ECM/PCM RELAY OUTPUT 5 K342 14BR/W

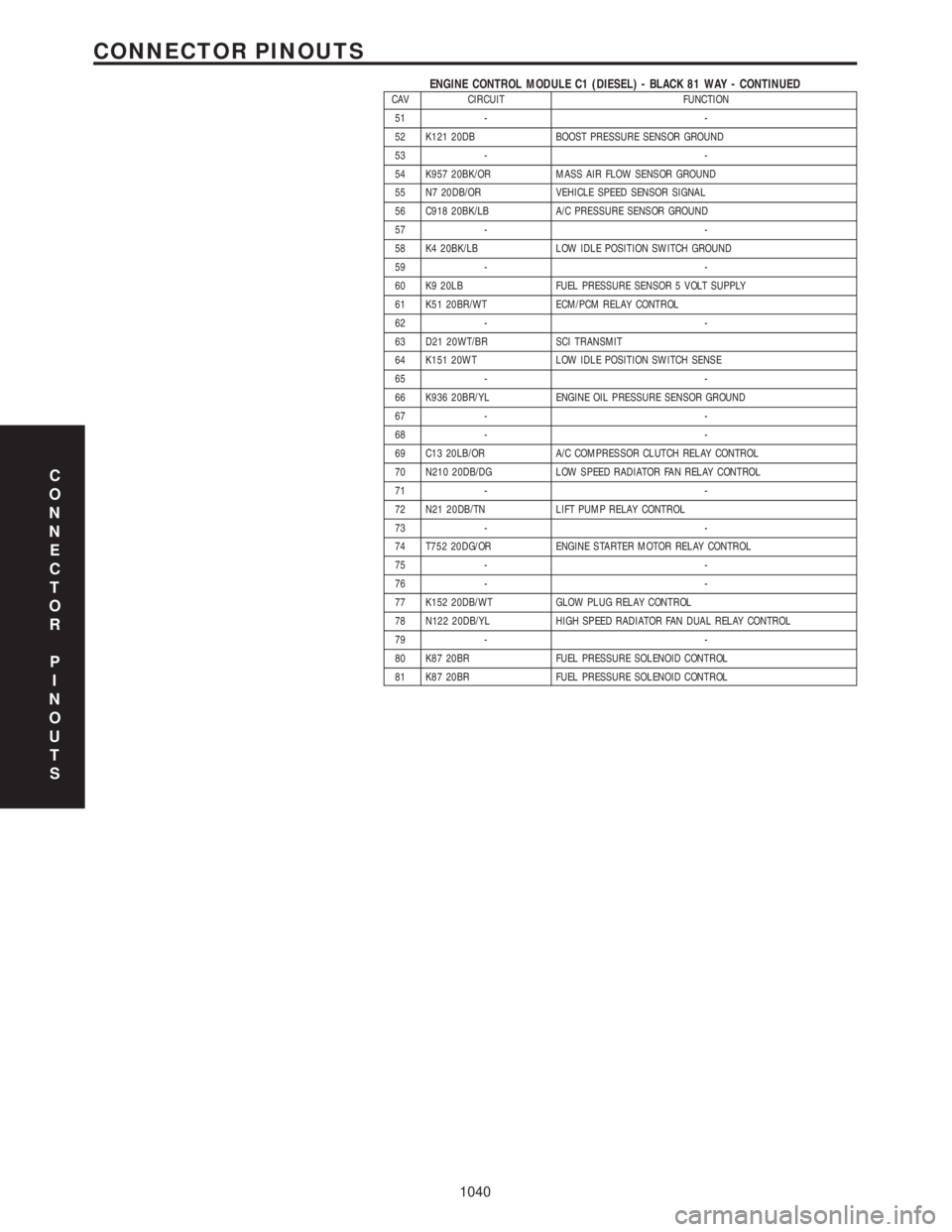

Page 1069 of 4284

CHRYSLER VOYAGER 2001 Service Manual ENGINE CONTROL MODULE C1 (DIESEL) - BLACK 81 WAY - CONTINUEDCAV CIRCUIT FUNCTION 51 - - 52 K121 20DB BOOST PRESSURE SENSOR GROUND 53 - - 54 K957 20BK/OR MASS AIR FLOW SENSOR GROUND 55 N7 20DB/OR VEHIC

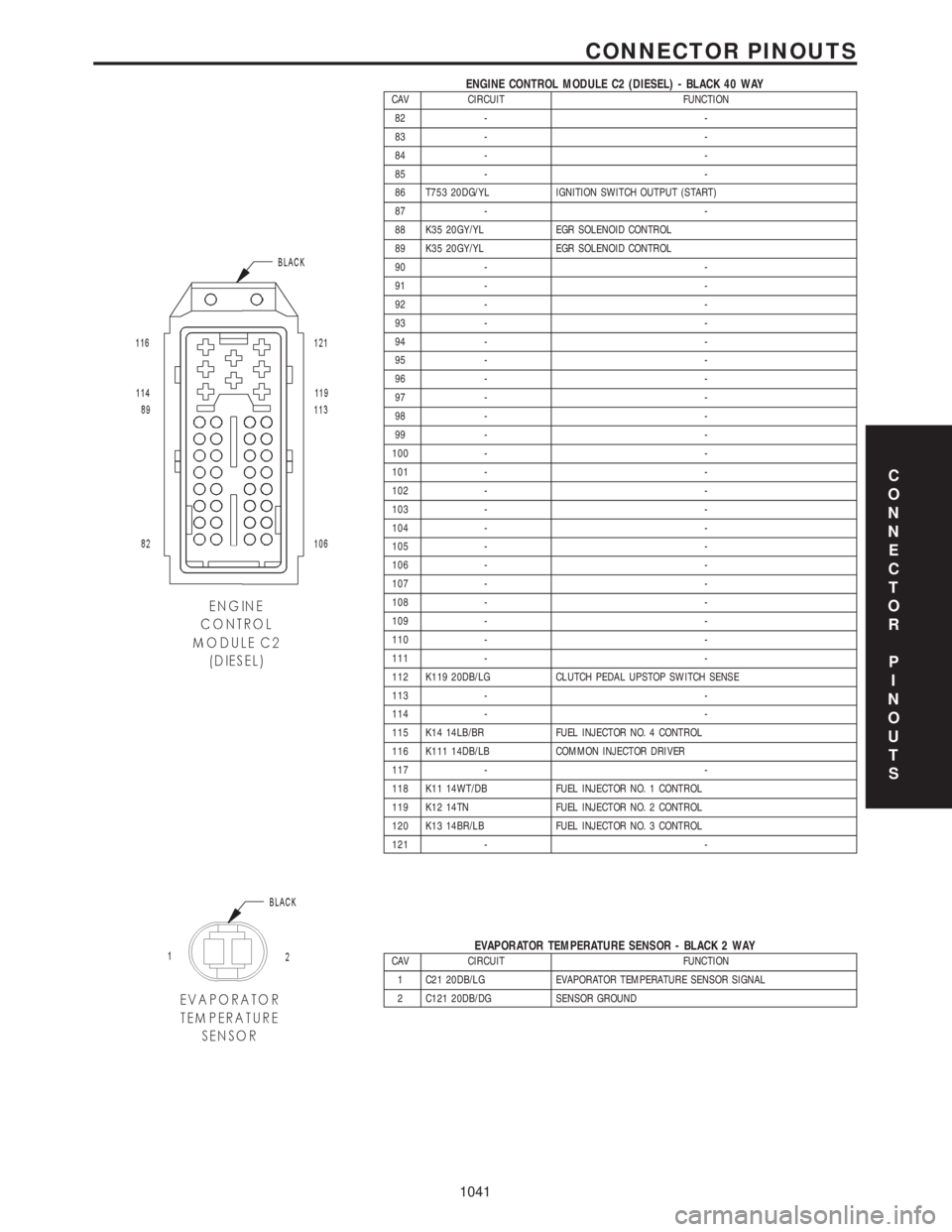

Page 1070 of 4284

CHRYSLER VOYAGER 2001 Service Manual ENGINE CONTROL MODULE C2 (DIESEL) - BLACK 40 WAYCAV CIRCUIT FUNCTION 82 - - 83 - - 84 - - 85 - - 86 T753 20DG/YL IGNITION SWITCH OUTPUT (START) 87 - - 88 K35 20GY/YL EGR SOLENOID CONTROL 89 K35 20GY/Y

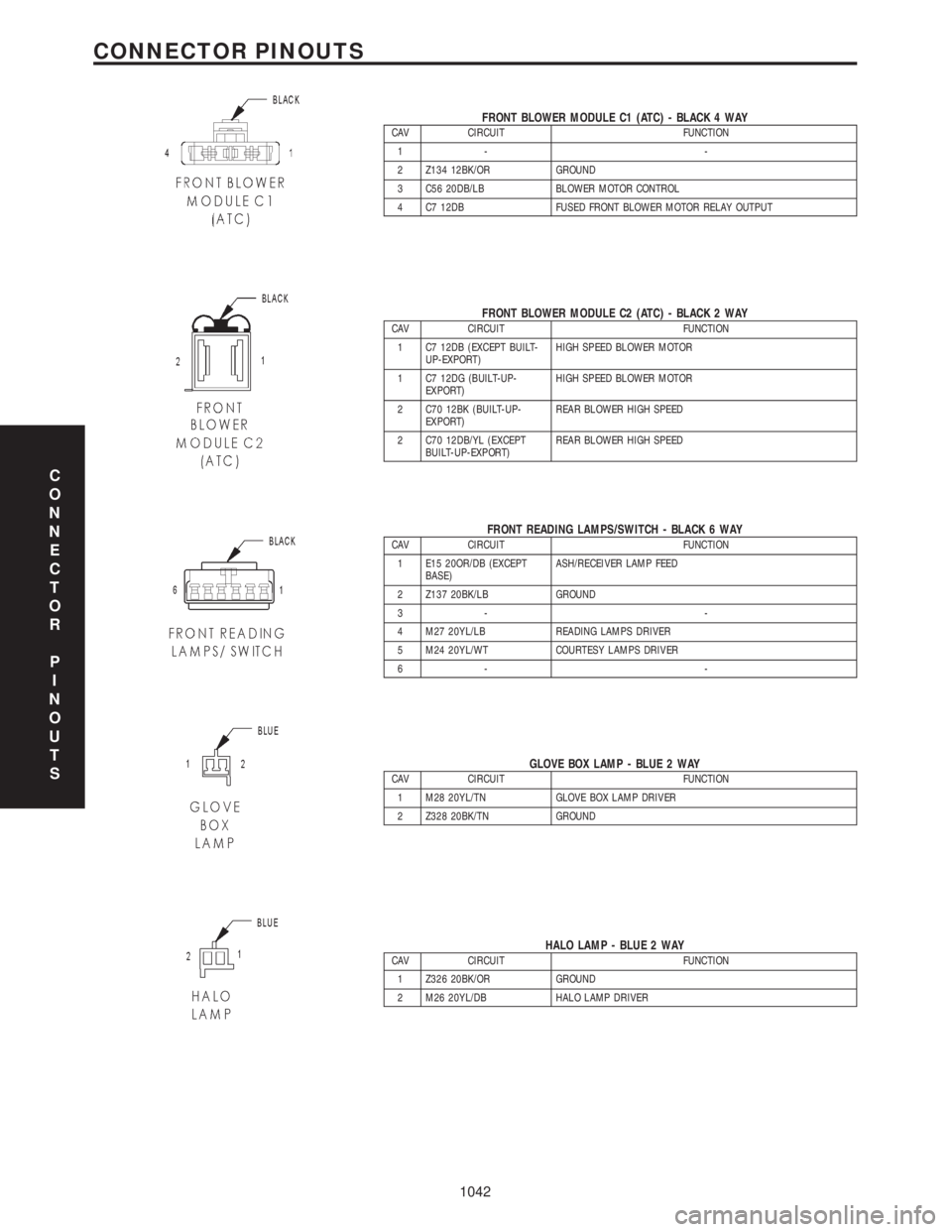

Page 1071 of 4284

CHRYSLER VOYAGER 2001 Service Manual FRONT BLOWER MODULE C1 (ATC) - BLACK 4 WAYCAV CIRCUIT FUNCTION 1- - 2 Z134 12BK/OR GROUND 3 C56 20DB/LB BLOWER MOTOR CONTROL 4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT FRONT BLOWER MODULE C2 (ATC

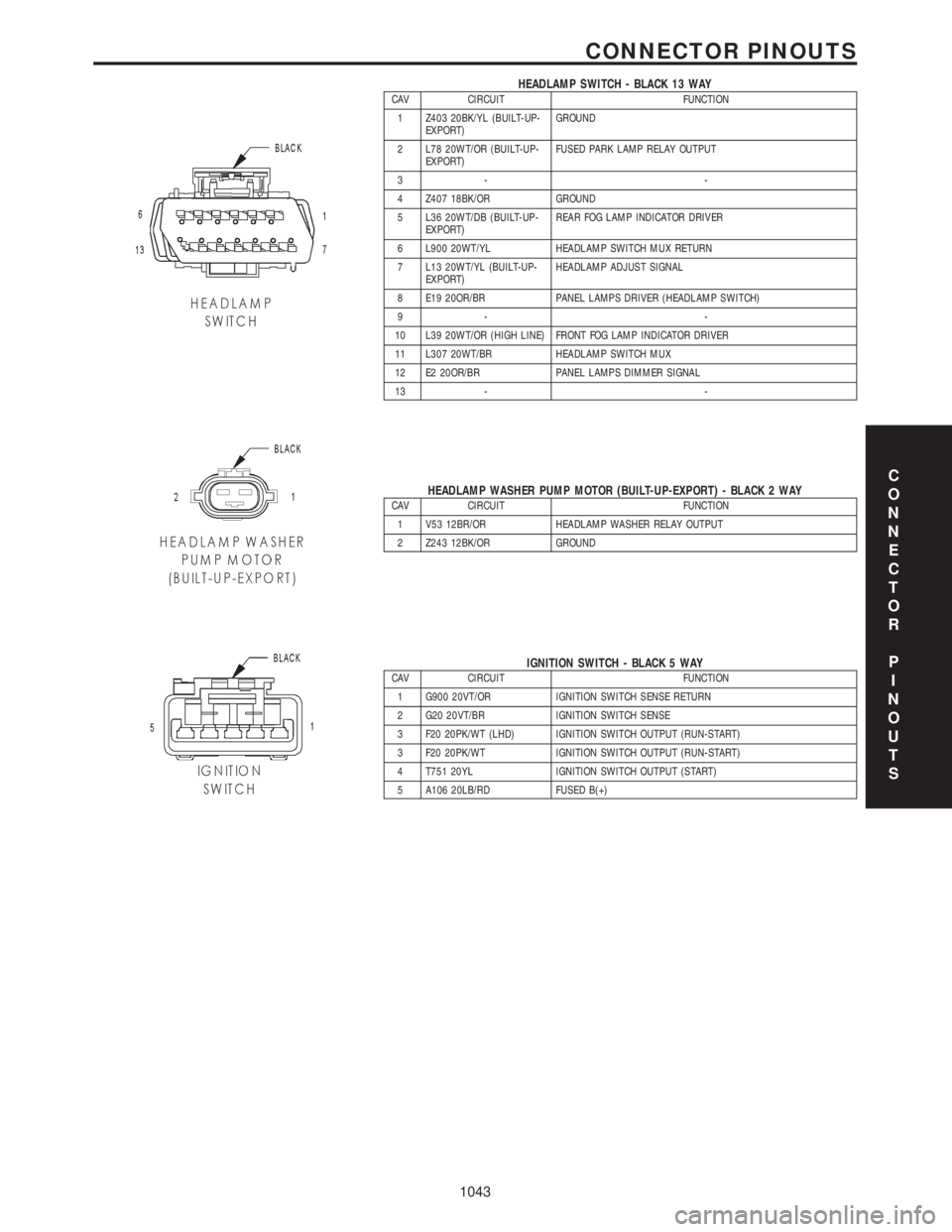

Page 1072 of 4284

CHRYSLER VOYAGER 2001 Service Manual HEADLAMP SWITCH - BLACK 13 WAYCAV CIRCUIT FUNCTION 1 Z403 20BK/YL (BUILT-UP- EXPORT)GROUND 2 L78 20WT/OR (BUILT-UP- EXPORT)FUSED PARK LAMP RELAY OUTPUT 3- - 4 Z407 18BK/OR GROUND 5 L36 20WT/DB (BUILT-
